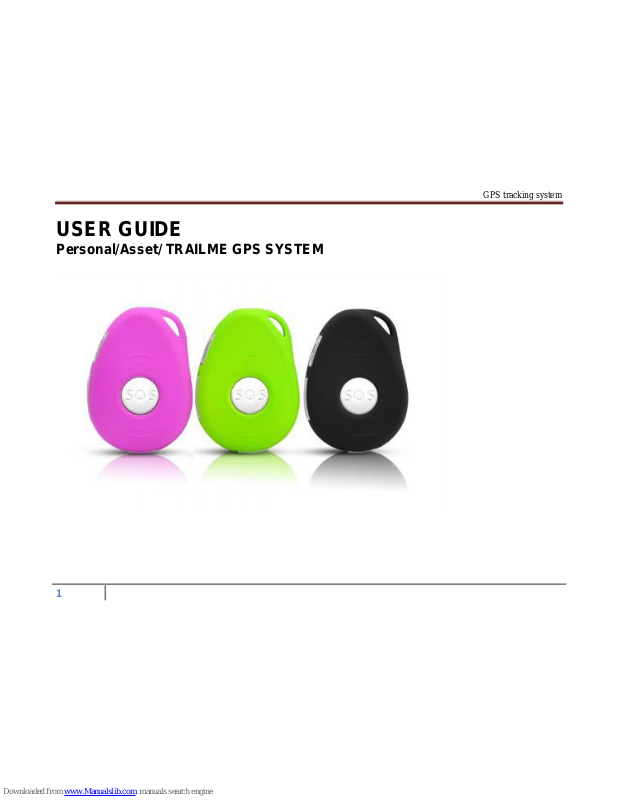

GPS tracking system
1
USER GUIDE
Personal/Asset/ TRAILME GPS SYSTEM
GPS tracking system
2
1. Product Overview
Thank you for using this brand new personal GPS tracker. This device is an innovative miniature size and personal
remote positioning device with built-in U-blox GPS and GSM/GPRS technology. It’s for monitoring and protecting
people and property. It can be used in all walks of life from traveling lone workers and mobile nursing staff to
children and the elderly, Dementia etc.
What’s New?
1. Unique design, combination of style and technology.
2. Supports A-GPS for accelerated positioning.
3. Supports GPS and Cellular tracking.
4. Two way voice communications.
5. Fall detection via 3D G-sensor
6. Firmware upgrade over the air.
7. Built-in 8MB flash memory.
8. GPRS blind area data re-upload function.
GPS tracking system
3
2. Getting Start, Please follow me!
2.1 Hardware and Accessories:
This device is supplied in a box which includes:
Device USB Cable
2.2 Functional Parts
2.3 Functional Parts
GPS tracking system
4
2.3 Functional Parts
GPS tracking system
5
2.4 How to insert the SIM card
Using the image below as a guide, flip and rotate your SIM card until it matches the image, then insert your SIM card into the SIM slot.
To ensure the SIM card has been inserted all the way, push the SIM card until you hear a click, which indicates the card has been successfully inserted.
Usages
- For the first time use, please fully charge the battery around 8 hours.
- When charging, the Power LED will be on (solid). After fully charged, the power LED will be off.
- Insert an activated Micro SIM card and turn on the unit by pressing the on/off button for 3 seconds.
- Please keep the unit under the open sky or close the window to be able to get a fix on the satellites.
3. To set the Authorized Number
※ It is not mandatory for all three of the authorized numbers to be set, however a minimum of one must always be set.
Set up the 3 authorized mobile phone numbers to track the unit.
① Command: A1
Note: With no spaces in the text, case-insensitive.
※ Using your mobile phone, send A1 to the SIM card phone number in the device, it will reply you a message: ·Set mobile
number 1 OK!
GPS tracking system
6
※ To delete this number from stored memory, you can send A0 to the tracker.
②Command: B1
The device will reply you a message: ·Set mobile number 2 OK!
※ To delete this number from stored memory, you can send B0
③Command: C1
The device will reply you a message:·Set mobile number 3 OK!
※ To delete this number from stored memory, you can send C0
4. Modify the Time zone:
Command: TZ+ +00/-00
Note: the time must amounts be in 2 digits and at maximum 23 hours in value. “+” in the “time zone” portion of the text indicates
east. The symbol “-“ in the “time zone” indicates west.
Example: tz+02, the system will add 2 hours based on the UTC time.
tz-02, the system will minus 2 hours based on the UTC time.
※ UTC time has been set as default time.
5. User defined name in SMS content:
Command: name1, user name
Example: name1, Ryan, the tracker will reply “Add name ok!”
※ To delete name, you can send name0
GPS tracking system
7
6. Location request:
6.1 Reply with coordinates and web link.
Command: loc
The device will reply “Time: xxxxx; Lat: xxxx; Lon: xxxx; Spd: xxxxx, Altitude:xxxx Bt: xxx
maps.google.com/maps?q=loc:12.86673,77.650620
※Put coordinates to Google earth or Google maps. Click on search button, then you will find the position fixed.
※Click on the link then the location can be shown directly on Google Map on your mobile phone.
6.2 Reply with Address.
Command: add
Notes: This function needs GPRS function support!
The device will reply “Add: 35, Basapura Main Road, Basapura, Bengaluru, Karnataka 560100, India;
7. Cell Locate
※The unit can be tracked by GSM base station tower, If GPS signal is not available for example in room, underground etc, user can
be located by GSM tower.
However, as compared to GPS satellite, GSM accuracy is proven to be worse than that of GPS. GSM provider utilizes triangulation
techniques to try to
pinpoint the location of the device, and GSM base station is further affected by factors similar to GPS in the sense of the barriers
affecting signal quality and
the density of GSM towers to assist in the triangulation effort, with some regional areas having errors of 100M-2KM!
Command: CL1
The device will reply “Cell locate on!
To turn off this function, please send CL0
8. GEO-FENCE Alarm
Command: G+X, Y, Z, xxxM/KM
Example: G1,1,1,100M
GPS tracking system
8
Notes: No space in between.
X=No. Of Geo fence (1~3), user can set 3 Geo fences
Y=0 means to turn off the function Y=1 means to turn on the function
Z=1 means to set alarm when the tracker enters the preset area
Z=0 means to set alarm when the tracker breaches the district
xxx is the preset distance to the tracker’s original place, must be 3 digitals. M means meters, KM means kilometers
The device will send the message to the authorized numbers as “Geo fence alarm!+GPS info” when it enter the area you set.
(User must set this function when tracker already fixed GPS signal)
To turn off this function, please send G1,0 or G2,0 or G3,0
9. Over-Speed alert
Command: speed1,+ Speed
Notes: The speed must be in value of speed and in 2 or 3 digitals. (01~255km/h)
Example: speed1,100
Suppose the over-speed alert that we want to set is 100km/h, when the device moves exceeds 100km/h, it will send message “Overspeed! +GPS Info” to allpreset numbers.
To turn off this function, please send speed0 to the device.
GPS tracking system
9
10. GPS signal lost and recovery alert:
Command: GR1
The device will automatically send the latest available GPS information to the preset numbers when it enters into the area without
GPS signal.
If user goes into an area that does not have a GPS signal, such as a tunnel, cave, parking garage, etc. – the device will know where
user was 10 minutes before they went into such an area. This is critical! If a child goes missing – you’ll be able to know the closest
possible location before the GPS signal was lost.
With any SMS sent during the period without GPS signal, the device will reply GPS information to preset numbers soonest as the GPS
signal is covered. To turn off this function, please send GR0
11. Movement Alert:
Command: M1, xxxM/KM
Notes: xxx is the preset distance to the tracker’s original place, must be 3 digitals. M means meters, KM means kilometers
Example: m1,100m
When the tracker moves out of 100 meters, it will send SMS alarm to the preset numbers.
To turn off this function, please send M0 to the device.
12. Listen-in (Voice wiretapping):
Command: L1
Only A1, B1, C1 number can make a silence call to the tracker, the track answers the call automatically and allows the caller to listen
to what happens around
the tracker. There is no voice indication that the call is in progress.
To turn off this function, please send L0 to the device.
13. Vibration alarm:
Command: V1, xx S/M/H
Note: No space in between, S means second, M means minute, H means hour, xx means the time you set and must be two digitals.
Example: V1,05M
If user turns on this function, device will detect motion every 5 minutes and will send SMS alarm to all registered phone numbers for
warning.
To turn off this function, please send V0
GPS tracking system
10
14. Shut down 3 LEDs:
Command: LED1
The device will reply “LED off” and later LEDs will stop flashing, but device is actually running.
To turn off this function, please send LED0
15. AGPS
Command: AGPS1
A-GPS is for accelerated positioning and helping position a device when GPS signals are weak or not available. GPS satellite signals
may be impeded by tall
buildings, and do not penetrate building interiors well. A-GPS uses proximity to cellular towers to calculate position when GPS
signals are not available.
To turn off this function, please send AGPS0
16. Fall detection
Command: FL1
Device will reply “fall detection on” and will send alarm to all registered phone numbers if detect fall.
A simple fall may cause a devastating consequence. A Fall Sensor can help you get immediate help without missing any important
moment.
To turn off this function, please send FL0
17. Smart Power saving mode
Command: PS1
Device built-in motion sensor. Under this mode, GSM chip always on, GPS chip activates by motion or incoming call or SMS, GPS chip
off when its no motion
or calling or SMS. You won't waste any battery life when device isn't moving.
Under normal use, battery can last 4 ~ 10 days.
To turn off this function, please send PS0
GPS tracking system
11
18. Deep Sleeping mode
Command: DS1
Both GSM and GPS chip will be off to save power, it can be only activated by motion sensor. Once it activated by motion, it will
running for 15 minutes and
sleep again if no motion detected.
Battery can last 40 days if no motion at all.
To turn off this function, please send DS0
19. Check preset mobile phone numbers & status:
Command: status
The device will reply E.g. A+8613812345678 B13912345678 C13712345678; Spd: 0,100km/h; Geo:0,0,0; VB:1,10S;
MV:1,100; LBS:1; LED:0; RCV:0; TZ:2.0;
Lis-in: 1; PS:1; DS:0; FL:1; Bat: 95
To recognize the meaning of “0”& “1”
The number “0” implies that the function is turned off; whilst “1” indicates that the function is turned on.
20. SOS Button
Once the SOS button is pressed for 3 seconds, the GSM light will dim for 2 times and SOS Alarm "Help me! + GPS info!" will be sent
to the authorized phone number and Website. In the mean time, it will dial 3 authorized numbers every 30 seconds. The first
number will take priority over the second, the third one.
If the tracker fails connect to the first number, it will switch to the second one, In case the second number fail to be connected too,
the system will connect to the third number etc, this will go on and on until one of the telephone pick up, then two ways
communication starts.
21. Call Button
Press Call button for 3 seconds, the GSM light will dim for 2 times and the tracker will dial the first number.
22. How to adjust Sound Volume:
Pressing the side button VOL+\ VOL- to adjust the volume when in two way voice communication.
GPS tracking system
12
23. Low battery alarm:
Note: When the tracker’s battery is lower than 20%, it will send a SMS alarm “BAT: LOW! + GPS INFO” to all preset numbers.
24. Real time tracking on www.smart-tracking.com
Our web based tracking system incorporates the TCP/IP protocol and allows users to monitor it in real time over the internet or
sends an e-mail to the predefined e-mail address.
How to add trackers to the website:
1, Send SMS command A1 to the tracker.
2, Send version to get the tracker's IMEI.
3, visit web site www.smart-tracking.com and login with your account.
4, on the left side, click "Manage". Then click "Tracker Info", and click "Add new tracker" on the left top of opened window.
5, Line 1 - Name: give the tracker a name.
Line 2 - Tracker Type: any one will be OK.
Line 3 - Hardware Version: Please choose EV07 here.
Line 4 - IMEI: enter the IMEI that you have received by SMS command version.
Line 5 - User ID: This is to choose an account to manage this tracker, you can use your own account. the rest information are not
necessary. Click "Add".
24.1 GPRS Settings:
In order to use the GPRS function, the user needs to setup the APN by sending SMS command.
--What is APN? Access point name (APN) is the name used to identify a general packet radio service (GPRS) bearer service in the
GSM mobile network. The
APN defines the type of service that is provided in the packet data connection.
※ Make sure that the SIM card in the tracker supports the GPRS function.
※ The APN can be acquired from your local GSM operators.
Command: S1, APN, user name, password
Notes: Some access point name without user name and password, so please leave it blank.
Example: S1,internet
GPS tracking system
13
“internet” is the APN from the SIM card provider; therefore the user must set their particular APN for their own country which the
unit resides. After sending the command, the device will reply “Set APN OK! GPRS connecting”
24.2 Disable GPRS:
Command: S0
The device will reply “GPRS OFF”.
24.3 Reconnect GPRS
Reconnect the website via GPRS for real time tracking, please send S2
24.4 Set GPRS Time interval by SMS
Command: TIxxS/M/H
The meaning of “xx”, The setting must be in 2 digitals and maximum 99 in value, which means 01~99.
xxS is the time interval in second with range(30~99)
xxM is the time interval in minute with range(01~99)
xxH is the time interval in hour with range(01~99)
Example: TI01M
The device will reply “Set updating time interval OK!” and then device will update the time by every 1 minute on the website.
24.5 Check APN & VPN or IP
Command: G1
The device will reply “APN: internet; Name: xxx; Password: xxxx; Port: 5050; VPN or IP:www.smart-tracking.com”
25. Get IMEI/Version number
Command: version
The device will reply” IMEI: xxxx; GSM CSQ:xxxx; Soft:V07.20.10.1345”
26. Change IP and Port:
Command: IP1,IP,port
Example: IP1,103.21.211.11,5050
GPS tracking system
14
27. Reboot Device:
Command: reboot
The device will restart itself without changing any settings.
28. Initialization:
Command: RESET!
Note: This is to make all settings back to the factory default.
29. Built-in Memory
The device built in 8MB flash memory inside. It will store the GPS information when do not have GSM network coverage (i.e., very
low population density areas, some mountainous terrain, underground areas etc). The device will transmit GPS locations to the WEB
server automatically once the GSM network is recovered.
Cautions:
Please comply with the instructions to extend the unit life:
1. Keep the unit dry. Any liquid may destroy or damage the inside circuitry.
2. Don’t use & store the unit in dusty places.
3. Don’t put the unit in overheated or overcooled places.
4. Clear the unit with a piece of dry cloth. Don’t clean in chemicals, detergent.
5. Don’t disassemble or refit the unit.
6. Using other batteries will cause unwanted situation
GPS tracking system
15
Hardware Specification:
Loading...
