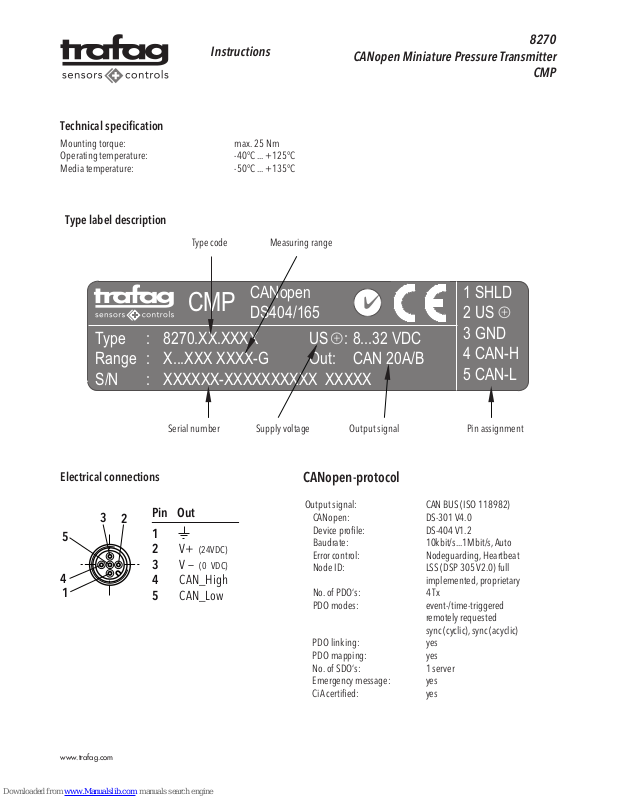

trafag 8270 Instructions Manual
Type : 8270.XX.XXXX US : 8...32 VDC
Range : X...XXX XXXX-G Out: CAN 20A/B
S/N : XXXXXX-XXXXXXXXXX XXXXX
CMP
CANopen
DS404/165
1 SHLD
2 US
3 GND
4 CAN-H
5 CAN-L
www.trafag.com
8270
CANopen Miniature Pressure Transmitter
CMP
Instructions
Electrical connections
Measuring rangeType code
Serial number Supply voltage Pin assignmentOutput signal
Technical specification
Mounting torque: max. 25 Nm
Operating temperature: -40°C ... +125°C
Media temperature: -50°C ... +135°C
Type label description
Pin Out
1
2 V+
(24VDC)
3 V — (0 VDC)
4 CAN_High
5 CAN_Low
3
4
2
5
1
Output signal: CAN BUS (ISO 118982)
CANopen: DS-301 V4.0
Device profile: DS-404 V1.2
Baudrate: 10kbit/s...1Mbit/s, Auto
Error control: Nodeguarding, Heartbeat
Node ID: LSS (DSP 305 V2.0) full
implemented, proprietary
No. of PDO‘s: 4 Tx
PDO modes: event-/time-triggered
remotely requested
sync (cyclic), sync (acyclic)
PDO linking: yes
PDO mapping: yes
No. of SDO‘s: 1 server
Emergency message: yes
CiA certified: yes
CANopen-protocol
www.trafag.com
We reserve the right to make alternations as technical progress may warrant.
H73614g
Trafag AG 3/2018
8270.XX.XXXX.35.XX.XX
8270.XX.XXXX.XX.XX.33
≤ 0 ...2.5 bar
> 0 ...2.5 bar
Electrical connections
Pressure connections
Ø19
19
10
M12x1
3 2
4
1
5
Pin Out
1
2 V + (24 VDC)
3 V (0 VDC)
4 CAN_High
5 CAN_Low
54 ... 60
~Ø20
8270.XX.XX17.XX.XX.XX
34.6
12
6.2
G1/4”
21
SW19
O-Ring
13.1x1.6
2
Ø
8270.XX.XX 30.XX.XX.XX
37.7
15.1
2
6.2
1/4”NPT
21
SW19
Ø
34.6
9.5 2.5
8.2
M10x1
DIN EN ISO 6149-2
Ø 21
SW 19
8270.XX.XX 32.XX.XX.XX
8270.XX.XX17.XX.XX.XX
12
32
2
16
O-Ring
G1/4“
13.1x1.6
Ø
SW19
21
Ø
8270.XX.XX30.XX.XX.XX
1/4“ NPT
SW19
Ø 21
15.1 2 13.1
8270.XX.XX18.XX.XX.XX
32.65
16.8514
SW19
Ø 21
7/16“-20UNF
90°
8270.XX.XX32.XX.XX.XX
M10x1
DIN EN ISO 6149-2
31.85
9.5 2.5
18.35
Ø 21
SW 19
29
6.9
7/16“-20UNF
SW19
Ø
21
8270.XX.XX24.XX.XX.XX
12
42.1
2
G1/4“
SW19
Ø21
O-Ring
Ø
13.1x1.6
8270.XX.4417.XX.XX.XX
15.1
45.2
2
1/4“ NPT
SW19
Ø
21
8270.XX.4430.XX.XX.XX
