TRADIM 31070 Installation Manual

31070-SERIES

TRADIM Aalsbergen 9, 6942 SE Didam, The Nethe

rlands www.tradim.nl

31070-SERIES

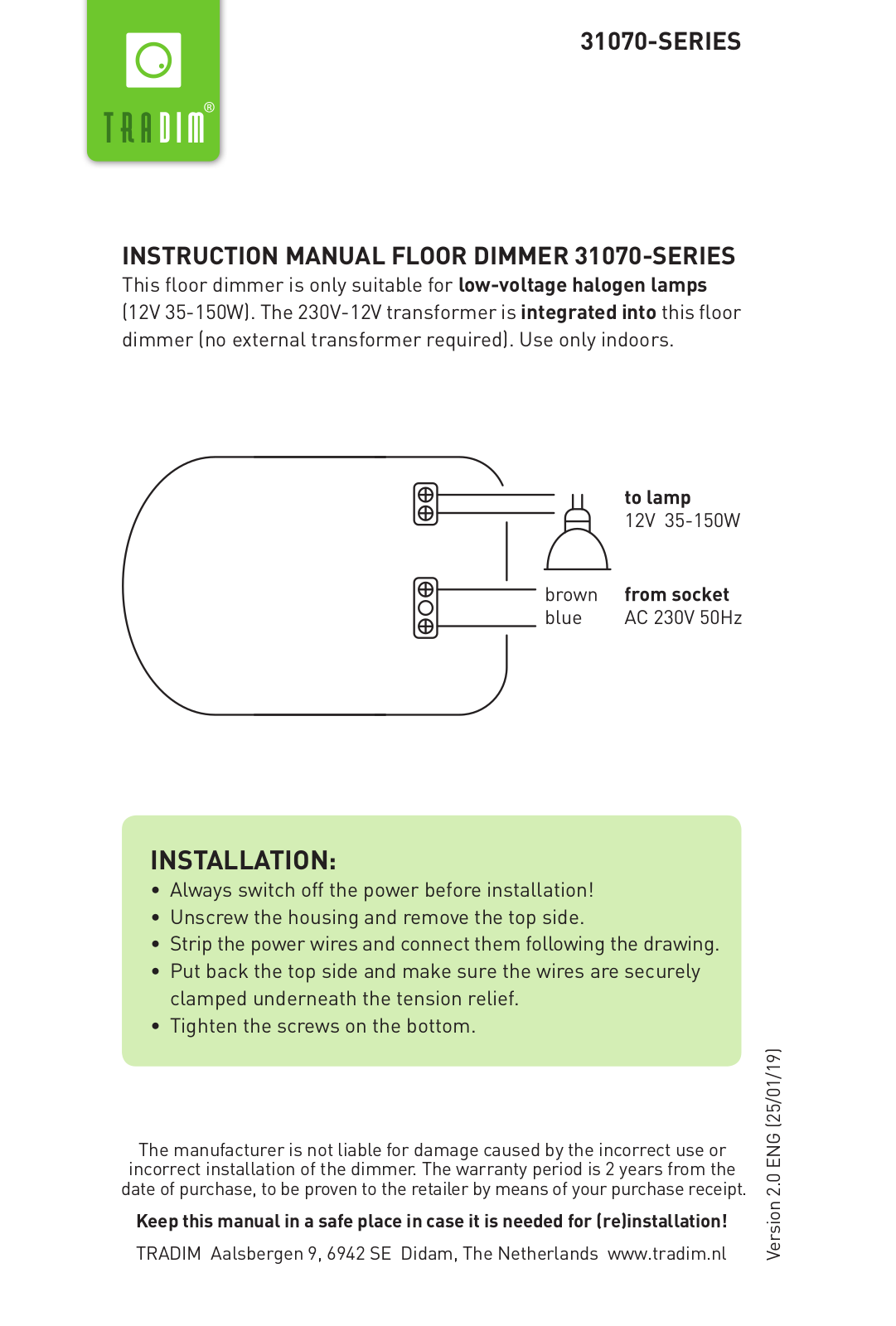

INSTRUCTION MANUAL FLOOR DIMMER 31070-SERIES

This floor dimmer is only suitable for low-voltage halogen lamps
(12V 35-150W). The 230V-12V transformer is integrated into this floor
dimmer (no external transformer required). Use only indoors.

INSTALLATION:

• Always switch off the power before installation!

• Unscrew the housing and remove the top side.

• Strip the power wires and connect them following the drawing.

• Put back the top side and make sure the wires are securely
clamped underneath the tension relief.

• Tighten the screws on the bottom.

The manufacturer is not liable for damage caused by the incorrect use or

incorrect installation of the dimmer.

date of purchase, to be proven to the retailer by means of your purchase receipt.

Keep this manual in a safe place in case it is needed for (re)installation!

TRADIM Aalsbergen 9, 6942 SE Didam, The Netherlands www.tradim.nl

The warranty period is 2 years from the

Version 2.0 ENG (25/01/19)
