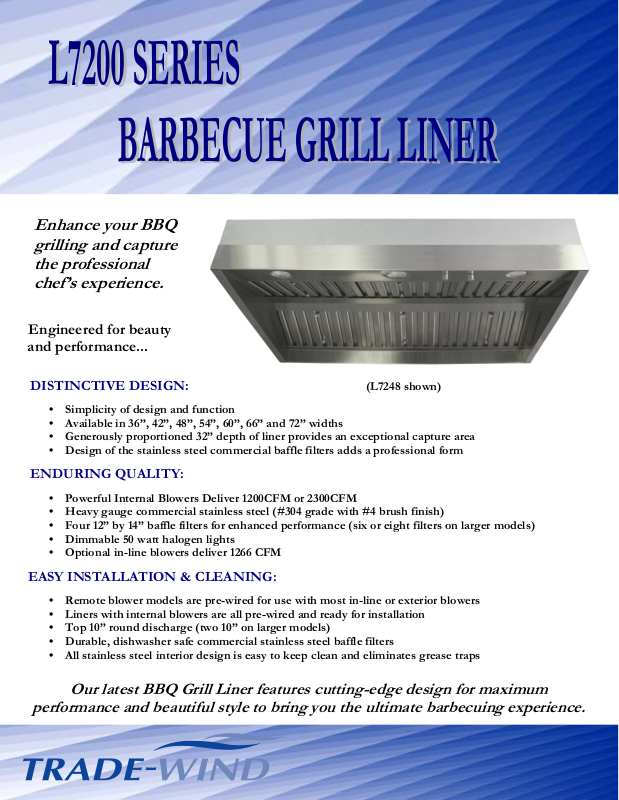

Trade-Wind L726623, L7272, L727223, L726023 Specifications

Enhance your BBQ
grilling and capture
the professional
chef’s experience.

Engineered for beauty

and performance...

DISTINCTIVE DESIGN: (L7248 shown)

• Simplicity of design and function

• Available in 36”, 42”, 48”, 54”, 60”, 66” and 72” widths

• Generously proportioned 32” depth of liner provides an exceptional capture area

ENDURING QUALITY:

EASY INSTALLATION & CLEANING:

• Design of the stainless steel commercial baffle filters adds a professional form

• Powerful Internal Blowers Deliver 1200CFM or 2300CFM

• Heavy gauge commercial stainless steel (#304 grade with #4 brush finish)

• Four 12” by 14” baffle filters for enhanced performance (six or eight filters on larger models)

• Dimmable 50 watt halogen lights

• Optional in-line blowers deliver 1266 CFM

• Remote blower models are pre-wired for use with most in-line or exterior blowers

• Liners with internal blowers are all pre-wired and ready for installation

• Top 10” round discharge (two 10” on larger models)

• Durable, dishwasher safe commercial stainless steel baffle filters

• All stainless steel interior design is easy to keep clean and eliminates grease traps

Our latest BBQ Grill Liner features cutting-edge design for maximum

performance and beautiful style to bring you the ultimate barbecuing experience.

Drawing

Model

Size

CFM

3-Speed

Motors

In-Line/Remote

Blower

Halogen

Lights

SS Baffle

Filters

Top

Discharge

Variable

Light

Control

A

L7236

36” X X X X X A

L7236-12

36”

1200 X

X X X

X

A

L7242

42” X X X X

X

A

L7242-12

42”

1200 X

X X X X A

L7248

48” X X X X X A

L7248-12

48”

1200 X

X X X X B

L7254

54” X X X X X B

L7254-23

54”

2300 X

X X X X B

L7260

60” X X X X

X

B

L7260-23

60”

2300

X

X X X

X

B

L7266

66” X X X X X B

L7266-23

66”

2300 X

X X X X B

L7272

72” X X X X X B

L7272-23

72”

2300 X

X X X

X

Drawing - A

Drawing - B

MADE IN PHOENIX, AZ USA

 All models exhaust vertically through a 10” round duct (two 10” on larger models)

 All dimensions are nominal +/- 1/8”

Trade-Wind Manufacturing, LLC
notice) any or all of its products, features, designs, components and specifications. For exact dimensions, see the installation
instructions included with the product.

 Center of .875” electrical access holes are 2.5” from rear edge & 1.25” from both outside edges

®

has a policy of continuous improvements and reserves the right to modify (at any time without

For more information please contact your dealer or your Trade-Wind® representative.

800 West Grant Street Phoenix, AZ 85007

1-800-955-5737

602-900-8500

t-wusa.com

Revised 6/11/18 © Copyright 2018 Trade-Wind Manufacturing, LLC Proverbs 22:29
