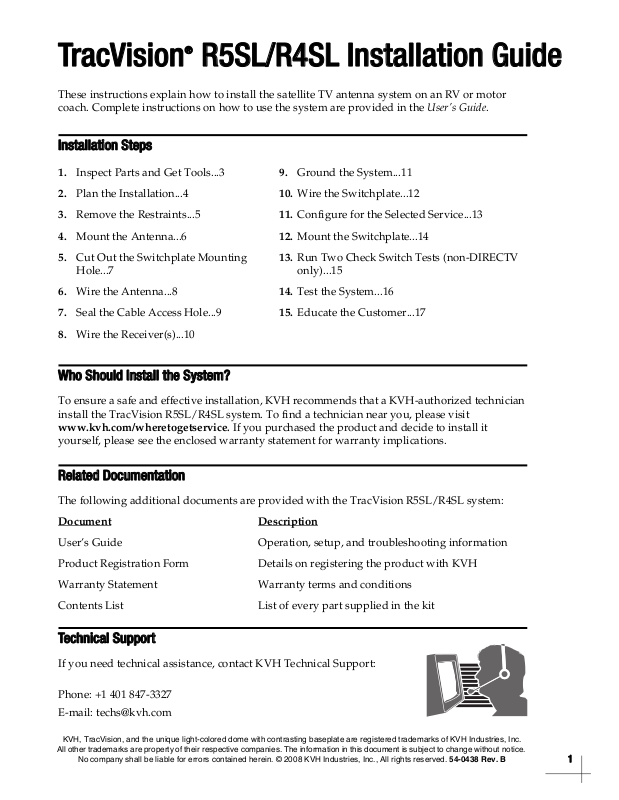

TracVision R5SL, R4SL Installation Manual

®
TracVision
These instructions explain how to install the satellite TV antenna system on an RV or motor coach. Complete instructions on how to use the system are provided in the User’s Guide.
R5SL/R4SL Installation Guide
Installation Steps
1. Inspect Parts and Get Tools...3 9. Ground the System...11
2. Plan the Installation...4 10. Wire the Switchplate...12
3. Remove the Restraints...5 11. Configure for the Selected Service...13
4. Mount the Antenna...6 12. Mount the Switchplate...14
5. Cut Out the Switchplate Mounting
Hole...7
6. Wire the Antenna...8 14. Test the System...16
7. Seal the Cable Access Hole...9 15. Educate the Customer...17
8. Wire the Receiver(s)...10
13. Run Two Check Switch Tests (non-DIRECTV
only)...15
Who Should Install the System?
Related Documentation
The following additional documents are provided with the TracVision R5SL/R4SL system:
Document
User’s Guide Operation, setup, and troubleshooting information
Description
Product Registration Form Details on registering the product with KVH
Warranty Statement Warranty terms and conditions
Contents List List of every part supplied in the kit
Technical Support
If you need technical assistance, contact KVH Technical Support:
Phone: +1 401 847-3327
E-mail: techs@kvh.com
KVH, TracVision, and the unique light-colored dome with contrasting baseplate are registered trademarks of KVH Industries, Inc.
All other trademarks are property of their respective companies. The information in this document is subject to change without notice.
No company shall be liable for errors contained herein. © 2008 KVH Industries, Inc., All rights reserved. 54-0438 Rev. B
1
TracVision R4SL, R5SL
This addendum only applies if the vehicle is located in the southwestern U.S. (California, Nevada, Arizona, New Mexico, Texas, or Oklahoma) and you need to configure the system for
DISH Network
®
service.
IMPORTANT!
Addendum
PLEASE READ! Important Addendum to Your Product Manual
This addendum applies to the following TracVision® antenna models: R4SL and R5SL.
Running Check Switch Tests for DISH Network in the Southwest
Due to the higher elevation angle in the Southwest to the 119 satellite, follow the modified steps below to run the receiver Check Switch tests for a DISH Network configuration.
1. Park the vehicle in a blockage-free area. Ensure the antenna has an unobstructed view of the entire southern sky.
2. Ensure the receiver you wish to configure is connected to the the antenna’s RF1 cable.
3. Apply power to the TV and receiver.
4. If the antenna is turned off, turn it back on and wait two
minutes for system startup.
5. Using the receiver’s remote, go to the “Point Dish/ Signal Strength” screen (press MENU, 6, 1, 1 on most models).
6. Choose Check Switch, then press SELECT.
7. Choose Test, then press SELECT.
ECO #8505
1
TracVision R4SL, R5SL
8. Once the TV shows that the Check Switch test is complete, return to the “Point Dish/Signal Strength” screen and choose transponder 15 on satellite 119.
9. Wait until the Signal Strength meter turns green and shows “Locked - EchoStar 119 West,” as shown below (it may take up to 30 minutes).
Addendum
10. When the Signal Strength meter turns green and shows “Locked - EchoStar 119 West,” wait 2 minutes, then turn off the TracVision antenna.
11. Wait 10 seconds, then re-apply power to the TracVision antenna. Wait two minutes for system startup.
12. Repeat Steps 5-7 to run a second Check Switch test.
13. Wait at least 15 minutes before proceeding. Disregard
any messages that appear on the TV screen.
14. After you have waited 15 minutes, repeat Steps 5-7 to run a third Check Switch test.
15. Refer to the tables on page 3 to verify the values displayed on your TV match those required for your selected service. If your values do not match, repeat Steps 5-7 to run another Check Switch test.
16. When the values match, exit the menu and allow the receiver to download the program guide.
2
DISH 1000/129 Results
TracVision R4SL, R5SL
Addendum
Port
Satellite
Trans
Status
Switch
123
119 110 129
OK OK OK
Reception Verified
SW64
DISH 1000/61 Results
Port
Satellite
Trans
Status
Switch
123
119 110 61
OK OK OK
Reception Verified
SW64
DISH 500 Results
Input
Satellite
Polarity
Status
Switch
All other installation and operation steps remain the same as described in the manual.
1122
119 119 110 110
Odd Even Odd Even
Reception Verified
SW42
3
Always lift the antenna by the baseplate, never by the radome (see Figure 1).
IMPORTANT!
Standard-definition receivers
DIRECTV DISH ExpressVu
D12
D11
D10
311 3100
High-definition receivers
DIRECTV** DISH ExpressVu
H21-200
H20-600
211k
211
6100
1
Inspect Parts and Get Tools
Before you begin, follow these steps to make sure you have everything you need to complete the installation.
a. Unpack the box and ensure it contains
everything shown on the supplied Contents List. Cables are stored beneath the antenna unit during shipping.
b. Carefully examine all of the supplied parts to
ensure nothing was damaged in shipment.
c. Gather all of the tools and materials listed
below. You will need these items to complete the installation.
Electric drill
Figure 1 TracVision R5SL/R4SL Antenna
Radome
Baseplate
Figure 2 KVH-Validated Receivers*
3/16" (5 mm), 5/32" (4 mm), and 3/32" (2.5 mm) drill bits
3/4" (19 mm) hole saw and auger bit
Phillips and Flat-head screwdrivers
•Cutting pliers
RG-6 or RG-11 (75 ohms) RF cable, if installing two RF cables
Silicone sealant, RTV, or equivalent
7/16" open-end wrench
Construction adhesive suitable for the roof
Fasteners suitable for mounting the antenna to the roof
Augat IT1000 connector installation tool (KVH Part #19-0242)
*NOTE: For information on connecting different receiver models, contact KVH Technical Support at 1-401-847-3327. Additional hardware is required for high-definition service/receiver support.
**NOTE: DIRECTV H21 receivers must have manufacturer ID 200; H20 receivers must have manufacturer ID 600.
Satellite TV receiver(s) (see Figure 2)
3
2
Obstruction
Height (A)
Min. Distance from
Antenna (B)
8" 6"
10" 12"
12" 17"
14" 23"
16" 28"
Plan the Installation
Before you begin, consider the following installation guidelines:
Minimize blockage. The antenna needs a clear view of the southern sky to receive satellite TV. Use the guidelines in Figure 3 to mount the antenna a suitable distance away from obstructions on the roof, such as air conditioners.
Ensure the mounting surface is flat and strong enough to support the 28-lb antenna. When placed on the mounting surface, all three mounting plates must lay flat against the roof (within 7/16") to avoid warping the base and damaging the antenna.
The antenna must be mounted on the centerline of the vehicle with the antenna’s cable connector facing the rear of the vehicle (see Figure 4).
Identify a location for the 3/4" (19 mm) cable access hole in the roof. The cable access hole should be located at least 6" (15 cm) away from the antenna’s baseplate connectors (see Figure 4). Make sure you will not drill into any existing wires or aesthetic structures inside the vehicle
Figure 3 Blockage from Obstruction
Blocked!
AA
Vehicle Roof
Figure 4 Antenna Orientation
Front of Vehicle
Obstruction
Antenna
B
Choose a dry, flat location for the switchplate that will be easily accessible to the user. Take into account the 28-foot length of the power/data cable that connects from the antenna to the switchplate, the power supply’s six-foot power cord, as well as accessibility to the equipment after installation.
NOTE: If you need a longer power/data cable, KVH offers 45-foot (KVH Part #32-0730-45) and 60-foot (KVH Part #32-0730-60).
The grounding block must be mounted within 27 feet of the antenna, within 5 feet of the receiver(s), and within 25 feet of a suitable chassis ground location.
4
Vehicle
Centerline
Front Mounting Plate
Antenna, Top View
Baseplate Connectors
Exercise caution when handling the antenna after removing the shipping restraints. Improper handling might damage the unit.
IMPORTANT!
3
Remove the Restraints
Follow the steps below to remove the shipping restraints.
a. Carefully carry the antenna to the roof of the
vehicle.
b. Using cutting pliers, cut and remove the two
tie-wrap shipping restraints, located on the bottom of the antenna’s baseplate (see Figure 5). You do not need to remove the
radome.
c. After removing the tie-wraps, seal the four
tie-wrap holes with the plugs provided in the kitpack (see Figure 6).
Figure 5 Removing the Shipping Restraints
Figure 6 Tie-wrap Hole Locations
Forward Tie-wrap
Holes
Rear Tie-wrap
Holes
5
