DS400
Discharge Shield
Instruction Manual
Midwest Equipment Mfg.
5225 Serum Plant Road
Thorntown, IN 46071
Page 2
1
A
B
C
3
4
6
7
L
G
8
5
2
3
12
8
3
5
8
8
1
4
4
4
4
9
H
J
10
K
E
4
1
9
F
I
D
11
3
3
DS400 PARTS BREAK DOWN
PART NO. DESCRIPTIONKEY
A DS11010 Pivot Ass'y
B DS11022 Rubber Flap
DS11031C Flap Support
D DS11040 Linkage
E
DS11080 Control Handle
F
G
3/8" Ball JointI
H 32108
65018
Spring
DS11050 Mount Assembly
Pivot PinDS11060
J DS11070 Mounting Angle
K 34241 Hand Grip
L DS20010 Mounting Angle
KEY QTYDESCRIPTION
5/16"-18 Whizlock Nut
5/16"-18 x 1 HHC
5/16"-18 Locknut
1/4" USS Flatwasher
2
5
6
2
6
4
5
3
1
2
8
7 6
6
1/4"-20 Locknut
1/4"-20 x 1" HHC
5/16"-18 x 1 1/2" HHC
9
5/16-18 X 3/4" HHC
5/16" Flatwasher 2
4
1/8" x 1" Cotter Pin 1
5/16" x 1 1/4" HHC 1
1
10
11
12 56107 Washer 1
Page 3
2

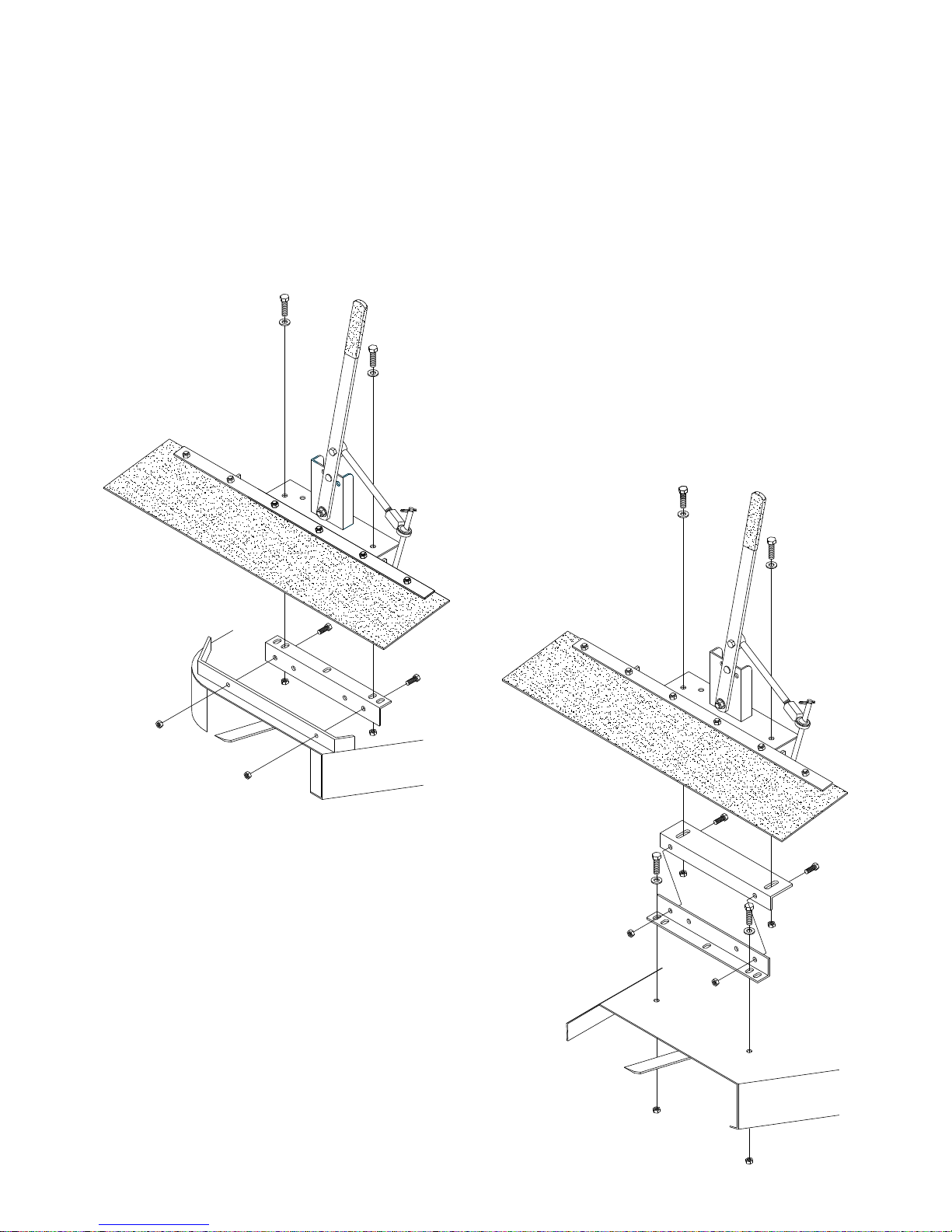

Mounting to a deck with a vertical mounting
surface: Loosely attach Diverter to angle mount
flange with hardware provided. Hold Diverter
with angle attached up to the deck, make sure
the flap on the Diverter covers the front of the
dicharge opening. Mark and drill the hole locations
on the vertical mount surface on the deck that
align with the holes in the angle mount flange.
Attach assembly to deck with hardware provided
and tighten all hardware. Trim flap to fit if needed.
Periodically check all hardware for tightness.
Mounting to a deck with a horizontal mounting
surface: Bolt together both of the angle mount
flanges with hardware provided and tighten.
Loosely attach Diverter to the angle mount
flanges combined in the first step. Hold the
Diverter up to the deck, make sure the flap on
the Diverter covers the front of the discharge
opening. Mark and drill the hole locations on the
horizontal mount surface on the deck that align
with the holes in the angle mount flange. Attach
assembly to deck with hardware provided and
tighten all hardware. Trim flap to fit if needed.
Periodically check all hardware for tightness.
Part No. DS400
The Diverter
Mounting Instructions
Fig. A
Fig. A
Fig. B
6-20-06
Fig. B
Page 4
3
TRAC VAC WARRANTY POLICY
Midwest Equipment Mfg. will repair or replace, free of charge, any part, or parts that are defective in material
or workmanship or both for a period of one year residential use, and 90 day’s for commercial and rental use.
The purchaser will pay transportation charges on parts submitted for replacement under warranty. For
warranty service, contact your local dealer from whom the unit was purchased. There are no other express or
implied warranties. Some states do not allow limitations on how long an implied warranty lasts, and some
states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation
and exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other
rights, which vary from state to state.
MIDWEST EQUIPMENT MFG.
5225 Serum Plant Rd.
Thorntown, IN 46071
Phone: 1-800-Trac-Vac
Web Page: www.trac-vac.com E-Mail: [email protected]
