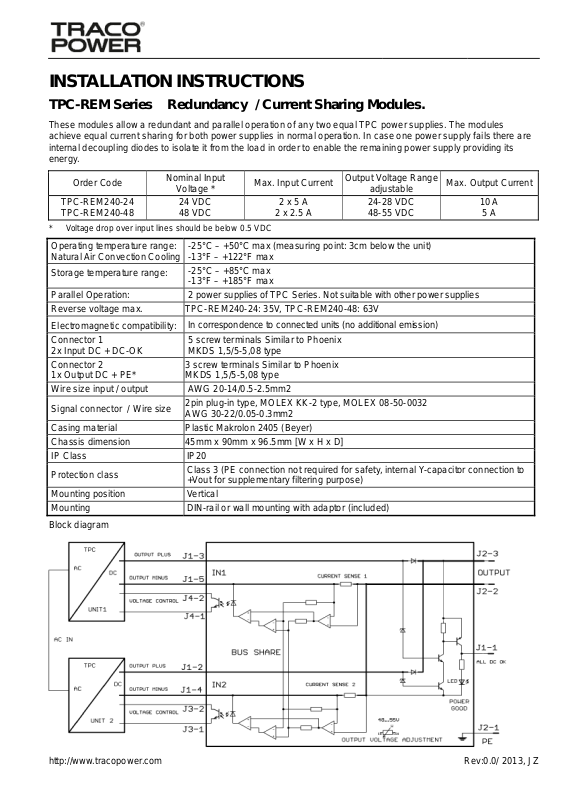

INSTALLATION INSTRUCTIONS
TPC-REM Series Redundancy / Current Sharing Modules.
These modules allow a redundant and parallel operat ion of any two equal TPC power supplies. The modules
achieve equal current sharing for both power supplies in normal operation. In case one power supply fails there are
internal decoupling diodes to isolate it from the load in order to enable the remaining power supply providing its
energy.
Order Code
TPC-REM240-24
TPC-REM240-48
* Voltage drop over input lines should be below 0.5 VDC
Operating temperature range:
Natural Air Convection Cooling
Storage temperature range:
Parallel Operation: 2 power supplies of TPC Series. Not suitable with other power supplies
Reverse voltage max. TPC-REM240-24: 35V, TPC-REM240-48: 63V
Electromagnetic compatibility:
Connector 1
2x Input DC + DC-OK
Connector 2
1x Output DC + PE*
Wire size input / output
Signal connector / Wire size
Casing material Plastic Makrolon 2405 (Beyer)
Chassis dimension 45mm x 90mm x 96.5mm [W x H x D]
IP Class IP20
Protection class
Mounting position Vertical
Mounting DIN-rail or wall mounting with adaptor (included)
Nominal Input
Voltage *
24 VDC
48 VDC
-25°C – +50°C max (measuring point: 3cm below the unit)
-13°F – +122°F max
-25°C
-13°F – +185°F max
In correspondence to connected units (no additional emission)
5 screw terminals Similar to Phoeni
MKDS 1,5/5-5,08 type
3 screw terminals Similar to Phoeni
MKDS 1,5/5-5,08 type
2pin plug-in type, MOLEX KK-2 type, MOLEX 08-50-0032
AWG 30-22/0.05-0.3mm2
Class 3 (PE connection not required for safety, internal Y-capacitor connection to
+Vout for sup plementary filtering purpose)
+85°C ma
WG 20-14/0.5-2.5mm2
Max. Input Current
2 x 5 A
2 x 2.5 A
Output Voltage Range
adjustable
24-28 VDC
48-55 VDC
Max. Output Current
10
5 A
Block diagram
http://www.tracopower.com Rev:0.0/ 2013, JZ
Safety Instructions:
Before installation read these instructions carefully and
completely. This installation instruction cannot account for
every possible condition of installation, operation or
maintenance. Further information can be obtained from
your local distributor’s office or from the product datasheet,
which can be downloaded, from the Internet at
http://www.tracopower.com/products/tpc.pdf.
The mains supply voltage connection, must be in
accordance to IEC 62103, EN 50178 and IEC 60364, VDE
100.
Before any installation, maintenance or modification work
ensure that the main switch is switched off and prevented
from being switched on again. Non-observance, touching
of any live components or improper handling of TPCREM240 can result in death, severe personal injury or
substantial property damage. Proper and safe operation is
dependent on proper storage, handling, installation and
operation.
Compliance with the relevant national regulations (in the
USA, Europe and other countries) must be ensured.
Before operation is started the following conditions must
be ensured:
Connection to the TPC power supplies in compliance
with national regulations (VDE0100 and EN50178).
By use of stranded wires, all strands must be fastened
in the terminal blocks.
All input and output wires must be rated for the rated
current and must be connected with the correct polarity.
Sufficient cooling must be ensured.
Never work on TPC-REM240 if power is supplied! Risk
of electric arcs and electrical shock, which can cause
death, severe personal injury or substantial property
damage.
Warning: Do not open the TPC-REM240 until at least 5
minutes after it has been disconnected from the power
supplies on all poles.
Only trained personnel may open the TPC-REM240.
Do not introduce any objects into the power supply.
Keep away from fire and water
Installation Instructions:
This TPC-REM240 is designed for professional indoor
systems. In operation the TPC-REM240 must not be
accessible. It may be installed and put into service by
qualified personnel only.
The correct mounting position for optimal cooling
performance must be observed. Do not cover any
ventilation holes. Leave a free space of minimum 50mm
(2in.) above and below the power supply. Observe power
derating.
Recycling: The unit contains elements that are suitable for
recycling, and components that need special disposal. You
are therefore requested to make sure that the power
supply will be environment friendly recycled at the end of
its service life.
http://www.tracopower.com Rev:0.0/ 2013, JZ
