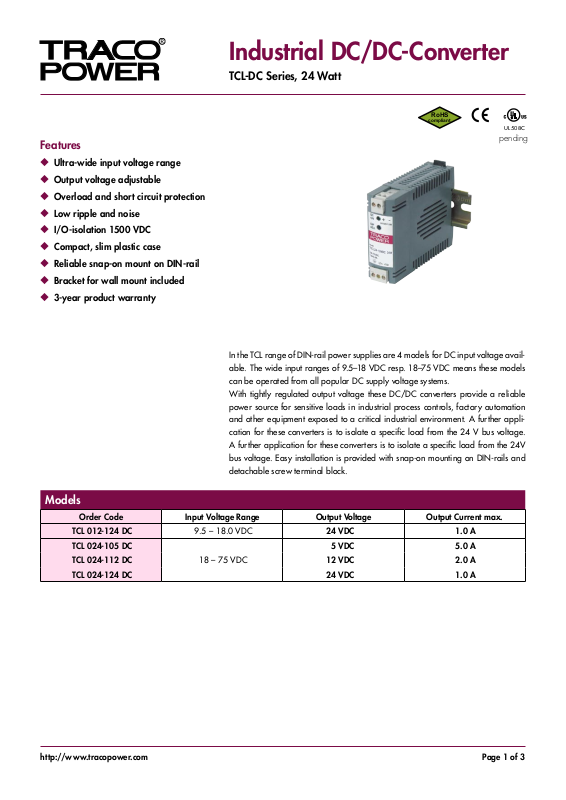

Industrial DC/DC-Converter
RoHS
compliant
UL 508C
TCL-DC Series, 24 Watt
Features
◆ Ultra-wide input voltage range
◆ Output voltage adjustable
◆ Overload and short circuit protection
◆ Low ripple and noise
◆ I/O-isolation 1500 VDC
◆ Compact, slim plastic case
◆ Reliable snap-on mount on DIN-rail
◆ Bracket for wall mount included
◆ 3-year product warranty
pending
In the TCL range of DIN-rail power supplies are 4 models for DC input voltage available. The wide input ranges of 9.5–18 VDC resp. 18–75 VDC means these models
can be operated from all popular DC supply voltage systems.
With tightly regulated output voltage these DC/DC converters provide a reliable
power source for sensitive loads in industrial process controls, factory automation
and other equipment exposed to a critical industrial environment. A further application for these converters is to isolate a specific load from the 24 V bus voltage.
A further application for these converters is to isolate a specific load from the 24V
bus voltage. Easy installation is provided with snap-on mounting on DIN-rails and
detachable screw terminal block.
Models
Order Code Input Voltage Range Output Voltage Output Current max.
TCL 012-124 DC
TCL 024-105 DC
TCL 024-112 DC
TCL 024-124 DC 24 VDC 1.0 A
http://www.tracopower.com
9.5 – 18.0 VDC
18 – 75 VDC
24 VDC
5 VDC
12 VDC
1.0 A
5.0 A
2.0 A
Page 1 of 3
Industrial DC/DC-Converter
TCL-DC Series 24 Watt
Input Specifications
Input power at no load 1.0 Watt max.
Start-up voltage/under voltage shut down
TCL 024 models: 17.2 VDC/15.7 VDC
Reverse polarity protection by internal fuse
Surge immunity EN 61000-4-5, Level 3
Burst immunity EN 61000-4-4, Level 4
Conducted noise (input) EN 55011 class B, EN 55022 class B
Efficiency 86% typ.
Output Specifications
Output voltage adj. range 5 VDC model: 5.0–5.25 VDC
12 VDC model: 12.0–15.0 VDC
24 VDC models: 24.0–28.0 VDC
Regulation
– Load variation 0...100% 0.5 % max
Ripple and noise (20 MHz bandwidth) <50 mV pk-pk
Electronic short circuit protection current limitation at 110 % typ.
(constant current, automatic recovery)
Overvoltage protection, trigger point 5 VDC model:
12 VDC model: <24 V
24 VDC models: <42 V
– Input variation Vin min. to Vin max. 0.5 % max
TCL 012 model: 8.4 VDC/7.6 VDC
<6.5 V
General Specifications
Temperature ranges – Operating –10 °C…+70 °C max.
– Storage (non operating) – 25 °C…+85 °C
Temperature derating 1.5 %/K above 50°C
Humidity (non condensing) 95 % rel. H max.
Temperature coefficient 0.02 %/K
Switching frequency 55 – 180 kHz
(frequency modulation)
Isolation voltage (1 min.) – Input/Output 1500 VDC
Reliability, calculated MTBF @ 25 °C (according to IEC-1709) >2.5 Mio h
Safety standards IEC 60950-1, EN 60950-1 (output SELV),
UL/cUL 60950-1, EN 60204
Safety approvals – UL approval UL 508 (pending)
– CB report for IEC/EN 60950-1
Electromagnetic compatibility (EMC), Emissions EN 61000-6-3
Electromagnetic compatibility (EMC), Immunity EN 61000-6-2
Safety class degree of protection class 1
Case protection IP 20
Enclosure material plastic FR2010-110C (UL 94V-0 rated)
Mounting DIN-rails as per EN 50022-35x15/7.5
(snap-on with self-locking spring)
bracket for wall/chassis mount included
(IEC 60529)
depending on load
All specifications valid at nominal input voltage, full load and +25 °C after warm-up time unless otherwise stated.
http://www.tracopower.com
Page 2 of 3
J
enatschstrasse 1 · CH-8002 Zurich · Switzerland
Tel. +41 43 311 45 11 · Fax +41 43 311 45 45 · info@traco.ch · www.tracopower.com
27 (1.06)
2.2 (0.09)
100.0
(3.94)
75.0 (2.95)
DC-ON LED
Output voltage
adjust
INPUT
1 2 3
OUTPUT
1 2
Case Dimensions
Industrial DC/DC-Converter
TCL-DC Series 24 Watt
Output Input
1 + Vout 1 Protective earth
2 – Vout 2 –Vin
3 +Vin
Weight: 140g (4.9 oz)
Dimensions in [mm], () = Inch
Tolerances: ±0.5 (0.02)
Wall Mounting Bracket
Instead on a DIN-rail, the modules can be
also mounted on a chassis or wall with help of a
mounting bracket which is supplied as standard
with each Converter
Specifications can be changed any time without notice.
Rev. 10/07
