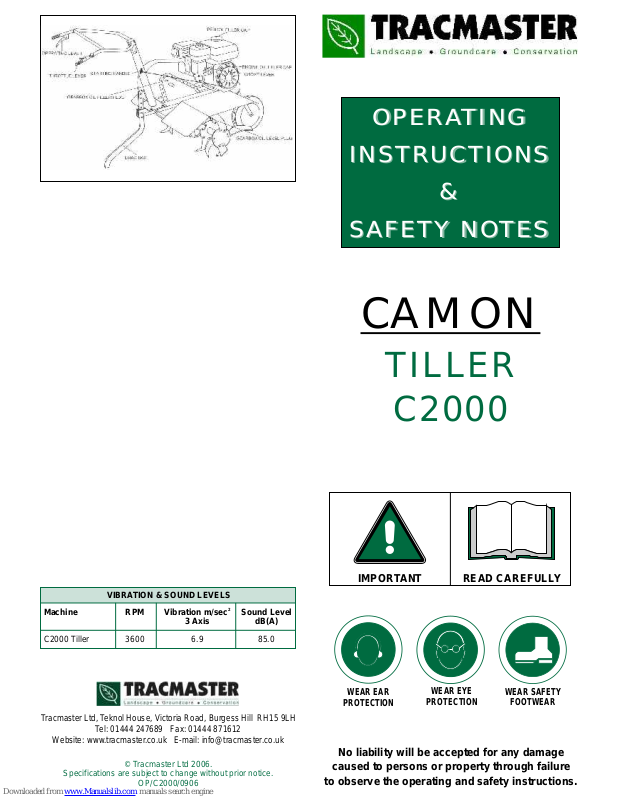

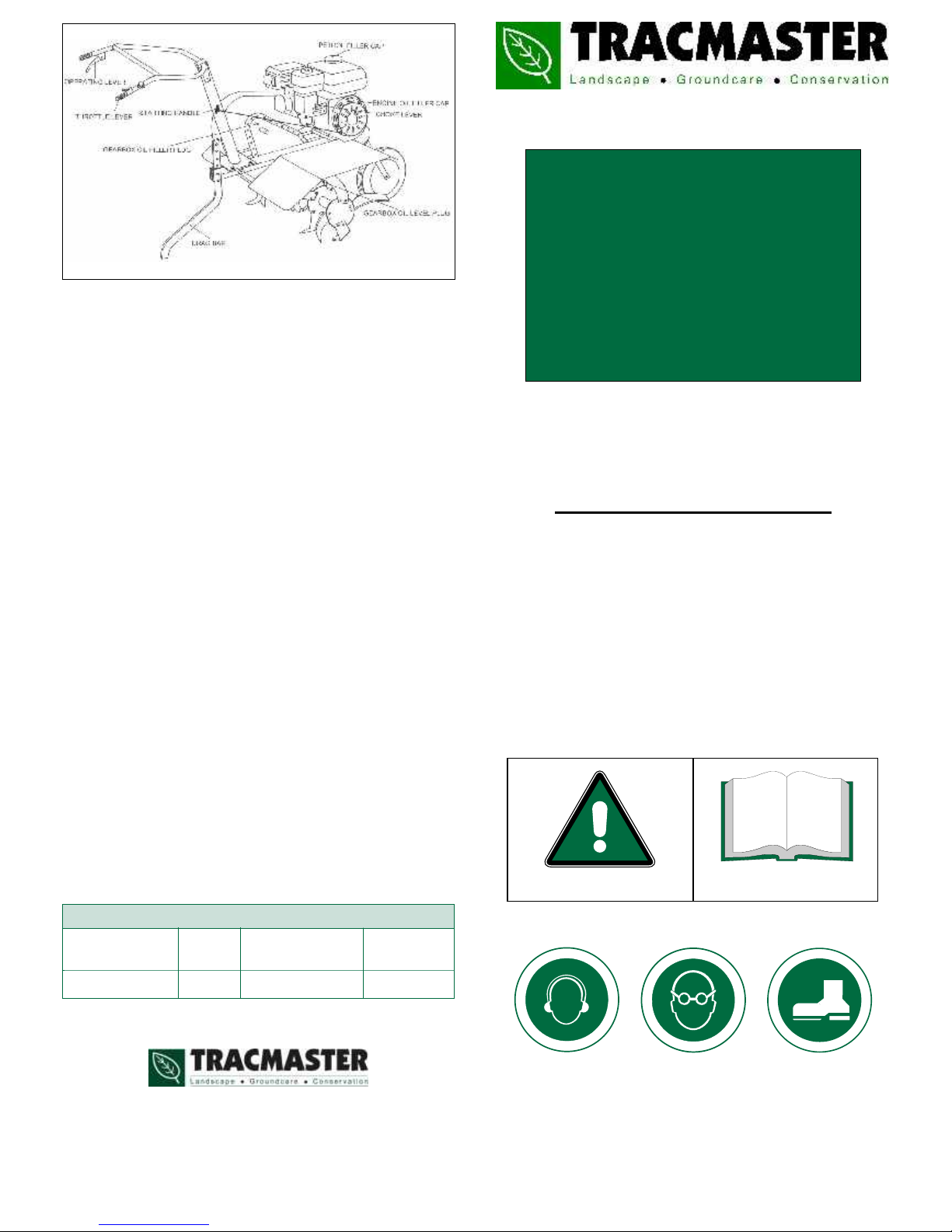

CAMON
No liability will be accepted for any damage
caused to persons or property through failure
to observe the operating and safety instructions.
TILLER
C2000
OPERATING
INSTRUCTIONS
&
SAFETY NOTES
OPERATING
INSTRUCTIONS
&
SAFETY NOTES
VIBRATION & SOUND LEVELS
2
Machine RPM Vibration m/sec Sound Level
3 Axis dB(A)
C2000 Tiller 3600 6.9 85.0
Tracmaster Ltd, Teknol House, Victoria Road, Burgess Hill RH15 9LH
Tel: 01444 247689 Fax: 01444 871612
Website: www.tracmaster.co.uk E-mail: [email protected]
© Tracmaster Ltd 2006.
Specifications are subject to change without prior notice.
OP/C2000/0906
WEAR EAR
PROTECTION
WEAR SAFETY
FOOTWEAR
WEAR EYE
PROTECTION
READ CAREFULLY
IMPORTANT
Page 2
S A F E T Y
TO START ENGINE
ALWAYS start the engine in the open air
DO NOT smoke when refuelling
DO NOT mix OIL with the fuel
ALWAYS stop the engine before making any adjustments,
refuelling, moving or cleaning, or when the unit is
unattended
USE ONLY unleaded petrol from fuel containers designed for
this purpose - refuel outdoors only and replace the tank cap
securely
IN CASE of petrol spillage move the machines away from the
area of spillage and allow the petrol vapours to dissipate
before starting the engine
DO NOT remove any safety guards that are fitted
DO NOT touch any moving parts or attempt any maintenance
whilst the machine is running - KEEP HANDS AND FEET
AWAY
BEFORE starting work clear the work area of any objects that
could damage the machine
DO NOT allow children or anyone uninstructed to operate the
machine - KEEP ANIMALS AWAY
o
DO NOT use on slopes or banks of more than 20
ALWAYS wear suitable clothing to give personal protection
including footwear that offers a good grip
AVOID wearing loose garments that may catch in moving parts
KNOW how to stop the machine in an emergency
NEVER interfere with any control settings on the engine
IF A FAULT develops DO NOT attempt any repair - immediately
contact the supplier from whom the machine was obtained
VISUALLY INSPECT the machine before use - ensure all tines,
nuts and bolts are tight and not worn or damaged and
replace tines if necessary
KEEP IN MIND the operator is responsible for accidents or
hazards occurring to people or property
WEAR ear protection and protective footwear
Using the dipstick provided, check the engine oil level. Top up with
10w/40 oil if necessary (if the dipstick is clear of oil).
Check fuel level. Only use unleaded petrol from a clean container.
Never re-fuel when the engine is hot or running. Leave 1” air space in
the fuel tank.
If the engine is cold set the choke lever to ‘ON’ position.
Set throttle lever to position.
Pull the recoil start handle gently until it engages then give it a
good strong pull to start the engine.
When the engine has started, release the choke lever after a few
seconds and return the throttle lever to idle position.
¼
OPERATION
TO STOP ENGINE
OPERATING HINTS
MAINTENANCE GUIDE
Raise the transport wheel by pulling it downwards to release it from
the lower locking point.
Swing the wheel upwards and locate it into the top locking point.
Set the depth control drag bar - initially on the bottom hole.
Raise the throttle to half speed.
Apply a little downward pressure on the handlebars and lift the
operating lever to engage the tines. Commence digging.
As the machine digs into the ground, raise the handlebars a little to
obtain a slow forward motion.
If the machine tries to go forward too fast apply a little downward
pressure on the handlebars and lower the drag bar if necessary.
The Tiller is designed to be used on ground that is regularly cultivated
- it is not to be used on uncultivated ground.
For ground that has not been previously cultivated, a CAMON
Rotavator (C6, C8, C10, C12 or C14) should be used.
The Tiller is especially suited to vegetable allotments, flower beds,
etc.
Wet ground conditions should be avoided as the earth will begin to
“bind up” around the tines, clogging the rotor assembly and causing
damage to the drive belt.
o
Do not work on slopes in excess of 20 .
If working on a gentle slope always start at the top and work across
the slope pointing the machine slightly uphill.
If you lose control, let go of the machine and the drive will stop
immediately.
For engine maintenance please refer to engine manufacturers
manual.
Commence work.
Release the operating lever to stop the tines.
Move the throttle lever to ‘STOP’ position.
WARNING: THE EXHAUST COVER MAY BE HOT - DO NOT
TOUCH
After every hour of operation:
Stop engine. Remove the spark plug cap
Check engine oil level. (Recommended oil SAE 10w/40).
Remove all foreign matter from the digging knives assembly e.g.
wire, string, grass etc.
Do not turn the machine on its side for cleaning.
Refit the spark plug cap.
