Page 1
No liability will be accepted for any damage
caused to persons or property through failure
to observe the operating and safety instructions.

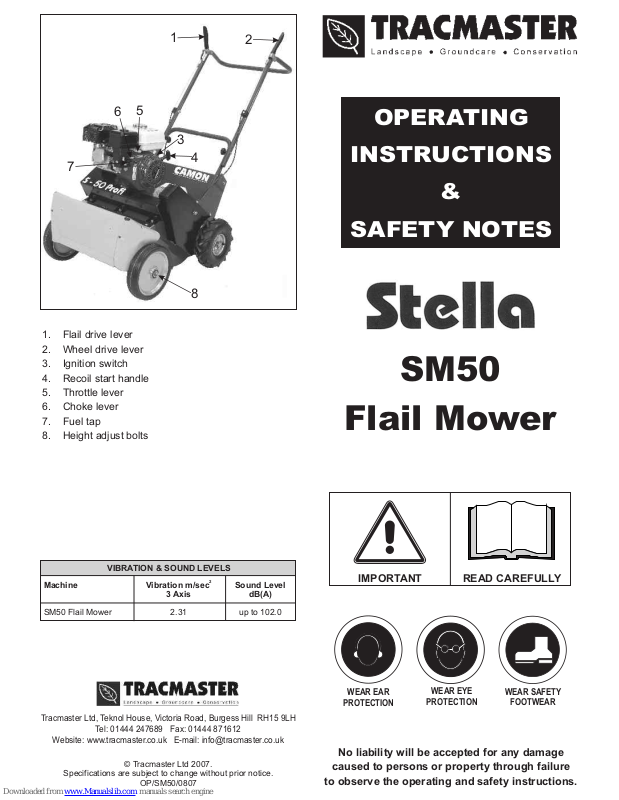

SM50
Flail Mower
Tracmaster Ltd, Teknol House, Victoria Road, Burgess Hill RH15 9LH
Tel: 01444 247689 Fax: 01444 871612
Website: www.tracmaster.co.uk E-mail: [email protected]
© Tracmaster Ltd 2007.
Specifications are subject to change without prior notice.
OP/SM50/0807
VIBRATION & SOUND LEVELS
2
Machine Vibration m/sec Sound Level
3 Axis dB(A)
SM50 Flail Mower 2.31 up to 102.0
1. Flail drive lever
2. Wheel drive lever
3. Ignition switch
4. Recoil start handle
5. Throttle lever
6. Choke lever
7. Fuel tap
8. Height adjust bolts
8
4
3
7
5
6
1
2
OPERATING
INSTRUCTIONS
&
SAFETY NOTES
WEAR EAR
PROTECTION
WEAR SAFETY
FOOTWEAR
WEAR EYE
PROTECTION
READ CAREFULLY
IMPORTANT
Page 2
S A F E T Y
TO START THE ENGINE
ALWAYS start the engine in the open air
DO NOT smoke when refuelling
DO NOT mix OIL with the fuel
ALWAYS stop the engine before making any adjustments,
refuelling, moving or cleaning, or when the unit is
unattended
USE ONLY unleaded petrol from fuel containers designed for
this purpose - refuel outdoors only and replace the tank cap
securely
IN CASE of petrol spillage move the machines away from the
area of spillage and allow the petrol vapours to dissipate
before starting the engine
DO NOT remove any safety guards that are fitted
DO NOT touch any moving parts or attempt any maintenance
whilst the machine is running - KEEP HANDS AND FEET
AWAY
BEFORE starting work clear the work area of any objects that
could damage the machine
DO NOT allow children or anyone uninstructed to operate the
machine - KEEP ANIMALS AWAY
ENSURE nobody is in front of the machine during operation
o
DO NOT use on slopes or banks of more than 20
ALWAYS wear suitable clothing to give personal protection
including footwear that offers a good grip
AVOID wearing loose garments that may catch in moving parts
KNOW how to stop the machine in an emergency
NEVER interfere with any control settings on the engine
IF A FAULT develops DO NOT attempt any repair - immediately
contact the supplier from whom the machine was obtained
VISUALLY INSPECT the machine before use - ensure all flails,
nuts and bolts are tight and not worn or damaged
KEEP IN MIND the operator is responsible for accidents or
hazards occurring to people or property
STOP the machine immediately if any abnormal vibration occurs
WEAR eye and ear protection
Using the dipstick provided, check the engine oil level. Top up with
10w/40 oil if necessary.
Check fuel level. Only use unleaded petrol from a clean container.
Never re-fuel when the engine is hot or running. Leave 1” air space in
the fuel tank.
Set ignition switch to ‘on’ position (3).
Set the throttle control on the engine to ½ way position (5).
Turn on the fuel tap (7).
If the engine is cold set the choke lever to ‘on’ position (6).
Pull the recoil start handle (4) gently until it engages then give it a good
strong pull to start the engine.
Let the engine warm up and slowly pull back the throttle to idle
position.
When the engine has started, release the choke lever after a few
seconds and return the throttle lever to idle position.
OPERATION
TO STOP ENGINE
MAINTENANCE GUIDE
Before starting work clear the area of any objects, such as
stones or sticks, that would damage the flail mower or be
thrown out at dangerously high speeds by the rotating flails.
The cutting height can be altered by removing the front wheel
mounting bolts (8) and repositioning the wheels in a higher or
lower hole in the chassis.
Start the engine and move the engine throttle lever to full
speed (5).
Commence mowing by pressing down the flail drive lever on
the right-hand handlebar then pressing down on the wheel
drive lever on the left-hand handlebar (2). The machine will
move at a steady walking pace.
DO NOT allow the machine to become overloaded.
In heavy conditions release the wheel drive lever if the engine
speed starts to slow down. Allow the engine speed to increase
back to maximum before applying the wheel drive again.
NEVER attempt to start the flail drive with the machine
standing in long uncut vegetation.
If the mower should strike a stone or similar object, release
both the wheel and flail drive levers and stop the engine.
Ensure the flails have come to a halt, remove the spark plug
cap and inspect the mower for damage.
For engine maintenance please refer to engine manufacturers
manual.
Release the wheel and flail drive levers.
Set the ignition switch to ‘off’ position.
Turn the fuel tap to ‘off’ position.
WARNING: THE EXHAUST COVER MAY BE HOT - DO NOT
TOUCH
After every hour of operation stop the engine.
Remove the spark plug cap.
Check engine oil level (recommended oil SAE 10w/40). If necessary
top up the engine oil - ensure the machine is on level ground and the
oil level on the dipstick is between MAX and MIN marks.
Visually check the machine for any damage.
Clean the machine with a handbrush only.
DO NOT pressure wash the machine.
Check the condition of the flails and change any that are damaged.
Keep the engine cooling fins clean.
Check the fuel level.
Do not overfill the fuel tank, allow at least 1” air space under filler cap.
