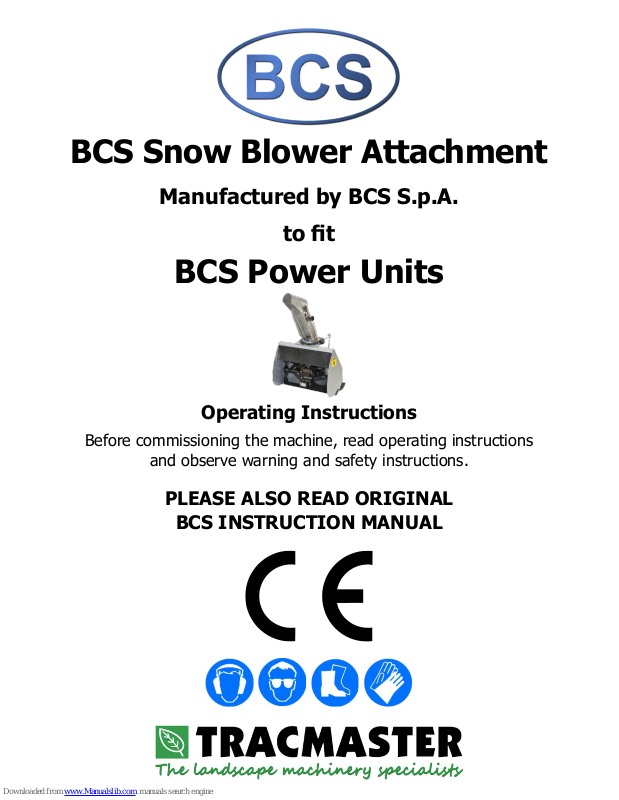

Page 1
Operating Instructions
Before commissioning the machine, read operating instructions
and observe warning and safety instructions.
PLEASE ALSO READ ORIGINAL
BCS INSTRUCTION MANUAL
BCS Snow Blower Attachment
Manufactured by BCS S.p.A.
to t
BCS Power Units
Page 2
BCS Snow Blower Attachment
Page 2 TWT/BLWR/0617
No liability will be accepted for any damage caused to persons or property
through failure to observe the operating and safety instructions.
!
IMPORTANT READ CAREFULLY
!
IMPORTANT
PLEASE READ THE OWNER’S MANUAL
FOR THE POWER UNIT FIRST.
FOR ANY FURTHER INFORMATION
OR ASSISTANCE PLEASE CONTACT
TRACMASTER ON 01444 247689 OR
VISIT WWW.TRACMASTER.CO.UK
Page 3
BCS Snow Blower Attachment
TWT/BLWR/0617 Page 3
Overview
Skid shoes
Augers
Discharge
chute
Skid shoe Flap adjustment Chute rotation
Flap
Control
knob
Control
rod
Stick
Page 4
BCS Snow Blower Attachment
Page 4 TWT/BLWR/0617
Operation
Before using this product read these instructions carefully.
Make sure the snow blower is mounted and xed properly to the power unit.
If in doubt contact Tracmaster on 01444 247689.
Always wear gloves.
Before commencing work, check that the snow
blower auger turns regularly.
Best results are obtained with the engine at a high
throttle setting.
Never put your hands into the chute - stop the
engine rst and use the stick provided to clear the
chute.
Do not direct the discharge chute towards people
or objects.
Do not use the machine with damaged or
disconnected guards and/or safety devices.
Use the skid shoes to adjust the operating height of
the snow blower - the blade (A) must be mounted
in such a way as to skim the ground. If the surface
is uneven or gravel/stones are present, the blade
should be raised.
Remove pin (B), lower skid shoe (C) and reinstall pin
(B) in a lower hole (see g 1).
Turn the discharge chute by turning the control rod
in the direction the snow is to be thrown (g 2).
g 2
g 1
Page 5
BCS Snow Blower Attachment
TWT/BLWR/0617 Page 5
To control the distance the snow is thrown, adjust he inclination of the discharge ap
using the control knob.
NOTE: If the snow is particularly heavy, turn the discharge chute to the side as little as
possible. Adjust the discharge ap to the vertical position to avoid obstructing the thrown
snow.
WARNING: If any abnormal vibrations or sounds occur, STOP the engine immediately and
check the machine and the implement. If you have any concerns contact your supplier.
After each use remove any snow stuck in the snow blower
by using the stick provided (g 3).
Regularly check the condition of the skid shoes - if they
are worn they can be turned around to extend their life.
Simply remove the bolts, turn the skid shoes round and
reinstall the bolts.
Operation
g 3
Page 6
BCS Snow Blower Attachment
Page 6 TWT/BLWR/0617
HAZARDS RISK LEVEL ACTION NEEDED
General The machine should only be used by trained
operators.
Machine tipping over Low Do not use on slopes over 25°. Work
across slopes, never up and down.
Machine running away Low Operator presence control turns off
the engine if the operator releases the
handlebars. Always check operation before
use.
Machine reversing and jamming
the operator against an
immoveable object
High Never reverse the machine with your back
to a wall or similar object.
Burns High Be very careful of a hot exhaust. Turn off
the machine before re-fuelling. Allow 1” air
space in fuel tank.
Foot injuries High Never let anyone stand in front of the
machine when it is operating. Keep all pets
and animals away.
Handlebar adjustment Low Always set the height and sideways position
before operating the machine – never while
it is moving.
Transportation Low Always transport the machine at speeds
suitable for the surroundings. Be aware of
pedestrians and other obstacles. Ensure
the travel speed allows time for the
machine to be safely brought to a standstill.
Flying objects Medium Ensure the area in which the blower is
working is cordoned off from the general
public and that their access is restricted
during operation. Stop the machine if
anyone is within 20 metres of the machine.
Blockages Low Do not attempt to reach into the blower
whilst the engine is running. Always turn
the engine off prior to working on the
machine. Always use the wooden stick
provided to clear any compacted snow from
the blower.
Risk Assessment
Page 7
BCS Snow Blower Attachment
TWT/BLWR/0617 Page 7
Manufacturer Information
This machine is manufactured in Italy by BCS S.p.A.
Tracmaster Ltd is the UK distributor for this model, the BCS Snow Blower attachment.
BCS S.p.A. has been at the forefront of developing cutting edge agricultural machinery since its
formation in 1943, when their founder developed a self-propelled motor mower. Tracmaster Ltd
has been the UK distributor for BCS pedestrian equipment since 1984.
Please ensure you read the original manufacturer’s manual before operating this machine.
BCS S.p.A.
V.le Mazzini, 161
20081 Abbiategrasso (MI)
Italy
Tel: +39 02 9482 1
Fax: +39 02 9496 0800
Email: [email protected]
Website: www.bcsagri.it
Page 8
TWT/BLWR/0617
© Tracmaster Ltd 2017.
Specications are subject to change without prior notice.
Tracmaster Ltd, Sovereign Centre, Victoria Road, Burgess Hill RH15 9LR
T: +44 (0) 1444 247689 F: +44 (0) 1444 871612
W: www.tracmaster.co.uk E: [email protected]
