Page 1

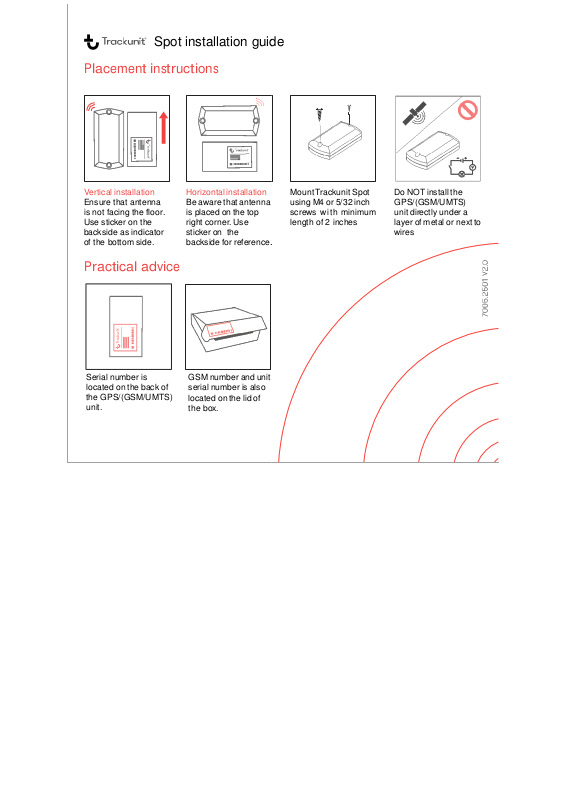

Spot installation guide
.
unit
t
Placement instructions
Vertical installation
Ensure that antenna
is not facing the floor.
Use sticker on the
backside as indicator
of the bottom side.
Practical advice
Serial number is
located on the back of
the GPS/(GSM/UMTS)
unit.
Horizontal installation
Be aware that antenna
is placed on the top
right corner. Use
sticker on the
backside for reference
GSM number and
serial number is also
located on the lid of
the box.
Mount Trackunit Spot
using M4 or 5/32 inch
screws wi t h minimum
length of 2 inches
Do NOT install the
GPS/(GSM/UMTS)
unit directly under a
layer of metal or next
wires
o
Page 2
Spot installation guide
Environmental
1 SPOT
product complies
environmental
conditions for heavy
trucks SAE J1455 with
IP66K and IP69K
classification as shown
in the list below.
The expected product
operational lifetime is
between 6 month to 5
years dependent on
the actual tracking
profile applied.
range is
batteries
Handling recommendations
Use location
This equipment design
applies to commercial
or industrial equipment
expected to be
installed in locations
where only adults are
normally present
Life time
Operating temperature
The TU501-X SPOT operating temperature
primary cell Lithium metal (Li-MnO2/Li-SOCl2)
pack is safety compliant to IEC 60086-4.
Approvals
CE mark
The TU50X-1 SPOT
product complies with
the essential
requirements of the
RED Directive
2014/53/EU directive
with respect to the
EMC requirements,
safety and radio
spectrum matters.
The TU50X-
the
Battery pack
The battery pack can
be exchanged when
the unit run out of
power. Contact the
Trackunit support for
-40°C to +70°C (Non-rechargeable
in the battery pack). The battery
the
acquiring a new
battery pack and
instruction on how to
change it.
FCC/IC
The TU50X-1 SPOT
product contains radio
transmitters that
comply with CFR 47
Part 15, Part 22 and
Part 24 of the FCC rules
and with RSS-GEN, RSS132, RSS-133 and ICES003 of Industry Canada
requirements
Page 3
Spot installation guide
compromettre le fonctionnement.
Statements
FCC/IC part 15.19 Notice:
This device complies with Part 15 of the
FCC Rules and with Industry Canada
license-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) this device may not cause
harmful interference, and (2) this device
must accept any interference received,
including interference that may cause
undesired operation.
FCC part 15.21 Notice:
Changes or modifications made to this
equipment not expressly approved by
Trackunit may void the FCC authorization
to operate this equipment.
IC RSS-GEN Notice:
Le présent appareil est conforme aux
CNR d'Industrie Canada applicables aux
appareils radio exempts de licence.
L'exploitation est autorisée aux deux
conditions suivantes: (1) l'appareil ne doit
pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter
tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en
FCC/IC Radiofrequency
radiation exposure
Information:
This equipment complies with FCC /IC
radiation exposure limits set forth for an
uncontrolled environment. This
equipment should be installed and
operated with minimum distance of 20
cm between the radiator and your body.
This transmitter must not be co-located
or operating in conjunction with any
other antenna or transmitter.
Page 4
Spot installation guide
:
separation of six (6”)
a handheld
compliant
defibrillator.
unit is not intended for handheld
• It is recommended that a minimum separation of
between the TU50
unit and any persons’ body at all times.
Environmental compliance:
SAE J1455, EN/IEC 60068-2-1:2007
SAE J1455, EN/IEC 60068-2-2:2007
SAE J1455, EN/IEC 60068-2-27:2008
SAE J1455, EN/IEC 60068-2-31:2008
SAE J1455, IEC 61701:2011, EN/IEC 60068-2-52
SAE J1455, EN/IEC 60068-2-64:2008
SAE J1455, EN/IEC 60068-2-78:2001
SAE J1455, (IEC 60529+A1+A2):2013
SAEJ1455 (Motor oil, Gasoline,
Diesel fuel, Hydraulic fluid, Brake fluid,
Transmission fluid , Glycol and water mixture)
Safety precautions
Cold
Dry Heat
Shock
Drop
Salt spray/mist
Random vibration
Damp heat steady state
Degrees of protection (IP code): IP66K, IP69K
Chemicals/oils wipe protection
Pacemakers, defibrillators etc.
The Health Industry Manufacturers Association
recommends that a minimum
inches (15 cm) be maintained between
wireless phone and an ISO 14117:2012
pacemaker/heart defibrillator to avoid potential
interference with the pacemaker/heart
The following precautions applies:
• The TU50X-1 SPOT
use or to be worn on the body.
inches (20 cm) is to be maintained
1 SPOT
(8”)
X-
