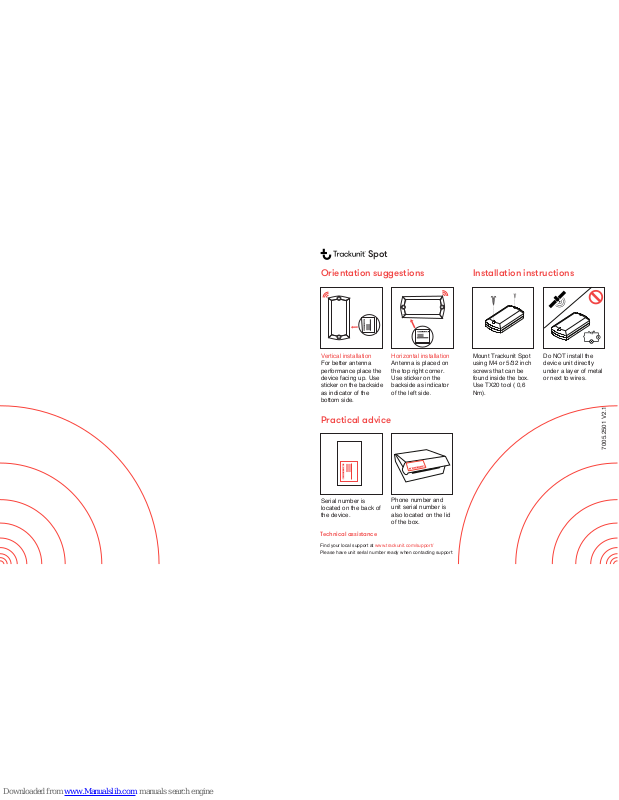

Trackunit Spot User Manual

Spot

Practical advice

Serial number is
located on the back of
the device.

Phone number and
unit serial number is
also located on the lid
of the box.

Installation instructions

Mount Trackunit Spot
using M4 or 5/32 inch
screws that can be
found inside the box.
Use TX20 tool ( 0,6
Nm).

Do NOT install the
device unit directly
under a layer of metal
or next to wires.

Horizontal installation

Antenna is placed on
the top right corner.
Use sticker on the
backside as indicator
of the left side.

Vertical installation

For better antenna
performance place the
device facing up. Use
sticker on the backside
as indicator of the
bottom side.

Orientation suggestions

Technical assistance

Find your local support at www.trackunit.com/support/
Please have unit serial number ready when contacting suppor

t

7005.2501 V2.1

Handling recommendations

Use location

This equipment design
applies to commercial or
industrial equipment expect­ed to be installed in locations
where only adults are
normally present

Life time

The expected product
operational lifetime is
between 6 month to 5 years
dependent on the actual
tracking profile applied.

Operating temperature

The TU501-X SPOT operating temperature range is -40°C to +70°C (Non-rechargeable primary cell
Lithium metal (Li-MnO2/Li-SOCl2) batteries in the battery pack). The battery pack is safety compliant
to IEC 60086-4.

Approvals

Battery pack
The battery pack can be
exchanged when the unit run
out of power. Contact the
Trackunit support for acquiring
a new battery pack and
instruction on how to change it.

Environmental

The TU50X-1 SPOT
product complies the
environmental conditions for
heavy trucks SAE J1455
with the IP66K and IP69K
classification as shown in
the list below.

FCC/IC

The TU50X-1 SPOT product
contains radio transmitters that
comply with CFR 47 Part 15,
Part 22 and Part 24 of the
FCC rules and with RSS-GEN,
RSS-132, RSS-133 and
ICES-003 of Industry Canada
requirements

CE mark

The TU50X-1 SPOT product
complies with the essential
requirements of the RED
Directive 2014/53/EU directive
with respect to the EMC
requirements, safety and radio
spectrum matters.

Statements

FCC/IC part 15.19 Notice:
This device complies with Part 15 of the FCC Rules and with Industry Canada license-exempt RSS
standard(s). Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.

FCC part 15.21 Notice:
Changes or modifications made to this equipment not expressly approved by Trackunit may void the
FCC authorization to operate this equipment.

IC RSS-GEN Notice:
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit
pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélec­trique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

FCC/IC Radiofrequency radiation exposure Information:
This equipment complies with FCC /IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance of 20 cm
between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.

Environmental compliance:
SAE J1455, EN/IEC 60068-2-1:2007 Cold
SAE J1455, EN/IEC 60068-2-2:2007 Dry Heat
SAE J1455, EN/IEC 60068-2-27:2008 Shock
SAE J1455, EN/IEC 60068-2-31:2008 Drop
SAE J1455, IEC 61701:2011, EN/IEC 60068-2-52 Salt spray/mist
SAE J1455, EN/IEC 60068-2-64:2008 Random vibration
SAE J1455, EN/IEC 60068-2-78:2001 Damp heat steady state
SAE J1455, (IEC 60529+A1+A2):2013 Degrees of protection (IP code): IP66K,
IP69K
SAEJ1455 (Motor oil, Gasoline,
Diesel fuel, Hydraulic fluid, Brake fluid,
Transmission fluid , Glycol and water mixture) Chemicals/oils wipe protection

Approvals

Pacemakers, defibrillators etc.:
The Health Industry Manufacturers Association recommends that a minimum separation of six (6”)
inches (15 cm) be maintained between a handheld wireless phone and an ISO 14117:2012 compli­ant pacemaker/heart defibrillator to avoid potential interference with the pacemaker/heart defibrilla­tor.

The following precautions applies:

• The TU50X-1 SPOT unit is not intended for handheld use or to be worn on the body.

• It is recommended that a minimum separation of (8”) inches (20 cm) is to be maintained between

the TU50X-1 SPOT unit and any persons’ body at all times.
