Trackunit 401 DualID Installation Manual

Placement instructions

Practical advice

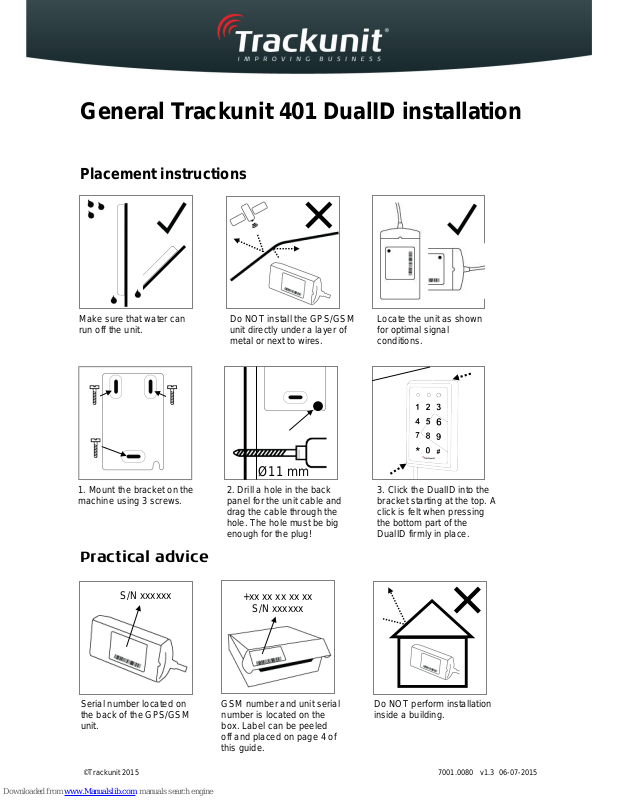

General Trackunit 401 DualID installation

Do NOT install the GPS/GSM

unit directly under a layer of
metal or next to wires.

Make sure that water can

run off the unit.

1. Mount the bracket on the

machine using 3 screws.

Ø11 mm

3. Click the DualID into the

bracket starting at the top. A
click is felt when pressing
the bottom part of the

DualID firmly in place.

2. Drill a hole in the back

panel for the unit cable and
drag the cable through the
hole. The hole must be big

enough for the plug!

Serial number located on

the back of the GPS/GSM

unit.

GSM number and unit serial

number is located on the
box. Label can be peeled
off and placed on page 4 of

this guide.

+xx xx xx xx xx

S/N xxxxxx

Do NOT perform installation

inside a building.

S/N xxxxxx

Locate the unit as shown

for optimal signal
conditions.

7001.0080 v1.3 06-07-2015

©Trackunit 2015

Trackunit 401 DualID installation

General wiring

Guidelines for correct wiring:

Disconnect the power suppl y during inst a llati on.

©Trackunit 2015

Wire colour Connection Description

Blue Ground Ground

White Digital input 1 Operating hours counter input

Brown Digital input 2 Ignition signal input

Grey Digital Input 3 Not available. Used for DualID Power.

Pink Digital input 4

In case the main switch breaks the ground wire, the

inputs may register a voltage level when off.
To avoid this, the pink wire should be connected to the
chassis of the machine and activate input filter by

setting filtering ‘on’ via the Verify tool. (See page 3)

Yellow Digital output 1 Output activates ground for relay (85)
Red Power

Connect to permanent 12 / 24 / 48V supply
(Absolut max. range 9-65V)

Example showing general installation

Hourmeter

Alternator

7001.0080 v1.3 06-07-2015
