TRACK STAR TS3T Instruction Manual

INSTRUCTION MANUAL

1. Introduction

2. Services

3. Special symbols

4. Safety guide

5. Transmitter specifications

6. Receiver specifications

6.01. Telemetry concentrator

6.02. Sensors

7. Binding

8. Main function menu

9. Main menu definition

10. Connection diagram

11. Functions interface

11.01. D/R

11.02. EPA

11.03. Temperature

11.04. Reverse

11.05. ST CURVE

11.06. TH CURVE

11.07. A.B.S.

11.08. Models

11.09. Fail Save

11.10. MULTI OPT

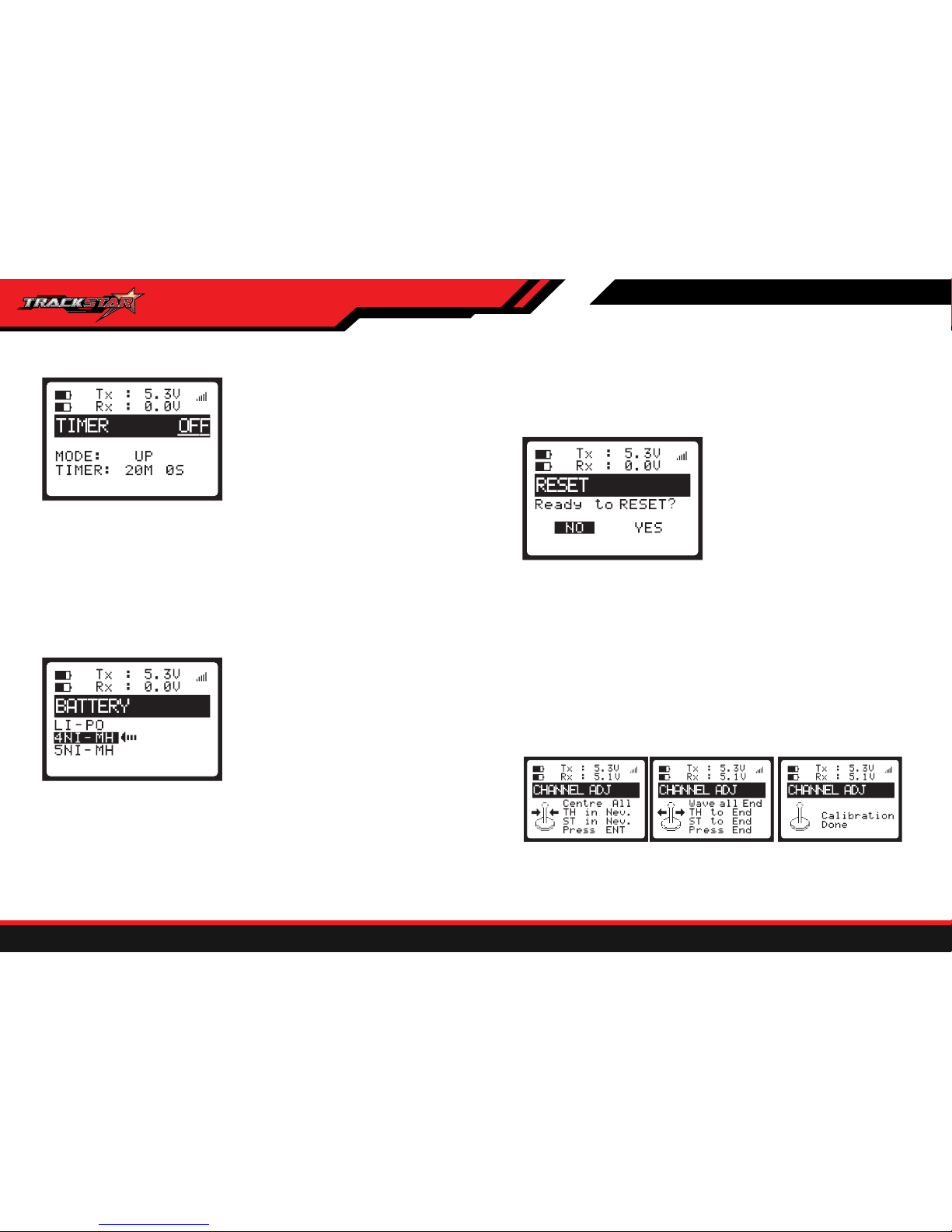

11. 11. Timer

11.12. Battery

11.13. Reset

11.14. Channel ADJ

11.15. Monitor

11.16. Speed

12. Installing battery

13. FCC statement

1
1
1
1
4
4
4
4
5
6
6
7
8
8
8
9
10
10
10
11
12
12
13
14
14
15
15
16
16
17
18

4. Safety guide

Not following these instructions may expose the user
to serious injuries or death.

Not following these instructions may expose others to
serious injuries.

Not following these instructions may expose the user
to minor injuries and even to serious injuries.

Do not use it in the night or a lighting storm as the bad weather will
make the radio controller ( R/C ) out of control.

Make sure moving direction of all servos be same with the operating
direction. If not, please adjusting direction first.

Thank you for choosing the Hobbyking 3 channels 2.4GHz Frequency-Hopping
Spread Spectrum
Digital proportional R/C for car and boat surface system. If it's your first use of a
computerized radio system, this user manual will bring you easily to a new world of
fun and sophistication. In all cases, please read carefully and completely this user
manual as it contains all information to keep you and others safe.

If you encounter any problem during use, please referring to this manual. If the
problem still persists, please contacting your local distributor or connect to our
service to get support website: www.hobbyking.com

Please pay attention to the following symbols when they appear in the manual and
read carefully.

1. Introduction

2. Services

3. Special symbols

1

The 2.4GHz radio band has a completely different behavior than
previously used lower frequency bands. Keep always your
model in sight as a large object can block the RF signal and lead
to loss of control. The 2.4GHz RF signal propagates in straight
lines and cannot get around objects on its path. Never grip the
transmitter antenna when operating a model as it degrades
significantly the RF signal quality and strength and may cause
loss of control and danger.

Always turn on the transmitter first then the receiver. When
turning off the system, always turn off the receiver first then the
transmitter. This is to avoid having the receiver on itself as it
may pick a wrong signal and lead to erratic servo movements.
This is particularly important for electric powered models as it
may unexpectedly turn on the motor and lead to injuries or
death.

The shutdown sequence must be to first disconnect the receiver
battery then to switch off the transmitter. If the transmitter is switched
off while the receiver is still powered, it may lead to uncontrolled
movement or engine start and may cause an accident.

In particular, the 2.4G R/C FHSS system will affect the plane or the car
nearby after you turn on the transmitter.

Be sure to set the Fail Safe function on working situation, after finish
F/S every time, please following turn off the transmitter, Don't turn on
the transmitter halfway.

Do not operate outdoors on rainy days, run through puddles of water
or use when visibility is limited. Should any type of moisture (water or
snow) enter any component of the system, erratic operation and loss
of control may occur.

Do not use it in the night or a lighting storm as the bad weather will
make the radio controller ( R/C ) out of control.

Do not operate in the following places.

-Near other sites where other radio control activity may occur.

-Near people or roads. On any pond when passenger boats are present.

-Near high tension power lines or communication broadcasting antennas.
Interference could cause loss of control. Improper installation of your Radio
Control System in your model could result in serious injury.

Do not operate this R/C system when you are tired, not feeling well or
under the influence of alcohol or drugs. Your judgment is impaired and
could result in a dangerous situation that may cause serious injury to
yourself as well as others.

Do not touch the engine, motor, speed control or any part of the model
that will generate heat while the model is operating or immediately after
its use. These parts may be very hot and can cause serious empyrosis.

Always perform a operating range check prior to using.

Problems with the radio control system as well as improper installation in a
model could cause loss of control.(Simple range test method) Have a friend
hold the model, or clamp it down or place it where the wheels or prop
cannot come in contact with any object. Walk away and check to see if the
servos follow the movement of the controls on the transmitter. Should you
notice any abnormal operation, and do not operate the model. Also check
to be sure the model memory matches the model in use.

Before turn on the power:

Always checking the throttle trigger on the transmitter at the neutral position
and TH trim too. When making adjustments to the model, do so with the
engine not running or the motor disconnected. You may unexpectedly lose
control and create a dangerous situation.

32

Item: BER-TRC1

Channels: 3CH
Model type: Car/Boat
RF range: 2.40 -2.48GHz
Bands: NO. 208
RF power: less than 20 dBm

2.4G system: FHSS
Code type: 2-FSK
Sensitivity: 1024
Low voltage warning: (less than 4.4V)

ST range: 84° (Around 42°)
TH range: 40° (F: 27;B:13)
Charger port: Yes
Power: 4.4V – 8.6V
Weight: 280g
Size: 100*140*200mm
Color: black
Certificate: CE0678, FCC

5. Transmitter Specifications

Item: BER-RXV3

Channels: 3
Model type: Car/Boat
RF range: 2.40-2.48GHz
Bands: NO. 208
RF power: less than 20 dBm

2.4G system: FHSS
Code type: 2-FSK
Power: 4.4V - 8.6V
Weight: 8g

ANT length: 170mm
Size: 13*20*30mm
Color: White
Rx Sensitivity: -105 dBm
Certificate: CE0678, FCC

Concentrator Specifications：

Item: BER-HCV1

Highly integrated
Voltage acquisition module
Measuring range: 1V – 30V
Temperature acquisition module
Measuring range: 0°C - 150°C
Speed acquisition module
Measuring range: 480RPM – 50000RPM

6. 01 Telemetry Concentrator Specs.

1. Temperature sensors, two types for EP power or GP power.

2. Speed Sensor.

3. Li-Po battery connecting line ( 2S, 3S, 4S and 6S ) ,Picture below.

6. 02 Sensors

Keeping 3CH button switch on transmitter(Tx), the Tx led blue light flashing and
buzzer sound 'B-B-B...'. It is in matching status. Then receiver(Rx) connect power,
the Rx green led light slow flash, keeping Rx BIND button till Rx green led light quick
flash several times then slow flash, It shows bind successful. And turn off Tx power
and switch it on again. then Rx green led light become solid, It's in working status.

NOTES: When binding processing, please don't put receiver antenna too close the

transmitter antenna, far away 30CM better distance, too close the signal may jam.

7 . Binding

6. Receiver Specifications

54
