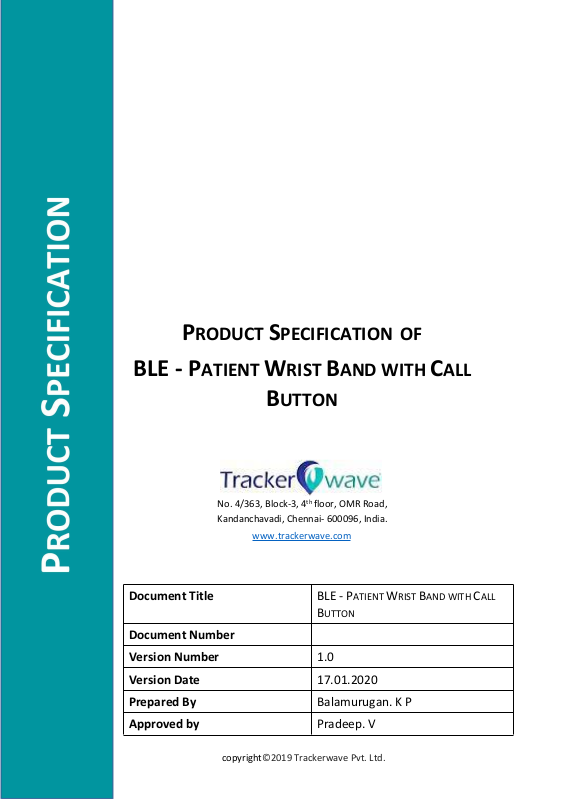

Page 1
PRODUCT SPECIFICATION OF
Document Title
BLE - PATIENT WRIST BAND WITH CALL
BUTTON
Document Number
Version Number
1.0
Version Date
17.01.2020
Prepared By
Balamurugan. K P
Approved by
Pradeep. V
BLE - PATIENT WRIST BAND WITH CALL
BUTTON
No. 4/363, Block-3, 4thfloor, OMR Road,
Kandanchavadi, Chennai- 600096, India.
www.trackerwave.com
copyright©2019 Trackerwave Pvt. Ltd.
Page 2
Product Specification V1
Trackerwave Tag
i
CONTENTS
1. PRODUCT OVERVIEW
1.1.
Introduction
2. SPECIFICATIONS
2.1.
2.2.
2.3.
2.4.
Key Features
Applications
Parameters
Operating Conditions
REVISION HISTORY
...........................................................................................................
..................................................................................................................
...........................................................................................................
............................................................................................................
.............................................................................................................
........................................................................................................................
.........................................................................................................
1
1
1
1
.............................................................................................
1
1
1
2
Page 3
Product Specification V1
Trackerwave Tag
1
1.
PRODUCT OVERVIEW
1.1.
Introduction
Trackerwave Ovitag Wrist band is a Bluetooth Low Energy 5.0 based device for indoor tracking. The
Wrist band supports patient fall detection and activity monitoring. Wrist band Button helps patient
call nurse. Wrist band is powered by small size coin battery and its replaceable. It is designed for
healthcare to withstand E20, Gamma and Plasma serialization.
2.
SPECIFICATIONS
2.1.
Key Features
Bluetooth 5.0
SOS button
Indication LED’s
Replaceable coin battery
Accelerometer
Application processor
o
64 MHz Arm® Cortex®-M33 CPU
2.2.
Applications
Indoor Location tracking
Patient fall detection
Activity monitoring
Nurse call
Geo fencing
Queue management
Nurse routine
2.3.
Parameters
Operation voltage : 1.8-3.6V
Transmission range : Maximum 50 meters
Battery life :1 Year
2.4.
Operating Conditions
Temperature : -20 to +75 °C
Humidity : 80%
Dimension : 3.8X3.3X1 cm
Weight : 10 grams
Page 4
Product Specification V1
Trackerwave Tag
2
REVISION HISTORY
S.No
Ver. No.
Ver. Date
Changed By
Section (s)
Changed
Description of change
1.
1.0
01.17.2020
Balamurugan K P
-
Initial Draft
FCC Requirement
changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy, and if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected.
– Consult the dealer or an experienced radio/TV technician for help.
