Tracker Security myLogger Pro User Manual
!"#$%%&'()'$(!*+,*-(
*+.(/0&12321*42$+(
1 (16)
TS_19.5.2011
!
!
!
!
!
!
!!!
!
"#$%&'#!('%)#*+,!-,!
./0'1+*'!2$34!56735!89:;;!
<)/=!5255!>63!?55!
!

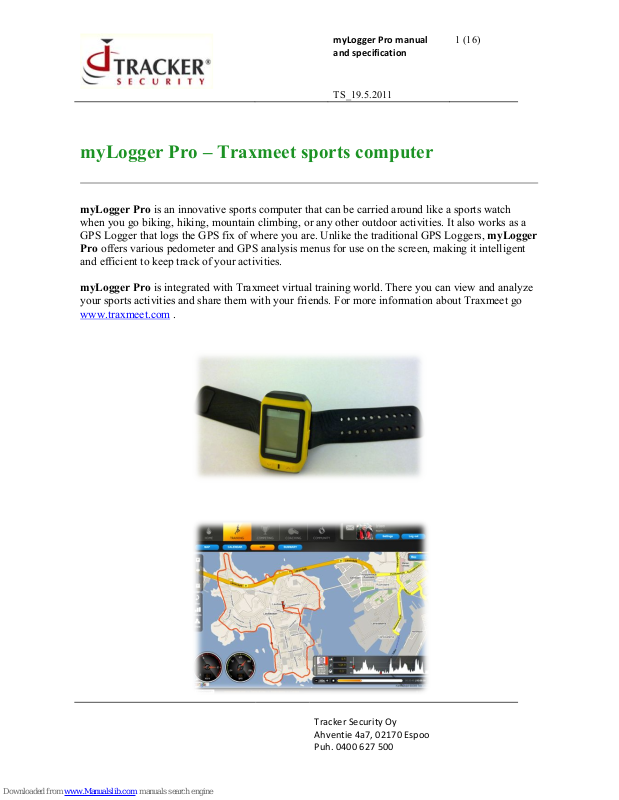

myLogger Pro – Traxmeet sports computer
myLogger Pro is an innovative sports computer that can be carried around like a sports watch
when you go biking, hiking, mountain climbing, or any other outdoor activities. It also works as a
GPS Logger that logs the GPS fix of where you are. Unlike the traditional GPS Loggers, myLogger
Pro offers various pedometer and GPS analysis menus for use on the screen, making it intelligent
and efficient to keep track of your activities.
myLogger Pro is integrated with Traxmeet virtual training world. There you can view and analyze
your sports activities and share them with your friends. For more information about Traxmeet go
www.traxmeet.com .
!"#$%%&'()'$(!*+,*-(
*+.(/0&12321*42$+(
2 (16)
TS_19.5.2011
!
!
!
!
!
!
!!!
!
"#$%&'#!('%)#*+,!-,!
./0'1+*'!2$34!56735!89:;;!
<)/=!5255!>63!?55!
!
Before you start
1. Go to www.traxmeet.com and create a user account for yourself.
2. Download and install Traxmeet Sync- software from www.traxmeet.com. For more
instructions about using Traxmeet Sync for downloading sport activities see aplication help.
Product Overview
To get started with the MyLogger Pro, please follow the steps described below:
1. Connect the MyLogger Pro to your PC using the USB cable.
2. Keep the MyLogger Pro connected to PC and charge for at least 4 hours prior to first use.
3. Unplug the MyLogger Pro from PC once fully charged, and press the Power/Menu button
for 2 seconds to power on.

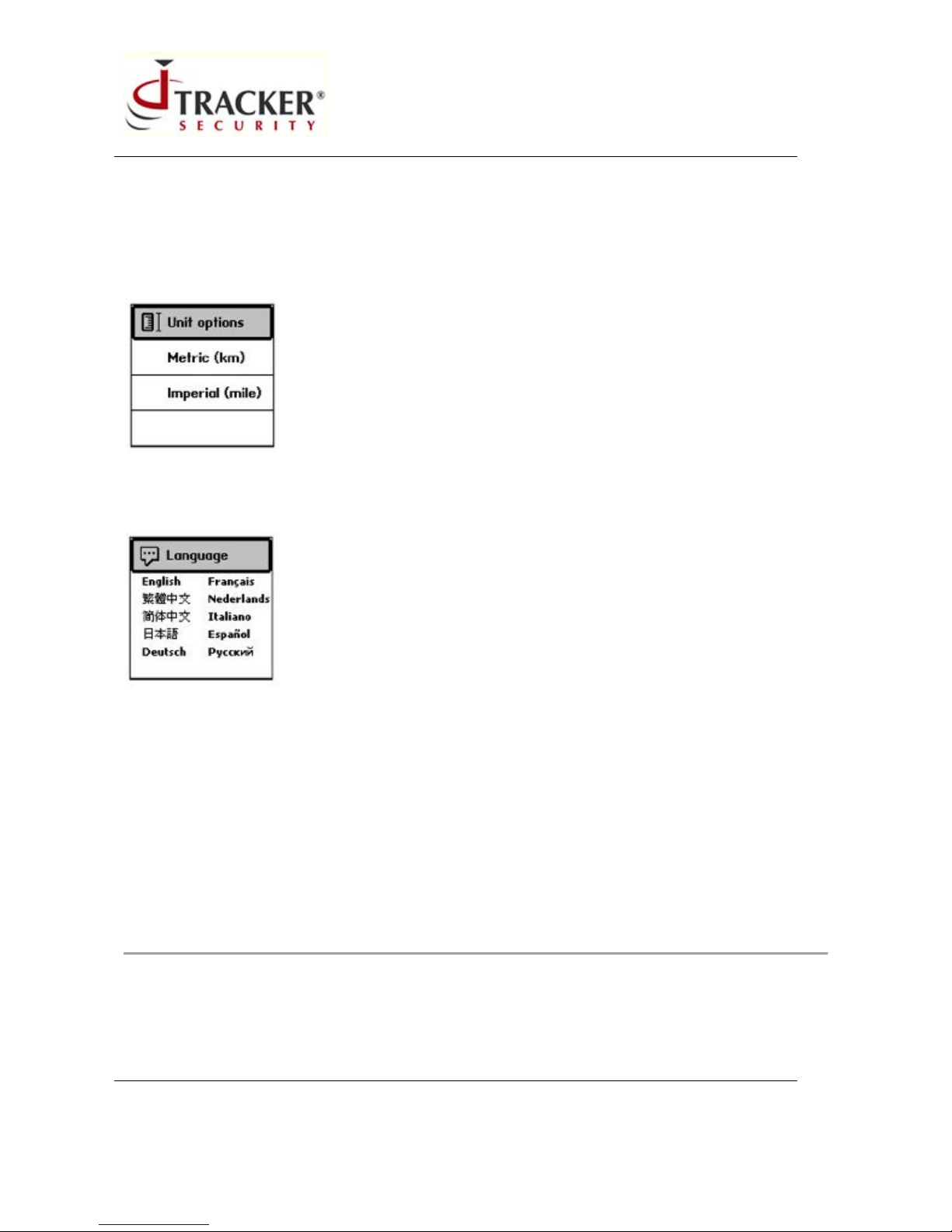

4. On the MyLogger Pro, select a display language, set the time, and select a measurement unit
standard.
Note: Before setting time, please go outdoors to obtain a GPS fix first.
Bike Mount & Strap
Attach to a bike mount / Detach from a bike mount
!"#$%%&'()'$(!*+,*-(
*+.(/0&12321*42$+(
3 (16)
TS_19.5.2011
!
!
!
!
!
!
!!!
!
"#$%&'#!('%)#*+,!-,!
./0'1+*'!2$34!56735!89:;;!
<)/=!5255!>63!?55!
!
!
1. Press down the wrench on the bike mount.
2. Slide out the MyLogger Pro as directed.
Front view
Back view
!
Power/Menu button
1. When the MyLogger Pro is turned off, pressing the Power/Menu button for 2 seconds turns
ON the MyLogger Pro.
2. When the MyLogger Pro is turned on, pressing thePower/Menu button for 2 seconds brings
up the main menu. Selecting Power OFF option from the main menu allows you to turn
OFF the MyLogger Pro.
3. When the MyLogger Pro is powered on, long pressing the Power/Menu button for 2
seconds brings up the main menu. To select an option shown on the main menu, press the
Power/Menu button again.
Up and Down buttons
!"#$%%&'()'$(!*+,*-(
*+.(/0&12321*42$+(
4 (16)
TS_19.5.2011
!
!
!
!
!
!
!!!
!
"#$%&'#!('%)#*+,!-,!
./0'1+*'!2$34!56735!89:;;!
<)/=!5255!>63!?55!
!
1. Pressing either one of the buttons toggles between different menu pages.
2. Pressing the Down button for 2 seconds on main display to turn ON/OFF the backlight.
Power ON/OFF
1. The MyLogger Pro automatically turns on when a battery is inserted or connected via USB.
The MyLogger Pro will start logging once powered on.
2. The MyLogger Pro automatically re-starts logging (counter/pedometer/GPS data resets, etc.)
at 00:00:00 everyday.
Hardware Reset
• Pressing down both the Up and Power/Menu buttons simultaneously for 5 seconds resets
the hardware settings.
Main Menu
1.
On the main display, long press the Menu button for 2 seconds to return to the main menu.
2.
Use the Up and Down buttons to toggle between menu pages, and then press the Menu button once to select your
option.
3.
To exit the main menu without selecting any option, long press the Menu button for 2 seconds.
!
!
Menu Settings
!"#$%%&'()'$(!*+,*-(
*+.(/0&12321*42$+(
5 (16)
TS_19.5.2011
!
!
!
!
!
!
!!!
!
"#$%&'#!('%)#*+,!-,!
./0'1+*'!2$34!56735!89:;;!
<)/=!5255!>63!?55!
!
Counter Reset
• This resets the counter on specific GPS main displays, such as Stopwatch,
Lap, GPS and etc.
Power OFF
• This turns off the MyLogger Pro.
Backlight
• This allows you to turn ON/OFF the backlight display.
!
Screen Rotate
• This rotates the screen display to either a vertical or horizontal view.
!
