Chapter 1: Ready ,Install ,Begin Use

Thank for using RAT2

RAT2

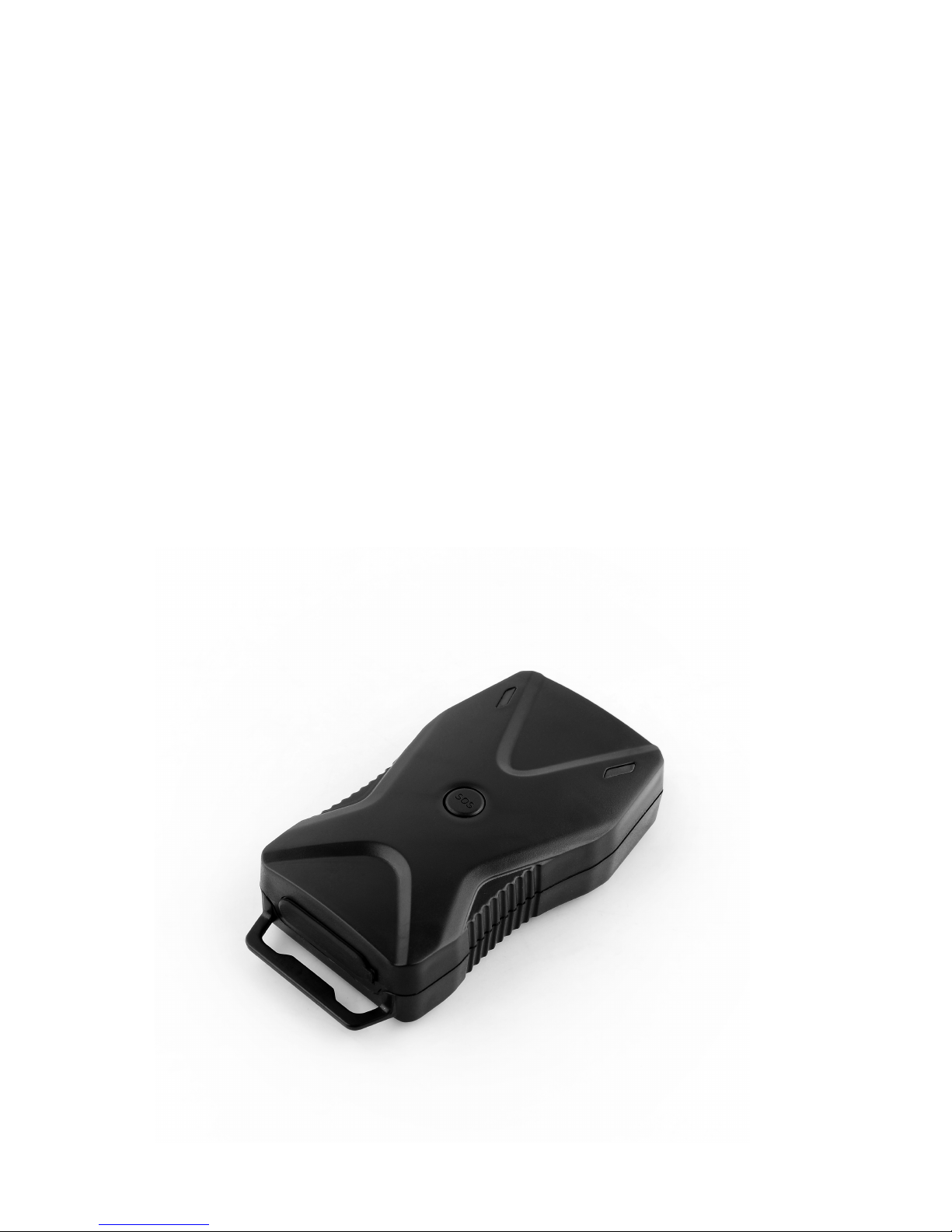

RAT2 Waterproof CAR GPS tracker , This device built in GPS and GSM

Page 4

module,It can receive GPS signal to get position and send by GPRS （ belongs GSM module) to

our server ,User can real time tracking the car and get position though the internet .Any kind

Notebook or smart phone can online tracking it ,In additional, Our company engine one Mobile

tracking application basic the IOS and Android software .User can visit APP or Android market

and download this application , it can use to control the device . This device is smaller

design ,easy installation and suit for vehicle tracking ,Management and Anti-theft.

Please visit our Free Tracking platform www.tracetree.net and choose the language as your

want ,when your first time to log in the platform ,the default log in ID and password is the

last 6 S/N number of device . (Every tracker has unique S/N number stick the device

background ,the log in ID can't be changed ,but the password can be changed)

The device can be used to company vehicles, buses, taxis, trucks, moving equipments,

transportations etc. The user can add the group for their customer by themselves or request supplier

support .

Free Tracking platform : www.tracetree.net , Demo ID and password : 123456

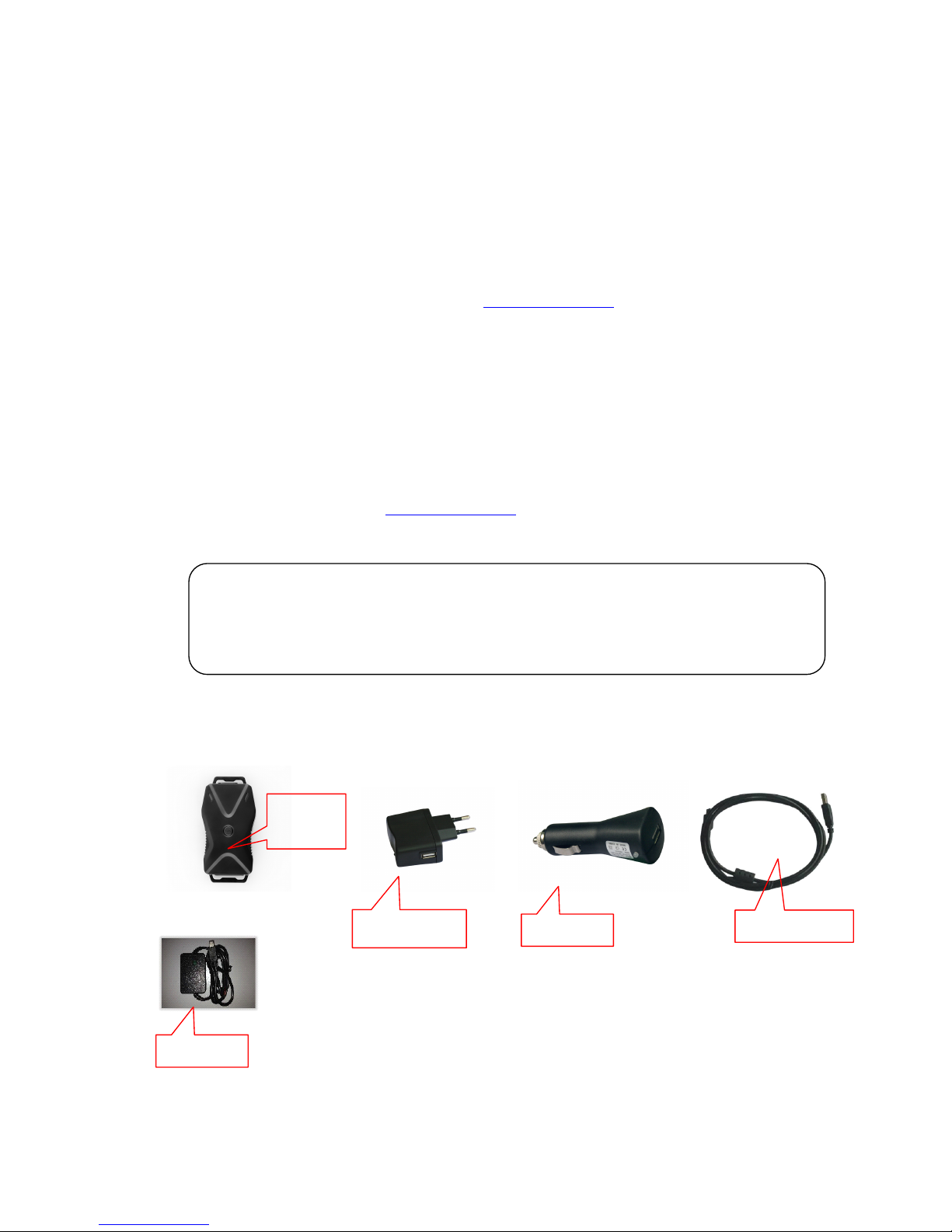

1. Standard Parts

2.B efore use

1 SIM Card( Phone Card) introduce :

ON/OFF

Button

USB line

HomeAdpater

Because the tracker built in GSM module ,attention please follow the rule ,Don't use the tracker

near the hospital or gas station ,it maybe danger.

Car charger

Power line

Page 5

This device need GSM net SIM Card ,Before install the SIM card ,please open the Caller ID ,SMS and

GPRS function service . After install the SIM card ,the SIM card number is the Tracker Number ,when your

use the tracker to locate ,check ,set up function ,all set up need send command to this number ,so we

call it tracker number .

■ This device only use 2G GSM net ,it can't work on CDMA or 3G GSM net

■ Please confirm the PIN code had been closed before install the SIM Card.( If you use it in mobile

no need input any password ,so it means has been closed )

■ Please turn off the tracker before install or take off the SIM Card.

2 Install SIM Card :

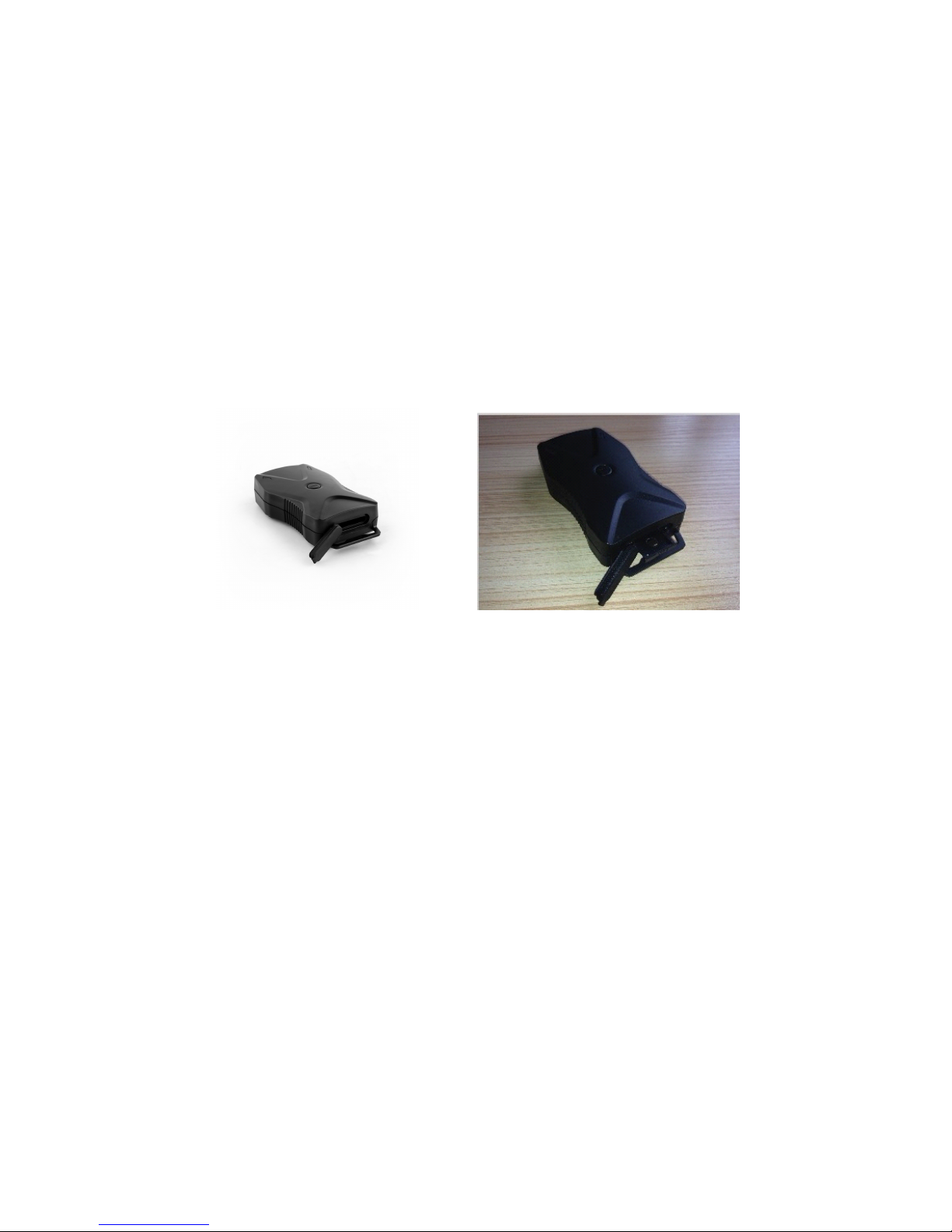

As below : First remove the rubber Button ,Pull out the SIM card socket. , and place the SIM card

into the socket (ensure that the SIM card contact is facing down). Cover the rubber button.

3. Install Device:

■ After install SIM card ,please connect the device with the car battery.(12V-24V )

■ If your don't connect the car battery ,the device has its backup battery ,it can keep work 10-12

hours .

■ Attention please the device recharge voltage is 5V ,it will be danger if your connect the voltage

higher than this range. Meanwhile please don't broken the fuse. When your use this device first time

and there is no anymore battery ,please connect with car battery ,After 20 minutes it will work stable ,the

tracker locate will get a little longer in first time

Page 6

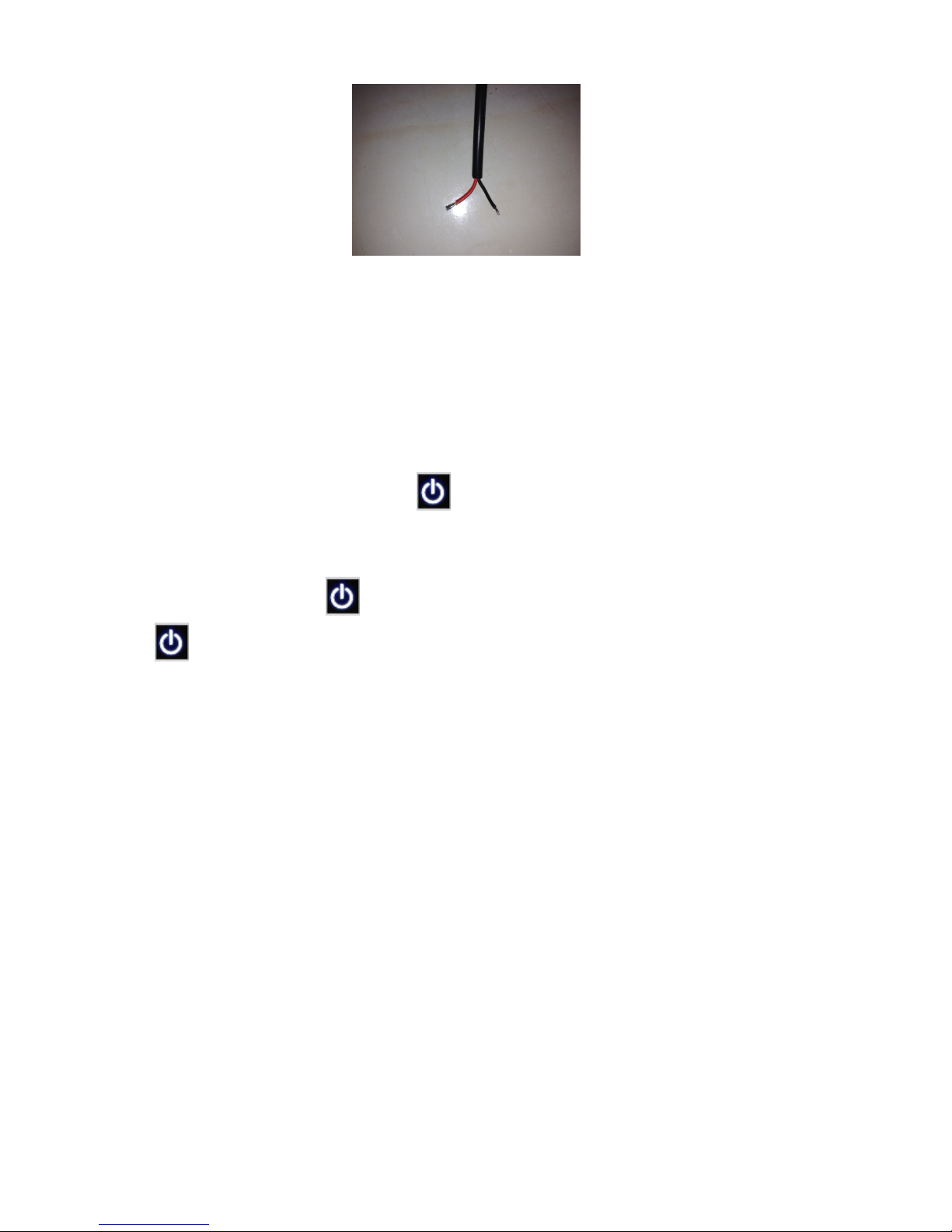

Red- 12-35V car battery

Black- GND( Car body)

Power ON/OFF:

Power on : Prees the until Green LED light then release the button , The device power

on ,and search the GSM,GPS signal , waiting for the Green and Blue LED flash ,means the device work stable .

Power On: Under Power off ,connect with car battery ,it will automatic power on .

Power off: press then Green LED flash ,then release the button ,it will power off ,Press the

button three times ,about 2-3 sec ,the LED will over means device power off .

5. Programme LED indicate

Blue LED off Green LED continue on : Power on ,search GSM net

Blue LED on Green LED on : GSM signal well, GPS signal weak,GPRS can't work

Blue LED on Green LED flash: GSM signal well, GPS signal well,GPRS can't work

Blue LED Flash Green LED on : GPRS work well ,GPS signal weak

Blue LED flash Green LED off: GPRS work well ,GPS signal well ,GPRS connect well.

Green LED off ,Blue LED off : Power off

Red LED : indicate recharge the battery ,Red LED light ,means charging ,Red LED off means no battery

or full battery .

Yellow LED: Yellow LED flash indicate the device is moving ,Yellow LED off means the device is quite .

Page 7

Chapter 2: Function

Page 8

1,Command

1,Command List

List

Page 9

Function Fix Command format Reply Remark

LBS locate

LBS *000000 LBS address

If command or PW is wrong will

indicate your wrong command

SMS Locate SMS *000000 Long and Lat

Link Locate Link *000000

Google link

Real time

tracking

tracking *000000 every 1 minutes will

send locate information

Long and Lat

Cancel Real

time tracking

Canceltracking *000000 Cancel OK

Add Preset

Number

AddNumber *000000*A*13828819646 Add B or

C same command

Add Number OK

Check preset

Number

Check *000000

A: 13828819646 ； B

：

13823764594 ； C ：

15814016516

Delete phone

Number

DeleteNumber *000000*A Delete OK

Change PW ChangePW *000000*123456 New PW ： 123456

Check PW CheckPW PW ： 000000

Default

Reset *000000

Move Alarm Movealarm *000000 Move alarm OK

If command or PW is wrong will indicate

your wrong command

Over Speed

Alarm

OverSpeed

*000000*50

Over Speed OK

Geo-

Fence Alarm

Overarea* 000000*10

Over area OK

Low Battery

Alarm

Only Preset Number can get alarm SMS

Cancel All

alarm

CancelAll *000000 Cancel All alarm OK

One Preset Number can get alarm

message

Upload interval

set up

INTERVAL* 000000*00

Set Upload Interval with detail sec

The last 000 means from 015-999 sec can

be set up ,the upload time can't lower

15 sec

Page 10

Attention: 1, Upon all command send by SMS ,if your can't get reply by SMS ,it means the GSM net is busy

or not stable .the default password is "000000" ,Every command must add "*" mark.

2.There is no any preset number before selling ,Please add preset number ,then you can set up change

Password and check PW function .please reference the command list to set up related function .

3 ， Please attention Tracking function ,If you set up this function , the tracker will send locate

information to your mobile every 1 minutes .This function will cost more SMS charge.

4 ， If GPRS not stable ,GPS signal well ,the Tracker will storage GPS data and upload the data to

the server when GPRS stable .

5,If the tracker not set preset number ,All function can be set up by strange number except Engine

off alarm ,SOS alarm .

6 ， If there is space before the command or there is space during the command ,the tracker only reply

wrong command ,it will not answer the detail reason .

7.The tracker ID is printed on the label of the tracker, the S/N number on the label is also the

ID number. If the label is missing, send an SMS “ ID* 000000 ” to tracker, in which, “ ID ” is the fixed command

and “ 000000 ” is the password. Having successfully been made, there will be a SMS “ ID: HC0000TR0000004 ” ,

in which, “ HC0000TR0000004 ” is the ID and every tracker corresponds to the only number. This number is used

to differentiate the tracking uploaded to the website from others.

8. After default has been set, all IP / APN / GPRS / TIME ZONE settings are reverted back to default, all

SOS

Only Preset Number can get SOS SMS

Time zone time *000000*+00 ： 00 Time with battery volume

Last 00:00 explain ,First 00

means 1-13 hours ,last00 means

minutes ,only can set up 30

minutes.

Set IP

IP* 000000 *134.159.152.

142,9258

IP*000000*134.159.152.142.9258

If use our platform ,No need set

up IP

Set APN

APN *000000*apnname APN:apnname & wrong Command

APN is needed set up when u use

GPRS function

Set User Name

and PW

USERNAME *000000*us

ername*password

Username:username,

Password:password

If set up GPRS need set up the user

name or PW please set them

Check ID ID *000000 ID:xxxxxx

If command or PW is wrong will indicate

your wrong command

Turn off

tracker by

SMS

TURNOFF*000000 Tracker Turn Off!

Page 11

preset phone numbers are deleted and the password is changed to 123456. All the alarm settings are canceled,

if the IP/APN/GPRS name& password/TIMEZONE are changed. You need to set these again by sending an SMS.

Chapter 3 :Mobile Tracking Application Function

GPRS

GPRS version

version

version --

-- Mobile

Mobile

Mobile Tracking

Tracking

Tracking Application

Application

Application introduce:

introduce:

This mobile control software named Mobile tracking ,it can work in IOS and Android software mobile .

This kind mobile tracking has two kind version ,one version is SMS reply ,another one is GPRS reply .if use

Page 12

GPRS version ,so all command send and get reply will though the GPRS net .but it request the mobile open GPRS

function . Under good GSM signal ,you can get reply though GPRS at once .Meanwhile when your use GPRS

function ,your need set up APN ,user name and password for your tracker . Download this application just visit

APP store or Android market and search "Mobile tracking GPRS "word ,then you will found this application and

install it ,You can begin use .

1 ， Mobile

Mobile

Mobile tracking

tracking

tracking Application

Application

Application Function

Function

Function introduce

introduce

introduce :

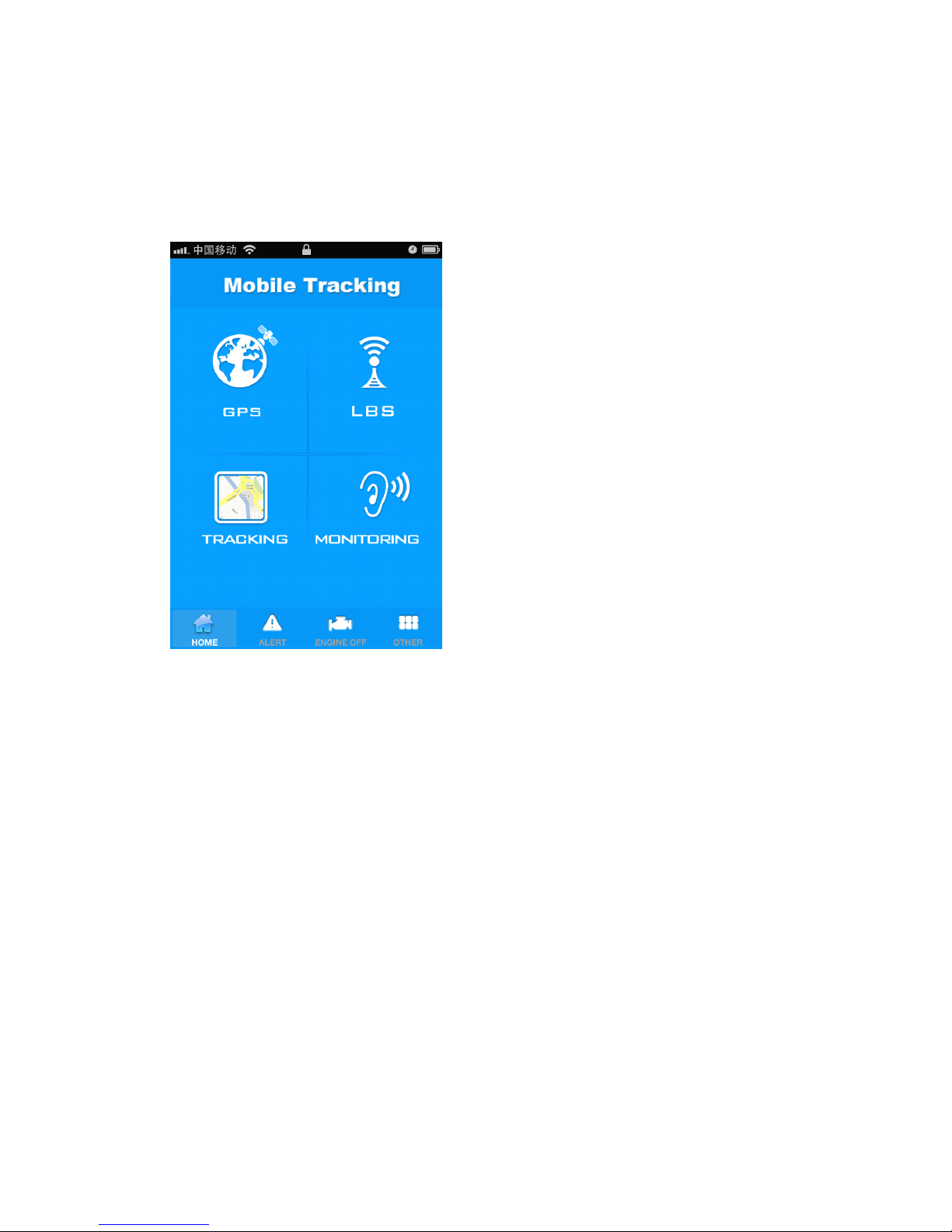

From the interface ,the functions as below : 1, GPS locate 2, LBS locate 3,Tracking( Online Tracking)

4 ， Monitoring ( RAT2

RAT2

RAT2 no this function)

5 ， Alarms 6 ， OTHER

2 ，

，

， Mobile

Mobile

Mobile tracking

tracking

tracking Application

Application

Application set

set

set up

up :

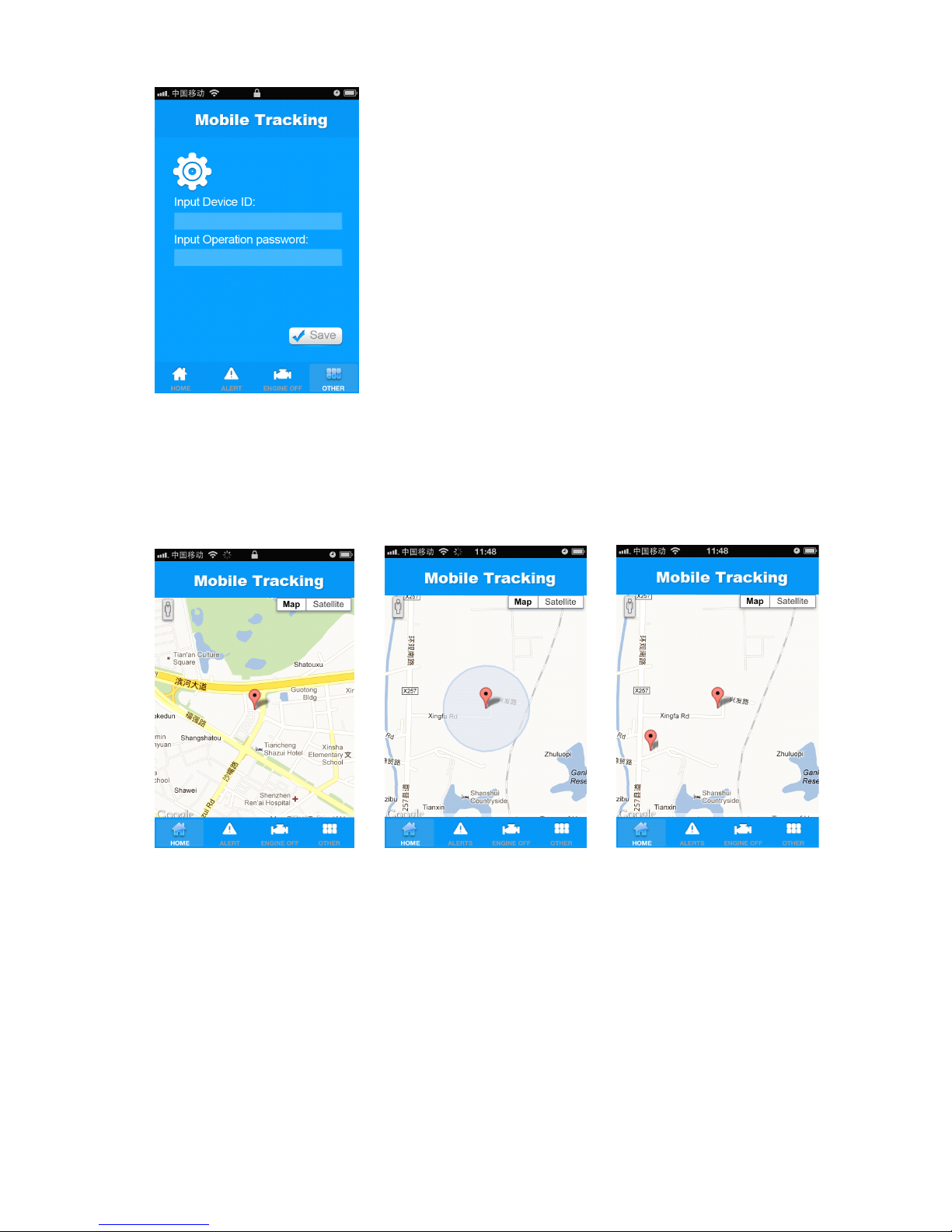

After download "Mobile tracking "application ,and install it ,Please input the device ID

and password first in "OTHER " function as below :

Page 13

After input the device ID and password ,then your can use "Mobile tracking "Application to control this device ,Though this function ,you can input different device ID and password and control difference device when your have more than 1 device .but just download this Mobile tracking " Application once is enough .

3, Mobile

Mobile

Mobile tracking

tracking

tracking Application

Application

Application function

function

As below :GPS ,LSB ,TRACKING and Monitoring function display .

GPS locate LBS locate Tracking Attention: when you use TRACKING function ,please keep the application is open ,the data will follow device upload interval time to refresh . All the locate function just click the icon then you will get reply

Page 14

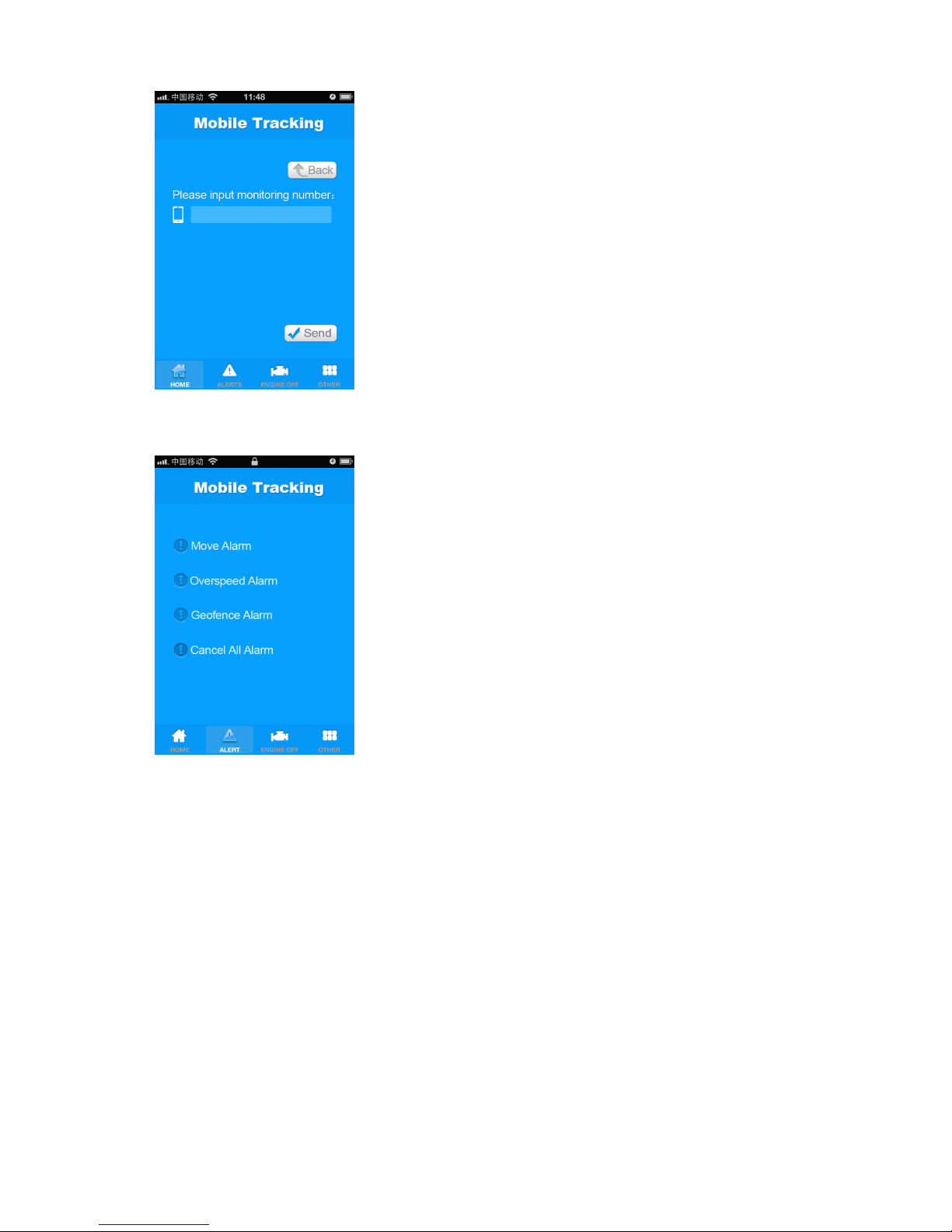

Monitoring: please input the mobile number ,when the tracker gets command will call this number .(

attention : this number is your mobile number ,not tracker's SIMCARD number

)

There is different alarm functions for customer choose ,just choose the function and follow the indicate to input content then the function is set up .

Attention:

when you set up the function though this application , it indicates can't connect device ,please

try again ,maybe the GPRS net not stable .

Page 15

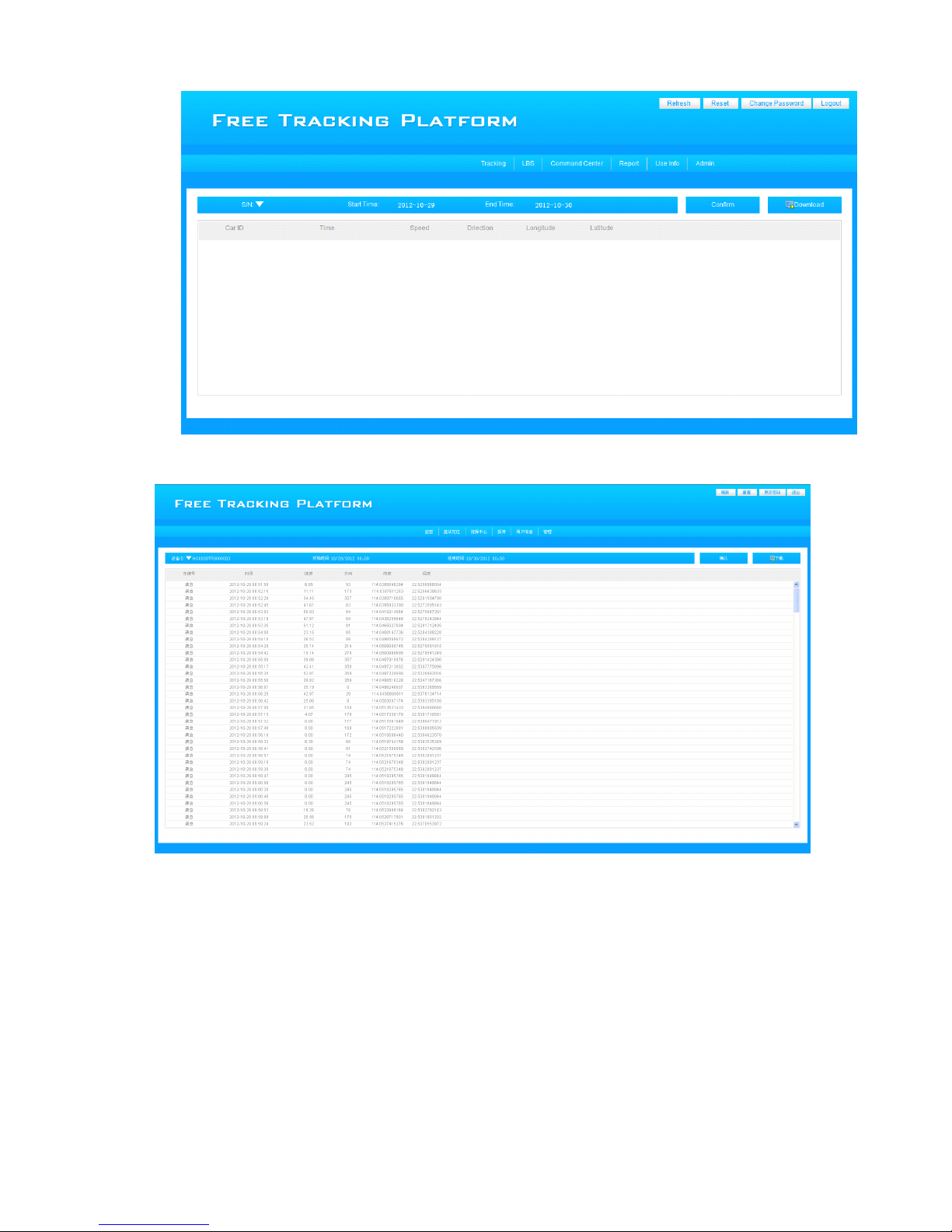

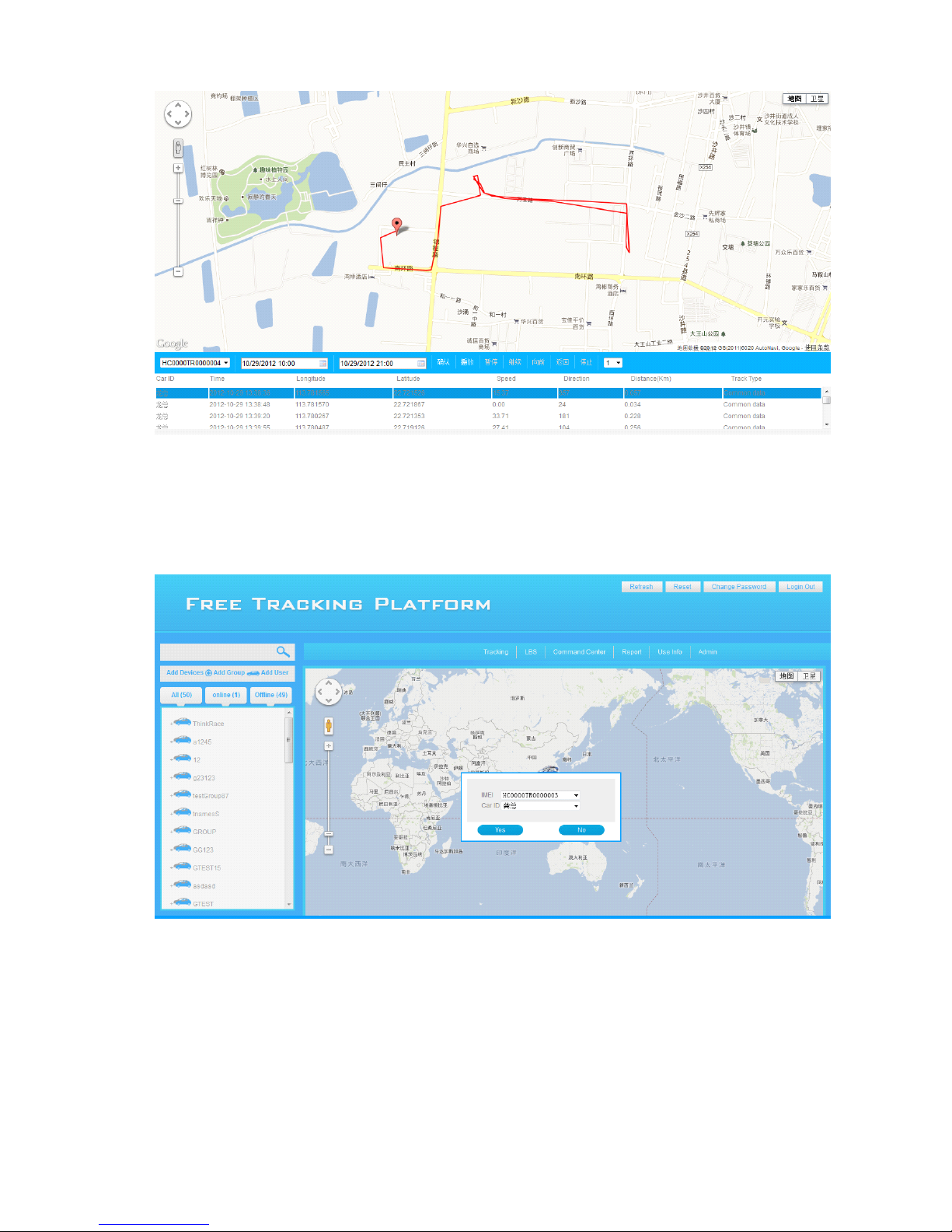

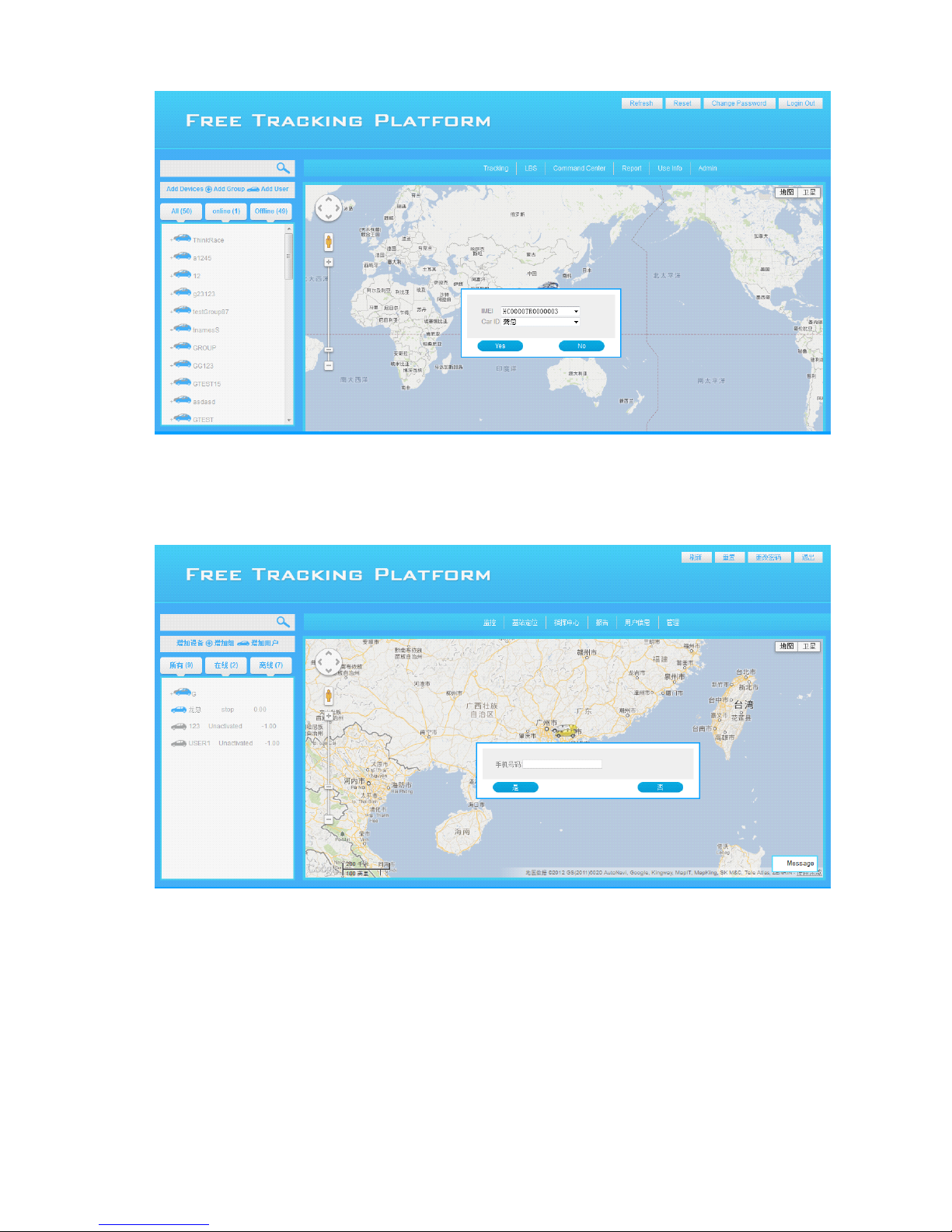

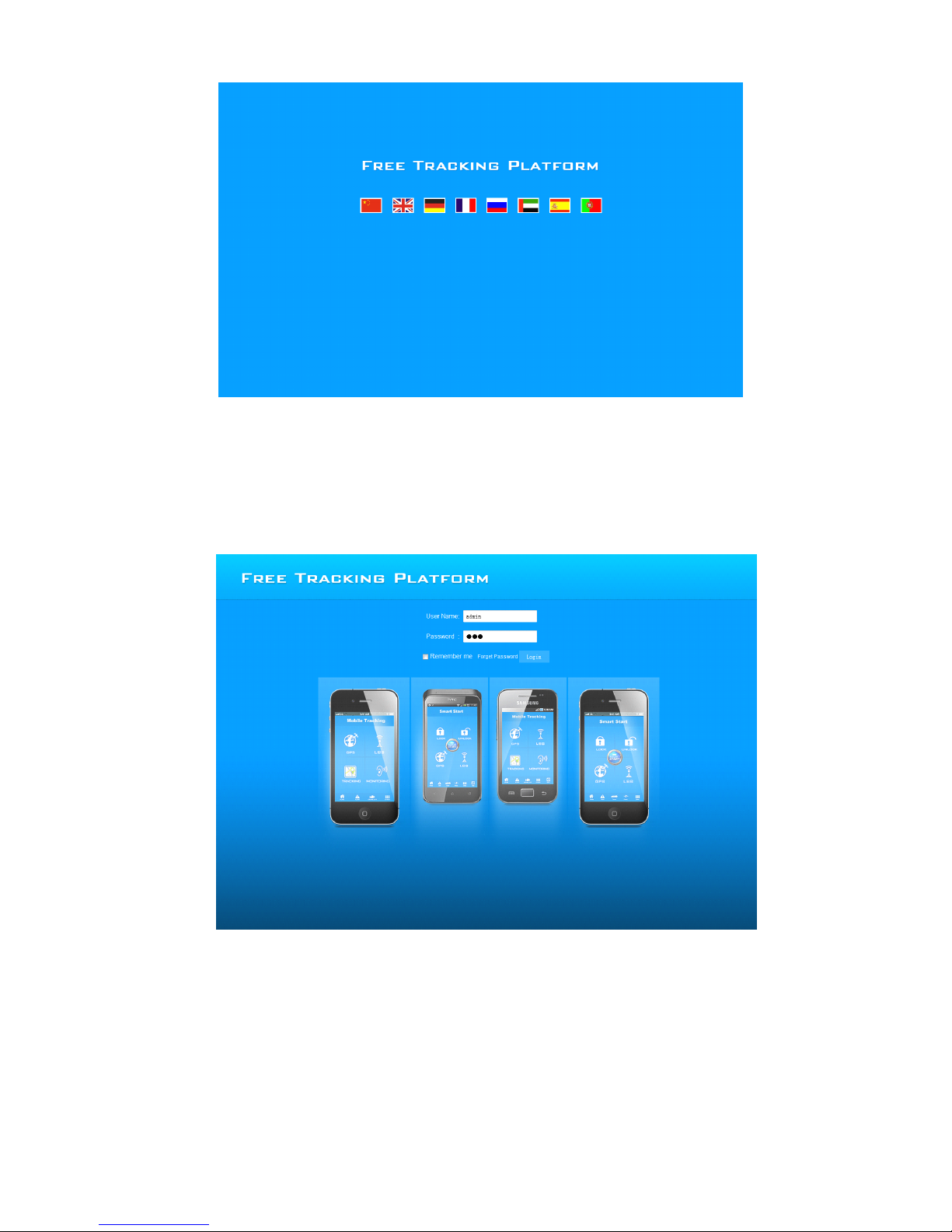

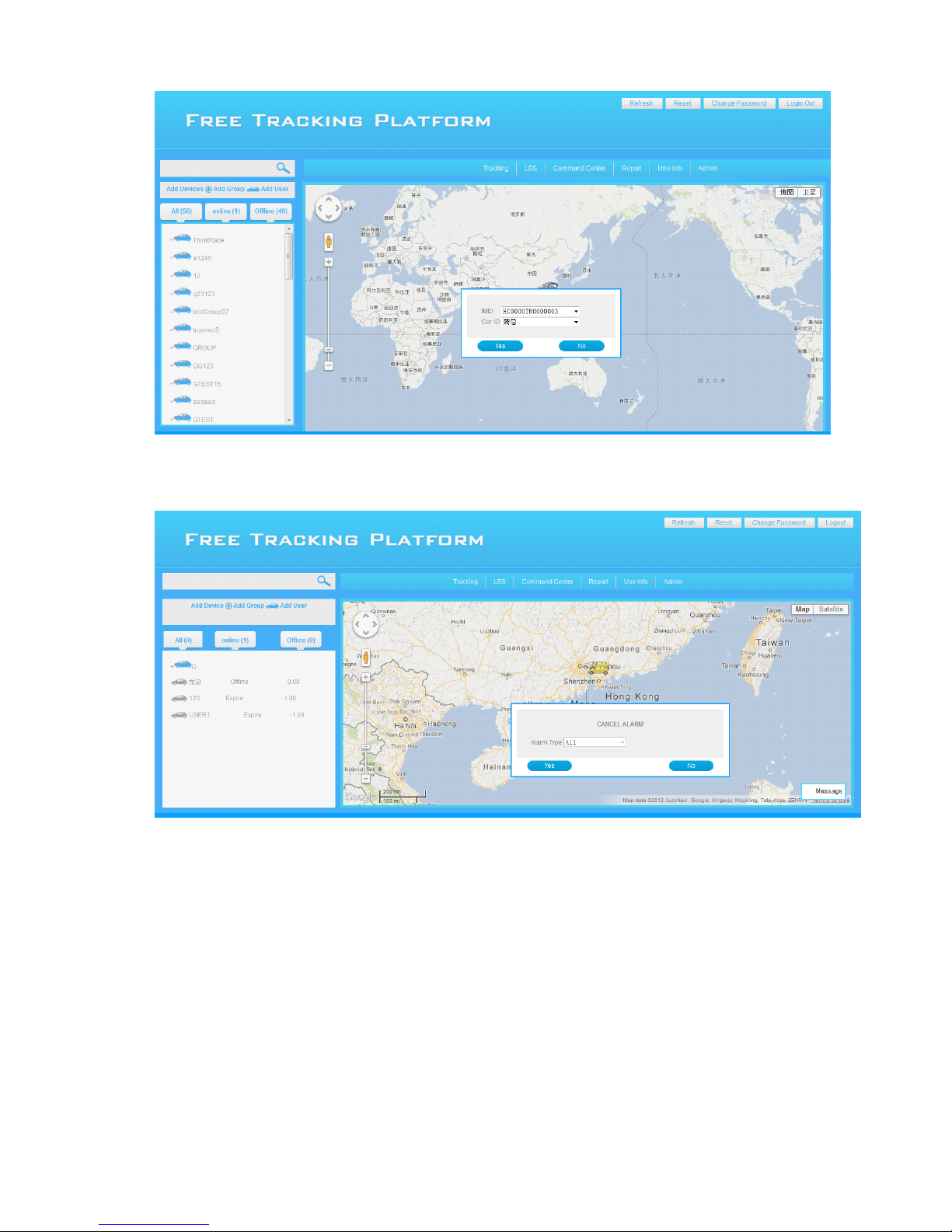

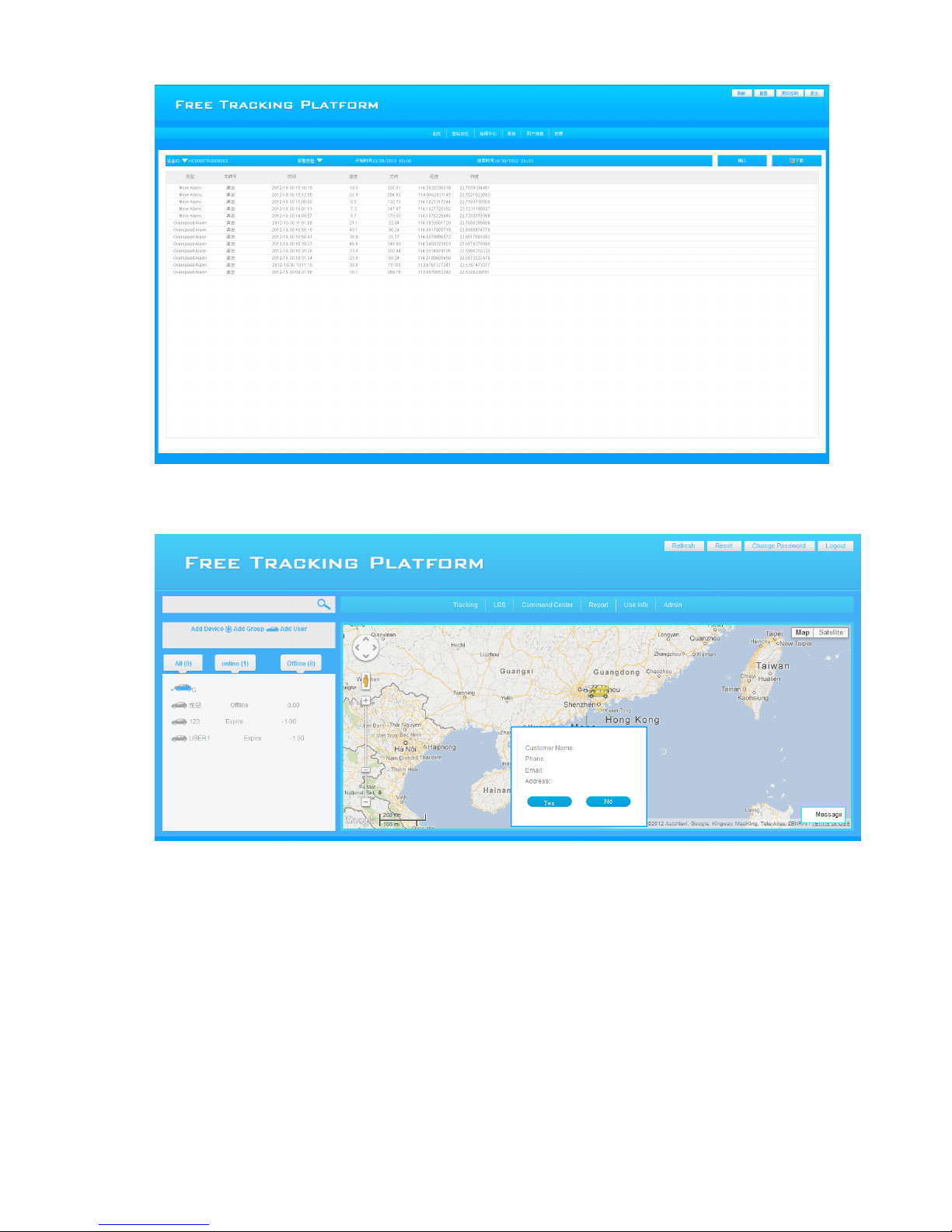

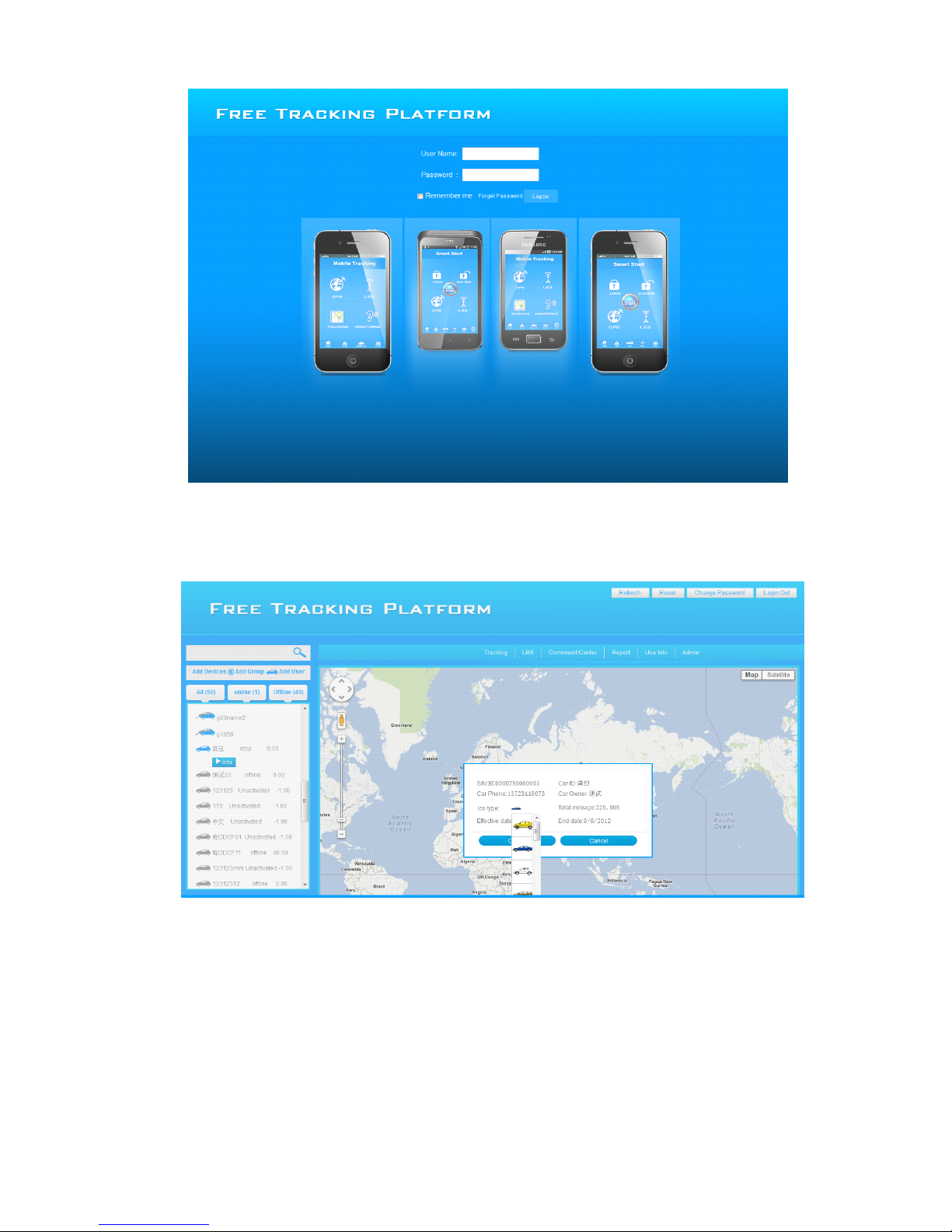

Chapter 4: Free tracking Platform

1 ， Welcome

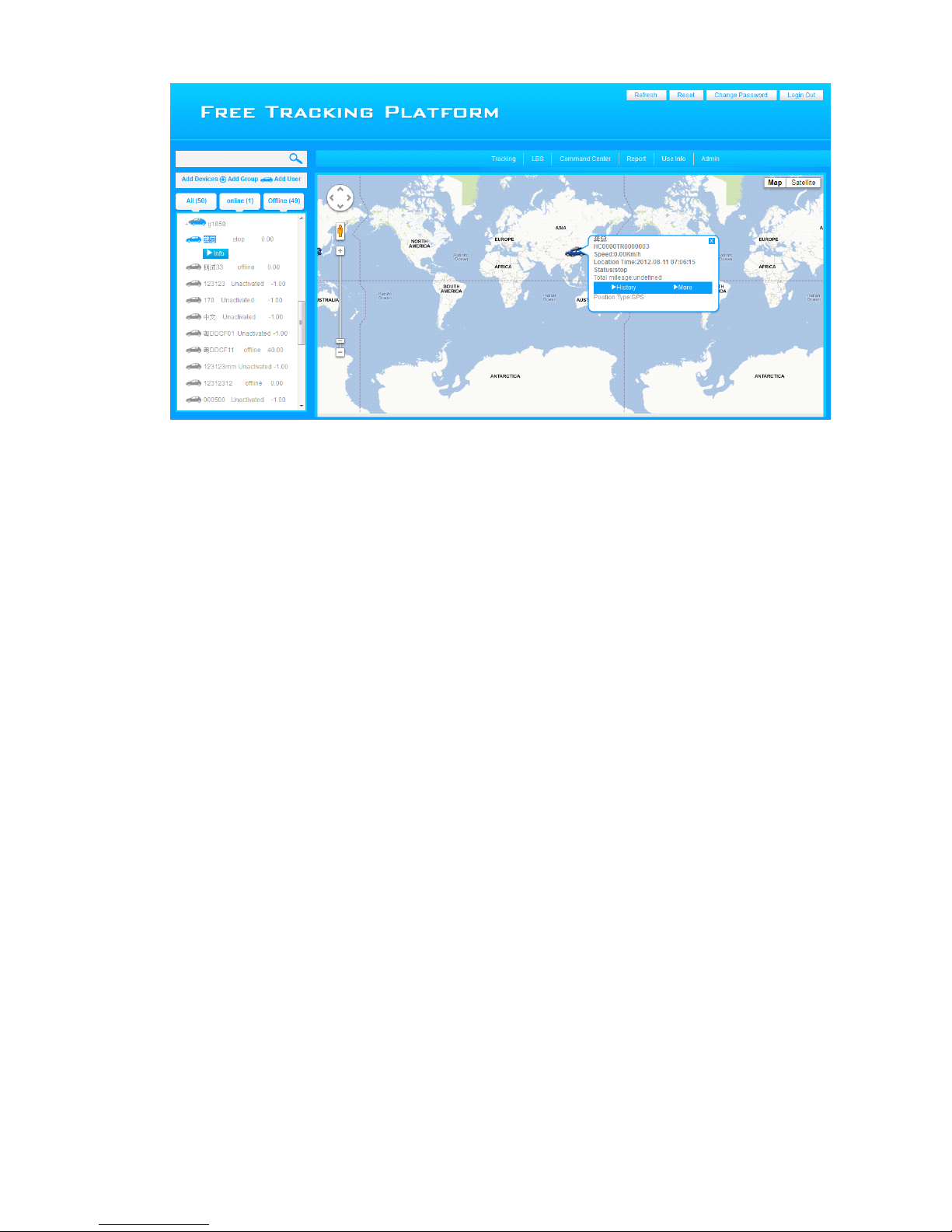

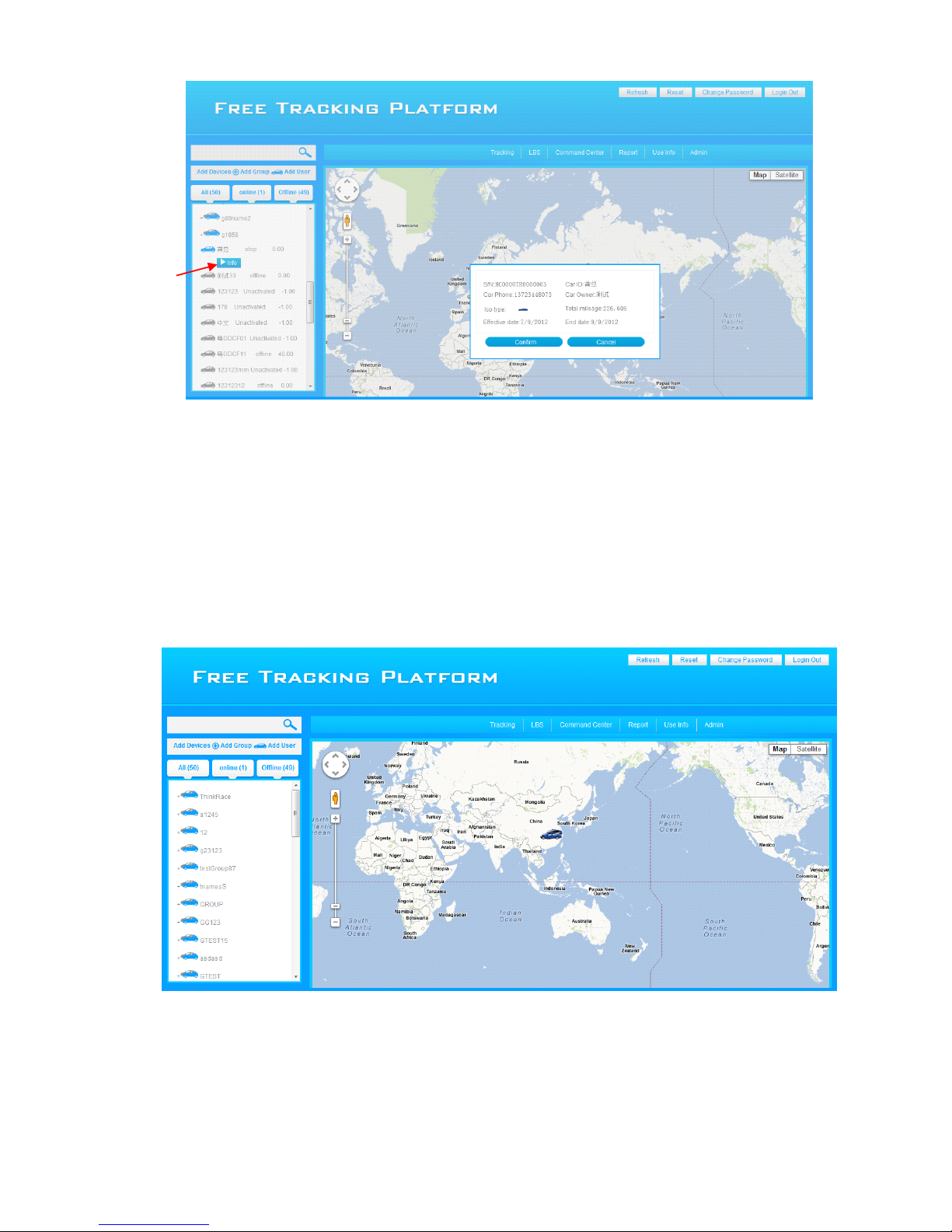

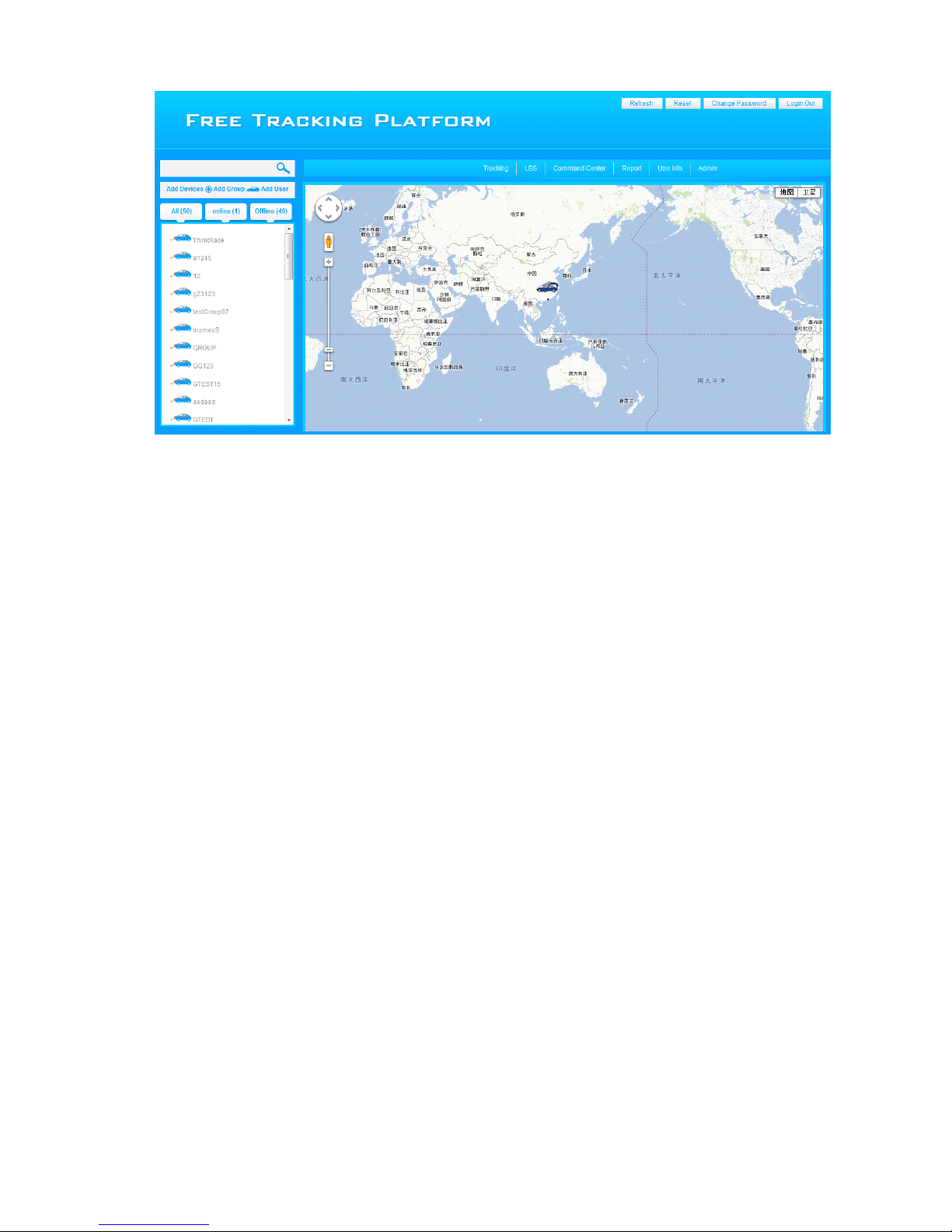

This platform is professional design for Vehicle tracking management service .it fits for our company

all device .the website is www.tracetree.net ,Every device has a unique S/N number and print into

sticker .every device default ID and password is the last 6 number of S/N ,For example: the ID is

" HC0000TR0000004" ,then the ID and password is "000004" ,Meanwhile when the sticker disappear, You can

send command "ID*000000 " to device to check ID .

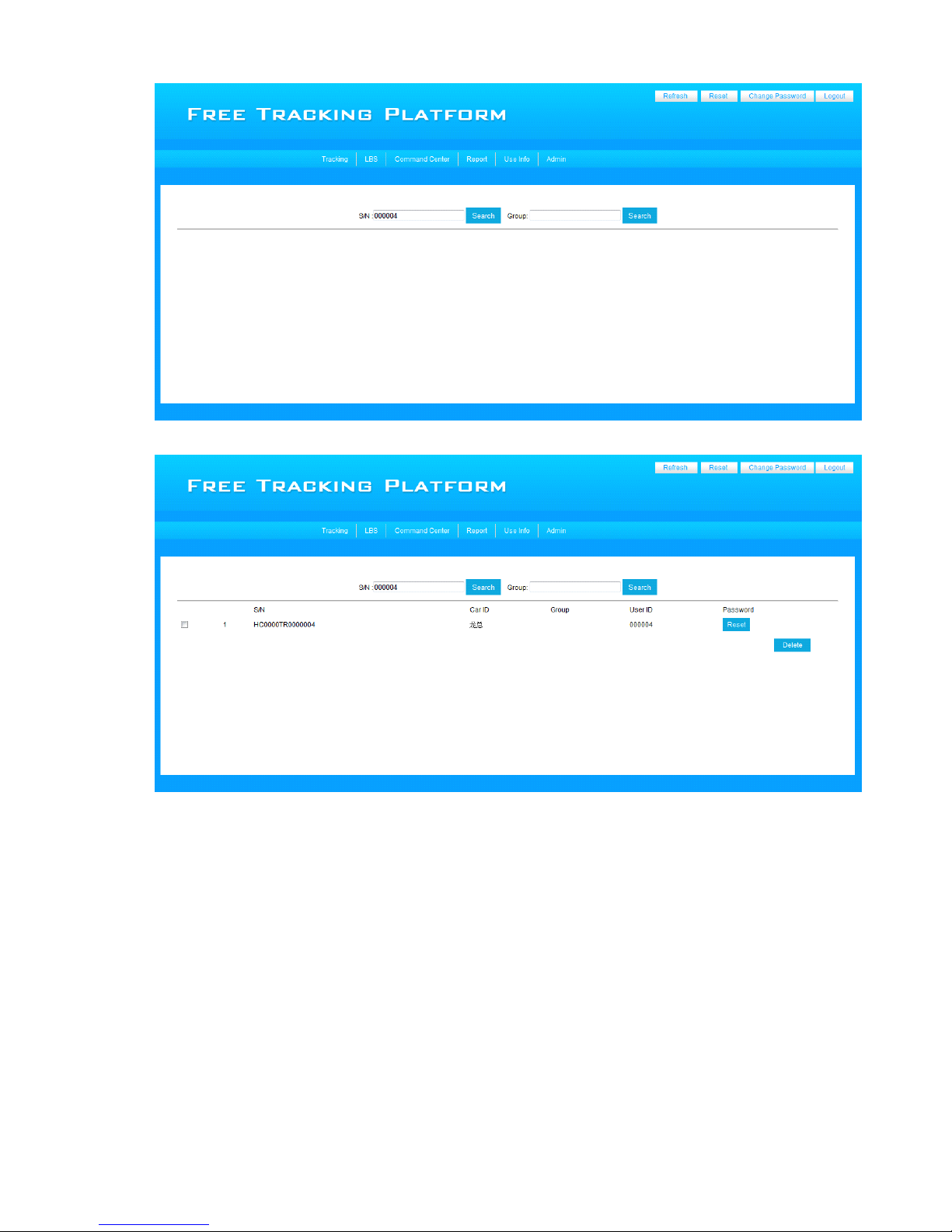

User can change the password and user info , For example ,Car ID number ,user phone number ,but user

can't change the log in ID ,If you buy this device to tracking your company's car ,and more than 1 pcs ,you

can apply to set up one term ,become the admin to manage all of your company's cars .For this

function ,please contact with supplier or producer.

2.Language Interface

1, Our

Our

Our platform

platform

platform has

has

has 8

8 countries

countries

countries language

language

language ,like

,like

,like Chinese

Chinese

Chinese ,English

,English

,English ,German

,German

,German French

French

French Russian

Russian

Russian Arabic,

Arabic,

Arabic, Spanish

Spanish

And

And Portuguese

Portuguese

Portuguese as

as below

below

below :

Page 16

3 .

. Log in Interface

Website : www.tracetree.net

Choose the language and input the log in ID and password ( the default log in ID and password is

last 6 number of S/N ) ,after log in ,it will change to another page as below :

4. Main Interface

Page 17

Via main page ,the user can set up the function as below :

1.Refresh

2.Reset

3.Change password

4.Log out

5.Add group

6.Add user

7.Check device

8.Tracking

9.LBD locate

10.Command Center

11.Report

12.User info

13.Admin

5, Function

Page 18

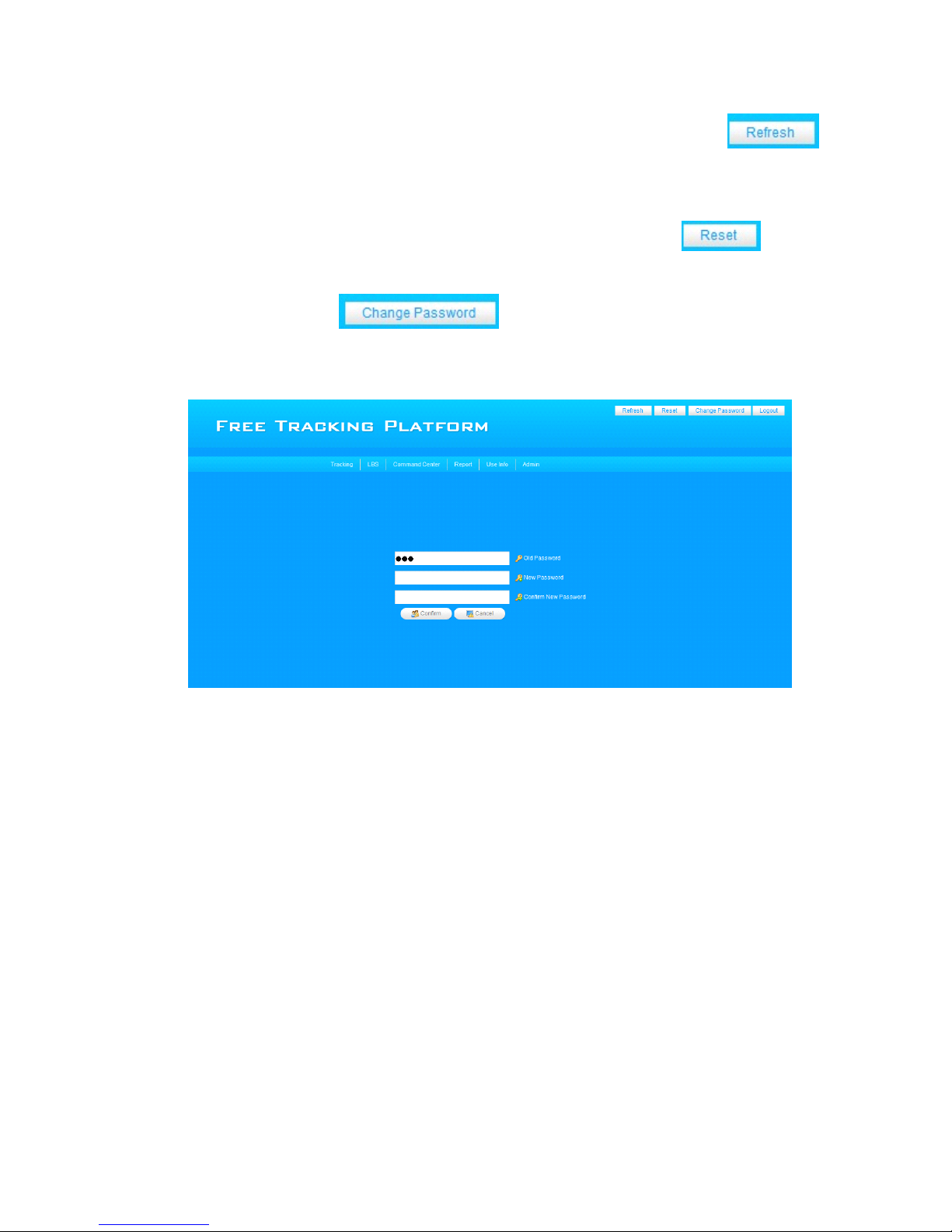

1.Refresh

After log in the platform , if load the map is slow ,please press refresh the website.:

2. Reset

If the device can't upload to the server ,maybe the GPRS connect has problem ,so please reset the

device and when you reset the device please ensure it connect with server well :

3.Change password

As below photo ,User can press in the platform ,but attention if your changed password

and forget it ,please offer your tracker S/N to producer or supplier ,they can help your find the password

back .

4.Log out

As below :the Log out function can help customer input the log ID and password again .

Page 19

1.1 Change the device icon

User can choose the different car icon as they want , as below :

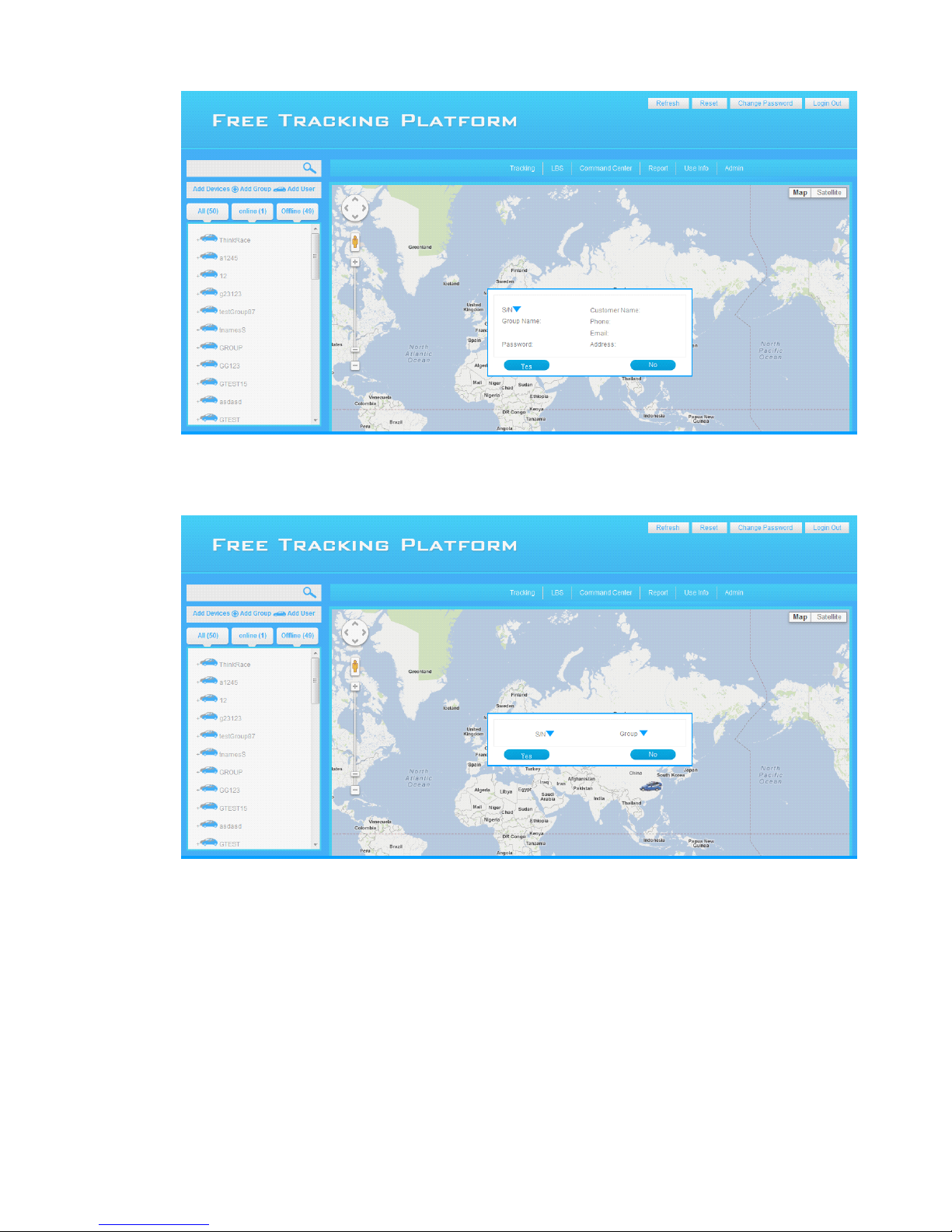

5.Add Group

If the user bought a lot of devices and plan to rent different customer ,so the user can set up different

group to manage ,but the Group ID can't change ,the Password ID can be changed device ,as below :

Page 20

6.Add User

Add user can help customer choose the device and add to group that had been set up .as below :

7.Check device info

After user log in and want to check the device info ,please find the device from the left list and press

two times left button of the mouse to check the info, as below :

Page 21

Via check device info ,the customer can check the device expire time usually we set up the expire time

is forever . But if your had rent the tracker to some one ,and want to limited the time ,then you can contact

producer or supplier to change the expire time as you need .

8.Tracking ( Online tracking)

Tracking function can help user online tracking the car and the device will upload the data every 30 sec ,this

upload time can be changed as user need ,but the shortest time can't lower 15 sec ,

9.LBS locate

If the device GPS signal weak ,the user can choose LBS to find car position , first press LBS button ,and

choose the device that need to check ,press two times left button of the mouse ,then it shows your the device

position .

Page 22

Attention

Attention :

: If the user are using this platform and under another function ,please press the "tracking " button

it will back to the main page .

10.Command center

There is function in the command center as below :

1.History Track

2.Geo-fence Alarm

3.Move Alarm

4.Over speed Alarm

5.Engine On ( RAT2

RAT2

RAT2 no this function)

6.Engine Off ( RAT2

RAT2

RAT2 no this function)

7.Monitoring ( RAT2

RAT2

RAT2 no this function)

8.Cancel Alarm

9.Upload interval

1 ， History track

Press History tracker button ,there is new page display ,as your can choose the 24 hours to check the history

track

Page 23

2 ， Geo-Fence Alarm

Choose the Geo Fence Alarm from the command center ,There is dialog box to request user choose the device

ID and CAR ID as below :

After user choose it ,it changed to another dialog box and let user to named for the Geo Fence Alarm and choose

the alarm style like Out area alarm or in area alarm , as below :

Page 24

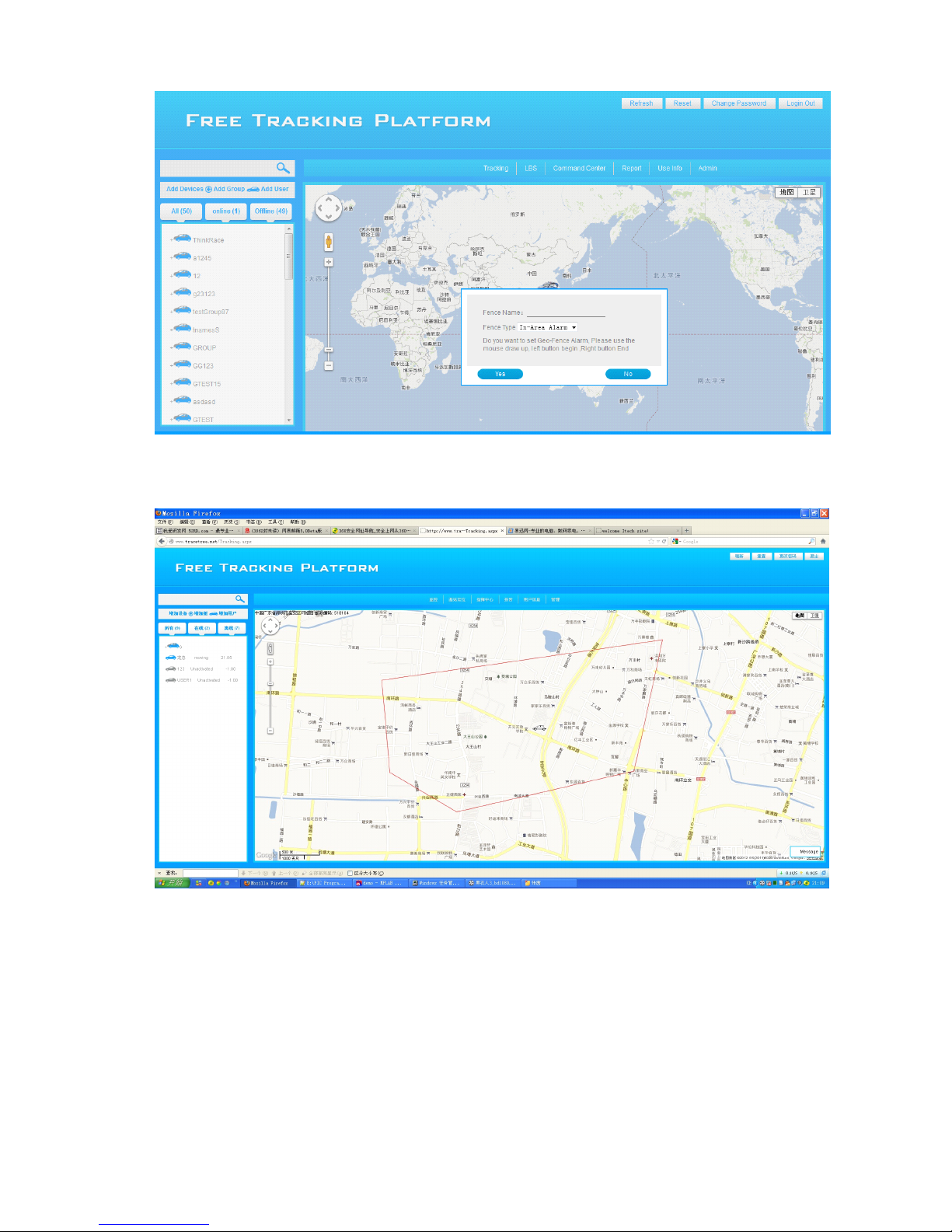

When user set up successful ,the page will change to the main page ,user can use the mouse to draw the area

as they want ,Left mouse begin ,Right mouse stop and confirm the set up as below :

3 ， Move alarm

User can set up the move alarm though the Platform ,this function can protect the car and inform in time .

If someone steal the car ,the user can know it quickly ,please choose this function from the Command center

and set up as below :

Page 25

When choose the right device finished and just confirm the function ,all alarm information will show in Message

center as below :

4 ， Over Speed Alarm

User can set up the over speed alarm in command center ,they can limited the car speed to find if someone

use his car or indicate user to drive slowly ,the dialog box as below :

Page 26

When choose the right device finished and just confirm the function ,all alarm information will show in Message

center as below :

5 ， Engine On ( RAT2

RAT2

RAT2 no this function )

When you want to use Engine on function ,first you must ensure the engine is off ,Engine on function like

the CAR ALARM ,if user set up the engine off in platform ,and then use the remote try to start the car ,they

can't start it ,they need use Engine on function and use the remote start again .( Attention ,if user don't

use the Mobile tracking application or SMS command to set cancel all alarm ,They are only want to cancel engine

off function , so they can use the Engine on function to cancel Engine off function ) User set up Engine on

Page 27

function is main useful to help user anti-theft ,if someone get the car key ,and they want to steal the car ,but

the really user set up engin off ,so the car key will not useful .

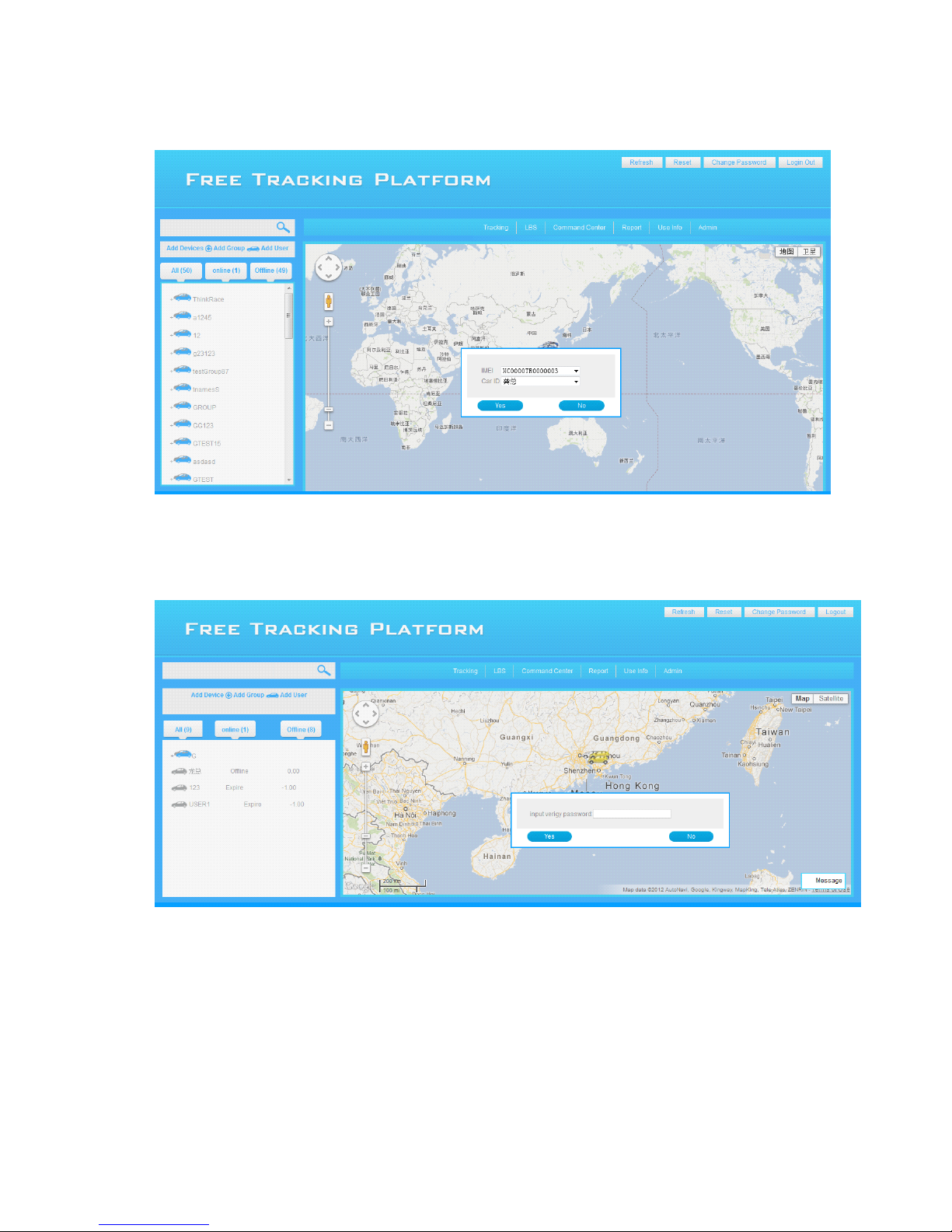

When user choose the device that need set up this function ,and it will indicate user to input password to

identify and confirm this set up as below :

6 ， Engine OFF( RAT2

RAT2

RAT2 no this function )

User can set up Engine off function though the platform ,if thief steal the car and stop it in wayside and

want start again ,they can't start it ,this can help user find back the car ( attention if someone driving

your car and your send this command to the device ,the car will power off shortly and very dangers ,so we

suggest customer connect the wire with ACC ,don't connect with ON ) the photo as below :

Page 28

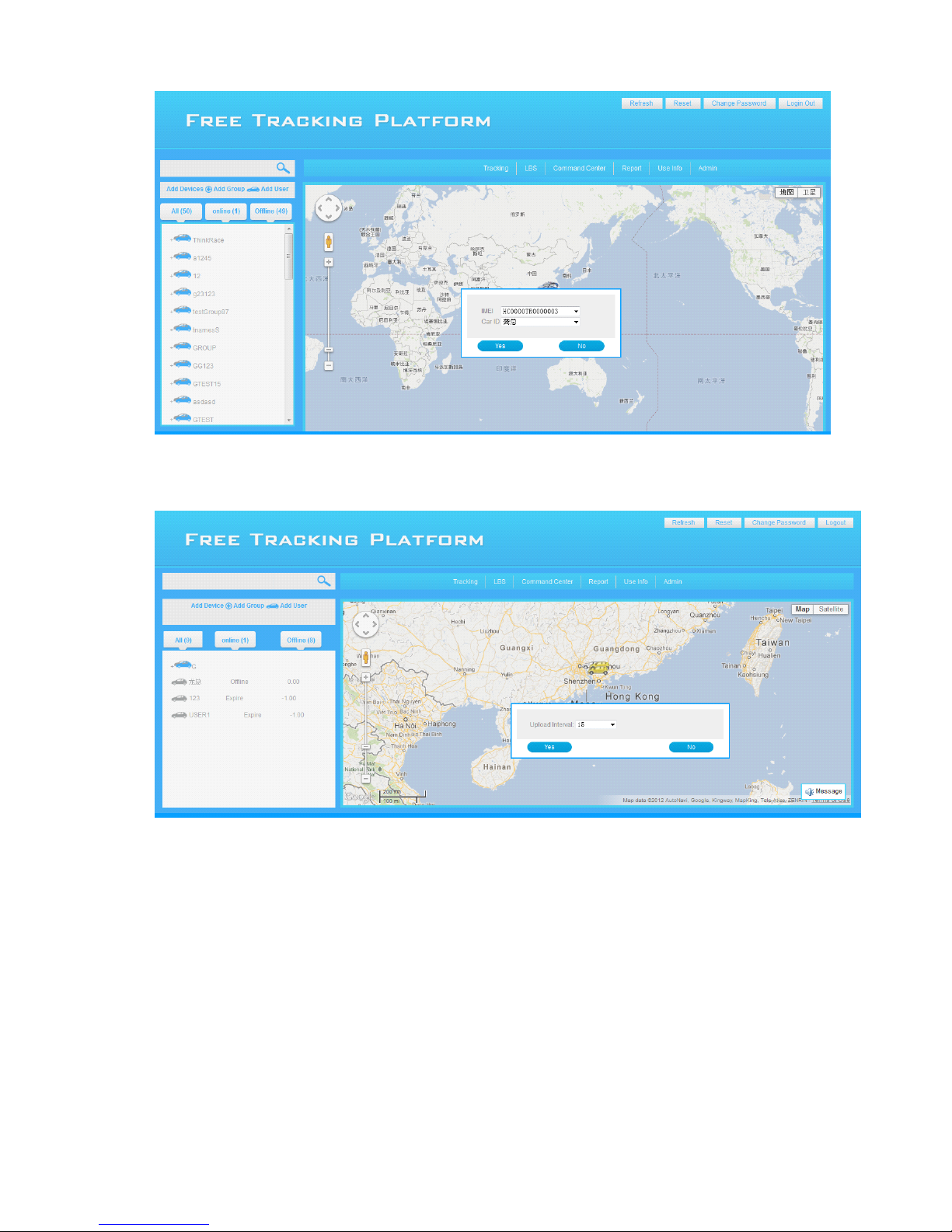

When user choose the device that need set up this function ,and it will indicate user to input password to

identify and confirm this set up as below :

Waring: Engine off function will make the car difficult to control and maybe cause a

accident, so we recommend use this function as less as possible .

7 ， Monitoring ( RAT2

RAT2

RAT2 no this function)

User can hear the sound inside of the car though the Monitoring function ,the indicate as below :

Page 29

After choose the device ,there is another indicate to let user input the Mobile number ,so the command will

send to tracker via platform ,and tracker will call this number ,then the user can begin monitoring ,

( Attention : the Mobile number not tracker's SIMCARD number ,it is means user's Mobile number )

8 ,Cancel Alarm

Cancel alarm function can call all alarm that to be setted .the indicate as below :

Page 30

There is dialog box to let user confirm if cancel all alarm or not ,after choose ,the tracker has not any

alarm function inside ,the photo as below :

9 ， Upload Interval

The tracker default upload interval time is 30 sec ,but user can choose the different upload interval time

from 15 sec-240 sec as they like ,the photo as below :

Page 31

After change the upload interval time ,user can check if the function was setted or not ,though check the

history track ,every data has the time difference .

11 .Report

There is report style in report function

History Report

Alarm Report

1 History Report

As below photo ,choose the ID ,start and end time ,confirm it then all history report will display ,the

user can click download button and stone in computer ,the format is XLS ,then user can check clearly .

Page 32


Photo 1


Photo 2

2 Alarm Report

As below photo ,choose the ID ,start and end time ,confirm it then all alarm report will display ,the

user can click download button and stone in computer ,the format is XLS ,then user can check clearly .

Page 33

12. User Info

Click "User info" button ,user can add or modify the device information as they want ,the dialog box as below

13.Admin

Admin function is help user reset the device Password or Group Password ,if user change a new password

but forget it ,so they can use this function ( the reset password is "000000"if customer want to change

again ,they can change it )

Click "Amin" button ,the page will changed as below, input the device ID or Group ID in the space ,then

search the device and group ,after find it ,just click " Reset " button and the password will change to "000000"

Page 34

Photo 1

Photo 2

Attention:

User can add device to the group that had been setted by themselves ,but when user can't search

the device ,please contact with supplier or producer .

2 ， If user forget the device password or Group Password ,please use reset function to reset ,contact

with supplier or producer .

3 ， Because this is Free Tracking Platform ,the user number is going increase ,and the server will stone

more and more data ,so we will delete the message center in fix time ,We suggest user download related report

in time .

Page 35

5.Attention:

1. This GPS tracker built in GPS and GSM antenna ,Please attention the installation position , we suggest

install under the seat ,back of seat ,dash board ,don't install the tracker into the metal box or rear box,this

will stop tracker get GPS and GSM signal ,anyway please try to test and find the best position to install

the tracker .

2. Use the tracker backup battery will keep work around 10 hours ,we suggest connect tracker with car battery

like 12-24V voltage ,the tracker built in power protect circuit ,so will not happen over recharge problem.

3. Under normal condition ,GPS locate need cost 10-200 sec ,if some time the GSM net is bad or GSM net busy ,so

the user will get SMS reply delay .this belongs normal condition .

4. The track's data will keep 3month in our server ,so the old data will be delete in fix time .

6.FAQ

1 ,The tracker will automatic power off .

Please confirm if there is enough power in the tracker or the voltage lower ,please confirm SIM card install

in right way ,because tracker can't search GSM signal with long time ,it will automatic power off also .

2, Power on ,the tracker Green LED continue light ,and the tracker don't reply command .

Please confirm the SIMCARD install in right way , and there is no PIN code ,ensure the SIMCARD has enough

money ,after tracker GSM signal well ,the Green LED will flash once in every 1 sec .

3. Why the tracker can't upload data to the server ?

Please confirm the SIMCARD open GPRS function ,like set up APN ,USER name and password ( please contact

with local SIMCARD provider ) after set up well and the tracker is moving ,the data will upload to the server ,

if the tracker not moving ,it will not upload to the server .

4. Why the tracker don't reply ?

Please confirm if the SIMCARD open Caller ID and SMS service ,and if there is enough money ,and ensure

the command and password is right .

5. Use the phone to call the tracker ,but the tracker doesn't hang up ?

Page 36

Please confirm if the tracker has been set up Preset number .

6 .Why can't log in the Platform ?

Please send command to tracker to check the ID ,and use the reply ID and password try again ,if the problem

still in ,please contact with us .

7 .Why there is space during the history tracker display ?Like lost data ,not full .

If tracker into the place without GSM and GPS signal or signal weak ,this may result in the tracker can't

connect with server, or upload data continue ,when the GSM and GPS signal well and stable ,the tracker will

automatic connect with server ,and upload the data to the server that stored into the tracker ,when uploading

the data ,If GPRS function problem ,this will also result in lost the data ,but this problem not happen

usually .

■ If the problem still in ,please contact with us or supplier .

7 ，

，

， Specification

Specification

Content

Specs

Dimension

119*60*29 mm

Power save mode

L ess than 5mA

GSM Module

G100 （ UBLOX)

Quad-Band 850 /900/1800/1900Mhz

TCP/IP

Internal Antenna

GPS Module

MAX-6Q (UBLOX)

50 tracking channels

accuracy < 5m

- 16 1 dBm Internal Antenna

Internal

Time to first fix

(TTFF)

Hot Start less than 1 sec

Warm Start less than 33 sec

Cold Start less than 35 sec

LBS: Accuracy

City:100m~300m

Suburbs: 0.5~20km

Storage Temp

-40~85 C

Operation Temp

-30~80 C

Power

12-24V Recharge battery 5V

Li-battery ： 2000mAh

After

After Sale

Sale

Sale Service

Service

This system has been tested before sold,we ensure it can work stable below low or high temperature .We

strongly recommend you to get this system installed by professional. There is a one-year warranty except the

following condition:

1 Installation , or connect wire broken by personally or unprofessional.

Page 37

2. Warranty will eliminate if the ownership of the tracker has been changed.

3. Parts damaged or lost by man-made

4. Battery , adapter , wires , etc.

Warning: this device is just a auxiliary product that applying the location of current object, we have not

any responsibility if you have damage or lost in using this tracker.

Notes: The explanation of this manual is belonged to our company, some small changes may not

notice customer, any problems please contact us, thanks !

Under

the

l aws,this manual m a y

notbec

opie d,in whole or in

pa rt,

without the writ t en

c onse n t

of TRACETREE

T his symbol

indicatesthat

y our p r odu c t must be di s posed

p r operly ac c o r ding

t o

local l a ws and

r egula

tion s.When

y our

p r odu c t

r each e s its end

of li fe,

c o n ta c t TRACETREE

y our

localauthoriti est o

lea r n about r e c y cling

option s

Important

Important Safety

Safety

Safety News:

News:

Warning

:No follow this safety instruction will result in fire or any other damage.

It built in lithium battery ,please don't take out the battery ,This battery only can take out or change by producer,if the user

take out by themselves ,it means they are give up the warranty term ,Because of to change the battery and result in another problem ,our

company will not take any responsibility
