Page 1
TRACE ELLIOT
SERVICE MANUAL NO. SM00012
ISSUE 1
Date: October 28, 1996
Product Code : T3210/T3215
Model No : Bonneville H100/C50
Technical File No : TE00012
Issued by:
Trace Elliot Limited.
Blackwater Trading Estate
The Causeway, Maldon
Essex CM4 4GG.
Page 2

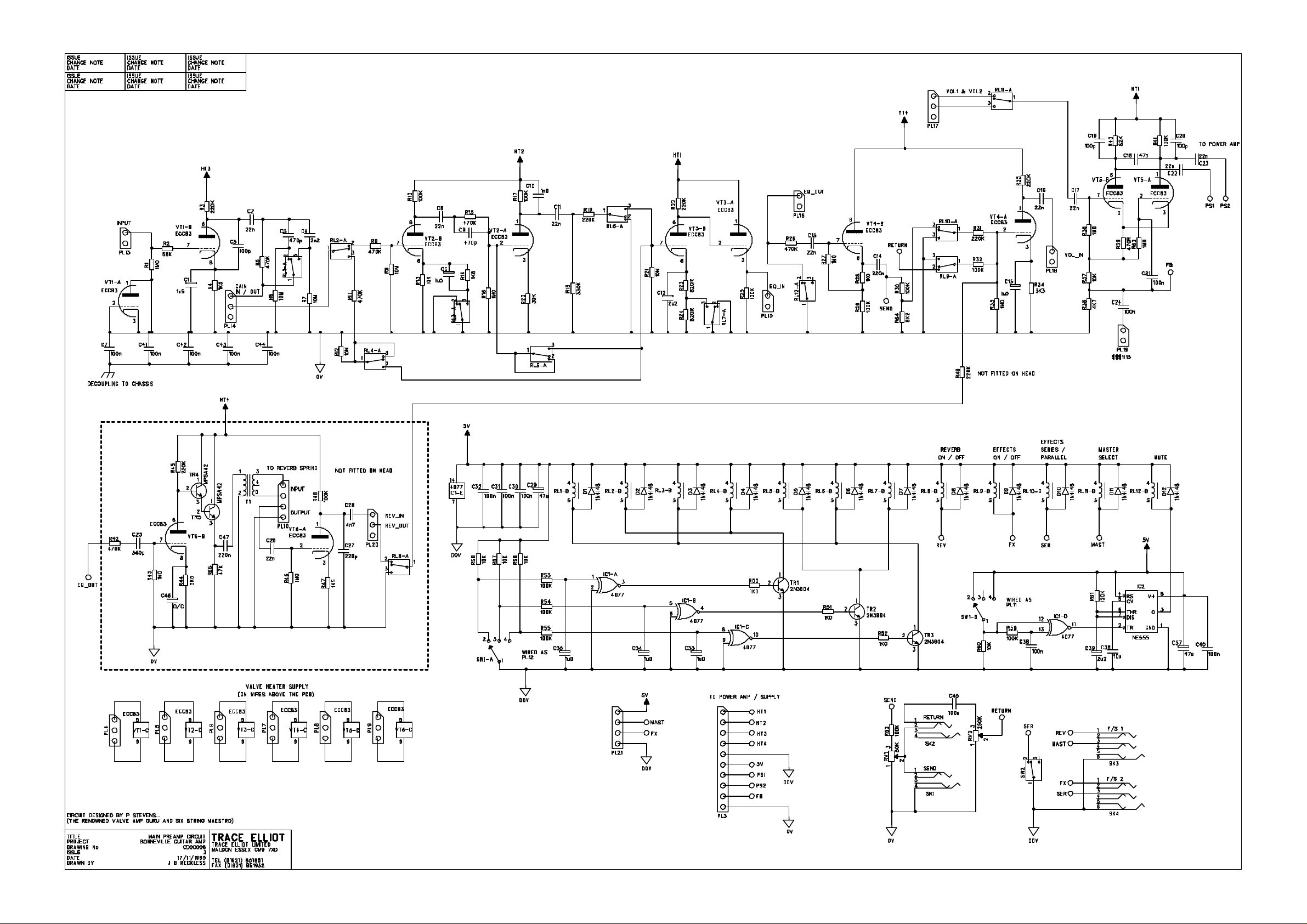

Page 3

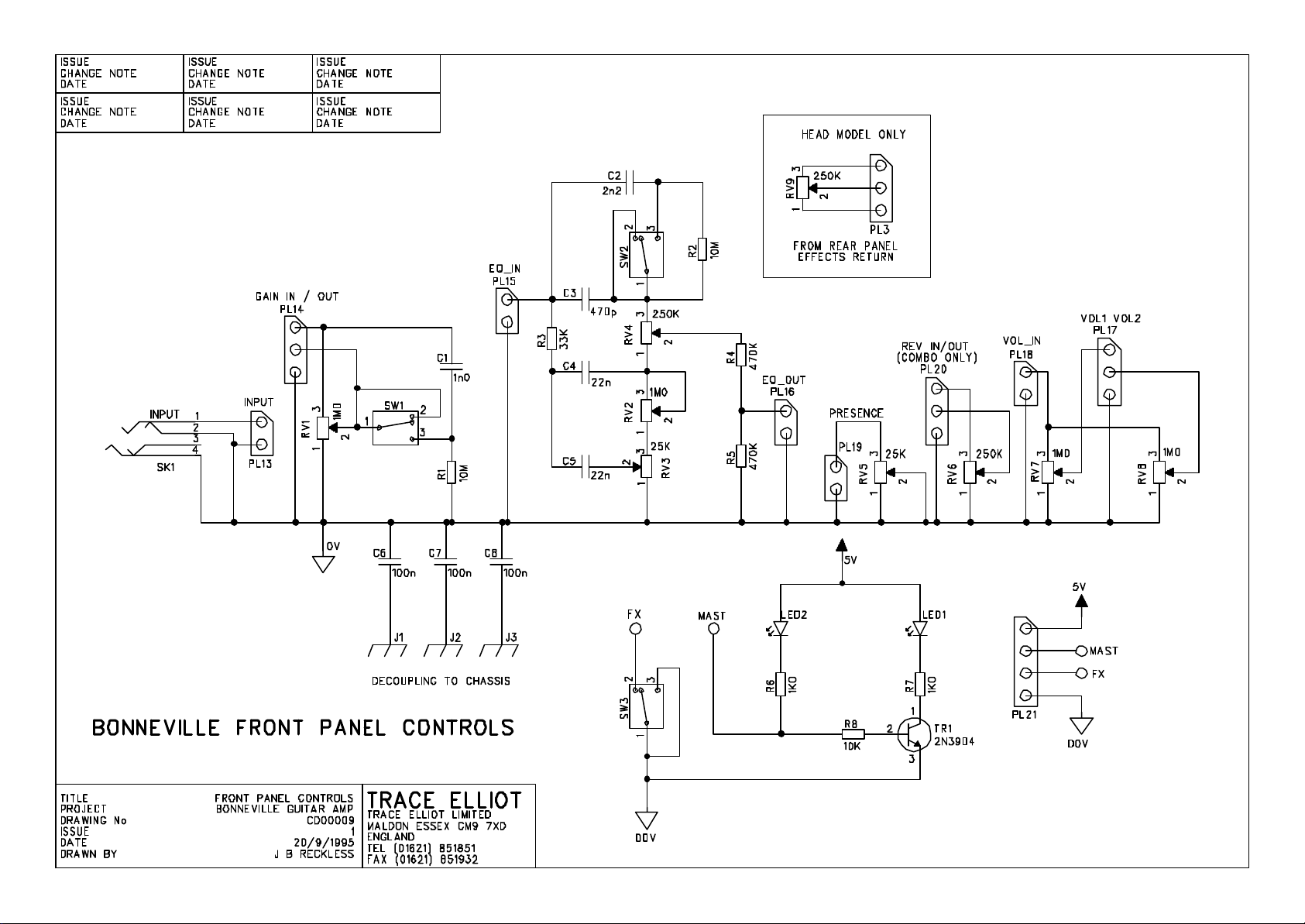

Page 4

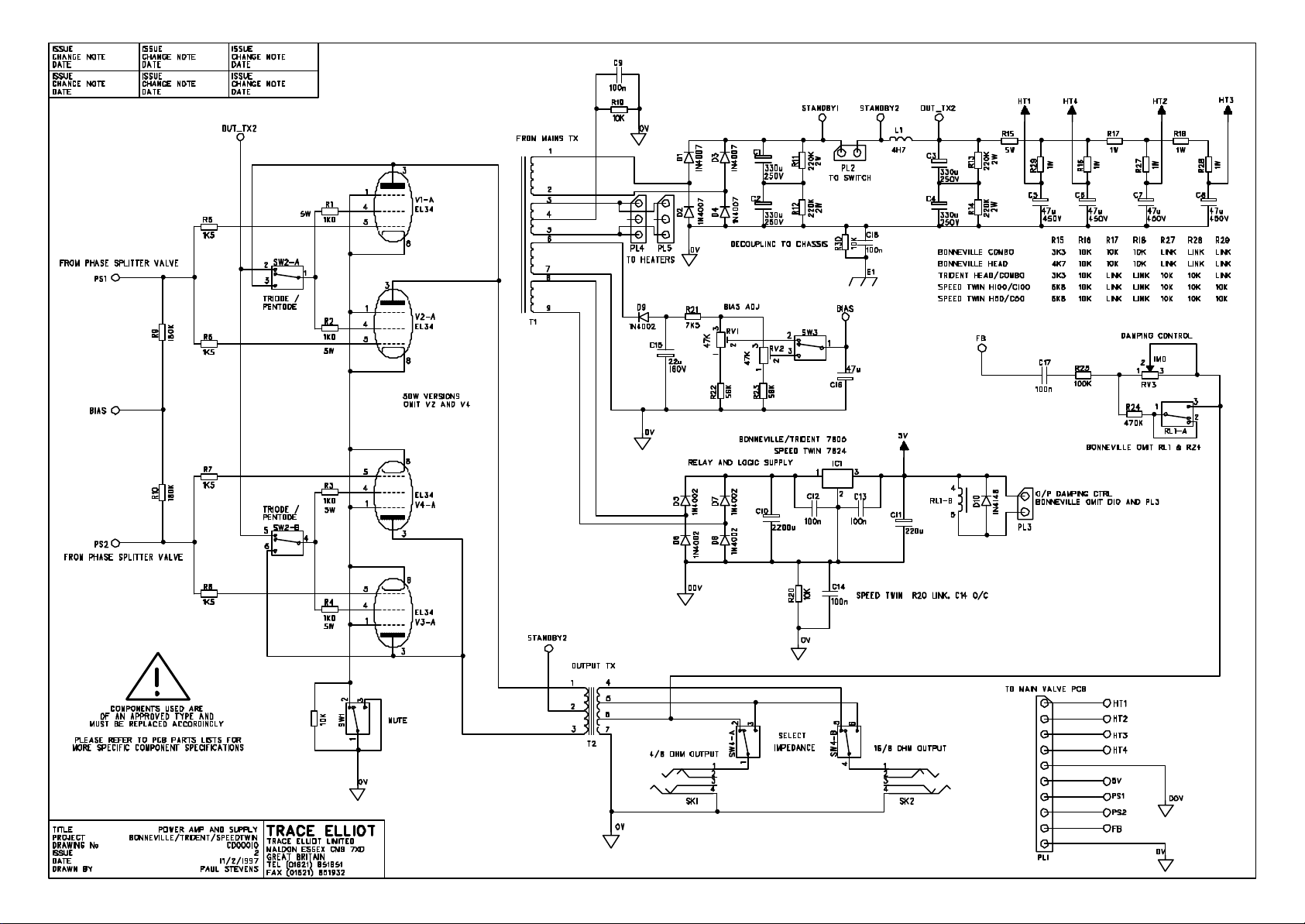

Page 5
PARTS LIST FOR PC00012
BONNEVILLE COMBO FRONT BOARD
Description Part Code Qty Where Used
PCB PC00012 1
RESISTORS
1K0 1/4W 72-RM1K 2 R6 R7
10K 1/4W 72-RM10K 1 R8
33K 1/4W 72-RM33K 1 R3
470K 1/4W 72-RM470K 2 R4 R5
10M 1/4W 72-RM10M 2 R1 R2
0 Ohm Link 72-RCZERO 6
CAPACITORS
470p 1KV ceramic 72-C470P-1KVCD 1 C3
1n0 1KV ceramic 72-C1000P-1KVCD 1 C1
2n2 1KV ceramic 72-C2200P-1KVCD 1 C2
22n 400V poly box 72-C22N-400VPR 2 C4 C5
100n 250V poly box 72-C100N-250VB 3 C6 C7 C8
SEMICONDUCTORS
2N3904 72-T2N3904 1 TR1
3mm RED LED 72-LED-RED-3mm 2 LED1 LED2
CONNECTORS
2 way 0.1” 72-HEAD-2W 5 PL13 PL15 PL16 PL18
PL19
3 way 0.1” 72-HEAD-3W2 3 PL14 PL17 PL20
4 way 0.1” 72-HEAD-4W 1 PL21
SOCKETS
Mono Jack Socket 73-SKT-JCKBNBG 1 SK1
SWITCHES
Mini Toggle SPDT vertical 73-SWT-M-TGL-PCB 3 SW1 SW2 SW3
Page 6
POTENTIOMETERS
25K LOG 73-POT-A25K 1 RV3
25K LIN 73-POT-B25K 1 RV5
250K LOG 73-POT-A250K 2 RV4 RV6
1M0 LOG 73-POT-A1M 4 RV1 RV2 RV7 RV8
Paul Stevens
3 January 1996
Page 7
PARTS LIST FOR PC00011C
BONNEVILLE COMBO MAIN PREAMP BOARD
Description Part Code Qty Where Used
PCB PC00011 (issue 3) 1
RESISTORS
820R 1/4W 72-RC820R-.25W 2 R23 R24
470R 1/4W 72-RM470R 1 R39
1K0 1/4W 72-RM1K 4 R28 R50 R51 R52
1K5 1/4W 72-RM1K5 2 R4 R47
1K8 1/4W 72-RM1K8 1 R14
3K3 1/4W 72-RM3K3 1 R34
4K7 1/4W 72-RM4K7 1 R38
5K6 1/4W 72-RM5K6 1 R44
8K2 1/4W 72-RM8K2 1 R64
10K 1/4W 72-RM10K 6 R13 R37 R56 R57
R58 R60
39K 1/4W 72-RM39K 1 R20
68K 1/4W 72-RM68K 1 R2
100K 1/4W 72-RM100K 7 R30 R32 R53 R54
R55 R59 R63
120K 1/4W 72-RM120K 1 R61
220K 1/4W 72-RM220K 3 R19 R31 R49
330K 1/4W 72-RM330K 1 R18
470K 1/4W 72-RM470K 6 R5 R8 R11 R15
R26 R42
1M0 1/4W 72-RM1M 8 R1 R16 R27 R33
R36 R43 R46 R62
10M 1/4W 72-RM10M 5 R6 R7 R9 R12
R21
47K 1W 72-RM47K-1WATT 1 R65
82K 1W 72-RM82K-1WATT 1 R40
100K 1W 72-RM100K-1WATT 6 R10 R17 R25 R29
R41 R48
220K 1W 72-RM220K-1WATT 4 R3 R22 R35 R45
SEMICONDUCTORS
1N4148 72-D-IN4148 8 D1 D2 D5 D8
D9 D10 D11 D12
2N3904 72-T2N3904 3 TR1 TR2 TR3
MPSA42 72-TMPSA42 2 TR4 TR5
Page 8
CAPACITORS
47p 500V ceramic 72-C47P-500VCD 1 C18
100p 1KV ceramic 72-C100P-1KVCD 3 C5 C19 C20
220p 1KV ceramic 72-C220P-1KVCD 1 C27
470p 1KV ceramic 72-C470P-1KVCD 2 C3 C9
560p 100V ceramic 72-C560P-100VCD 1 C25
1n0 1KV ceramic 72-C1000P-1KVCD 1 C10
2n2 1KV ceramic 72-C2200P-1KVCD 1 C4
4n7 1KV ceramic 72-C4700P-1KVCD 1 C28
1u5 35V tant 72-C1.5-35VT 3 C1 C6 C15
2u2 35V tant 72-C2.2-35VT 1 C12
1u0 63V elect radial 72-C1-63VER 3 C33 C34 C35
2u2 63V elect radial 72-C2.2-63VER 1 C39
47u 63V elect radial 72-C47-63VER 2 C29 C37
10n 100V poly box 72-C10N-100VP 1 C38
22n 400V poly box 72-C22N-400VPR 9 C2 C8 C11 C13
C16 C17 C22 23
C26
100n 250V poly box 72-C100N-250VB 13 C7 C21 C24 C30
C31 C32 C36 C40
C41 C42 C43 C44
C45
220n 250V poly box 0.4” 72-C220N-25-VP 2 C14 C47
I.C.S
4077 Quad EXNOR 72-IC-4077BT 1 IC1
NE555 Timer 72-IC-M7555NE 1 IC2
RELAYS
5V SPCO G5V-1 73-RELAY-5V-SPCO 12 RL1-12
CONNECTORS
2 way 0.1” 72-HEAD-2W 5 PL13 PL15 PL16 PL18
PL19
3 way 0.1” 72-HEAD-3W2 9 PL4 PL5 PL6 PL7
PL8 PL9 PL14 PL17
PL20
4 way 0.1” 72-HEAD-4W 4 PL10 PL11 PL12 PL21
10 way 0.1” 72-HEAD-10W 1 PL3
TRANSFORMERS
12V-0-12V @0.05A 73-TRAN-BON\TRI 1 T1
Page 9
SOCKETS
1/4” MONO JACK PCB 73-SKT-JCKBNBG 2 SK1 SK2
1/4” STEREO JACK PCB 73-SKT-JCKBBBG 2 SK3 SK4
SWITCHES
Mini Toggle SPDT vertical 73-SWT-M-TGL-PCB 1 SW2
POTENTIOMETERS
B50K 73-POT-50KB 1 RV1
250K 73-POT-A250K 1 RV2
VALVE BASES
B9A PCB valve base 73-VAL-SOCKET 6 VT1-VT6
WIRE LINKS
LINK A 45-WIR-7/02-BLK 1 A-A ~70mm
Paul Stevens
25 SEPTEMBER 1995
Page 10
PARTS LIST FOR PC00013BC
BONNEVILLE COMBO POWER BOARD
ISSUE 3 (23/9/96) PS
Description Part Code Qty Where Used
PCB PC00013 1
RESISTORS
0 Ohm Link 72-RCZERO 3 R27 R28 R29
1K5 1/4W 72-RM1K5 4 R5 R6 R7 R8
10K 1/4W 72-RM10K 3 R19 R20 R30
12K 1/4W 72-RM12K 1 R21
56K 1/4W 72-RM56K 3 R22 R23 R24
100K 1/4W 72-RM100K 1 R25
180K 1/4W 72-RM180K 2 R9 R10
10K 1W 72-RM10K-1WATT 4 R16 R17 R18
and across SW1
220K 2W 72-RC220K-2W 4 R11 R12 R13 R14
1K 4W 72-RWW1K-6W 4 R1 R2 R3 R4
3K3 4W 72-RWW3K3-4W 1 R15
DIODES
1N4002 72-D-IN4002 5 D5 D6 D7 D8
D9
1N4007 72-D-IN4007 4 D1 D2 D3 D4
1N4148 72-D-IN4148 1 D10
CAPACITORS
100n 250V poly box 72-C100N-250VB 6 C9 C12 C13 C14
C17 C18
22u 160V elect radial 72-C22-160VER 1 C15
47u 63V elect radial 72-C47-63VER 1 C16
220u 25V elect radial 72-C220-25VER 1 C11
2200u16V elect radial 72-C2200-16VER 1 C10
47u 450V elect radial 73-CAP47450V 4 C5 C6 C7 C8
330u 250V elect radial 73-CAP-330250V 4 C1 C2 C3 C4
I.C.S
7805 5V REGULATOR 72-7805-REG 1 IC1
CONNECTORS
2 way 0.1” 72-HEAD-2W 2 PL2 PL3
Page 11
3 way 0.1” 72-HEAD-3W2 2 PL4 PL5
10 way 0.1” 72-HEAD-10W 1 PL1
7 way 0.2” 72-HEAD-7W-2 1 T2
9 way 0.2” 72-HEAD-9W-2 1 T1
SOCKETS
1/4” MONO JACK PCB 73-SKT-JCKBNBG 2 SK1 SK2
SWITCHES
Mini Toggle SPDT vertical 73-SWT-M-TGL-PCB 2 SW1 SW3
Large slide DPDT horiz 73-SWT-SLIDER-DP 2 SW2 SW4
POTENTIOMETERS
47K vertical trimmer 72-PRESET-47K-V 2 RV1 RV2
1M0 73-POT-A1M 1 RV3
VALVE BASES
Octal PCB valve base 73-VAL-SOCKET-2 2 V1 V3
