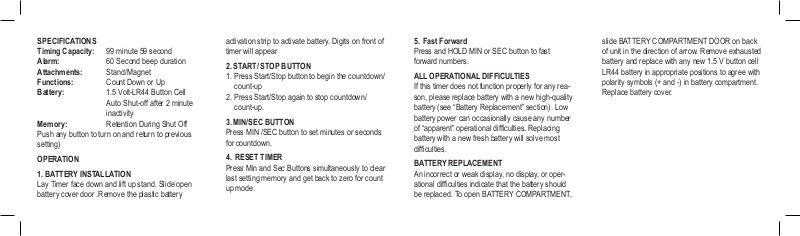

SPECIFICATIONS
Timing Capacity: 99 minute 59 second
Alarm:
Attachments:
Functions: Count Down or Up
Battery: 1.5 Volt-LR44 Button Cell
Auto Shut-off after 2 minute
Memory: Retention During Shut Off
Push any button to turn on and return to previous
setting)
OPERATION
1. BATTERY INSTALLATION
Lay Timer face down and lift up stand. Slide open
battery cover door .Remove the plastic battery
60 Second beep duration
Stand/Magnet
inactivity
activation strip to activate battery. Digits on front of
timer will appear
2. START/ STOP BUTTON
1. Press Start/Stop button to begin the countdown/
count-up
2. Press Start/Stop again to stop countdown/
count-up.
3. MIN/SEC BUTTON
Press MIN /SEC button to set minutes or seconds
for countdown.
4. RESET TIMER
Press Min and Sec Buttons simultaneously to clear
last setting memory and get back to zero for count
up mode.
5. Fast Forward
Press and HOLD MIN or SEC button to fast
forward numbers.
ALL OPERATIONAL DIFFICULTIES
If this timer does not function properly for any reason, please replace battery with a new high-quality
battery (see “Battery Replacement” section). Low
battery power can occasionally cause any number
of “apparent” operational difculties. Replacing
battery with a new fresh battery will solve most
difculties.
BATTERY REPLACEMENT
An incorrect or weak display, no display, or oper-
ational difculties indicate that the battery should
be replaced. To open BATTERY COMPARTMENT,
slide BATTERY COMPARTMENT DOOR on back
of unit in the direction of arrow. Remove exhausted
battery and replace with any new 1.5 V button cell
LR44 battery in appropriate positions to agree with
polarity symbols (+ and -) in battery compartment.
Replace battery cover.
5 Commonwealth Ave
5 Commonwealth Ave
Woburn, MA 01801
Woburn, MA 01801
TestEquipmentDepot.com
TestEquipmentDepot.com
WARRANTY, SERVICE, OR RECALIBRATION
For warranty, service, or recalibration, contact:
TRACEABLE® PRODUCTS
Traceable® Products is ISO 9001:2008 Quality-
Certi ied by DNV and ISO/IEC 17025:2005
accredited as a Calibration Laboratory by A2LA.
Cat. No. 5128
Traceable® is a registered trademark of Cole-Parmer.
©2018 Traceable® Products. 92-5128-00 Rev. 0 011118
TRACEABLE
BLUE-STEEL
TIMER
INSTRUCTIONS
®
™
