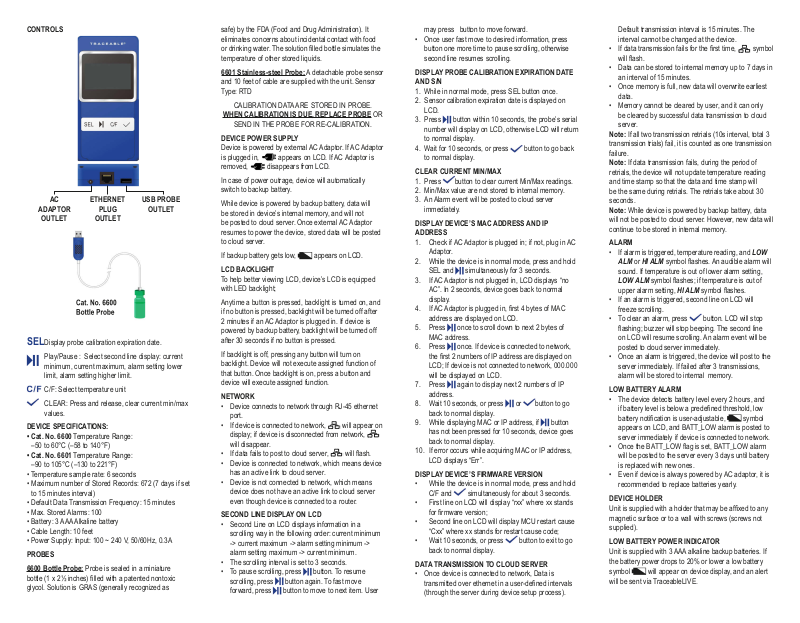

CONTROLS
AC
ADAPTOR
OUTLET
ETHERNET
PLUG
OUTLET
USB PROBE
OUTLET
SEL Display probe calibration expiration date.
Play/Pause : Select second line display: current
minimum, current maximum, alarm setting lower
limit, alarm setting higher limit.
C/F: Select temperature unit
CLEAR: Press and release, clear current min/max
values.
DEVICE SPECIFICATIONS:
• Cat. No. 6600 Temperature Range:
–50 to 60°C (–58 to 140°F)
• Cat. No. 6601 Temperature Range:
–90 to 105°C (–130 to 221°F)
• Temperature sample rate: 6 seconds
• Maximum number of Stored Records: 672 (7 days if set
to 15 minutes interval)
• Default Data Transmission Frequency: 15 minutes
• Max. Stored Alarms: 100
• Battery: 3 AAA Alkaline battery
• Cable Length: 10 feet
• Power Supply: Input: 100 ~ 240 V, 50/60Hz, 0.3A
PROBES
6600 Bottle Probe: Probe is sealed in a miniature
bottle (1 x 2½ inches) lled with a patented nontoxic
glycol. Solution is GRAS (generally recognized as
safe) by the FDA (Food and Drug Administration). It
eliminates concerns about incidental contact with food
or drinking water. The solution lled bottle simulates the
temperature of other stored liquids.
6601 Stainless-steel Probe: A detachable probe sensor
and 10 feet of cable are supplied with the unit. Sensor
Type: RTD
CALIBRATION DATA ARE STORED IN PROBE.
WHEN CALIBRATION IS DUE, REPLACE PROBE OR
SEND IN THE PROBE FOR RE-CALIBRATION.
DEVICE POWER SUPPLY
Device is powered by external AC Adaptor. If AC Adaptor
is plugged in,
removed, disappears from LCD.
In case of power outrage, device will automatically
switch to backup battery.
While device is powered by backup battery, data will
be stored in device’s internal memory, and will not
be posted to cloud server. Once external AC Adaptor
resumes to power the device, stored data will be posted
to cloud server.
If backup battery gets low,
LCD BACKLIGHT
To help better viewing LCD, device’s LCD is equipped
with LED backlight;
Anytime a button is pressed, backlight is turned on, and
if no button is pressed, backlight will be turned off after
2 minutes if an AC Adaptor is plugged in. If device is
powered by backup battery, backlight will be turned off
after 30 seconds if no button is pressed.
If backlight is off, pressing any button will turn on
backlight. Device will not execute assigned function of
that button. Once backlight is on, press a button and
device will execute assigned function.
NETWORK
• Device connects to network through RJ-45 ethernet
port.
• If device is connected to network, will appear on
display; if device is disconnected from network,
will disappear.
• If data fails to post to cloud server, will ash.
• Device is connected to network, which means device
has an active link to cloud server.
• Device is not connected to network, which means
device does not have an active link to cloud server
even though device is connected to a router.
SECOND LINE DISPLAY ON LCD
• Second Line on LCD displays information in a
scrolling way in the following order: current minimum
-> current maximum -> alarm setting minimum ->
alarm setting maximum -> current minimum.
• The scrolling interval is set to 3 seconds.
• To pause scrolling, press button. To resume
scrolling, press button again. To fast move
forward, press button to move to next item. User
appears on LCD. If AC Adaptor is
appears on LCD.
may press button to move forward.
• Once user fast move to desired information, press
button one more time to pause scrolling, otherwise
second line resumes scrolling.
DISPLAY PROBE CALIBRATION EXPIRATION DATE
AND S/N
1. While in normal mode, press SEL button once.
2. Sensor calibration expiration date is displayed on
LCD.
3. Press button within 10 seconds, the probe’s serial
number will display on LCD, otherwise LCD will return
to normal display.
4. Wait for 10 seconds, or press button to go back
to normal display.
CLEAR CURRENT MIN/MAX
1. Press button to clear current Min/Max readings.
2. Min/Max value are not stored to internal memory.
3. An Alarm event will be posted to cloud server
immediately.
DISPLAY DEVICE’S MAC ADDRESS AND IP
ADDRESS
1. Check if AC Adaptor is plugged in; if not, plug in AC
Adaptor.
2. While the device is in normal mode, press and hold
SEL and simultaneously for 3 seconds.
3. If AC Adaptor is not plugged in, LCD displays “no
AC”. In 2 seconds, device goes back to normal
display.
4. If AC Adaptor is plugged in, rst 4 bytes of MAC
address are displayed on LCD.
5. Press once to scroll down to next 2 bytes of
MAC address.
6. Press once. If device is connected to network,
the rst 2 numbers of IP address are displayed on
LCD; If device is not connected to network, 000.000
will be displayed on LCD.
7. Press again to display next 2 numbers of IP
address.
8. Wait 10 seconds, or press or button to go
back to normal display.
9. While displaying MAC or IP address, if button
has not been pressed for 10 seconds, device goes
back to normal display.
10. If error occurs while acquiring MAC or IP address,
LCD displays “Err”.
DISPLAY DEVICE’S FIRMWARE VERSION
• While the device is in normal mode, press and hold
C/F and simultaneously for about 3 seconds.
• First line on LCD will display “rxx” where xx stands
for rmware version;
• Second line on LCD will display MCU restart cause
“Cxx” where xx stands for restart cause code;
• Wait 10 seconds, or press button to exit to go
back to normal display.
DATA TRANSMISSION TO CLOUD SERVER
• Once device is connected to network, Data is
transmitted over ethernet in a user-dened intervals
(through the server during device setup process).
Default transmission interval is 15 minutes. The
interval cannot be changed at the device.
• If data transmission fails for the rst time, symbol
will ash.
• Data can be stored to internal memory up to 7 days in
an interval of 15 minutes.
• Once memory is full, new data will overwrite earliest
data.
• Memory cannot be cleared by user, and it can only
be cleared by successful data transmission to cloud
server.
Note: If all two transmission retrials (10s interval, total 3
transmission trials) fail, it is counted as one transmission
failure.
Note: If data transmission fails, during the period of
retrials, the device will not update temperature reading
and time stamp so that the data and time stamp will
be the same during retrials. The retrials take about 30
seconds.
Note: While device is powered by backup battery, data
will not be posted to cloud server. However, new data will
continue to be stored in internal memory.
ALARM
• If alarm is triggered, temperature reading, and LOW
ALM or HI ALM symbol ashes. An audible alarm will
sound. If temperature is out of lower alarm setting,
LOW ALM symbol ashes; if temperature is out of
upper alarm setting, HI ALM symbol ashes.
• If an alarm is triggered, second line on LCD will
freeze scrolling.
• To clear an alarm, press button. LCD will stop
ashing; buzzer will stop beeping. The second line
on LCD will resume scrolling. An alarm event will be
posted to cloud server immediately.
• Once an alarm is triggered, the device will post to the
server immediately. If failed after 3 transmissions,
alarm will be stored to internal memory.
LOW BATTERY ALARM
• The device detects battery level every 2 hours, and
if battery level is below a predened threshold, low
battery notication is user-adjustable, symbol
appears on LCD, and BATT_LOW alarm is posted to
server immediately if device is connected to network.
• Once the BATT_LOW ag is set, BATT_LOW alarm
will be posted to the server every 3 days until battery
is replaced with new ones.
• Even if device is always powered by AC adaptor, it is
recommended to replace batteries yearly.
DEVICE HOLDER
Unit is supplied with a holder that may be afxed to any
magnetic surface or to a wall with screws (screws not
supplied).
LOW BATTERY POWER INDICATOR
Unit is supplied with 3 AAA alkaline backup batteries. If
the battery power drops to 20% or lower a low battery
symbol will appear on device display, and an alert
will be sent via TraceableLIVE.
ALL OPERATIONAL DIFFICULTIES
If this thermometer does not function properly for any
reason, please replace the battery with a new high-quality
battery (see “Battery Replacement” section). Low battery
power can occasionally cause any number of “apparent”
operational difculties. Replacing the battery with a new
fresh battery will solve most difculties. If the voltage of
the battery becomes low °C and °F symbols will ash.
BATTERY REPLACEMENT
Erratic readings, a faint display, or no display are all
indications that the battery must be replaced. Slide the
battery cover toward the end of the unit. Remove the
exhausted battery and replace with AAA alkaline battery.
Replace the battery cover.
REGULATORY INFORMATION
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will
not occur in a particular installation. If this equipment
does cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
Hereby, Control Company, declares that this digital
thermometer is in compliance with the essential
requirements and other relevant provisions of Directive
1999/5/EC.
This device complies with Industry Canada licence-
exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause
interference, and (2) this device must accept any
interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie
Canada applicables aux appareils radio exempts de
licence. L’exploitation est autorisée aux deux conditions
suivantes : (1) l’appareil ne doit pas produire de
brouillage, et (2) l’utilisateur de l’appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage
est susceptible d’en compromettre le fonctionnement.
NOTE: THE GRANTEE IS NOT RESPONSIBLE
FOR ANY CHANGES OR MODIFICATIONS
NOT EXPRESSLY APPROVED BY THE PARTY
RESPONSIBLE FOR COMPLIANCE. SUCH
MODIFICATIONS COULD VOID THE USER’S
AUTHORITY TO OPERATE THE EQUIPMENT.
5 Commonwealth Ave
Woburn, MA 01801
TestEquipmentDepot.com
TraceableLIVE
ETHERNET
DATALOGGING
THERMOMETER
WITH REMOTE
NOTIFICATION
INSTRUCTIONS
WARRANTY, SERVICE, OR RECALIBRATION
For warranty, service, or recalibration, contact:
TRACEABLE® PRODUCTS
Traceable® Products is ISO 9001:2015 Quality-
Certi ied by DNV and ISO/IEC 17025:2005
accredited as a Calibration Laboratory by A2LA.
Cat. No. 6600 & 6601
®
and TraceableLIVE® are registered trademarks
Traceable
of Cole-Parmer.
©2019 Traceable
®
Products. 92-6600-00 Rev. 0 081619
®
Loading...
