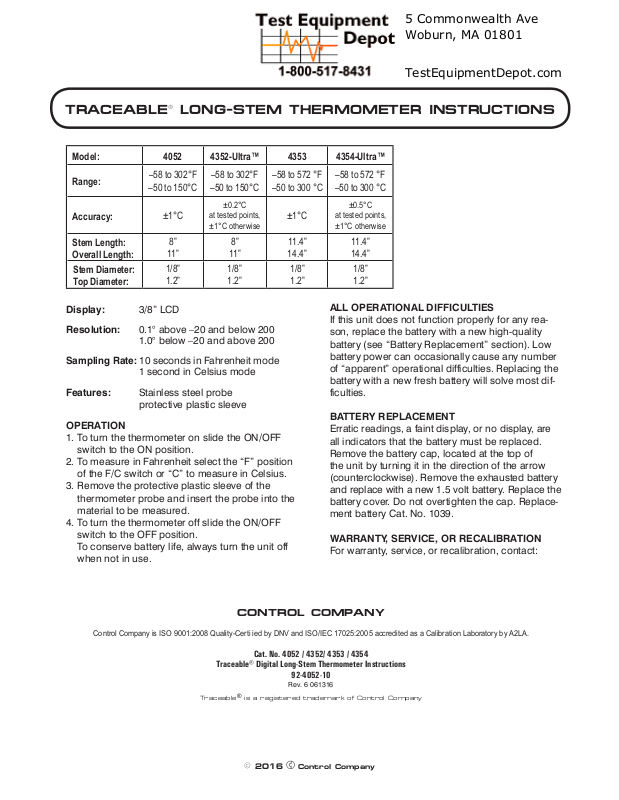

TRACEABLE® LONG-STEM THERMOMETER INSTRUCTIONS
Model: 4052 4352-Ultra™ 4353 4354-Ultra™
Range:
Accuracy:
Stem Length:
Overall Length:
Stem Diameter:
Top Diameter:
–58 to 302°F
–50 to 150°C
±1°C
8”
11”
1/8”
1.2”
–58 to 302°F
–50 to 150°C
±0.2°C
at tested points,
±1°C otherwise
8”
11”
1/8”
1.2”
–58 to 572 °F
–50 to 300 °C
Display: 3/8” LCD
Resolution: 0.1° above –20 and below 200
1.0° below –20 and above 200
Sampling Rate:
10 seconds in Fahrenheit mode
1 second in Celsius mode
Features: Stainless steel probe
protective plastic sleeve
OPERATION
1. To turn the thermometer on slide the ON/OFF
switch to the ON position.
2. To measure in Fahrenheit select the “F” position
of the F/C switch or “C” to measure in Celsius.
3. Remove the protective plastic sleeve of the
thermometer probe and insert the probe into the
material to be measured.
4. To turn the thermometer off slide the ON/OFF
switch to the OFF position.
To conserve battery life, always turn the unit off
when not in use.
±1°C
11.4”
14.4”
1/8”
1.2”
–58 to 572 °F
–50 to 300 °C
±0.5°C
at tested points,
±1°C otherwise
11.4”
14.4”
1/8”
1.2”
ALL OPERATIONAL DIFFICULTIES
If this unit does not function properly for any reason, replace the battery with a new high-quality
battery (see “Battery Replacement” section). Low
battery power can occasionally cause any number
of “apparent” operational difficulties. Replacing the
battery with a new fresh battery will solve most difficulties.
BATTERY REPLACEMENT
Erratic readings, a faint display, or no display, are
all indicators that the battery must be replaced.
Remove the battery cap, located at the top of
the unit by turning it in the direction of the arrow
(counterclockwise). Remove the exhausted battery
and replace with a new 1.5 volt battery. Replace the
battery cover. Do not overtighten the cap. Replacement battery Cat. No. 1039.
WARRANTY, SERVICE, OR RECALIBRATION
For warranty, service, or recalibration, contact:
CONTROL COMPANY
Control Company is ISO 9001:2008 Quality-Certi ied by DNV and ISO/IEC 17025:2005 accredited as a Calibration Laboratory by A2LA.
Cat. No. 4052 / 4352/ 4353 / 4354
Traceable® Digital Long-Stem Thermometer Instructions
92-4052-10
Rev. 6 061316
Tra
ceable® is a registered trademark of Control Company
© 2016 Control Company
