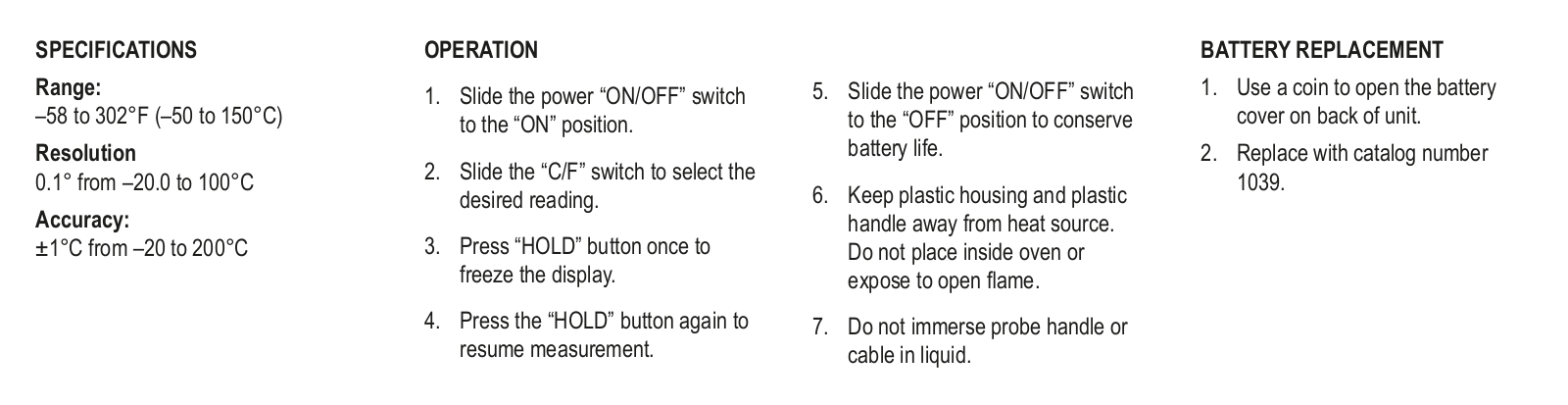

SPECIFICATIONS
OPERATION
BATTERY REPLACEMENT
Range:
–58 to 302°F (–50 to 150°C)
Resolution
0.1° from –20.0 to 100°C
Accuracy:
±1°C from –20 to 200°C
1. Slide the power “ON/OFF” switch
to the “ON” position.
2. Slide the “C/F” switch to select the
desired reading.
3. Press “HOLD” button once to
freeze the display.
4. Press the “HOLD” button again to
resume measurement.
5. Slide the power “ON/OFF” switch
to the “OFF” position to conserve
battery life.
6. Keep plastic housing and plastic
handle away from heat source.
Do not place inside oven or
expose to open ame.
7. Do not immerse probe handle or
cable in liquid.
1. Use a coin to open the battery
cover on back of unit.
2. Replace with catalog number
1039.

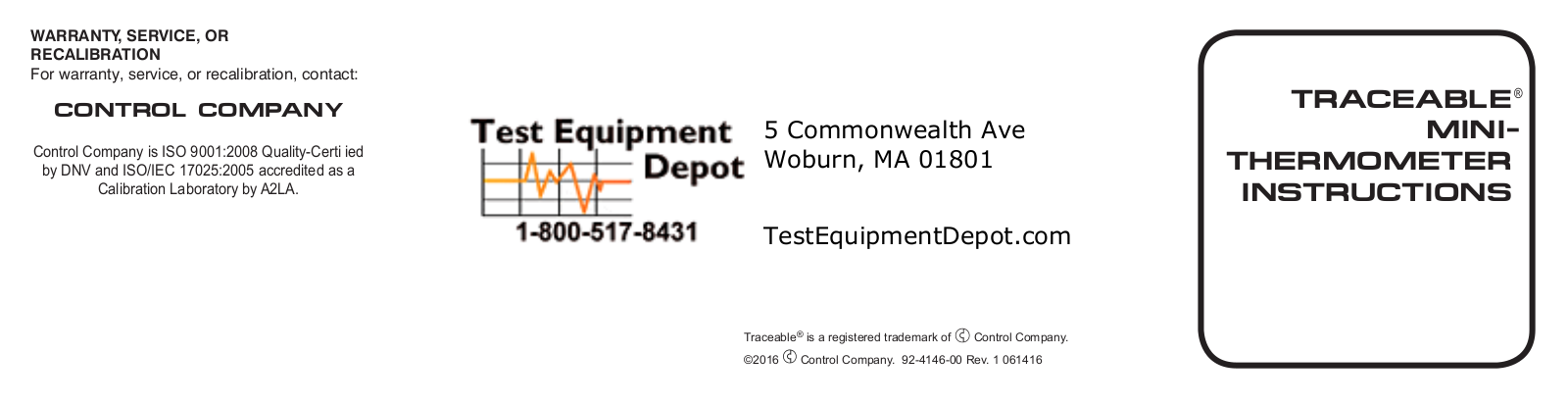

WARRANTY
RECALIBRATION
For warranty, service, or recalibration, contact:
, SERVICE, OR
CONTROL COMPANY
Control Company is ISO 9001:2008 Quality-Certi ied
by DNV and ISO/IEC 17025:2005 accredited as a
Calibration Laboratory by A2LA.
5 Commonwealth Ave
Woburn, MA 01801
TestEquipmentDepot.com
Traceable® is a registered trademark of Control Company.
©2016 Control Company. 92-4146-00 Rev. 1 061416
TRACEABLE
MINI-
THERMOMETER
INSTRUCTIONS
®
