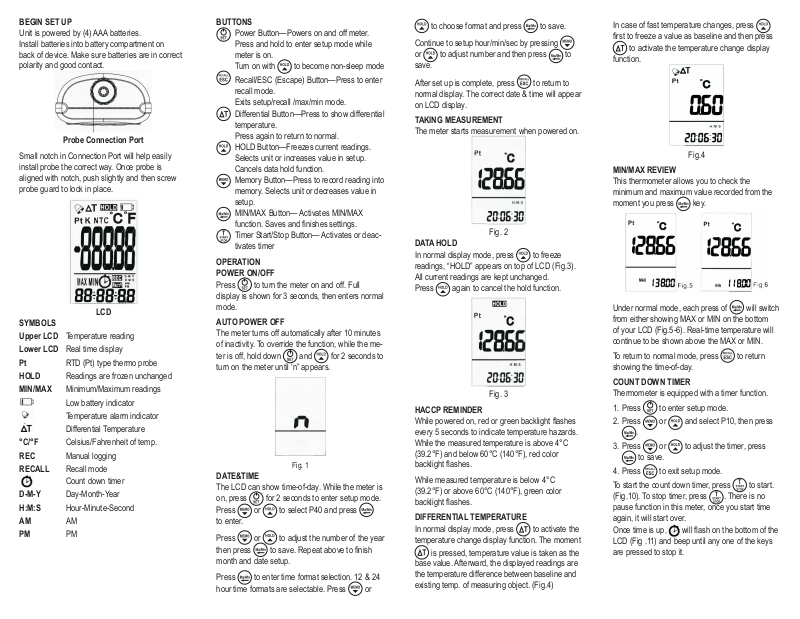

BEGIN SET UP
Unit is powered by (4) AAA batteries.
Install batteries into battery compartment on
back of device. Make sure batteries are in correct
polarity and good contact.
Probe Connection Port
Small notch in Connection Port will help easily
install probe the correct way. Once probe is
aligned with notch, push slightly and then screw
probe guard to lock in place.
LCD
SYMBOLS
Upper LCD
Lower LCD
Temperature reading
Real time display
Pt RTD (Pt) type thermo probe
HOLD Readings are frozen unchanged
MIN/MAX Minimum/Maximum readings
Low battery indicator
Temperature alarm indicator
Differential Temperature
°C/°F Celsius/Fahrenheit of temp.
REC Manual logging
RECALL Recall mode
Count down timer
D-M-Y Day-Month-Year
H:M:S Hour-Minute-Second
AM AM
PM PM
BUTTONS
Power Button—Powers on and off meter.
Press and hold to enter setup mode while
meter is on.
Turn on with
to become non-sleep mode
Recall/ESC (Escape) Button—Press to enter
recall mode.
Exits setup/recall /max/min mode.
Differential Button—Press to show differential
temperature.
Press again to return to normal.
HOLD Button—Freezes current readings.
Selects unit or increases value in setup.
Cancels data hold function.
Memory Button—Press to record reading into
memory. Selects unit or decreases value in
setup.
MIN/MAX Button— Activates MIN/MAX
function. Saves and nishes settings.
Timer Start/Stop Button— Activates or deac-
tivates timer
OPERATION
POWER ON/OFF
Press
to turn the meter on and off. Full
display is shown for 3 seconds, then enters normal
mode.
AUTO POWER OFF
The meter turns off automatically after 10 minutes
of inactivity. To override the function, while the me-
ter is off, hold down
and for 2 seconds to
turn on the meter until ‘n” appears.
Fig. 1
DATE&TIME
The LCD can show time-of-day. While the meter is
on, press
Press
for 2 seconds to enter setup mode.
or to select P40 and press
to enter.
Press
then press
or to adjust the number of the year
to save. Repeat above to nish
month and date setup.
Press
hour time formats are selectable. Press
to enter time format selection. 12 & 24
or
to choose format and press to save.
Continue to setup hour/min/sec by pressing
to adjust number and then press to
or
save.
After set up is complete, press
to return to
normal display. The correct date & time will appear
on LCD display.
TAKING MEASUREMENT
The meter starts measurement when powered on.
Fig. 2
DATA HOLD
In normal display mode, press
to freeze
readings, “HOLD” appears on top of LCD (Fig.3).
All current readings are kept unchanged.
Press
again to cancel the hold function.
Fig. 3
HACCP REMINDER
While powered on, red or green backlight ashes
every 5 seconds to indicate temperature hazards.
While the measured temperature is above 4°C
(39.2°F) and below 60°C (140°F), red color
backlight ashes.
While measured temperature is below 4°C
(39.2°F) or above 60°C (140°F), green color
backlight ashes.
DIFFERENTIAL TEMPERATURE
In normal display mode, press
to activate the
temperature change display function. The moment
is pressed, temperature value is taken as the
base value. Afterward, the displayed readings are
the temperature difference between baseline and
existing temp. of measuring object. (Fig.4)
In case of fast temperature changes, press
rst to freeze a value as baseline and then press
to activate the temperature change display
function.
Fig.4
MIN/MAX REVIEW
This thermometer allows you to check the
minimum and maximum value recorded from the
moment you press
key.
Under normal mode, each press of will switch
from either showing MAX or MIN on the bottom
of your LCD (Fig.5-6). Real-time temperature will
continue to be shown above the MAX or MIN.
To return to normal mode, press
to return
showing the time-of-day.
COUNT DOWN TIMER
Thermometer is equipped with a timer function.
1. Press
to enter setup mode.
2. Press or and select P10, then press
.
3. Press
or to adjust the timer, press
to save.
4. Press
To start the count down timer, press
(Fig.10). To stop timer, press
to exit setup mode.
to start.
. There is no
pause function in this meter, once you start time
again, it will start over.
Once time is up,
will ash on the bottom of the
LCD (Fig .11) and beep until any one of the keys
are pressed to stop it.
ALARM
appears on LCD and an audible beep will be
sound when alarm is triggered, and measured
temperature goes over set values. Audible alarm
will stop only when temperature reading falls back
between set values or any key is pressed. Flashing
icon only stops when temperature return to normal
range. Alarm will beep and ash once again if the
temperature range exceeds the set values.
SETTING TEMPERATURE ALARM
Press
Press
the alarm function. Then, press
adjust the alarm threshold value you
need. Press
alarm setup mode.
to enter setup mode. Press or
to select P20, then press to enter.
or to enable (YES) or disable (NO)
or to
to save. Press to escape
SET COUNT DOWN TIMER
When entering setup mode, P10 and
( Fig .13) are displayed on LCD. Press
to go enter
value you need from hour to second. (Fig.14)
Then, press
TEMPERATURE ALARM
When entering setup mode, P20 and
are displayed on LCD.
Press to enter. Press or to enable
(YES) or disable (NO) the alarm function. (Fig.16).
Then, press
threshold value you need. The adjustable scale is
1 degree. Press
SELECT TEMPERATURE UNIT (°C or ºF)
When entering setup mode, P30 is displayed on
the LCD.
Press
LCD (Fig. 17).
. Press
to view current unit of measurement on
or to adjust the timer
to save. Press to exit.
(Fig.15)
or to adjust the alarm
to save.
After setting up, press to return to normal
display. You can now see the correct date & time
display on LCD.
TROUBLESHOOTING
Cant power on
Press and hold
and try again. Check batteries to ensure good contact and correct polarity. Also remove the batteries
for >10 mins and then install the batteries again.
Fixed Readings
Ensure data HOLD button is not activated. If it is,
press to deactivate.
Slow Response
Ensure probe is well connected.
Errors Messages
E05: Probe is unplugged.
E02: The value is under range.
E03: The value is over range.
E31: Temperature sensor is damaged.
E32: Memory IC damaged.
for more than 0.3 seconds
TRACEABLE
RTD PLATINUM
THERMOMETER
INSTRUCTIONS
WARRANTY, SERVICE, OR RECALIBRATION
For warranty, service, or recalibration, contact:
®
SETUP
Press and hold
setup, press
to normal mode.
Fig.12
to enter setup mode. To exit
in P10 - P40 and unit will return
Fig.17.
Press
REAL TIME CLOCK
Press
Press
to save. Repeat above to nish month and date
setup.
Press
12 & 24 hour time formats are available. Press
save.
Continue to setup hour/minute/second by press
or to choose °C or °F and press
to conrm.
to set clock.
or to adjust year, then press
to enter time format selection.
or to choose format and press to
or to adjust the numbers and then press
to save.
TRACEABLE® PRODUCTS
Traceable® Products are ISO 9001:2018 Quality-
Certi ied by DNV and ISO/IEC 17025:2017
accredited as a Calibration Laboratory by A2LA.
5 Commonwealth Ave
Woburn, MA 01801
TestEquipmentDepot.com
Traceable® is a registered trademark of Cole-Parmer
©2020 Traceable® Products. 92-4132-00 Rev. 6 043020
