Traceable 5017 User manual

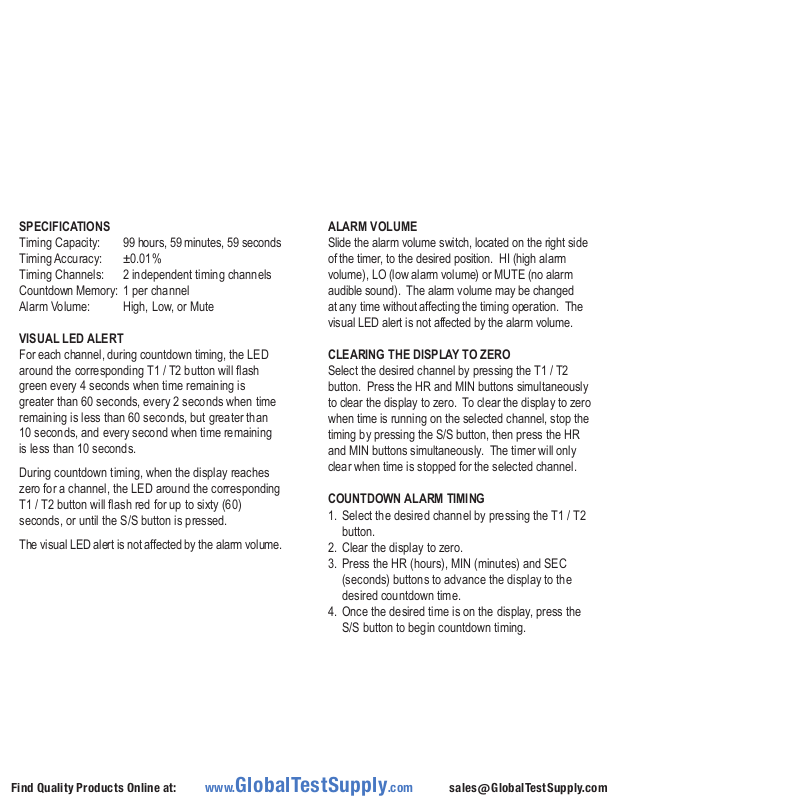

SPECIFICATIONS

Timing Capacity: 99 hours, 59 minutes, 59 seconds
Timing Accuracy: ±0.01%
Timing Channels: 2 independent timing channels
Countdown Memory: 1 per channel
Alarm Volume: High, Low, or Mute

VISUAL LED ALERT

For each channel, during countdown timing, the LED

around the corresponding T1 / T2 button will ash

green every 4 seconds when time remaining is
greater than 60 seconds, every 2 seconds when time
remaining is less than 60 seconds, but greater than
10 seconds, and every second when time remaining
is less than 10 seconds.

During countdown timing, when the display reaches
zero for a channel, the LED around the corresponding

T1 / T2 button will ash red for up to sixty (60)

seconds, or until the S/S button is pressed.

The visual LED alert is not affected by the alarm volume.

ALARM VOLUME

Slide the alarm volume switch, located on the right side

of the timer, to the desired position. HI (high alarm
volume), LO (low alarm volume) or MUTE (no alarm
audible sound). The alarm volume may be changed

at any time without affecting the timing operation. The
visual LED alert is not affected by the alarm volume.

CLEARING THE DISPLAY TO ZERO

Select the desired channel by pressing the T1 / T2
button. Press the HR and MIN buttons simultaneously
to clear the display to zero. To clear the display to zero
when time is running on the selected channel, stop the
timing by pressing the S/S button, then press the HR
and MIN buttons simultaneously. The timer will only
clear when time is stopped for the selected channel.

COUNTDOWN ALARM TIMING

1. Select the desired channel by pressing the T1 / T2
button.

2. Clear the display to zero.

3. Press the HR (hours), MIN (minutes) and SEC
(seconds) buttons to advance the display to the

desired countdown time.

4. Once the desired time is on the display, press the

S/S button to begin countdown timing.

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

5. When the timing channel reaches zero, the alarm

will start (audible and visual or visual only
depending on the alarm volume setting) and the

timing channel will begin counting up.

The alarm will continue for one minute and then turn
off automatically to preserve battery life while the
timing channel continues counting up.

While a channel is alarming, once the channel is
selected by pressing the T1 / T2 button, pressing
the S/S button will stop the alarm, stop the count-up
timing, and recall the last programmed countdown
time. After one minute, pressing the S/S button for
the selected channel will stop the count-up timing.

Both timing channels may be used simultaneously.

SETTING COUNTDOWN MEMORY

For timing repetitive intervals, the countdown memory

function allows up to two (2) distinct countdown times
(one per timing channel) to be set into memory and

recalled with the press of a button.

1. Select the desired channel by pressing the T1 / T2
button.

2. Clear the display to zero.

3. Press and hold the M (memory) button for three (3)
seconds (the display will ash zero).

4. Press the HR (hours), MIN (minutes) and SEC
(seconds) buttons to advance the display to the

desired countdown time.

5. With the desired countdown time on the display,

press the M (memory) button to conrm the entry
(the display will no longer ash).

COUNTDOWN MEMORY TIMING

1. Select the desired channel by pressing the T1 / T2
button.

2. Clear the display to zero.

3. Press the M (memory) button to recall the

countdown memory time for the selected channel.

4. Press the S/S button to begin countdown timing.

5. When the timing channel reaches zero, the alarm

will start (audible and visual or visual only
depending on the alarm volume setting) and the

timing channel will begin counting up.

The alarm will continue for one minute and then turn
off automatically to preserve battery life while the
timing channel continues counting up.

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

While a channel is alarming, once the channel is
selected by pressing the T1 / T2 button, pressing
the S/S button will stop the alarm, stop the count-up
timing, and recall the programmed countdown time.
After one minute, pressing the S/S button for the
selected channel will stop the count-up timing. To
recall the programmed time, press the M button.

Both timing channels may be used simultaneously.

CLEARING COUNTDOWN MEMORY

1. Select the desired channel by pressing the T1 / T2
button.

2. Clear the display to zero.

3. Press and hold the M (memory) button for three (3)
seconds (the display will ash zero).

4. With the display ashing zero, press the M
(memory) button to conrm the entry (the display
will no longer ash).

STOPWATCH (COUNT-UP) TIMING

1. Select the desired channel by pressing the T1 / T2
button.

2. Clear the display to zero.

3. Press the S/S button to begin count-up timing.

4. Press the S/S button to stop count-up timing.

Once timing is complete and the timer has

been stopped, press the HR and MIN buttons
simultaneously to clear the display to zero.

Both timing channels may be used simultaneously for
countdown or count-up timing.

TIMEOUT

A timing channel may be stopped during any running

time (countdown or count-up) by selecting the channel

and pressing the S/S button. Timing may be resumed
by pressing the S/S button a second time.

CONVERT A TIMEOUT TO A COUNTDOWN TIME

A timing channel may be stopped during any running

time (countdown or count-up) by selecting the channel
and pressing the S/S button. Once the timing has

been stopped, pressing the HR, MIN and SEC buttons
will increment the display from the point that it was
stopped and will set the timer into countdown mode.

Once the desired time is on the display, press the S/S

button to begin countdown timing.

ALL OPERATIONAL DIFFICULTIES

If this timer does not function properly for any reason,
replace the batteries with new high quality batteries

(see the “Battery Replacement” section). Low

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

battery power can occasionally cause any number

of “apparent” operational difculties. Replacing the

batteries with new fresh batteries will solve most

difculties.

BATTERY REPLACEMENT

An incorrect display, no display or operational difculties

indicate that the batteries should be replaced. Slide
open the battery cover on the back of the timer. Insert

two (2) new AAA alkaline batteries. Make certain to

note the proper polarity as indicated by the diagram in
the battery compartment. Replace the battery cover.

WARRANTY, SERVICE, OR CALIBRATION

For warranty, service, or calibration contact:

TRACEABLE® PRODUCTS

TRACEABLE

FLASHING

LED ALERT

BIG-DIGIT

DUAL CHANNEL

ALARM TIMER

INSTRUCTIONS

®

Cat. No. 5017

®
