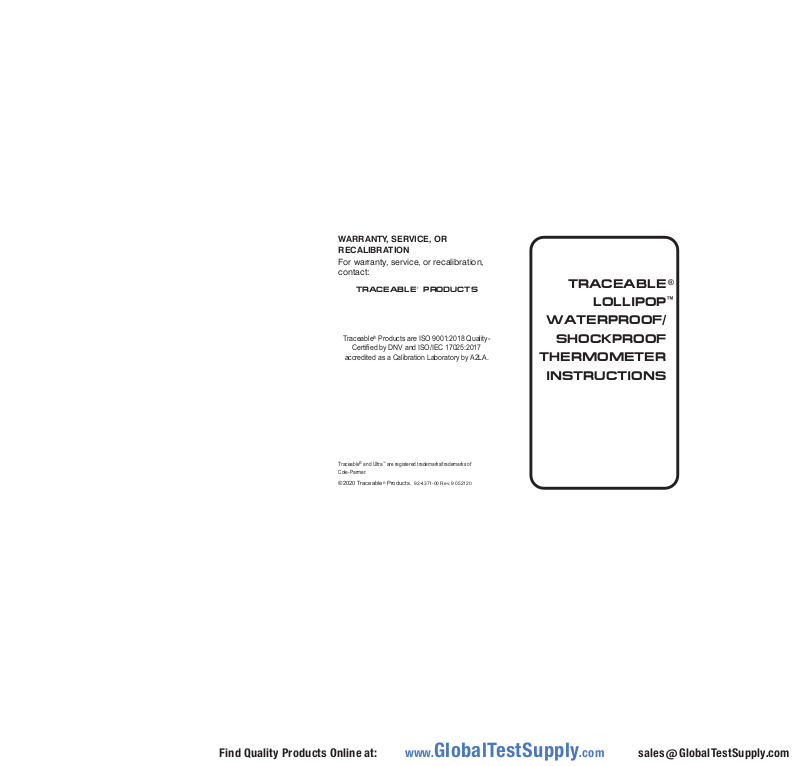

Traceable 4371 User manual

WARRANTY, SERVICE, OR RECALIBRATION
For warranty, service, or recalibration, contact:
TRACEABLE® PRODUCTS
TRACEABLE
LOLLIPOP
WATERPROOF/
®
Traceable® Products are ISO 9001:2018 Quality-
Certied by DNV and ISO/IEC 17025:2017
accredited as a Calibration Laboratory by A2LA.
Traceable® and Ultra™ are registered trademarks/trademarks of Cole-Parmer.
©2020 Traceable® Products. 92-4371-00 Rev. 9 052120
SHOCKPROOF
THERMOMETER
INSTRUCTIONS
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
FEATURES
• Waterproof and shockproof
• Stainless steel sensor probe
• Max/Min memory recall
• °F/°C selectable
• One second sampling rate
• Protective plastic sleeve with clip and holder
• Low battery indicator
OPERATION
Remove Lollipop™ thermometer from the protective sheath. Press ON/OFF button to activate. Press °F/°C button to switch between Fahrenheit and Celsius temperature. Insert probe into the material to be measured and read display.
MAX/MIN MEMORY
To view the minimum temperature reached since activating unit, press MAX/MIN button. “MIN” appears on the display to indicate the minimum temperature recorded. Press MAX/ MIN button a second time within 3 seconds to view the maximum temperature reached since activating unit. “MAX” appears on the display to indicate the maximum temperature recorded.
NOTE: Three seconds after pressing the MAX/MIN button, the unit automatically returns to current sampling mode. Indicators “MIN” and “MAX” are no longer displayed. Turn the unit OFF to reset max/min to current temperature.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
SPECIFICATIONS
Range: –50 to 300°C, –58 to 572°F Resolution: 0.1° from –20 to 200°, 1° outside this range
ULTRA™ THERMOMETER ACCURACY
Ultra™ thermometers are tested at selected test points to be within tighter than normal tolerances to assist in providing improved accuracy. Other points will not necessarily fall within accuracy as those found at selected test points, but will be within an accuracy of ±1.0°C.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
ALL OPERATIONAL DIFFICULTIES
If this thermometer does not function properly for any reason, please replace the battery with a new high quality battery (see “Battery Replacement” section). Low battery power can occasionally cause any number of “apparent” operational difficulties. Replacing the battery with a new fresh battery will solve most difficulties.
BATTERY REPLACEMENT
Erratic readings, faint readings or no display are all indications that the battery must be replaced. Using a screwdriver, unscrew the three screws located on the battery cover on back of the unit. Remove the exhausted battery and replace with a new battery. Make certain the positive (+) side is facing you. Equivalent battery replacements are: RAYOVAC RW42, DURACELL D357, and EVEREADY
357. Replace the battery cover. Screw the three screws back into the unit. Do not over-tighten the screws as this may cause damage to the battery cover.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
