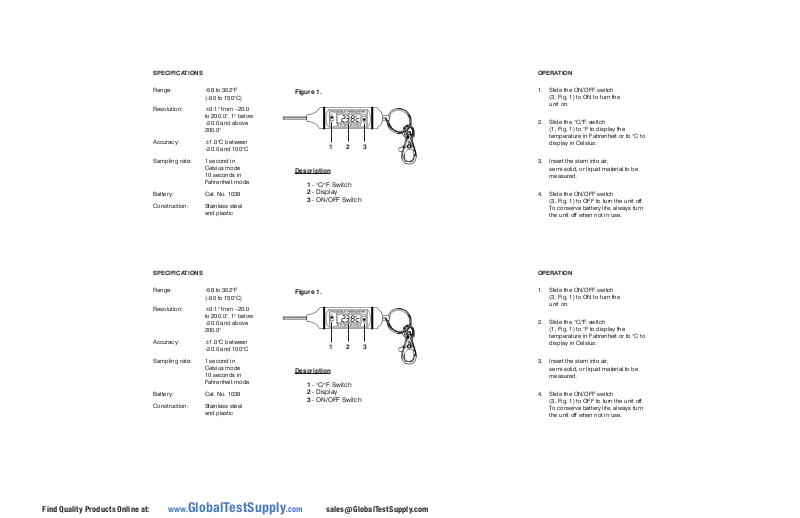

SPECIFICATIONS
Range: –58 to 302°F
(–50 to 150°C)
Resolution: ±0.1° from –20.0
to 200.0°, 1° below
–20.0 and above
200.0°
Accuracy: ±1.0°C between
–20.0 and 100°C
Sampling rate: 1 second in
Celsius mode
10 seconds in
Fahrenheit mode
Battery: Cat. No. 1039
Construction: Stainless steel
and plastic
SPECIFICATIONS
Figure 1.
1 2 3
Description
1 - °C/°F Switch
2 - Display
3 - ON/OFF Switch
Range: –58 to 302°F
(–50 to 150°C)
Resolution: ±0.1° from –20.0
to 200.0°, 1° below
–20.0 and above
200.0°
Accuracy: ±1.0°C between
–20.0 and 100°C
Sampling rate: 1 second in
Celsius mode
10 seconds in
Fahrenheit mode
Battery: Cat. No. 1039
Construction: Stainless steel
and plastic
Figure 1.
1 2 3
Description
1 - °C/°F Switch
2 - Display
3 - ON/OFF Switch
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
OPERATION
1. Slide the ON/OFF switch
(3, Fig. 1) to ON to turn the
unit on.
2. Slide the °C/°F switch
(1, Fig. 1) to °F to display the
temperature in Fahrenheit or to °C to
display in Celsius.
3. Insert the stem into air,
semi-solid, or liquid material to be
measured.
4. Slide the ON/OFF switch
(3, Fig. 1) to OFF to turn the unit off.
To conserve battery life, always turn
the unit off when not in use.
OPERATION
1. Slide the ON/OFF switch
(3, Fig. 1) to ON to turn the
unit on.
2. Slide the °C/°F switch
(1, Fig. 1) to °F to display the
temperature in Fahrenheit or to °C to
display in Celsius.
3. Insert the stem into air,
semi-solid, or liquid material to be
measured.
4. Slide the ON/OFF switch
(3, Fig. 1) to OFF to turn the unit off.
To conserve battery life, always turn
the unit off when not in use.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
BATTERY REPLACEMENT
Erratic readings, a faint display, or no
display are all indications that the battery
is low and needs to be replaced. To
replace the battery, remove the battery
cap, located on the top of the unit
and marked open, by turning it in the
direction of the arrow (counterclockwise).
Remove the battery and insert a new
Cat. No. 1039 battery. Make certain
that the positive (+) side is facing
you. Incorrectly installed batteries may
damage electronics. Replace the Battery
Cap.
ALL OPERATIONAL DIFFICULTIES
If this thermometer does not function
properly for any reason, please replace
the battery with a new high quality battery
(see “Battery Replacement” section). Low
battery power can occasionally cause
any number of “apparent” operational
difficulties. Replacing the battery with
a new fresh battery will solve most
difficulties.
BATTERY REPLACEMENT
Erratic readings, a faint display, or no
display are all indications that the battery
is low and needs to be replaced. To
replace the battery, remove the battery
cap, located on the top of the unit
and marked open, by turning it in the
direction of the arrow (counterclockwise).
Remove the battery and insert a new
Cat. No. 1039 battery. Make certain
that the positive (+) side is facing
you. Incorrectly installed batteries may
damage electronics. Replace the Battery
Cap.
ALL OPERATIONAL DIFFICULTIES
If this thermometer does not function
properly for any reason, please replace
the battery with a new high quality battery
(see “Battery Replacement” section). Low
battery power can occasionally cause
any number of “apparent” operational
difficulties. Replacing the battery with
a new fresh battery will solve most
difficulties.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Warranty, service, or recalibration
For warranty, service, or recalibration, contact:
TRACEABLE® PRODUCTS
Traceable® Products are ISO 9001:2018 Quality-
Certi ied by DNV and ISO/IEC 17025:2017
accredited as a Calibration Laboratory by A2LA.
Traceable® is a registered trademark of Cole-Parmer.
2018 Traceable
©
®
Products. 92-4351-00 Rev. 3 061818
TRACEABLE
KEY-CHAIN
THERMOMETER
INSTRUCTIONS
®
2020 Traceable
©
®
Products. 92-4351-00 Rev. 4 051920
TRACEABLE
KEY-CHAIN
THERMOMETER
INSTRUCTIONS
®
