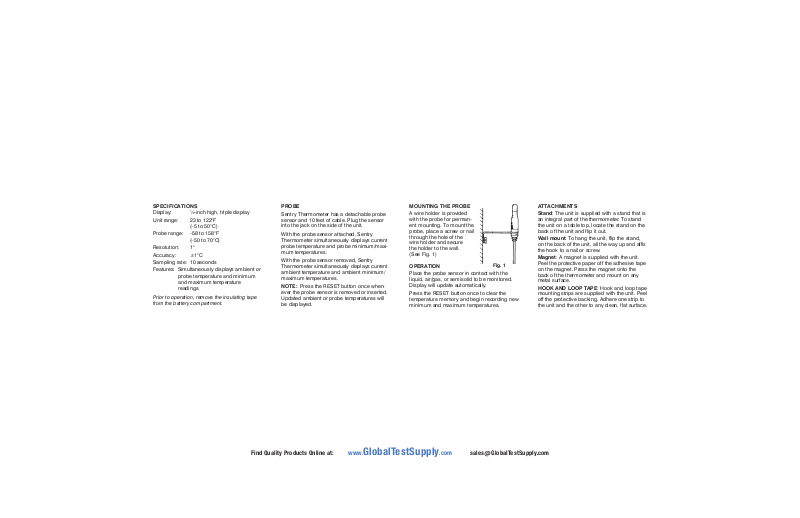

SPECIFICATIONS
Display: ½-inch high, triple display
Unit range: 23 to 122°F
(–5 to 50°C)
Probe range: –58 to 158°F
(–50 to 70°C)
Resolution: 1°
Accuracy: ±1°C
Sampling rate: 10 seconds
Features: Simultaneously displays ambient or
probe temperature and minimum
and maximum temperature
readings.
Prior to operation, remove the insulating tape
from the battery compartment.
PROBE
Sentry Thermometer has a detachable probe
sensor and 10 feet of cable. Plug the sensor
into the jack on the side of the unit.
With the probe sensor attached, Sentry
Thermometer simultaneously displays current
probe temperature and probe minimum/maximum temperatures.
With the probe sensor removed, Sentry
Thermometer simultaneously displays current
ambient temperature and ambient minimum/
maximum temperatures.
NOTE: Press the RESET button once whenever the probe sensor is removed or inserted.
Updated ambient or probe temperatures will
be displayed.
MOUNTING THE PROBE
A wire holder is provided
with the probe for permanent mounting. To mount the
probe, place a screw or nail
through the hole of the
wire holder and secure
the holder to the wall.
(See Fig. 1)
OPERATION
Place the probe sensor in contact with the
liquid, air/gas, or semisolid to be monitored.
Display will update automatically.
Press the RESET button once to clear the
temperature memory and begin recording new
minimum and maximum temperatures.
Fig. 1
ATTACHMENTS
Stand: The unit is supplied with a stand that is
an integral part of the thermometer. To stand
the unit on a table top, locate the stand on the
back of the unit and flip it out.
Wall mount: To hang the unit, flip the stand,
on the back of the unit, all the way up and affix
the hook to a nail or screw.
Magnet: A magnet is supplied with the unit.
Peel the protective paper off the adhesive tape
on the magnet. Press the magnet onto the
back of the thermometer and mount on any
metal surface.
HOOK AND LOOP TAPE: Hook and loop tape
mounting strips are supplied with the unit. Peel
off the protective backing. Adhere one strip to
the unit and the other to any clean, flat surface.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
If this thermometer does not function properly for
any reason, please replace the battery with a new
high quality battery (see “Battery Replacement”
section). Low battery power can occasionally
cause any number of “apparent” operational
difficulties. Replacing the battery with a new fresh
battery will solve most difficulties.
BATTERY REPLACEMENT
Erratic readings, a faint display, no display, or
when all °C or °F digits flash are all indicators
that the batteries must be replaced. Using a
coin, unscrew the round battery cover. Remove
the exhausted battery and replace with a new
1.5 volt, G-13 size battery (Replacement Cat. No.
1039). With the rubber O-ring seated properly,
replace the battery cover.
Traceable® is a registered trademark of Cole-Parmer.
©2018 Traceable® Products. 92-4120-00 Rev. 5 051418
TRACEABLE
SENTRY
THERMOMETER
INSTRUCTIONS
®
