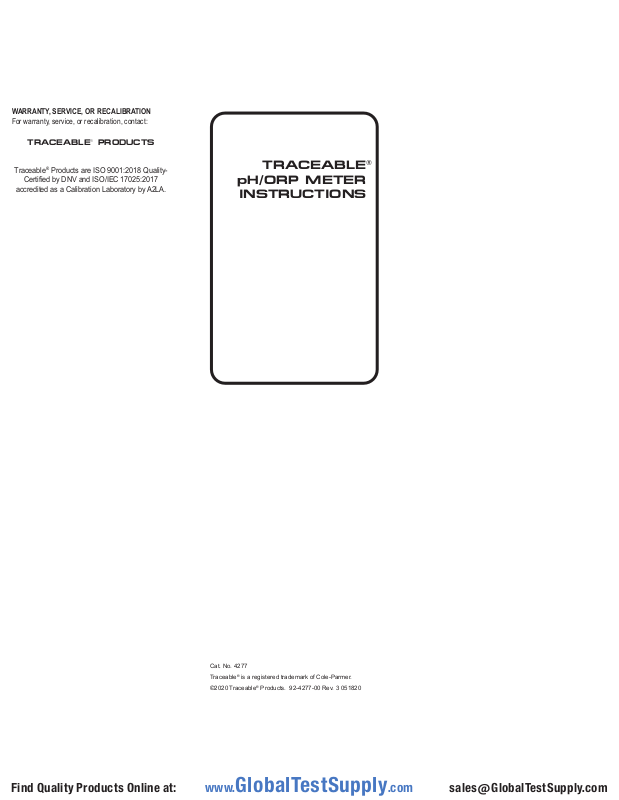

WARRANTY, SERVICE, OR RECALIBRATION
For warranty, service, or recalibration, contact:
TRACEABLE® PRODUCTS
Traceable® Products are ISO 9001:2018 Quality-
Certified by DNV and ISO/IEC 17025:2017
accredited as a Calibration Laboratory by A2LA.
TRACEABLE
pH/ORP METER
INSTRUCTIONS
®
Cat. No. 4277
®
Traceable
is a registered trademark of Cole-Parmer.
©2020 Traceable® Products. 92-4277-00 Rev. 3 051820
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
pH/ORP Meter Keypad
The pH/ORP Meter has four tactile keys that are used to
setup and operate this instrument.
PREPARING THE METER
1. Install the electrode by removing the electrode collar,
orienting the electrode at the 4-pin connector (the
electrode is indexed to only t in one position – rotate
until the connectors slide together), and then reinstall
collar.
2. Remove the battery cover and install 2 new CR2032
batteries (included in box). Inspect the rubber seal and
reinstall the battery cover.
3. It is recommended to condition the electrode prior
to use. If you have a soaker bottle attached to the
sensing end of the electrode and the soaking solution is visible in the bottle, the electrode is already
conditioned. If not, soak the electrode in a pH 4 buffer
solution or 4M KCl Solution for 30 minutes or more
prior to use.
OPERATING THE METER
A. Power ON/OFF
To turn the pH/ORP Meter on, press the Power Key:
To turn the pH/ORP Meter off, press and hold the Power
Key for 2 seconds:
Entering setup mode – press the Scroll/Setup Key for at
least 2 seconds:
The rst setup option is recall stored data - refer to the
Section G regarding Recalling Stored Data.
If you press the Scroll/Setup Key again, the next setup
option is the auto recognized Buffer Sets option.
B1. Set Auto recognized Buffer Sets
The options for Buffer Sets are either:
4.01/7.00/10.00 – popular in the USA
(designated as “7.00”)
Or
4.01/6.86/9.18 – NIST, popular in Europe, Asia
(designated as “6.86”)
NOTE: Because the ORP Measurement is a relative
measurement, it does not have a calibration procedure.
To adjust the Buffer sets, press Store/Backlight Key once
and then use the Scroll/Setup Key to adjust the value to
either 7.00 or 6.86.
Press the Store/Backlight Key to select the Buffer Set and
return to measurement mode.
B2. Set Date and Time
Within setup mode, scroll to the screen that only shows
the date & time to adjust this data. Press the Store/Backlight Key to adjust the time and date:
By pressing the Scroll/Setup Key, you will move through
B. Set-up Your Preferences
The pH/ORP Meter can be customized to your preferences in regard to the pH calibration buffer set that
is auto-recognized, the time and date, and Celsius or
Fahrenheit temperature display. When replacing batteries,
these settings do need to be reset. You can also recall
stored data or erase that data in setup mode.
To enter the setup mode, press Scroll/Setup Key for at
least 2 seconds. Then use Scroll Key to toggle through 4
set-up options:
1. Recall Stored Data
2. Auto-recognized Buffer Sets
3. Date & Time
4. Temperature display (ºC/ºF)
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
the minutes, hour, day, month, and year info. To adjust the
data, use the Power/Lock Key to increase the value, or
the Cal Key to decrease the value. Use the Store/Backlight Key to save the adjusted value and move to the next
data point. When the Date & time are accurate, press the
Store/Backlight Key to go back to measurement mode.
Adjustment: or to increase (+);
or to decrease (-). Use the to save the
adjusted data.
B3. Set Temperature Display to °C or °F
The pH/ORP Meter displays the temperature below the
main pH or mV display. The display can be adjusted to
read in Celsius (°C) or in Fahrenheit (°F).
In setup mode scroll to the temperature display option
and press the Store/Backlight Key to adjust the tempera-
ture display. Use the scroll/Setup Key to toggle between
°C or °F. Then use the Store/Backlight Key to save your
settings and exit to measure mode:
C. Lock Data
If you want to lock the current reading on your display,
press the Power/Lock Key quickly. You will see a small
lock icon appear to the left of the pH or mV characters.
This may be used to briey hold the data in moving water
or unstable samples. This does not store the data, it just
locks it.
To unlock the display, and continue in measurement
mode, press the Power/Lock Key again.
D. Toggle Between pH and ORP
To toggle between pH measurement mode and ORP
measurement mode (mV) press the Scroll/Setup Key
E. LCD Backlight Control
The pH/ORP Meter has a backlight for viewing in low-light
conditions. The backlight should be used sparingly to
avoid decreasing the battery life.
Turn the backlight on and off by using the Store/Backlight
Key. Press it quickly to turn it off or on:
To enter Setup Mode, press the Scroll/Setup Key for 2
seconds:
The rst setup option is the Recall Stored Data option. It
will have a number and an icon that shows a folder with
the letter “R” on it. The number indicates how many data
points are currently in memory.
To review the stored data, press the Store/Backlight Key
quickly.
Then you can use the Scroll/Setup Key to scroll through
the stored data points. By holding the Scroll/Setup key,
you will quickly advance through the stored data.
To exit the Recall Stored Data mode, quickly press the
Store/Backlight Key and you will return to measurement
mode.
When there are no stored data points during the Recall
Stored Data mode the number on the display will be 00.
H. Clearing Stored Data
To erase all stored data points, go to the Recall Stored
Data mode (as described in G) and then Press the Store/
Backlight Key for at least 2 seconds. The display will
show CLEA and this will ash when you release the Key.
Press the Store/Backlight Key quickly and the CLEA will
stop blinking and in about 2 seconds the stored data will
be erased:
F. Store Data
The pH/ORP Meter will store up to 25 data points. Each
point will have a number, and a date & time stamp. When
the storage is full, it will overwrite the oldest data.
You can store data while the pH/ORP Meter is in measurement mode or in lock mode by pressing and holding
the Store/Backlight key for at least 2 seconds. Pressing
this key for less than 2 seconds will turn on the backlight
instead of storing data.
G. Recall Stored Data
To recall the data you have stored in the pH/ORP Meter,
you need to enter the Setup Mode and toggle to Stored
Data option.
Find Quality Products Online at: sales@GlobalTestSupply.com
You can abort the data erase mode by pressing the
Power/Lock Key after the display ashes CLEA. The pH/
ORP Meter will return to Recall Stored Data mode.
I. Calibrating the pH/ORP Meter
The pH/ORP Meter can be calibrated for pH Measurement only. ORP is a relative measurement that does not
require or allow calibration. On occasion, check the ORP
reading with solutions of a known ORP value (e.g. Light’s
Solution or Zobell’s Solution).
www.GlobalTestSupply.com
For best performance, the pH/ORP Meter should be calibrated regularly using buffers that bracket the expected
pH range of the sample.
For example, if your sample will typically be in the pH 7.2
– pH 8.2 range, use the pH 7 and pH 10 (or pH 6.86 and
pH 9.18) buffers to calibrate. For a full range calibration
use 3 standard Buffers to calibrate the pH/ORP Meter.
If you calibrate with more than 1 pH Buffer, the pH/ORP
Meter will develop a slope and offset calibration curve.
If you only use 1 buffer to calibrate, the pH/ORP Meter
will just adjust the electrode offset, and use an ideal
slope curve (~59 mV/decade). A 1-point calibration is less
accurate, especially for older electrodes that may have
developed an offset over time.
You can use the buffers in any order, but make sure you
use the buffers that were selected in the Auto recognized
buffer set in the setup mode (see section B1). If possible,
the buffers should be at the same or similar temperature
as the samples you will be measuring. For example, if you
are regularly measuring the pH of warm pool water, try to
warm your buffers to a similar temperature before using
them for calibration.
To calibrate the pH/ORP Meter, press the Cal Key for 2
seconds:
The CAL mode icon will ash and a 1 will indicate it is
looking for the rst buffer (Buffer 7.00 or the M, in this
example). Put the electrode into the rst buffer and press
the Cal Key. An hourglass icon will appear while the pH/
ORP Meter calibrates to this buffer value:
When it is stabilized, the hourglass icon will disappear
and the CAL and 2 icons will ash. You can either:
Exit the cal mode by pressing the Store/Backlight Key
and accept a 1-point calibration.
Or (for a multipoint calibration)
Rinse the electrode, dry it and immerse it in the second buffer wait until the hourglass disappears then press
the Cal Key to do a 2-point or 3-point calibration.
When it is stabilized, the hourglass icon will disappear
and the CAL and 3 icons will ash. You can either:
Exit the cal mode by pressing the Store/Backlight Key
and accept a 2-point calibration.
Or (for a 3-point calibration)
Rinse the electrode, dry it and immerse it in the third
buffer , wait until the hourglass disappears then press the
Cal Key to do a 3-point calibration.
After the 3-point calibration, the pH/ORP Meter will return
to measurement mode.
The pH/ORP Meter can now be used to accurately
measure the pH or ORP in the sample.
J. Taking Measurements with the pH/ORP Meter
1. To measure the pH or ORP in your sample, the pH/
ORP Meter needs to be in Measurement Mode. This
is the default start-up mode when the pH/ORP Meter
is turned on and is indicated by a “pH” or “ORP” icon
above and to left of measurement value.
2. Conrm that the electrode has been properly stored in
storage solution (see “Preparing the pH/ORP Meter”).
Rinse any storage solution off the electrode and blot
dry.
3. Immerse the electrode at least one inch into the
sample to ensure the sensor and reference junction
are surrounded by the sample.
4. When the reading stabilizes (the hour glass will
disappear) you can lock, record or store the value (see
sections C and F)
5. Rinse and blot dry the electrode between samples to
ensure no carryover effect from sample to sample.
Error Codes and Troubleshooting
Error Code and Actions
# Description Range Actions
Electrode
1
not installed
or bad
pH out of
2
range
Temperature
3
out of range
Offset out of
4
range
Slope out of
5
range
ORP out of
6
range
Thermistor:
0.5k~100k Ω
0~14pH
0~60°C
–60~60mV
85%~115%,
50~68 (mV/
pH)
–1800 to
1800mV
Install or replace
electrode
Use other solution
or recalibrate or
replace electrode
Bring solution to
the temperature
within range
Use new buffer or
replace electrode
Use new buffer or
replace electrode
May need to
check a solution
of a known value
within the range
