Traceable 4044, 4342 User manual

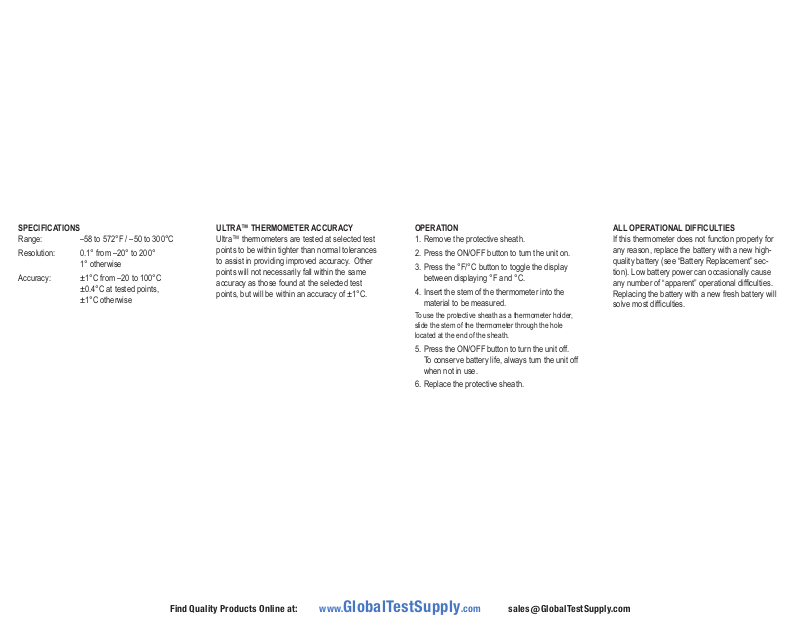

SPECIFICATIONS

Range: –58 to 572°F / –50 to 300°C

Resolution: 0.1° from –20° to 200°

1° otherwise

Accuracy: ±1°C from –20 to 100°C

±0.4°C at tested points,
±1°C otherwise

ULTRA™ THERMOMETER ACCURACY

Ultra™ thermometers are tested at selected test
points to be within tighter than normal tolerances
to assist in providing improved accuracy. Other
points will not necessarily fall within the same
accuracy as those found at the selected test
points, but will be within an accuracy of ±1°C.

OPERATION

1. Remove the protective sheath.

2. Press the ON/OFF button to turn the unit on.

3. Press the °F/°C button to toggle the display
between displaying °F and °C.

4. Insert the stem of the thermometer into the
material to be measured.

To use the protective sheath as a thermometer holder,
slide the stem of the thermometer through the hole
located at the end of the sheath.

5. Press the ON/OFF button to turn the unit off.
To conserve battery life, always turn the unit off
when not in use.

6. Replace the protective sheath.

ALL OPERATIONAL DIFFICULTIES

If this thermometer does not function properly for
any reason, replace the battery with a new high­quality battery (see “Battery Replacement” sec­tion). Low battery power can occasionally cause

any number of “apparent” operational difculties.

Replacing the battery with a new fresh battery will

solve most difculties.

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

BATTERY REPLACEMENT

Erratic readings, a faint display, or no display, are
all indicators that the battery must be replaced.
Use a screwdriver to remove the battery cap by
turning the cap counter-clockwise approximately
1/4 of a turn. Turning the cap further than 1/4 of a
turn may damage the cap. Replace the exhausted
battery with a new 1.5 volt, silver oxide, size 393
battery. Make certain the positive (+) side is visible.
Replace the battery cap by turning the cap clock­wise approximately 1/4 of a turn. Turning the cap
further than 1/4 of a turn may damage the cap.

WARRANTY, SERVICE, OR RECALIBRATION

For warranty, service, or recalibration, contact:

TRACEABLE® PRODUCTS

12554 Old Galveston Rd. Suite B230

Webster, Texas 77598 USA

Ph. 281 482-1714 • Fax [phone]

E-mail [e-mail] • www.traceable.com

Traceable® Products is ISO 9001:2015 Quality-

Certied by DNV and ISO/IEC 17025:2005

accredited as a Calibration Laboratory by A2LA.

Cat. No. 4042 / 4044 / 4342 / 4344

Traceable® and Ultra™ are registered trademarks/trademarks

of Cole-Parmer.

©2016 Traceable® Products. 92-4344-00 Rev. 8 021217

TRACEABLE

DIGITAL DIAL

THERMOMETER

INSTRUCTIONS

®
