Traceable 4040 User manual

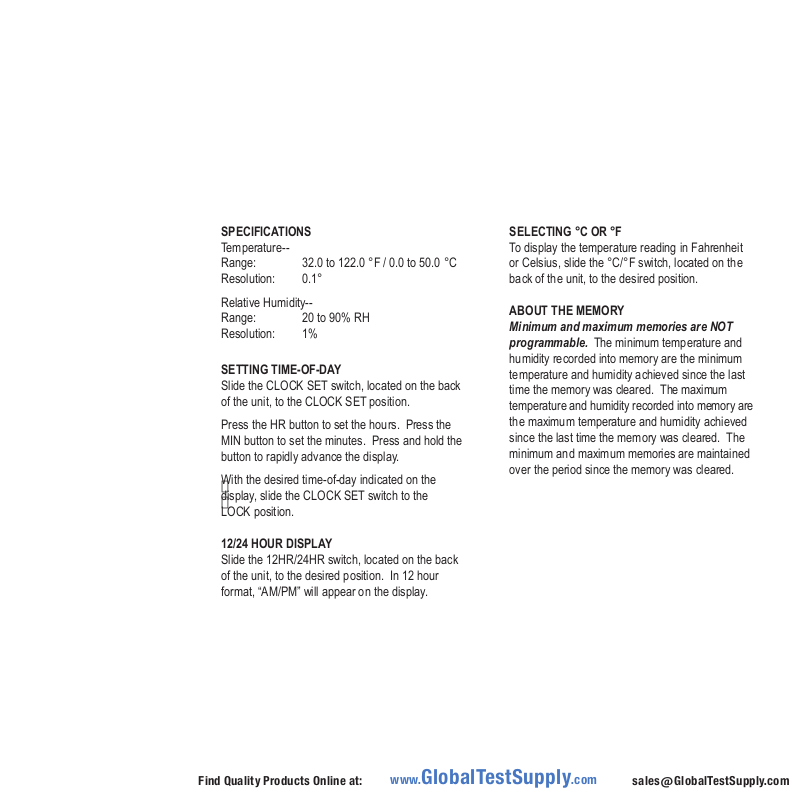

SPECIFICATIONS

Temperature-­Range:

32.0 to 122.0 °F / 0.0 to 50.0 °C

Resolution: 0.1°

SELECTING °C OR °F

To display the temperature reading in Fahrenheit
or Celsius, slide the °C/°F switch, located on the
back of the unit, to the desired position.

Relative Humidity-­Range:
Resolution:

20 to 90% RH

1%

SETTING TIME-OF-DAY

Slide the CLOCK SET switch, located on the back
of the unit, to the CLOCK SET position.

Press the HR button to set the hours. Press the
MIN button to set the minutes. Press and hold the
button to rapidly advance the display.

With the desired time-of-day indicated on the



display, slide the CLOCK SET switch to the



LOCK position.

12/24 HOUR DISPLAY

Slide the 12HR/24HR switch, located on the back
of the unit, to the desired position. In 12 hour
format, “AM/PM” will appear on the display.

ABOUT THE MEMORY

Minimum and maximum memories are NOT
programmable. The minimum temperature and

humidity recorded into memory are the minimum
temperature and humidity achieved since the last
time the memory was cleared. The maximum
temperature and humidity recorded into memory are
the maximum temperature and humidity achieved
since the last time the memory was cleared. The
minimum and maximum memories are maintained
over the period since the memory was cleared.

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

VIEWING THE HUMIDITY MEMORY

To view the humidity memory, press the HUMIDITY
MEMORY button. The maximum humidity reading
achieved will be displayed (“MAX” will appear on
the display).

Press the HUMIDITY MEMORY button a second
time, within 10 seconds, to view the minimum
humidity achieved (“MIN” will appear on the display).

Note: Ten (10) seconds after pressing the HUMIDITY
MEMORY button, the unit automatically returns to the
current temperature/humidity reading.

VIEWING THE TEMPERATURE MEMORY

To view the temperature memory, press the TEMP
MEMORY button. The maximum temperature
reading achieved will be displayed in the top
display (“MAX” will appear to the right of the value).
The minimum temperature reading achieved will be
displayed in the middle display (“MIN” will appear
to the right of the value).

Press the TEMP MEMORY button a second time,
within 5 seconds, to return the current temperature
reading and time-of-day display.

Press the HUMIDITY MEMORY button a third time,
within 10 seconds, to return to the current humidity
reading.

CLEARING THE HUMIDITY MEMORY

The minimum and maximum humidity memory may
be cleared independently. To clear the desired
humidity memory (MIN or MAX), press the CLEAR
button while that memory value is being displayed
(see the “Viewing the Humidity Memory” section).
The display will show “- -” for approximately 8
seconds and will then display the current humidity
reading.

Note: Five (5) seconds after pressing the TEMP
MEMORY button, the unit automatically returns to the
current temperature/time-of-day display.

CLEARING THE TEMPERATURE MEMORY

To clear the temperature memory (MIN and MAX),
press the CLEAR button while the temperature
memory is being displayed (see the “Viewing the
Temperature Memory” section). The display will
show “- -” for approximately 8 seconds and will
then display the current temperature and time-of-day.

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

ALL OPERATIONAL DIFFICULTIES

If this unit does not function properly for any
reason, replace the battery with a new high quality
battery (see the “Battery Replacement” section).
Low battery power can occasionally cause any

number of “apparent” operational difculties.

Replacing the battery with a new fresh battery will

solve most difculties.

BATTERY REPLACEMENT

Erratic readings, faint readings, or no display are
all indications that the battery must be replaced.
Remove the battery cover by sliding it in the
direction indicated by the arrow. Remove the
exhausted battery and replace it with a new AAA
alkaline battery. Make certain to insert the new
battery with the proper polarity as indicated in the
illustration in the battery compartment. Replace
the battery cover.

WARRANTY, SERVICE, OR RECALIBRATION

For warranty, service, or recalibration, contact:

TRACEABLE® PRODUCTS

Traceable® Products is ISO 9001:2015 Quality-

Certied by DNV and ISO/IEC 17025:2005

accredited as a Calibration Laboratory by A2LA.



Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com



Cat. No. 4040

®

Traceable

2018 Traceable

©

is a registered trademark of Cole-Parmer.

®

Products. 92-4040-00 Rev. 5 080618

TRACEABLE

THERMOMETER/

CLOCK/
HUMIDITY
MONITOR

INSTRUCTIONS

®
