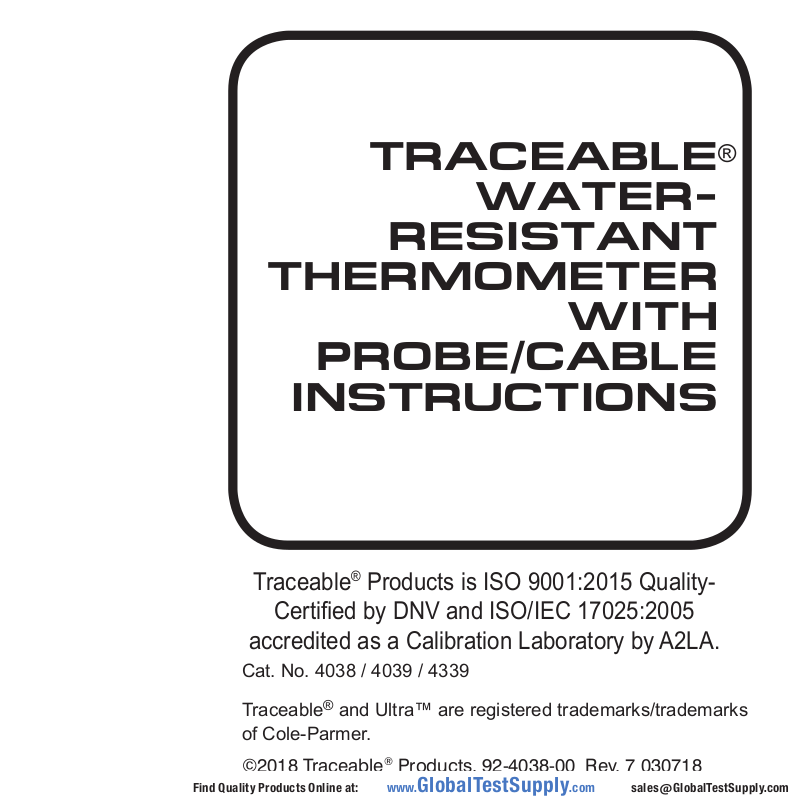

Traceable 4039 User manual

TRACEABLE

WATER-

RESISTANT

THERMOMETER

WITH

PROBE/CABLE

INSTRUCTIONS

®

Traceable® Products is ISO 9001:2015 Quality-

Certied by DNV and ISO/IEC 17025:2005

accredited as a Calibration Laboratory by A2LA.

Cat. No. 4038 / 4039 / 4339

Traceable® and Ultra™ are registered trademarks/trademarks
of Cole-Parmer.

©2018 Traceable® Products. 92-4038-00 Rev. 7 030718

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

SPECIFICATIONS

Range:
Resolution:

Accuracy:

–58 to 572°F (–50 to 300°C)

0.1° from –20° to 200°, 1° otherwise

Cat. No. 4038 and 4039

±1.0°C between –20 and 100°C

Cat. No. 4339

±0.5°C between –20 and 100°C
at tested points, ±1°C otherwise

ULTRA™ THERMOMETER ACCURACY

Ultra™ thermometers are tested at selected test
points to be within tighter than normal tolerances
to assist in providing improved accuracy. Other
points will not necessarily fall within the same ac­curacy as those found at the selected test points,
but will be within an accuracy of ±1 °C.

OPERATION

1.

Press the ON/OFF button to turn the unit on.

Press the °F/°C button to switch between

Fahrenheit and Celsius.

2.

Insert the probe into the material to be

measured and read the display.

3.

Press the ON/OFF button to turn the unit off.

To conserve battery life, always turn the unit
off when not in use.

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

MAX/MIN MEMORY

1.

To view the minimum temperature reached
since activating the unit, press the MAX/MIN
button. “MIN” appears on the display to indicate
the minimum temperature recorded.

Press the MAX/MIN button a second time,

2.
within 3 seconds, to view the maximum
temperature reached since activating the unit.
“MAX” appears on the display to indicate the
maximum temperature recorded.

Note: Three seconds after pressing the MAX/MIN button,
the unit automatically returns to the current temperature
reading. (“MIN” and “MAX” are no longer displayed.)

3. Turn the unit off to reset the minimum and
maximum memories.

ALL OPERATIONAL DIFFICULTIES

If this thermometer does not function properly for
any reason, replace the battery with a new high
quality battery (see the “Battery Replacement” sec­tion). Low battery power can occasionally cause

any number of “apparent” operational difculties.

Replacing the battery with a new fresh battery will

solve most difculties.

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

BATTERY REPLACEMENT

Erratic readings, a faint display, no display or
appearing on the display are all indications that the
battery must be replaced. Using a coin, turn the
battery cover on back of the unit in the direction of
the “open” arrow. Remove the exhausted battery
and replace with a new 1.5 volt silver-oxide 389
size battery. Make certain positive (+) side is vis­ible. Replace battery cover.
