Traceable 37803-51 User manual

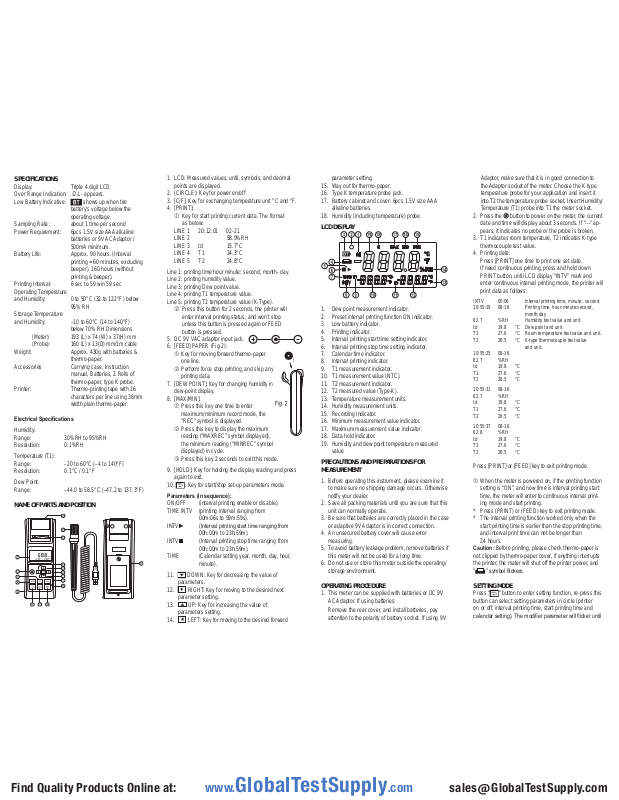

SPECIFICATIONS

Display: Triple 4 digit LCD.
Over Range Indication: OL - appears.
Low Battery Indicative:

Sampling Rate : about 1 time per second
Power Requirement: 6pcs 1.5V size AAA alkaline

Battery Life: Approx. 90 hours. (Interval

Printing Interval: 6 sec to 59 win 59 sec
Operating Temperature
and Humidity: 0 to 50°C (32 to 122°F) below

Storage Temperature
and Humidity: –10 to 60°C (14 to 140°F)

(Meter): 193 (L) x 74 (W) x 37(H) mm
(Probe): 160 (L) x 13(D) mm/1m cable

Weight: Approx. 430g with batteries &
Accessories Carrying case, Instruction

Printer: Thermo-printing tape with 16

shows up when tire
battery’s voltage below the
operating voltage.

batteries or 9V AC Adaptor /
500mA minimum.

printing = 60 minutes, excluding
beeper). 160 hours (without
printing & beeper).

95% RH

below 70% RH Dimensions

thermo-paper.
manual, Batteries, 2 Rolls of

thermo-paper, type K probe.
characters per line using 38mm

width plain thermo-paper.

(OHFWULFDO6SHFLÀFDWLRQV

Humidity:
Range: 30%RH to 95%RH
Resolution: 0.1%RH

Temperature (T1):
Range: –20 to 60°C (–4 to 140°F)
Resolution: 0.1°C / 0.1°F

Dew Point:
Range: –44.0 to 58.5°C (–47.2 to 137.3°F)

NAME OF PARTS AND POSITION

1. LCD: Measured values, until, symbols, and decimal
points are displayed.

2. (CIRCLE): Key for power on/off

3. [C/F]: Key for exchanging temperature unit °C and °F.

4. [PRINT]:
cKey for start printing current data. The format
as below:
LINE 1 20:12:01 02-21
LINE 2 58.9%RH
LINE 3 td 15.7°C
LINE 4 T1 24.3°C
LINE 5 T2 24.8°C

Line 1: printing time hour minute: second, month- day.
Line 2: printing humidity value.
Line 3: printing Dew point value.
Line 4: printing T1 temperature value.
Line 5: printing T2 temperature value (K-Type).

d Press this button for 2 seconds, the printer will
enter interval printing status, and won’t stop
unless this button is pressed again or FEED
button is pressed.

5. DC 9V VAC adaptor input jack.

6. [FEED] PAPER (Fig-2):
c Key for moving forward thermo-paper
one line.
d Perform force stop printing, and skip any
printing data.

7. [DEW POINT]: Key for changing humidity in
dew-point display.

8. [MAX/MIN]:
cPress this key one time to enter
maximum/minimum record mode, the
“REC” symbol is displayed.
d Press this key to display the maximum
reading (“MAXREC” symbol displayed),
the minimum reading (“MINREC” symbol
displayed) in cycle.
e Press this key 2 seconds to exit this mode.

9. [HOLD]: Key for holding the display reading and press
again to exit.

10.

: Key for start/stop set-up parameters mode.

3DUDPHWHUVLQVHTXHQFH

ON/OFF (interval printing enable or disable).
TIME INTV (printing interval ranging from

,179Ź ,QWHUYDOSULQWLQJVWDUWWLPHUDQJLQJIURP

INTV
TIME (Calendar setting year, month, day, hour,

11.

12.

13.

14.

00m:06s to 59m:59s).
00h:00m to 23h:59m).

Ŷ (Interval printing stop time ranging from

00h:00m to 23h:59m).
minute).

DOWN: Key for decreasing the value of

parameters.

RIGHT: Key for moving to the desired next

parameter setting.

UP: Key for increasing the value of

parameters setting.

LEFT: Key for moving to the desired forward

parameter setting.

15. Way out for thermo-paper.

16. Type K temperature probe jack.

17. Battery cabinet and cover: 6pcs 1.5V size AAA
alkaline batteries.

18. Humidity (including temperature) probe.

LCD DISPLAY

1. Dew point measurement indicator.

2. Preset interval printing function ON indicator.

3. Low battery indicator.

4. Printing indicator.

5. Interval printing start time setting indicator.

6. Interval printing stop time setting indicator.

7. Calendar time indicator.

8. Interval printing indicator.

9. T1 measurement indicator.

10. T1 measurement value (NTC).

11. T2 measurement indicator.

12. T2 measured value (Type-K).

13. Temperature measurement units.

14. Humidity measurement units.

15. Recording indicator.

16. Minimum measurement value indicator.

17. Maximum measurement value indicator.

18. Data hold indicator.

19. Humidity and dew point temperature measured
value

PRECAUTIONS AND PREPARATIONS FOR
MEASUREMENT

1. Before operating this instrument, please examine it

to make sure no shipping damage occurs. Otherwise
notify your dealer.

2. Save all packing materials until you are sure that this

unit can normally operate.

3. Be sure that batteries are correctly placed in the case

or adaptive 9V Adaptor is in correct connection.

4. An unsecured battery cover will cause error

measuring.

5. To avoid battery leakage problem, remove batteries if

this meter will not be used for a long time.

6. Do not use or store this meter outside the operating/

storage environment.

OPERATING PROCEDURE

1. This meter can be supplied with batteries or DC 9V

AC Adaptor. If using batteries:
Remove the rear cover, and install batteries, pay

attention to the polarity of battery socket. If using 9V

Adaptor, make sure that it is in good connection to
the Adaptor socket of the meter. Choose the K-type
temperature probe for your application and insert it
into T2 the temperature probe socket. Insert Humidity/
Temperature (T1) probe into T1 the meter socket.

2. Press the

3. T1 indicates room temperature, T2 indicates K-type

4. Printing date:

INTV 00:06 Interval printing time, minute : second
10:55:19 08-16 Printing time, hour:minute:second,
month:day

62.7 %RH Humidity test value and unit.
td 19.8 °C Dew point and unit
T1 27.6 °C Room temperature test value and unit.
T2 26.5 °C K-type thermocouple test value
and unit.
10:55:25 08-16

62.7 %RH
td 19.8 °C
T1 27.6 °C
T2 26.5 °C

10:55:31 08-16

62.7 %RH
td 19.8 °C
T1 27.6 °C
T2 26.5 °C

10:55:37 08-16

62.8 %RH
td 19.8 °C
T1 27.6 °C
T2 26.5 °C

button to power on the meter, the current
date and time will display about 3 seconds. If “---“ ap­pears, it indicates no probe or the probe is broken.

thermocouple test value.
Press [PRINT] one time to print one set date.

If need continuous printing, press and hold down
PRINT button, until LCD display “INTV” mark and
enter continuous interval printing mode, the printer will
print data as follows:

Press [PRINT] or [FEED] key to exit printing mode.
cWhen the meter is powered on, if the printing function

setting is “ON”, and now time is interval printing start
time, the meter will enter to continuous interval print­ing mode and start printing.

* Press (PRINT) or (FEED) key to exit printing mode.
* The interval printing function worked only when the

start printing time is earlier than the stop printing time,
and interval print time can not be longer than
24 hours.

&DXWLRQ Before printing, please check thermo-paper is
not clipped by thermo-paper cover, if anything interrupts
the printer, the mater will shut off the printer power, and

´V\PEROÀLFNHUV

“

SETTING MODE

Press “

” button to enter setting function, re-press this
button can select setting parameters in circle (printer
on or off, interval printing time, start printing time and

FDOHQGDUVHWWLQJ7KHPRGL¿HUSDUDPHWHUZLOOÀLFNHUXQWLO

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

WKHVHWWLQJLV¿QLVKHG3UHVV or button to select
parameter setting, press
decrease the parameter.

Parameter setting in sequence and LCD display as
follows:

1. Parameter function ON or OFF select

2. Interval printing “second” parameter setting.

3. Interval printing “minute” parameter setting.

4. Printing start time “minute” parameter setting.

5. Printing start time “hour” parameter setting.

6. Printing stop time “minute” parameter setting.

7. Printing stop time “hour” parameter setting.

8. Calendar “minute” parameter setting.

or button to increase or

HOW TO SETUP INTERVAL PRINT

1. Setup Interval print with 24 hours limitation.

2. Press

3. Select interval printing time setting mode, set “sec-

4. Select start printing time setting mode, set “minute”,

5. :KHQ¿QLVKWKHVHWWLQJSUHVV

Note: The start time must be earlier than the stop time,
otherwise the buzzer will beep to warning the setting is
error and not accept the setting when press

BATTERY REPLACEMENT

1. $VEDWWHU\SRZHULVQRWVXI¿FLHQW

2. After the temperature probe is disconnected and the

3. Remove batteries from the holder and replace it with

4. Secure the battery cover

ACCESSORIES

Cat. No. Paper Rolls (2/pk)
Cat. No. AC Power Supply

Key to enter setting mode, setting print

operation is ON.

ond”, “minute” (from 00:06 to 59:59).

“hour” (from 00:00 to 23:59).

key to exit the
setting mode, LCD will display “
upper corner.

on LCD. Replace with 6 pcs new of 1.5V size AAA
batteries is required.

meter is powered off, remove the battery cover.

6 pcs of new 1.5V size AAA alkaline batteries.

” mark at left

key.

will be shown

TRACEABLE

PRINTING

HYGROMETER/

THERMOMETER

INSTRUCTIONS

®

©2017 92-4181-40 Rev. 0 072617

9. Calendar “hour” parameter setting.

10. Calendar “day” parameter setting.

11. Calendar “month” parameter setting.

12. Calendar year last two digit parameter setting.
