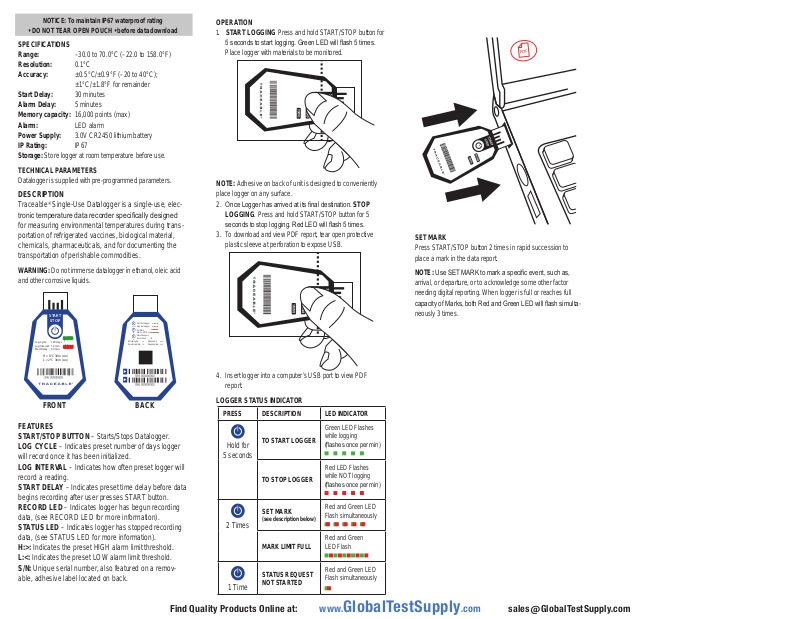

Traceable 18004-10 User manual

NOTICE: To maintain IP67 waterproof rating

Start Datalogger
Stop Datalogger

5 SEC

2X

1X

Set Mark
Mark Limit FULL
Status Request

Not Started
Recording OK
Recording Alarm

Stopped OK
Stopped Alarm

• DO NOT TEAR OPEN POUCH • before data download

SPECIFICATIONS
Range: – 3 0 . 0 to 7 0 . 0 ° C ( – 22. 0 to 158 . 0 ° F)
Resolution: 0 . 1° C
Accuracy: ± 0 . 5° C/± 0 . 9 ° F ( – 20 to 4 0 ° C) ;

± 1° C/± 1. 8 ° F for remainder

Start Delay: 3 0 minutes
Alarm Delay: 5 minutes
Memory capacity: 16 , 0 0 0 points ( max )
Alarm: LED alarm
Power Supply: 3 . 0 V CR24 50 lith ium b attery
IP Rating: I P 6 7
Storage: Store logger at room temperature b ef ore use.

TECHNICAL PARAMETERS

Datalogger is supplied w ith pre- programmed parameters.

DESCRIPTION

T raceab le® Single- Use Datalogger is a single- use, elec-

tronic temperature data recorder specically designed

f or measuring env ironmental temperatures during trans­portation of ref rigerated v accines, b iological material,
ch emicals, ph armaceuticals, and for documenting th e
transportation of perish ab le commodities.

WARNING: Do not immerse datalogger in eth anol, oleic acid
and oth er corrosiv e liquids.

START

STOP

Log Cycle: 120 days
Log Interval: 12 min
Start Delay: 30 min

H:> 8°C 30m (sin)
L:< 2°C 30m (sin)

5 SEC

Recording OK
Recording Alarm

2X

1X

Start Datalogger
Stop Datalogger

Set Mark
Mark Limit FULL
Status Request
Not Started

Stopped OK
Stopped Alarm

FRONT BACK

FEATURES
START/STOP BUTTON – Starts/ Stops Datalogger.
LOG CYCLE – I ndicates preset numb er of day s logger

w ill record once it h as b een initializ ed.
LOG INTERVAL – I ndicates h ow of ten preset logger w ill
record a reading.
START DELAY – I ndicates preset time delay b ef ore data
b egins recording af ter user presses ST ART b utton.
RECORD LED – I ndicates logger h as b egun recording
data, ( see RECORD LED f or more information) .
STATUS LED – I ndicates logger h as stopped recording
data, ( see ST AT US LED f or more inf ormation) .

H:>: I ndicates th e preset H I G H alarm limit th resh old.
L:<: I ndicates th e preset LOW alarm limit th resh old.
S/N: Unique serial numb er, also f eatured on a remov -

ab le, adh esiv e lab el located on b ack.

OPERATION

1. START LOGGING P ress and h old ST ART / ST OP b utton f or

5 seconds to start logging. Green LED will ash 5 times.
P lace logger w ith materials to b e monitored.

NOTE: Adh esiv e on b ack of unit is designed to conv eniently
place logger on any surf ace.

2. Once Logger has arrived at its nal destination. STOP
LOGGING. P ress and h old ST ART / ST OP b utton f or 5

seconds to stop logging. Red LED will ash 5 times.

3 . T o dow nload and v iew P DF report, tear open protectiv e

plastic sleev e at perf oration to ex pose USB .

4 . I nsert logger into a computer’s USB port to v iew P DF

report.

LOGGER STATUS INDICATOR

PRESS DESCRIPTION LED INDICATOR

G reen LED Flash es

H old f or

TO START LOGGER

w h ile logging

(ashes once per min)

5 seconds

Red LED Flash es
w h ile NOT logging

(ashes once per min)

Red and G reen LED
Flash simultaneously

Red and G reen
LED Flash

Red and G reen LED
Flash simultaneously

2 T imes

1 T ime

TO STOP LOGGER

SET MARK

(see description below)

MARK LIMIT FULL

STATUS REQUEST
NOT STARTED

SET MARK

P ress ST ART / ST OP b utton 2 times in rapid succession to
place a mark in th e data report.

NOTE: Use SET MARK to mark a specic event, such as,

arriv al, or departure, or to acknow ledge some oth er f actor
needing digital reporting. W h en logger is f ull or reach es f ull
capacity of Marks, both Red and Green LED will ash simulta­neously 3 times.
