Before and during bathing

Anyone operating the Bath/Lifter must fully under-stand all proceedings be­fore - during and after the entire bathing cycle (see operating manuals).

Preparing Tub

Press and hold control button (1) to lower the bathtub to it lowest posi-A.
tion.

Close the drain plug (9) by turning the overow drainage knob.B.

Set foot rest (7) into position appropriate for the patient legs. Footrest is C.
not used with TR´s Stretcher Lift.
Ensure that the whirlpool inlet screen (23) is in placeD.

Turn the whirlpool outlet jet (21), anti-clockwise to full open positionE.

Fill bathtub automatically by pressing the on/off control (2) once. F.

Set and monitor ll water temperature with mixer (3) and thermometer (8)G.

Note: Always physically check water temperature before and during bathing.

Read operating manual for patient handling.

Showering

Lift the shower handle (11) on the right side on the panel with the white A.
hose (10) and hold it over the tub, away from patient.
Start the patient shower by pushing the on/off control (4) once on front of B.
the control panel.
Set the mixer (3) to desired temperature.C.
Physically test water temperature and adjust the mixer to suit.D.
Shower or rinse patient with shower spray handle.E.
Stop showering by pushing the on/off control (4). Once and return handle F.

to its bracket (12)

Note: Shower handle shall not be held in the bath water while bathing.

Whirlpool

The water level shall cover the outlet jet (21).A.

Adjust the jet (21) for desired ow direction: centred for perineal area; to B.
either side for circular ow. Avoid placing the jet in a full upward position,

as this could cause the water to splash.

Make sure the whirlpool inlet screen (23) is not obstructed.C.

With the patient in the bathtub, turn on the whirlpool unit by pushing the D.
”ON-OFF” control button (5).

To adjust water ow direction, turn the whirlpool jet (21).E.

Increase or decrease whirlpool stream by turning the air control (22). F.
Turn the whirlpool unit off by pushing the “ON-OFF” control button (5).G.

TR 900A

Height adjustable Autoll bathtubs

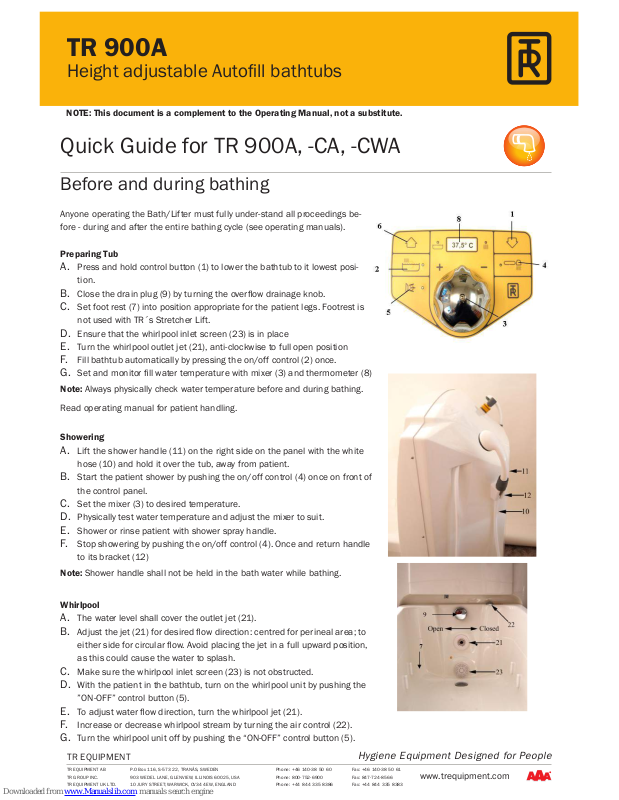

Quick Guide for TR 900A, -CA, -CWA

NOTE: This document is a complement to the Operating Manual, not a substitute.

Hygiene Equipment Designed for People

www.trequipment.com

TR EQUIPMENT

TR EQUIPMENT AB P.O Box 116, S-573 22, TRANÅS, SWEDEN Phone: [phone] Fax: [phone]
TR GROUP INC. 903 WEDEL LANE, GLENVIEW, ILLINOIS 60025, USA Phone: [phone] Fax: [phone]
TR EQUIPMENT UK LTD. 10 JURY STREET; WARWICK, CV34 4EW, ENGLAND Phone: [phone] Fax: [phone]

TR 900A

Height adjustable Autoll bathtubs

After bathing

Clean the equipment.

Raise the tub to a comfortable height with the up control button (6).A.
Remove the cleaning spray handle (15) with the yellow hose.
Hold the handle over the bathtub while opening the shut-off safety valve B.

(13) with its separate key. The cleaning detergent is automatically mixed

with cold water to minimise inhalation.

Briey spray the cleaning mixture into the tub while checking the colour, C.

smell and the foam of the mixture. Spray over all interior surfaces of the
tub.
Remove residue and debris with cloth or brush.
To clean TR Chair Lift and Stretcher Lift, position them over the tub and D.
spray them with cleaning mixture. The Chair and Stretcher have remov­able pads and the Stretcher has a head pillow which may be placed in
the tub for cleaning.
After cleaning, rinse with fresh water using the shower handle (11) with E.
the white hose and hold it over the tub.
Start the patient shower by pushing the on/off control (4) on panel.F.
Set the mixer (3) to desired temperature.G.

Clean the whirlpool system

A yellow inlet cleaning adapter (19) is stored on top of the detergent lling lid

(18).

Remove the whirlpool inlet safety screen (23) by turning the screen anti A.

clockwise.

Fit in the yellow adapter (19) to the whirlpool inlet (24).B.
Remove cleaning shower handle (15) from yellow cleaning hose (14) by C.

pressing the buttons on the quick coupling (20)
Snap the hose onto the adapter and ush cleaning through the system by D.
turning the cleaning ”key” valve (13).
Cleaning mixture will ush out through the whirlpool outlet (21) in the tub.E.

When this is done, turn cleaning system off.F.
Repeat procedure with patient shower handle (11) with the white hose to G.

ush system with fresh water.
Replace the yellow adapter on top of the detergent lling lid (18).H.

Detergent lling

If there is no cleaning liquid left, open the lid (18) on top of the panel and ll

with maximum 1,5 litre(0,40 gallon) of concentrated detergent.

Study the Operating Manual for calibration of cleaning mixture and han­dling information.
