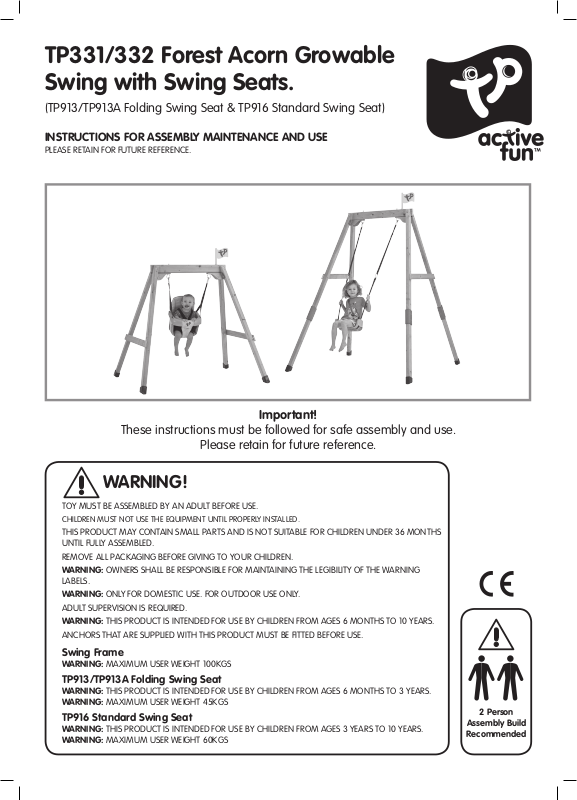

Page 1
TP331/332 Forest Acorn Growable
Swing with Swing Seats.
(TP913/TP913A Folding Swing Seat & TP916 Standard Swing Seat)
INSTRUCTIONS FOR ASSEMBLY MAINTENANCE AND USE
PLEASE RETAIN FOR FUTURE REFERENCE.
Important!
These instructions must be followed for safe assembly and use.
Please retain for future reference.
WARNING!
TOY MUST BE ASSEMBLED BY AN ADULT BEFORE USE.
CHILDREN MUST NOT USE THE EQUIPMENT UNTIL PROPERLY INSTALLED.
THIS PRODUCT MAY CONTAIN SMALL PARTS AND IS NOT SUITABLE FOR CHILDREN UNDER 36 MONTHS
UNTIL FULLY ASSEMBLED.
REMOVE ALL PACKAGING BEFORE GIVING TO YOUR CHILDREN.
WARNING: OWNERS SHALL BE RESPONSIBLE FOR MAINTAINING THE LEGIBILITY OF THE WARNING
LABELS.
WARNING: ONLY FOR DOMESTIC USE. FOR OUTDOOR USE ONLY.
ADULT SUPERVISION IS REQUIRED.
WARNING: THIS PRODUCT IS INTENDED FOR USE BY CHILDREN FROM AGES 6 MONTHS TO 10 YEARS.
ANCHORS THAT ARE SUPPLIED WITH THIS PRODUCT MUST BE FITTED BEFORE USE.
Swing Frame
WARNING : MAXIMUM USER WEIGHT 100KGS
TP913/TP913A Folding Swing Seat
WARNING: THIS PRODUCT IS INTENDED FOR USE BY CHILDREN FROM AGES 6 MONTHS TO 3 YEARS.
WARNING : MAXIMUM USER WEIGHT 45KGS
TP916 Standard Swing Seat
WARNING: THIS PRODUCT IS INTENDED FOR USE BY CHILDREN FROM AGES 3 YEARS TO 10 YEARS.
WARNING : MAXIMUM USER WEIGHT 60KGS
2 Person
Assembly Build
Recommended
Page 2
INSTRUCTIONS FOR ASSEMBLY, MAINTENANCE AND USE OF TP TOYS Please read carefully and keep all enclosed information for future reference.
1. ASSEMBLY AND SAFETY INFORMATION
TP toys must be assembled by an adult. They must be erected exactly in accordance with the assembly instructions. Enlisting the aid of a helper will
make assembly easier. In order to ensure the correct tensions and to ease assembly, it is important to assemble the product hand tight to begin with.
Only when complete, should the fastenings be fully tightened and checked. This pack may contain small parts and is not suitable for children under 36
months until fully assembled. We recommend that you place small parts on a tray, or something similar, to prevent the frustration and disappointment of
mislaying them. Please take care during assembly as the manufacturing process can sometimes result in the occasional sharp edge and small pieces of
waste metalwork.
Should there be any missing parts, the toy must not be used until replacement parts have been fitted.
2. SITING
Under no circumstances should any of our toys be positioned on a hard surface such as concrete or asphalt, unless the ground under the toy plus the
recommended freespace area is covered with a safety surface. Examples of suitable surfaces are grass, sand or a play surface intended for this use. TP
toys should be sited on level ground.
3. USAGE
TP toys are designed and made for use only by children aged between 6 months and 10 years, unless otherwise stated, and must not be used by
anybody else. Misuse can result in injury. TP tents must not be walked or climbed upon. “Warning only for Domestic use.” For outdoor use only.
4. SUPERVISION
Children should always be supervised while they are playing on TP toys and should be instructed not to use the toy in an inappropriate or hazardous
manner. We recommend that they do not wear loose-fitting clothing or jewellery that may catch or snag during play. Children should not wear cycle
helmets while playing on TP toys. Whilst using this swing seat children must have constant adult supervision.
5. WEATHER CONDITIONS
Special care should be taken as weather conditions change. In particular, outdoor toys can become slippery in wet weather and tongues and lips can
stick to metalwork at subzero temperatures. In warmer and sunnier weather, parts can become hot, and the temperature should be regularly checked
during play, especially metal parts and slides. If there is any doubt over safety then the toys should not be used. If high wind is expected or forecasted,
please ensure that the outdoor toys are either moved to a sheltered position or well secured to the ground or other immoveable object. Please store
plastic swing accessories indoors if temperature falls below 40˚F (4˚C).
6. WATER PLAY
Many surfaces can become slippery during water play. Extra caution and supervision is required when combining water (e.g. paddling pools, aqua
slides etc.) with other forms of outdoor play.
7. MAINTENANCE
With all toys it is vital that the equipment is checked regularly and often by an adult. The complete toy should be checked at least once a month, and
particular attention should be paid to connections and fastenings. If any parts exhibit signs of wear and tear, they may need to be replaced. Replace
defective parts in accordance with the manufacturer’s instructions.” Checks must be carried out at the beginning of the usage season as well as at
regular intervals throughout the usage season. Check all nuts and bolts for tightness and tighten when required. Failure to do this may result in the
product malfunctioning and causing injury. Children must not be allowed to use the toy until properly installed and checked. Galvanised tubular products
may require occasional maintenance. If surface rust appears it should be removed with either a wire brush or coarse sandpaper, and the area treated
with a non-toxic paint. Changes to the original toy (for example the adding of an accessory) shall be carried out according to the instructions of the
retailer of the original toy.
8. FIRE RISKS AND DISPOSAL
Never allow TP toys to be placed or used near a fire. When it becomes necessary to dispose of your equipment, remove all bolts and disassemble. Store
out of the reach of children until it can be properly disposed of. These instructions are issued in the interest of child safety, and we do ask you to follow
our advice.
9. SWINGING TOYS
When fitting swinging toys it is vital that moving parts have no metal to metal contact. Children should be instructed not to pass in front of or behind
moving items, not to twist or swing an empty swing seat, and not to get off a swinging toy when it is in motion.
10. ROPES
These ropes will degrade over time. When signs of degradation appear, the toy should be replaced.
Unlike steel, wood is a natural, organic material and each piece will be unique, bearing its own knots, cracks and variations in colour and, unlike steel,
wood will react significantly to changes in atmospheric conditions.
Wood will expand and contract as fluctuations of temperature and humidity affect the water content of the cell structure. In warm sunny weather it will
shrink and in wet weather it will expand. As these physical changes do not, necessarily, take place uniformly throughout a piece of wood, forces are set
up which cause cracks and splits to arise.
It is not necessary to stain your Wooden frame
It is made from selected wood which has been pressure treated. This is a process by which preservatives are forced under pressure into the fabric of the
timber to protect it from decay and insect damage.
If you do wish to stain your Wooden frame for aesthetic reasons, please use a water-based stain, which is available from any good DIY store.
TP Growable Acorn with Swing Seats
2
Page 3

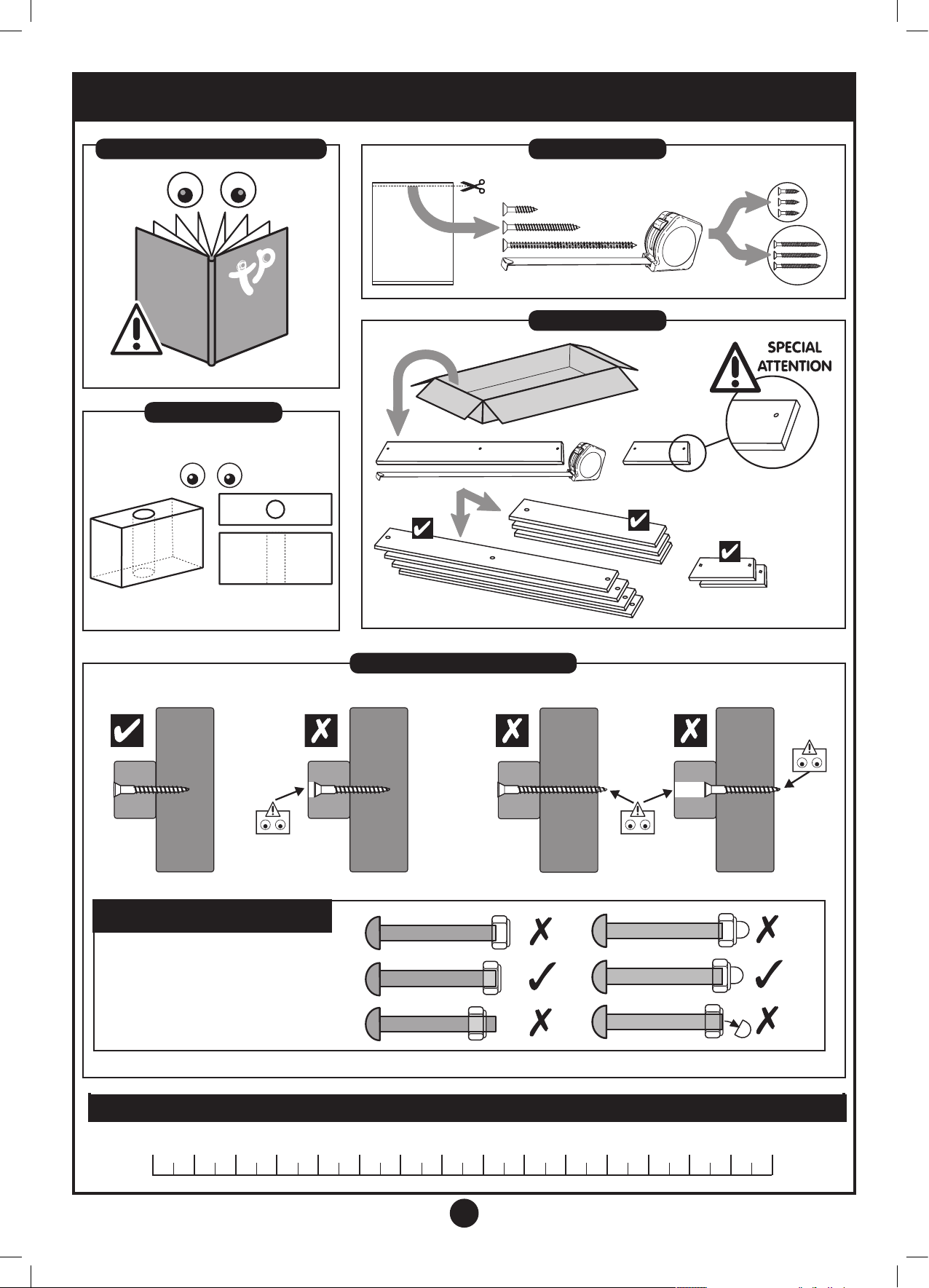

Instruction Guide
Read Instructions Before Starting Hidden Lines
Sort Fixings
Sort Parts
Instruction Guide
Read Instructions Before Starting
Hidden Lines
Sort Fixings
Sort Parts
Bolt Tigthening Guide
Assembly Tips - Fixings
Need Help? Visit www.tptoys.com TP Customer Services:
10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
(English Speaking)
TP Growable Acorn with Swing Seats
3
Page 4
TP332 Forest Growable Swing INxxxx-C 12 16.qxp_TP332 Forest Growable Swing INxxx-C 12 16 31/01/2017 11:41 Page 5
Stage
TP331/332 Forest Acorn Growable Swing
1
Frame with swing seats

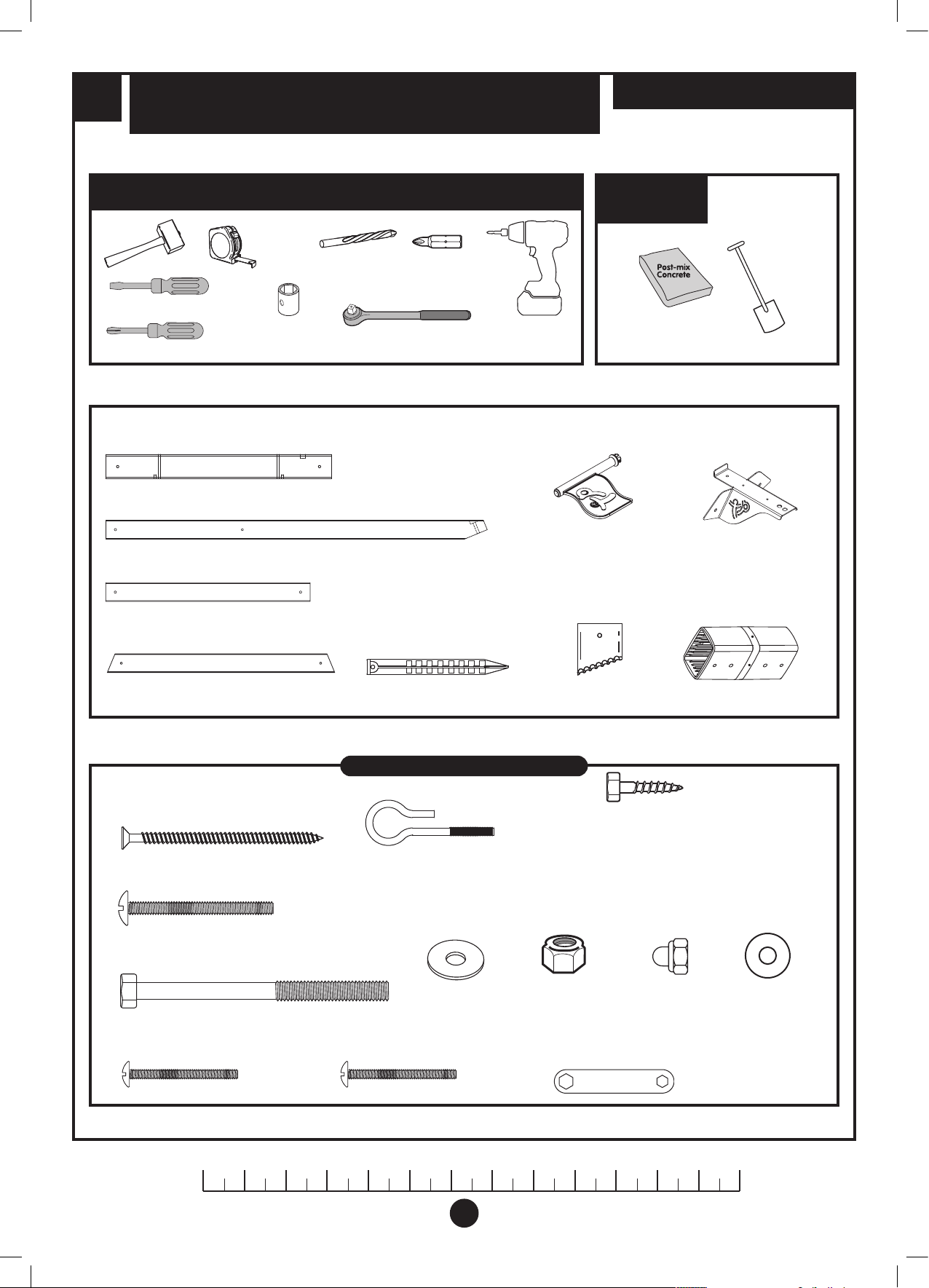

Contents
- Please check
Tools - You will need:
Mallet
Screwdriver
Screwdriver
MW1232 / MW1232P
Single Swing Top bar x1
MW1233 Swing Leg x4
MW1234 Swing Leg Extension x4
MW1226 / MW1226P
Angled Leg Brace x2
Tape
measure
Sockets
10 & 13mm
3mm Drill Bit
Wrench
PM2001 Ground peg x4
Drill bit
Combi drill
PM1007 x1
Required:
22 Degree
Angled Foot
PM2021
x4
Also
Shovel
Not Supplied
PR7691 Bracket x2
Leg Extension
Bracket
PM2058
x4
4.5 x 50mm Woodscrew x12
FA9705
M6 x 70mm x4
FA5170
M8 x 140mm x2
FA9775
M6 x 65mm x8
FA5694
10 20 30 40 50 60 70 80 90 100 110 120 130
Fixings SP3302
M8 x 25mm
Large washer
FA7184
M6 x 80mm x4
FA5168
M8 Hook bolt x2
FA9774
Nylon Insert Nut
x10
M8 x 30mm Coach screw x4
FA5124
M8
FA5174
x4
13mm x 10mm Spanner x1
PR9554
M6 Nylon Insert
Dome Nut
FA5192
x16
M6 x 20mm
Washer
FA5094
x21
4
TP Growable Acorn with Swing Seats
Page 5
Stage
TP332 Forest Growable Swing INxxxx-C 12 16.qxp_TP332 Forest Growable Swing INxxx-C 12 16 31/01/2017 11:42 Page 17
1

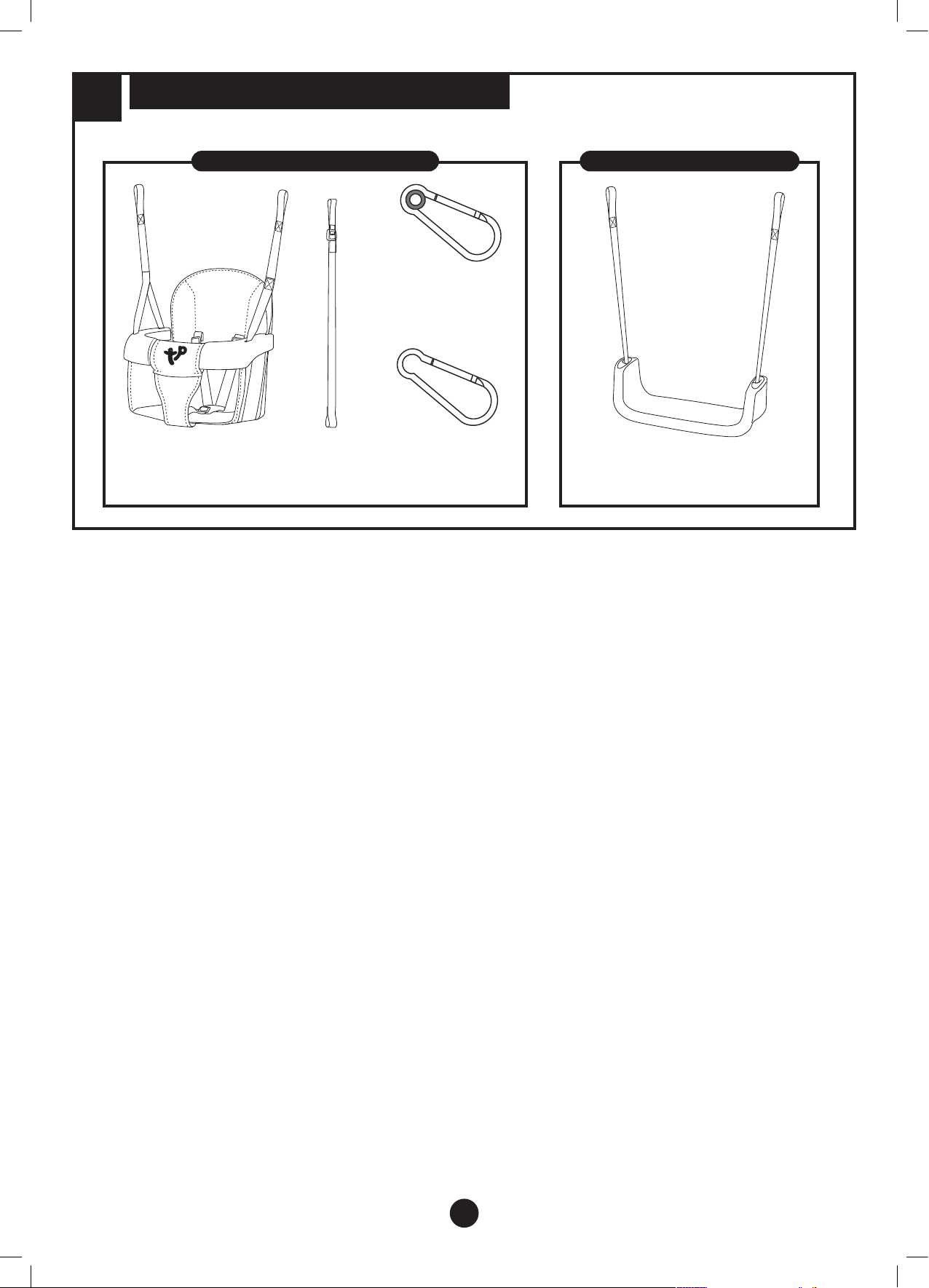

Contents continued
TP913/TP913A Folding Swing Seat TP916 Standard Swing Seat
- Please check
Top
Karabiner
FC9908
x2
TP913/TP913A
Folding Swing Seat
x1
Extension
Straps
FB9030
x2
Bottom
Karabiner
WF9787
x2
Standard Swing Seat
TP916
x1
5
TP Growable Acorn with Swing Seats
Page 6
3
Stage
M8
Nylon Insert Nut
FA5174
x2
M8 x 25mm
Large washer
FA7184
x4
M8 x 140mm x2
FA9775
M6 Nylon Insert
Dome Nut
FA5192
x4
M6 x 70mm x4
FA5170
M6 x 20mm Washer
FA5094
x4
M6
Nylon Insert
Dome Nut
M6
Washer
M6 x 70mm
Bolt
MW1226 / MW1226P
Angled Leg Brace x2
MW1233 Swing Leg x4
M8 Nylon Insert Nut
M8 Washer
M8 x 140mm Bolt
M8 Washer
MW1233 Swing Leg
MW1226 / MW1226P
Angled Leg Brace
MW1233 Swing Leg MW1233 Swing Leg
MW1233 Swing Leg
Low Height Frame Assembly
Full Height Frame Assembly
TP332 Forest Growable Swing INxxxx-C 12 16.qxp_TP332 Forest Growable Swing INxxx-C 12 16 31/01/2017 11:41 Page 7
TP332 Forest Growable Swing INxxxx-C 12 16.qxp_TP332 Forest Growable Swing INxxx-C 12 16 31/01/2017 11:41 Page 6
Stage

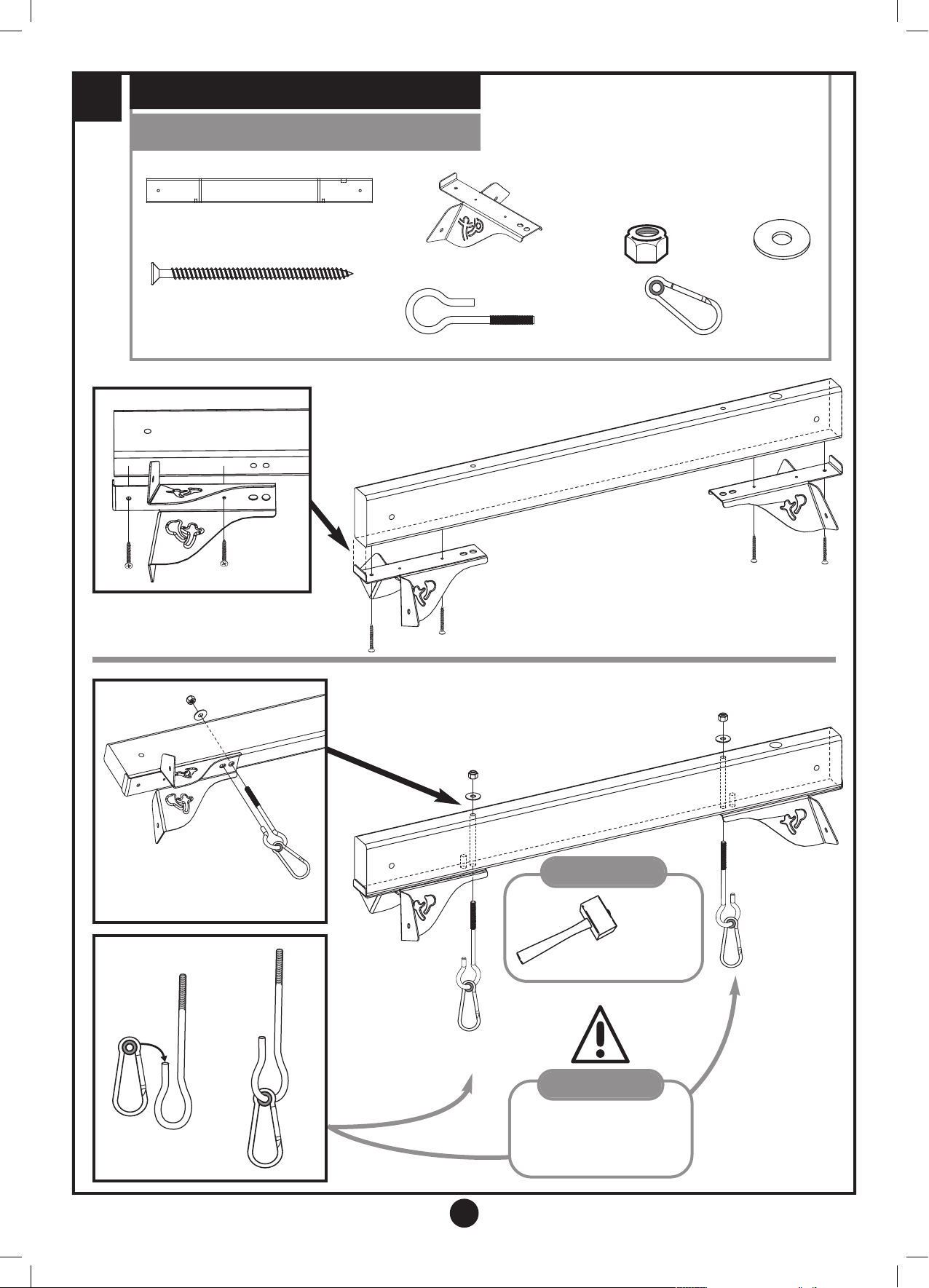

Low Height Frame Assembly
2
Full Height Frame Assembly
MW1232 Single Swing Top bar x1 PR7691 Bracket x2
4.5 x 50mm Woodscrew x4
FA9705
M8 Hook bolt x2
FA9774
M8
Nylon Insert Nut
FA5174
x2
M8 x 25mm
Large washer
Top
Karabiner
FC9908
FA7184
x2
x2
4.5mm x 50mm
Wood screw
M8 Nylon Insert Nut
ASSEMBLY TIP
M8 Washer
Use Mallet to
firmly locate
hook bolt in
pilot hole
Seat with
‘Karabiner’
ASSEMBLY TIP
Attach Top Karabiner to Hook
Bolt (see left).
TP Growable Acorn with Swing Seats
6
Page 7
TP332 Forest Growable Swing INxxxx-C 12 16.qxp_TP332 Forest Growable Swing INxxx-C 12 16 31/01/2017 11:41 Page 7

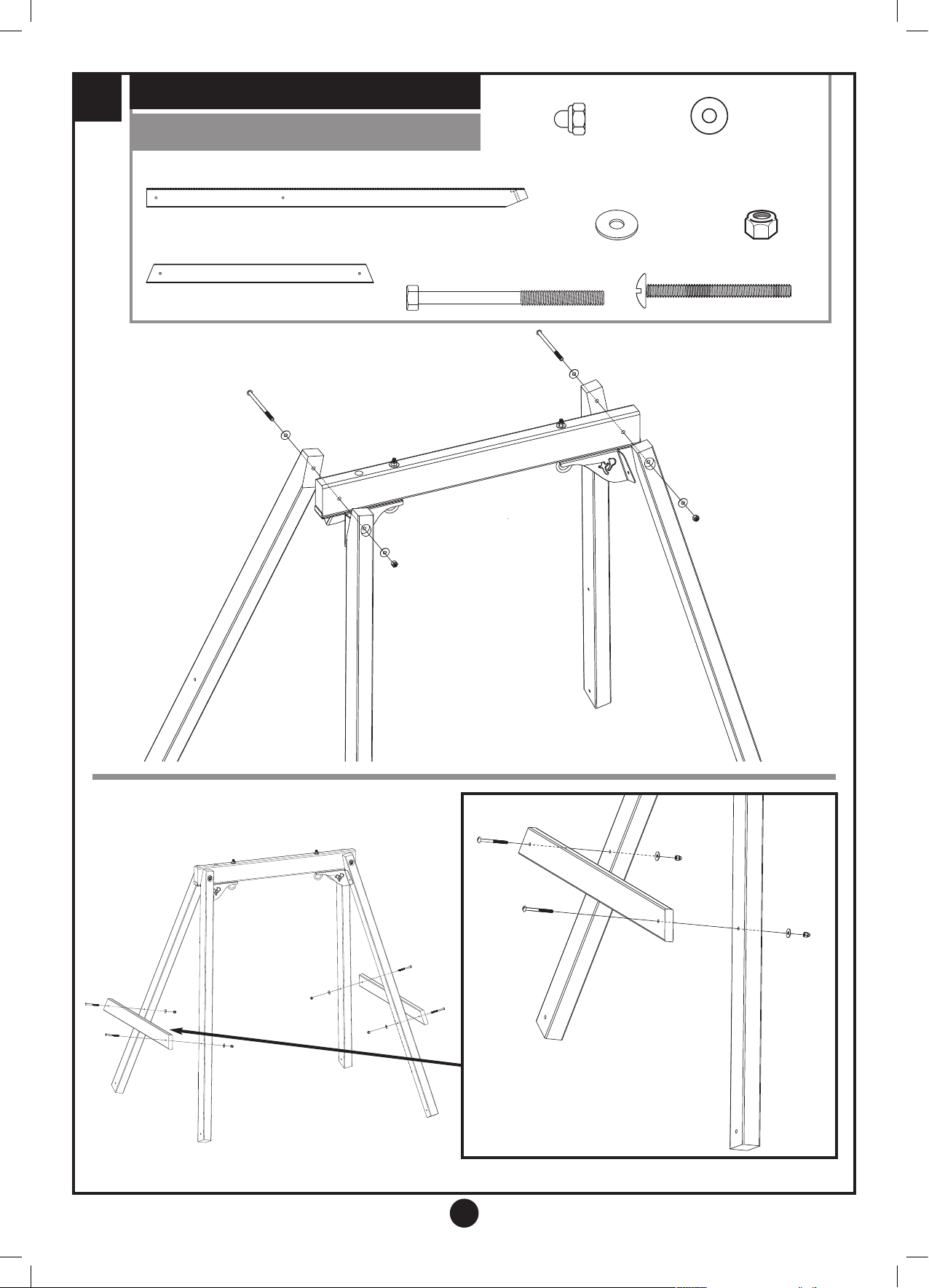

Low Height Frame Assembly
3
Full Height Frame Assembly
Stage
M6 Nylon Insert
Dome Nut
FA5192
x4
M8 x 25mm
MW1233 Swing Leg x4
Large washer
FA7184
x4
MW1226 / MW1226P
Angled Leg Brace x2
M8 x 140mm x2
FA9775
M8 x 140mm Bolt
M8 Washer
M6 x 20mm Washer
FA5094
x4
M8
Nylon Insert Nut
FA5174
x2
M6 x 70mm x4
FA5170
M8 Washer
M8 Nylon Insert Nut
MW1233 Swing Leg MW1233 Swing Leg
MW1233 Swing Leg
M6 x 70mm
Bolt
MW1226 / MW1226P
Angled Leg Brace
MW1233 Swing Leg
M6
Nylon Insert
Dome Nut
M6
Washer
7
TP Growable Acorn with Swing Seats
Page 8
TP332 Forest Growable Swing INxxxx-C 12 16.qxp_TP332 Forest Growable Swing INxxx-C 12 16 31/01/2017 11:41 Page 8
Low Height Frame Assembly
4
Full Height Frame Assembly
Stage
PM1007 x1
22 Degree
Angled Foot
PM2021
x4
PM2001 Ground peg x4
M6 x 80mm x4
FA5168
M6 Nylon Insert
Dome Nut
FA5192
x4
M6 x 20mm
Washer
FA5094
x4
Fit for both low and full height assembly
M8 x 30mm
Coach screw FA5124
x4
M8 x 25mm
Large washer
FA7184
x4
ASSEMBLY TIP
M8 x 30mm
Coach screw
M8 x 30mm
Coach screw
ASSEMBLY TIP
M8 Washer
Drill 3mm
Pilot Holes
M6 Washer
M6 x 80mm
Bolt
Angled Foot PM2021
ASSEMBLY TIP
Only attached Angled feet/Stakes if building for Low Height usage.
For Full Height Assembly - Do not fit Angled feet/Stakes just yet.
Go to stage 7
M6
Washer
M6 Nylon
Insert Nut
TP Growable Acorn with Swing Seats
8
Page 9
TP332 Forest Growable Swing INxxxx-C 12 16.qxp_TP332 Forest Growable Swing INxxx-C 12 16 31/01/2017 11:41 Page 9
Stage

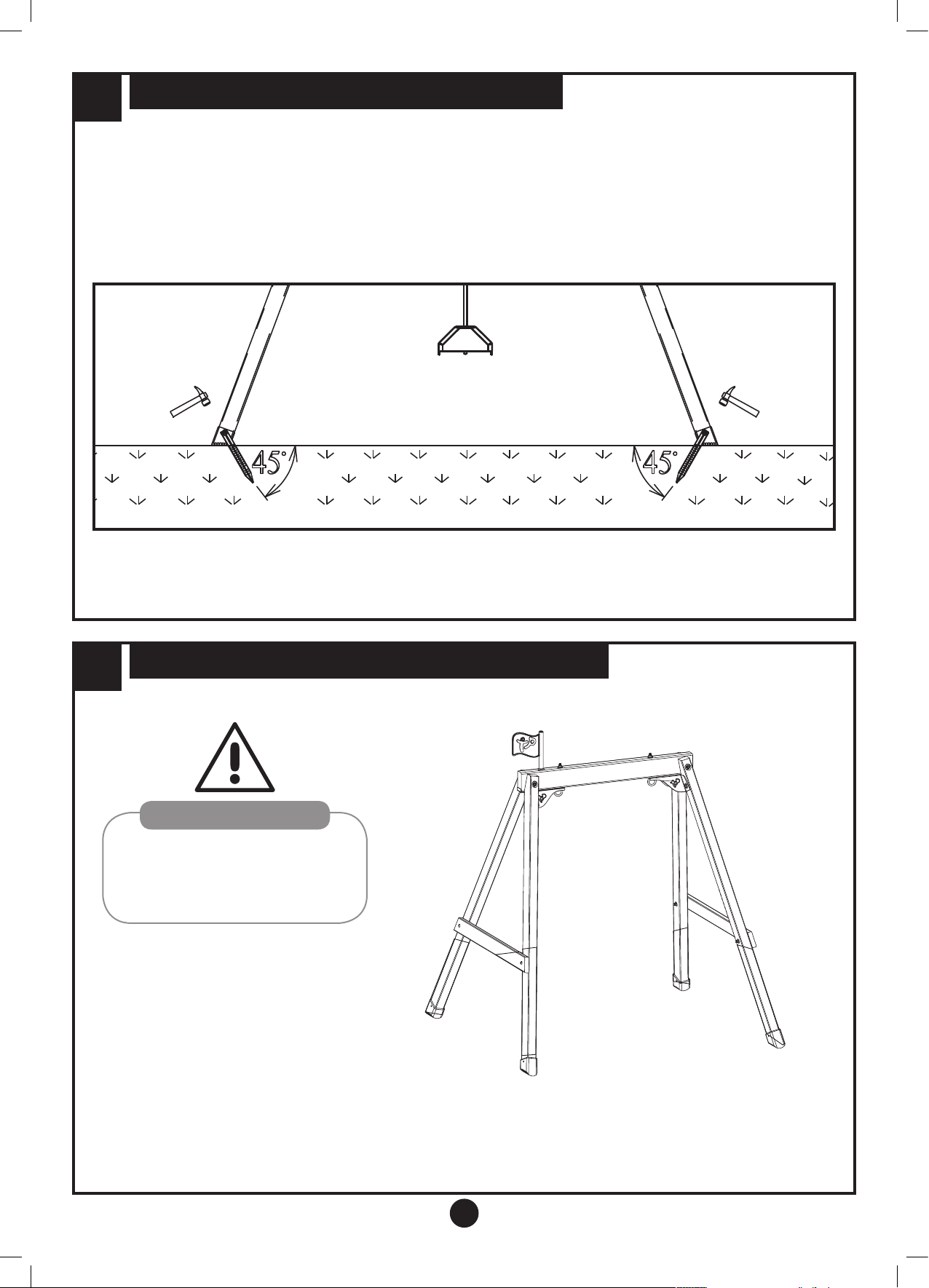

Low Height Frame Assembly - Staking
5
Recommended ground fixing at LOW HEIGHT.
Stage
Low Height Frame Assembly
6
IMPORTANT
Please go to
Stage 12 now for fitting the
Swing Seat to the Frame.
- Completed
9
TP Growable Acorn with Swing Seats
Page 10
TP332 Forest Growable Swing INxxxx-C 12 16.qxp_TP332 Forest Growable Swing INxxx-C 12 16 31/01/2017 11:42 Page 10
Stage

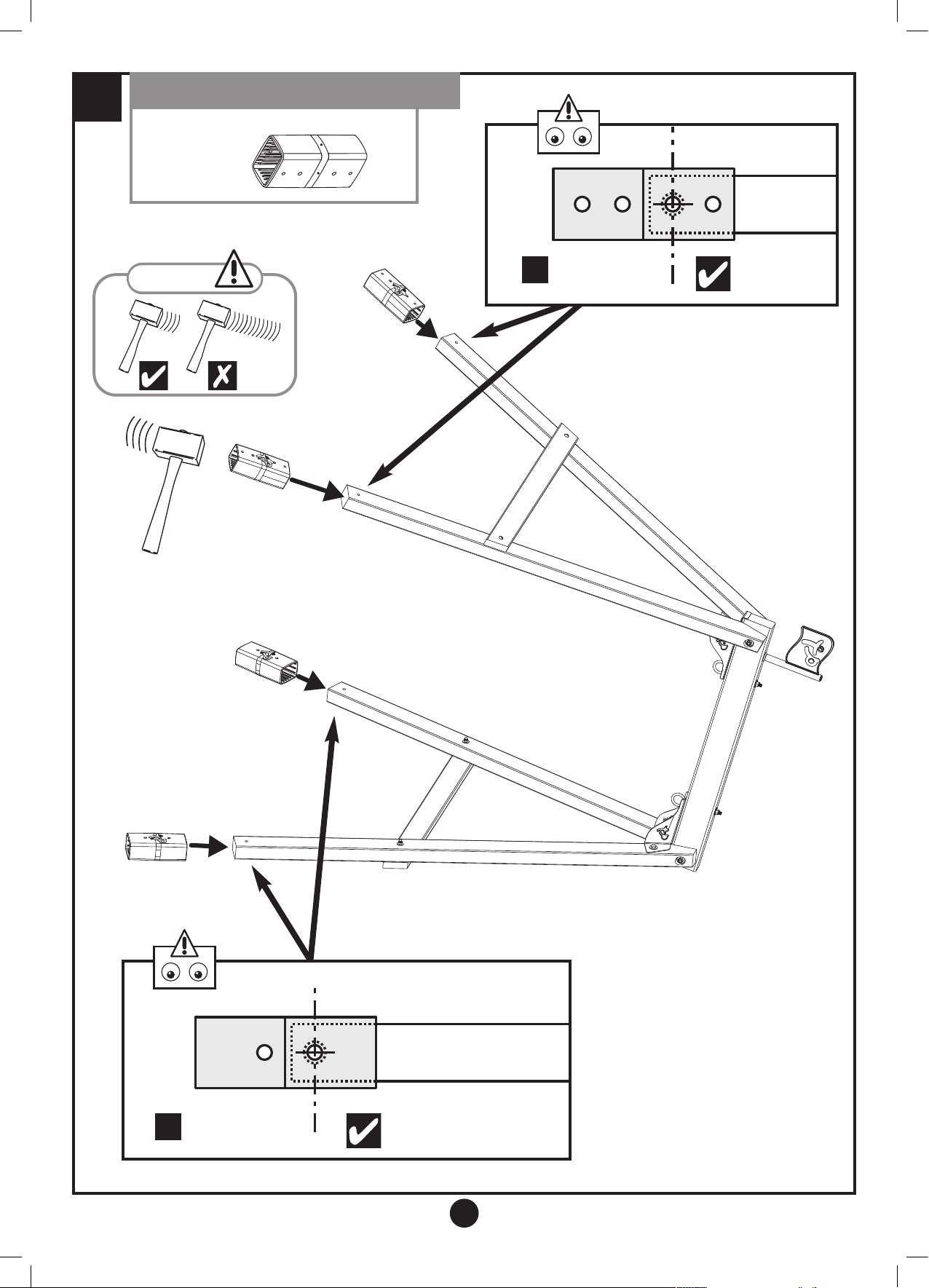

Full Height Frame Assembly
7
Leg Extension
Bracket
PM2058
x4
WARNING
x2
x2
10
TP Growable Acorn with Swing Seats
Page 11
TP332 Forest Growable Swing INxxxx-C 12 16.qxp_TP332 Forest Growable Swing INxxx-C 12 16 31/01/2017 11:42 Page 11
Stage

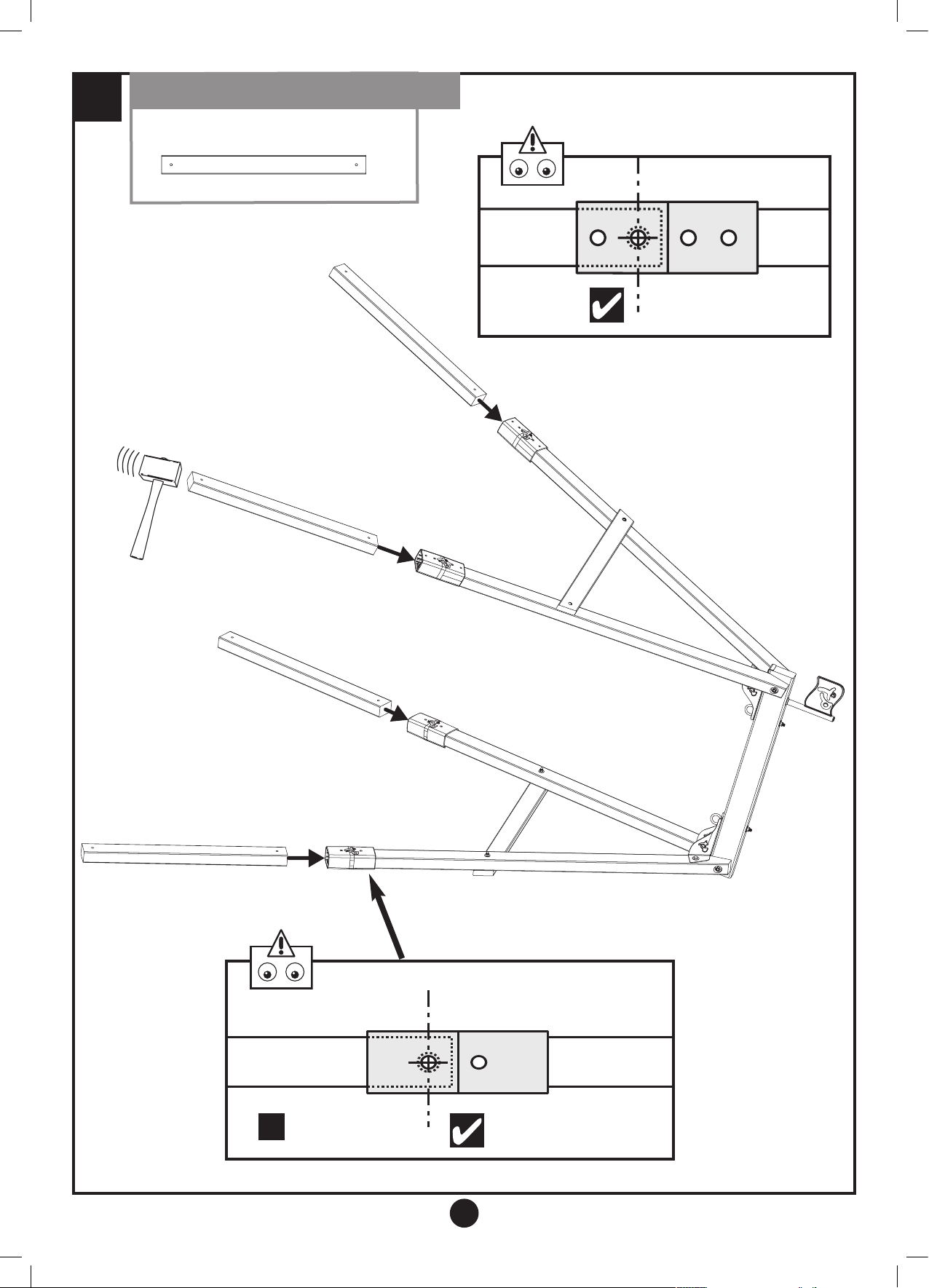

Full Height Frame Assembly
8
MW1234 Swing Leg Extension x4
x4
11
TP Growable Acorn with Swing Seats
Page 12
TP332 Forest Growable Swing INxxxx-C 12 16.qxp_TP332 Forest Growable Swing INxxx-C 12 16 31/01/2017 11:42 Page 12

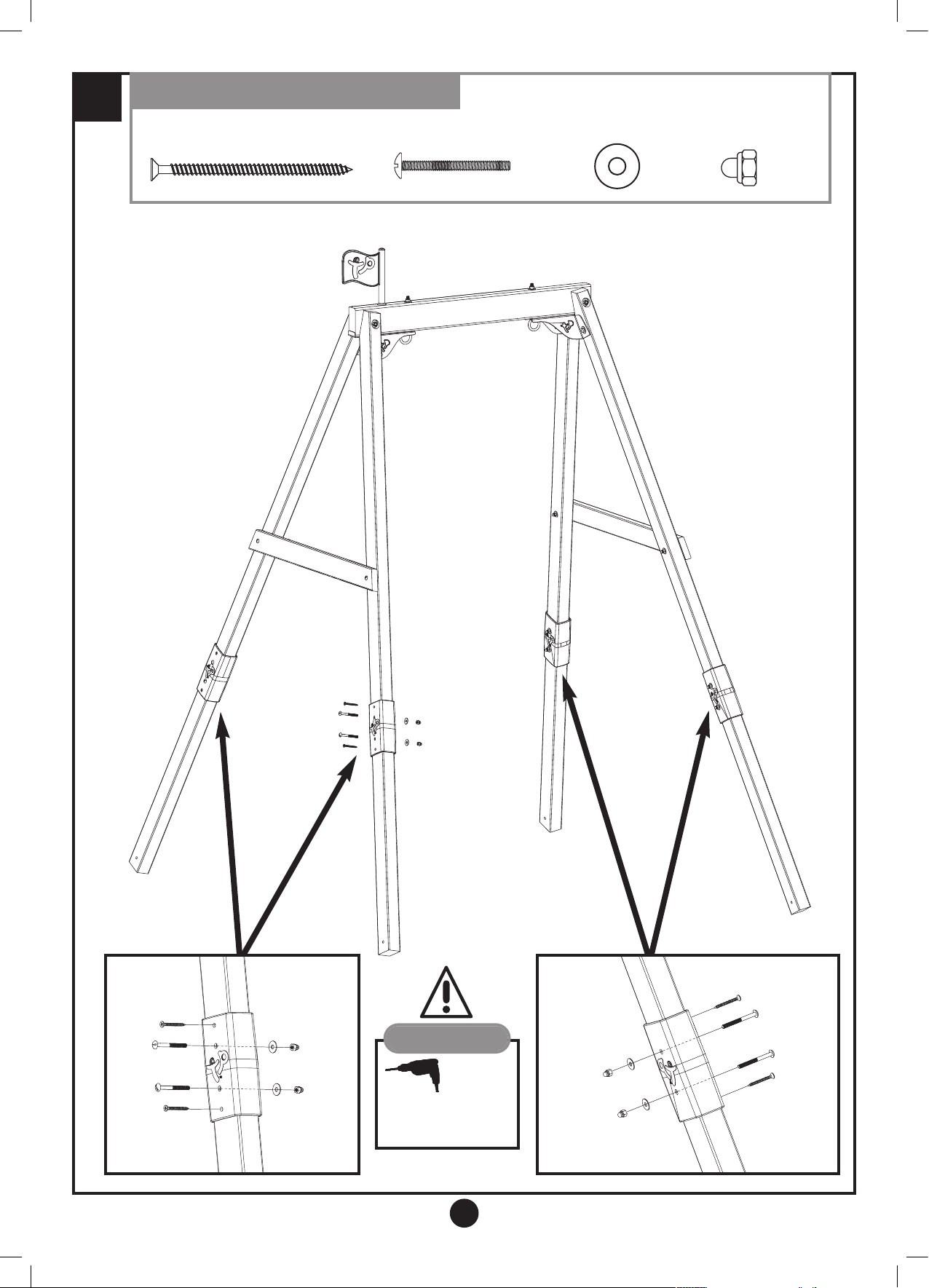

Full Height Frame Assembly
9
Stage
4.5 x 50mm Woodscrew x8
FA9705
M6 x 65mm x8
FA5694
M6 x 20mm
Washer
FA5094
x8
M6 Nylon Insert
Dome Nut
FA5192
x8
4.5 x 50mm
Woodscrew
M6 x 65mm
Bolt
M6 Nylon
Insert
Dome Nut
M6 Washer
ASSEMBLY TIP
Drill 3mm
Pilot Holes
for
4.5 x 50mm
Woodscrew
12
4.5 x 50mm
Woodscrew
M6 x 65mm
Bolt
M6 Washer
M6 Nylon Insert
Dome Nut
TP Growable Acorn with Swing Seats
Page 13
TP332 Forest Growable Swing INxxxx-C 12 16.qxp_TP332 Forest Growable Swing INxxx-C 12 16 31/01/2017 11:42 Page 13
Stage

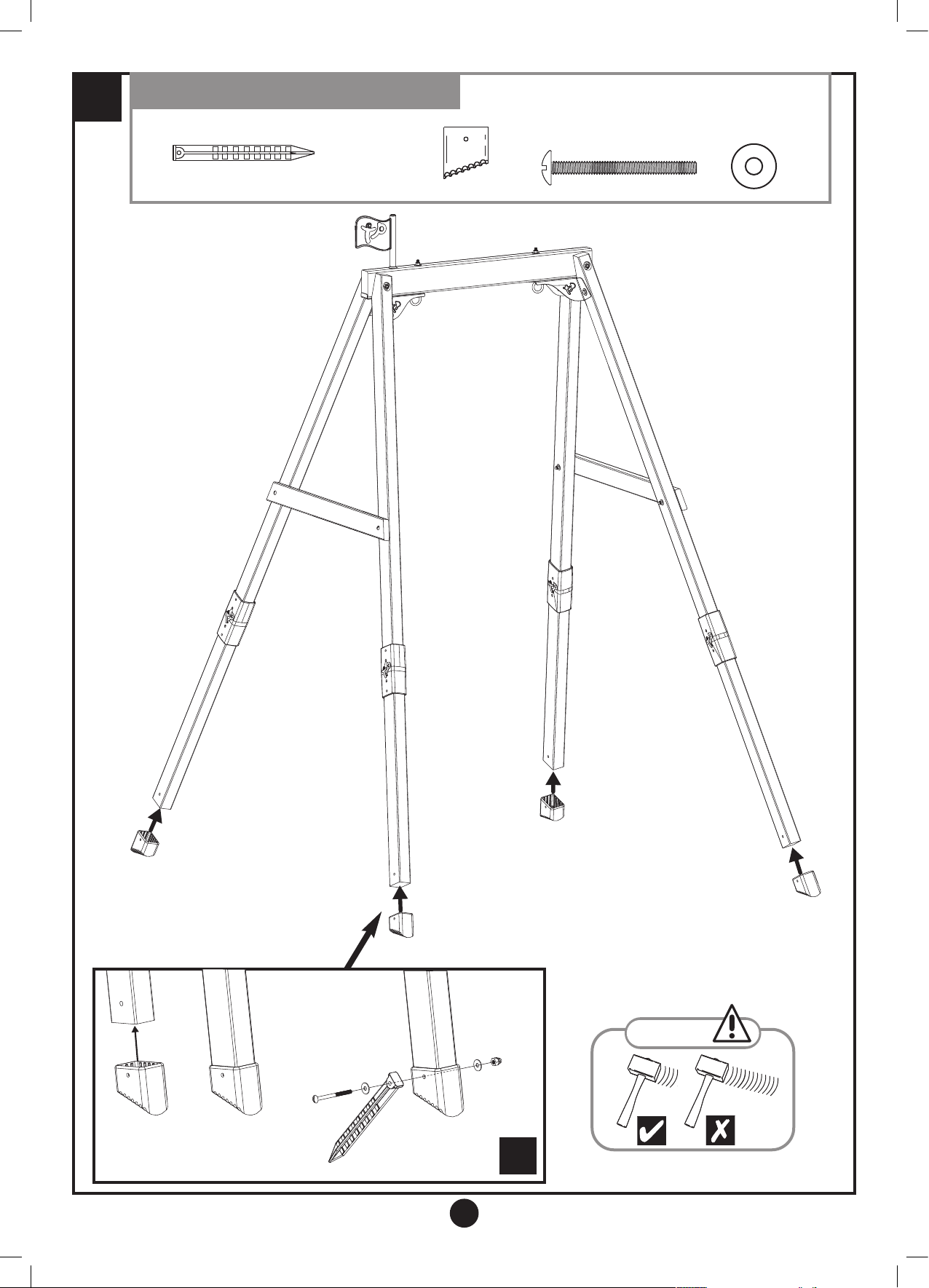

Full Height Frame Assembly
10
PM2001 Ground peg x4 M6 x 80mm x4
22 Degree
Angled Foot
PM2021
x4
FA5168
M6 x 20mm
Washer
FA5094
x4
Angled Foot
PM2021
M6 Washer
M6 x 80mm
Bolt
13
M6 Nylon
Insert Nut
M6
Washer
WARNING
x4
TP Growable Acorn with Swing Seats
Page 14
TP332 Forest Growable Swing INxxxx-C 12 16.qxp_TP332 Forest Growable Swing INxxx-C 12 16 31/01/2017 11:42 Page 14
TP814
Stage

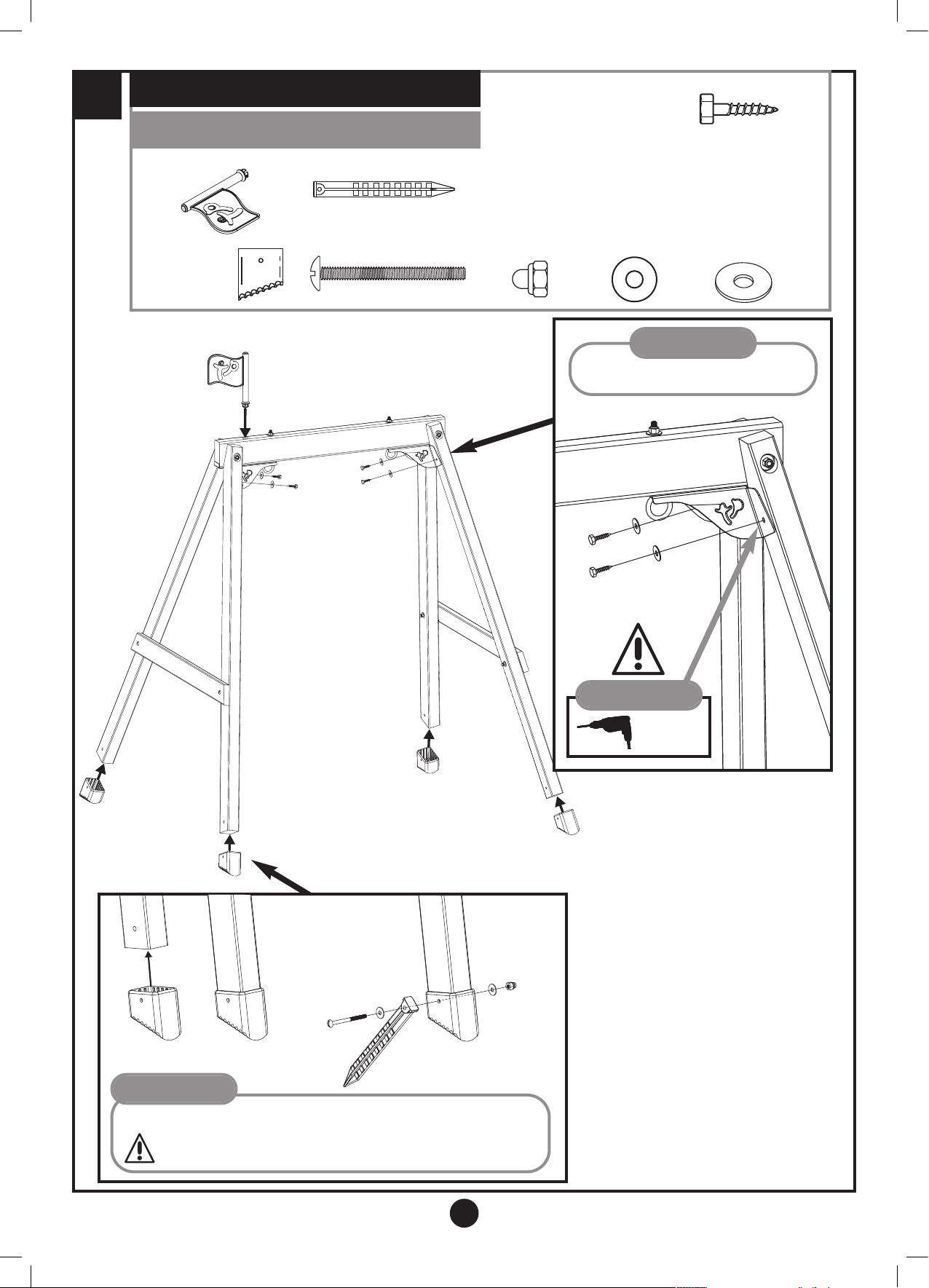

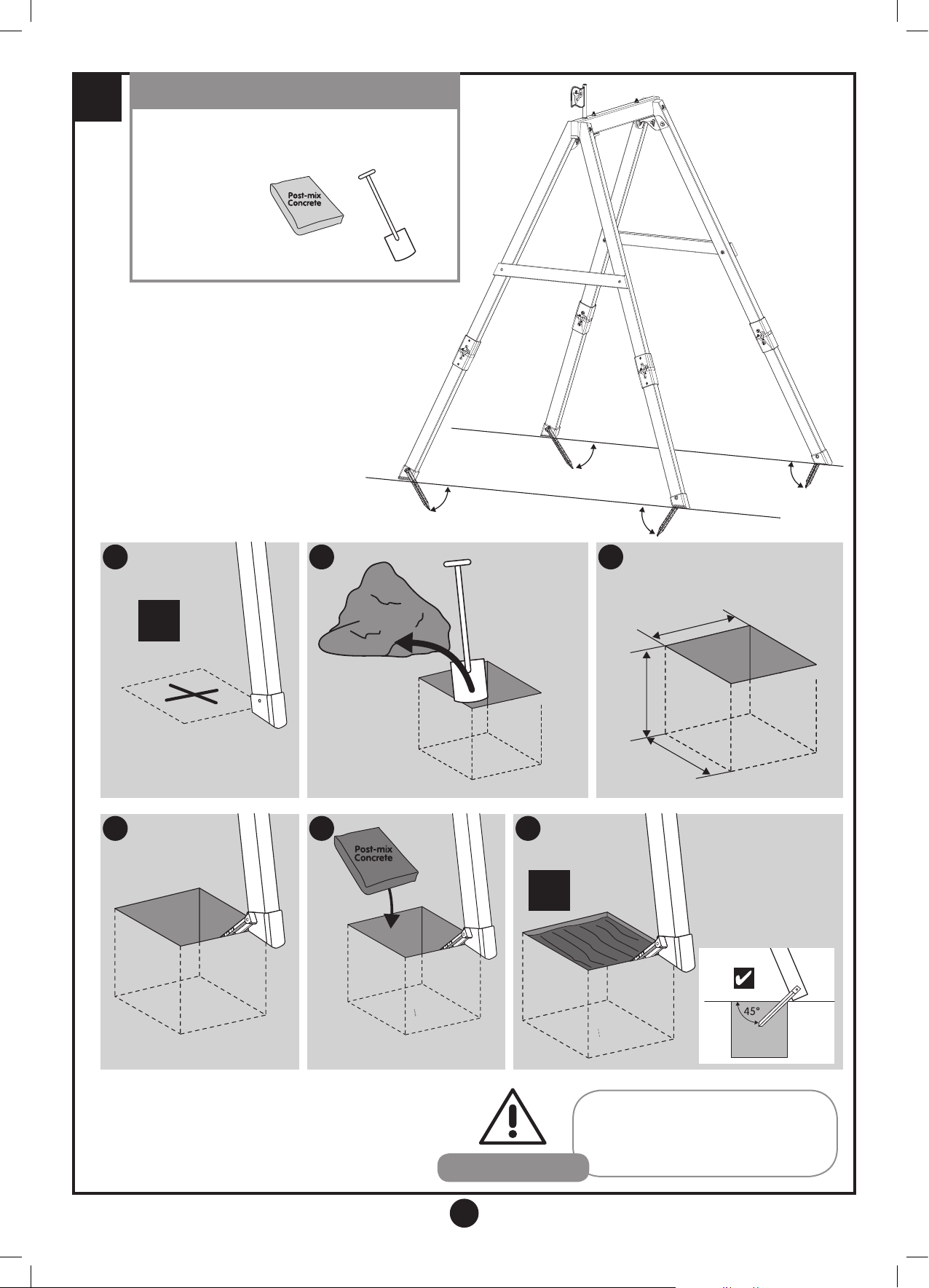

Full Height Frame Assembly
11
Recommended ground fixing at
FULL HEIGHT.
Shovel
Not Supplied
45°
45°
45°
1 2 3
x4
Dig holes:
300mm x
Mark leg/hole position.
300mm x
300mm deep.
5 64
Not
Supplied.
x4
45°
300mm
300mm
300mm
Ensure the stakes are
positioned into the
setting Post-Mix concrete.
Warning: Never
set the legs of the
playset in concrete.
Fill holes with Post-Mix concrete.Position legs to slide of hole
Please go to
Stage 12 now for fitting the
IMPORTANT
14
Swing Seat to the Frame.
TP Growable Acorn with Swing Seats
Page 15
Stage
12

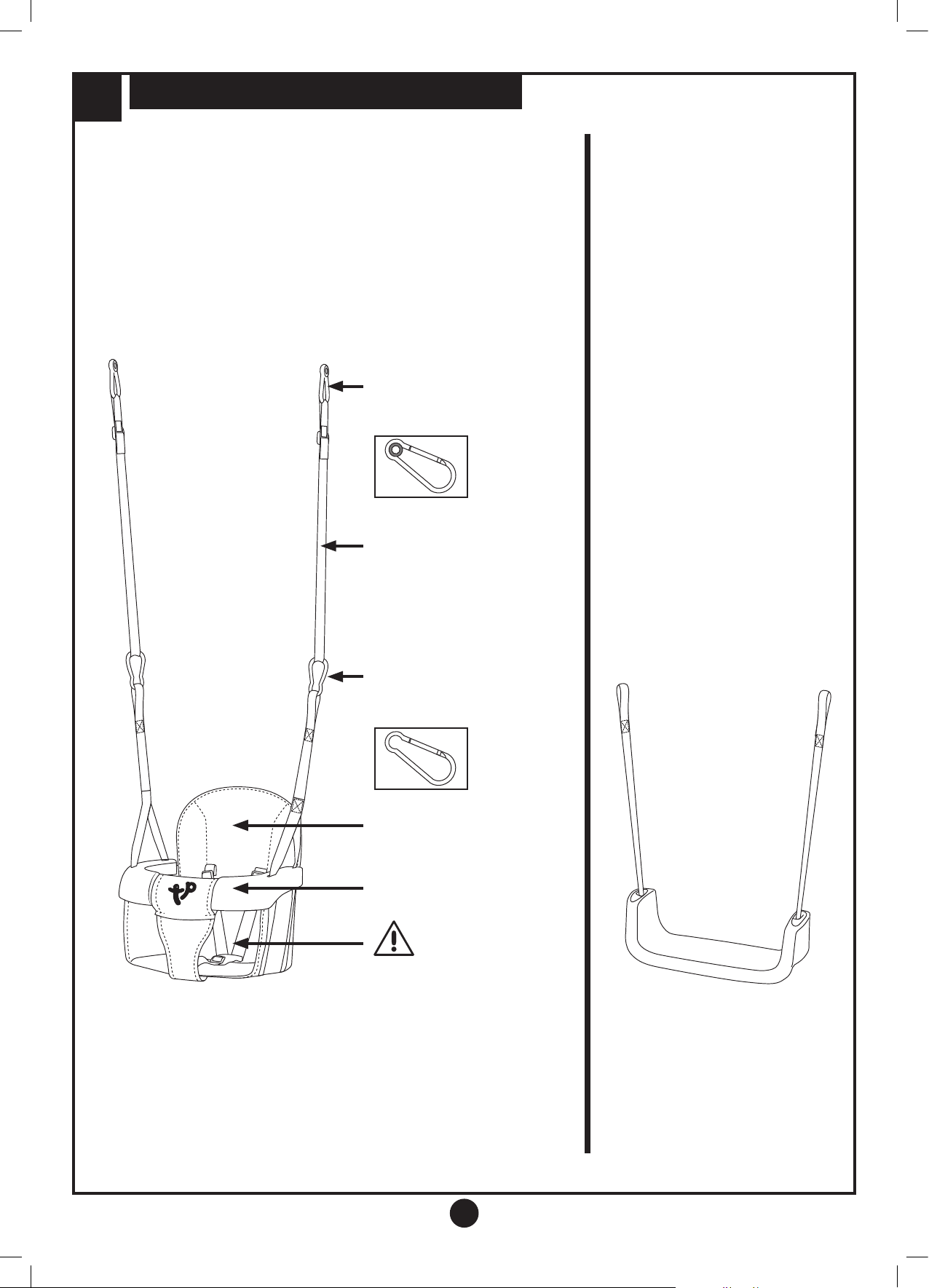

All about your New TP Swing Seats
TP913/TP913A
Folding Swing Seat
The TP Folding Swing Seat can be used at both low and full
height.
Before you use your TP Folding Swing Seat please read the
safety information carefully and follow its advice at all times.
FC9908 x2
Top Karabiner with Nylon Bush.
The top karabiners should always be
used to attach the seat to the frame.
FB9030 x2
Extension Straps.
Used to suspend Swing seats on full
height frame.
TP916
Standard Swing Seat
The Swing Seat can only be
used at full height.
Before you use your Swing
Seat please read the safety
information carefully and follow
its advice at all times.
WF9787 x2
Bottom Karabiner
Used to connect the seat to the
extension straps.
TP913/TP913A x1
Folding Swing Seat
Includes safety Harness.
Seat Frame
Safety Harness
The safety harness must be
used at all times to secure the
child into the Folding Swing
Seat.
15
TP Growable Acorn with Swing Seats
Page 16
Stage

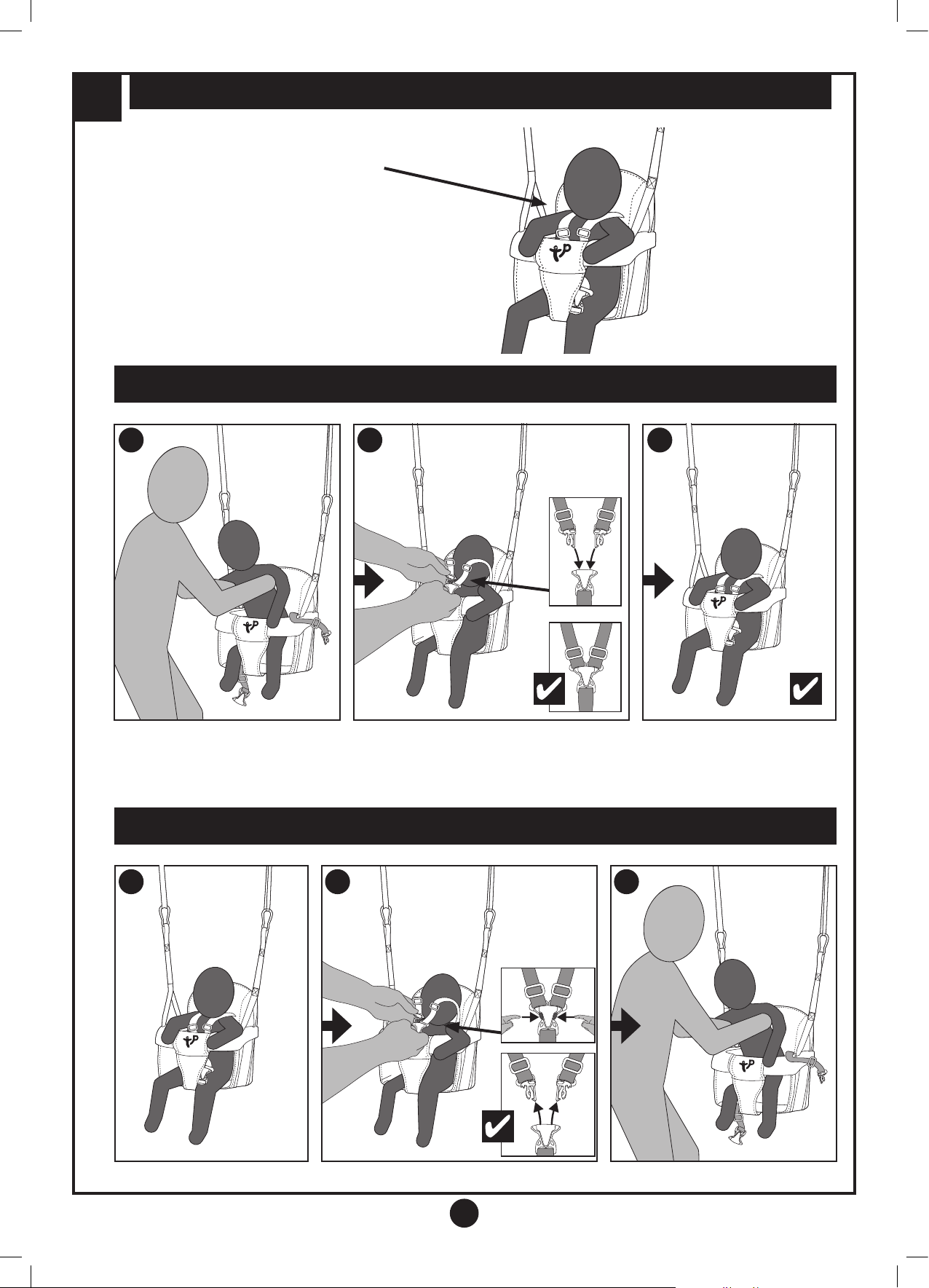

Important Safety Information for your new TP Folding Swing Seat
13
Always ensure that the safety Harness
is fitted as shown below.
The safety harness must be used at
all times to secure the child into the
Folding Swing Seat.
How to seat your child safely in their TP Folding Swing Seat
31 2
How to remove your child safely from their TP Folding Swing Seat
1 2
16
3
TP Growable Acorn with Swing Seats
Page 17
Stage

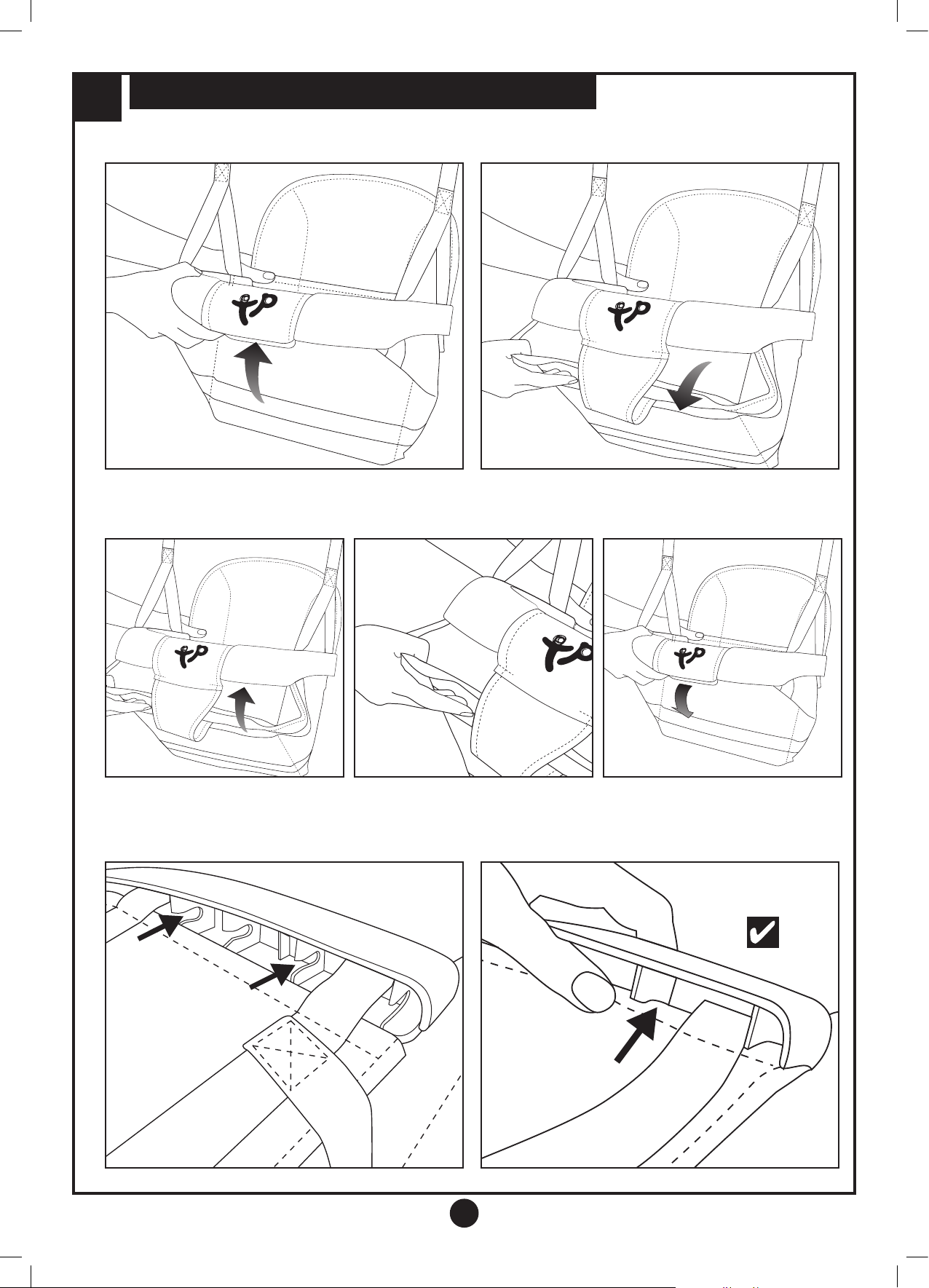

Attaching your Swing seats to the frame
14
Unfolding the Swing Seat
Lift the Seat Frame
upwards.
Pull the seat base
downwards
Folding away the Swing Seat (after use)
To fold away - simply reverse the above steps.
Important! Check frame attachment
Before use, please ensure that the sides of the seat are fully inserted to the frame. The sides are snap fit so press
firmly to fit.
17
TP Growable Acorn with Swing Seats
Page 18
Stage
15

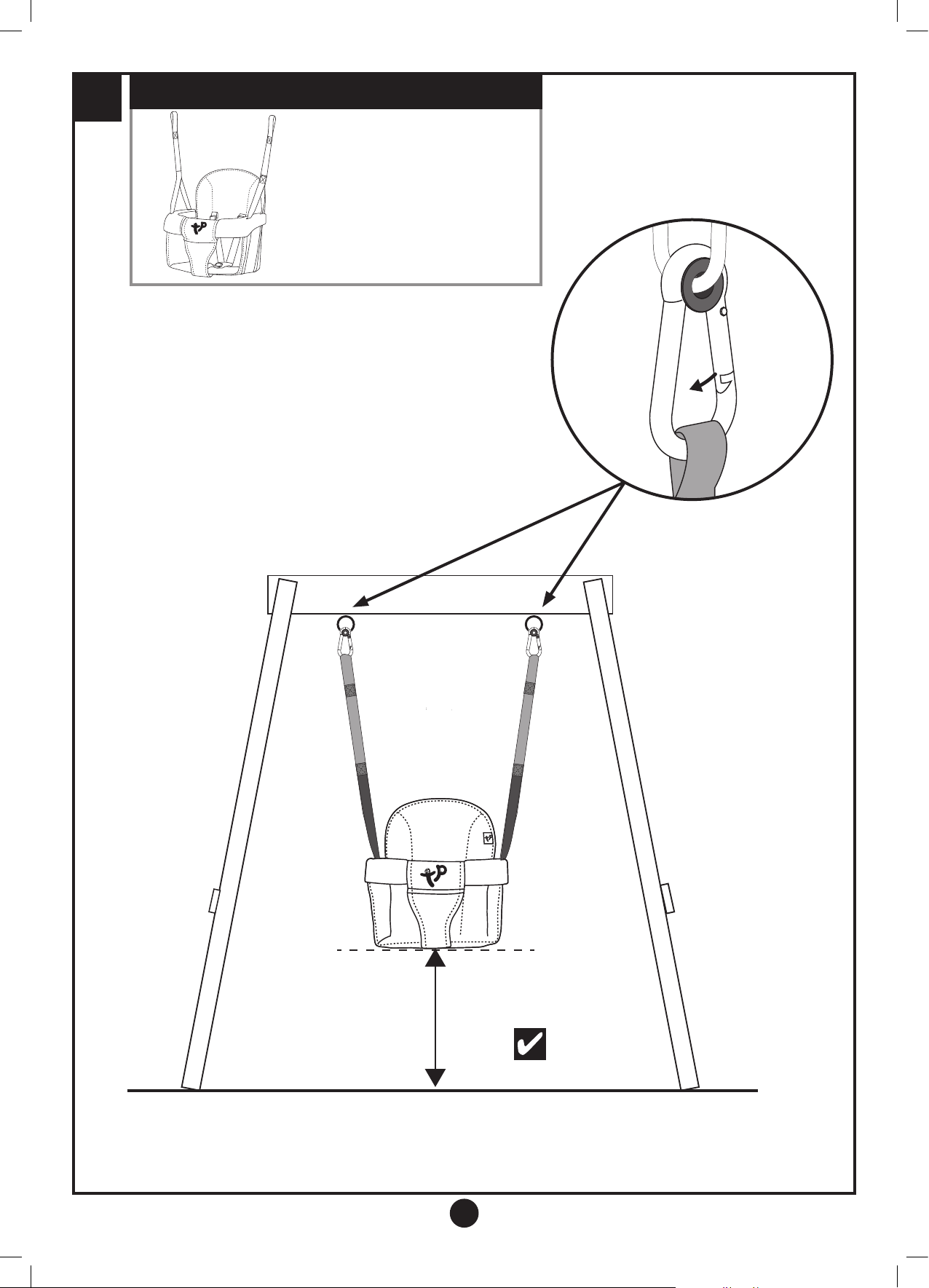

Seat assembly to Low Height Frames
TP913/TP913A
Folding Swing Seat
x1
TP913/TP913A
Folding Swing
Seat
350mm
min
TP Growable Acorn with Swing Seats
18
Page 19
Stage
16

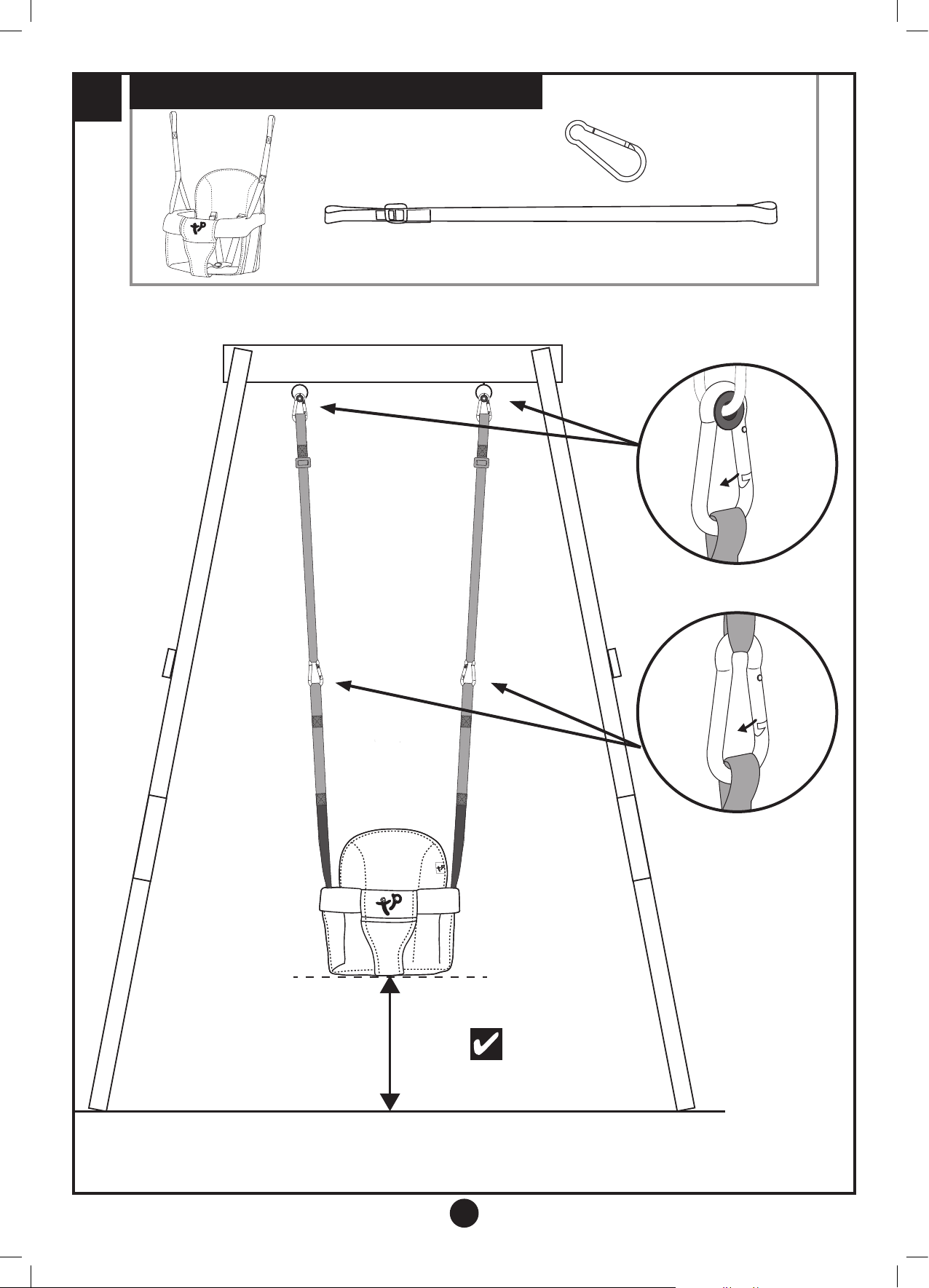

Seat assembly to Full Height Frames
TP913/TP913A
Folding Swing Seat
x1
FB9030
Extension Straps
Bottom Karabiner
WF9787
x2
Extension Straps
FB9030
x2
FC9908
Top Karabiner
with Nylon
Bush.
TP913/TP913A
Folding Swing
Seat
FB9030
Extension Straps
WF9787
Bottom
Karabiner
350mm
min
19
TP Growable Acorn with Swing Seats
Page 20
Stage
17
Seat assembly to Full Height Frames
TP913/TP913A
Folding Swing Seat
x1
FB9030
Extension Straps
Bottom Karabiner
WF9787
x2
Extension Straps
FB9030
x2
FC9908
Top Karabiner
with Nylon
Bush.
TP916
Standard
Swing Seat
FB9030
Extension Straps
WF9787
Bottom
Karabiner
350mm
min
20
TP Growable Acorn with Swing Seats
Page 21
18

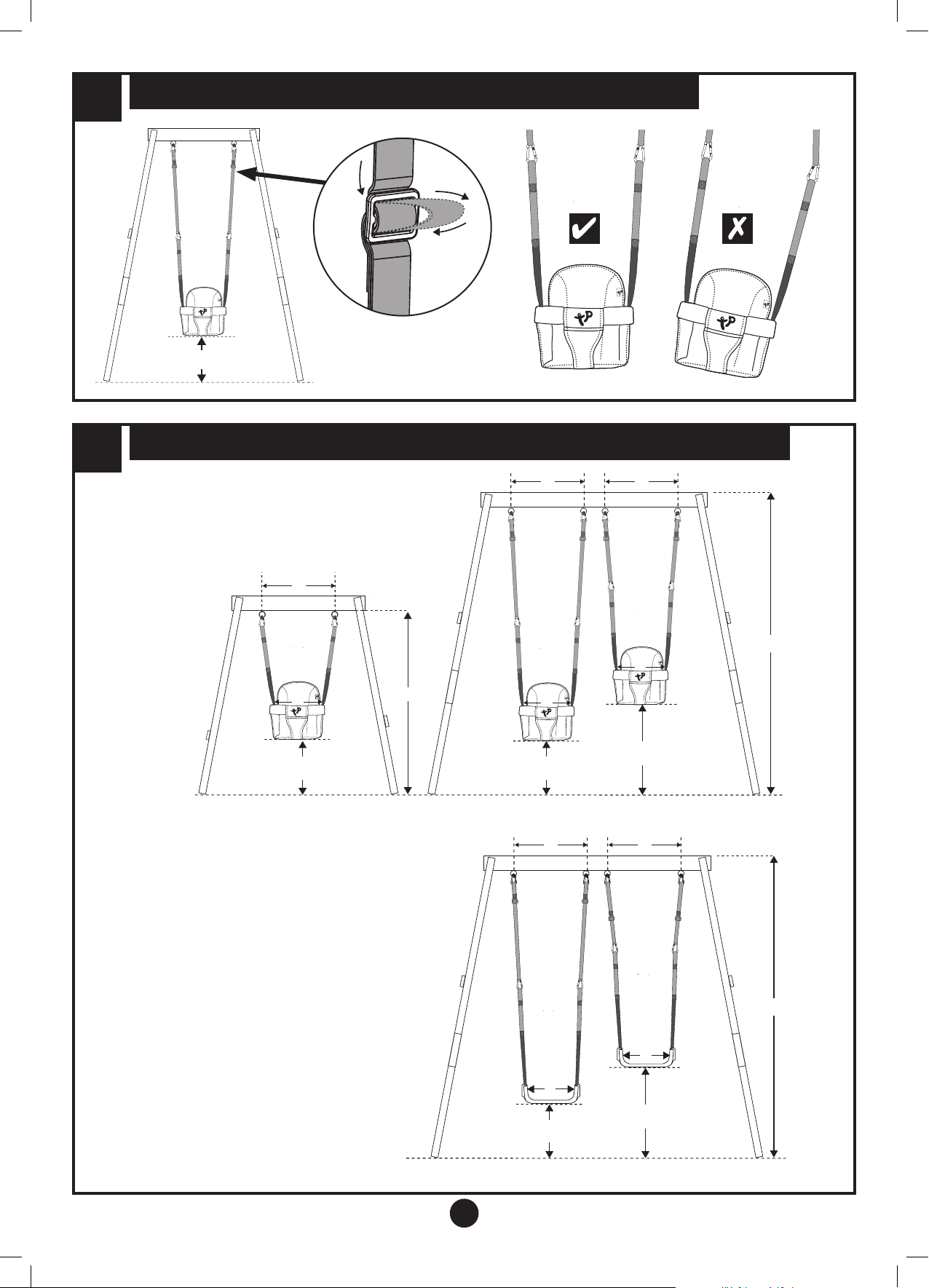

How to adjust the height of your Folding Swing Seat
350mm
min
19
How to position your Folding swing correctly on your swing frame
A A
TP913/TP913A
Folding Swing Seat
A
B
H
B
350mm
min
Low Height Swing Frame High Height Swing Frame
B
350mm
min
A A
590mm
max
H
The maximum height of the swing frame
shall not exceed 2500mm.
The maximum fall height for the swing
can be determined by measuring the
distance between the pivot points and
the ground.
The minimum distance between the
suspension points is calculated as
follows: A=0.04h+B where
A is the distance between suspension
points along the crossbeam.
B is the distance between the junction
points of the swing element and the
means of suspension.
h is the distance from the ground to the
lower side of the crossbeam.
TP916
Standard
Swing Seat
21
B
B
590mm
350mm
min
max
High Height Swing Frame
H
TP Growable Acorn with Swing Seats
Page 22
20

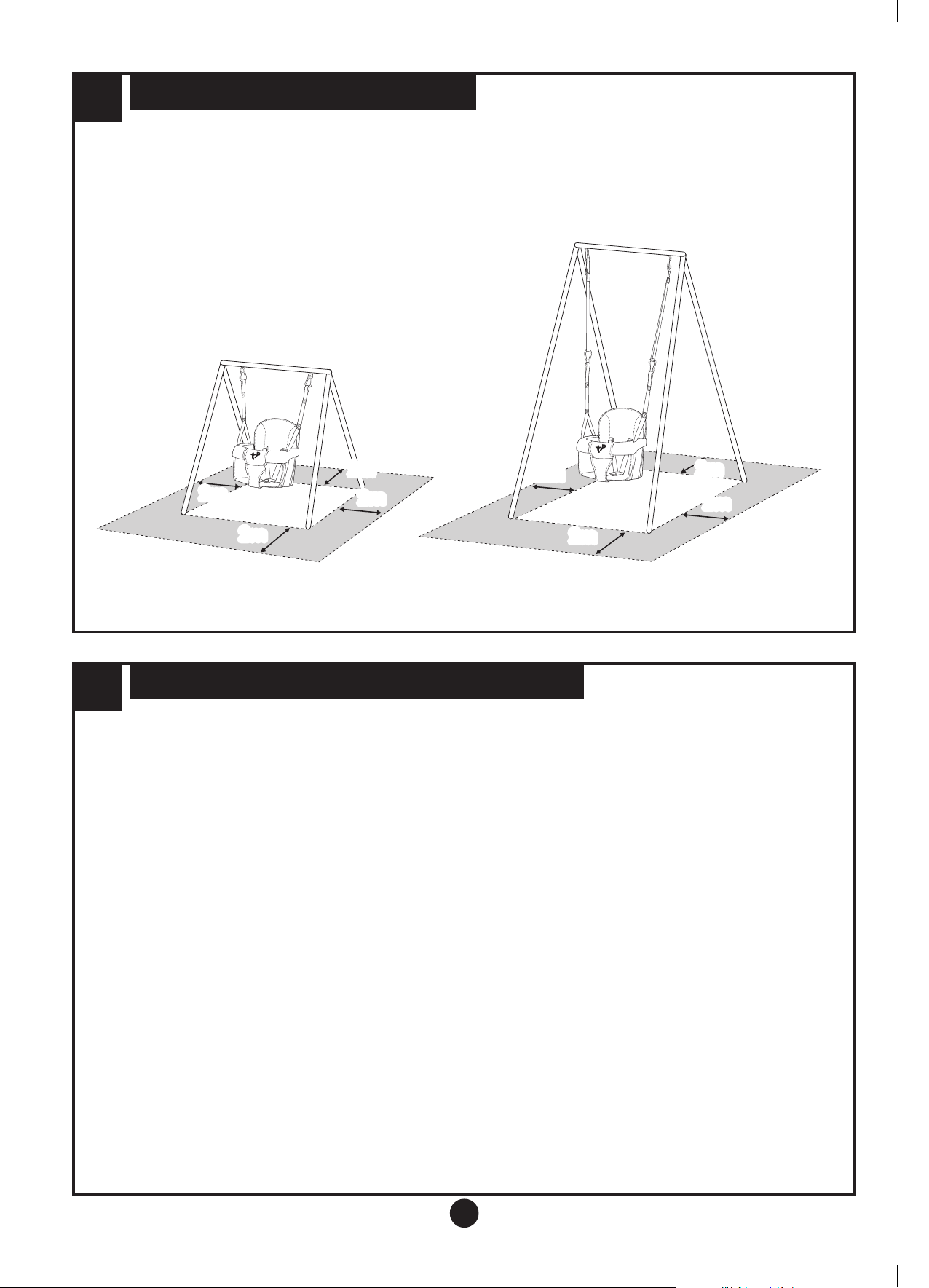

Recommended safe play area
The Safe Play Area refers to the zone extending 2m beyond
the play set on all sides, including the space above the
apparatus. Additional accessories may increase the size of the
Safe Play Area. The ground surface must be level. Installing
your playset on sloping ground can cause it to lean or ‘rack’.
This puts additional stress on all the connections and joints
and in time will cause them to fail. The Safe Play Area must
be free from all structures, landscaping, trees and branches,
rocks, wires, sprinkler heads and other similar obstacles
to safe play. Children can be seriously injured running or
swinging into these obstacles.
21
2m
2m
2m
2m
2m
2m
2m
2m
Care and Maintenace of your swing Seat
The TP Folding swing seat is designed with maximum comfort for your child. Due to the soft materials, we
do not recommend leaving it outside for long periods. Please look after if by taking it inside when not in
use.
To remove light stains, we recommend using a damp cloth.
22
TP Growable Acorn with Swing Seats
Page 23
22

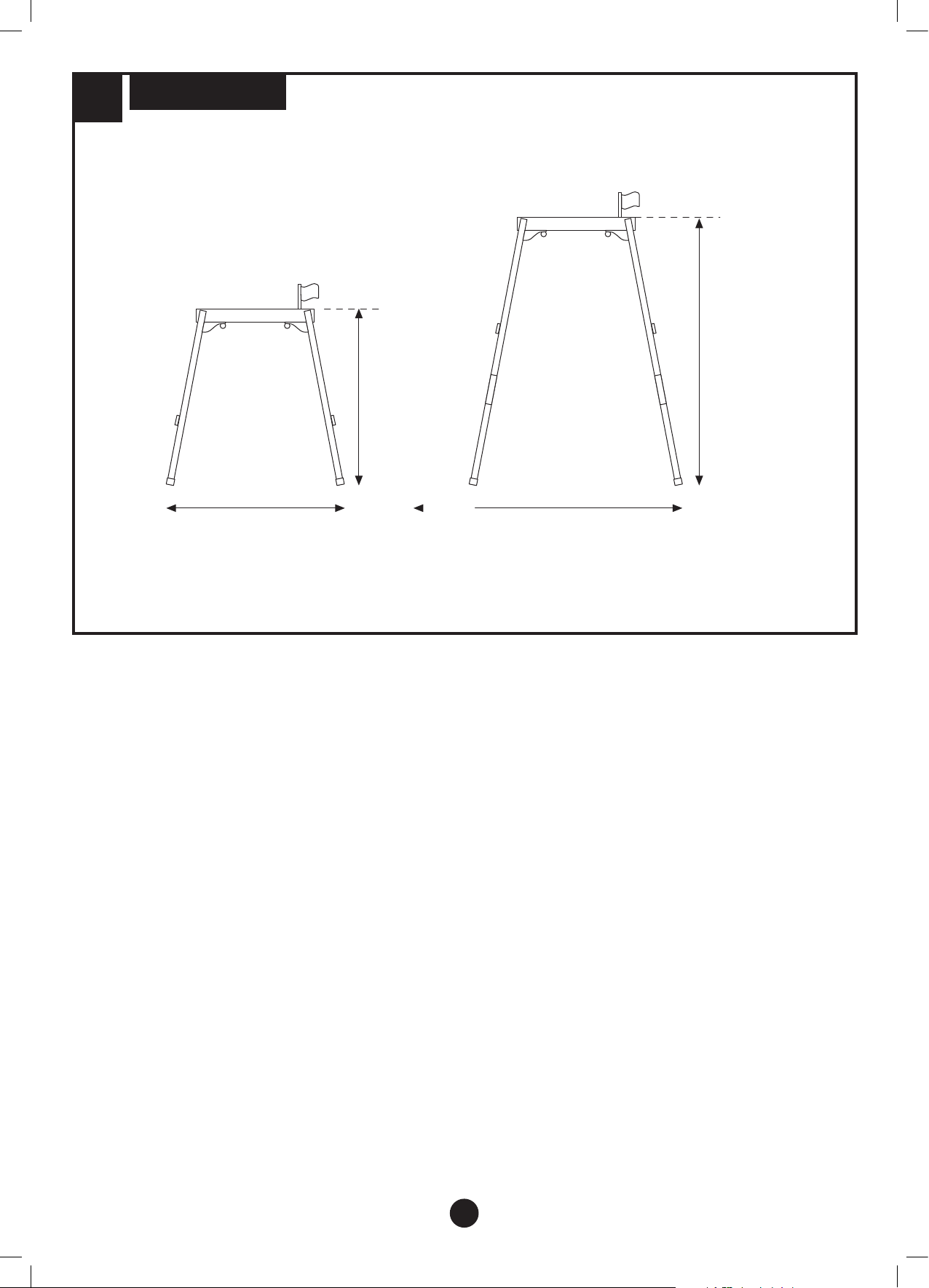

Dimensions
209cm
123cm
131cm (W)
x 117cm (D)
156cm (W)
x 183cm (D)
Low Height Full Height
23
TP Growable Acorn with Swing Seats
Page 24
Register your new TP product online now at
www.tptoys.com/productregistration
Thank you for purchasing this TP product. To find out all about your product guarantee and register
your purchase, please visit www.tptoys.com/productregistration
We want to give you the very best service. By registering your purchase now, we will be able to deal
with any guarantee issues very quickly and efficiently in the future. Thank you.
Your TP Guarantee Number/Product Batch No is
Designed in the UK by Robovision Ltd t/a TP Toys
Unit 11, Enterprise Way, Flitwick, Bedfordshire, MK45 5BX England
www.tptoys.com
Instruction Part No: IN0332 Issue-A 31.01.2017
Loading...
