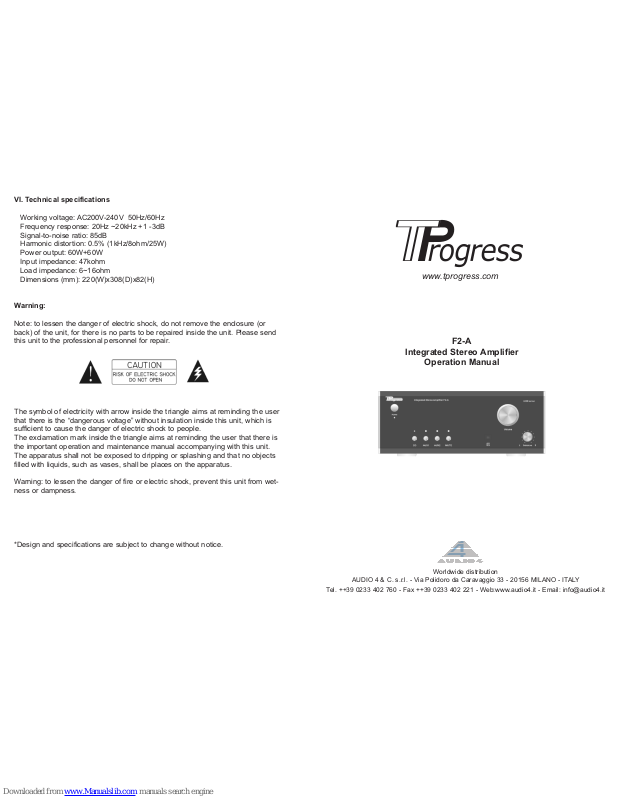

Page 1
VI. Technical specifications
Working voltage: AC200V-240V 50Hz/60Hz
Frequency response: 20Hz ~20kHz +1 -3dB
Signal-to-noise ratio: 85dB
Harmonic distortion: 0.5% (1kHz/8ohm/25W)
Power output: 60W+60W
Input impedance: 47kohm
Load impedance: 6~16ohm
Dimensions (mm): 220(W)x308(D)x82(H)
Warning:
Note: to lessen the danger of electric shock, do not remove the enclosure (or
back) of the unit, for there is no parts to be repaired inside the unit. Please send
this unit to the professional personnel for repair.
The symbol of electricity with arrow inside the triangle aims at reminding the user
that there is the “dangerous voltage” without insulation inside this unit, which is
sufficient to cause the danger of electric shock to people.
The exclamation mark inside the triangle aims at reminding the user that there is
the important operation and maintenance manual accompanying with this unit.
The apparatus shall not be exposed to dripping or splashing and that no objects
filled with liquids, such as vases, shall be places on the apparatus.
Warning: to lessen the danger of fire or electric shock, prevent this unit from wetness or dampness.
*Design and specifications are subject to change without notice.
F2-A
Integrated Stereo Amplifier
Operation Manual
Worldwide distribution
AUDIO 4 & C. s.r
.l. - V
ia Polidoro da Caravaggio 33 - 20156 MILANO - ITALY
Tel. ++39 0233 402 760 - Fax ++39 0233 402 221 - Web:www.audio4.it - Email: [email protected]
www.tprogress.com
Page 2
I. Features
1. Compact and elegant appearance design
2. Three line inputs.
3. Output power: 60W+60W.
4. Remote control
II. Notes before use
1. Power: this unit may use the power of AC 200V~240V 50Hz/60Hz only.
2. Protection: do not step, squeeze or pull the power plug, outlet or socket.
3. Ventilation: place it in a finely ventilated place. Do not put the disc on it or cover
it with the tablecloth. Be at least 10cm from the wall, otherwise, it may obstruct the
ventilation hole.
4. Damp proof: do not use it near the water or dampness.
5. Temperature: the ideal ambient temperature is over 5°Ê. It is difficult to run
under freezing point. Keep it away from the heat source.
6. Switch: prevent the conducting object from falling or flowing into the unit.
7. Clean: it is inapplicable to use the volatile solution, such as gasoline, alcohol
and thinner.
8. Thanks to equipment howbeit electrification after power switch turned off. Don't
dismantle the cover board and don't touch part of electrification.
9. Don't put the bareness blaze on equipment such as burning candle.
10.The apparatus shall not be exposed to dripping or splashing and that no objects
filled with liquids, such as vases, shall be placed on the apparatus.
III. Basic operations
Front panel (from left to right):
- Power: Power switch
- CD, AUX1, AUX2: Line (audio) input selector
- MUTE: Muting audio output
- Remote sensor
- Volume: Output volume regulator
- L
Balance R: L/R balance regulator
Rear panel (from left to right):
- Line in: CD, AUX1, AUX2 audio input terminal
- Speaker output [R, L]
IV. Accessories
Illustration Of Remote Controller
Accessories Quantity
Remote controller 1
Audio output cable 1
Operation manual
1
