TP Link WR841NXV10 User Manual

Download

REV6.0.0 1910011

TL-WR841N

TL-WR841ND

300Mbps Wireless N Router

274

Specifications are subject to change without notice. is a registered

trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are

trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any

derivative such as translation, transformation, or adaptation without permission from TP-LINK

reserved.

http://www.tp-link.com

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/ TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions:

1） This device may not cause harmful interference.

2） This device must accept any interference received, including interference that may

cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

FCC RF Radiation Exposure Statement:

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.

“To comply with FCC RF exposure compliance requirements, this grant is applicable to only

Mobile Configurations. The antennas used for this transmitter must be installed to provide a

separation distance of at least 20 cm from all persons and must not be co-located or operating in

conjunction with any other antenna or transmitter.”

CE Mark Warning

This is a class B product. In a domestic environment, this product may cause radio interference, in

which case the user may be required to take adequate measures.

Canadian Compliance Statement

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject

to the following two conditions:

(1) This device may not cause interference, and

(2)This device must accept any interference, including interference that may cause undesired

operation of the device.

Cet appareil est conforme aux norms CNR exemptes de licence d’Industrie Canada. Le

fonctionnement est soumis aux deux conditions suivantes:

(1) cet appareil ne doit pas provoquer d’interférences et

(2) cet appareil doit accepter toute interférence, y compris celles susceptibles de provoquer un

fonctionnement non souhaité de l’appareil.

This device has been designed to operate with the antennas listed below, and having a maximum

gain of 3 dBi. Antennas not included in this list or having a gain greater than 3 dBi are strictly

prohibited for use with this device. The required antenna impedance is 50 ohms.

To reduce potential radio interference to other users, the antenna type and its gain should be so

chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for

successful communication.

Industry Canada Statement

Complies with the Canadian ICES-003 Class B specifications.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

This device complies with RSS 210 of Industry Canada. This Class B device meets all the

requirements of the Canadian interference-causing equipment regulations.

Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement sur le

matériel brouilleur du Canada.

Korea Warning Statements

당해 무선설비는 운용중 전파혼신 가능성이 있음.

Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам

нормативних документів та вимогам, що передбачені чинними законодавчими актами

України.

Safety Information

 When product has power button, the power button is one of the way to shut off the product;

when there is no power button, the only way to completely shut off power is to disconnect the

product or the power adapter from the power source.

 Don’t disassemble the product, or make repairs yourself. You run the risk of electric shock

and voiding the limited warranty. If you need service, please contact us.

 Avoid water and wet locations.

This product can be used in the following countries:

AT BG BY CA CZ DE DK EE

ES FI FR GB GR HU IE IT

LT LV MT NL NO PL PT RO

RU SE SK TR UA US

III

TP-LINK TECHNOLOGIES CO., LTD

DECLARATION OF CONFORMITY

For the following equipment:

Product Description: 300Mbps Wireless N Router

Model No.: TL-WR841N/TL-WR841ND

Trademark: TP-LINK

We declare under our own responsibility that the above products satisfy all the technical

regulations applicable to the product within the scope of Council Directives:

Directives 1999/5/EC, Directives 2004/108/EC, Directives 2006/95/EC, Directives 1999/519/EC,

Directives 2011/65/EU

The above product is in conformity with the following standards or other normative documents

EN 300 328 V1.8.1 EN 301 489-1 V1.9.2 & EN 301 489-17 V2.2.1 EN 55022: 2010 + AC: 2011 EN 55024: 2010 EN 61000-3-2: 2006 + A1: 2009 + A2: 2009 EN 61000-3-3: 2013 EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 EN 50385: 2002

The product carries the CE Mark:

Person responsible for making this declaration:

Yang Hongliang

Product Manager of International Business

Date of issue:2015

TP-LINK TECHNOLOGIES CO., LTD.

Building 24 (floors 1, 3, 4, 5), and 28 (floors 1-4) Central Science and Technology Park,

Shennan Rd, Nanshan, Shenzhen, China

CONTENTS

Package Contents .................................................................................................................................... 1

Chapter 1. Introduction .......................................................................................................................... 2

1.1 Overview of the Router ......................................................................................................... 2

1.2 Conventions .......................................................................................................................... 3

1.3 Main Features ....................................................................................................................... 3

1.4 Panel Layout ......................................................................................................................... 4

1.4.1 The Front Panel ........................................................................................................ 4

1.4.2 The Rear Panel ......................................................................................................... 5

Chapter 2. Connecting the Router ........................................................................................................ 7

2.1 System Requirements ........................................................................................................... 7

2.2 Installation Environment Requirements ................................................................................ 7

2.3 Connecting the Router .......................................................................................................... 7

Chapter 3. Quick Installation Guide ................................................................................................... 10

3.1 TCP/IP Configuration .......................................................................................................... 10

3.2 Quick Installation Guide ...................................................................................................... 12

Chapter 4. Configuring the Router ..................................................................................................... 20

4.1 Login .................................................................................................................................... 20

4.2 Status .................................................................................................................................. 20

4.3 Quick Setup ......................................................................................................................... 21

4.4 WPS .................................................................................................................................... 21

4.5 Network ............................................................................................................................... 24

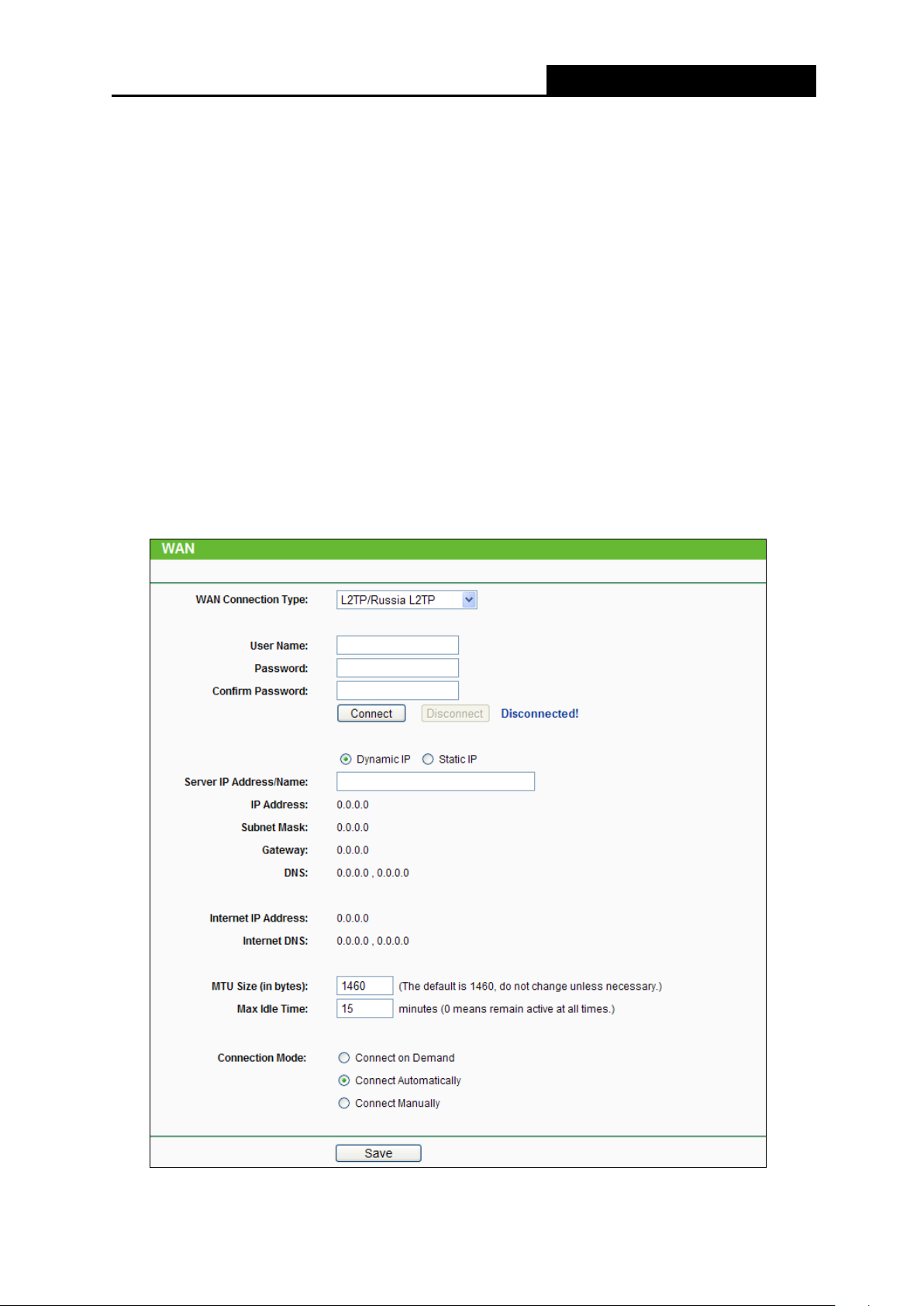

4.5.1 WAN ........................................................................................................................ 24

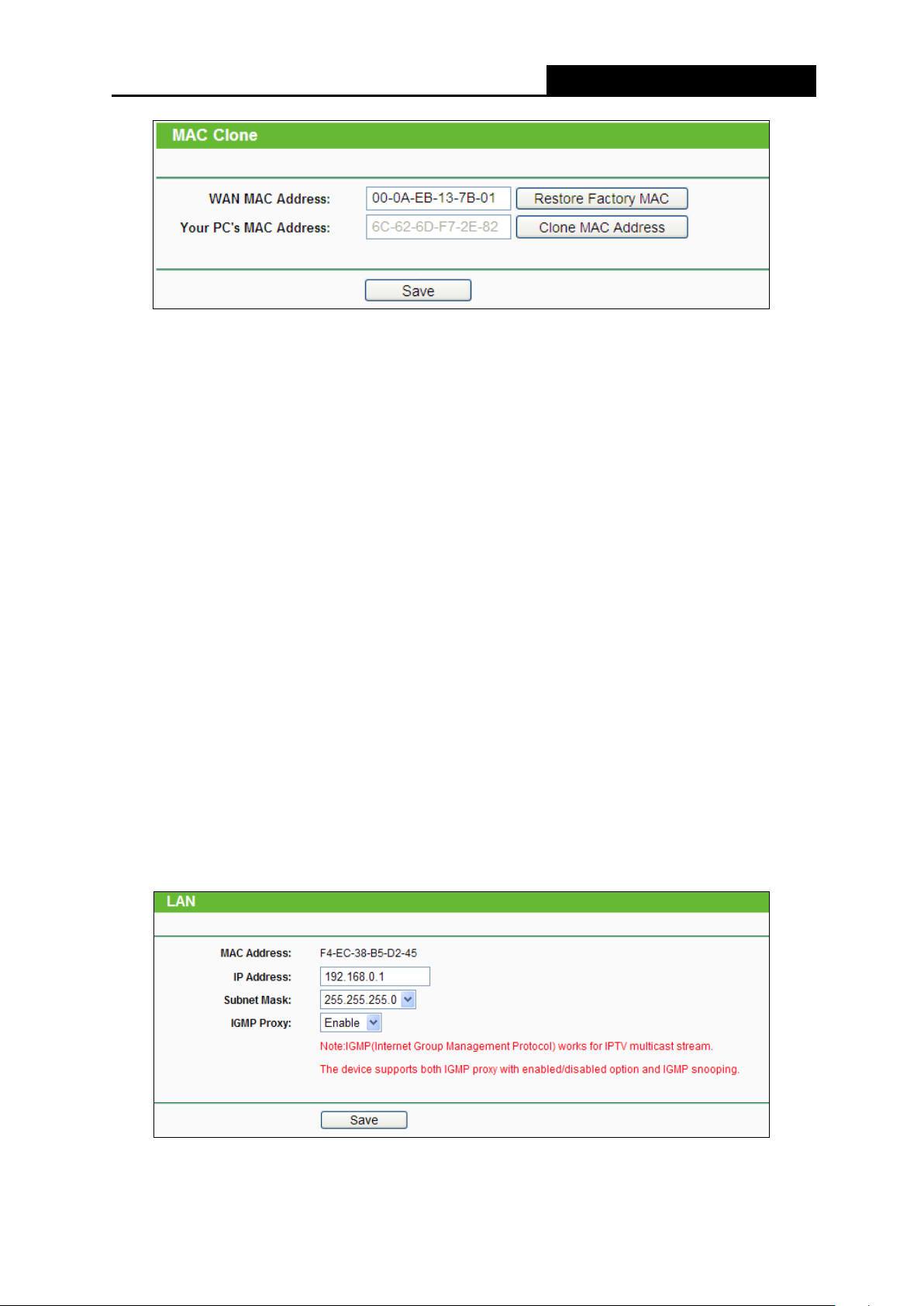

4.5.2 MAC Clone ............................................................................................................. 33

4.5.3 LAN ......................................................................................................................... 34

4.6 Wireless ............................................................................................................................... 35

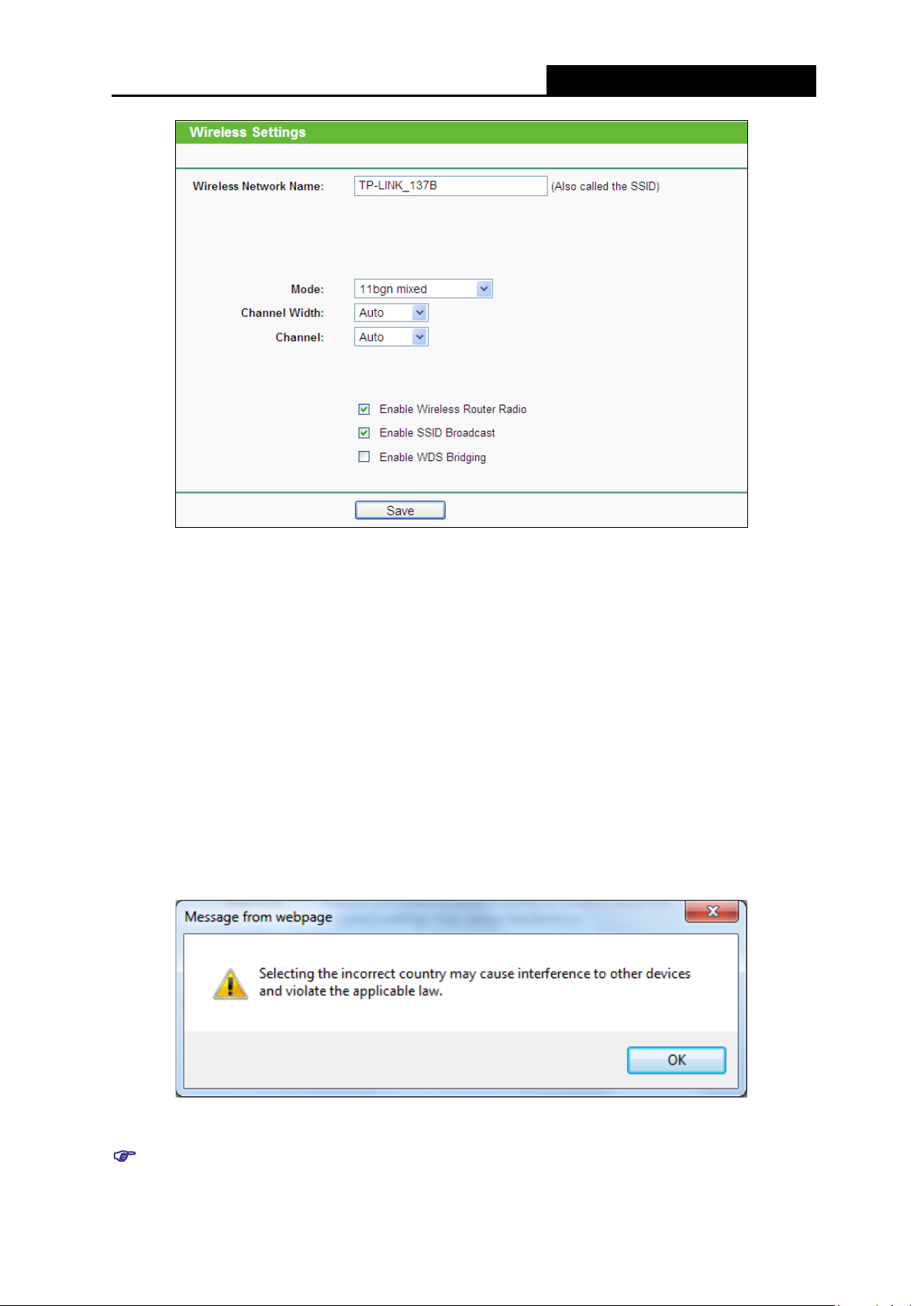

4.6.1 Wireless Settings .................................................................................................... 35

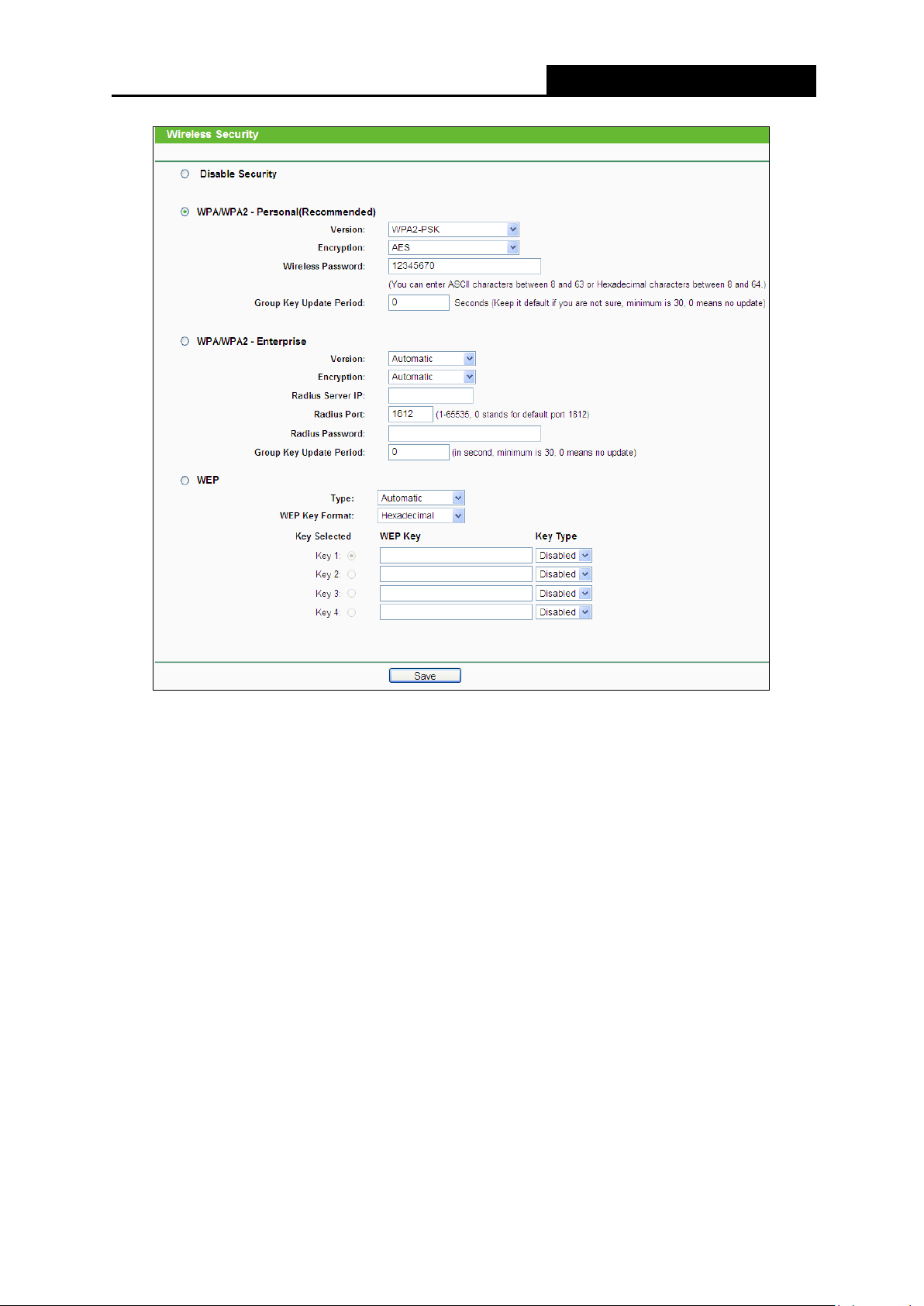

4.6.2 Wireless Security .................................................................................................... 38

4.6.3 Wireless MAC Filtering ........................................................................................... 42

4.6.4 Wireless Advanced ................................................................................................. 44

4.6.5 Wireless Statistics ................................................................................................... 45

4.7 DHCP .................................................................................................................................. 46

4.7.1 DHCP Settings ........................................................................................................ 46

4.7.2 DHCP Clients List ................................................................................................... 48

4.7.3 Address Reservation .............................................................................................. 48

4.8 Forwarding .......................................................................................................................... 49

4.8.1 Virtual Servers ........................................................................................................ 50

4.8.2 Port Triggering ........................................................................................................ 51

4.8.3 DMZ ........................................................................................................................ 54

4.8.4 UPnP....................................................................................................................... 54

4.9 Security ............................................................................................................................... 55

4.9.1 Basic Security ......................................................................................................... 56

4.9.2 Advanced Security .................................................................................................. 57

4.9.3 Local Management ................................................................................................. 59

4.9.4 Remote Management ............................................................................................. 60

4.10 Parental Control .................................................................................................................. 61

4.11 Access Control .................................................................................................................... 63

4.11.1 Rule ......................................................................................................................... 64

4.11.2 Host ......................................................................................................................... 66

4.11.3 Target ...................................................................................................................... 68

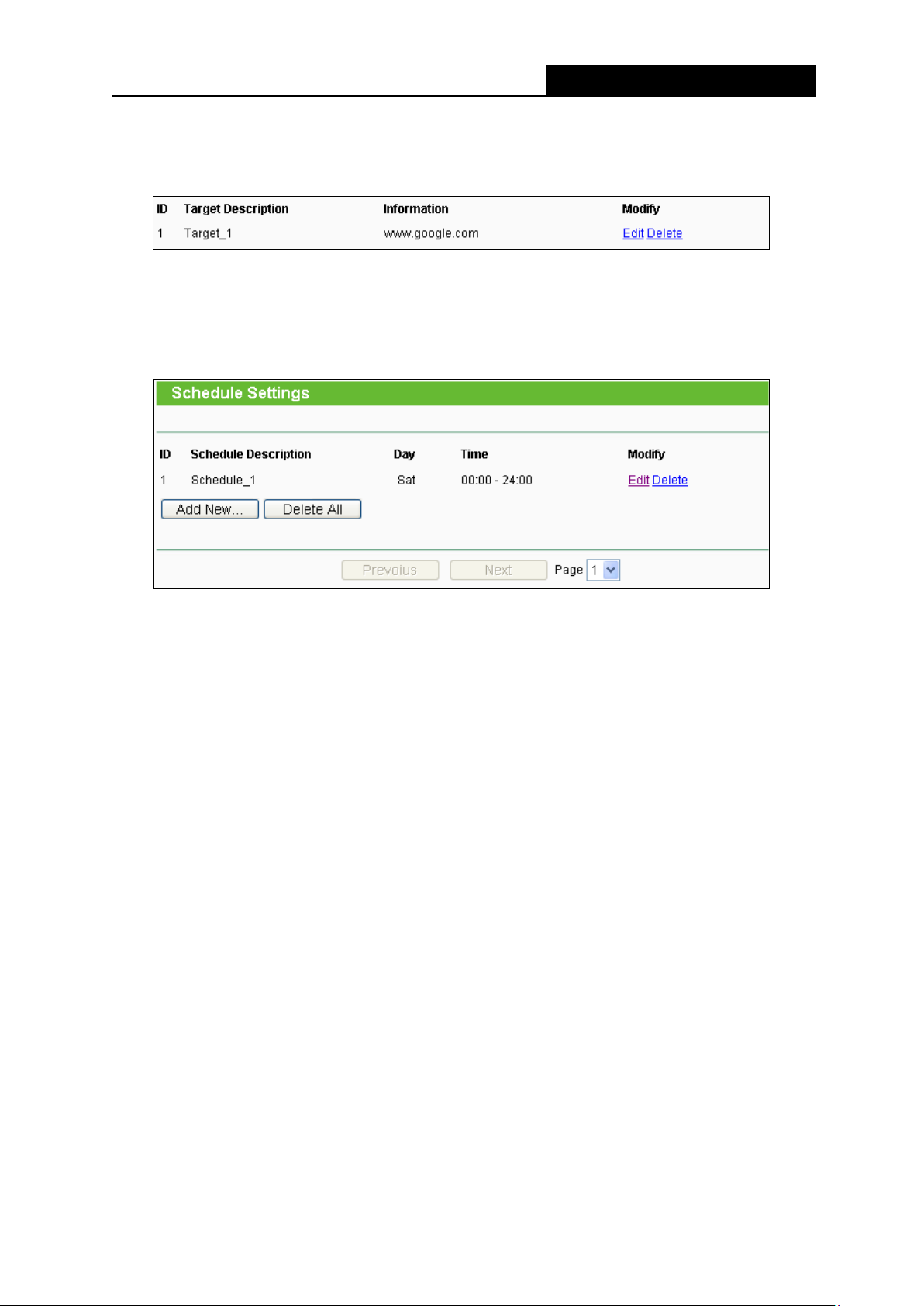

4.11.4 Schedule ................................................................................................................. 70

4.12 Advanced Routing ............................................................................................................... 71

4.12.1 Static Routing List ................................................................................................... 72

4.12.2 System Routing Table ............................................................................................. 73

4.13 Bandwidth Control ............................................................................................................... 74

4.13.1 Control Settings ...................................................................................................... 74

4.13.2 Rule List .................................................................................................................. 74

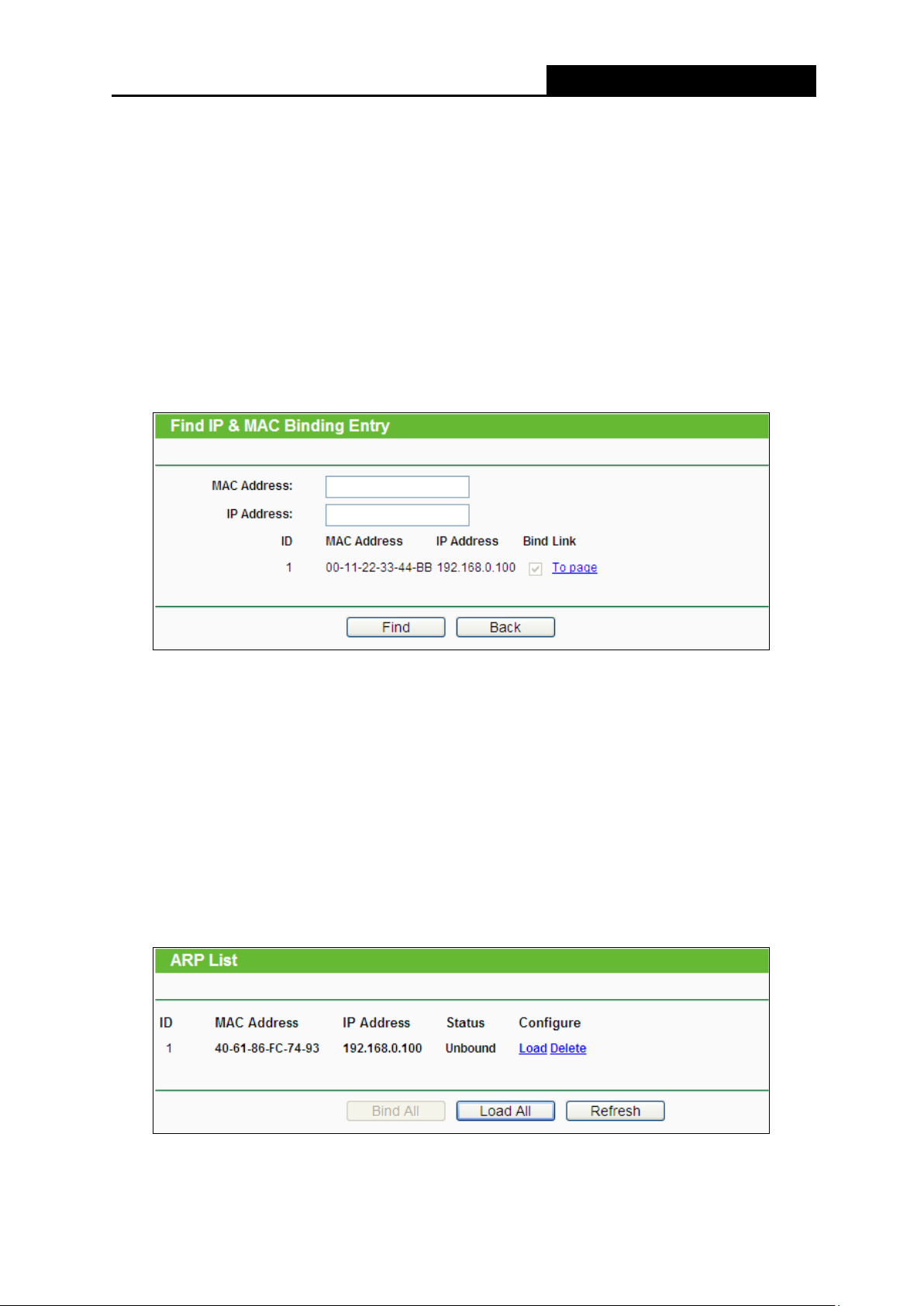

4.14 IP & MAC Binding................................................................................................................ 75

4.14.1 Binding Settings ...................................................................................................... 76

4.14.2 ARP List .................................................................................................................. 77

4.15 Dynamic DNS ...................................................................................................................... 78

4.15.1 Comexe.cn DDNS .................................................................................................. 78

4.15.2 Dyndns.org DDNS .................................................................................................. 79

4.15.3 No-ip.com DDNS .................................................................................................... 80

4.16 System Tools ....................................................................................................................... 81

4.16.1 Time Settings .......................................................................................................... 82

4.16.2 Diagnostic ............................................................................................................... 83

4.16.3 Firmware Upgrade .................................................................................................. 85

4.16.4 Factory Defaults ...................................................................................................... 86

4.16.5 Backup & Restore ................................................................................................... 86

4.16.6 Reboot .................................................................................................................... 87

4.16.7 Password ................................................................................................................ 88

4.16.8 System Log ............................................................................................................. 88

4.16.9 Statistics .................................................................................................................. 90

4.17 Logout ................................................................................................................................. 92

Appendix A: FAQ .................................................................................................................................... 93

Appendix B: Configuring the PC .......................................................................................................... 98

Appendix C: Specifications ................................................................................................................. 102

Appendix D: Glossary .......................................................................................................................... 103

III

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router



Package Contents

The following items should be found in your package:

 TL-WR841N/TL-WR841ND 300Mbps Wireless N Router

 DC Power Adapter for TL-WR841N/TL-WR841ND 300Mbps Wireless N Router

 Quick Installation Guide

 Ethernet Cable

 Resource CD for TL-WR841N/TL-WR841ND 300Mbps Wireless N Router, including:

• This Guide

• Other Helpful Information

Note:

Make sure that the package contains the above items. If any of the listed items are damaged or

missing, please contact your distributor.

-1-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

Simple Installation

Flexible Access Control

Multiple Security Protections

Incredible Speed

Chapter 1. Introduction

1.1 Overview of the Router

The TL-WR841N/TL-WR841ND 300Mbps Wireless N Router integrates 4-port Switch, Firewall,

NAT-Router and Wireless AP. The 300Mbps Wireless N Router delivers exceptional range and

speed, which can fully meet the need of Small Office/Home Office (SOHO) networks and the users

demanding higher networking performance.

The TL-WR841N/TL-WR841ND 300Mbps Wireless N Router provides up to 300Mbps wireless

connection with other 802.11n wireless clients. The incredible speed makes it ideal for handling

multiple data streams at the same time, which ensures your network stable and smooth. The

performance of this 802.11n wireless router will give you the unexpected networking experience at

speed 650% faster than 802.11g. It is also compatible with all IEEE 802.11g and IEEE 802.11b

products.

With multiple protection measures, including SSID broadcast control and wireless LAN

64/128/152-bit WEP encryption, Wi-Fi protected Access (WPA2-PSK, W PA-PSK), as well as

advanced Firewall protections, the TL-WR841N/TL-WR841ND 300Mbps Wireless N Router

provides complete data privacy.

The TL-WR841N/TL-WR841ND 300Mbps Wireless N Router provides flexible access control, so

that parents or network administrators can establish restricted access policies for children or staff. It

also supports Virtual Server and DMZ host for Port Triggering, and then the network administrators

can manage and monitor the network in real time with the remote management function.

Since the router is compatible with virtually all the major operating systems, it is very easy to

manage. Quick Setup Wizard is supported and detailed instructions are provided step by step in

this user guide. Before installing the router, please look through this guide to know all the router’s

functions.

-2-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router



1.2 Conventions

The router or TL-WR841N/TL-WR841ND mentioned in this guide stands for TL-WR841N/TL-WR841ND

300Mbps Wireless N Router without any explanation.

Note:

The two devices of TL-WR841N and TL-WR841ND are sharing this User Guide. For simplicity, we

will take TL-WR841ND for example throughout this Guide.

The differences between them are:

 TL-WR841N router with 2 fixed antennas.

 TL-WR841ND router with 2 detachable antennas.

1.3 Main Features

 Complies with IEEE 802.11n to provide a wireless data rate of up to 300Mbps.

 One 10/100M Auto-Negotiation RJ45 WAN port, four 10/100M Auto-Negotiation RJ45 LAN

ports, supporting Auto MDI/MDIX.

 Provides WPA/WPA2, WPA-PSK/WPA2-PSK authentication, TKIP/AES encryption security.

 Shares data and Internet access for users, supporting Dynamic IP/Static IP/PPPoE Internet

access.

 Supports Virtual Server, Special Application and DMZ host.

 Supports UPnP, Dynamic DNS, Static Routing.

 Provides Automatic-connection and Scheduled Connection on certain time to the Internet.

 Built-in NAT and DHCP server supporting static IP address distributing.

 Built-in firewall supporting IP address filtering, Domain Name filtering, and MAC address

filtering.

 Connects Internet on demand and disconnects from the Internet when idle for PPPoE.

 Provides 64/128/152-bit WEP encryption security and wireless LAN ACL (Access Control

List).

 Supports Flow Statistics.

 Supports firmware upgrade and Web management.

 Supports Tether App to manage the router on smart devices.

-3-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

sponding port but

successfully added to the

A wireless device failed to be added to the network by



1.4 Panel Layout

1.4.1 The Front Panel

Figure 1-1 Front Panel sketch

The router’s LEDs and the Wireless On/Off button are located on the front panel (View from left to

right).

Name Status Indication

Off Power is off.

（Power）

(WLAN)

(LAN 4-1),

(WAN)

(WPS)

On Power is on.

Off The Wireless function is disabled.

Flashing The Wireless function is enabled.

Off There is no device linked to the corresponding port.

Flashing There is an active device linked to the corresponding port.

Slow Flash

There is a device linked to the corre there is no activity.

A wireless device is connecting to the network by WPS function. This process will last in the first 2 minutes.

wireless device has been

A network by WPS function.

Quick Flash

Note:

After a device is successfully added to the network by WPS function, the WPS LED will keep on for about 5 minutes and then turn off.

WPS function.

Table 1-1 The LEDs description

-4-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

1.4.2 The Rear Panel

Figure 1-2 Rear Panel sketch

The following parts are located on the rear panel (View from left to right).

 ON/OFF: The switch for the power.

 POWER: The Power socket is where you will connect the power adapter. Please use the

power adapter provided with this TL-WR841ND 300Mbps Wireless N Router.

 WAN: This WAN port is where you will connect the DSL/cable Modem, or Ethernet.

 1,2,3,4 (LAN): These ports (1,2,3,4) connect the Router to the local PC(s).

 WPS/RESET: This button is used for both WPS and Reset function. To use the WPS

function, press it for less than five seconds; to use the RESET function, press it for more

than five seconds.

 Used as RESET button:

There are two ways to reset to the Router's factory defaults:

1) Use the Factory Defaults function on System Tools -> Factory Defaults page in the

Router's Web-based Utility.

-5-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

2) Use the WPS/RESET button: With the Router powered on, press and hold the

WPS/RESET button (more than 5 seconds) until the SYS LED becomes quick-flash from

slow-flash. Then release the button and wait the Router to reboot to its factory default

settings.

 Used as WPS button:

If you have client devices, such as wireless adapters, that support Wi-Fi Protected Setup,

then you can press this button to quickly establish a connection between the Router and

client devices and automatically configure wireless security for your wireless network.

 WIFI ON/OFF: This switch is used to enable/disable the Router’s wireless function.

 Wireless antenna: To receive and transmit the wireless data.

-6-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

Chapter 2. Connecting the Router

2.1 System Requirements

 Broadband Internet Access Service (DSL/Cable/Ethernet)

 One DSL/Cable Modem that has an RJ45 connector (which is not necessary if the router is

connected directly to the Ethernet.)

 PCs with a working Ethernet Adapter and an Ethernet cable with RJ45 connectors

 TCP/IP protocol on each PC

 Web browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari

2.2 Installation Environment Requirements

 Place the router in a well ventilated place far from any heater or heating vent

 Avoid direct irradiation of any strong light (such as sunlight)

 Keep at least 2 inches (5 cm) of clear space around the router

 Operating Temperature: 0℃~40℃ (32℉~104℉)

 Operating Humidity: 10%~90%RH, Non-condensing

2.3 Connecting the Router

Before installing the router, make sure your PC is connected to the Internet through the

broadband service successfully. If there is any problem, please contact your ISP. After that, please

install the router according to the following steps. Don't forget to pull out the power plug and keep

your hands dry.

1. Power off your PC, Cable/DSL Modem, and the router.

2. Locate an optimum location for the router. The best place is usually at the center of your

wireless network. The place must accord with the Installation Environment Requirements.

3. Adjust the direction of the antenna. Normally, upright is a good direction.

4. Connect the PC(s) and each Switch/Hub in your LAN to the LAN Ports on the router, shown in

Figure 2-1. (If you have the wireless NIC and want to use the wireless function, you can skip

this step.)

5. Connect the DSL/Cable Modem to the WAN port on the router, shown in

Figure 2-1.

-7-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

6. Connect the power adapter to the power socket on the router, and the other end into an

electrical outlet. The router will start to work automatically.

7. Power on your PC and cable/DSL modem.

Figure 2-1 Hardware Installation of the

TL-WR841ND 300Mbps Wireless N Router

-8-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router



Note:

The diameter of the screw ranges from 3.5 mm to 8 mm, and the distance between two screws is

123 mm. The screw that projects from the wall needs around 4.5 mm base, and the length of the

screw needs to be at least 20 mm to withstand the weight of the product.

-9-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

Chapter 3. Quick Installation Guide

This chapter will show you how to configure the basic functions of your TL-WR841ND 300Mbps

Wireless N Router using Quick Setup Wizard within minutes.

3.1 TCP/IP Configuration

The default domain name of the TL-WR841ND 300Mbps Wireless N Router is http://tplinkwifi.net,

the default IP address is 192.168.0.1, and the default Subnet Mask is 255.255.255.0. These

values can be changed as you desire. In this guide, we use all the default values for description.

Connect the local PC to the LAN ports of the router. And then you can configure the IP address for

your PC in the following two ways.

 Configure the IP address manually

1) Set up the TCP/IP Protocol for your PC. If you need instructions as to how to do this,

please refer to Appendix B: Configuring the PC

2) Configure the network parameters. The IP address is 192.168.0.xxx ("xxx" is any number

from 2 to 254), Subnet Mask is 255.255.255.0, and Gateway is 192.168.0.1 (The router's

default IP address)

 Obtain an IP address automatically

1) Set up the TCP/IP Protocol in "Obtain an IP address automatically" mode on your PC.

If you need instructions as to how to do this, please refer to

PC.

2) Then the built-in DHCP server will assign IP address for the PC.

Now, you can run the Ping command in the command prompt to verify the network connection

between your PC and the router. The following example is in Windows 7.

Open a command prompt, and type ping 192.168.0.1, and then press Enter.

 If the result displayed is similar to the

Figure 3-1, it means the connection between your PC

Appendix B: Configuring the

and the router has been established well.

-10-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router



Figure 3-1 Success result of Ping command

 If the result displayed is similar to the Figure 3-2, it means the connection between your PC

and the router is failed.

Figure 3-2 Failure result of Ping command

Please check the connection following these steps:

1. Is the connection between your PC and the router correct?

Note:

The 1/2/3/4 LEDs of LAN ports which you link to on the router and LEDs on your PC's adapter should be lit.

2. Is the TCP/IP configuration for your PC correct?

If the router's IP address is 192.168.0.1, your PC's IP address must be within the range of

192.168.0.2 ~ 192.168.0.254.

3. Is the default LAN IP of the router correct?

Note:

-11-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router



Note:

If the LAN IP of the modem connected with your router is 192.168.0.x, the default LAN IP of the router will automatically switch from 192.168.0.1 to 192.168.1.1 to avoid IP conflict. Therefore, in order to verify the network connection between your PC and the router, you can open a command prompt, and type ping 192.168.1.1, and then press Enter.

3.2 Quick Installation Guide

With a Web-based utility, it is easy to configure and manage the TL-WR841ND 300Mbps Wireless

N Router. The Web-based utility can be used on any Windows, Macintosh or UNIX OS with a Web

browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari.

1. To access the configuration utility, open a web-browser and type in the default address

http://tplinkwifi.net

After a moment, a login window will appear, similar to the Figure 3-4. Enter admin for the User

Name and Password, both in lower case letters. Then click the Login button or press the Enter

key.

in the address field of the browser.

Figure 3-3 Login the Router

Note:

If the above screen does not pop-up, it means that your Web-browser has been set to a proxy. Go to Tools >Internet Options>Connections>LAN Settings, in the screen that appears, cancel the Using Proxy checkbox, and click OK to finish it.

2. After successful login, you can click the Quick Setup to quickly configure your router.

Figure 3-4 Login Windows

-12-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router



Figure 3-5 Quick Setup

Note:

The Router will automatically detect the Internet connection. If the Internet is available, the Router will direct you to step 5 Wireless settings; otherwise, you need to continue with step 3 to choose WAN Connection Type.

3. Click Next, and then WAN Connection Type page will appear, shown in Figure 3-6.

The router provides Auto-Detect function and supports five popular ways Dynamic IP,

Static IP, PPPoE/Russian PPPoE, L2TP/Russian L2TP and PPTP/Russian PPTP to

connect to the Internet. It’s recommended that you make use of the Auto-Detect function. If

you select Auto-Detect, the router will automatically detect the connection type your ISP

provides. If you are sure of what kind of connection type your ISP provides, you can select

the very type and click Next to go on configuring.

Note:

1) L2TP and PPTP cannot be detected by the router. You must select it manually.

2) Before continuing, please make sure the cable of the WAN port is well connected to your device. If the WAN port is not connected, the cable is unplugged page will appear.

Figure 3-6 Choose WAN Connection Type

-13-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

4. If you select Auto-Detect, the router will automatically detect the connection type your ISP

provides. Make sure the cable is securely plugged into the Internet port before detection. The

appropriate configuration page will be displayed when an active Internet service is

successfully detected by the router.

1） If the connection type is Dynamic IP, there will appear the MAC Clone page (as shown

in Figure 3-7). In most cases, there is no need to clone the MAC address. You can select “No, I do NOT need to clone MAC address” and then click Next. If it is necessary in your case, please select “Yes, I need to clone MAC address” and then click Next.

2） If the connection type is Static IP, the next screen will appear as shown in Figure 3-8.

Figure 3-7 MAC Clone

-14-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

Figure 3-8 Quick Setup - Static IP

 IP Address - This is the WAN IP address as seen by external users on the Internet

(including your ISP). Enter the IP address into the field.

 Subnet Mask - The Subnet Mask is used for the WAN IP address, it is usually

255.255.255.0.

 Default Gateway - Enter the gateway IP address into the box if required.

 Primary

DNS - Enter the DNS Server IP address into the box if required.

 Secondary DNS - If your ISP provides another DNS server, enter it into this field.

3） If the connection type is PPPoE/Russian PPPoE, the next screen will appear as shown

in Figure 3-9. Configure the following parameters and then click Next to continue.

 User Name and Password - Enter the User Name and Password provided by your ISP.

These fields are case sensitive. If you have difficulty with this process, please contact

your ISP.

Figure 3-9 Quick Setup – PPPoE

-15-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

 Confirm Password - Re-enter the password provided by your ISP to ensure the

Password you entered is correct. If the Password is different from the Confirm Password,

the screen will appear as shown below. Click OK, and re-enter the Password and

Confirm Password.

Check the radio button of Dynamic/Static IP to activate the secondary connection if your ISP

provides an extra Connection type such as Dynamic/Static IP to connect to a local area

network.

4） If the connection type is L2TP/Russian L2TP, the next screen will appear as shown in

Figure 3-10. Configure the following parameters and then click Next to continue.

Figure 3-10 Quick Setup – L2TP

 User Name and Password - Enter the User Name and Password provided by your ISP.

These fields are case sensitive. If you have difficulty with this process, please contact

your ISP.

 Confirm Password - Re-enter the password provided by your ISP to ensure the

Password you entered is correct. If the Password is different from the Confirm Password,

the screen will appear as shown below. Click OK, and re-enter the Password and

Confirm Password.

Select Dynamic IP if none of the above parameters are provided. Then you just need to enter

server IP address or domain name provided by your ISP.

Select Static IP if IP Address/ Subnet Mask/ Gateway and DNS server address have been

provided by your ISP. Then please enter server IP address or domain name provided by your

ISP, and also enter the corresponding parameters.

-16-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

5） If the connection type is PPTP/Russian PPTP, the next screen will appear as shown in

Figure 3-11. Configure the following parameters and then click Next to continue.

Figure 3-11 Quick Setup – PPTP

 User Name and Password - Enter the User Name and Password provided by your ISP.

These fields are case sensitive. If you have difficulty with this process, please contact

your ISP.

 Confirm Password - Re-enter the password provided by your ISP to ensure the

Password you entered is correct. If the Password is different from the Confirm Password,

the screen will appear as shown below. Click OK, and re-enter the Password and

Confirm Password.

Select Dynamic IP if none of the above parameters are provided. Then you just need to enter

server IP address or domain name provided by your ISP.

Select Static IP if IP Address/ Subnet Mask/ Gateway and DNS server address have been

provided by your ISP. Then please enter server IP address or domain name provided by your

ISP, and also enter the corresponding parameters.

-17-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

5. Click Next to continue, the Wireless settings page will appear as shown in Figure 3-12.

Figure 3-12 Quick Setup – Wireless

 Wireless Radio - Enable or disable the wireless radio.

 Wireless Network Name - Enter a string of up to 32 characters. The same name of

SSID (Service Set Identification) must be assigned to all wireless devices in your

network. Considering your wireless network security, the default SSID is set to be

TP-LINK_XXXX (XXXX indicates the last unique four numbers of each router’s MAC

address). This value is case-sensitive.

 Region - Select your region from the pull-down list. This field specifies the region where

the wireless function of the router can be used. It may be illegal to use the wireless

function of the router in a region other than one of those specified in this field. If your

country or region is not listed, please contact your local government agency for

assistance.

Note:



Limited by local law regulations, version for North America does not have region selection option.

 Mode - This field determines the wireless mode which the router works on.

For example, TEST is NOT the same as test.

-18-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

 Channel Width - Select any channel width from the pull-down list. The default setting is

automatic, which can adjust the channel width for your clients automatically.

 Channel - This field determines which operating frequency will be used. The default

channel is set to Auto, so the AP will choose the best channel automatically. It is not

necessary to change the wireless channel unless you notice interference problems with

another nearby access point.

 Disable Security - The wireless security function can be enabled or disabled. If

disabled, the wireless stations will be able to connect the router without encryption. It is

recommended strongly that you choose one of following options to enable security.

 WPA/WPA2-Personal - Select WPA based on pre-shared passphrase.

 PSK Password - You can enter ASCII or Hexadecimal characters.

For ASCII, the key can be made up of any numbers 0 to 9 and any letters A to Z, the

length should be between 8 and 63 characters.

For Hexadecimal, the key can be made up of any numbers 0 to 9 and letters A to F,

the length should be between 8 and 64 characters.

Please also note the key is case sensitive, this means that upper and lower case

keys will affect the outcome. It would also be a good idea to write down the key and

all related wireless security settings.

 No Change - If you chose this option, wireless security configuration will not change!

These settings are only for basic wireless parameters. For advanced settings, please refer to

4.6 Wireless

6. Click the Finish button to complete the Quick Setup.

Figure 3-13 Quick Setup – Finish

-19-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

Chapter 4. Configuring the Router

This chapter will show each Web page's key functions and the configuration way.

4.1 Login

After your successful login, you will see the sixteen main menus on the left of the Web-based

utility. On the right, there are the corresponding explanations and instructions.

The detailed explanations for each Web page’s key function are listed below.

4.2 Status

The Status page provides the current status information about the router. All information is

read-only.

-20-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

4.3 Quick Setup

Please refer to 3.2 Quick Installation Guide.

4.4 WPS

This section will guide you to add a new wireless device to an existing network quickly by WPS (Wi-Fi Protected Setup) function.

a). Choose menu “WPS”, and you will see the next screen (shown in Figure 4-2 ).

Figure 4-1 Router Status

-21-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router



Figure 4-2 WPS

 WPS Status - Enable or disable the WPS function here.

 Current PIN - The current value of the router's PIN is displayed here. The default PIN of the

router can be found in the label attached on the router.

 Restore PIN - Restore the PIN of the router to its default.

 Gen New PIN - Click this button, and then you can get a new random value for the router's

PIN. You can ensure the network security by generating a new PIN.

 Disable PIN of this device - You can disable the router’s PIN manually here. If the router

receives multiple failed attempts to authenticate an external registrar, this function will be

disabled automatically.

 Add Device - You can add a new device to the existing network manually by clicking this

button.

b). To add a new device:

If the wireless adapter supports Wi-Fi Protected Setup (WPS), you can establish a wireless

connection between wireless adapter and router using either Push Button Configuration (PBC)

method or PIN method.

Note:

To build a successful connection by WPS, you should also do the corresponding configuration of

the new device for WPS function meanwhile.

I. Use the Wi-Fi Protected Setup Button

Use this method if your client device has a Wi-Fi Protected Setup button.

Step 1: Press the WPS/RESET button on the back panel of the router for one second.

You can also keep the default WPS Status as Enabled and click the Add Device button

in Figure 4-2, then Choose “Press the button of the new device in two minutes” and

click Connect. (Shown in the following figure)

-22-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

Figure 4-3 Add A New Device

Step 2: Press and hold the WPS button of the client device directly.

Step 3: The Wi-Fi Protected Setup LED flashes for two minutes during the Wi-Fi Protected

Setup process.

Step 4: When the WPS LED is on, the client device has successfully connected to the router.

Step 5: Refer back to your client device or its documentation for further instructions.

II. Enter the client device’s PIN on the router

Use this method if your client device has a Wi-Fi Protected Setup PIN number.

Step 1: Keep the default WPS Status as Enabled and click the Add Device button in Figure 4-2,

then the following screen will appear.

Figure 4-4 Add A New Device

Step 2: Enter the PIN number from the client device in the field on the above WPS screen. Then

click Connect button.

Step 3: “Connect successfully” will appear on the screen of Figure 4-4, which means the client

device has successfully connected to the router.

III. Enter the router’s PIN on your client device

Use this method if your client device asks for the router’s PIN number.

Step 1: On the client device, enter the PIN number listed on the router’s Wi-Fi Protected Setup

screen. (It is also labeled on the bottom of the router.)

Step 2: The Wi-Fi Protected Setup LED flashes for two minutes during the Wi-Fi Protected

Setup process.

Step 3: When the WPS LED is on, the client device has successfully connected to the router.

Step 4: Refer back to your client device or its documentation for further instructions.

-23-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router



Note:

1) The WPS LED on the router will light green for five minutes if the device has been

2) The WPS function cannot be configured if the Wireless Function of the router is disabled.

successfully added to the network.

Please make sure the Wireless Function is enabled before configuring the WPS.

4.5 Network

Figure 4-5 the Network menu

There are three submenus under the Network menu (shown in Figure 4-5): WAN, MAC Clone,

and LAN. Click any of them, and you will be able to configure the corresponding function.

4.5.1 WAN

Choose menu “Network→WAN”, you can configure the IP parameters of the WAN on the screen

below.

1. If your ISP provides the DHCP service, please choose Dynamic IP type, and the router will

automatically get IP parameters from your ISP. You can see the page as follows (

Figure 4-6):

Figure 4-6 WAN - Dynamic IP

-24-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router



This page displays the WAN IP parameters assigned dynamically by your ISP, including IP

address, Subnet Mask, Default Gateway, etc. Click the Renew button to renew the IP

parameters from your ISP. Click the Release button to release the IP parameters.

 MTU Size - The normal MTU (Maximum Transmission Unit) value for most Ethernet networks

is 1500 Bytes. It is not recommended that you change the default MTU Size unless required

by your ISP.

 Use These DNS Servers - If your ISP gives you one or two DNS addresses, select Use

These DNS Servers and enter the primary and secondary addresses into the correct fields.

Otherwise, the DNS servers will be assigned dynamically from your ISP.

Note:

If you find error when you go to a Web site after entering the DNS addresses, it is likely that your

DNS servers are set up improperly. You should contact your ISP to get DNS server addresses.

 Get IP with Unicast DHCP - A few ISPs' DHCP servers do not support the broadcast

applications. If you cannot get the IP Address normally, you can choose this option. (It is

rarely required.)

Click the Save button to save your settings.

2. If your ISP provides a static or fixed IP Address, Subnet Mask, Gateway and DNS setting,

select Static IP. The Static IP settings page will appear, shown in Figure 4-7.

 IP Address - Enter the IP address in dotted-decimal notation provided by your ISP.

 Subnet Mask - Enter the subnet Mask in dotted-decimal notation provided by your ISP,

usually is 255.255.255.0.

Figure 4-7 WAN - Static IP

-25-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

 Default Gateway - (Optional) Enter the gateway IP address in dotted-decimal notation

provided by your ISP.

 MTU Size - The normal MTU (Maximum Transmission Unit) value for most Ethernet networks

is 1500 Bytes. It is not recommended that you change the default MTU Size unless required

by your ISP.

 Primary/Secondary DNS - (Optional) Enter one or two DNS addresses in dotted-decimal

notation provided by your ISP.

Click the Save button to save your settings.

3. If your ISP provides a PPPoE connection, select PPPoE/Russia PPPoE option. And you

should enter the following parameters (Figure 4-8):

 User Name/Password - Enter the User Name and Password provided by your ISP. These

fields are case-sensitive.

 Secondary Connection - It’s available only for PPPoE Connection. If your ISP provides an

extra Connection type such as Dynamic/Static IP to connect to a local area network, then you

can check the radio button of Dynamic/Static IP to activate this secondary connection.

Figure 4-8 WAN - PPPoE

-26-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router



 Disabled - The Secondary Connection is disabled by default, so there is PPPoE

connection only. This is recommended.

 Dynamic IP - You can check this radio button to use Dynamic IP as the secondary

connection to connect to the local area network provided by ISP.

 Static IP - You can check this radio button to use Static IP as the secondary connection

to connect to the local area network provided by ISP.

 Connect on Demand - In this mode, the Internet connection can be terminated automatically

after a specified inactivity period (Max Idle Time) and be re-established when you attempt to

access the Internet again. If you want your Internet connection keeps active all the time,

please enter “0” in the Max Idle Time field.

Otherwise, enter the number of minutes you want

to have elapsed before your Internet access disconnects.

 Connect Automatically - The connection can be re-established automatically when it was

down.

 Time-based Connecting - The connection will only be established in the period from the start

time to the end time (both are in HH:MM format).

Note:

Only when you have configured the system time on System Tools -> Time page, will the

Time-based Connecting function can take effect.

 Connect Manually - You can click the Connect/ Disconnect button to connect/disconnect

immediately. This mode also supports the Max Idle Time function as Connect on Demand

mode. The Internet connection can be disconnected automatically after a specified inactivity

period and re-established when you attempt to access the Internet again.

Click the Connect button to connect immediately. Click the Disconnect button to disconnect

immediately.

Caution: Sometimes the connection cannot be terminated although you specify a time to Max Idle

Time, since some applications are visiting the Internet continually in the background.

If you want to do some advanced configurations, please click the Advanced button, and the page

shown in

Figure 4-9 will then appear:

-27-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

Figure 4-9 PPPoE Advanced Settings

 MTU Size - The default MTU size is “1480” bytes, which is usually fine. It is not

recommended that you change the default MTU Size unless required by your ISP.

 Service Name/AC Name - The service name and AC (Access Concentrator) name, which

should not be configured unless you are sure it is necessary for your ISP.

In most cases,

leaving these fields blank will work.

 ISP Specified IP Address - If your ISP does not automatically assign IP addresses to the

router during login, please click “Use IP address specified by ISP” check box and enter the

IP address provided by your ISP in dotted-decimal notation.

 Detect Online Interval - The router will detect Access Concentrator online at every interval.

The default value is “0”. You can input the value between “0”and “120”. The value “0” means

no detect.

 DNS IP address - If your ISP does not automatically assign DNS addresses to the router

during login, please click “Use the following DNS servers” check box and enter the IP

address in dotted-decimal notation of your ISP’s primary DNS server. If a secondary DNS

server address is available, enter it as well.

Click the Save button to save your settings.

4. If your ISP provides BigPond Cable (or Heart Beat Signal) connection, please select

BigPond Cable. And you should enter the following parameters (Figure 4-10):

-28-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

Figure 4-10 WAN – BigPond Cable

 User Name/Password - Enter the User Name and Password provided by your ISP. These

fields are case-sensitive.

 Auth Server - Enter the authenticating server IP address or host name.

 Auth Domain - Type in the domain suffix server name based on your location.

e.g.

NSW / ACT - nsw.bigpond.net.au

VIC / TAS / WA / SA / NT - vic.bigpond.net.au

QLD - qld.bigpond.net.au

 MTU Size - The normal MTU (Maximum Transmission Unit) value for most Ethernet networks

is 1500 Bytes. It is not recommended that you change the default MTU Size unless required

by your ISP.

 Connect on Demand - In this mode, the Internet connection can be terminated automatically

after a specified inactivity period (Max Idle Time) and be re-established when you attempt to

access the Internet again. If you want your Internet connection keeps active all the time,

please enter “0” in the Max Idle Time field.

to have elapsed before your Internet access disconnects.

Otherwise, enter the number of minutes you want

-29-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

 Connect Automatically - The connection can be re-established automatically when it was

down.

 Connect Manually - You can click the Connect/Disconnect button to connect/disconnect

immediately. This mode also supports the Max Idle Time function as Connect on Demand

mode. The Internet connection can be disconnected automatically after a specified inactivity

period and re-established when you attempt to access the Internet again.

Click the Connect button to connect immediately. Click the Disconnect button to disconnect

immediately.

Caution: Sometimes the connection cannot be terminated although you specify a time to Max Idle

Time because some applications are visiting the Internet continually in the background.

Click the Save button to save your settings.

5. If your ISP provides L2TP connection, please select L2TP/Russia L2TP option. And you

should enter the following parameters (Figure 4-11):

Figure 4-11 L2TP Settings

-30-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

 User Name/Password - Enter the User Name and Password provided by your ISP. These

fields are case-sensitive.

 Dynamic IP/ Static IP - Choose either as you are given by your ISP. Click the Connect button

to connect immediately. Click the Disconnect button to disconnect immediately.

 Connect on Demand - You can configure the router to disconnect from your Internet

connection after a specified period of inactivity (Max Idle Time). If your Internet connection has

been terminated due to inactivity, Connect on Demand enables the router to automatically

re-establish your connection as soon as you attempt to access the Internet again. If you wish to

activate Connect on Demand, click the radio button. If you want your Internet connection to

remain active at all times, enter 0 in the Max Idle Time field. Otherwise, enter the number of

minutes you want to have elapsed before your Internet connection terminates.

 Connect Automatically - Connect automatically after the router is disconnected. To use this

option, click the radio button.

 Connect Manually - You can configure the router to make it connect or disconnect manually.

After a specified period of inactivity (Max Idle Time), the router will disconnect from your

Internet connection, and you will not be able to re-establish your connection automatically as

soon as you attempt to access the Internet again. To use this option, click the radio button. If

you want your Internet connection to remain active at all times, enter "0" in the Max Idle Time

field. Otherwise, enter the number in minutes that you wish to have the Internet connecting

last unless a new link is requested.

Caution: Sometimes the connection cannot be disconnected although you specify a time to

Max Idle Time, since some applications is visiting the Internet continually in the background.

Click the Save button to save your settings.

6. If your ISP provides PPTP connection, please select PPTP/Russia PPTP option. And you

should enter the following parameters (Figure 4-12):

-31-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

Figure 4-12 PPTP Settings

 User Name/Password - Enter the User Name and Password provided by your ISP. These

fields are case-sensitive.

 Dynamic IP/ Static IP - Choose either as you are given by your ISP and enter the ISP’s IP

address or the domain name.

If you choose static IP and enter the domain name, you should also enter the DNS assigned

by your ISP. And click the Save button.

Click the Connect button to connect immediately. Click the Disconnect button to disconnect

immediately.

 Connect on Demand - You can configure the router to disconnect from your Internet

connection after a specified period of inactivity (Max Idle Time). If your Internet connection

has been terminated due to inactivity, Connect on Demand enables the router to

automatically re-establish your connection as soon as you attempt to access the Internet

again. If you wish to activate Connect on Demand, click the radio button. If you want your

-32-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router



Internet connection to remain active at all times, enter 0 in the Max Idle Time field. Otherwise,

enter the number of minutes you want to have elapsed before your Internet connection

terminates.

 Connect Automatically - Connect automatically after the router is disconnected. To use this

option, click the radio button.

 Connect Manually - You can configure the router to make it connect or disconnect manually.

After a specified period of inactivity (Max Idle Time), the router will disconnect from your

Internet connection, and you will not be able to re-establish your connection automatically as

soon as you attempt to access the Internet again. To use this option, click the radio button. If

you want your Internet connection to remain active at all times, enter "0" in the Max Idle Time

field. Otherwise, enter the number in minutes that you wish to have the Internet connecting

last unless a new link is requested.

Caution: Sometimes the connection cannot be disconnected although you specify a time to

Max Idle Time, since some applications are visiting the Internet continually in the background.

Click the Save button to save your settings.

Note:

If you don't know how to choose the appropriate connection type, click the Detect button to allow

the router to automatically search your Internet connection for servers and protocols. The

connection type will be reported when an active Internet service is successfully detected by the

router. This report is for your reference only. To make sure the connection type your ISP provides,

please refer to the ISP. The various types of Internet connections that the router can detect are as

follows:

 PPPoE - Connections which use PPPoE that requires a user name and password.

 Dynamic IP - Connections which use dynamic IP address assignment.

 Static IP - Connections which use static IP address assignment.

The router can not detect PPTP/L2TP/BigPond connections with your ISP. If your ISP uses one of these protocols, then you must configure your connection manually.

4.5.2 MAC Clone

Choose menu “Network→MAC Clone”, you can configure the MAC address of the WAN on the

screen below, Figure 4-13:

-33-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router



Figure 4-13 MAC Address Clone

Some ISPs require that you register the MAC Address of your adapter. Changes are rarely

needed here.

 WAN MAC Address - This field displays the current MAC address of the WAN port. If your

ISP requires you to register the MAC address, please enter the correct MAC address into

this field in XX-XX-XX-XX-XX-XX format(X is any hexadecimal digit).

 Your PC's MAC Address - This field displays the MAC address of the PC that is managing

the router. If the MAC address is required, you can click the Clone MAC Address To button

and this MAC address will fill in the WAN MAC Address field.

Click Restore Factory MAC to restore the MAC address of WAN port to the factory default

value.

Click the Save button to save your settings.

Note:

Only the PC on your LAN can use the MAC Address Clone function.

4.5.3 LAN

Choose menu “Network→LAN”, you can configure the IP parameters of the LAN on the screen

as below.

Figure 4-14 LAN

-34-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router



 MAC Address - The physical address of the router, as seen from the LAN. The value can't

be changed.

 IP Address - Enter the IP address of your router or reset it in dotted-decimal notation

(factory default: 192.168.0.1).

 Subnet Mask - An address code that determines the size of the network. Normally use

255.255.255.0 as the subnet mask.

 IGMP Proxy - If you want to watch TV through IGMP, please Enable it.

Note:

1. If you change the IP Address of LAN, you must use the new IP Address to login the router.

2. If the new LAN IP Address you set is not in the same subnet, the IP Address pool of the DHCP

server will change accordingly at the same time，while the Virtual Server and DMZ Host will

not take effect until they are re-configured.

4.6 Wireless

Figure 4-15 Wireless menu

There are five submenus under the Wireless menu (shown in Figure 4-15): Wireless Settings,

Wireless Security, Wireless MAC Filtering, Wireless Advanced and Wireless Statistics. Click

any of them, and you will be able to configure the corresponding function.

4.6.1 Wireless Settings

Choose menu “Wireless→Wireless Setting”, you can configure the basic settings for the

wireless network on this page.

-35-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

Figure 4-16 Wireless Settings

 Wireless Network Name - Enter a value of up to 32 characters. The same name of SSID

(Service Set Identification) must be assigned to all wireless devices in your network.

Considering your wireless network security, the default SSID is set to be TP-LINK_XXXX

(XXXX indicates the last unique four numbers of each router’s MAC address). This value is

case-sensitive. For example, TEST is NOT the same as test.

 Region - Select your region from

wireless function of the router can be used. It may be illegal to use the wireless function of

the router in a region other than one of those specified in this field. If your country or region

is not listed, please contact your local government agency for assistance.

When you select your local region from the pull-down list, click the Save button, then the

Note Dialog appears. Click OK.

the pull-down list. This field specifies the region where the

Note:



Limited by local law regulations, version for North America does not have region selection option.

Note Dialog

-36-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router



 Mode - Select the desired mode. The default setting is 11bgn mixed.

11bg mixed - Select if you are using both 802.11b and 802.11g wireless clients.

11bgn mixed - Select if you are using a mix of 802.11b, 11g, and 11n wireless clients.

Select the desired wireless mode. It is strongly recommended that you set the Mode to

802.11b&g&n, and all of 802.11b, 802.11g, and 802.11n wireless stations can connect to the

router.

 Channel width - Select any channel width from the pull-down list. The default setting is

automatic, which can adjust the channel width for your clients automatically.

Note:

If 11bg mixed is selected in the Mode field, the Channel Width selecting field will turn grey

and the value will become 20M, which is unable to be changed.

 Channel - This field determines which operating frequency will be used. The default channel

is set to Auto, so the AP will choose the best channel automatically. It is not necessary to

change the wireless channel unless you notice interference problems with another nearby

access point.

 Enable Wireless Router Radio - The wireless radio of this router can be enabled or disabled

to allow wireless stations access. Please use the WiFi button on this device to enable/disable

radio.

 Enable SSID Broadcast - When wireless clients survey the local area for wireless networks

to associate with, they will detect the SSID broadcast by the router. If you select the Enable

SSID Broadcast checkbox, the Wireless router will broadcast its name (SSID) on the air.

 Enable WDS Bridging - Check this box to enable WDS. With this function, the router can

bridge two or more WLANs. If this checkbox is selected, you will have to set the following

parameters as shown below. Make sure the following settings are correct

 SSID (to be bridged) - The SSID of the AP your router is going to connect to as a client.

You can also use the search function to select the SSID to join.

 BSSID (to be bridged) - The BSSID of the AP your router is going to connect to as a

client. You can also use the search function to select the BSSID to join.

-37-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

 Survey - Click this button, you can search the AP which runs in the current channel.

 WDS Mode - This field determines which WDS Mode will be used. It is not necessary to

change the WDS Mode unless you notice network communication problems with root

AP. If you select Auto, then router will choose the appropriate WDS Mode automatically.

 Key type - This option should be chosen according to the AP's security configuration.It

is recommended that the security type is the same as your AP's security type

 WEP Index - This option should be chosen if the key type is WEP(ASCII) or

WEP(HEX).It indicates the index of the WEP key.

 Auth Type - This option should be chosen if the key type is WEP(ASCII) or

WEP(HEX).It indicates the authorization type of the Root AP.

 Password - If the AP your router is going to connect needs password, you need to fill

the password in this blank.

4.6.2 Wireless Security

Choose menu “Wireless→Wireless Security”, you can configure the security settings of your

wireless network.

There are five wireless security modes supported by the router: WEP (Wired Equivalent Privacy),

WPA (Wi-Fi Protected Access), WPA2 (Wi-Fi Protected Access 2), WPA2-PSK (Pre-Shared Key),

WPA-PSK (Pre-Shared Key).

-38-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router



Figure 4-17 Wireless Security

 Disable Security - If you do not want to use wireless security, select this check box, but it’s

strongly recommended to choose one of the following modes to enable security.

 WPA/WPA2 – Personal (Recommended) - It’s the WPA/WPA2 authentication type based

on pre-shared passphrase.

• Version - you can choose the version of the WPA-PSK security on the drop-down list. The

default setting is Automatic, which can select

WPA2-PSK (Pre-shared key of WPA) automatically based on the wireless station's

capability and request.

• Encryption - When WPA-PSK or WPA is set as the Authentication Type, you can select

either Automatic, or TKIP or AES as Encryption.

Note:

If you check the WPA/WPA2 – Personal (Recommended) radio button and choose TKIP

encryption, you will find a notice in red as shown in Figure 4-18.

WPA-PSK (Pre-shared key of WPA) or

-39-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router



Figure 4-18

•

Wireless Password - You can enter ASCII characters between 8 and 63 characters or 8 to

64 Hexadecimal characters.

• Group Key Update Period - Specify the group key update interval in seconds. The value

should be 30 or above. Enter 0 to disable the update.

Be sure to click the Save button to save your settings on this page.

 WPA /WPA2 – Enterprise - It’s based on Radius Server.

• Version - you can choose the version of the WPA security on the pull-down list. The default

setting is Automatic, which can select

version 2) automatically based on the wireless station's capability and request.

• Encryption - You can select either Automatic, or TKIP or AES.

Note:

If you check the WPA/WPA2 radio button and choose TKIP encryption, you will find a

notice in red as shown in Figure 4-19.

WPA (Wi-Fi Protected Access) or WPA2 (WPA

•

Radius Server IP - Enter the IP address of the Radius Server.

• Radius Port - Enter the port that radius service used.

• Radius Password - Enter the password for the Radius Server.

Figure 4-19

-40-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

e -



• Group Key Update Period - Specify the group key update interval in seconds. The value

should be 30 or above. Enter 0 to disable the update.

 WEP - It is based on the IEEE 802.11 standard. If you select this check box, you will find a

notice in red as show in

•

Type - you can choose the type for the WEP security on the pull-down list. The default

setting is Automatic, which can select

automatically based on the wireless station's capability and request.

• WEP Key Format - Hexadecimal and ASCII formats are provided. Hexadecimal format

Figure 4-20.

Figure 4-20

Open System or Shared Key authentication type

stands for any combination of hexadecimal digits (0-9, a-f, A-F) in the specified length.

ASCII format stands for any combination of keyboard characters in the specified length.

• WEP Key- Select which of the four keys will be used and enter the matching WEP key that

you create. Make sure these values are identical on all wireless stations in your network.

• Key Typ

encryption. "Disabled" means this WEP key entry is invalid.

64-bit - You can enter 10 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is

not promoted) or 5 ASCII characters.

128-bit - You can enter 26 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is

not promoted) or 13 ASCII characters.

152-bit - You can enter 32 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is

not promoted) or 16 ASCII characters.

If you do not set the key, the wireless security function is still disabled even if you have

selected Shared Key as Authentication Type.

Note:

You can select the WEP key length (64-bit, or 128-bit, or 152-bit.) for

-41-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

4.6.3 Wireless MAC Filtering

Choose menu “Wireless→MAC Filtering”, you can control the wireless access by configuring the

Wireless MAC Address Filtering function, shown in

Figure 4-21.

Figure 4-21 Wireless MAC address Filtering

To filter wireless users by MAC Address, click Enable. The default setting is Disabled.

 MAC Address - The wireless station's MAC address that you want to filter.

 Status - The status of this entry either Enabled or Disabled.

 Description - A simple description of the wireless station.

To Add a Wireless MAC Address filtering entry, click the Add New… button. The "Add or Modify

Wireless MAC Address Filtering entry" page will appear, shown in

Figure 4-22:

Figure 4-22 Add or Modify Wireless MAC Address Filtering entry

-42-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

To add or modify a MAC Address Filtering entry, follow these instructions:

1. Enter the appropriate MAC Address into the MAC Address field. The format of the MAC

Address is XX-XX-XX-XX-XX-XX (X is any hexadecimal digit). For example:

00-0A-EB-00-07-8A.

2. Enter a simple description of the wireless station in the Description field. For example:

Wireless station A.

3. Status - Select Enabled or Disabled for this entry on the Status pull-down list.

4. Click the Save button to save this entry.

To modify or delete an existing entry:

1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the

Delete.

2. Modify the information.

3. Click the Save button.

Click the Enable All button to make all entries enabled

Click the Disabled All button to make all entries disabled.

Click the Delete All button to delete all entries

Click the Next button to go to the next page

Click the Previous button to return to the previous page.

For example: If you desire that the wireless station A with MAC address 00-0A-EB-00-07-8A and

the wireless station B with MAC address 00-0A-EB-00-23-11 are able to access the router, but all

the other wireless stations cannot access the router, you can configure the Wireless MAC Address

Filtering list by following these steps:

1. Click the Enable button to enable this function.

2. Select the radio button: Allow the stations specified by any enabled entries in the list to

access for Filtering Rules.

3. Delete all or disable all entries if there are any entries already.

4. Click the

00-0A-EB-00-23-11 in the MAC Address field, then enter wireless station A/B in the

Add New...

Description field, while select Enabled in the Status pull-down list. Finally, click the Save

button.

The filtering rules that configured should be similar to the following list:

button and enter the MAC address 00-0A-EB-00-07-8A

-43-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

4.6.4 Wireless Advanced

Choose menu “Wireless→Wireless Advanced”, you can configure the advanced settings of your

wireless network.

Figure 4-23 Wireless Advanced

 Transmit Power - Here you can specify the transmit power of router. You can select

High, Middle or Low which you would like. High is the default setting and is

recommended.

 Beacon Interval - Enter a value between 20-1000 milliseconds for Beacon Interval here.

The beacons are the packets sent by the router to synchronize a wireless network.

Beacon Interval value determines the time interval of the beacons. The default value is

100.

 RTS Threshold - Here you can specify the RTS (Request to Send) Threshold. If the

packet is larger than the specified RTS Threshold size, the router will send RTS frames

to a particular receiving station and negotiate the sending of a data frame. The default

value is 2346.

-44-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router



 Fragmentation Threshold - This value is the maximum size determining whether

packets will be fragmented. Setting the Fragmentation Threshold too low may result in

poor network performance since excessive packets. 2346 is the default setting and is

recommended.

 DTIM Interval - This value determines the interval of the Delivery Traffic Indication

Message (DTIM). A DTIM field is a countdown field informing clients of the next window

for listening to broadcast and multicast messages. When the router has buffered

broadcast or multicast messages for associated clients, it sends the next DTIM with a

DTIM Interval value. You can specify the value between 1-255 Beacon Intervals. The

default value is 1, which indicates the DTIM Interval is the same as Beacon Interval.

 Enable WMM - WMM function can guarantee the packets with high- priority messages

being transmitted preferentially. It is strongly recommended enabled.

 Enable Short GI - This function is recommended for it will increase the data capacity by

reducing the guard interval time

 Enabled AP Isolation - This function can isolate wireless stations on your network from

each other. Wireless devices will be able to communicate with the router but not with

each other. To use this function, check this box. AP Isolation is disabled by default.

Note:

If you are not familiar with the setting items in this page, it's strongly recommended to keep

the provided default values; otherwise it may result in lower wireless network performance.

4.6.5 Wireless Statistics

Choose menu “Wireless→Wireless Statistics”, you can see the MAC Address, Current Status,

Received Packets and Sent Packets for each connected wireless station.

 MAC Address - The connected wireless station's MAC address

Figure 4-24 The router attached wireless stations

-45-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router



 Current Status - The connected wireless station's running status, one of STA-AUTH /

STA-ASSOC / STA-JOINED / WPA / WPA-PSK / WPA2 / WPA2-PSK / AP-UP / AP-DOWN /

Disconnected

 Received Packets - Packets received by the station

 Sent Packets - Packets sent by the station

You cannot change any of the values on this page. To update this page and to show the current

connected wireless stations, click on the Refresh button.

If the numbers of connected wireless stations go beyond one page, click the Next button to go to

the next page and click the Previous button to return the previous page.

Note:

This page will be refreshed automatically every 5 seconds.

4.7 DHCP

Figure 4-25 The DHCP menu

There are three submenus under the DHCP menu (shown in Figure 4-25): DHCP Settings, DHCP

Clients List and Address Reservation. Click any of them, and you will be able to configure the

corresponding function.

4.7.1 DHCP Settings

Choose menu “DHCP→DHCP Settings”, you can configure the DHCP Server on the page

(shown in

Protocol) server, which provides the TCP/IP configuration for all the PC(s) that are connected to

the router on the LAN.

Figure 4-26).The router is set up by default as a DHCP (Dynamic Host Configuration

-46-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router



Figure 4-26 DHCP Settings

 DHCP Server - Enable or Disable the DHCP server. If you disable the Server, you must

have another DHCP server within your network or else you must configure the computer

manually.

 Start IP Address - Specify an IP address for the DHCP Server to start with when assigning

IP addresses. 192.168.0.100 is the default start address.

 End IP Address - Specify an IP address for the DHCP Server to end with when assigning IP

addresses. 192.168.0.199 is the default end address.

 Address Lease Time - The Address Lease Time is the amount of time a network user will

be allowed connection to the router with their current dynamic IP Address. Enter the amount

of time in minutes and the user will be "leased" this dynamic IP Address. After the time is up,

the user will be automatically assigned a new dynamic IP address. The range of the time is 1

~ 2880 minutes. The default value is 120 minutes.

 Default Gateway - (Optional.) Suggest to input the IP address of the LAN port of the router,

default value is 192.168.0.1

 Default Domain - (Optional.) Input the domain name of your network.

 Primary DNS - (Optional.) Input the DNS IP address provided by your ISP. Or consult your

ISP.

 Secondary DNS - (Optional.) Input the IP address of another DNS server if your ISP

provides two DNS servers.

Note:

To use the DHCP server function of the router, you must configure all computers on the LAN as "Obtain an IP Address automatically" mode.

-47-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

4.7.2 DHCP Clients List

Choose menu “DHCP→DHCP Clients List”, you can view the information about the clients

attached to the router in the next screen (shown in

Figure 4-27).

Figure 4-27 DHCP Clients List

 ID - The index of the DHCP Client

 Client Name - The name of the DHCP client

 MAC Address - The MAC address of the DHCP client

 Assigned IP - The IP address that the router has allocated to the DHCP client.

 Lease Time - The time of the DHCP client leased. After the dynamic IP address has expired,

a new dynamic IP address will be automatically assigned to the user.

You cannot change any of the values on this page. To update this page and to show the current

attached devices, click the Refresh button.

4.7.3 Address Reservation

Choose menu “DHCP→Address Reservation”, you can view and add a reserved addresses for

clients via the next screen (shown in

PC on the LAN, that PC will always receive the same IP address each time when it accesses the

DHCP server. Reserved IP addresses should be assigned to the servers that require permanent

IP settings.

Figure 4-28).When you specify a reserved IP address for a

 MAC Address - The MAC address of the PC for which you want to reserve IP address.

Figure 4-28 Address Reservation

-48-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

 Assigned IP Address - The IP address of the router reserved.

 Status - The status of this entry either Enabled or Disabled.

To Reserve IP addresses:

1. Click the Add New … button. (Pop-up

Figure 4-29)

2. Enter the MAC address (in XX-XX-XX-XX-XX-XX format.) and IP address in dotted-decimal

notation of the computer you wish to add.

3. Click the Save button when finished.

Figure 4-29 Add or Modify an Address Reservation Entry

To modify or delete an existing entry:

1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the

Delete.

2. Modify the information.

3. Click the Save button.

Click the Enable/ Disabled All button to make all entries enabled/disabled

Click the Delete All button to delete all entries

Click the Next button to go to the next page and Click the Previous button to return the previous

page.

4.8 Forwarding

Figure 4-30 The Forwarding menu

-49-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

There are four submenus under the Forwarding menu (shown in Figure 4-30): Virtual Servers,

Port Triggering, DMZ and UPnP. Click any of them, and you will be able to configure the

corresponding function.

4.8.1 Virtual Servers

Choose menu “Forwarding→Virtual Servers”, you can view and add virtual servers in the next

screen (shown in

Figure 4-31). Virtual servers can be used for setting up public services on your

LAN, such as DNS, Email and FTP. A virtual server is defined as a service port, and all requests

from the Internet to this service port will be redirected to the computer specified by the server IP.

Any PC that was used for a virtual server must have a static or reserved IP Address because its

IP Address may be changed when using the DHCP function.

Figure 4-31 Virtual Servers

 Service Port - The numbers of External Ports. You can type a service port or a range of

service ports (in XXX – YYY format, XXX is the start port number, YYY is the end port

number).

 Internal Port - The Internal Service Port number of the PC running the service application.

You can leave it blank if the Internal Port is the same as the Service Port, or enter a

specific port number when Service Port is a single one.

 IP Address - The IP Address of the PC providing the service application.

 Protocol - The protocol used for this application, either TCP, UDP, or All (all protocols

supported by the router).

 Status - The status of this entry either Enabled or Disabled.

To set up a virtual server entry:

1. Click the Add New… button. (pop-up

Figure 4-32)

2. Select the service you want to use from the Common Service Port list. If the Common

Service Port list does not have the service that you want to use, type the number of the

service port or service port range in the Service Port box.

3. Type the IP Address of the computer in the IP Address box.

-50-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router



4. Select the protocol used for this application, either TCP or UDP, or All.

5. Select the Enable check box to enable the virtual server.

6. Click the Save button.

Figure 4-32 Add or Modify a Virtual Server Entry

Note:

If your computer or server has more than one type of available service, please select another

service, and enter the same IP Address for that computer or server.

To modify or delete an existing entry:

1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the

Delete.

2. Modify the information.

3. Click the Save button.

Click the Enable/ Disabled All button to make all entries enabled/ disabled.

Click the Delete All button to delete all entries.

Click the Next button to go to the next page and click the Previous button to return the previous

page.

Note:

If you set the service port of the virtual server as 80, you must set the Web management port on

System Tools –> Remote Management page to be any other value except 80 such as 8080.

Otherwise there will be a conflict to disable the virtual server.

4.8.2 Port Triggering

Choose menu “Forwarding→Port Triggering”, you can view and add port triggering in the next

screen (shown in

games, video conferencing, Internet calling and so on. These applications cannot work with a

Figure 4-33). Some applications require multiple connections, like Internet

-51-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

pure NAT router. Port Triggering is used for some of these applications that can work with an NAT

router.

Figure 4-33 Port Triggering

Once the router is configured, the operation is as follows:

1. A local host makes an outgoing connection using a destination port number defined in the

Trigger Port field.

2. The router records this connection, opens the incoming port or ports associated with this

entry in the Port Triggering table, and associates them with the local host.

3. When necessary the external host will be able to connect to the local host using one of the

ports defined in the Incoming Ports field.

 Trigger Port - The port for outgoing traffic. An outgoing connection using this port will

"Trigger" this rule.

 Trigger Protocol - The protocol used for Trigger Ports, either TCP, UDP, or All (all

protocols supported by the router).

 Incoming Ports Range - The port or port range used by the remote system when it

responds to the outgoing request. A response using one of these ports will be forwarded to

the PC that triggered this rule. You can input at most 5 groups of ports (or port section).

Every group of ports must be set apart with ",". For example, 2000-2038, 2050-2051, 2085,

3010-3030.

 Incoming Protocol - The protocol used for Incoming Ports Range, either TCP or UDP, or

ALL (all protocols supported by the router).

 Status - The status of this entry either Enabled or Disabled.

To add a new rule, follow the steps below.

1. Click the Add New… button, the next screen will pop-up as shown in Figure 4-34.

2. Select a common application from the Common Applications drop-down list, then the

Trigger Port field and the Incoming Ports field will be automatically filled. If the Common

-52-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router



Applications do not have the application you need, enter the Trigger Port and the

Incoming Ports manually.

3. Select the protocol used for Trigger Port from the Trigger Protocol drop-down list, either

TCP, UDP, or All.

4. Select the protocol used for Incoming Ports from the Incoming Protocol drop-down list,

either TCP or UDP, or All.

5. Select Enable in Status field.

6. Click the Save button to save the new rule.

Figure 4-34 Add or Modify a Triggering Entry

To modify or delete an existing entry:

1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the

Delete.

2. Modify the information.

3. Click the Save button.

Click the Enable All button to make all entries enabled

Click the Disabled All button to make all entries disabled.

Click the Delete All button to delete all entries

Note:

1. When the trigger connection is released, the according opening ports will be closed.

2. Each rule allowed to be used only by one host on LAN synchronously. The trigger connection

of other hosts on LAN will be refused.

3. Incoming Port Range cannot overlap each other.

-53-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router



4.8.3 DMZ

Choose menu “Forwarding→DMZ”, you can view and configure DMZ host in the screen (shown

Figure 4-35).The DMZ host feature allows one local host to be exposed to the Internet for a

special-purpose service such as Internet gaming or videoconferencing. DMZ host forwards all the

ports at the same time. Any PC whose port is being forwarded must have its DHCP client function

disabled and should have a new static IP Address assigned to it because its IP Address may be

changed when using the DHCP function.

Figure 4-35 DMZ

To assign a computer or server to be a DMZ server:

1. Click the Enable radio button

2. Enter the local host IP Address in the DMZ Host IP Address field

3. Click the Save button.

Note:

After you set the DMZ host, the firewall related to the host will not work.

4.8.4 UPnP

Choose menu “Forwarding→UPnP”, you can view the information about UPnP(Universal Plug

and Play) in the screen (shown in

Internet computers, to access the local host resources or devices as needed. UPnP devices can

be automatically discovered by the UPnP service application on the LAN.

Figure 4-36).The UPnP feature allows the devices, such as

-54-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

Figure 4-36 UPnP Setting

 Current UPnP Status - UPnP can be enabled or disabled by clicking the Enable or

Disable button. As allowing this may present a risk to security, this feature is enabled by

default.

 Current UPnP Settings List - This table displays the current UPnP information.

• App Description -The description provided by the application in the UPnP request

• External Port - External port, which the router opened for the application.

• Protocol - Shows which type of protocol is opened.

• Internal Port - Internal port, which the router opened for local host.

• IP Address - The UPnP device that is currently accessing the router.

• Status - The port’s status displayed here. “Enabled” means that port is still active.

Otherwise, the port is inactive.

Click Refresh to update the Current UPnP Settings List.

4.9 Security

Figure 4-37 The Security menu

There are four submenus under the Security menu as shown in Figure 4-37: Basic Security,

Advanced Security, Local Management and Remote Management. Click any of them, and you

will be able to configure the corresponding function.

-55-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

4.9.1 Basic Security

Choose menu “Security → Basic Security”, you can configure the basic security in the screen

as shown in Figure 4-37.

Figure 4-38 Basic Security

 Firewall - A firewall protects your network from the outside world. Here you can enable or

disable the router’s firewall.

 SPI Firewall - SPI (Stateful Packet Inspection, also known as dynamic packet filtering)

helps to prevent cyber attacks by tracking more state per session. It validates that the

traffic passing through the session conforms to the protocol. SPI Firewall is enabled by

factory default. If you want all the computers on the LAN exposed to the outside world,

you can disable it.

 VPN - VPN Passthrough must be enabled if you want to allow VPN tunnels using IPSec,

PPTP, or L2TP protocols to pass through the router’s firewall.

 PPTP Passthrough - Point-to-Point Tunneling Protocol (PPTP) allows the Point-to-Point

Protocol (PPP) to be tunneled through an IP network. To allow PPTP tunnels to pass

through the router, keep the default, Enabled.

-56-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

 L2TP Passthrough - Layer 2 Tunneling Protocol (L2TP) is the method used to enable

Point-to-Point sessions via the Internet on the Layer 2 level. To allow L2TP tunnels to

pass through the router, keep the default, Enabled.

 IPSec Passthrough - Internet Protocol Security (IPSec) is a suite of protocols for

ensuring private, secure communications over Internet Protocol (IP) networks, through

the use of cryptographic security services. To allow IPSec tunnels to pass through the

router, keep the default, Enabled.

 ALG - It is recommended to enable Application Layer Gateway (ALG) because ALG allows

customized Network Address Translation (NAT) traversal filters to be plugged into the

gateway to support address and port translation for certain application layer "control/data"

protocols such as FTP, TFTP, H323 etc.

 FTP ALG - To allow FTP clients and servers to transfer data across NAT, keep the

default Enable.

 TFTP ALG - To allow TFTP clients and servers to transfer data across NAT, keep the

default Enable.

 H323 ALG - To allow Microsoft NetMeeting clients to communicate across NAT, keep

the default Enable.

 RTSP ALG - To allow some media player clients to communicate with some streaming

media servers across NAT, click Enable.

Click the Save button to save your settings.

4.9.2 Advanced Security

Choose menu “Security → Advanced Security”, you can protect the router from being attacked

by TCP-SYN Flood, UDP Flood and ICMP-Flood in the screen as shown in

Figure 4-39.

-57-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router



Figure 4-39 Advanced Security

 Packets Statistics Interval (5~60) - The default value is 10. Select a value between 5 and

60 seconds from the drop-down list. The Packets Statistics Interval value indicates the time

section of the packets statistics. The result of the statistics is used for analysis by SYN Flood,

UDP Flood and ICMP-Flood.

 DoS Protection - Denial of Service protection. Check the Enable or Disable button to

enable or disable the DoS protection function. Only when it is enabled, will the flood filters be

enabled.

Note:

Dos Protection will take effect only when the Traffic Statistics in “System Tool → Traffic

Statistics” is enabled.

 Enable ICMP-FLOOD Attack Filtering - Enable or Disable the ICMP-FLOOD Attack

Filtering.

 ICMP-FLOOD Packets Threshold (5~3600) - The default value is 50. Enter a value

between 5 ~ 3600. When the current ICMP-FLOOD Packets number is beyond the set value,

the router will startup the blocking function immediately.

 Enable UDP-FLOOD Filtering - Enable or Disable the UDP-FLOOD Filtering.

-58-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

 UDP-FLOOD Packets Threshold (5~3600) - The default value is 500. Enter a value

between 5 ~ 3600. When the current UPD-FLOOD Packets number is beyond the set value,

the router will startup the blocking function immediately.

 Enable TCP-SYN-FLOOD Attack Filtering - Enable or Disable the TCP-SYN-FLOOD

Attack Filtering.

 TCP-SYN-FLOOD Packets Threshold (5~3600) - The default value is 50. Enter a value

between 5 ~ 3600. When the current TCP-SYN-FLOOD Packets numbers is beyond the set

value, the router will startup the blocking function immediately.

 Ignore Ping Packet From WAN Port - Enable or Disable Ignore Ping Packet From WAN

Port. The default setting is disabled. If enabled, the ping packet from the Internet cannot

access the router.

 Forbid Ping Packet From LAN Port - Enable or Disable Forbid Ping Packet From LAN Port.

The default setting is disabled. If enabled, the ping packet from LAN cannot access the router.

This function can be used to defend against some viruses.

Click the Save button to save the settings.

Click the Blocked DoS Host List button to display the DoS host table by blocking.

4.9.3 Local Management

Choose menu “Security → Local Management”, you can configure the management rule in the

screen as shown in Figure 4-40. The management feature allows you to deny computers in LAN

from accessing the router.

By default, the radio button “All the PCs on the LAN are allowed to access the Router's

Web-Based Utility” is checked. If you want to allow PCs with specific MAC Addresses to access

Figure 4-40 Local Management

-59-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router



the Setup page of the router's Web-Based Utility locally from inside the network, check the radio

button “Only the PCs listed can browse the built-in web pages to perform Administrator

tasks”, and then enter each MAC Address in a separate field. The format for the MAC Address is

XX-XX-XX-XX-XX-XX (X is any hexadecimal digit). Only the PCs with MAC address listed can

use the password to browse the built-in web pages to perform Administrator tasks while all the

others will be blocked.

After click the Add button, your PC's MAC Address will be placed in the list above.

Click the Save button to save your settings.

Note:

If your PC is blocked but you want to access the router again, use a pin to press and hold the

Reset Button (hole) on the back panel for about 5 seconds to reset the router’s factory defaults

on the router’s Web-Based Utility.

4.9.4 Remote Management

Choose menu “Security → Remote Management”, you can configure the Remote Management

function in the screen as shown in Figure 4-41. This feature allows you to manage your router

from a remote location via the Internet.

Figure 4-41 Remote Management

Web Management Port - Web browser access normally uses the standard HTTP service



port 80. This router's default remote management web port number is 80. For greater security,

you can change the remote management web port to a custom port by entering that number

in the box provided. Choose a number between 1 and 65534 but do not use the number of

any common service port.

 Remote Management IP Address - This is the current address you will use when accessing

your router from the Internet. This function is disabled when the IP address is set to the

default value of 0.0.0.0. To enable this function change 0.0.0.0 to a valid IP address. If set to

255.255.255.255, then all the hosts can access the router from internet.

Note:

1. To access the router, you should type your router's WAN IP address into your browser's

address (in IE) or Location (in Navigator) box, followed by a colon and the custom port

-60-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

→

number. For example, if your router's WAN address is 202.96.12.8, and the port number

used is 8080, please enter http://202.96.12.8:8080 in your browser. Later, you may be

asked for the router's password. After successfully entering the username and password,

you will be able to access the router's web-based utility.

2. Be sure to change the router's default password to a very secure password.

4.10 Parental Control

Choose menu “Parental Control”, and you can configure the parental control in the screen as

shown in Figure 4-42. The Parental Control function can be used to control the internet activities

of the child, limit the child to access certain websites and restrict the time of surfing.

Figure 4-42 Parental Control Settings

Parental Control - Check Enable if you want this function to take effect, otherwise check



Disable.

 MAC Address of Parental PC - In this field, enter the MAC address of the controlling PC, or

you can make use of the Copy To Above button below.

 MAC Address of Your PC - This field displays the MAC address of the PC that is managing

this router. If the MAC Address of your adapter is registered, you can click the Copy To

Above button to fill this address to the MAC Address of Parental PC field above.

 Website Description - Description of the allowed website for the PC controlled.

 Schedule - The time period allowed for the PC controlled to access the Internet. For detailed

information, please go to “Access Control

 Modify - Here you can edit or delete an existing entry.

Schedule”.

To add a new entry, please follow the steps below.

-61-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

1. Click the Add New… button and the next screen will pop-up as shown in Figure 4-43.

2. Enter the MAC address of the PC (e.g. 00-11-22-33-44-AA) you’d like to control in the MAC

Address of Child PC field. Or you can choose the MAC address from the All Address in

Current LAN drop-down list.

3. Give a description (e.g. Allow Google) for the website allowed to be accessed in the Website

Description field.

4. Enter the allowed domain name of the website, either the full name or the keywords (e.g.

TP-LINK) in the Allowed Domain Name field. Any domain name with keywords in it

(http://www.tp-link.com) will be allowed.

5. Select from the Effective Time drop-down list the schedule (e.g. Schedule_1) you want the

entry to take effect. If there are not suitable schedules for you, click the Schedule in red

below to go to the Advance Schedule Settings page and create the schedule you need.

6. In the Status field, you can select Enabled or Disabled to enable or disable your entry.

7. Click the Save button.

Click the Enable All button to enable all the rules in the list.

Click the Disable All button to disable all the rules in the list.

Click the Delete All button to delete all the entries in the table.

Click the Next button to go to the next page, or click the Previous button return to the previous

page.

Figure 4-43 Add or Modify Parental Control Entry

-62-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

For example: If you desire that the child PC with MAC address 00-11-22-33-44-AA can access

www.google.com on Saturday only while the parent PC with MAC address 00-11-22-33-44-BB is

without any restriction, you should follow the settings below.

1. Click “Parental Control” menu on the left to enter the Parental Control Settings page.

Check Enable and enter the MAC address 00-11-22-33-44-BB in the MAC Address of

Parental PC field.

2. Click “Access Control → Schedule” on the left to enter the Schedule Settings page.

Click Add New... button to create a new schedule with Schedule Description is

Schedule_1, Day is Sat and Time is all day-24 hours.

3. Click “Parental Control” menu on the left to go back to the Add or Modify Parental

Control Entry page:

 Click Add New... button.

 Enter 00-11-22-33-44-AA in the MAC Address of Child PC field.

 Enter “Allow Google” in the Website Description field.

 Enter “www.google.com” in the Allowed Domain Name field.

 Select “Schedule_1” you create just now from the Effective Time drop-down list.

 In Status field, select Enable.

4. Click Save to complete the settings.

Then you will go back to the Parental Control Settings page and see the following list, as

shown in Figure 4-44.

Figure 4-44 Parental Control Settings

4.11 Access Control

Figure 4-45 Access Control

There are four submenus under the Access Control menu as shown in Figure 4-45: Rule, Host,

Target and Schedule. Click any of them, and you will be able to configure the corresponding

function.

-63-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

4.11.1 Rule

Choose menu “Access Control → Rule”, you can view and set Access Control rules in the

screen as shown in Figure 4-46.

Figure 4-46 Access Control Rule Management



Enable Internet Access Control - Select the check box to enable the Internet Access

Control function, so the Default Filter Policy can take effect.

 Rule Name - Here displays the name of the rule and this name is unique.

 Host - Here displays the host selected in the corresponding rule.

 Target - Here displays the target selected in the corresponding rule.

 Schedule - Here displays the schedule selected in the corresponding rule.

 Action - Here displays the action the router takes to deal with the packets. It could be Allow

or Deny. Allow means that the router permits the packets to go through the router. Deny

means that the router rejects the packets to go through the router.

 Status - This field displays the status of the rule. Enabled means the rule will take effect,

Disabled means the rule will not take effect.

 Modify - Here you can edit or delete an existing rule.

To add a new rule, please follow the steps below.

1. Click the Add New… button and the next screen will pop-up as shown in Figure 4-47.

-64-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

→

2. Give a name (e.g. Rule_1) for the rule in the Rule Name field.

3. Select a host from the Host drop-down list or choose “Click Here To Add New Host List”.

4. Select a target from the Target drop-sown list or choose “Click Here To Add New Target

List”.

5. Select a schedule from the Schedule drop-down list or choose “Click Here To Add New

Schedule”.

6. In the Action field, select Deny or Allow.

7. In the Status field, select Enabled or Disabled to enable or disable your entry.

8. Click the Save button.

Click the Enable All button to enable all the rules in the list.

Click the Disable All button to disable all the rules in the list.

Click the Delete All button to delete all the entries in the table.

You can change the entry’s order as desired. Fore entries are before hind entries. Enter the ID

number in the first box you want to move and another ID number in second box you want to move

to, and then click the Move button to change the entry’s order.

Click the Next button to go to the next page, or click the Previous button return to the previous

page.

Figure 4-47 Add or Modify Internet Access Control Entry

For example: If you desire to allow the host with MAC address 00-11-22-33-44-AA to access

www.google.com only from 18:00 to 20:00 on Saturday and Sunday, and forbid other hosts in

the LAN to access the Internet, you should follow the settings below:

1. Click “Access Control

with the Host Description is Host_1 and MAC Address is 00-11-22-33-44-AA.

2. Click “Access Control

entry with the Target Description is Target_1 and Domain Name is www.google.com.

3. Click “Access Control

new entry with the Schedule Description is Schedule_1, Day is Sat and Sun, Start Time is

1800 and Stop Time is 2000.

Host” in the left to enter the Host Settings page. Add a new entry

Target” in the left to enter the Target Settings page. Add a new

Schedule” in the left to enter the Schedule Settings page. Add a

-65-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

4. Click “Access Control → Rule” in the left to return to the Access Control Rule Management

page. Select “Enable Internet Access Control” and choose "Allow the packets specified by

any enabled access control policy to pass through the Router".

5. Click Add New... button to add a new rule as follows:

 In Rule Name field, create a name for the rule. Note that this name should be unique,

for example Rule_1.

 In Host field, select Host_1.

 In Target field, select Target_1.

 In Schedule field, select Schedule_1.

 In Action field, select Allow.

 In Status field, select Enable.

 Click Save to complete the settings.

Then you will go back to the Access Control Rule Management page and see the following list.

4.11.2 Host

Choose menu “Access Control → Host”, you can view and set a Host list in the screen as

shown in Figure 4-48. The host list is necessary for the Access Control Rule.

Figure 4-48 Host Settings



Host Description - Here displays the description of the host and this description is unique.

 Information - Here displays the information about the host. It can be IP or MAC.

 Modify - To modify or delete an existing entry.

To add a new entry, please follow the steps below.

1. Click the Add New… button.

2. In the Mode field, select IP Address or MAC Address.

 If you select IP Address, the screen shown is Figure 4-49.

-66-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

1) In Host Description field, create a unique description for the host (e.g. Host_1).

2) In LAN IP Address field, enter the IP address.

 If you select MAC Address, the screen shown is Figure 4-50.

1) In Host Description field, create a unique description for the host (e.g. Host_1).

2) In MAC Address field, enter the MAC address.

3. Click the Save button to complete the settings.

Click the Delete All button to delete all the entries in the table.

Click the Next button to go to the next page, or click the Previous button return to the previous page.

Figure 4-49 Add or Modify a Host Entry

Figure 4-50 Add or Modify a Host Entry

For example: If you desire to restrict the internet activities of host with MAC address

00-11-22-33-44-AA, you should first follow the settings below:

1. Click Add New... button in Figure 4-48 to enter the Add or Modify a Host Entry page.

2. In Mode field, select MAC Address from the drop-down list.

3. In Host Description field, create a unique description for the host (e.g. Host_1).

4. In MAC Address field, enter 00-11-22-33-44-AA.

5. Click Save to complete the settings.

Then you will go back to the Host Settings page and see the following list.

-67-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

4.11.3 Target

Choose menu “Access Control → Target”, you can view and set a Target list in the screen as

shown in Figure 4-51. The target list is necessary for the Access Control Rule.

Figure 4-51 Target Settings

Target Description - Here displays the description about the target and this description is



unique.

 Information - The target can be IP address, port, or domain name.

 Modify - To modify or delete an existing entry.

To add a new entry, please follow the steps below.

1. Click the Add New… button.

2. In Mode field, select IP Address or Domain Name.

 If you select IP Address, the screen shown is Figure 4-52.

1) In Target Description field, create a unique description for the target (e.g.

Target_1).

2) In IP Address field, enter the IP address of the target.

3) Select a common service from Common Service Port drop-down list, so that the

Target Port will be automatically filled. If the Common Service Port drop-down list

doesn’t have the service you want, specify the Target Port manually.

4) In Protocol field, select TCP, UDP, ICMP or ALL.

 If you select Domain Name, the screen shown is Figure 4-53.

1) In Target Description field, create a unique description for the target (e.g.

Target_1).

2) In Domain Name field, enter the domain name, either the full name or the keywords

(for example google) in the blank. Any domain name with keywords in it

(www.google.com, www.google.cn) will be blocked or allowed. You can enter 4

domain names.

-68-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

3. Click the Save button.

Click the Delete All button to delete all the entries in the table.

Click the Next button to go to the next page, or click the Previous button return to the previous page.

Figure 4-52 Add or Modify an Access Target Entry

Figure 4-53 Add or Modify an Access Target Entry

For example: If you desire to restrict the internet activities of host with MAC address

00-11-22-33-44-AA in the LAN to access www.google.com only, you should first follow the

settings below:

1. Click Add New… button in Figure 4-51 to enter the Add or Modify an Access Target

Entry page.

2. In Mode field, select Domain Name from the drop-down list.

3. In Target Description field, create a unique description for the target (e.g. Target_1).

4. In Domain Name field, enter www.google.com.

-69-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

5. Click Save to complete the settings.

Then you will go back to the Target Settings page and see the following list.

4.11.4 Schedule

Choose menu “Access Control → Schedule”, you can view and set a Schedule list in the next

screen as shown in Figure 4-54. The Schedule list is necessary for the Access Control Rule.

Figure 4-54 Schedule Settings



Schedule Description - Here displays the description of the schedule and this description is

unique.

 Day - Here displays the day(s) in a week.

 Time - Here displays the time period in a day.

 Modify - Here you can edit or delete an existing schedule.

To add a new schedule, follow the steps below.

1. Click Add New... button shown in Figure 4-54 and the next screen will pop-up as shown in

Figure 4-55.

2. In Schedule Description field, create a unique description for the schedule (e.g.

Schedule_1).

3. In Day field, select the day or days you need.

4. In Time field, you can select all day-24 hours or you may enter the Start Time and Stop Time

in the corresponding field.

5. Click Save to complete the settings.

Click the Delete All button to delete all the entries in the table.

Click the Next button to go to the next page, or click the Previous button return to the previous

page.

-70-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

Figure 4-55 Advanced Schedule Settings

For example: If you desire to restrict the internet activities of host with MAC address

00-11-22-33-44-AA to access www.google.com only from 18:00 to 20:00 on Saturday and

Sunday, you should first follow the settings below:

1. Click Add New... button shown in Figure 4-54 to enter the Advanced Schedule Settings

page.

2. In Schedule Description field, create a unique description for the schedule (e.g.

Schedule_1).

3. In Day field, check the Select Days radio button and then select Sat and Sun.

4. In Time field, enter 1800 in Start Time field and 2000 in Stop Time field.

5. Click Save to complete the settings.

Then you will go back to the Schedule Settings page and see the following list.

4.12 Advanced Routing

Figure 4-56 Advanced Routing

There are two submenus under the Advanced Routing menu as shown in Figure 4-56: Static

Routing List and System Routing Table. Click any of them, and you will be able to configure the

corresponding function.

-71-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

4.12.1 Static Routing List

Choose menu “Advanced Routing → Static Routing List”, and then you can configure the

static route in the next screen (shown in Figure 4-57). A static route is a pre-determined path that

network information must travel to reach a specific host or network.

Figure 4-57 Static Routing

To add static routing entries:

1. Click Add New… shown in Figure 4-57, you will see the following screen.

Figure 4-58 Add or Modify a Static Route Entry

2. Enter the following data:

 Destination Network - The Destination Network is the address of the network or host that

you want to assign to a static route.

 Subnet Mask - The Subnet Mask determines which portion of an IP Address is the

network portion, and which portion is the host portion.

 Default Gateway - This is the IP Address of the gateway device that allows for contact

between the router and the network or host.

3. Select Enabled or Disabled for this entry on the Status drop-down list.

4. Click the Save button to make the entry take effect.

-72-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

Other configurations for the entries:

Click the Delete button to delete the entry.

Click the Enable All button to enable all the entries.

Click the Disable All button to disable all the entries.

Click the Delete All button to delete all the entries.

Click the Previous button to view the information in the previous screen, click the Next button to

view the information in the next screen.

4.12.2 System Routing Table

Choose menu “Advanced Routing → System Routing Table”, and then you can view the

System Routing Table in the next screen (shown in

Figure 4-59). System routing table views all of

the valid route entries in use. The Destination IP address, Subnet Mask, Gateway, and Interface

will be displayed for each entry.

Figure 4-59 System Routing Table

 Destination Network - The Destination Network is the address of the network or host to

which the static route is assigned.

 Subnet Mask - The Subnet Mask determines which portion of an IP address is the network

portion, and which portion is the host portion.

 Gateway - This is the IP address of the gateway device that allows for contact between the

router and the network or host.

 Interface - This interface tells you either the Destination IP Address is on the LAN & WLAN

(internal wired and wireless networks), or on the WAN (Internet).

-73-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

4.13 Bandwidth Control

Figure 4-60

There are two submenus under the Bandwidth Control menu as shown in Figure 4-60. Click any

of them, and you will be able to configure the corresponding function. The detailed explanations

for each submenu are provided below.

4.13.1 Control Settings

Choose menu “Bandwidth Control → Control Settings”, you can configure the Egress

Bandwidth and Ingress Bandwidth in the next screen. Their values you configure should be less

than 100000Kbps. For optimal control of the bandwidth, please select the right Line Type and ask

your ISP for the total bandwidth of the egress and ingress.

Figure 4-61 Bandwidth Control Settings

 Enable Bandwidth Control - Check this box so that the Bandwidth Control settings can

take effect.

 Line Type - Select the right type for you network connection. If you don’t know how to

choose, please ask your ISP for the information.

 Egress Bandwidth - The upload speed through the WAN port

 Ingress Bandwidth - The download speed through the WAN port.

4.13.2 Rule List

Choose menu “Bandwidth Control → Rule List”, you can view and configure the Bandwidth

Control rules in the screen below.

-74-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

Figure 4-62 Bandwidth Control Rules List

 Description - This is the information about the rules such as address range.

 Egress bandwidth - This field displays the max and mix upload bandwidth through the WAN

port, the default is 0.

 Ingress bandwidth - This field displays the max and mix download bandwidth through the

WAN port, the default is 0.

 Enable - This displays the status of the rule.

 Modify - Click Modify to edit the rule. Click Delete to delete the rule.

To add/modify a Bandwidth Control rule, follow the steps below.

Step 1: Click Add New… shown in Figure 4-62, you will see a new screen shown in Figure 4-63.

Step 2: Enter the information like the screen shown below.

Figure 4-63 Bandwidth Control Rule Settings

Step 3: Click the Save button.

4.14 IP & MAC Binding

Figure 4-64 the IP & MAC Binding menu

-75-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

There are two submenus under the IP &MAC Binding menu (shown in Figure 4-64): Binding Settings and ARP List. Click any of them, and you will be able to scan or configure the

corresponding function. The detailed explanations for each submenu are provided below.

4.14.1 Binding Settings

This page displays the IP & MAC Binding table; you can operate it in accord with your desire. (shown in

Figure 4-65).

Figure 4-65 Binding Setting

 MAC Address - The MAC address of the controlled computer in the LAN.

 IP Address - The assigned IP address of the controlled computer in the LAN.

 Bind - Check this option to enable ARP binding for a specific device.

 Modify - To modify or delete an existing entry.

When you want to add or modify an IP & MAC Binding entry, you can click the Add New button

or Modify button, and then you will go to the next page. This page is used for adding or

modifying an IP & MAC Binding entry

(shown in Figure 4-66).

To add IP & MAC Binding entries, follow the steps below.

1. Click the Add New... button as shown in Figure 4-62.

2. Enter the MAC Address and IP Address.

Figure 4-66 IP & MAC Binding Setting (Add & Modify)

-76-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

3. Select the Bind checkbox.

4. Click the Save button to save it.

To modify or delete an existing entry, follow the steps below.

1. Find the desired entry in the table.

2. Click Modify or Delete as desired on the Modify column.

To find an existing entry, follow the steps below.

1. Click the Find button as shown in Figure 4-65.

2. Enter the MAC Address or IP Address.

3. Click the Find button in the page as shown in Figure 4-67.

Figure 4-67 Find IP & MAC Binding Entry

Click the Enable All button to make all entries enabled.

Click the Delete All button to delete all entries.

4.14.2 ARP List

To manage the computer, you could observe the computers in the LAN by checking the

relationship of MAC address and IP address on the ARP list, and you could configure the items on

the ARP list also. This page displays the ARP List; it shows all the existing IP & MAC Binding

entries (shown in Figure 4-68).

 MAC Address - The MAC address of the controlled computer in the LAN.

Figure 4-68 ARP List

-77-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router



 IP Address - The assigned IP address of the controlled computer in the LAN.

 Status - Indicates whether or not the MAC and IP addresses are bound.

 Configure - Load or delete an item.

 Load - Load the item to the IP & MAC Binding list.

 Delete - Delete the item.

Click the Bind All button to bind all the current items, available after enable.

Click the Load All button to load all items to the IP & MAC Binding list.

Click the Refresh button to refresh all items.

Note:

An item could not be loaded to the IP & MAC Binding list if the IP address of the item has been

loaded before. Error warning will prompt as well. Likewise, "Load All" only loads the items without

interference to the IP & MAC Binding list.

4.15 Dynamic DNS

Choose menu “Dynamic DNS”, and you can configure the Dynamic DNS function.

The router offers the DDNS (Dynamic Domain Name System) feature, which allows the hosting of

a website, FTP server, or e-mail server with a fixed domain name (named by yourself) and a

dynamic IP address, and then your friends can connect to your server by entering your domain

name no matter what your IP address is. Before using this feature, you need to sign up for DDNS

service providers such as www.comexe.cn, dyn.com/dns, or www.noip.com

client service provider will give you a password or key.

4.15.1 Comexe.cn DDNS

If the dynamic DNS Service Provider you select is www.comexe.cn, the page will appear as

shown in Figure 4-69.

. The Dynamic DNS

-78-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

Figure 4-69 Comexe.cn DDNS Settings

To set up for DDNS, follow these instructions:

1. Type the Domain Name received from your dynamic DNS service provider.

2. Type the User Name for your DDNS account.

3. Type the Password for your DDNS account.

4. Click the Login button to log in to the DDNS service.

Connection Status -The status of the DDNS service connection is displayed here.

Click Logout to log out of the DDNS service.

4.15.2 Dyndns.org DDNS

If the dynamic DNS Service Provider you select is dyn.com/dns, the page will appear as shown

in Figure 4-70.

-79-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

Figure 4-70 Dyndns.org DDNS Settings

To set up for DDNS, follow these instructions:

1. Type the User Name for your DDNS account.

2. Type the Password for your DDNS account.

3. Type the Domain Name you received from dynamic DNS service provider here.

4. Click the Login button to log in to the DDNS service.

Connection Status -The status of the DDNS service connection is displayed here.

Click Logout to logout of the DDNS service.

4.15.3 No-ip.com DDNS

If the dynamic DNS Service Provider you select is www.noip.com, the page will appear as

shown in Figure 4-68.

-80-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

Figure 4-71 No-ip.com DDNS Settings

To set up for DDNS, follow these instructions:

1. Type the User Name for your DDNS account.

2. Type the Password for your DDNS account.

3. Type the Domain Name you received from dynamic DNS service provider.

4. Click the Login button to log in the DDNS service.

Connection Status - The status of the DDNS service connection is displayed here.

Click Logout to log out the DDNS service.

4.16 System Tools

Figure 4-72 The System Tools menu

Choose menu “System Tools”, and you can see the submenus under the main menu: Time

Settings, Diagnostic, Firmware Upgrade, Factory Defaults, Backup & Restore, Reboot,

-81-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

Password, System Log and Statistics. Click any of them, and you will be able to configure the

corresponding function. The detailed explanations for each submenu are provided below.

4.16.1 Time Settings

Choose menu “System Tools → Time Settings”, you can configure the time on the following

screen.

Figure 4-73 Time settings

Time Zone - Select your local time zone from this drop-down list.



 Date - Enter your local date in MM/DD/YY into the right blanks.

 Time - Enter your local time in HH/MM/SS into the right blanks.

 NTP Server I / NTP Server II - Enter the address or domain of the NTP Server I or NTP

Server II, and then the router will get the time from the NTP Server preferentially. In addition,

the router built-in some common NTP Servers, so it can get time automatically once it

connects the Internet.

 Enable Daylight Saving - Check the box to enable the Daylight Saving function.

 Start - The time to start the Daylight Saving. Select the month in the first field, the week in the

second field, the day in the third field and the time in the last field.

 End - The time to end the Daylight Saving. Select the month in the first field, the week in the

second field, the day in the third field and the time in the last field.

 Daylight Saving Status - Displays the status whether the Daylight Saving is in use.

-82-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router



To set time manually:

1. Select your local time zone.

2. Enter the Date in Month/Day/Year format.

3. Enter the Time in Hour/Minute/Second format.

4. Click Save.

To set time automatically:

1. Select your local time zone.

2. Enter the address or domain of the NTP Server I or NTP Server II.

3. Click the Get GMT button to get system time from Internet if you have connected to the

Internet.

To set Daylight Saving:

1. Check the box to enable Daylight Saving.

2. Select the start time from the drop-down lists in the Start field.

3. Select the end time from the drop-down lists in the End field.

4. Click the Save button to save the settings.

Note:

1. This setting will be used for some time-based functions such as firewall. You must specify

your time zone once you login to the router successfully, otherwise, these functions will not

take effect.

2. The time will be lost if the router is turned off.

3. The router will automatically obtain GMT from the Internet if it is configured accordingly.

4. The Daylight Saving will take effect one minute after the configurations are completed.

4.16.2 Diagnostic

Choose menu “System Tools → Diagnostic”, you can transact Ping or Traceroute function to

check connectivity of your network in the following screen.

-83-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router



Figure 4-74 Diagnostic Tools

 Diagnostic Tool - Check the radio button to select one diagnostic too.

 Ping - This diagnostic tool troubleshoots connectivity, reachability, and name resolution

to a given host or gateway.

 Traceroute - This diagnostic tool tests the performance of a connection.

Note:

You can use ping/traceroute to test both numeric IP address or domain name. If

pinging/tracerouting the IP address is successful, but pinging/tracerouting the domain name

is not, you might have a name resolution problem. In this case, ensure that the domain name

you are specifying can be resolved by using Domain Name System (DNS) queries.

IP Address/Domain Name - Type the destination IP address (such as 202.108.22.5) or Domain

name (such as http://www.tp-link.com)

 Pings Count - The number of Ping packets for a Ping connection.

 Ping Packet Size - The size of Ping packet.

 Ping Timeout - Set the waiting time for the reply of each Ping packet. If there is no reply in

the specified time, the connection is overtime.

 Traceroute Max TTL - The max number of hops for a Traceroute connection.

-84-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router



Click Start to check the connectivity of the Internet.

The Diagnostic Results page displays the result of diagnosis.

If the result is similar to the following screen, the connectivity of the Internet is fine.

Figure 4-75 Diagnostic Results

Note:

Only one user can use this tool at one time. Options “Number of Pings”, “Ping Size” and “Ping Timeout” are used for Ping function. Option “Tracert Hops” are used for Tracert function.

4.16.3 Firmware Upgrade

Choose menu “System Tools → Firmware Upgrade”, you can update the latest version of

firmware for the router on the following screen.

Figure 4-76 Firmware Upgrade

 Firmware Version - This displays the current firmware version.

 Hardware Version - This displays the current hardware version. The hardware version of the

upgrade file must accord with the router’s current hardware version.

To upgrade the router's firmware, follow these instructions below:

1. Download a more recent firmware upgrade file from the TP-LINK website

(http://www.tp-link.com).

2. Type the path and file name of the update file into the File field. Or click the Browse button to

locate the update file.

-85-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router



3. Click the Upgrade button.

Note:

1. New firmware versions are posted at http://www.tp-link.com and can be downloaded for free.

There is no need to upgrade the firmware unless the new firmware has a new feature you

want to use. However, when experiencing problems caused by the router rather than the

configuration, you can try to upgrade the firmware.

2. When you upgrade the router's firmware, you may lose its current configurations, so before

upgrading the firmware please write down some of your customized settings to avoid losing

important settings.

3. Do not turn off the router or press the Reset button while the firmware is being upgraded,

otherwise, the router may be damaged.

4. The router will reboot after the upgrading has been finished.

4.16.4 Factory Defaults

Choose menu “System Tools → Factory Defaults”, and you can restore the configurations of

the router to factory defaults on the following screen

Figure 4-77 Restore Factory Default

Click the Restore button to reset all configuration settings to their default values.

• The default User Name: admin

• The default Password: admin

• The default IP Address: 192.168.0.1

• The default Subnet Mask: 255.255.255.0

Note:

Any settings you have saved will be lost when the default settings are restored.

4.16.5 Backup & Restore

Choose menu “System Tools → Backup & Restore”, you can save the current configuration of

the router as a backup file and restore the configuration via a backup file as shown in Figure 4-75.

-86-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router



Figure 4-78 Backup & Restore Configuration



Click the Backup button to save all configuration settings as a backup file in your local

computer.

 To upgrade the router's configuration, follow these instructions.

• Click the Browse… button to locate the update file for the router, or enter the exact path

to the Setting file in the text box.

• Click the Restore button.

Note:

The current configuration will be covered by the uploading configuration file. The upgrade process

lasts for 20 seconds and the router will restart automatically. Keep the router on during the

upgrading process to prevent any damage.

4.16.6 Reboot

Choose menu “System Tools → Reboot”, you can click the Reboot button to reboot the router

via the next screen.

Figure 4-79 Reboot the router

Some settings of the router will take effect only after rebooting, which include

• Change the LAN IP Address (system will reboot automatically).

• Change the DHCP Settings.

• Change the Wireless configurations.

• Change the Web Management Port.

• Upgrade the firmware of the router (system will reboot automatically).

• Restore the router's settings to factory defaults (system will reboot automatically).

• Update the configuration with the file (system will reboot automatically.

-87-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router



4.16.7 Password

Choose menu “System Tools → Password”, you can change the factory default user name and

password of the router in the next screen as shown in Figure 4-77.

Figure 4-80 Password

It is strongly recommended that you should change the factory default user name and password

of the router, because all users who try to access the router's Web-based utility or Quick Setup

will be prompted for the router's default user name and password.

Note:

The new user name and password must not exceed 14 characters in length and not include any

spaces. Enter the new Password twice to confirm.

Click the Save button when finished.

Click the Clear All button to clear all.

4.16.8 System Log

Choose menu “System Tools → System Log”, you can view the logs of the router.

-88-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

Figure 4-81 System Log



Auto Mail Feature - Indicates whether auto mail feature is enabled or not.

 Mail Settings - Set the receiving and sending mailbox address, server address, validation

information as well as the timetable for Auto Mail Feature, as shown in Figure 4-82.

 From - Your mail box address. The router would connect it to send logs.

 To - Recipient’s address. The destination mailbox where the logs would be received.

 SMTP Server - Your smtp server. It corresponds with the mailbox filled in the From

field. You can log on the relevant website for Help if you are not clear with the

address.

Figure 4-82 Mail Account Settings

-89-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router



 Authentication - Most SMTP Server requires Authentication. It is required by most

mailboxes that need User Name and Password to log in.

Note:

Only when you select Authentication, do you have to enter the User Name and

Password in the following fields.

 User Name - Your mail account name filled in the From field. The part behind @ is

included.

 Password - Your mail account password.

 Confirm The Password - Enter the password again to confirm.

 Enable Auto Mail Feature - Select it to mail logs automatically. You could mail the

current logs either at a specified time everyday or by intervals, but only one could be

the current effective rule. Enter the desired time or intervals in the corresponding field

as shown in Figure 4-82.

Click Save to keep your settings.

Click Back to return to the previous page.

 Log Type - By selecting the log type, only logs of this type will be shown.

 Log Level - By selecting the log level, only logs of this level will be shown.

 Refresh - Refresh the page to show the latest log list.

 Save Log - Click to save all the logs in a txt file.

 Mail Log - Click to send an email of current logs manually according to the address and

validation information set in Mail Settings.

 Clear Log - All the logs will be deleted from the router permanently, not just from the page.

Click the Next button to go to the next page, or click the Previous button return to the previous

page.

4.16.9 Statistics

Choose menu “System Tools → Statistics”, you can view the network traffic of each PC on the

LAN, including total traffic and the value of the last Packets Statistic interval in seconds.

-90-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

（

Figure 4-83 Statistics

 Current Statistics Status - Enable or Disable. The default value is disabled. To enable, click

the Enable button. If disabled, the function of DoS protection in Security settings will be

disabled.

 Packets Statistics Interval

5-60） - The default value is 10. Select a value between 5 and

60 seconds in the pull-down list. The Packets Statistic interval indicates the time section of

the packets statistic.

Select the Auto-refresh checkbox to refresh automatically.

Click the Refresh button to refresh the page.

 Sorted Rules - Choose how displayed statistics are sorted

Click Reset All to reset the values of all the entries to zero.

Click Delete All to delete all entries in the table.

Statistics Table:

IP/MAC Address

Packets

Total

Bytes

The IP and MAC address are displayed with related statistics.

The total number of packets received and transmitted by the Router.

The total number of bytes received and transmitted by the Router.

Packets

Current

Bytes

ICMP Tx

The total number of packets received and transmitted in the last Packets Statistic interval seconds.

The total number of bytes received and transmitted in the last Packets Statistic interval seconds.

The number of the ICMP packets transmitted to WAN per second at the specified Packets Statistics interval. It is shown like “current transmitting rate / Max transmitting rate”.

-91-

TL-WR841N/TL-WR841ND

300Mbps Wireless N Router

he number of UDP packets transmitted to the WAN per second at the

UDP Tx

specified Packets Statistics interval. It is shown like “current transmitting rate / Max transmitting rate”.

TCP SYN Tx

Reset

Modify

Delete

The number of TCP SYN packets transmitted to the WAN per second at the specified Packets Statistics interval. It is shown like “current transmitting rate / Max transmitting rate”.

Reset the value of he entry to zero.

Delete the existing entry in the table.

There would be 5 entries on each page. Click Previous to return to the previous page and Next to

the next page.

4.17 Logout

Figure 4-84 The Logout menu

Choose menu “Logout”, and you will log out the web manage page of the router.

-92-
