TP Link WN8200ND User Guide
TL-WN8200ND
300Mbps High Power Wireless USB Adapter
Rev: 1.0.0 1910010712
TP-LINK TECHNOLOGIES CO., LTD
COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice.
is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders.
No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2012 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved.
http://www.tp-link.com
TP-LINK TECHNOLOGIES CO., LTD
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1)This device may not cause harmful interference.
2)This device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.
The product must be used to provide a separation distance of at least 20 cm from all persons.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.
“To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.”
TP-LINK TECHNOLOGIES CO., LTD
CE Mark Warning
This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.
This device has been designed to operate with the antennas listed below, and having a maximum gain of 3 dBi. Antennas not included in this list or having a gain greater than 3 dBi are strictly prohibited for use with this device. The required antenna impedance is 50 ohms.
To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication.
Canadian Compliance Statement
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:
(1)This device may not cause interference, and
(2)This device must accept any interference, including interference that may cause undesired operation of the device.
Cet appareil est conforme aux norms CNR exemptes de licence d’Industrie Canada. Le fonctionnement est soumis aux deux conditions suivantes:
(1)cet appareil ne doit pas provoquer d’interférences et
(2)cet appareil doit accepter toute interférence, y compris celles susceptibles de provoquer un fonctionnement non souhaité de l’appareil.
Industry Canada Statement
Complies with the Canadian ICES-003 Class B specifications.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
This device complies with RSS 210 of Industry Canada. This Class B device meets all the requirements of the Canadian interference-causing equipment regulations.
Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.
Korea Warning Statements
.
TP-LINK TECHNOLOGIES CO., LTD
NCC Notice
功率或變更原設計之特性及功能。
頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних документів та вимогам, що передбачені чинними законодавчими актами України.
Safety Information
zWhen product has power button, the power button is one of the way to shut off the product; when there is no power button, the only way to completely shut off power is to disconnect the product or the power adapter from the power source.
zDon’t disassemble the product, or make repairs yourself. You run the risk of electric shock and voiding the limited warranty. If you need service, please contact us.
zAvoid water and wet locations.
This product can be used in the following countries:
AT |
BG |
BY |
CA |
CZ |
DE |
DK |
EE |
|
|
|
|
|
|
|
|
ES |
FI |
FR |
GB |
GR |
HU |
IE |
IT |
|
|
|
|
|
|
|
|
LT |
LV |
MT |
NL |
NO |
PL |
PT |
RO |
|
|
|
|
|
|
|
|
RU |
SE |
SK |
TR |
UA |
|
|
|
|
|
|
|
|
|
|
|
Notice
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
This radio transmitter (identify the device by certification number, or model number ifCategory II) has been approved by Industry Canada to operate with the antenna types listedbelow with the maximum permissible gain and required antenna impedance for each antenna type indicated.
Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectriqueà l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que lapuissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire àl'établissement d'une communication satisfaisante.
Le présent émetteur radio (identifier le dispositif par son numéro de certification ou son numéro de modèle s'il fait partie du matériel de catégorie I) a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pourl'exploitation de l'émetteur.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
TP-LINK TECHNOLOGIES CO., LTD
DECLARATION OF CONFORMITY
For the following equipment:
Product Description: 300Mbps High Power Wireless USB Adapter
Model No.: TL-WN8200ND
Trademark: TP-LINK
We declare under our own responsibility that the above products satisfy all the technical regulations applicable to the product within the scope of Council Directives:
Directives 1999/5/EC, Directives 2006/95/EC, Directives 1999/519/EC, Directives 2011/65/EU
The above product is in conformity with the following standards or other normative documents:
ETSI EN 300 328 V1.7.1: 2006
ETSI EN 301 489-1 V1.9.2:2011 & ETSI EN 301 489-17 V2.1.1:2009 EN 60950-1:2006+A11 2009+A1:2010+A12:2011
EN 62311:2008
The product carries the CE Mark:
Person who is responsible for marking this declaration:
Yang Hongliang
Product Manager of International Business
Date of issue: 2012
TP-LINK TECHNOLOGIES CO., LTD.
Building 24 (floors 1, 3, 4, 5), and 28 (floors 1-4) Central Science and Technology Park,
Shennan Rd, Nanshan, Shenzhen, China
|
|
CONTENTS |
|
Package Contents .................................................................................................... |
1 |
||
Chapter 1 |
Product Overview ................................................................................. |
2 |
|
1.1 |
Introduction ............................................................................................................. |
2 |
|
1.2 |
Features.................................................................................................................. |
2 |
|
1.3 |
Hardware Overview................................................................................................. |
3 |
|
Chapter 2 |
Installation............................................................................................. |
4 |
|
2.1 |
Hardware Installation .............................................................................................. |
4 |
|
2.2 |
Software Installation................................................................................................ |
4 |
|

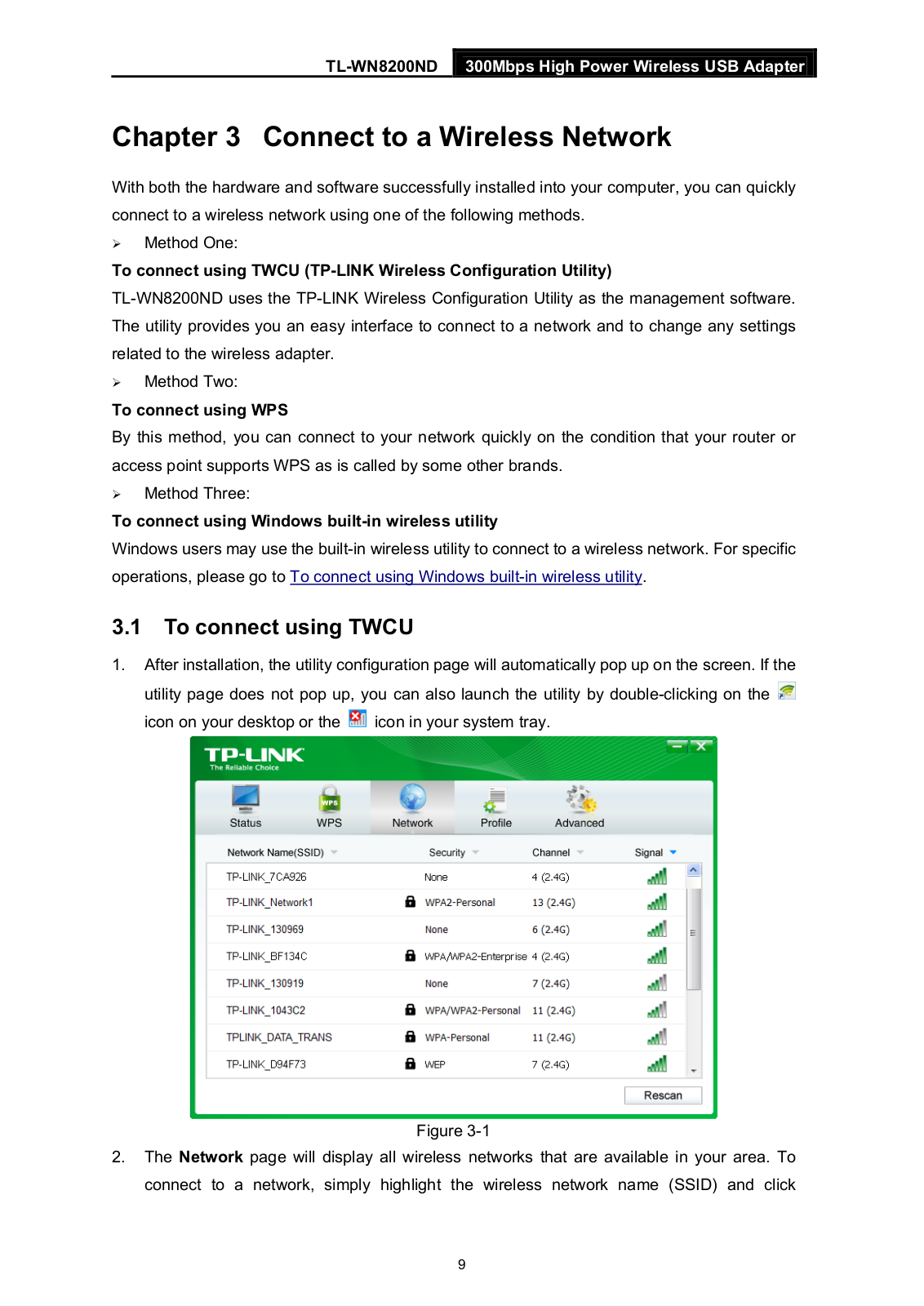

Chapter 3 Connect to a Wireless Network ........................................................... |
9 |
||
3.1 |

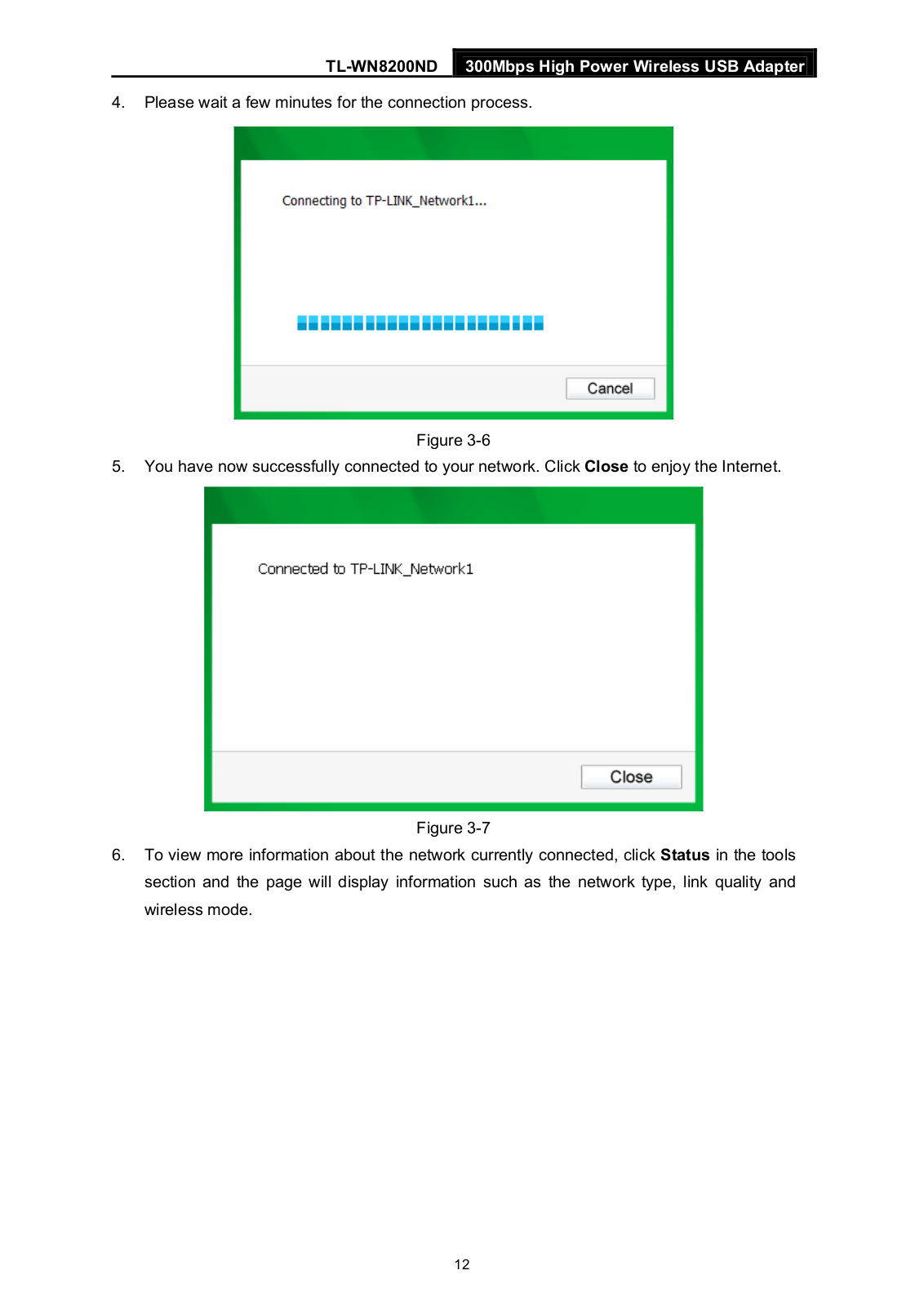

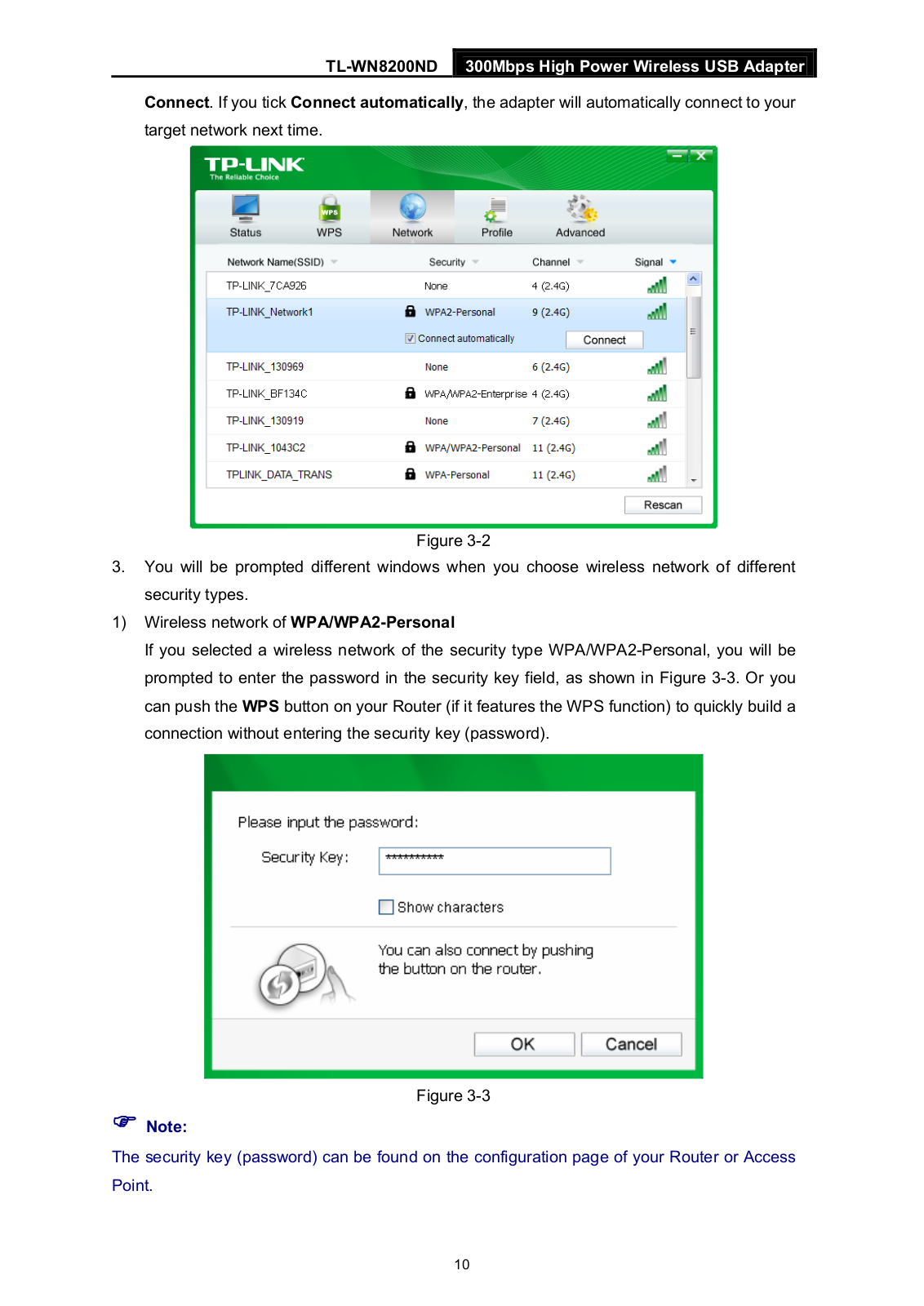

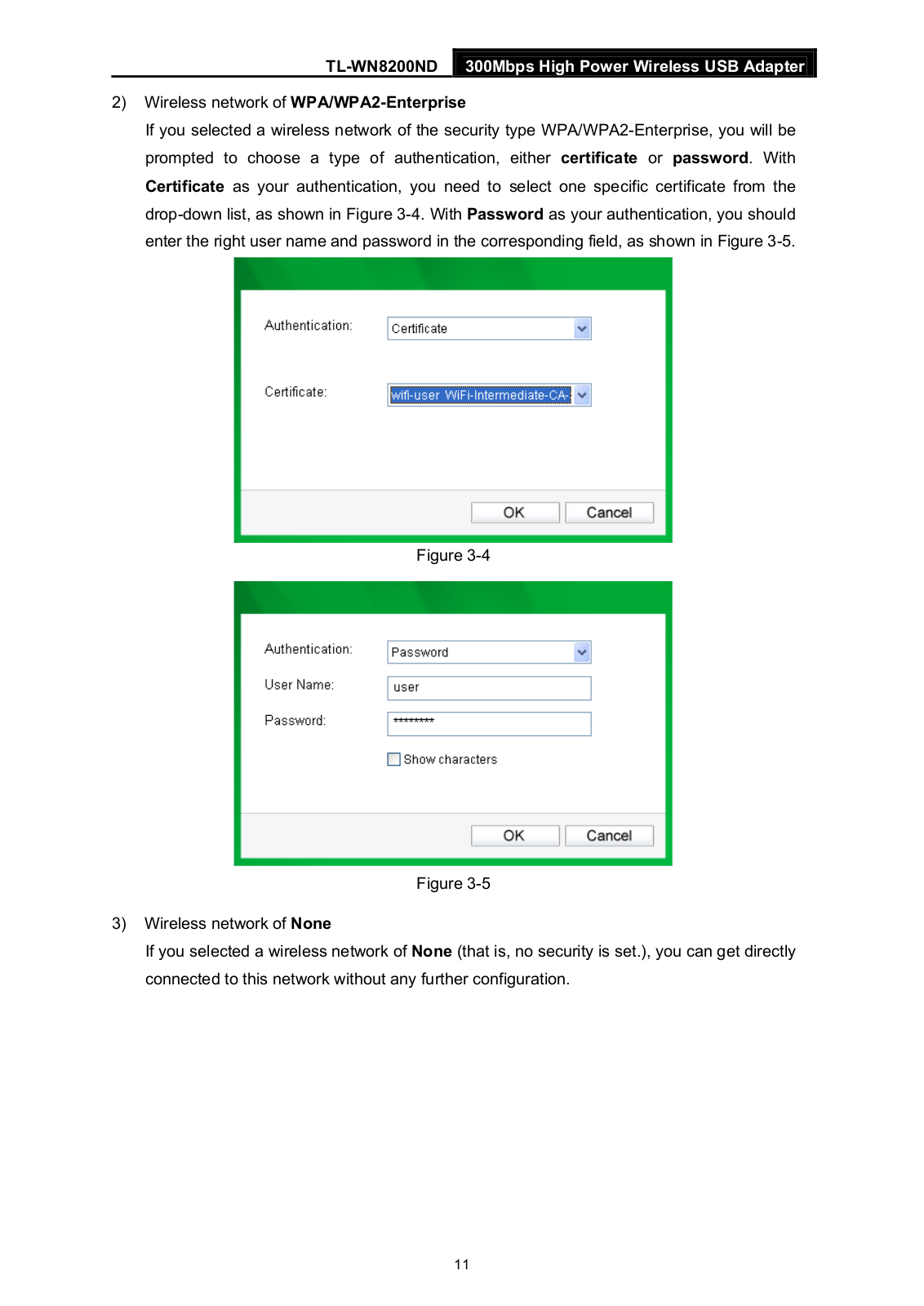

To connect using TWCU ......................................................................................... |
9 |
|
3.2 |

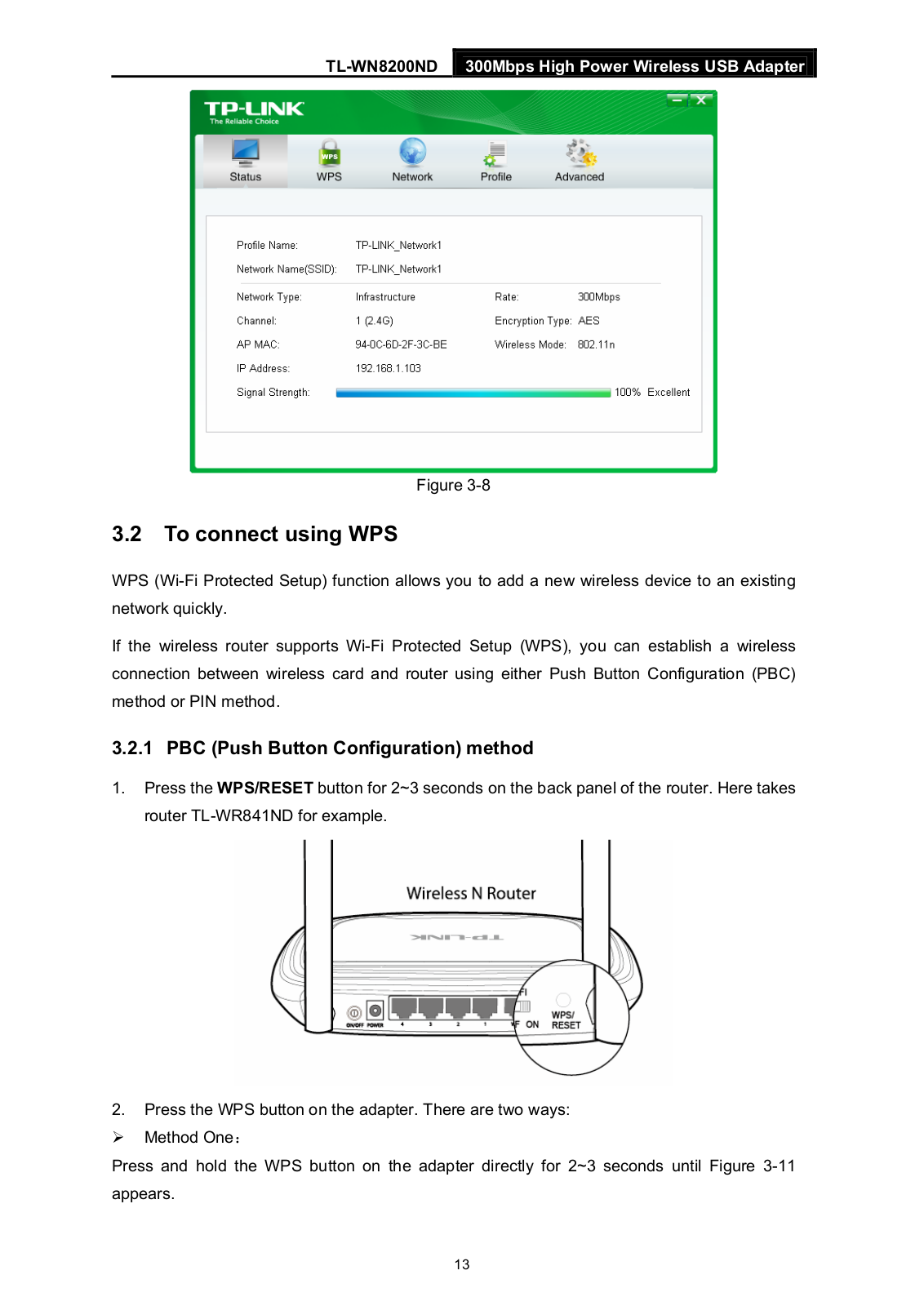

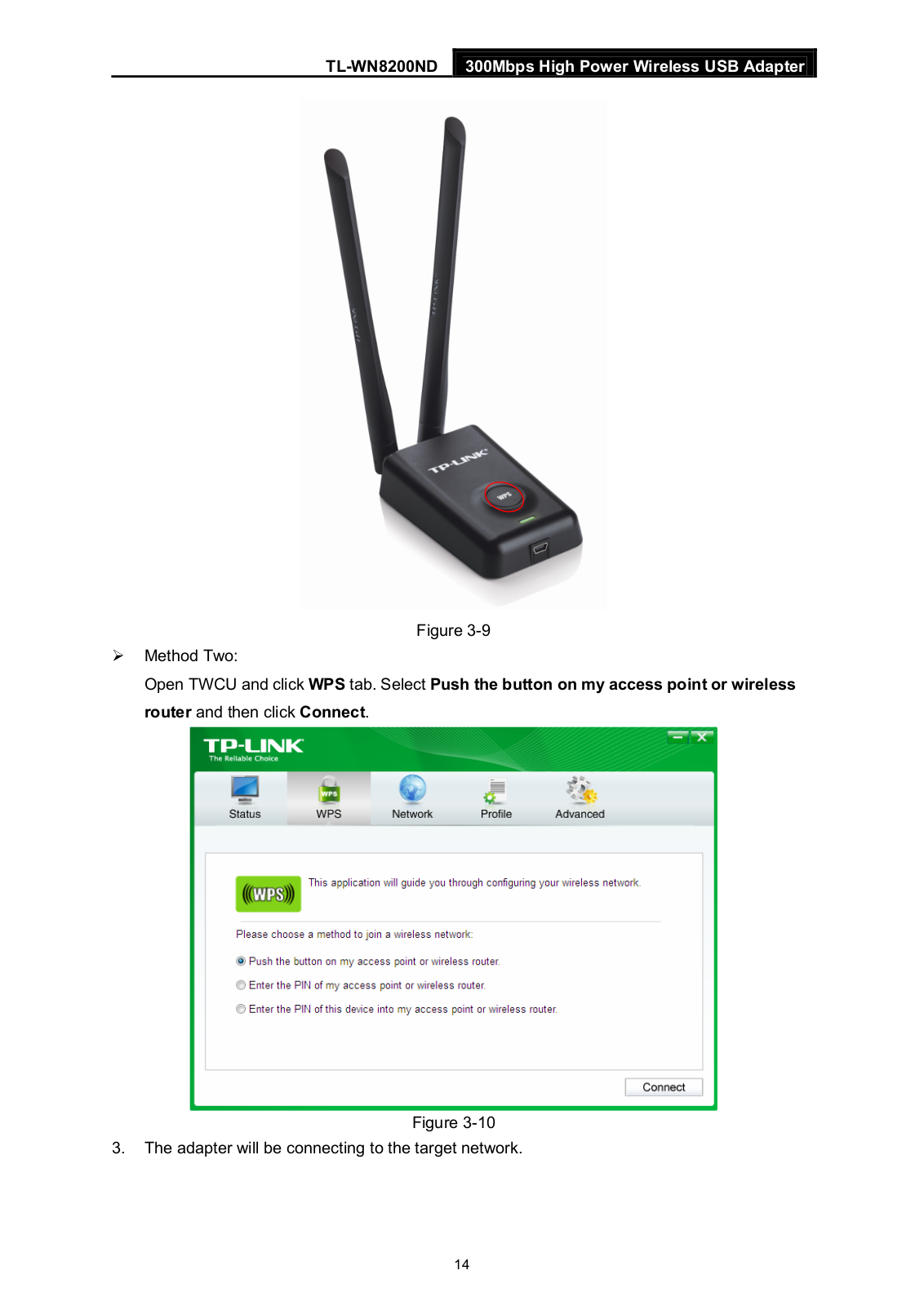

To connect using WPS.......................................................................................... |
13 |
|
|

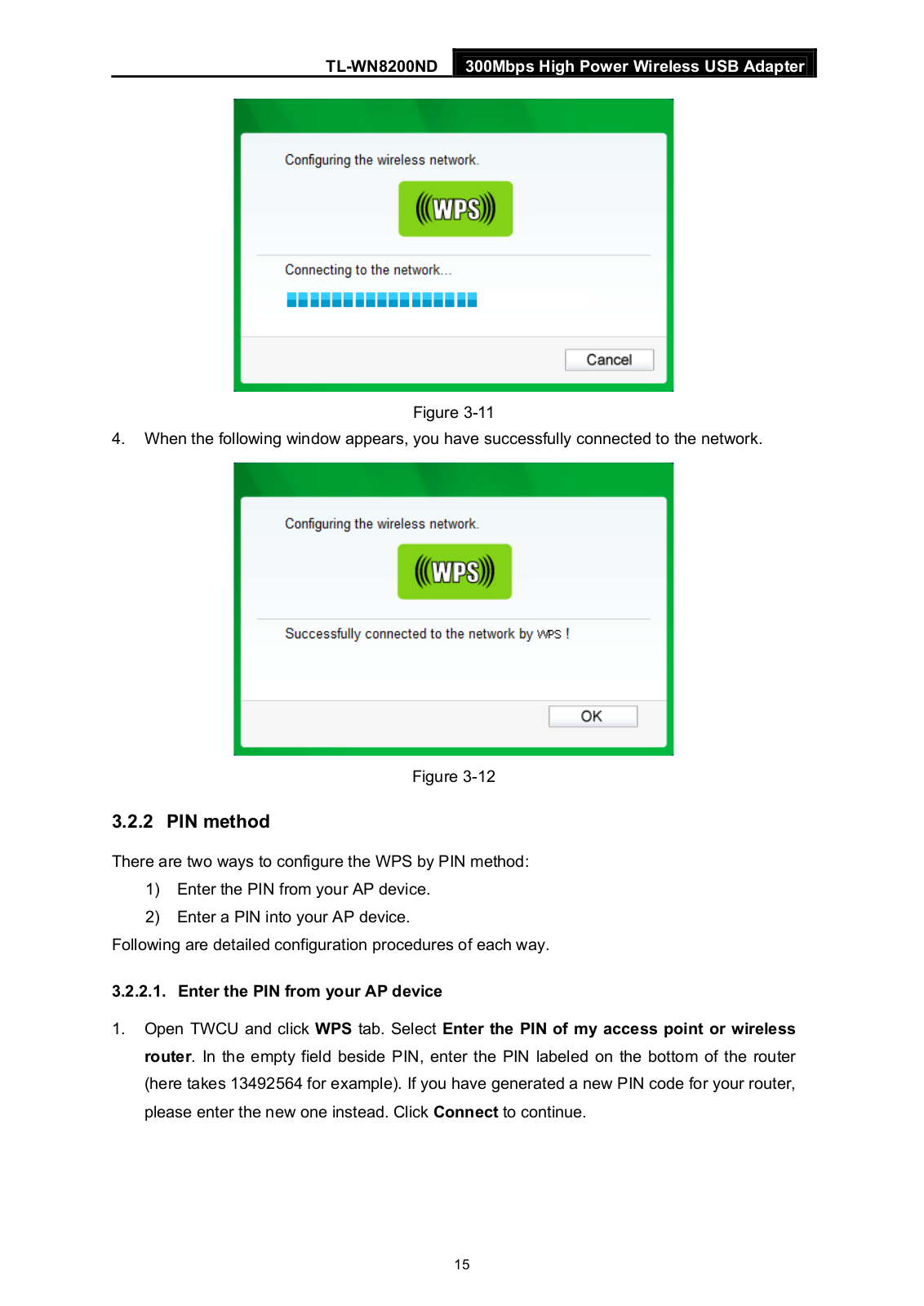

3.2.1 PBC (Push Button Configuration) method................................................ |
13 |
|
|
3.2.2 |

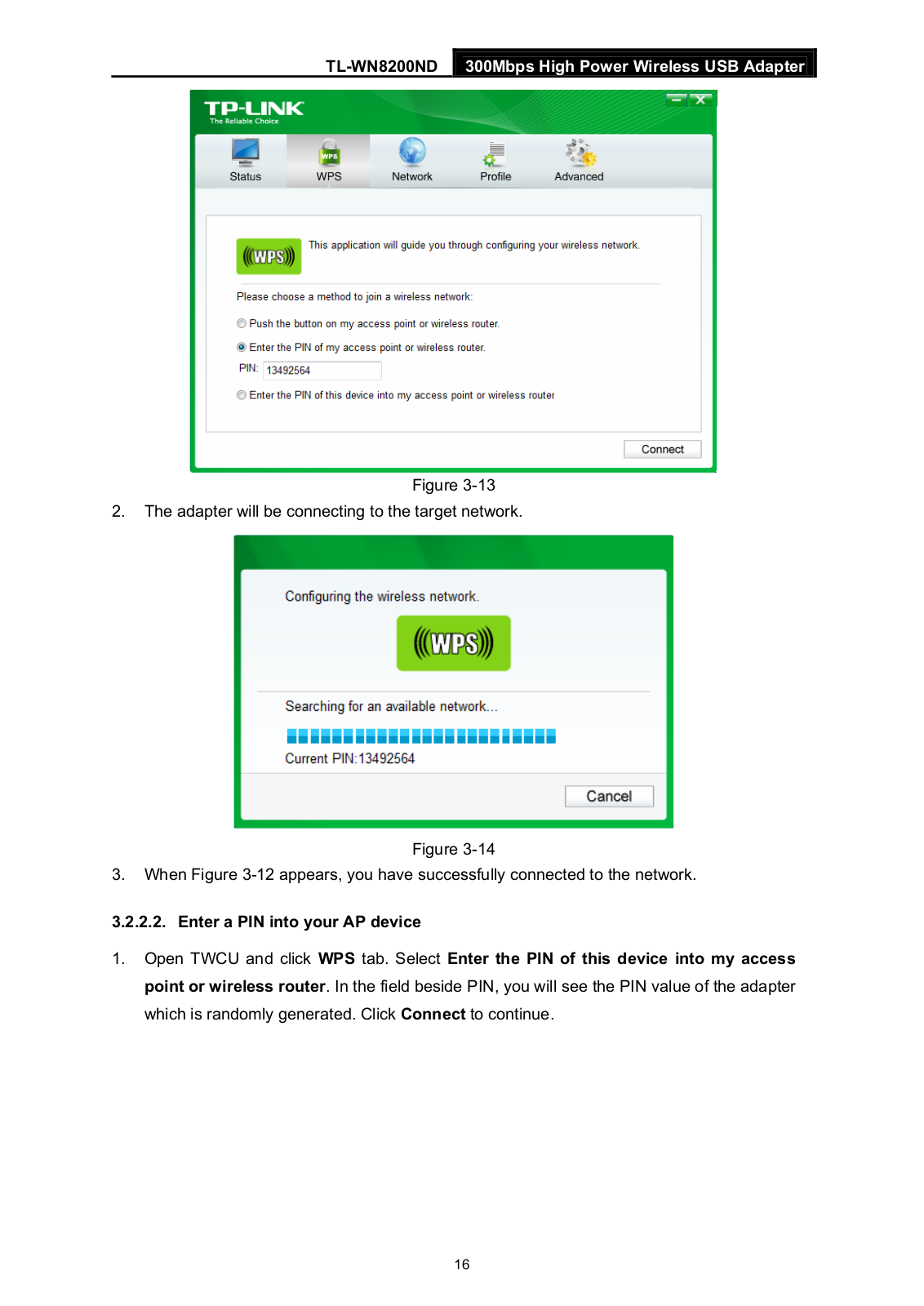

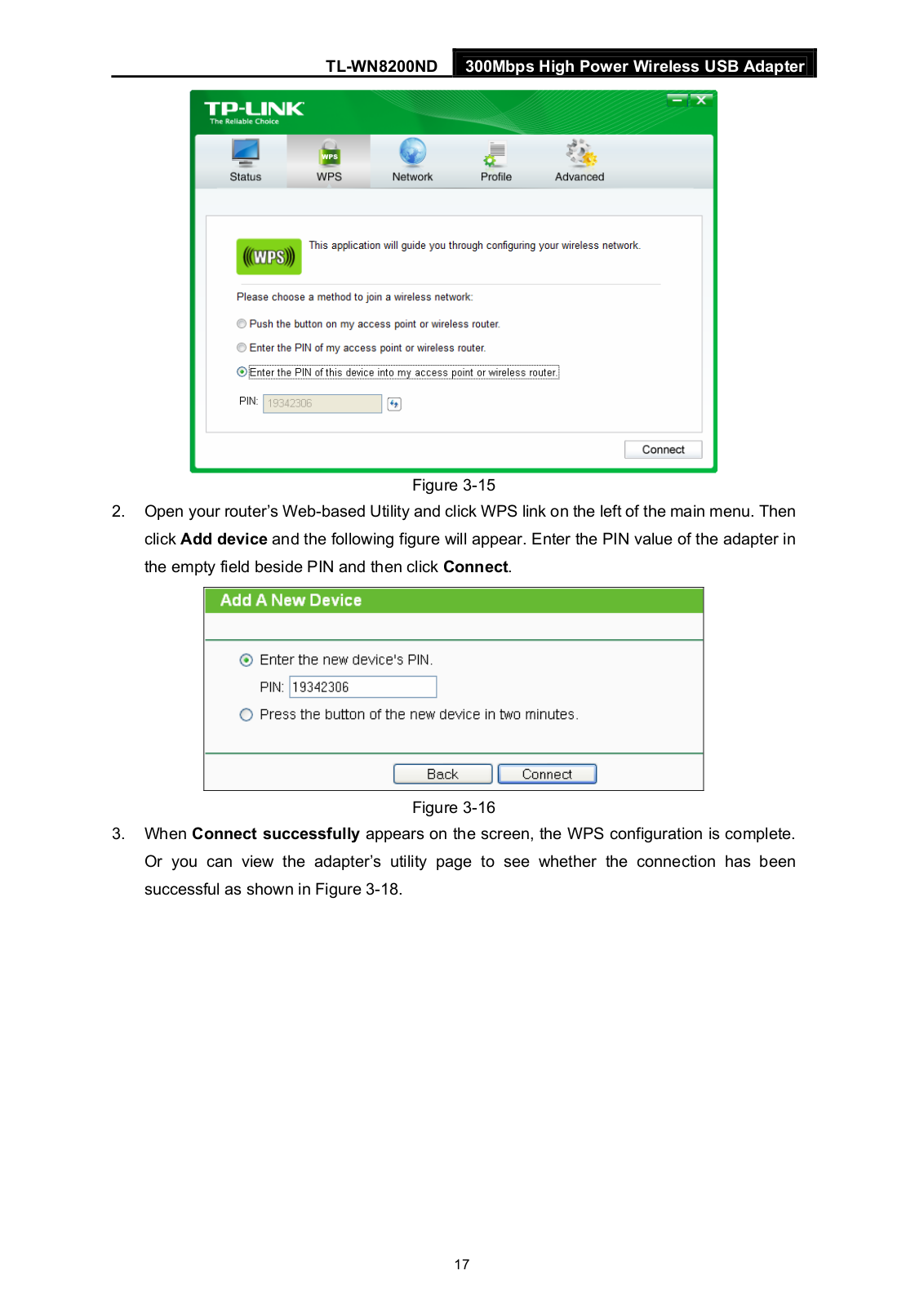

PIN method .............................................................................................. |
15 |
3.3 |

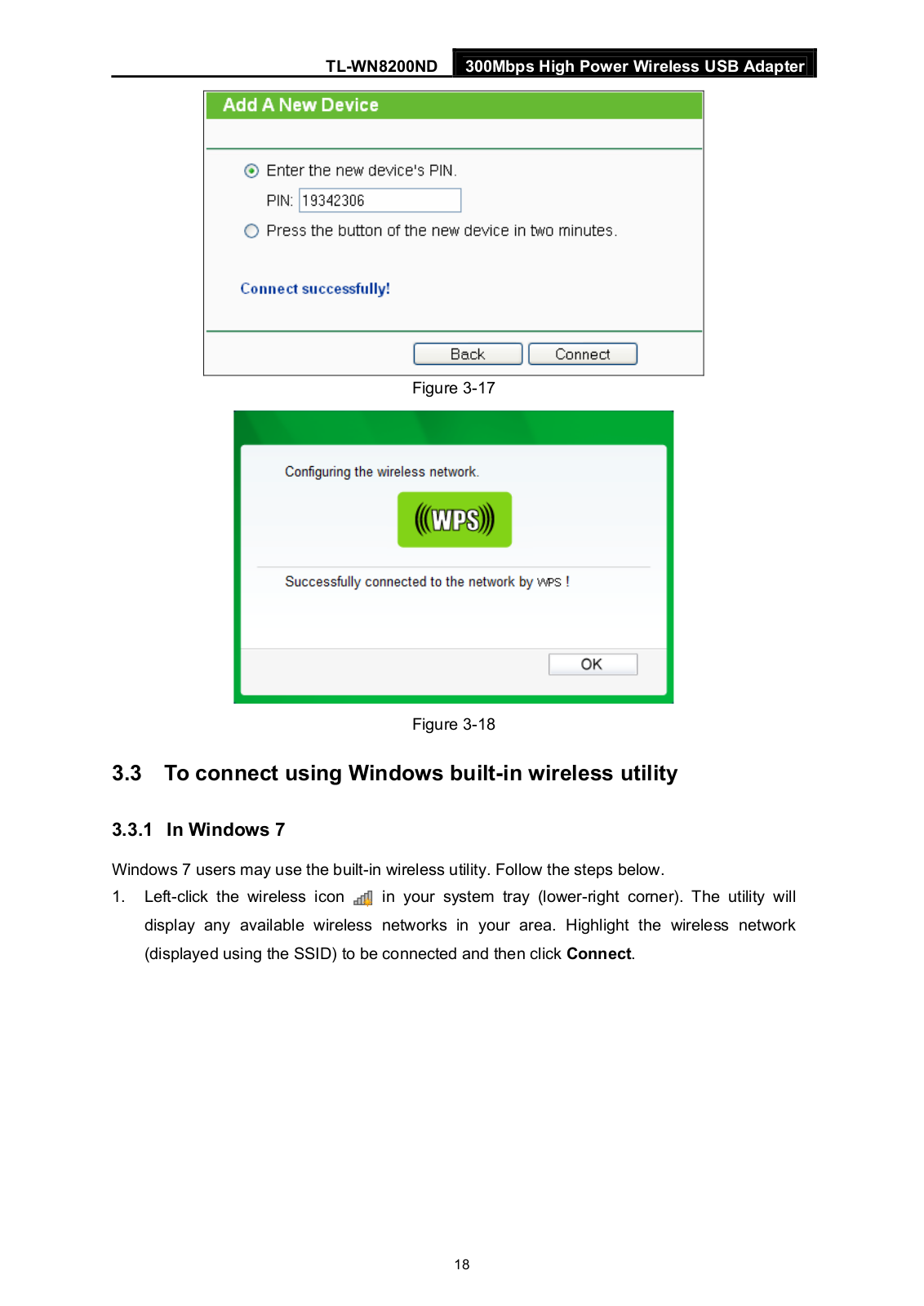

To connect using Windows built-in wireless utility................................................. |
18 |
|
|
3.3.1 |

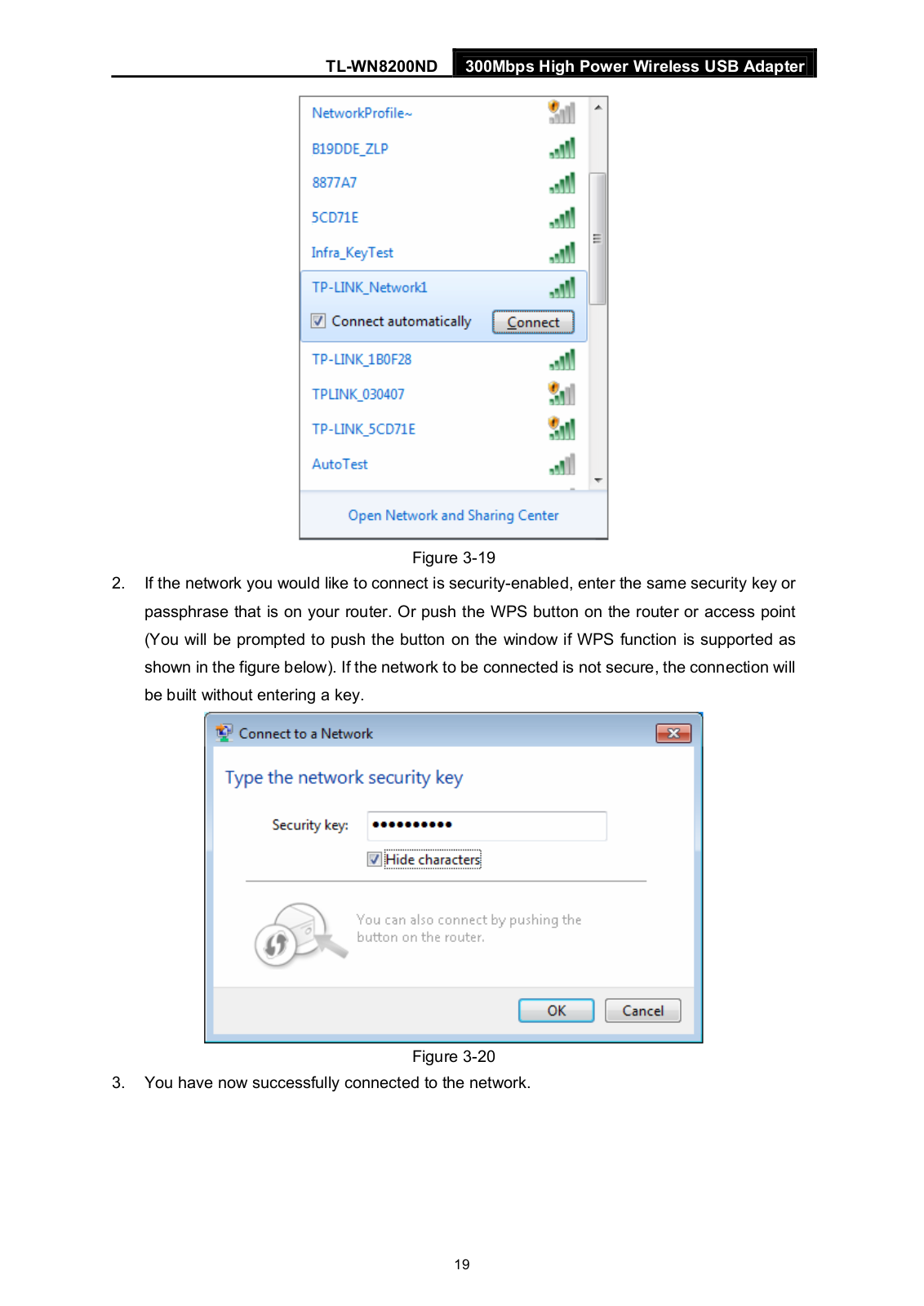

In Windows 7 ............................................................................................ |
18 |
|

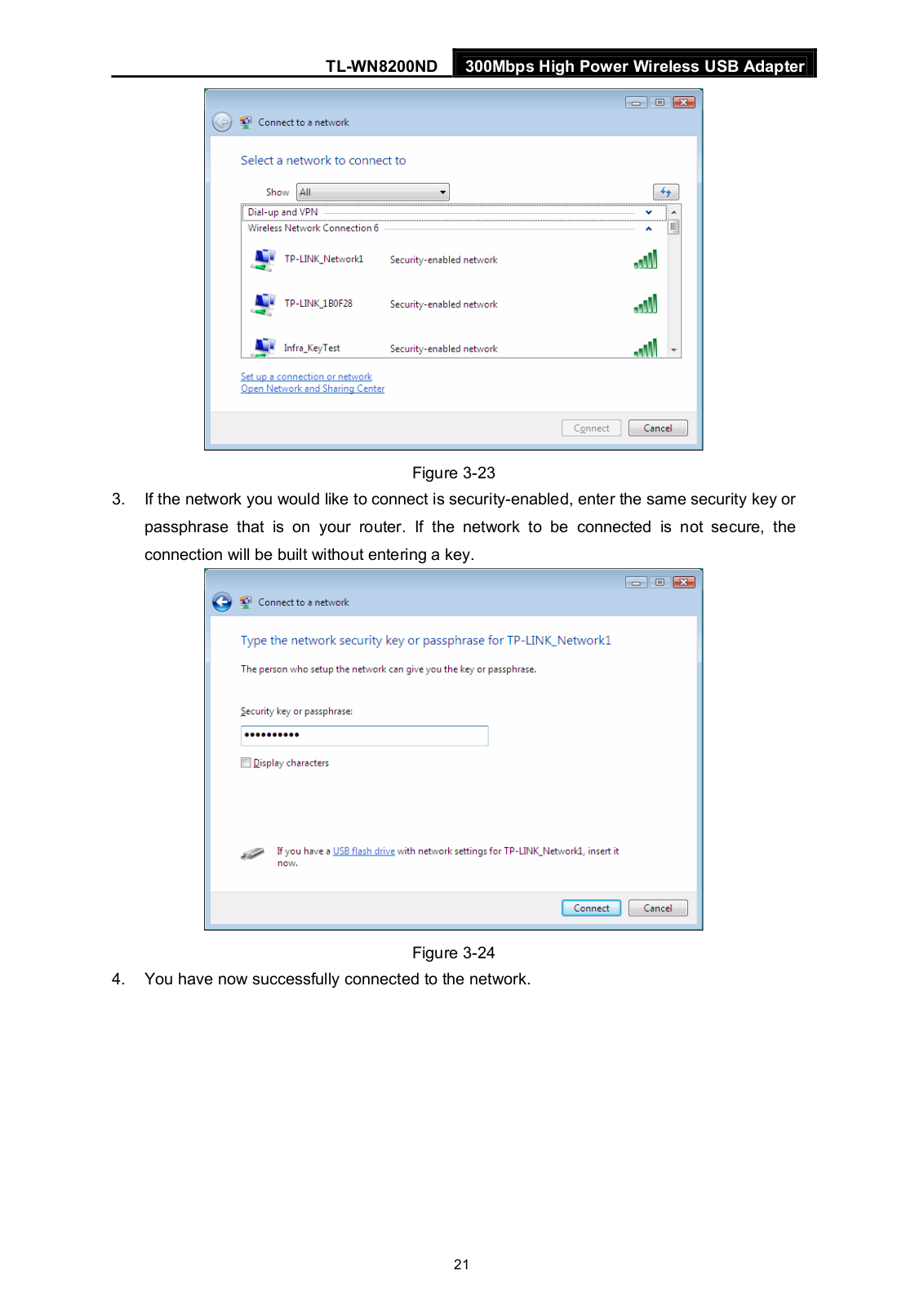

3.3.2 |

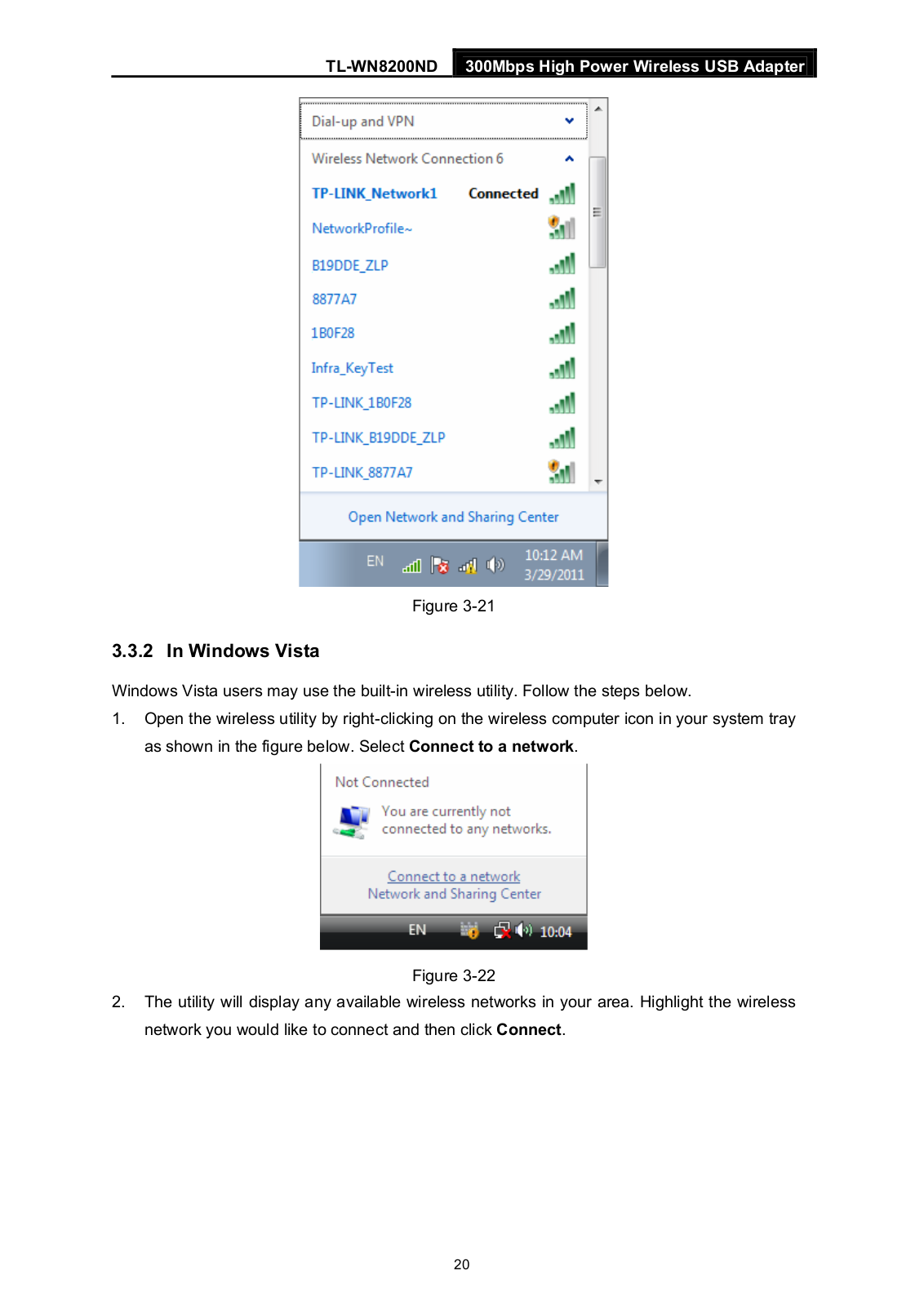

In Windows Vista ...................................................................................... |
20 |
|
3.3.3 |

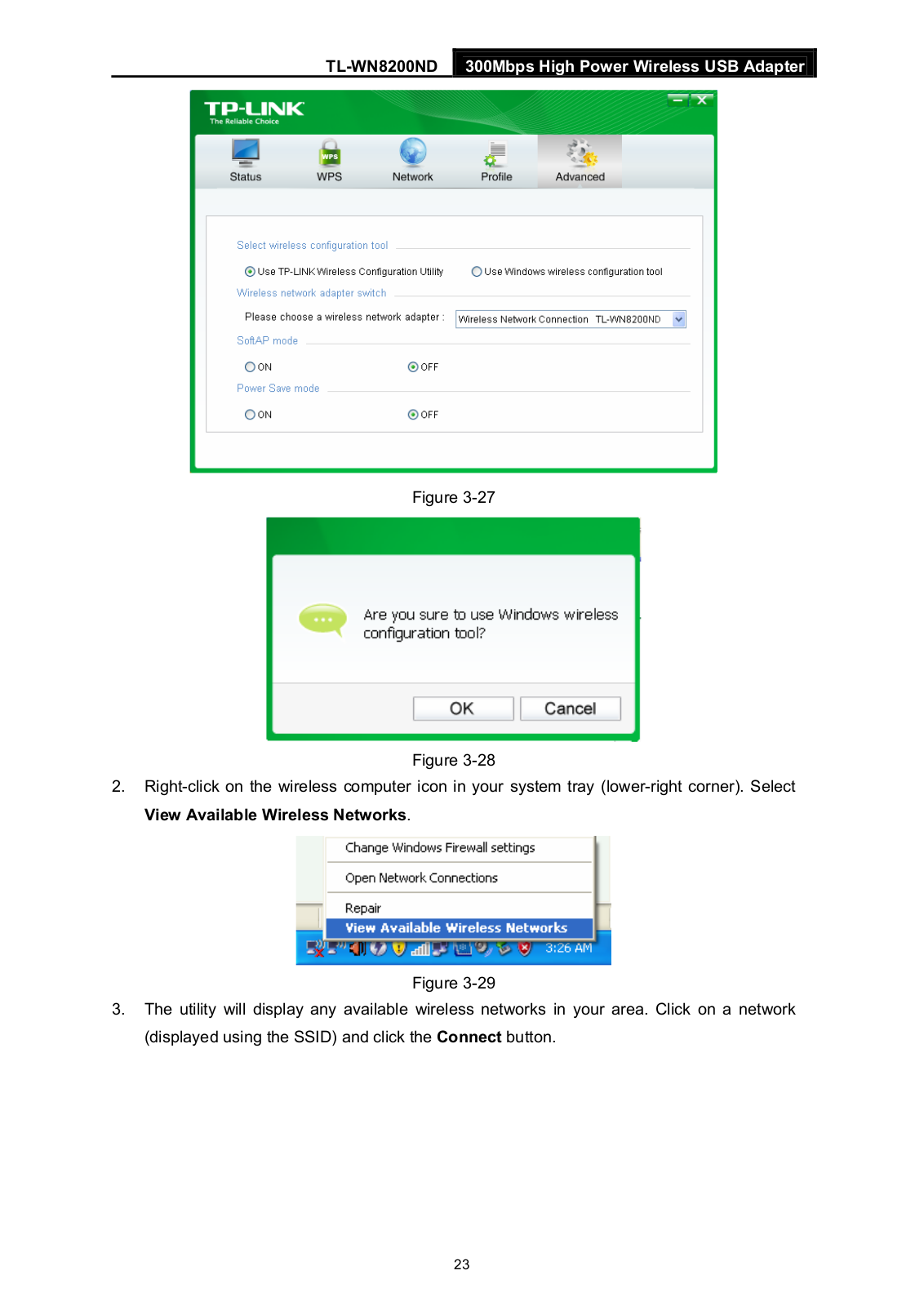

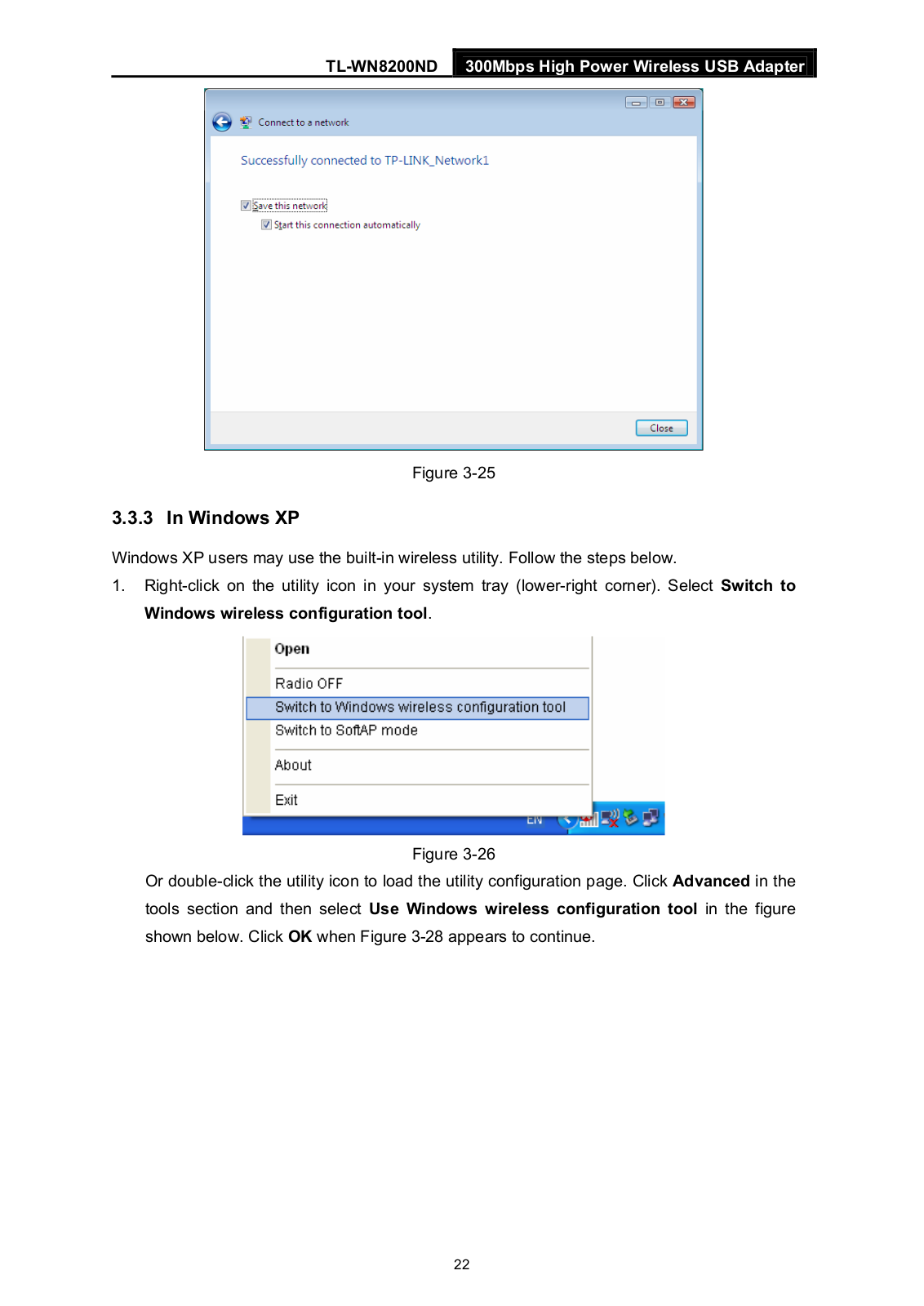

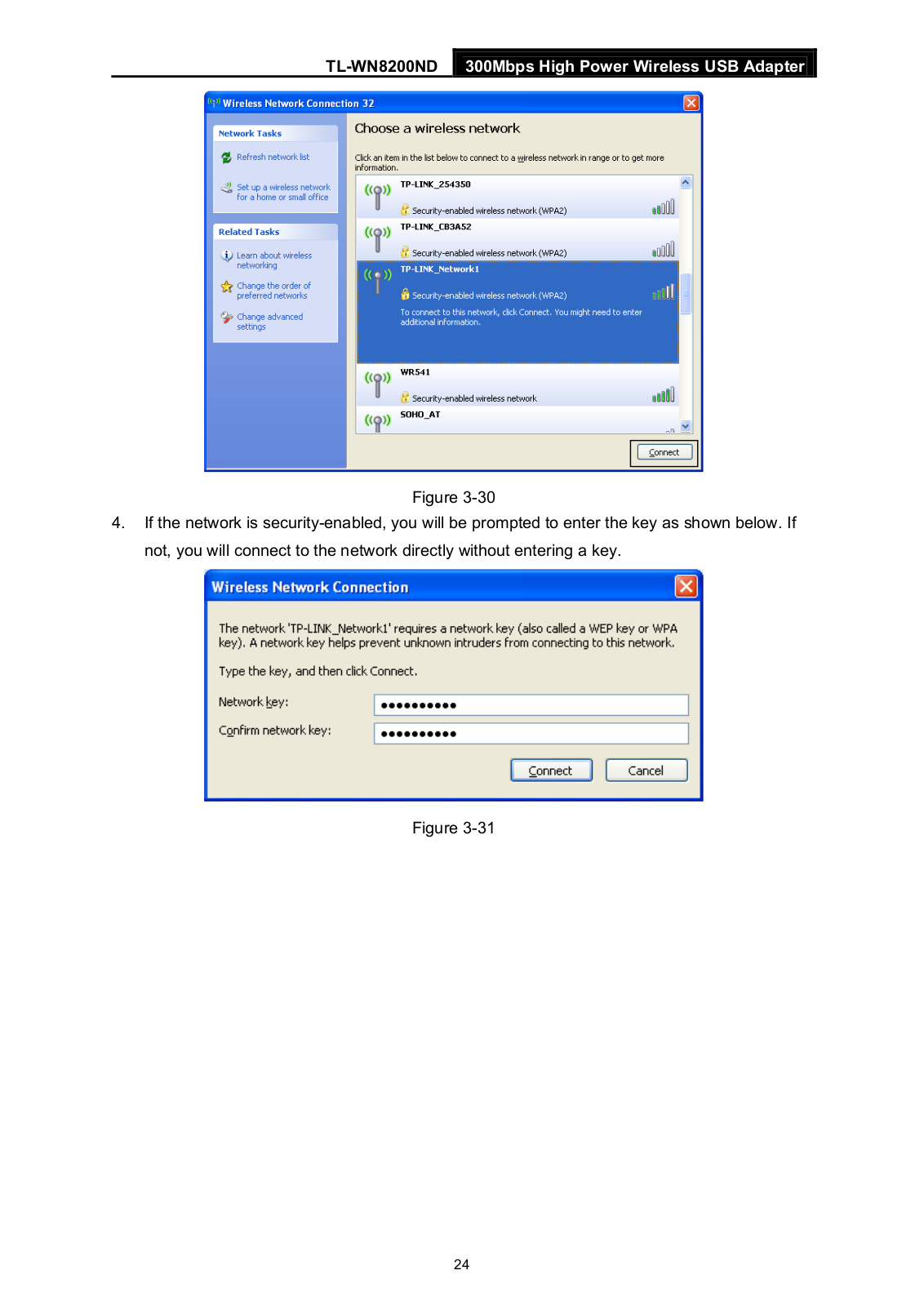

In Windows XP ......................................................................................... |
22 |

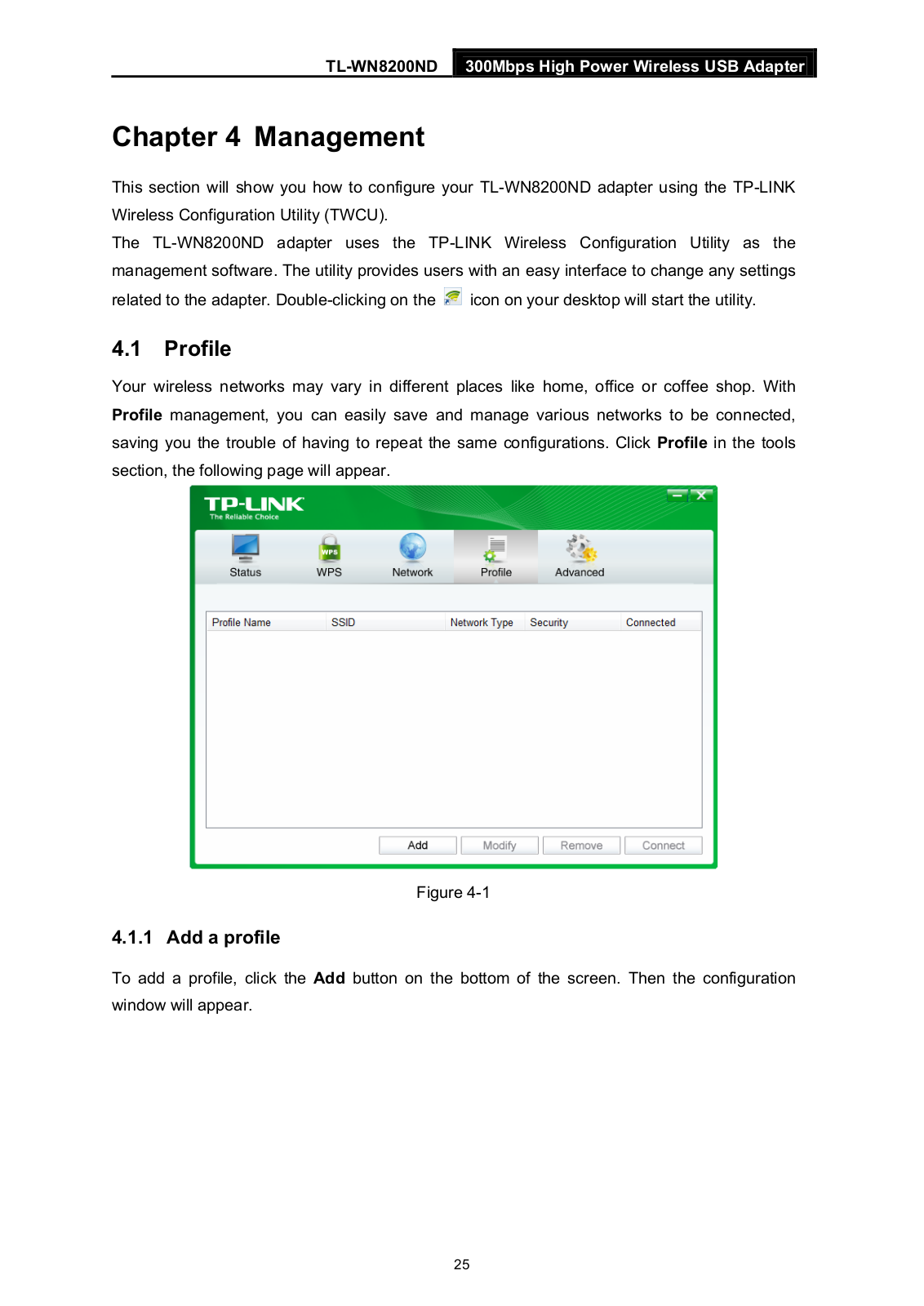

Chapter 4 |
Management........................................................................................ |
25 |
|
4.1 |
Profile |
.................................................................................................................... |
25 |
|
4.1.1 ............................................................................................. |

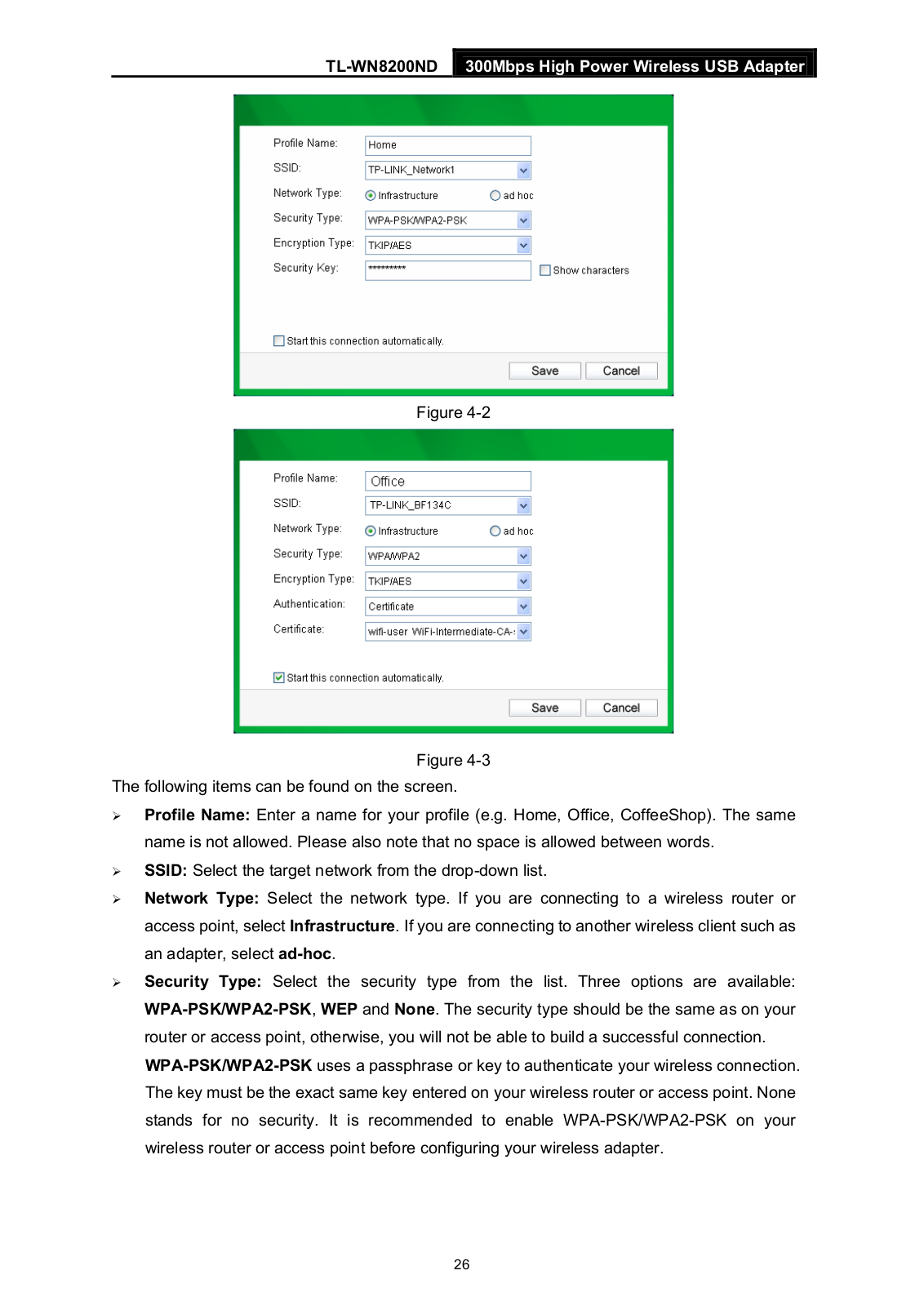

Add a profile |
25 |
|
4.1.2 ......................................................................................... |

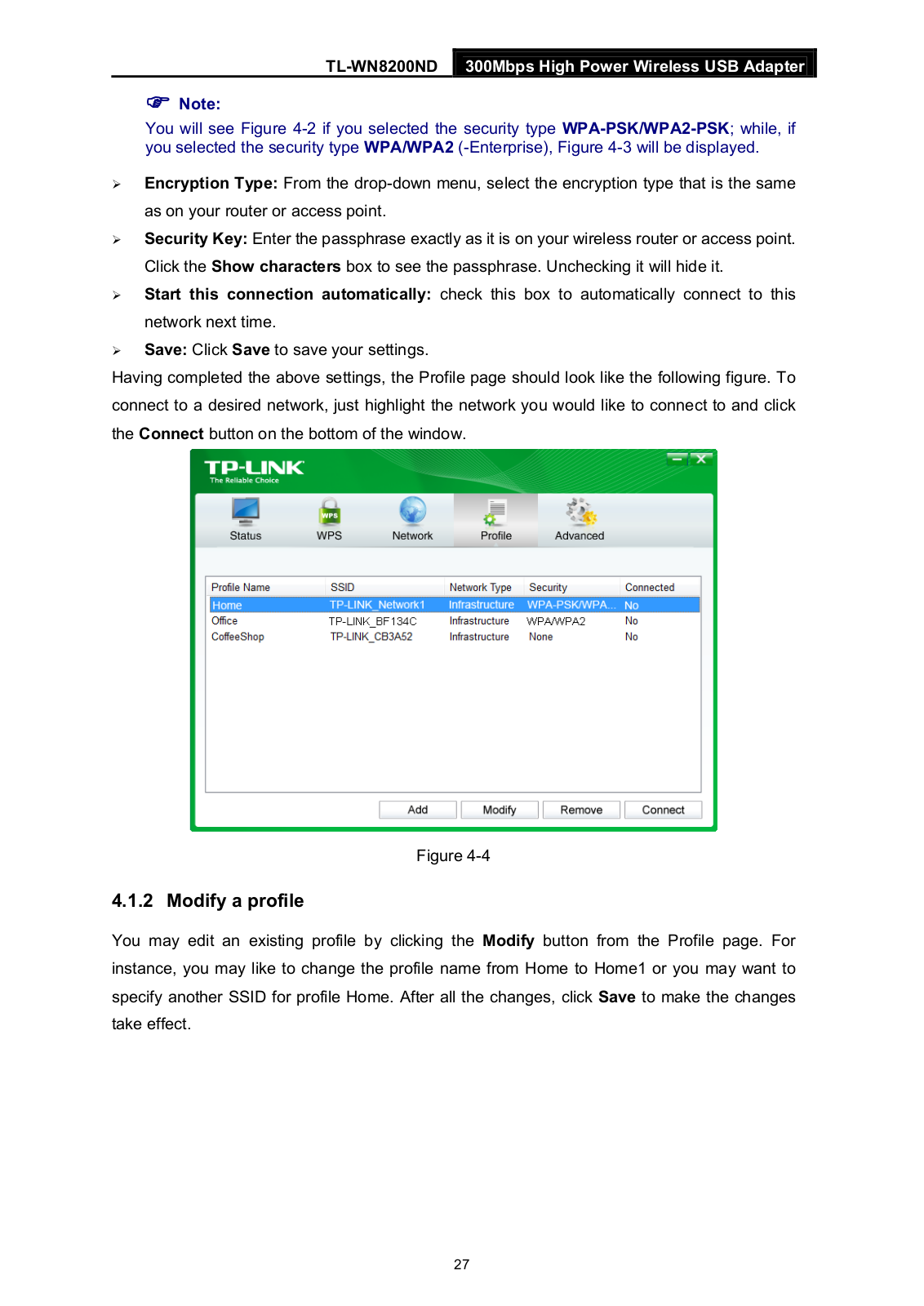

Modify a profile |
27 |
|
4.1.3 ......................................................................................... |

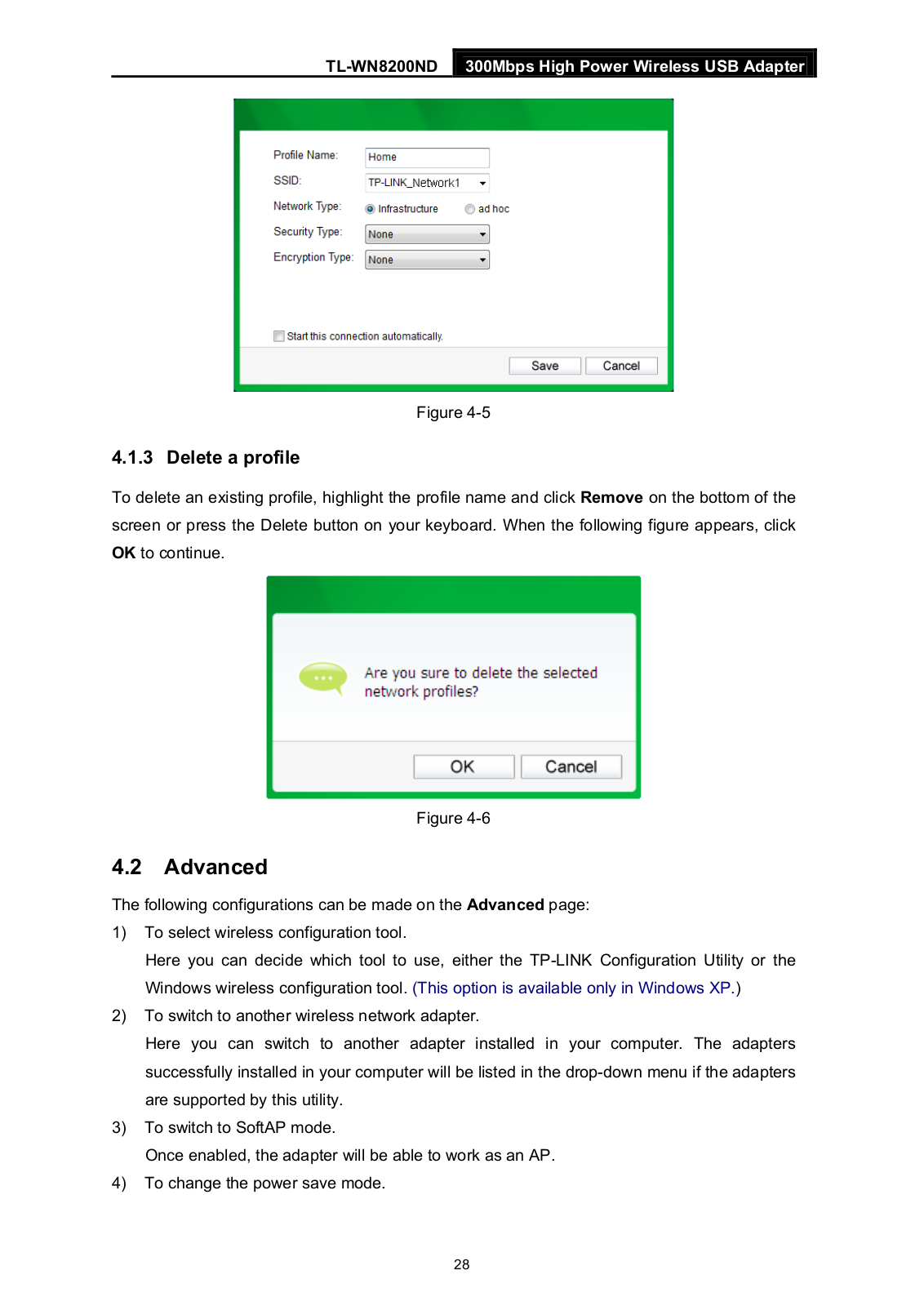

Delete a profile |
28 |
4.2 |
Advanced .............................................................................................................. |
28 |
|
4.3 |

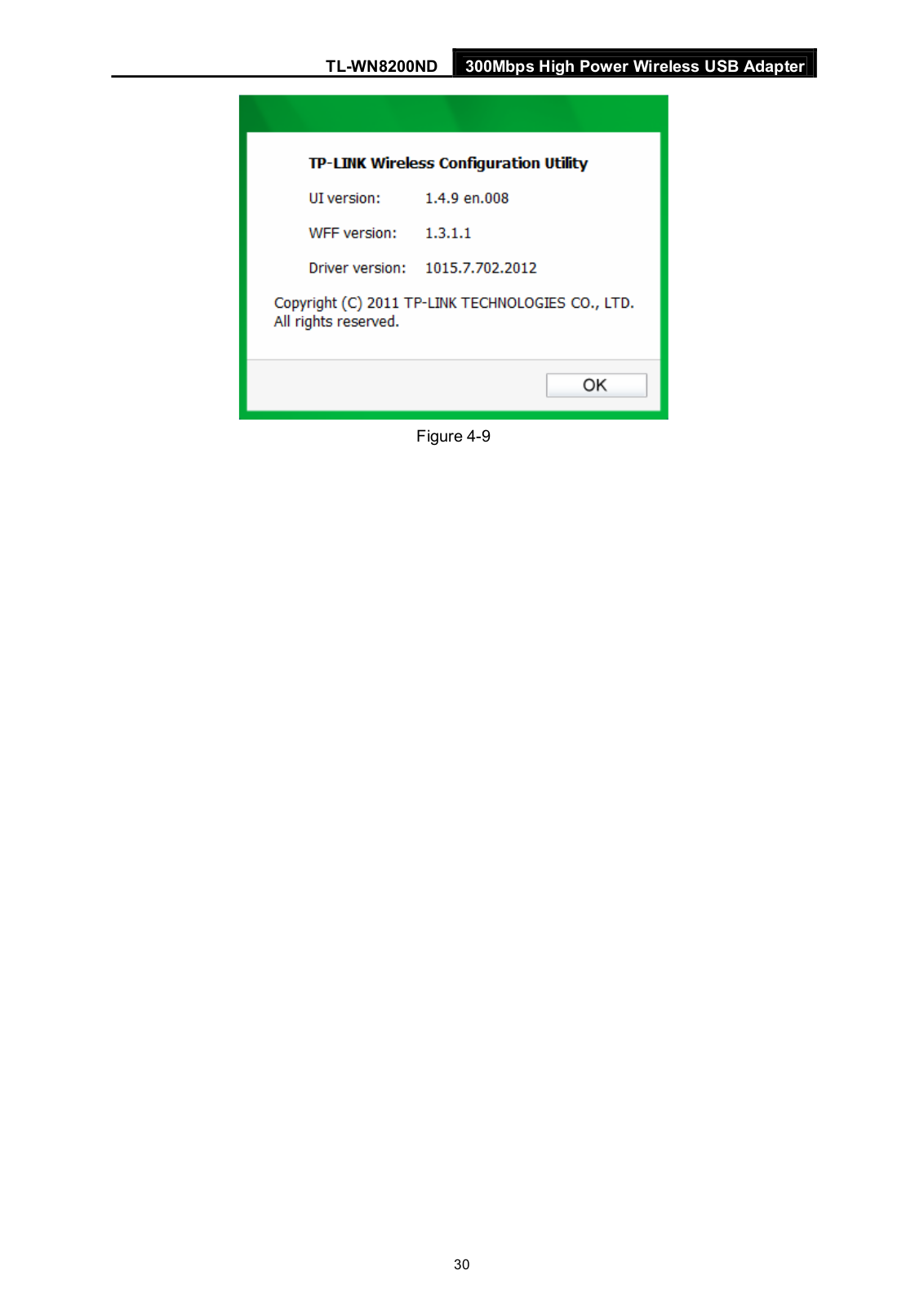

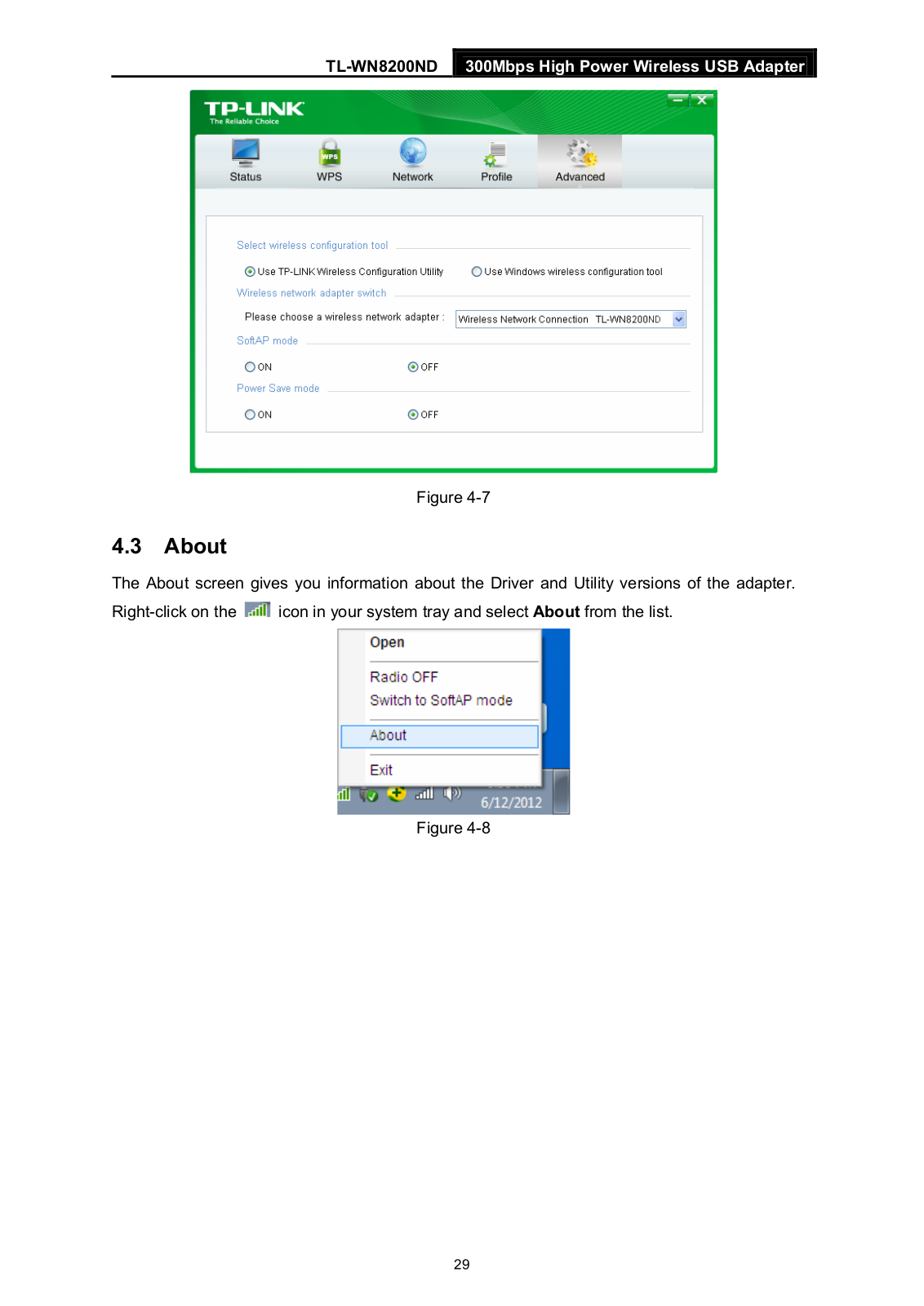

About..................................................................................................................... |
|
29 |
Chapter 5 |

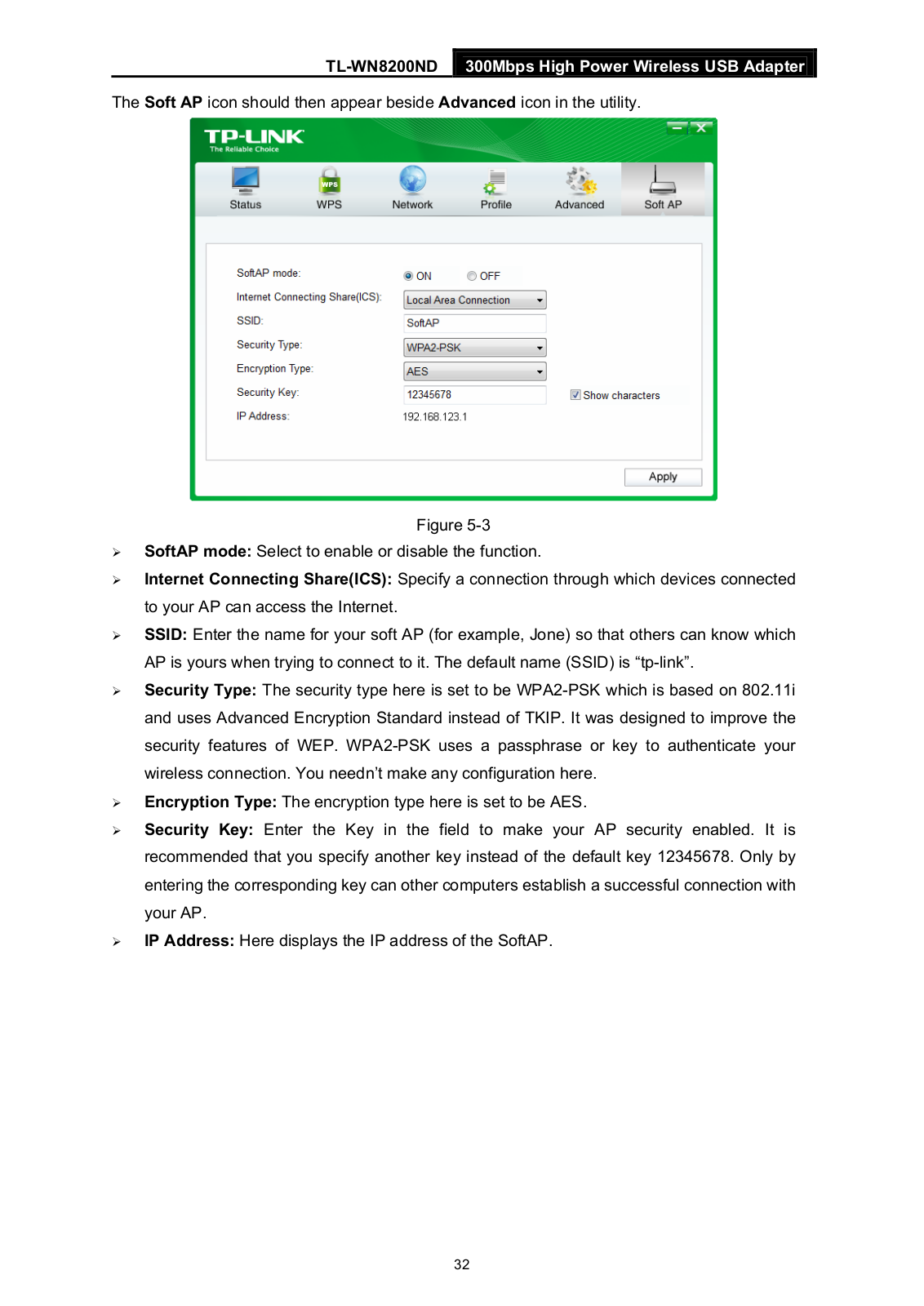

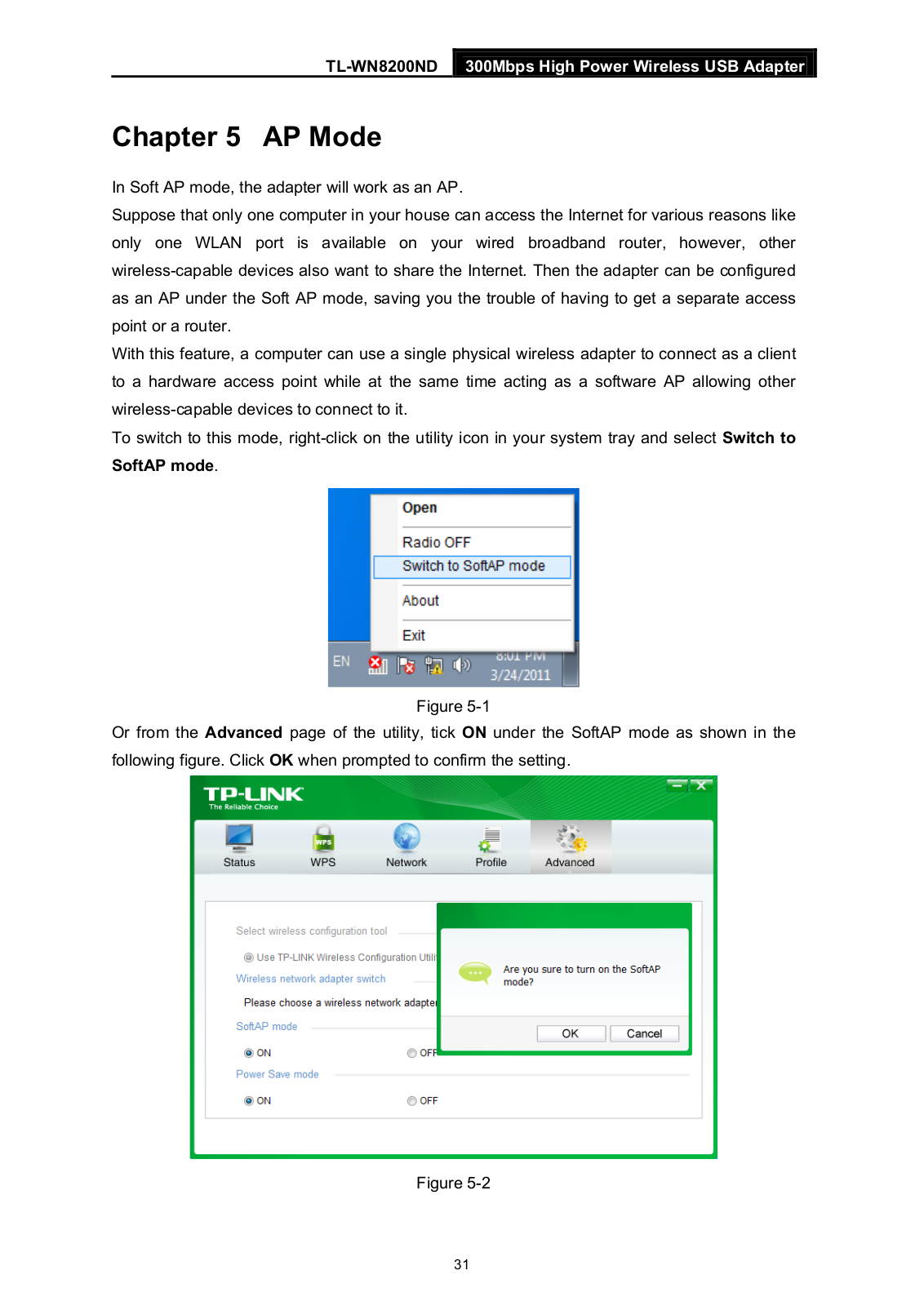

AP Mode .............................................................................................. |
31 |
|
Chapter 6 |

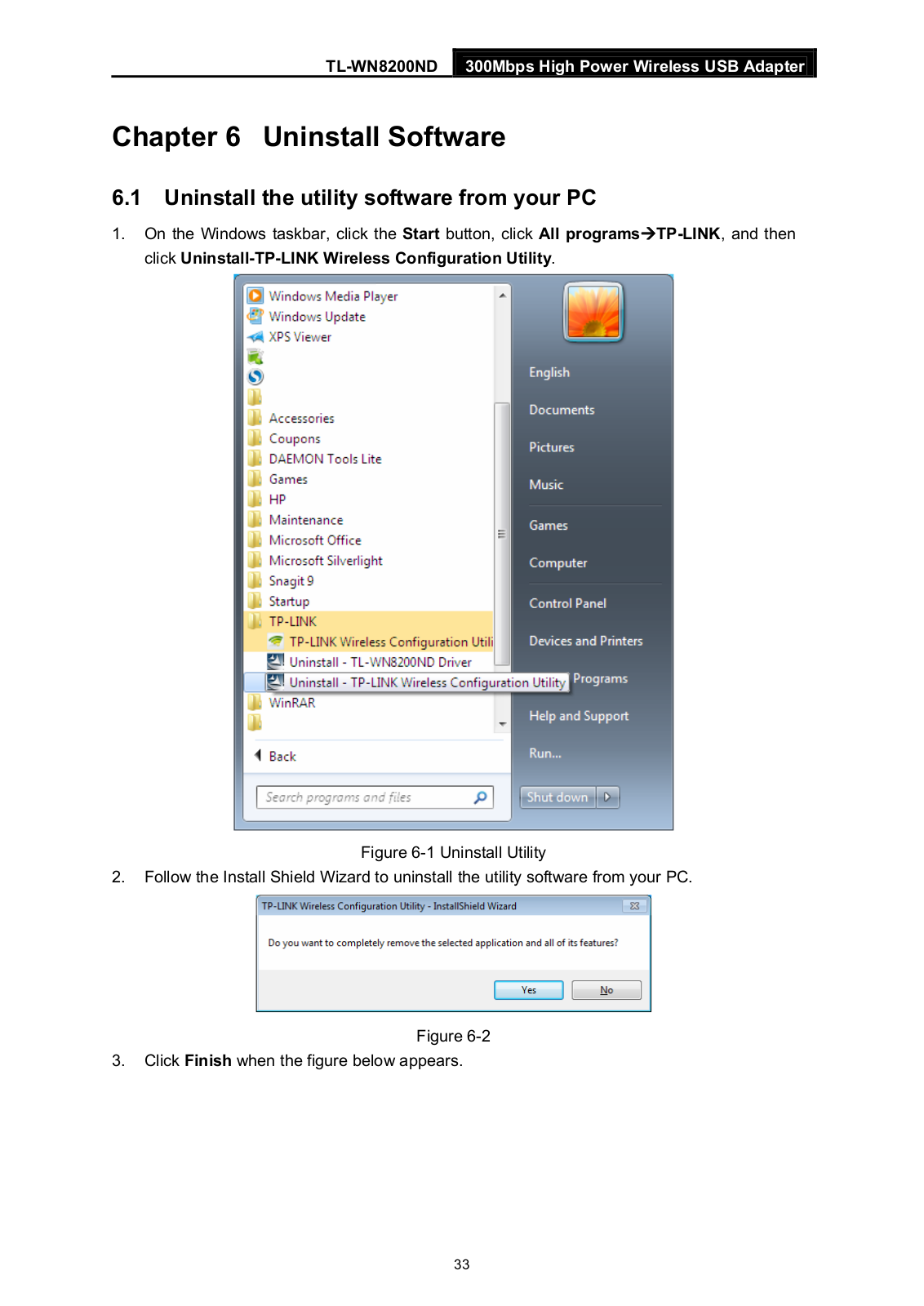

Uninstall ...............................................................................Software |
33 |
|
6.1 |
Uninstall .............................................................the utility software from your PC |
33 |
|

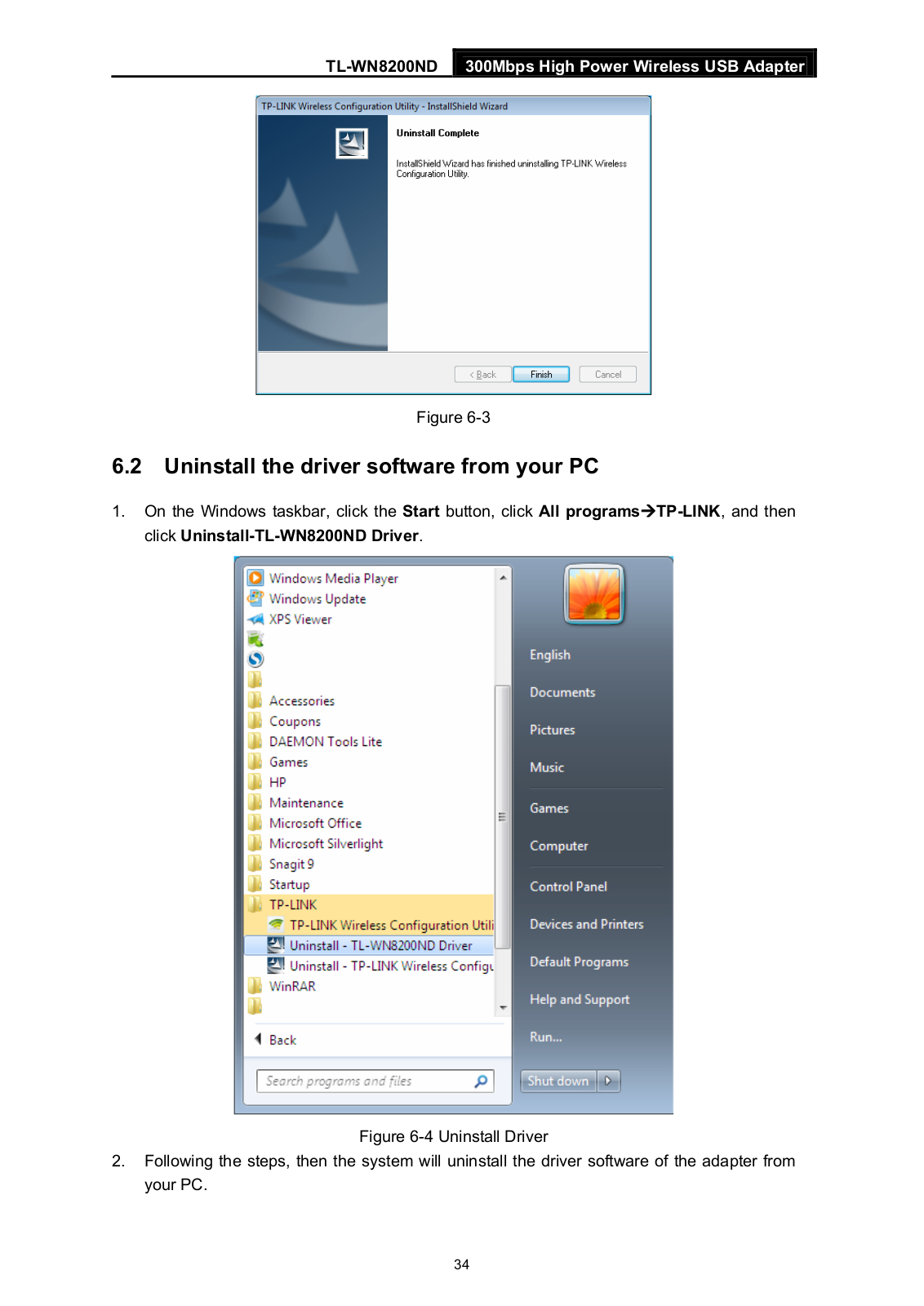

6.2 |
Uninstall ............................................................the driver software from your PC |
34 |
|

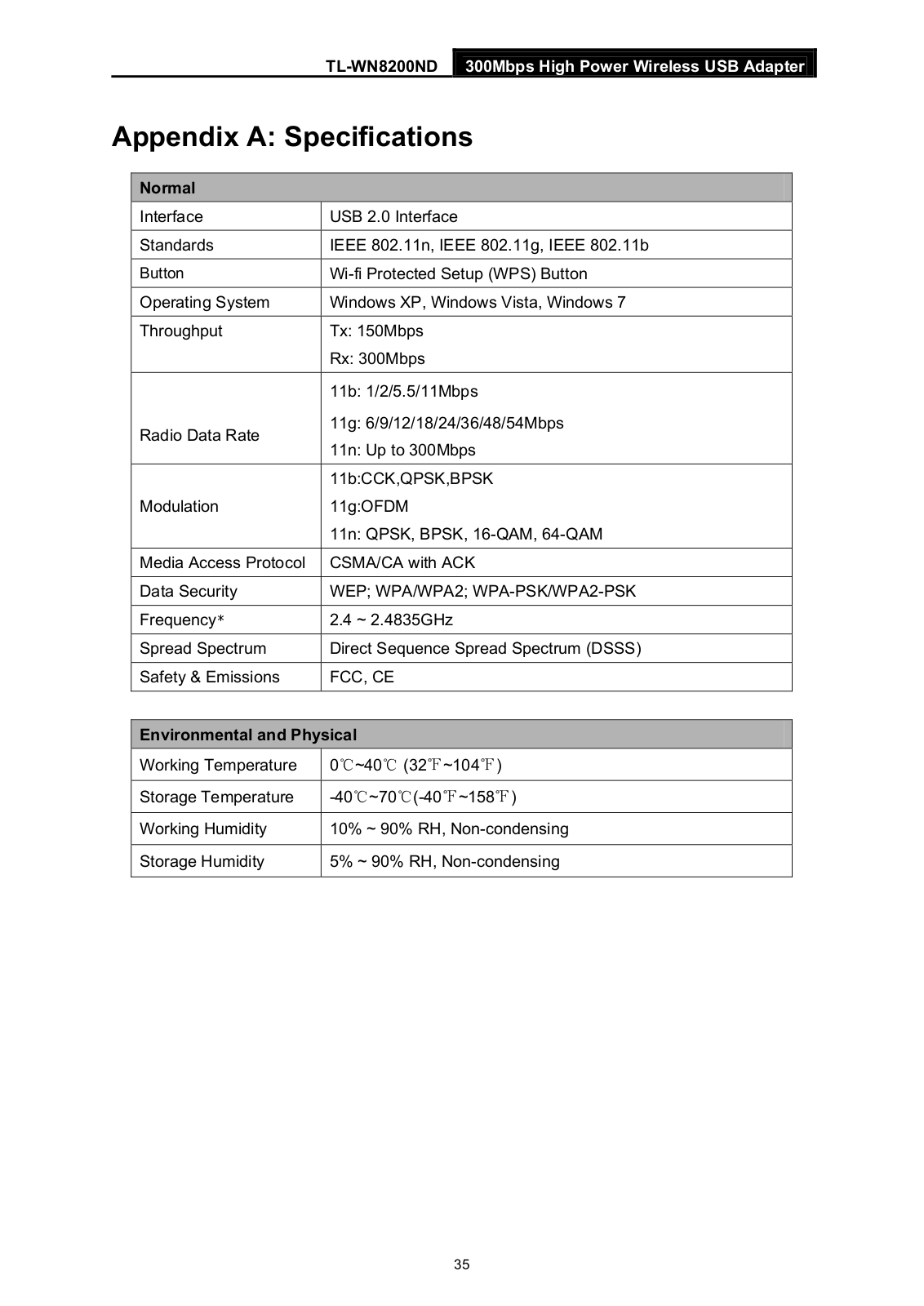

Appendix A: Specifications................................................................................... |
35 |
||

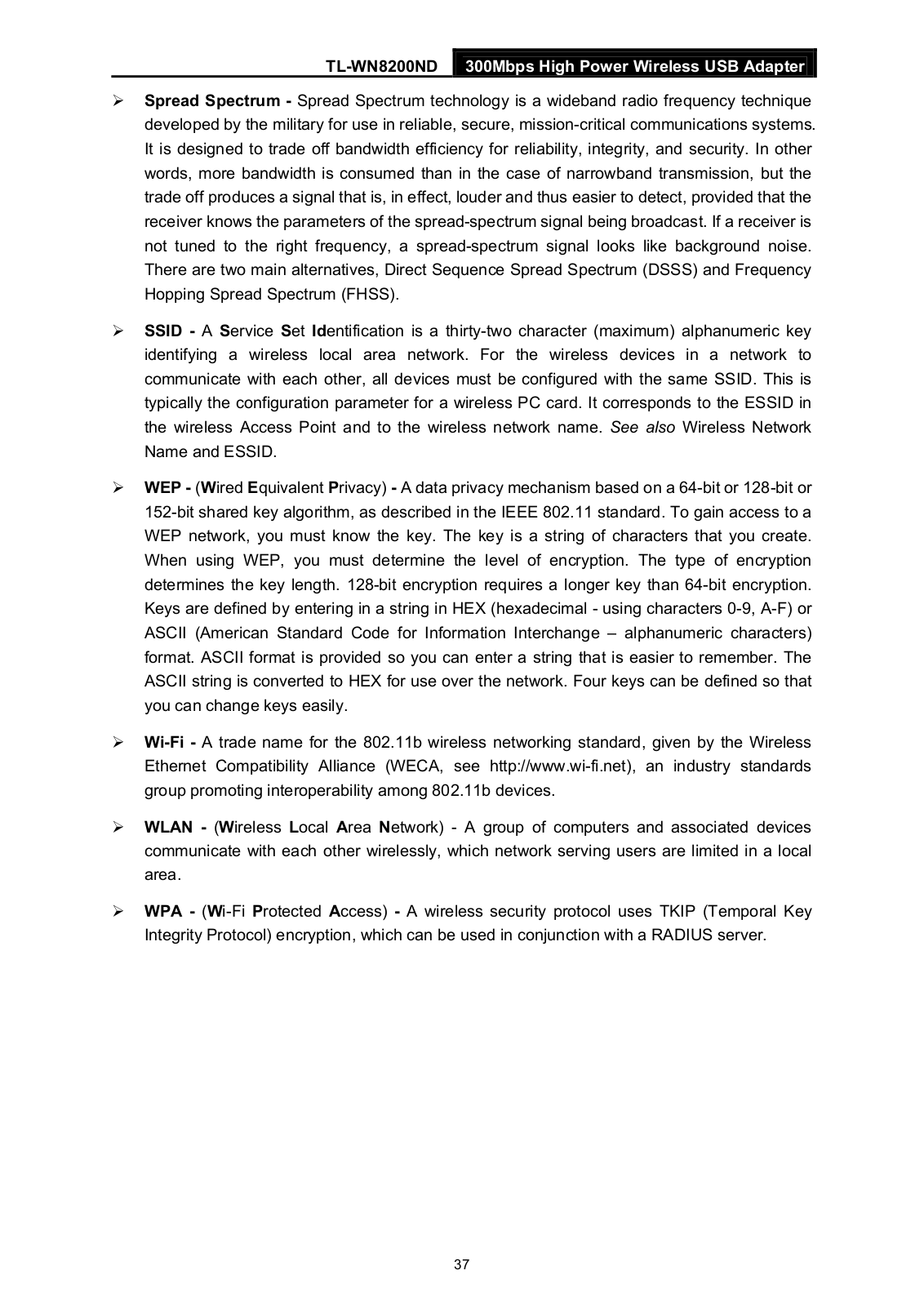

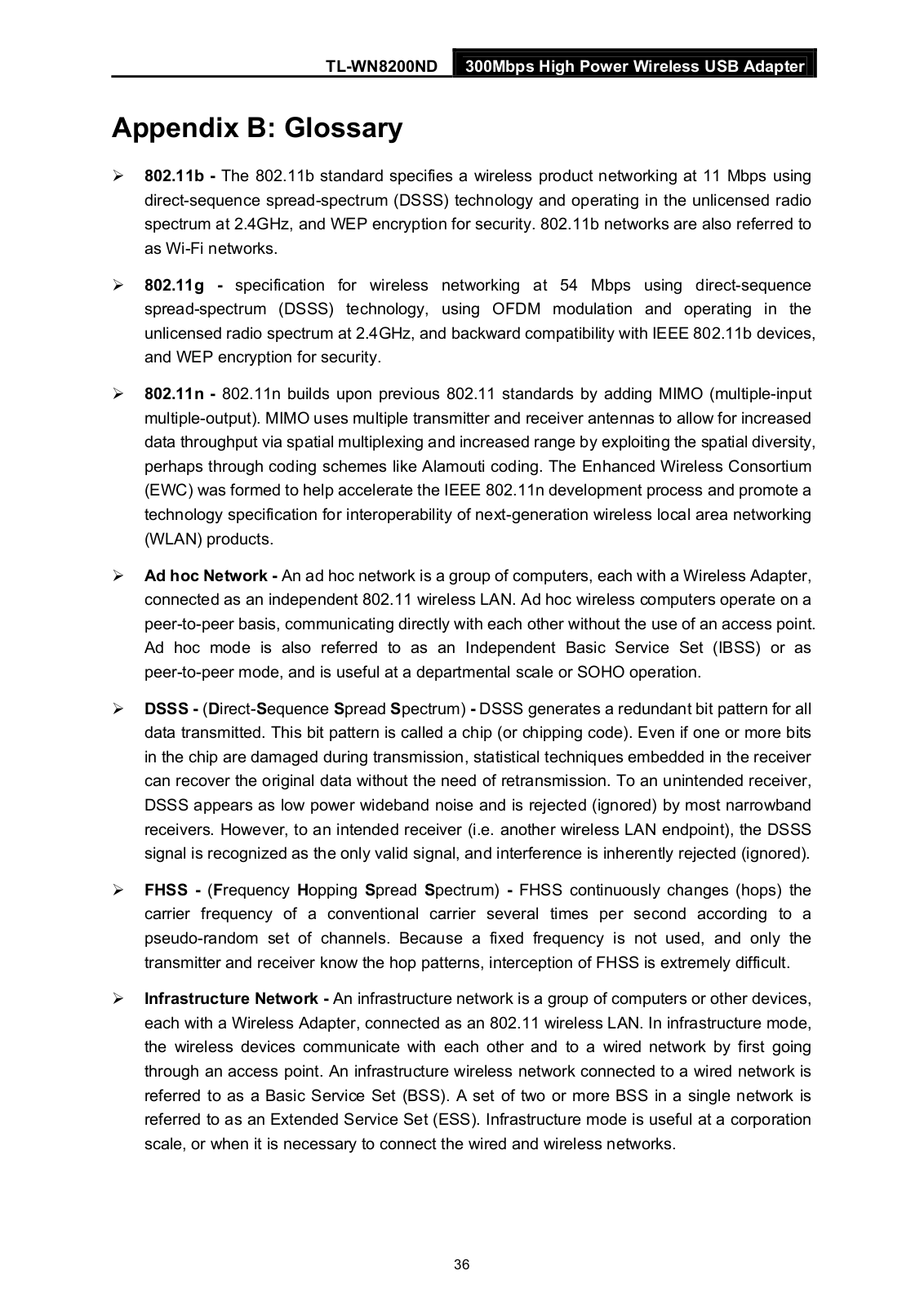

Appendix B: Glossary............................................................................................ |
36 |
||
TL-WN8200ND 300Mbps High Power Wireless USB Adapter
Package Contents
Please verify that all the package contents below are available.
¾One TL-WN8200ND 300Mbps High Power Wireless USB Adapter
¾Quick Installation Guide
¾One USB extension cable
¾One Resource CD for TL-WN8200ND, including:
•TP-LINK Wireless Configuration Utility (TWCU) and Drivers
•User Guide
•Other helpful information
Make sure that the above items are contained in the package. If any of the above items are damaged or missing, please contact your distributor.
) Note:
The ‘adapter’ mentioned in this User Guide stands for TL-WN8200ND 300Mbps High Power Wireless USB Adapter without any explanation.
1
TL-WN8200ND 300Mbps High Power Wireless USB Adapter
Chapter 1 Product Overview
1.1Introduction
The adapter is a 802.11n client device designed to deliver a high-speed and unrivaled wireless performance for your desktop. With a faster wireless connection, you can get a better Internet experience, such as downloading, gaming, video streaming.
With high transmission power, the TL-WN8200ND delivers up to 10 times the range of normal power USB adapter. Moreover, it is featured with its incredible and strong penetrability, making that you don't have to be physically tethered to the walls or floors to access the Internet. It features its high receive sensitivity, which could let you move further away from the access point while still maintaining the same wireless signal. In this case, using TL-WN8200ND means that you don't have to move the laptop like a divining rod, and you can easily pick up the network with its strong sensitivity.
The TL-WN8200ND’s auto-sensing capability allows high packet transfer rate of up to 300Mbps for maximum throughput. It has good capability on anti-jamming, and it can also interoperate with other wireless (802.11b) products. The adapter supports WEP, WPA and WPA2 encryption to prevent outside intrusion and protect your personal information from being exposed.
The adapter is easy to install and manage with the Quick Setup Wizard guiding you step-by-step through the installation process and the TP-LINK Wireless Configuration Utility instructing you to quickly set up a wireless connection.
With unmatched wireless performance, reception, and security protection, the TL-WN8200ND is the best choice for easily adding or upgrading wireless connectivity to your desktop.
1.2Features
¾Complies with IEEE 802.11n, IEEE 802.11g, IEEE 802.11b standards
¾Supports WPA/WPA2 data security, IEEE802.1x authentication, TKIP/AES encryption, WEP encryption
¾Supports high rate of up to 300Mbps for maximum throughput, supports automatically adjust to lower speeds due to distance or other operating limitations
¾Provides USB interface
¾Supports Ad Hoc and Infrastructure modes
¾Good capability on anti-jamming
¾Supports roaming between access points when configured under Infrastructure mode
¾Easy to configure and provides monitoring information
¾Supports Windows XP, Windows Vista and Windows 7
¾2*5dBi high gain detachable omnidirectional antennas make the performance enhanced.
2
TL-WN8200ND 300Mbps High Power Wireless USB Adapter
1.3Hardware Overview
LED status:
Status |
Working Status |
|
|
The driver has not been installed;
Off
The adapter's radio has been disabled.
Flashing Slowly
The driver has been installed but no data is being transmitted or received.
Flashing Quickly |
Data is being transmitted or received. |
) Note:
When the card failed to connect to a wireless network, the LED may be off. Please choose your network and try to connect again.
3
TL-WN8200ND 300Mbps High Power Wireless USB Adapter
Chapter 2 Installation
2.1Hardware Installation
1.Connect one end of the USB cable to the Adapter.
2.Connect the other end of the USB cable to the USB port on your computer. Because the Adapter gets its power from the host, there is no external power supply. The LED should light up when the Adapter is plugged in and the PC is on.
) Note:
The Found New Hardware Wizard screen will pop up when the adapter is installed correctly. Click Cancel.
2.2Software Installation
The adapter’s Setup Wizard will guide you through the installation procedures for Windows 7, Windows Vista, and Windows XP. The procedures in different systems are quite similar, therefore here takes the procedures in Windows 7 for example.
1.Insert the Resource CD into your CD-ROM drive, and the window below will appear. Select model TL-WN8200ND. There will be a menu including: Install Driver&Utility and User Guide. Click Install Driver&Utility to begin.
4
TL-WN8200ND 300Mbps High Power Wireless USB Adapter
Figure 2-1
2.The InstallShield Wizard window will appear. Click Next to continue.
Figure 2-2
3.Choose a setup type. It is recommended to select Install TP-LINK Wireless Configuration Utility and Driver. Selecting Install Driver Only will only install driver. Click Next to continue.
5
TL-WN8200ND 300Mbps High Power Wireless USB Adapter
Figure 2-3
4.Click Change… to specify the destination location for the software or you can leave it default. Click Next in the screen below to continue.
Figure 2-4

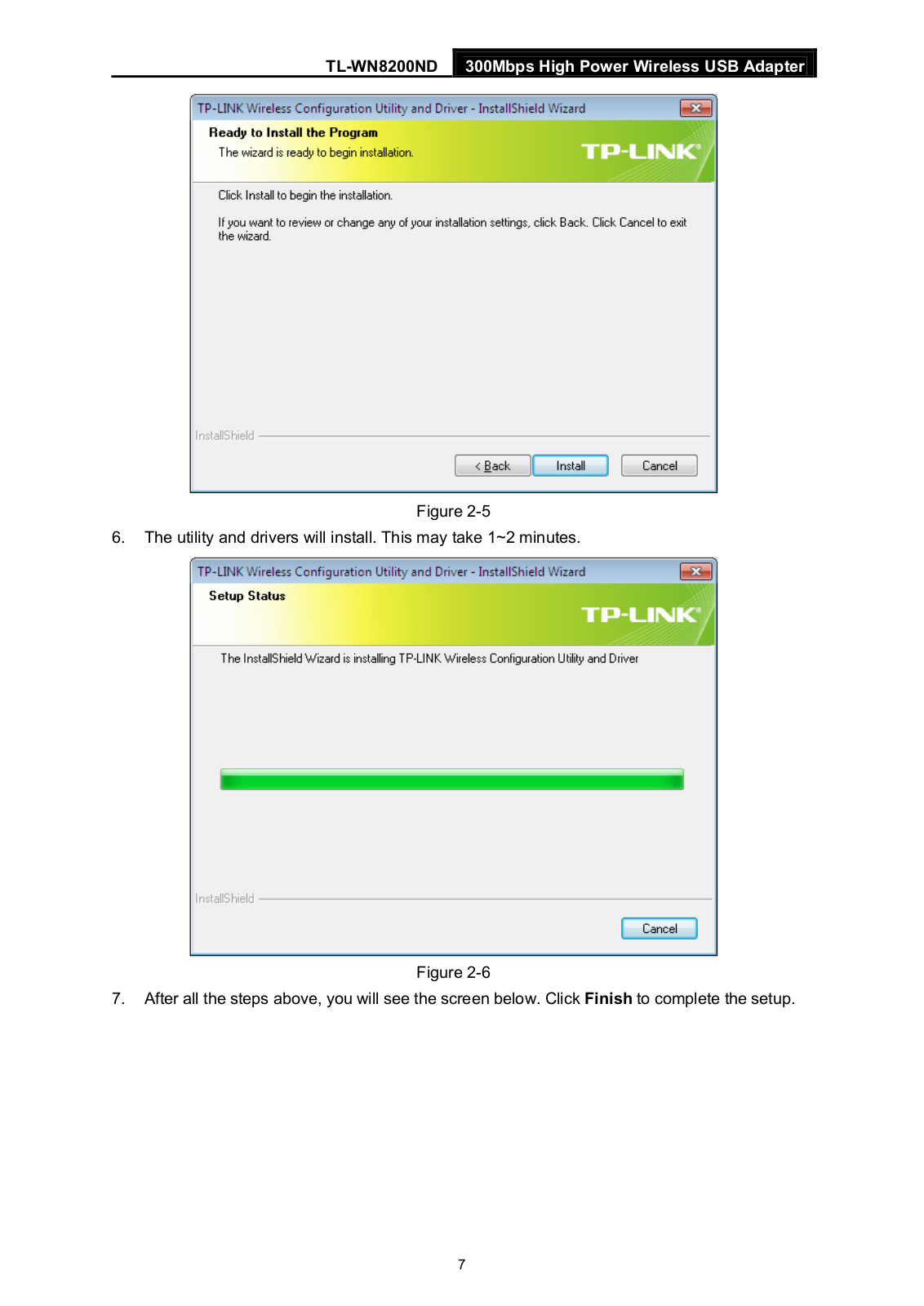

5.Click Install to continue the setup.

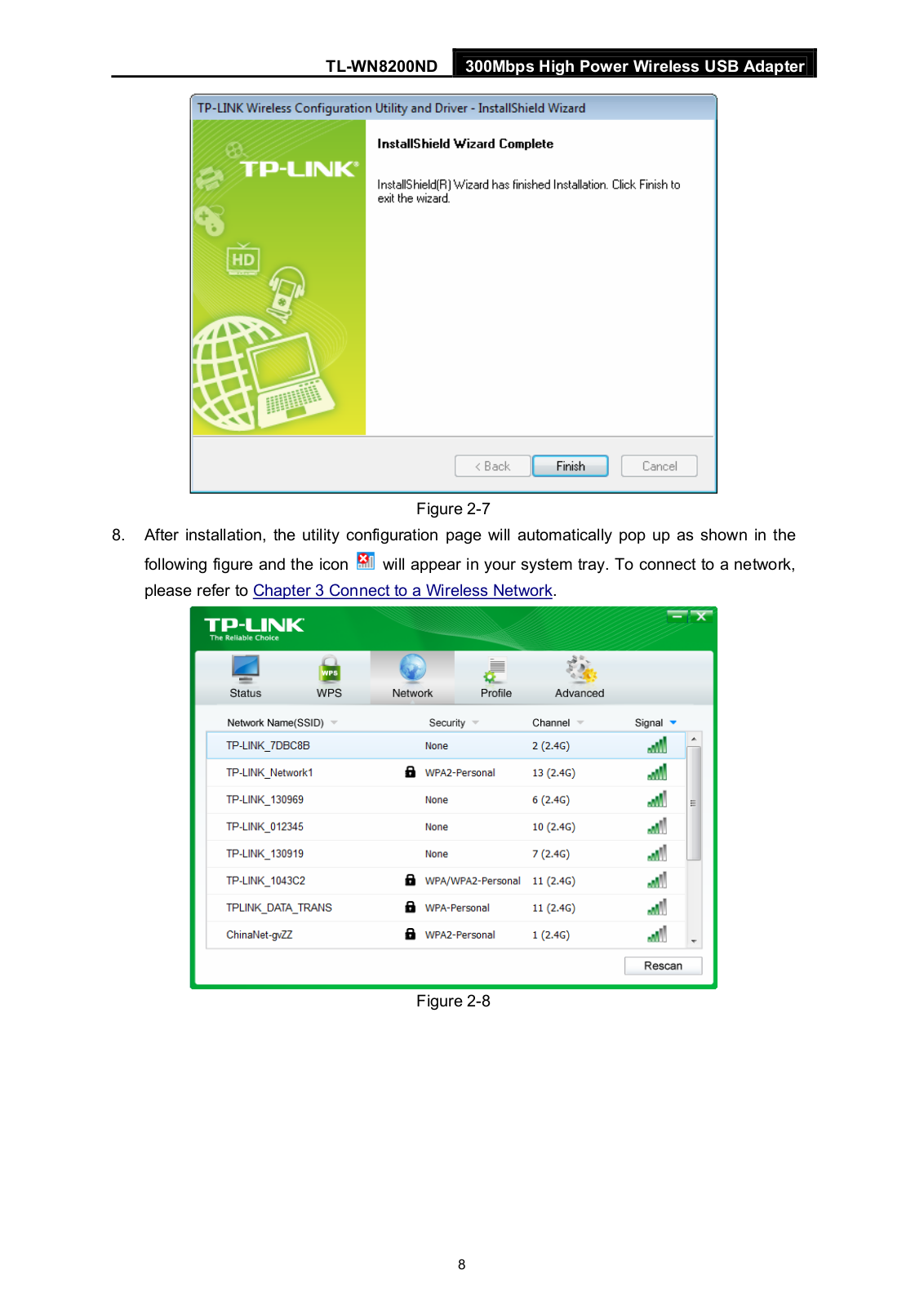

6
