TL-WN781ND
150Mbps Wireless N PCI Expre ss Adapter User Guide
Chapter 1 Product Overview
1.1 Introduction
The TP-LINK TL-WN781ND 150Mbps Wireless N PCI Express Adapter connects your desktop
computer to a Wi-Fi network for lag-free video streaming, online gaming, secure Internet surfing
and Internet calls.
1.2 Features
Complies with IE EE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11e, IEE E 802.11i
standards
Supports WEP, WPA/W PA2, WPA/WPA2-PSK data security, IEEE802.1x authentication,
TKIP/AES encryption
Supports high rate of up to 150Mbps for maximum throughput, supports automatically
adjust to lower speeds due to distance or other operating limitations
Provides 32-bit PCI Express interface
Supports Ad Hoc and Infrastructure modes
Good capability on anti-jamming
Supports roaming between access points when configured under Infrastructure mode
Easy to configure and provides monitoring information
Supports Windows XP/ Vista/7/8/8.1/10
1.3 LED status
Status Working Status
The driver has not been installed;
Off
Flashing Slowly The driver has been installed but no data is being transmitted or received.
Flashing Quickly Data is being transmitted or received.
The adapter's radio has been disabled.
1
Page 10
TL-WN781ND
150Mbps Wireless N PCI Expre ss Adapter User Guide
PCI-E Slot
1588
!
Chapter 2 Connect to a Computer

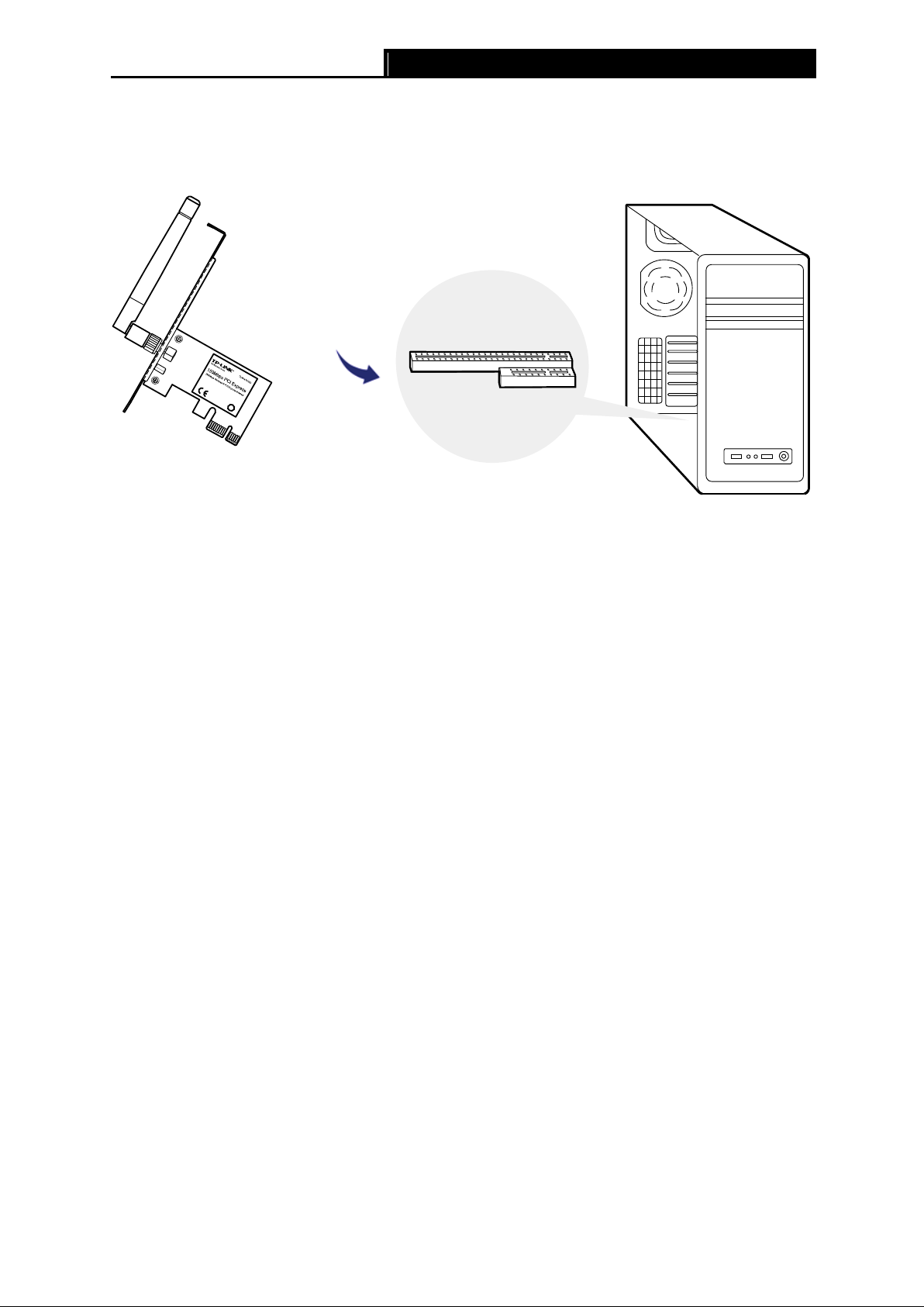

Before using your adapter, connect it to your computer by following these steps:
1. Turn off your computer, unplug the power cord and other connected peripheral devices to
your computer.
2. Remove the case panel. Locate an available PCI-E slot and remove its slot cover.
3. Carefully insert the adapter into the PCI-E slot and secure it with the retaining screw.
4. Replace the case panel.
5. Reconnect the power cord and turn on your computer.
No te :
In Windows XP/Vista, a Found New Hardware Wizard window will appear when the adapter is
detected. Please click Cancel.
2
Page 11
TL-WN781ND
150Mbps Wireless N PCI Expre ss Adapter User Guide
Chapter 3 Install driver and utility
The Setup Wizard will guide you through the installation procedures. We use the procedures in
Windows 7 as an example - the procedures may vary slightly for other versions of Windows.
No te : For Windows 10, TP-LINK Utility is not supported.

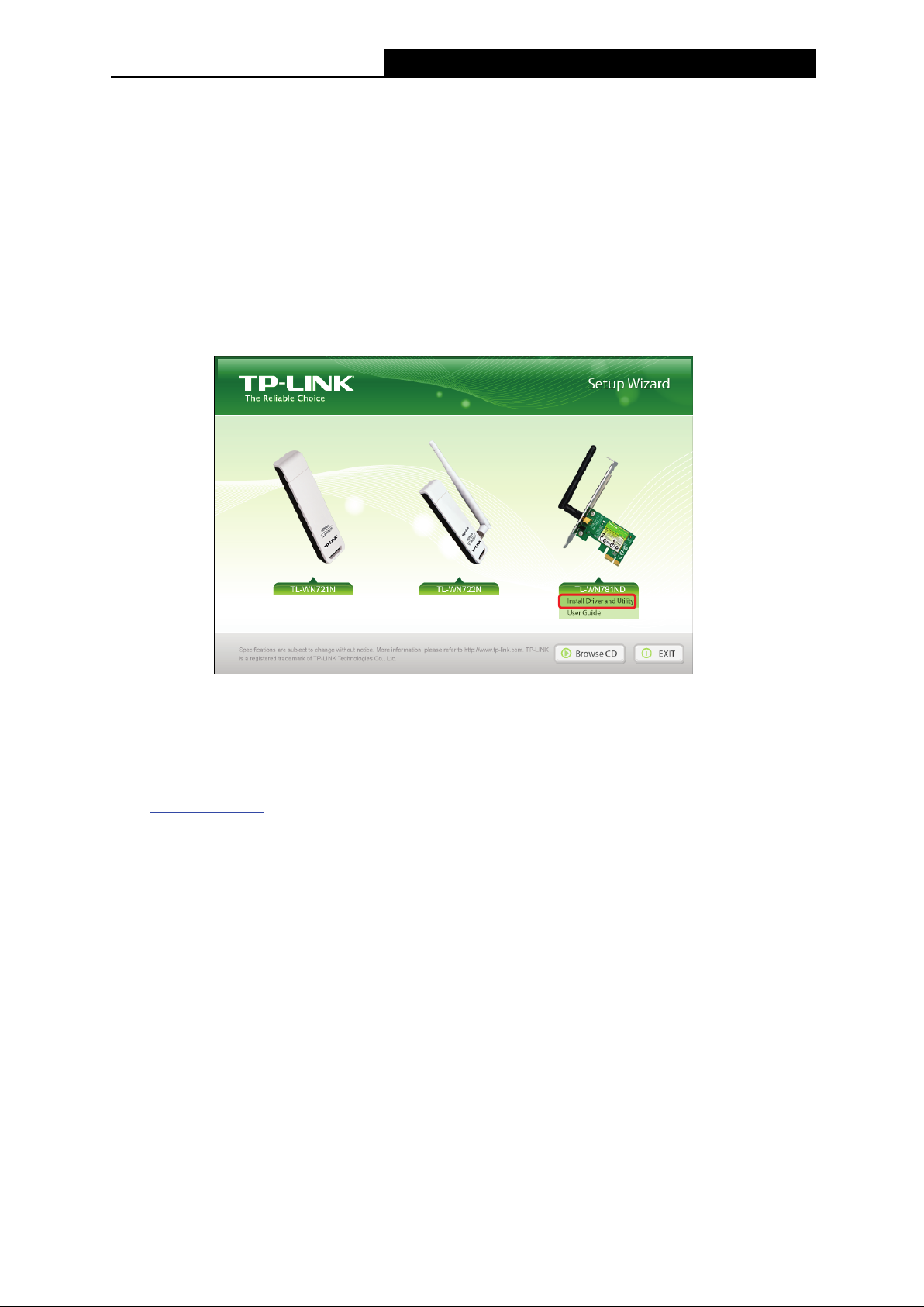

1. Insert the resource CD into your CD drive and click the Run Autorun.exe from the pop-up
AutoPlay window. Select TL-WN781ND and click Install Driver and Utility to begin.
No te :
The CD is included in the package. If your CD does not work or your computer doesn't
support the CD, you can also download the driver and utility from the TP-LINK website
(www.t p -link.com).
In some operating systems, the CD screen will pop up automatically. Otherwise, run the CD
manually.
3
Page 12
TL-WN781ND
150Mbps Wireless N PCI Expre ss Adapter User Guide

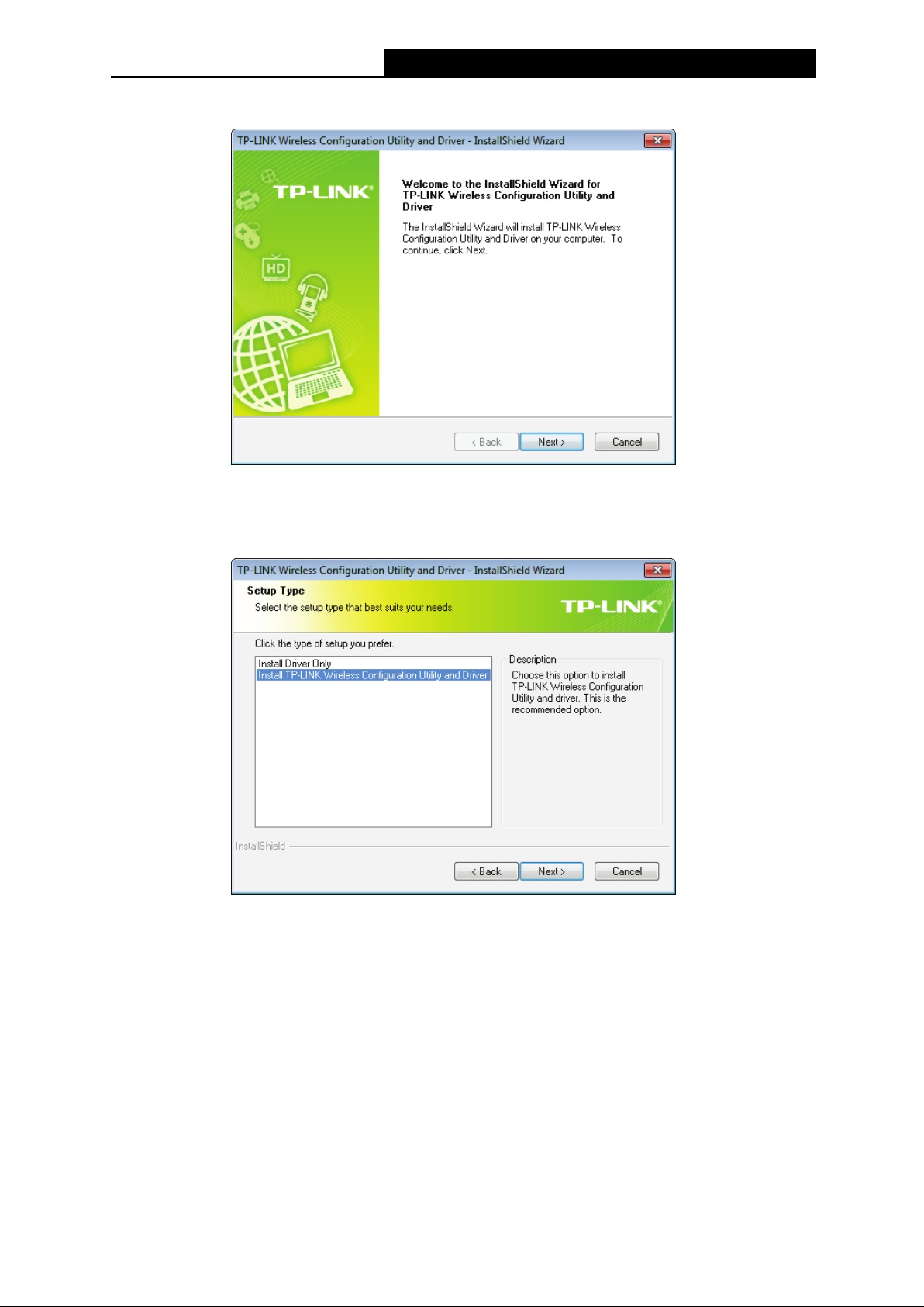

2. The InstallShield Wizard window displays. Click Ne xt to continue.
3. Choose a setup type. It is recommended to select Install TP-LINK Wire le ss
Configuration Utility and Driver. Click Next.
4
Page 13
TL-WN781ND
150Mbps Wireless N PCI Expre ss Adapter User Guide

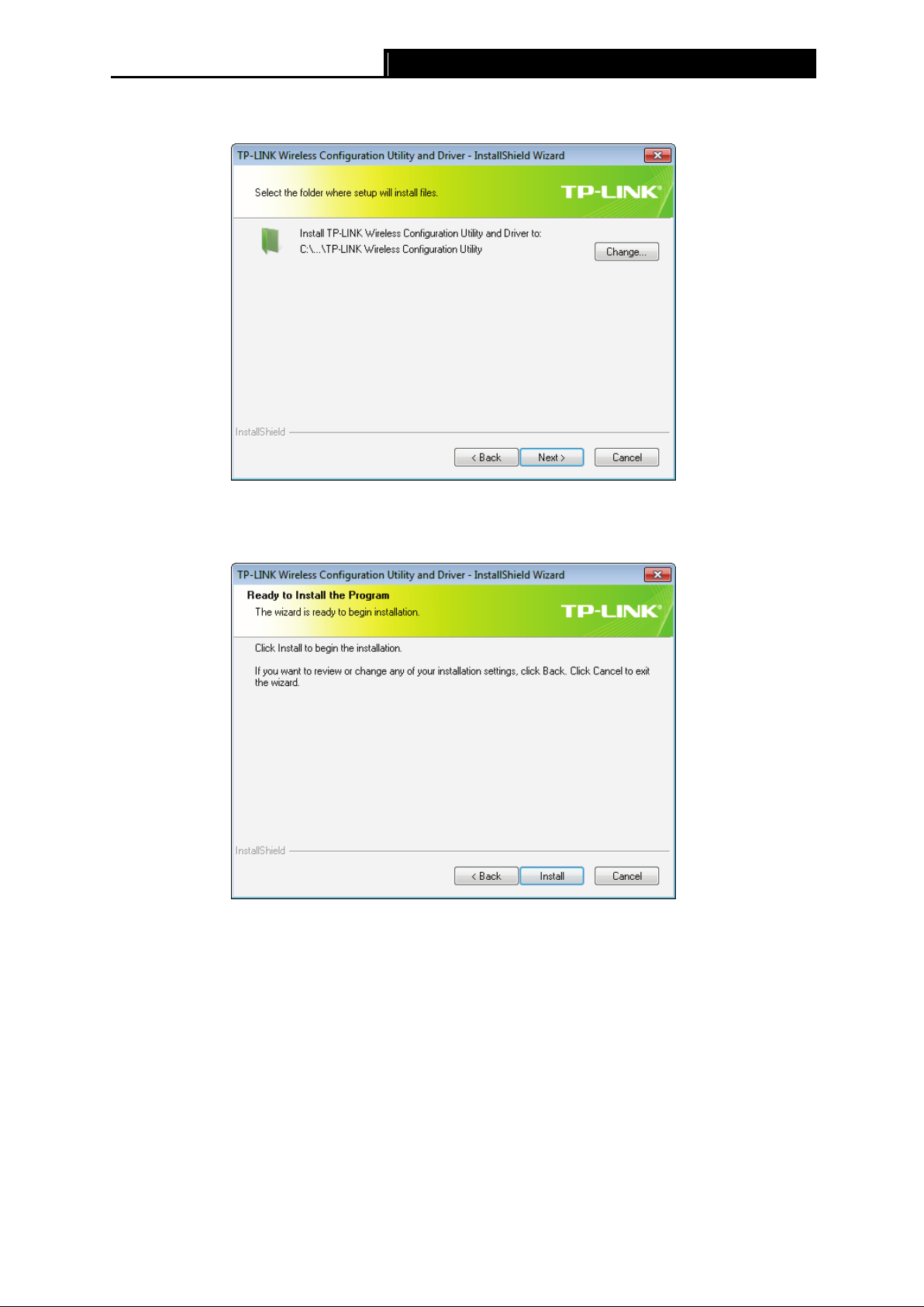

4. If you want to change install location, click Change to specify the location for the software
installation. Or you can leave it default. Click Next.

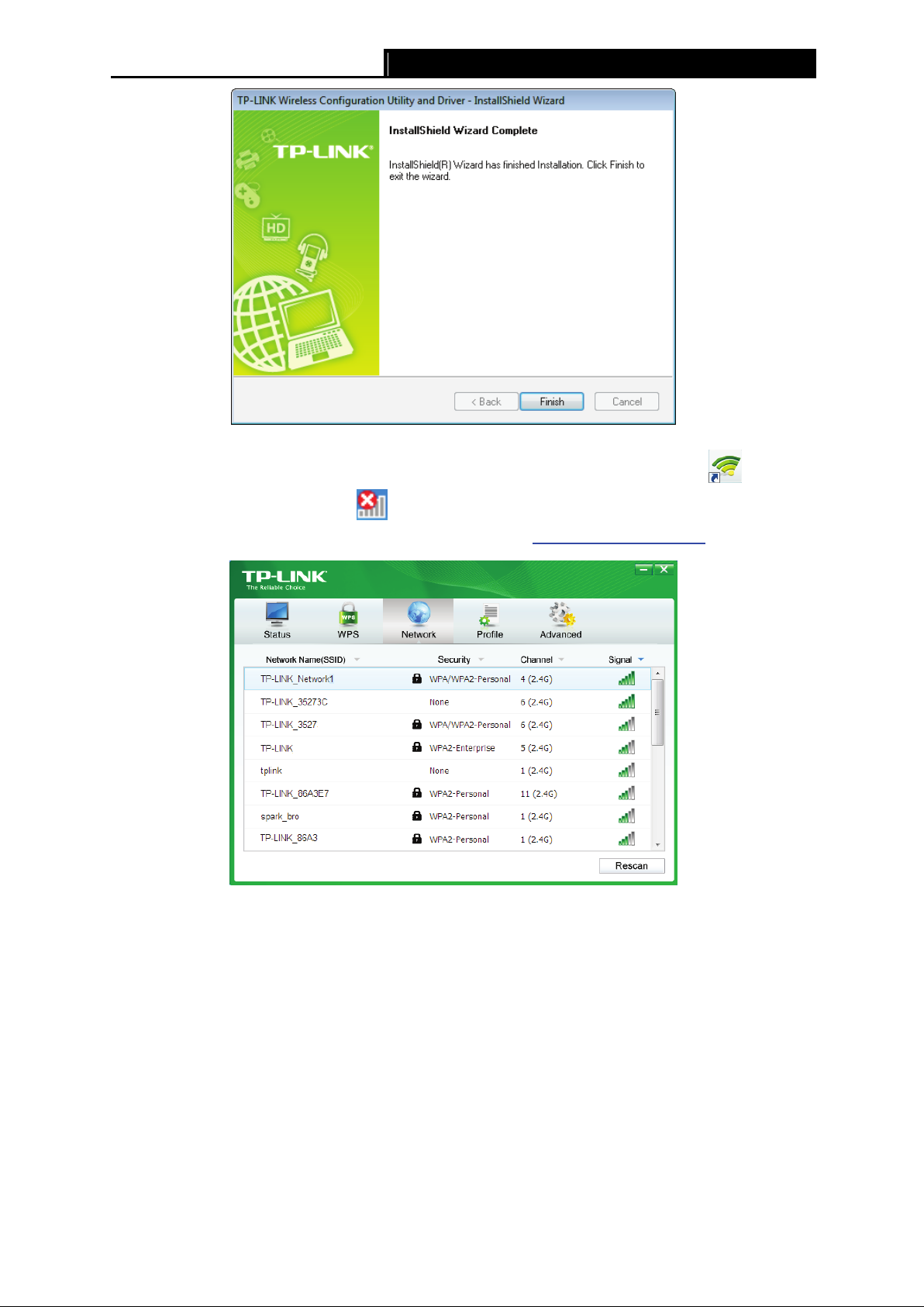

5. Click Install. After a few minutes, the installation completes. Click Finish.
5
Page 14
TL-WN781ND
150Mbps Wireless N PCI Expre ss Adapter User Guide
6. TP-LINK utility pops up after installation. Its icon appears on the desktop as
the Windows system tray as
. You can use the TP-LINK utility to join a Wi-Fi networ k
with your adapter. For more guidance, please refer to Join a Wireless Network
and in
.
6
Page 15
TL-WN781ND
150Mbps Wireless N PCI Expre ss Adapter User Guide
Chapter 4 Join a Wireless Network
There are three options of using the adapter to join a Wi-Fi network. For Windows 10, TP-L INK
Utility is not supported, please use the Windows built-in Wireless Utility (Option 3) to join a
network.
Option 1: TP-LINK Utility
TP-LINK Utility lets you easily connect the adapter to a Wi-Fi network and manage the adapter.
Option 2: WPS (Wi-Fi Protected Setup)
WPS (Wi-Fi Protected Setup) is a network security standard for easily adding computers and
other devices to a home network. Use this method if your wireless router or access point
supports WPS.
Option 3: Windows Wire less Utility
Windows users may use the built-in wireless utility to connect to a wireless network.
4.1 TP-LINK Utility

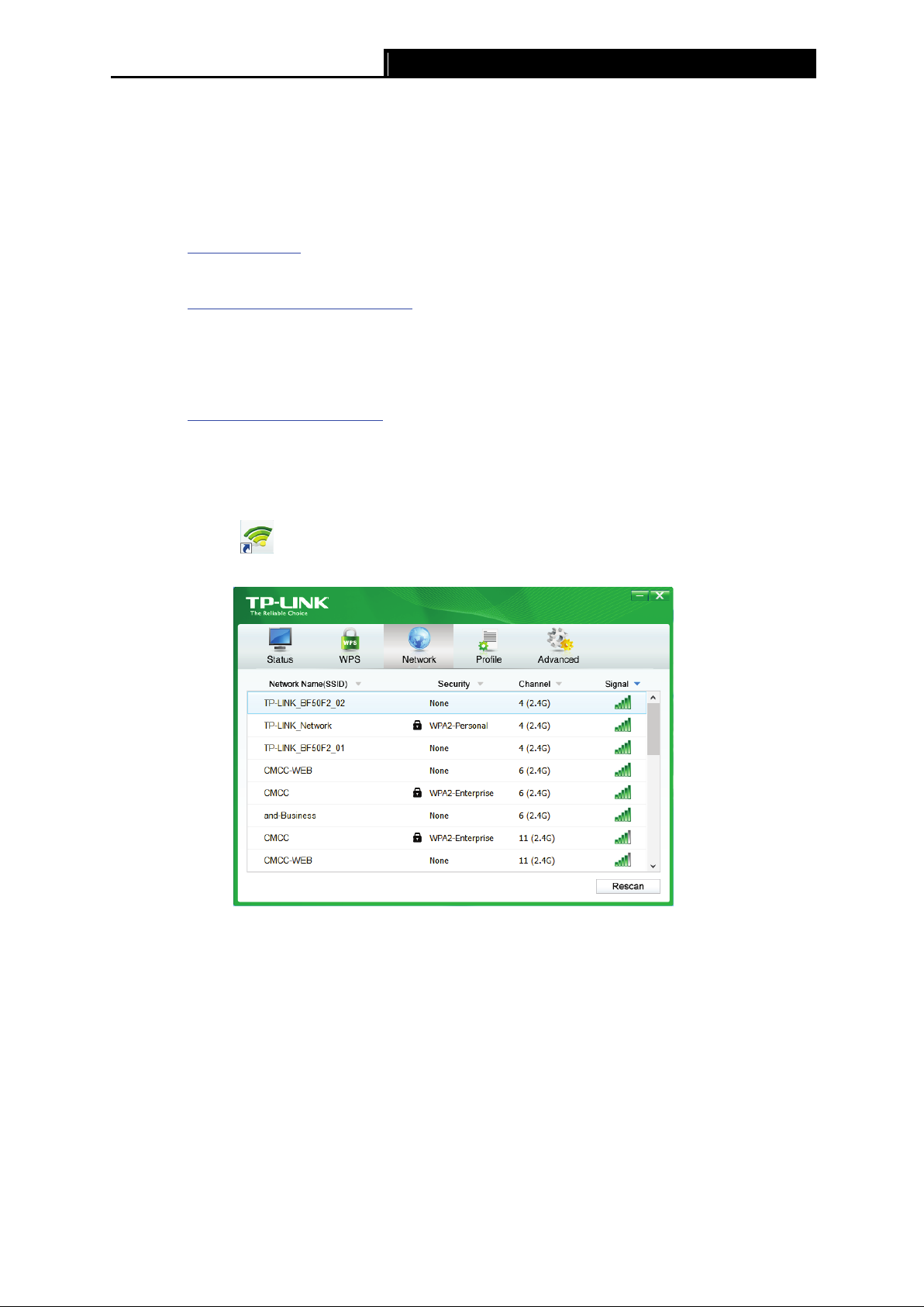

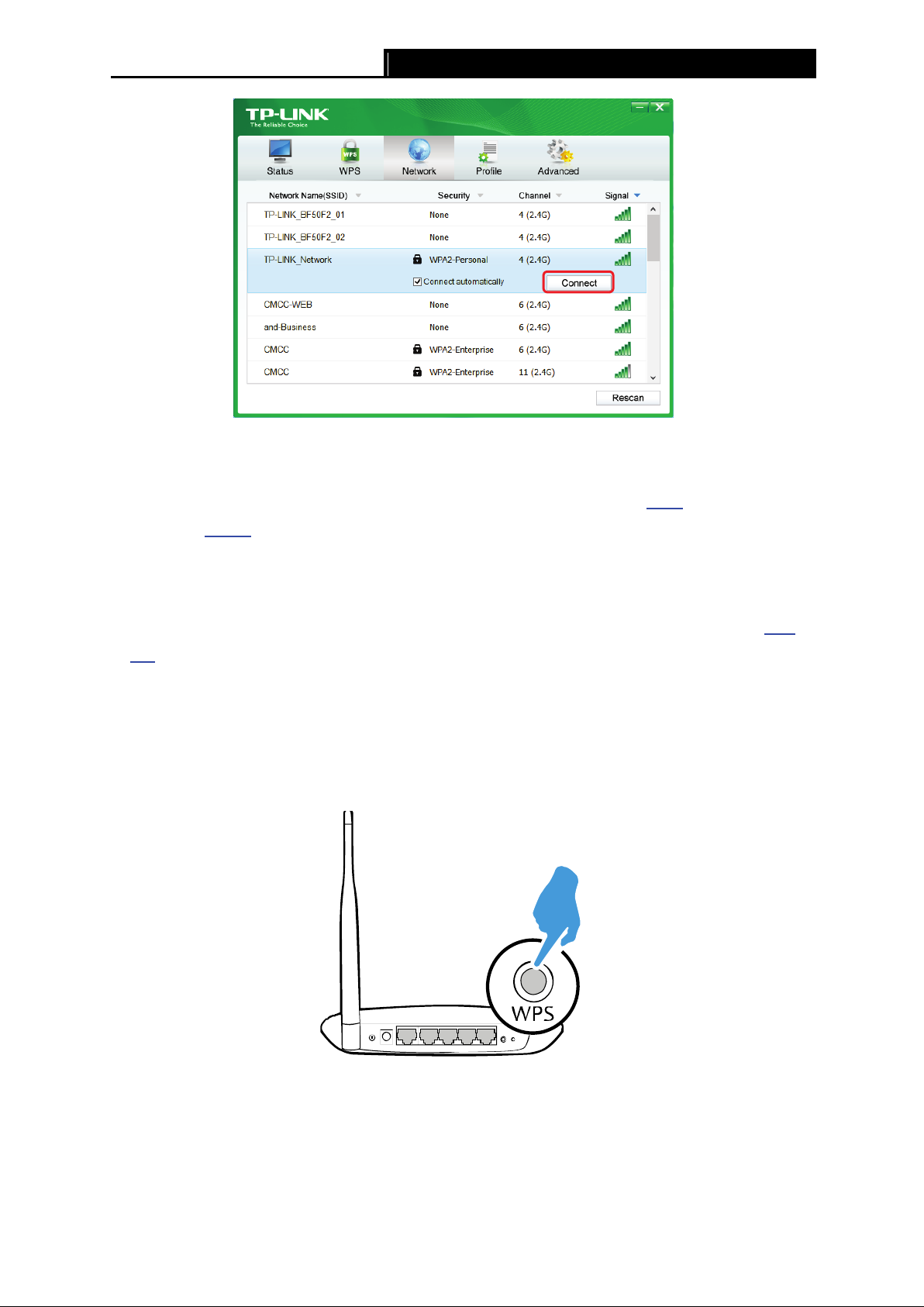

1. Double-click (TP-L INK Utility icon). The Network screen displays.
2. Select the network you want to join fro m the list on this screen and click Conne ct. If you
want the adapter to automatically connect to the network next time, select the Conne ct
automatically checkbox. Enter your Wi-Fi password when prompted.
7
Page 16
TL-WN781ND
150Mbps Wireless N PCI Expre ss Adapter User Guide
No te :
If your Wi-Fi network is not displayed in the list, you can try to join it by WPS or by adding a
profile in the Profile screen.
4.2 WPS (Wi-Fi Protected Setup)
WPS can be activated via PBC (Push Button Configuration) and PIN code. Please refer to PBC
or PIN below.
This method is operated via TP-LINK Utility, thus is not supported in Windows 10.
PBC
1. Press the WPS/QSS button on your router or AP.
8
Page 17
TL-WN781ND
150Mbps Wireless N PCI Expre ss Adapter User Guide

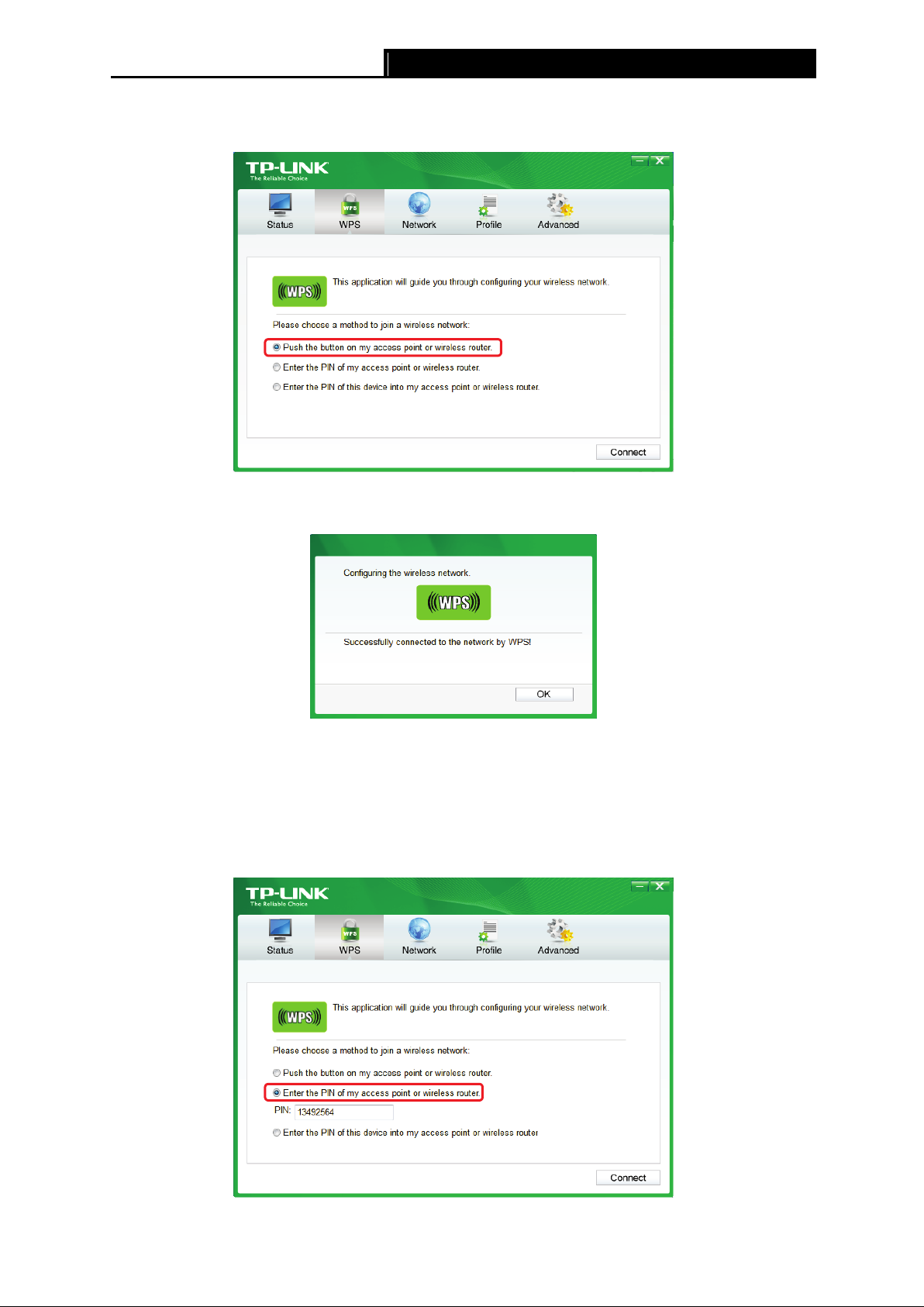

2. Open TP-L INK Util ity and click WPS tab. Select Push the button on my acce ss point or
wireless router and click Connect.

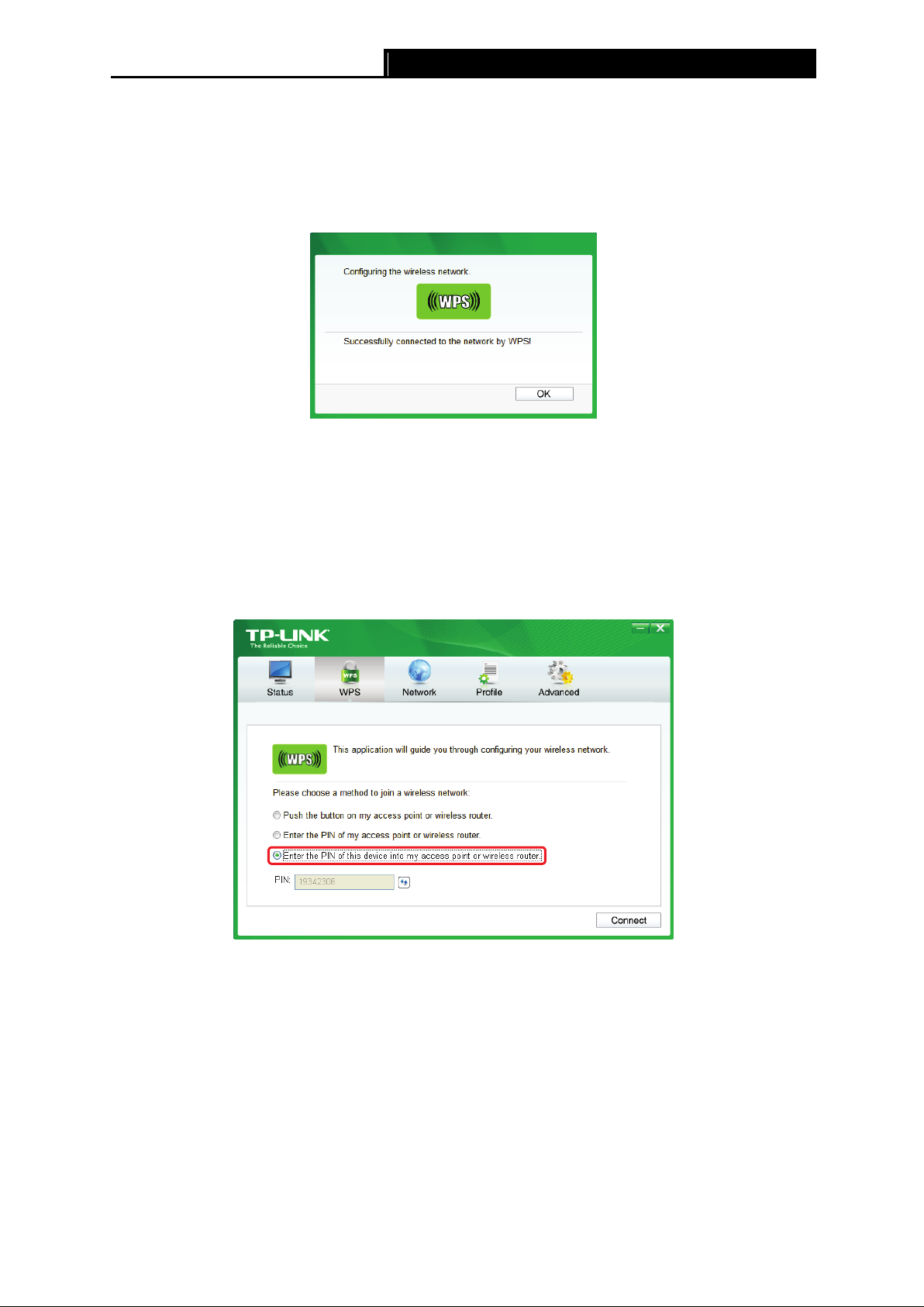

3. The following screen indicates a successful connection by WPS. Click OK.
PIN
Option 1
1. Open TP-LINK Utility and click WPS tab. Select Enter the PIN of my access point or
wireless router. Enter the PIN of your router or AP. Click Connect.
9
Page 18
TL-WN781ND
150Mbps Wireless N PCI Expre ss Adapter User Guide
No te :
The default PIN of your router or AP is p r inted on the product label of your router or AP. If you
generated a new PIN for your router, please enter the new one.
2. The following screen indicates a successful connection by WPS. Click OK.
Option 2
Note : This method is only available in Windows XP and Windows Vista.
1. Open TP-LINK Utility and click WPS tab. Select Enter the PIN of this device into my
access point or wireless rou ter. The screen displays a PIN of the adapter, which is
generated randomly. Click Connect.
2. Log in to the Web Management page of your router or AP. Go to the WPS page, en ter t he
PIN of the adapter in the corresponding field and click Connect.
10
Page 19
TL-WN781ND
150Mbps Wireless N PCI Expre ss Adapter User Guide

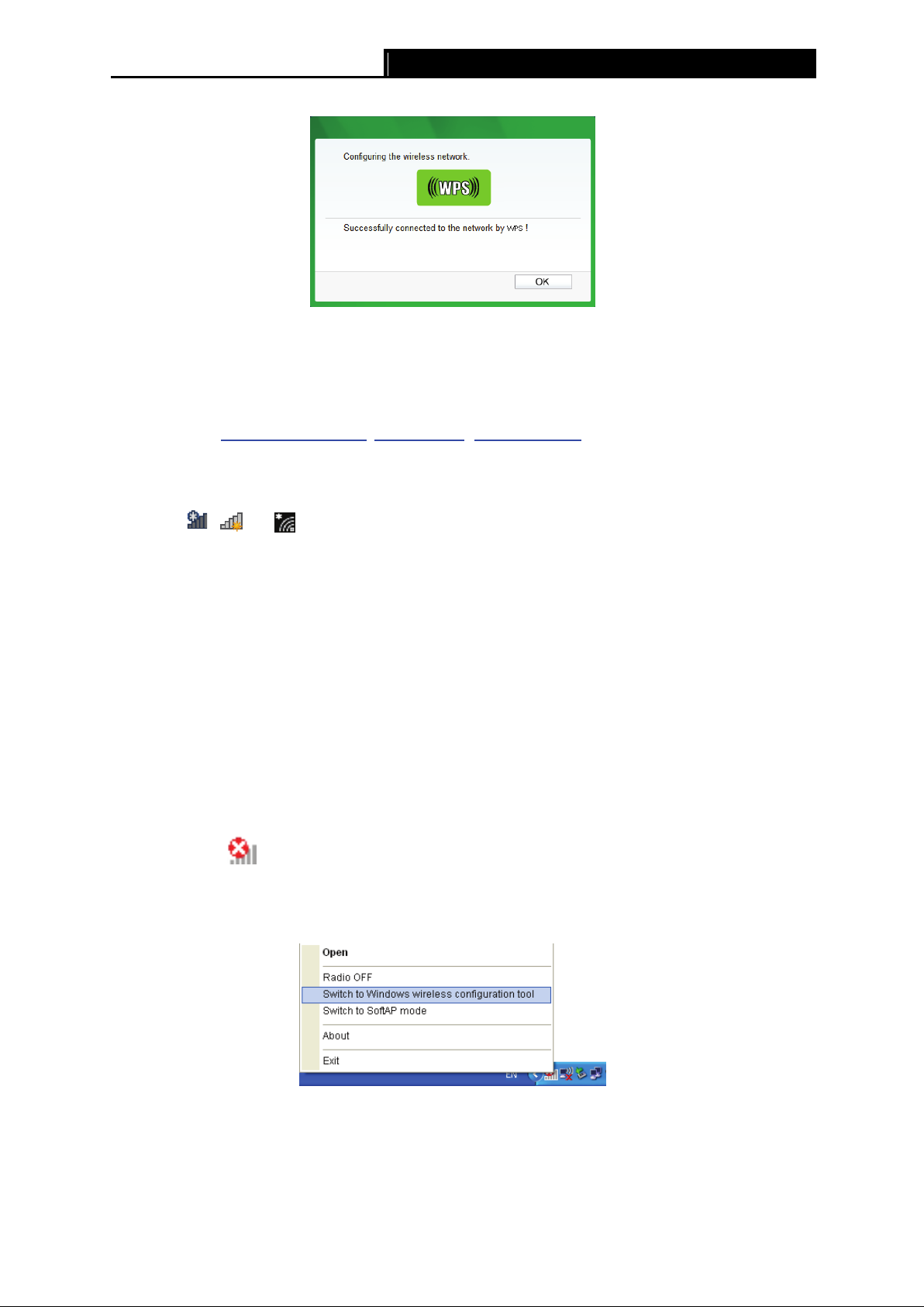

3. The following screen indicates a successful connection by WPS. Click OK.
4.3 Windows Wireless Utility
Follow the instructions in the appropriate section below to use your computer system’s built-in
wireless utility: Windows 7/8/8.1/10, Windows XP, Windows Vista
Windows 7/8/8.1/10
1. Click
join, and click Connect. Enter your Wi-Fi password when prompted.
No te :
If you do not want to enter the Wi-Fi password, you can also join a wireless network either b y
pushing the WPS or QSS button on your router or AP, or entering the PIN of your router when
the screen prompts you to do so, and click Ne xt.
2. When Conne cte d displays next to the network name (SSID) on the screen, it indicates a
successful network connection.
Windows XP
1. Right-click
,
or
(Network icon) on the system tray. Select the network you want to
(TP-LINK Utility icon) on the system tray. (If you do not see the icon, click
.
the hidden icons arrow on the system tray.) Select Switch to Windows wire le ss
configuration tool.
Or you can open the TP-LINK Utility, select Advanced tab, then select Use Windows
wire less configuration tool.
11
Page 20
TL-WN781ND
150Mbps Wireless N PCI Expre ss Adapter User Guide

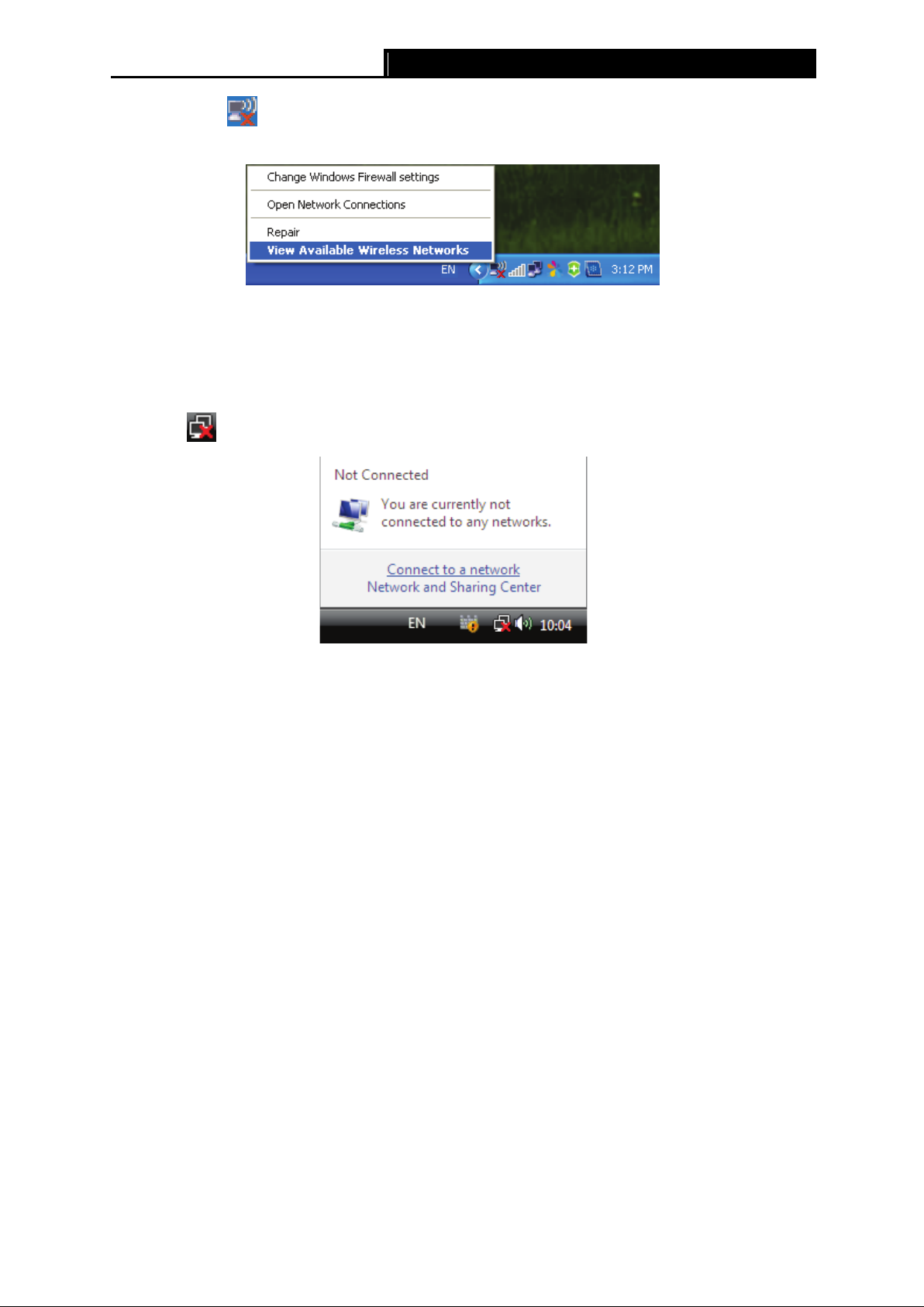

2. Right-click
(Windows XP Wireless Zero Configuration Utility icon) on the system tray,
and select View Available Wireless Networks.
3. Select the network you want to join, and click Connect. Enter your Wi-Fi password when
prompted.
Windows Vista
1. Click
(Network icon) on the system tray, and select Connect to a network.
2. Select the network you want to join, and click Connect. Enter your Wi-Fi password when
prompted.
12
Page 21
TL-WN781ND
150Mbps Wireless N PCI Expre ss Adapter User Guide
Chapter 5 Management
TP-LINK Utility provides you with an easy way to manage your adapter. It includes the following
sections:
Status
Profile - Save or manage various Wi-Fi network connection settings.
Advanced - Turn on or off the SoftAP mode and power saving mode, switch between TP-L INK
Utility and Windows Wireless Utility (for Windows XP only).
SoftAP - Configure the settings of the network shared by your adapter, and view the IP address
of your adapter when it works on SoftAP mode.
About – View your adapter’s Utility version and its Driver version.
Double-click (TP-LINK Utility icon) and click the Status, Profile or Adv anced tab to
manage the corresponding section of your adapter.
- View the information of the current Wi-Fi network connection and of the adapter.
5.1 Sta tus

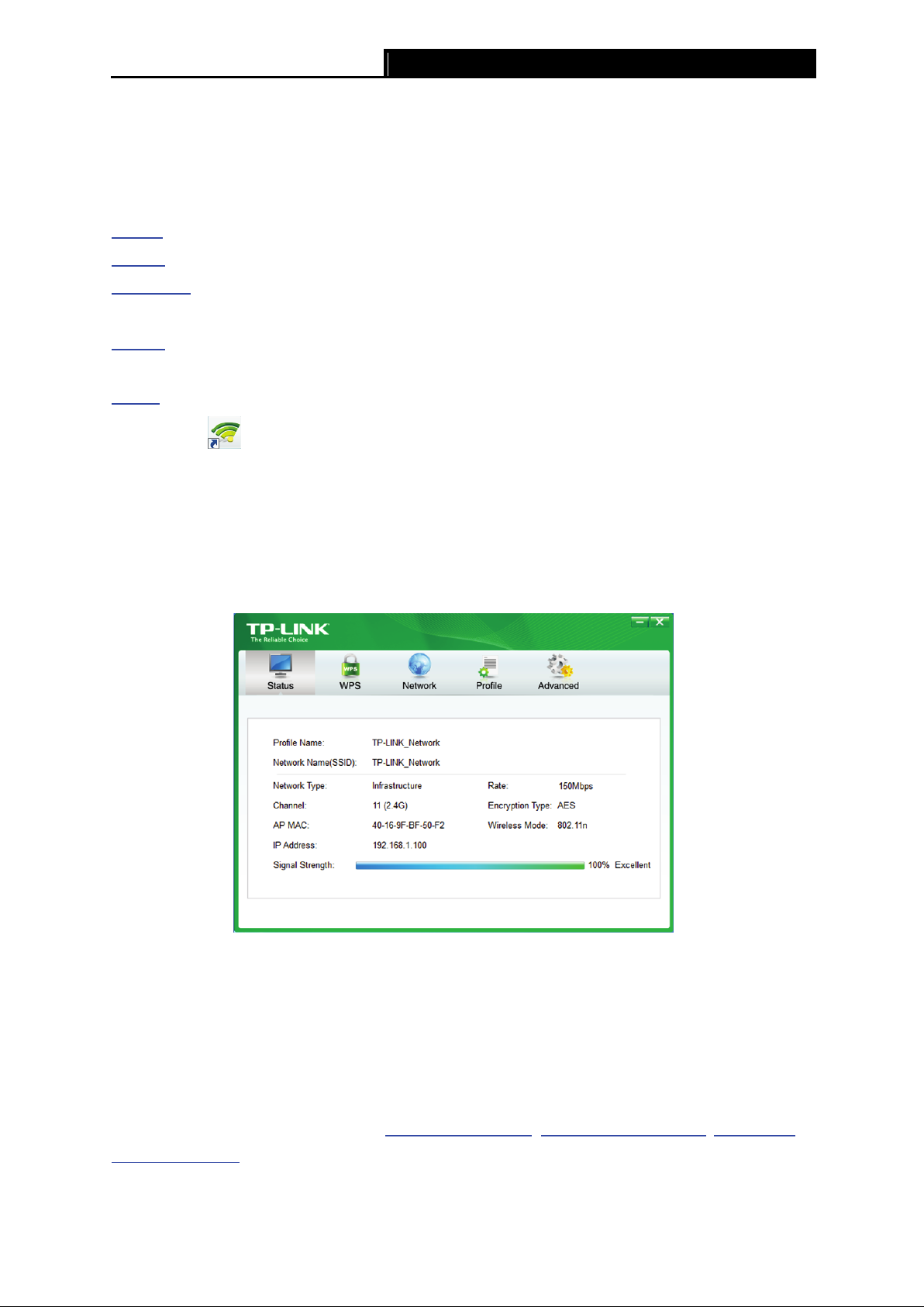

You can view the IP address and MAC address of the adapter, the signal strength of the Wi-F i
network, and other information of the network status as shown in the following figure.
5.2 Profile
The Pr ofile screen lets you save and manage different Wi-Fi network connection settings as
profiles so that you can quickly and simply connect to your network. Moreover, you can join a
hidden Wi-Fi network that does not broadcast its SSID by adding a profile, provided that you
know its wireless settings, such as SSID, security type, and encryption type. For more details,
please refer to the instructions below: To add a new profile, To join a Wi-Fi network,
an existing profile.
To manage
13
Page 22
TL-WN781ND
150Mbps Wireless N PCI Expre ss Adapter User Guide
To add a ne w profile

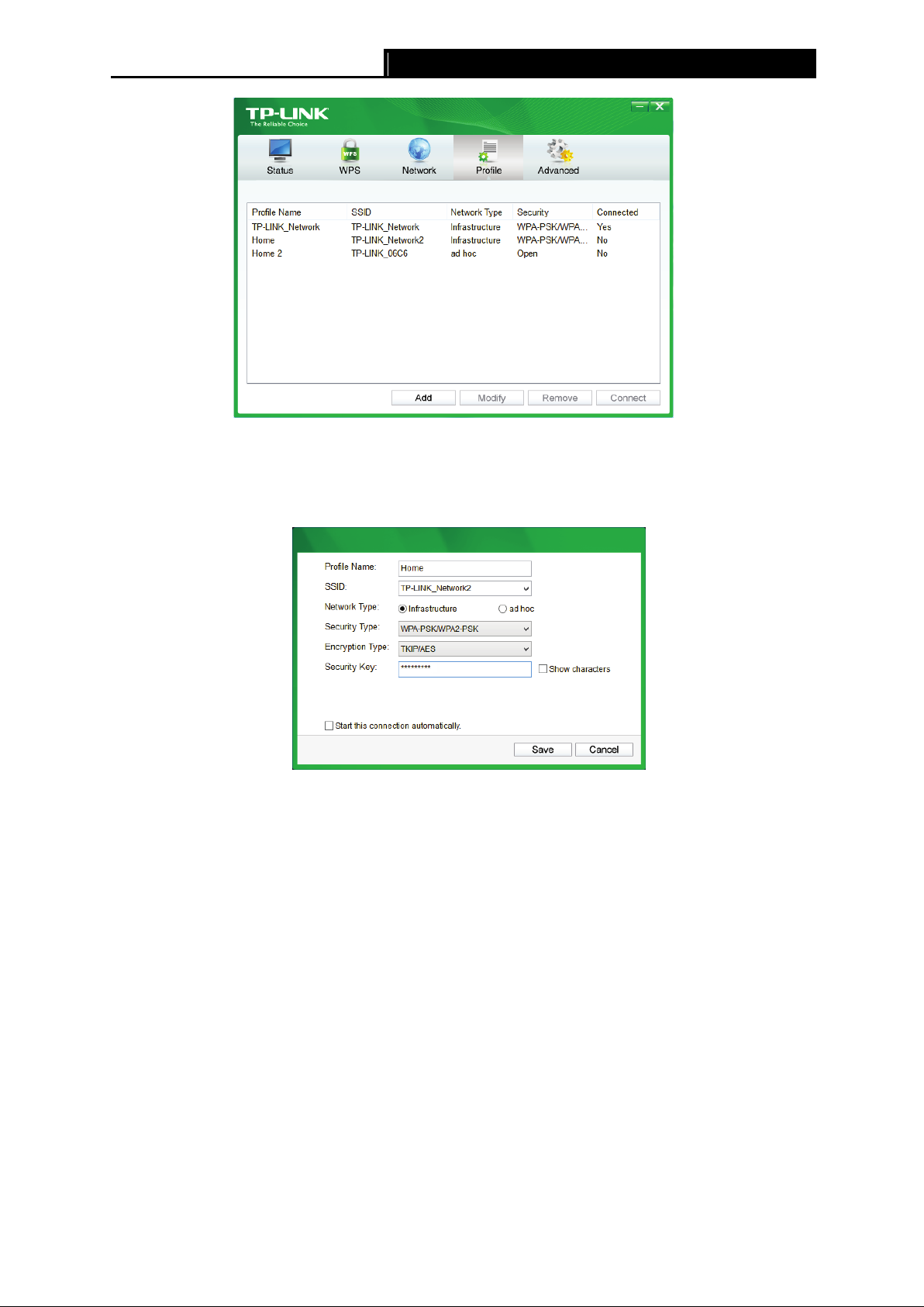

1. Click the Ad d button, and then a new window will open.

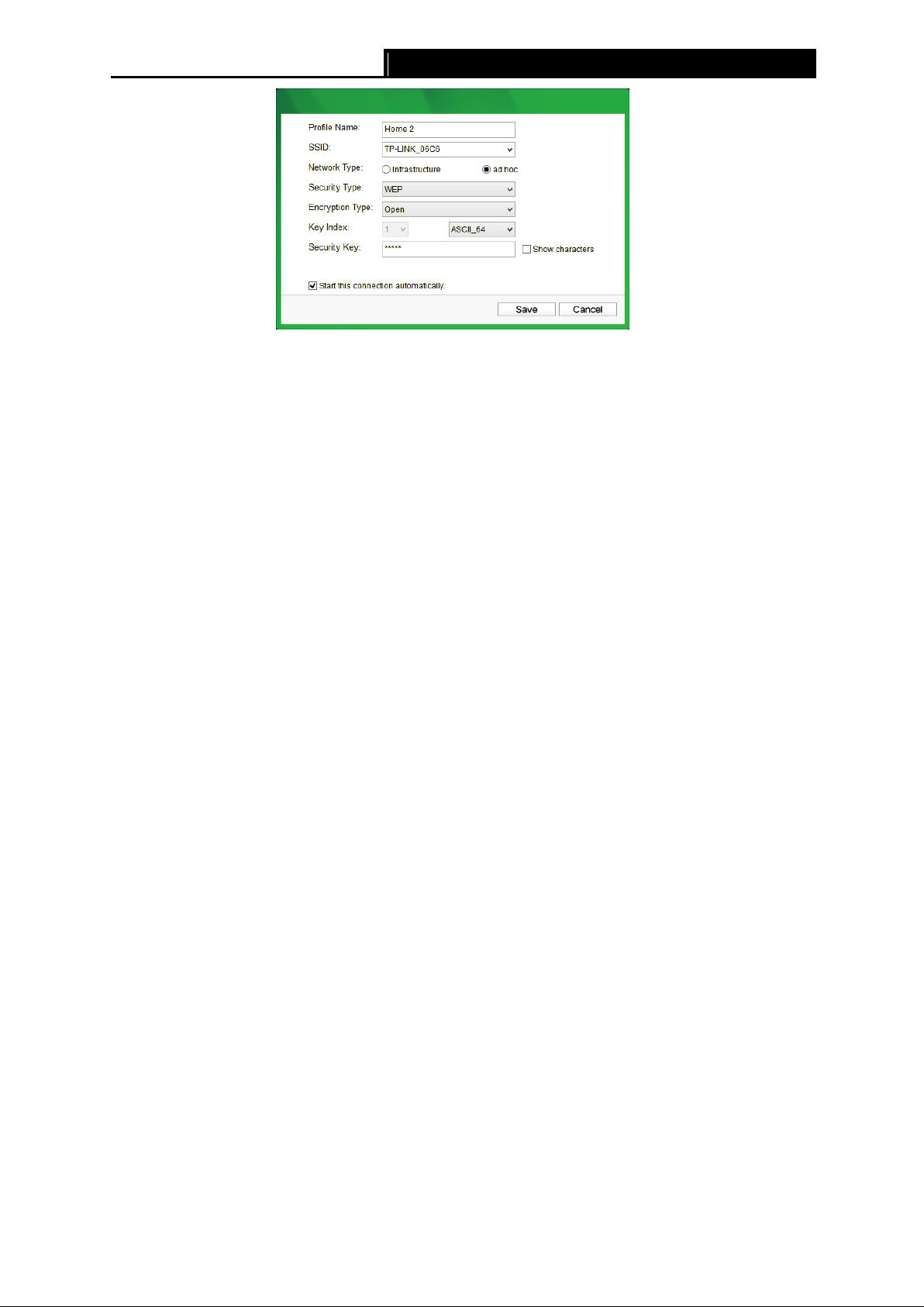

2. Complete the settings as shown in the following figure, and click Save.
Pr o f i le Name - Enter a name for your profile, such as Home, Office, Coffeehouse. Do not enter
the profile name that already exists.
SSID - Select your Wi-Fi network from the drop-down list or enter your Wi-Fi network name
manually.
Ne twork Type - Select Infrastructure if you want to connect to a wireless router or an access
point. Select ad hoc if you want to connect to another wireless client, such as an adapter.
• Infrastructure
If you select Infrastructure, you are asked to select or enter the corresponding wireless
settings, which should be the same as those of your Wi-Fi network.
• ad hoc
If you select ad hoc, you are asked to configure the wireless settings for your network, including
choosing the operating frequency band, the security type, the encryption type and setting a
security key.
14
Page 23
TL-WN781ND
150Mbps Wireless N PCI Expre ss Adapter User Guide
No te :
As for Key Index, you can select ASCII or Hexadecimal format from the drop-down list.
ASC I I_64 - Please enter 5 ASCII characters.
ASCII_128 - Please enter 13 ASCII characters.
Hexadecimal_64 - Please enter 10 Hexadecimal digits (any combination of 0-9, a-f, A-F,
excluded space).
Hexadecimal_128 - Please enter 26 Hexadecimal digits (any combination of 0-9, a-f, A-F,
excluded space).
To join a Wi-Fi network
If yo u want to join a Wi-Fi network that listed in the profile screen, select the profile and click
Connect button in the bottom right corner.
To manage an existing profile
If you want to change the name or the wireless settings of an existing profile, select it and click
the M odify button in the bottom right corner of the Profile screen, then you can edit the settings
of this profile. If you want to delete a profile that you no longer use, select it and click the
Remove button.
15
Page 24
TL-WN781ND
150Mbps Wireless N PCI Expre ss Adapter User Guide
5.3 Advanced

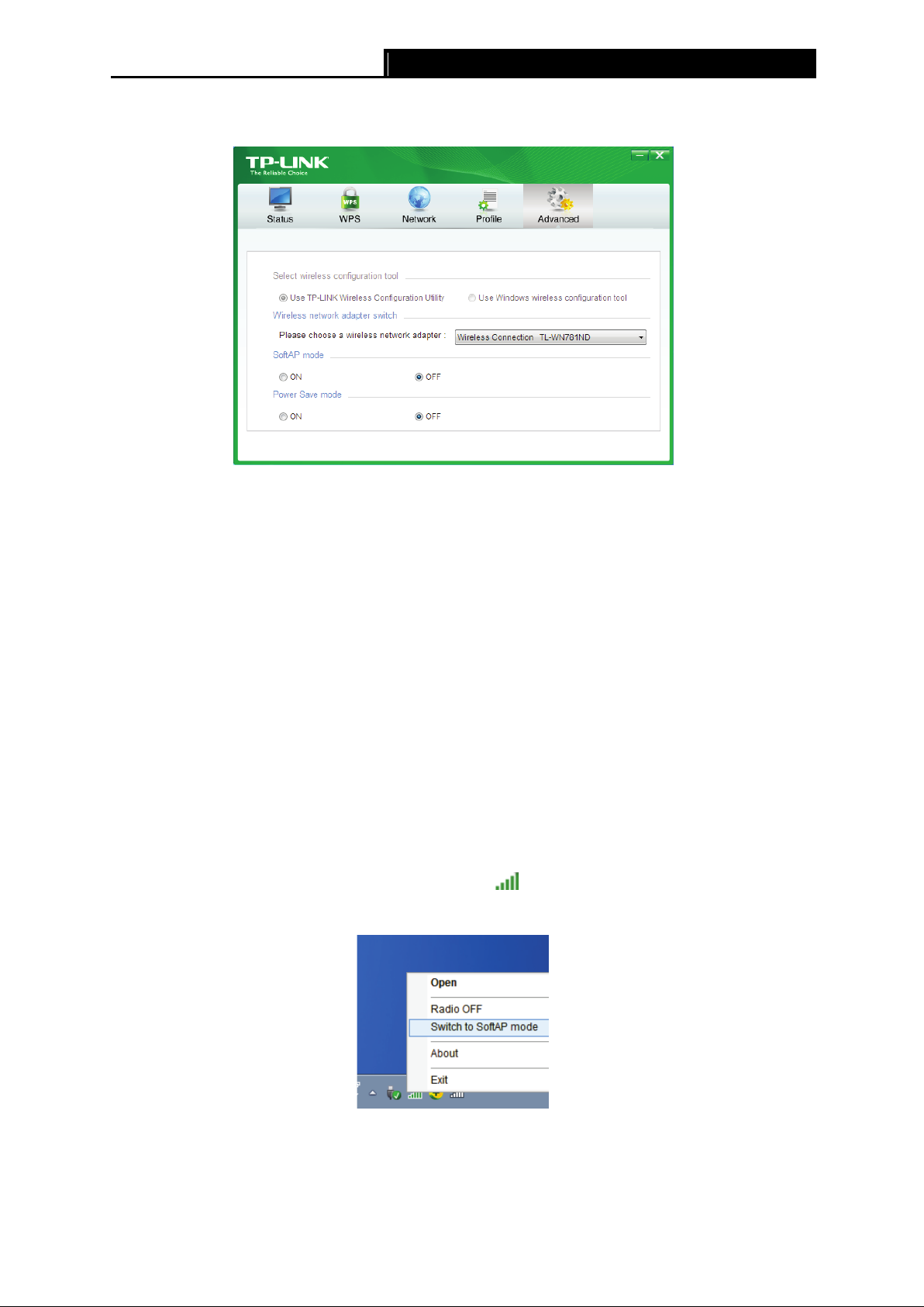

Se le ct wire less configur ation to o l - In Windows XP. You can either use TP-LINK Utility or
Windows wireless configuration tool. While in other operating systems, since you can use both
TP-LINK Utility and Windows wireless configuration tool at the same time, this function is
disabled.
Wireless network adapter switch - If you’ve installed several adapters in your computer, you
can switch to another adapter among the drop-down list.
SoftAP mode - Once ON is selected, the adapter will work as an AP (For Windows 7 only).
Power Save mode - O nce ON is selected, the adapter will automatically reduce its power
consumption when not being used.
5.4 So ftAP (For Windows 7 only)
SoftAP is short for Software enabled Access Point. This Function is available only in Windows 7.
When the adapter works in SoftAP mode, it allows the computer to create a wireless hotspot
that other wireless devices nearby can use.
To switch to SoftAP mode, right-click the utility icon
to SoftAP mode.
in the system tray and select Switch
After switching to SoftAP mode, the SoftAP icon appears in the utility. Click the SoftAP tab, and
complete the settings, then click Apply for the settings to take effect.
16
Page 25
TL-WN781ND
150Mbps Wireless N PCI Expre ss Adapter User Guide

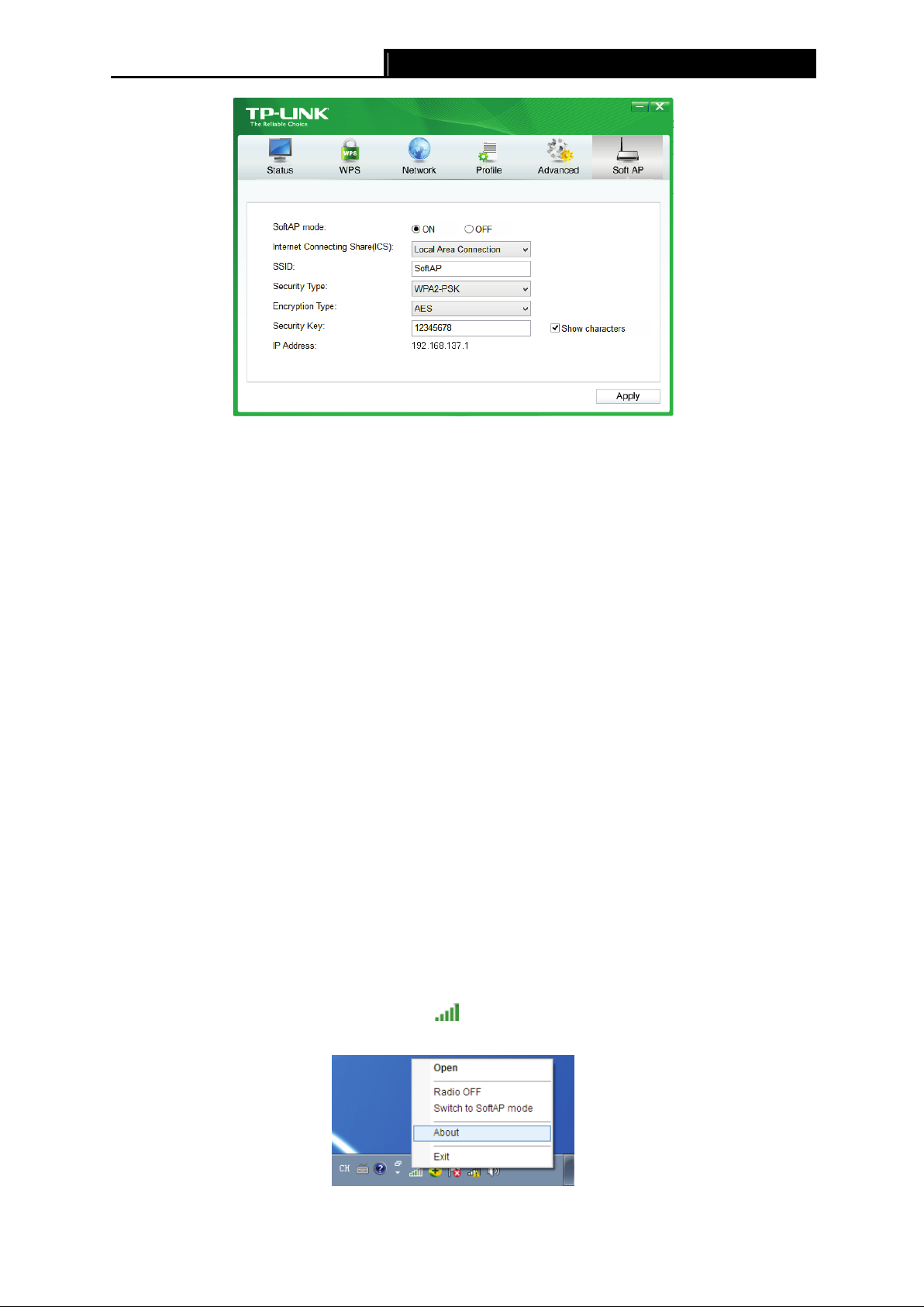

Soft AP mode: Select ON or OFF to enable or disable this function.
Internet Connecting Share(ICS): Select a network connection that can access to the
Internet from the drop-down list. For example, if your computer is connecting to the Internet
via an Ethernet cable, you should select the corresponding Local Are a Conne ction so as
to share the network with other wireless devices.
SSID: Set a name for the wireless network shared by your adapter. The default is SoftAP.
Se curity Type : T he security type her e is set to be WPA2-PSK which is based on 802.11i
and uses AES (Advanced Encryption Standard).
Encryption Type: The encryption type here is set to be AES.
Se curity Ke y: Set a security key for the wireless network that shared by your adapter. It is
recommended that you specify another key instead of the default key 12345678. Whe n
another wireless device connects to the network shared by your adapter, it will be asked to
enter the corresponding security key.
IP Address: Displays the IP address of the adapter when it works in SoftAP mode. You
can also check if the network shared by your adapter is working properly by checking this
IP Address. For example, if the IP Address is 0.0.0.0, it means that the Internet connection
is failed.
5.5 About
You can view the adapter’s information in the About screen, such as the UI version (Utility
version) and th e Driver version. Right-click
select About, then the About screen displays.
(TP-LINK Utility icon) in the system tray and
17
Page 26
TL-WN781ND
150Mbps Wireless N PCI Expre ss Adapter User Guide
Chapter 6 Uninstall driver and utility
The software uninstallation steps vary a bit in different systems, please follow the appropriate
instructions for your Windows operating system: Windows 10, Windows 8/8.1,
XP/Vista/7.
• Windows 10
Uninstall driver:
Go to Start > Apps, and find the TP-LINK application. Click Uninstall - TP-LINK TL-WN781ND
Driver, then follow the on-screen instructions to complete the uninstallation.
• Windows 8/8.1
Uninstall driver:
Go to Start > Apps, and find the TP-LINK application. Click Uninstall - TP-LINK TL-WN781ND
Driver, then follow the on-screen instructions to complete the uninstallation.
Uninstall utility:
Go to St ar t > Apps, and find the TP-LINK application. Click Uninstall - TP-LINK Wi re le ss
Configuration Utility, then follow the on-screen instructions to complete the uninstallation.
Windows
• Windows XP/Vista/7
Uninstall driver:
Go to Start > All Programs > TP-LINK > Uninstall - TP-LINK TL-WN781ND Driver. Follow
the on-screen instructions to complete the uninstallation.
Uninstall utility:
Go to Start > All Programs > TP-LINK > Uninstall - TP-LINK Wireless Configuration Utility.
Follow the on-screen instructions to complete the uninstallation.
18
Page 27
TL-WN781ND
150Mbps Wireless N PCI Expre ss Adapter User Guide
Environmental and Physical
Appendix A: Specifications
Normal
Interface 32 bit PCI Express Interface
Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.1x,
IEEE 802.11e, IEEE 802.11i
Operating System Windows XP, Windows Vista, Windows 7, Windows 8,
Windows 8.1, Windows 10
Throughput 150Mbps (Maximal)
Data Security 62/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Frequency* 2.4 ~ 2.4835GHz
Working Temperature 0℃~40℃ (32℉~104℉)
Storage Temperature -40℃~70℃(-40℉~158℉)
Working Humidity 10% ~ 90% RH, Non-condensing
Storage Humidity 5% ~ 90% RH, Non-condensing
* Only 2 .412GHz~2.462GHz is allowed to be used in USA, which means only channe l 1~11 is
availab le for American users to choose.
19
Page 28
TL-WN781ND
150Mbps Wireless N PCI Expre ss Adapter User Guide
Appendix B: Glossary
802.11b - The 802.11b standard specifies a wireless product networking at 11 Mbps using
direct-sequence spread-spectrum (DSSS) technology and operating in the unlicensed radio
spectrum at 2.4GHz, and WEP encryption for security. 802.11b networks are also referred to
as Wi-Fi networks.
802.11g - specification for wireless networking at 54 Mbps using direct-sequence
spread-spectrum (DSSS) technology, using OFDM modulation and operating in the
unlicensed radio spectrum at 2.4GHz, and backward compatibility with IEEE 802.11b devices,
and WEP encryption for security.
802.11n - 802.11n builds upon previous 802.11 standards by adding MIMO (multiple-input
multiple-output). MIMO uses multiple transmitter and receiver antennas to allow for increased
data throughput via spatial multiplexing and increased range by exploiting the spatial diversity,
perhaps through coding schemes like Alamouti coding. The Enhanced Wireless Consortium
(EWC) was formed to help accelerate the IEEE 802.11n development process and promote a
technology specification for interoperability of next-generation wireless local area networking
(WLAN) products.
Ad hoc Network - An ad hoc network is a group of computers, each with a Wireless Adapter,
connected as an independent 802.11 wireless LAN. Ad hoc wireless computers opera te on a
peer-to-peer basis, communicating directly with each other without the use of an access point.
Ad hoc mode is also referred to as an Independent Basic Service Set (IBSS) or as
peer-to-peer mode, and is useful at a departmental scale or SOHO operation.
Infrastructure Network - An infrastructure network is a group of computers or other devices,
each with a Wireless Adapter, connected as an 802.11 wireless LAN. In infrastructure mode,
the wireless devices communicate with each other and to a wired network by first going
through an access point. An infrastructure wireless network connected to a wired network is
referred to as a Basic Service Set (BSS). A set of two or more BSS in a single network is
referred to as an Extended Service Set (ESS). Infrastructure mode is useful at a corporation
scale, or when it is necessary to connect the wired and wireless networks.
SSID - A Service Set Identification is a thirty-two character (maximum) alphanumeric key
identifying a wireless local area network. For the wireless devices in a network to
communicate with each other, all devices must be configured with the same SSID. This is
typically the configuration parameter for a wireless PC card. It corresponds to the ESSID in
the wireless Access Point and to the wireless network name. See also Wireless Network
Name and ESSID.
WEP - (Wired Equivalent Privacy) - A data privacy mechanism based on a 64-bit or 128 -bit or
152-bit shared key algorithm, as described in the IEEE 802.11 standard. To gain access to a
WEP network, you must know the key. The key is a string of characters that you create.
When using WEP, you must determine the level of encryption. The type of encryption
determines the key length. 128-bit encryption requires a longer key than 64-bit encryption.
Keys are defined by entering in a string in HEX (hexadecimal - using characters 0-9, A-F) o r
ASCII (American Standard Code for Information Interchange – alphanumeric characters)
20
Page 29
TL-WN781ND
150Mbps Wireless N PCI Expre ss Adapter User Guide
format. ASCII format is provided so you can enter a string that is easier to remember. The
ASCII string is converted to HEX for use over the network. Four keys can be defined so that
you can change keys easily.
Wi-Fi - A trade name for the 802.11b wireless networking standard, given by the Wireless
Ethernet Compatibility Alliance (WECA, see http://www.wi-fi.net), an industry standards
group promoting interoperability among 802.11b devices.
WL AN - (Wireless Local Area Network) - A group of computers and associated devices
communicate with each other wirelessly, which network serving users are limited in a local
area.
WP A - (Wi-Fi Protected Access) - A wireless security protocol uses TKIP (Temporal Key
Integrity Protocol) encryption, which can be used in conjunction with a RADIUS server.
21
Loading...
