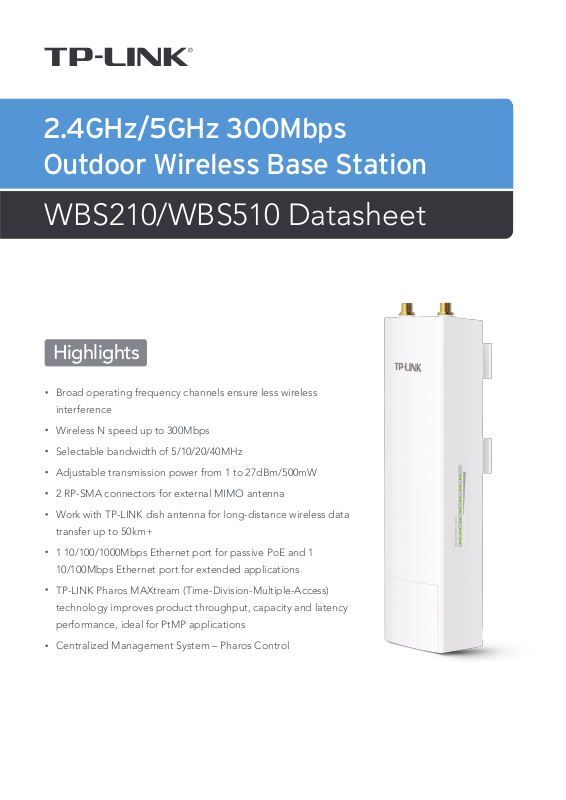

2.4GHz/5GHz 300Mbps
Outdoor Wireless Base Station
WBS210/WBS510 Datasheet
Highlights
Broad operating frequency channels ensure less wireless
interference
Wireless N speed up to 300Mbps
Selectable bandwidth of 5/10/20/40MHz
Adjustable transmission power from 1 to 27dBm/500mW
2 RP-SMA connectors for external MIMO antenna
Work with TP-LINK dish antenna for long-distance wireless data
transfer up to 50km+
1 10/100/1000Mbps Ethernet port for passive PoE and 1
10/100Mbps Ethernet port for extended applications
TP-LINK Pharos MAXtream (Time-Division-Multiple-Access)
technology improves product throughput, capacity and latency
performance, ideal for PtMP applications
Centralized Management System – Pharos Control
Up to 50+ km
Model
WBS510
WBS210
Typical Applications
TP-LINK’s Outdoor Wireless Base Station is dedicated to cost effective solutions for outdoor wireless
networking applications. With its centralized management application, it is exible and ideal for
point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications.
Point to Multi-point Connections
for Wi-Fi coverage
Point to Point Long-distance
Wireless Transmission
CPE
WISP
Base Station with Sector
Antenna
Base Station with Dish
Antenna
INTERNET
Antenna Compatibility
WBS510MODEL WBS210
Dish
Sector
TL-ANT5830MD
TL-ANT5819MS
CPE
WISP
CPE
WISP
TL-ANT2424MD
TL-ANT2415MS
TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs will be so erce that the
real throughput of the network will drop, resulting in a serious impact on end-user experience, to
mitigate these effects, TP-LINK’s Pharos series uses MAXtream TDMA Technology.

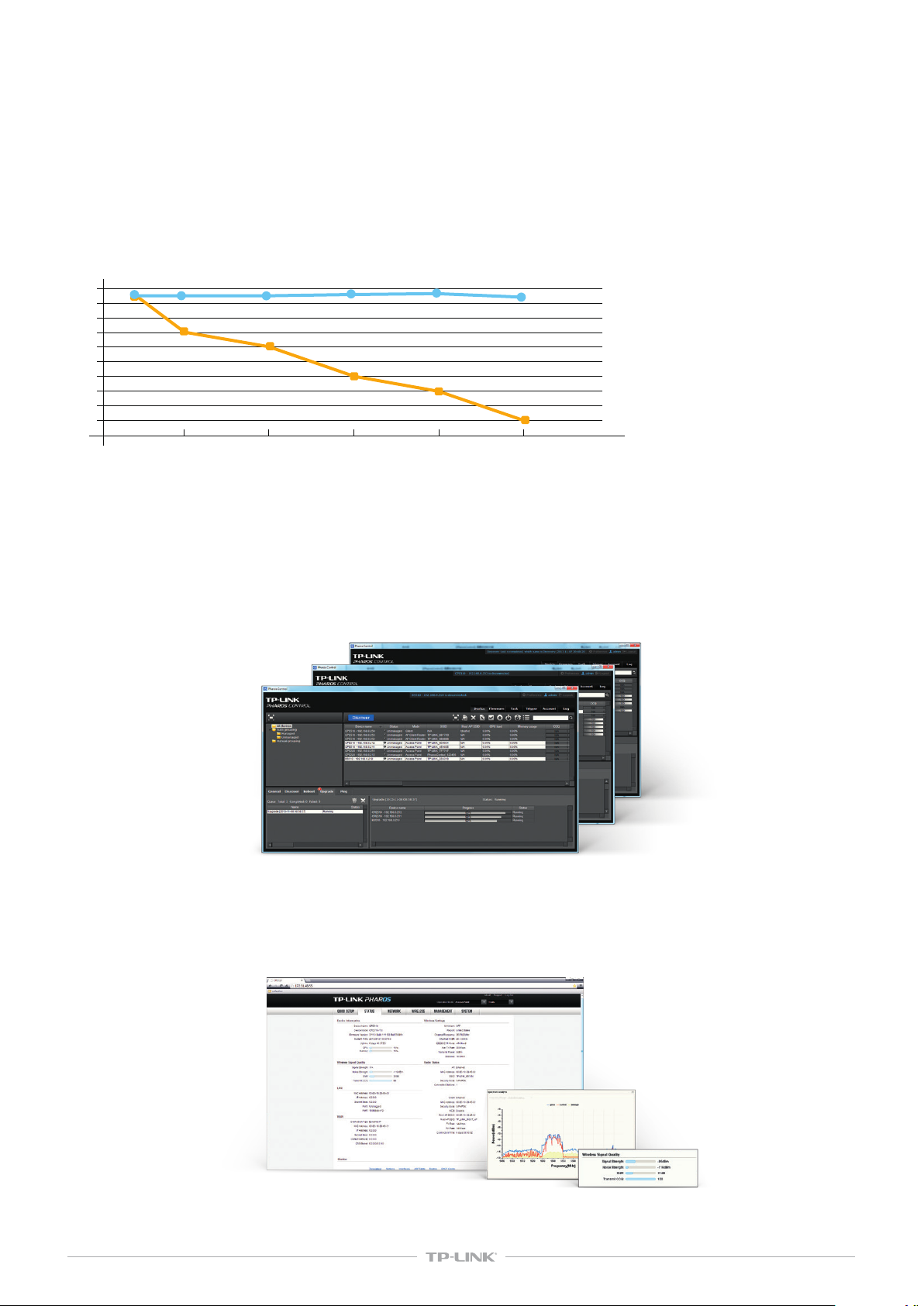

Total Throughput vs Clients
Total Throughput *
100%
90%
80%
70%
60%
50%
40%
30%
20%
10%
MAXtream TDMA Mode
802.11 CSMA Mode
5 10 15 20 25
* Real throughput
depends on the
actual application
environment.
Quantity of Clients
Pharos Control – Centralized Management System
Pharos also comes equipped with centralized management software that helps users easily manage all
the devices in their network from a single PC - Pharos Control. Functions like device discovery, status
monitoring, rmware upgrading, and network maintenance can be managed using Pharos Control.
PharOS
User-friendly web-based management system allows professionals to do more specic congurations.
Specications
Features & Performance
model WBS210 WBS510
Name
Hardware
Features
Wireless
Features
Software
Features
2.4GHz 300Mbps Outdoor Wireless
Base Station
Processor Qualcomm Atheros enterprise AR9350B 560MHz CPU, MIPS 74Kc
Memory 64MB DDR2 RAM, 8MB Flash
1 10/100/1000Mbps Shielded Ethernet Port (LAN0/POE)
1 10/100Mbps Shielded Ethernet Port (LAN1)
Interfaces
Power Supply
Dimensions(L x W x H) 189*75*32 mm
Protection 15KV ESD Protection 6000V Lightning Protection
Enclosure
Wireless Standards IEEE 802.11b/g/n IEEE 802.11a/n
Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)
Frequency 2.4~2.483GHz 5.15~5.85GHz
Wireless Speed
Maximum Transmit
Power
Operation Modes
Network Congurations
Wireless Congurations
2 RP-SMA
1 Grounding Terminal
1 Reset Button
Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) Voltage range:
16-27VDC
Material: Outdoor ASA stabilized plastic Weatherproof: IP65 water and dust
proof design
Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)
27dBm/500mW (Adjustable power by 1dBm)
AP / Client / Bridge / Repeater
AP Router Mode/AP Client Router(WISP Client)Mode
WAN: Static/Dynamic/PPPoE/L2TP/PPTP
LAN: Static/Dynamic/DHCP
Forwarding: DMZ/ALG/UPnP/Virtual Server/Port Trigger Security: SPI
Firewall/ Ping Forbidden/VPN/DoS Protection Access Control
Static Routing
Bandwidth Control
IP & MAC Binding
Pharos MAXtream TDMA Technology
WBS210: 802.11b/g/n Modes WBS510: 802.11a/n Modes Selectable
Channel Width: 5/10/20/40MHz
Auto Channel Selection
Transmit Power Control
Dynamic Frequency Selection(DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
5GHz 300Mbps Outdoor Wireless
Base Station
1 Maximum transmit power is limited by local regulatory settings
Features & Performance
model WBS210 WBS510
Name
Software
Features
Others
2.4GHz 300Mbps Outdoor Wireless
Base Station
64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging(AP mode only) Distance/ACK Timeout
Wireless Congurations
Management
System Tools
System-level
Optimizations
Certication CE, FCC, RoHS,IP65
Package Contents
System Requirements
Environment
Setting
Wireless MAC Address Filter
Wireless Advanced:
Beacon Intevel/RTS Threshold/Fragmentation Threshold/DTIM Intevel/AP
Isolation/Short GI/Wi-Fi Multimedia
Discovery and Remote Management via Pharos Control application HTTP/
HTTPS Web-based management
System Log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server
Indicators: Signal Strength/Noise/Transmit CCQ/CPU/Memory Monitors:
Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP Spectrum
Analysis
Speed Test Ping Traceroute
WBS210: 802.11b/g/n Tx beamforming technology
WBS510: 802.11a/n Tx beamforming technology Optimized IGMP
Snooping/Proxy for multicast applications
Hardware watch dog
Outdoor Wireless Base Station
24V 1A Passive PoE Adapter
Pole Mounting Kit
AC Power Cord
Quick Installation Guide
Microsoft Windows 98SE, NT, 2000, XP, VistaTM or Windows 8, Windows 7,
MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for better
experience: Google Chrome, Safari, Firefox.
IE browsers are not recommended.
Operating Temperature: -30°C~70°C (-22°F~158°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
5GHz 300Mbps Outdoor Wireless
Base Station
Features & Performance
Dimensions(WxDxH) A110*57*33.5mm
Input Voltage 100VA~240VAC @ 50Hz~6
Input Current 0.8A Max @ 100VAC
POE
Adapter
features
Others
Output Voltage 24VDC(+4,5pins; -7,8pins
Output Current 1.0A Max (Support up to 60m Power over Ethernet
Efciency >80%
Interfaces
Power LED 0~0.8A: Green 0.8A~1.0A: Red
Certications CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mar
1 AC Jack with Earth Ground
1 10/100Mbps Shielded Ethernet Port (Power + Data) 1 10/100Mbps
Shielded Ethernet Port (Data)
24 / 7
Global technical support
