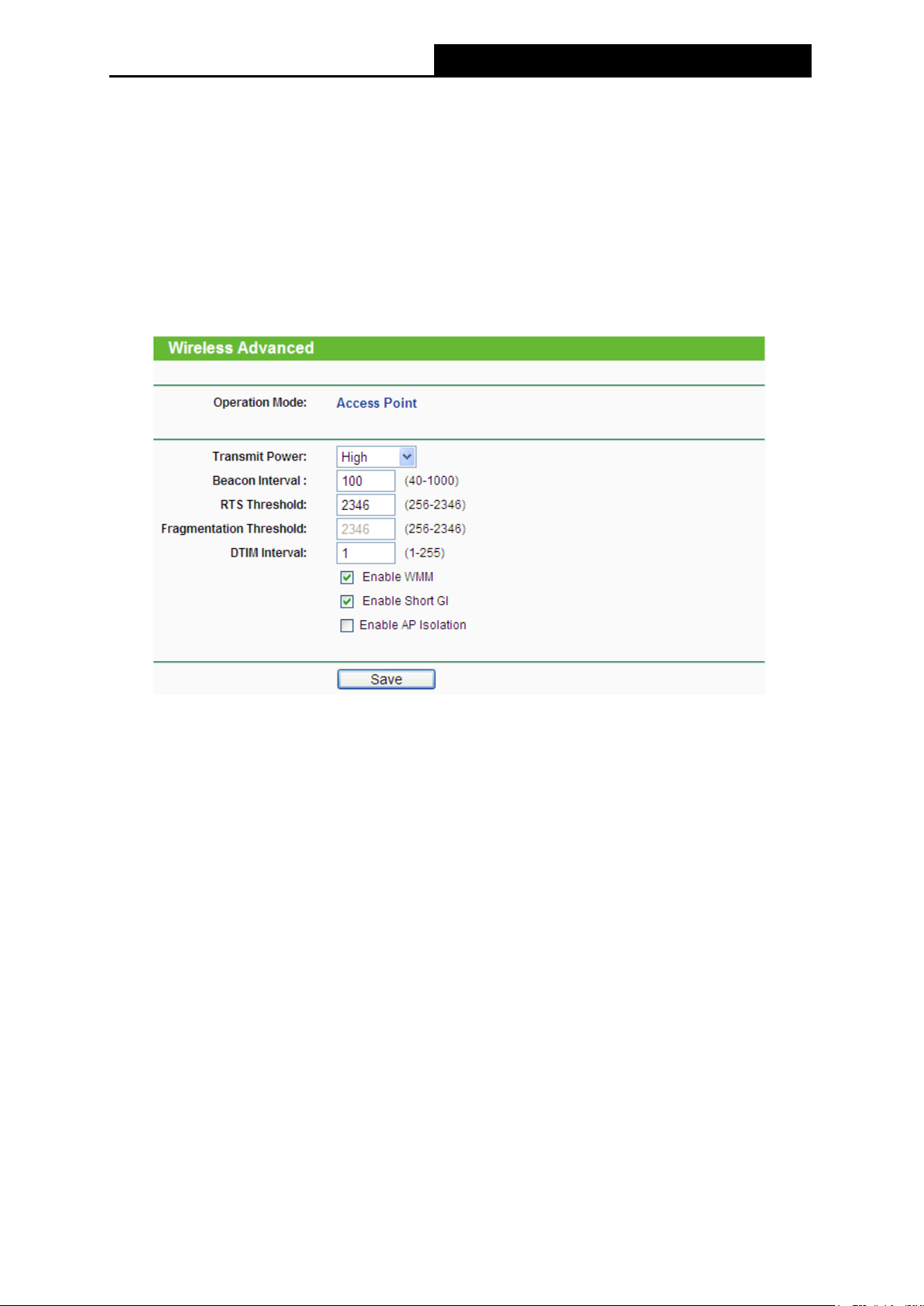

4.6.4 Wireless Advanced ............................................................................................ 50
4.6.5 Wireless Statistics .............................................................................................. 51
4.6.6 Throughput Monitor............................................................................................ 51
4.7
DHCP ................................................................................................................. 52
4.7.1 DHCP Settings ................................................................................................... 53
4.7.2 DHCP Clients List .............................................................................................. 54
4.7.3 Address Reservation ......................................................................................... 54
4.8
System Tools .................................................................................................. 55
4.8.1 SNMP ................................................................................................................. 56
4.8.2 Diagnostic .......................................................................................................... 57
4.8.3 Ping Watch Dog ................................................................................................. 59
4.8.4 Firmware Upgrade ............................................................................................. 60
4.8.5 Factory Defaults ................................................................................................. 61
4.8.6 Backup & Restore .............................................................................................. 61
4.8.7 Reboot ................................................................................................................ 62
4.8.8 Password ........................................................................................................... 62
4.8.9 System Log ...................................................................................................... 63
Appendix A: Application Example .......................................................................... 64
Appendix B: Factory Defaults ................................................................................. 67
Appendix C: Troubleshooting ................................................................................. 68
Appendix D: Specifications ..................................................................................... 73
Appendix E: Glossary .............................................................................................. 74
TL-WA801ND 300Mbps Wireless N Access Point User Guide

Package Contents

The following items should be found in your package:
One TL-WA801ND 300Mbps Wireless N Access Point
One Power Injector
Ethernet Cable
One Power Adapter for TL-WA801ND 300Mbps Wireless N Access Point
Quick Installation Guide
One Resource CD for TL-WA801ND 300Mbps Wireless N Access Point, including:
This User Guide
Other helpful information
Note:
Make sure that the package contains the above items. If any of the listed items are damaged or missing, please contact with your distributor.
1
TL-WA801ND 300Mbps Wireless N Access Point User Guide

Chapter 1 Introduction

1.1
The TL-WA801ND 300Mbps Wireless N Access Point is dedicated to Small Office/Home Office (SOHO) wireless network solutions. It allows for greater range and mobility within your wireless network while also allowing you to connect the wireless devices to a wired environment. Increased mobility and the absence of cabling will be beneficial for your network.
With using IEEE 802.11n wireless technology, your device can transmit wireless data at the rate of up to 300Mbps. With multiple protection measures, including SSID broadcast control and wireless LAN 64/128/152-bit WEP encryption, WiFi protected Access (WPA2- PSK, WPA- PSK), the TL-WA801ND 300Mbps Wireless N Access Point delivers complete data privacy. This device leverages some 802.11n features to provide improved performance and coverage compared to
802.11a/g devices, and fully interoperates with 802.11n products if they are Wi-Fi CERTIFIED, but it does not conform to all of the requirements in the IEEE specification and is not classified as "n" in the Wi-Fi CERTIFIED program.
It supports an easy, web-based setup for installation and management. Even though you may not be familiar with the Access Point, you can easily configure it with the help of this Guide. Before installing 300Mbps Wireless N Access Point.
1.2
The AP or TL-WA801ND, or device mentioned in this User guide stands for TL-WA801ND 300Mbps Wireless N Access Point without any explanations.

Product Overview

the AP, please look through this Guide to get the full information of the TL-WA801ND

Conventions

Parameters provided in the pictures are just references for setting up the product, which may differ from the actual situation. You can set the parameters according to your demand.
2
TL-WA801ND 300Mbps Wireless N Access Point User Guide
1.3
Wireless speed up to 300Mbps
Supports Access Point, Multi-SSID, Client, RepeaterUniversal Repeaterand Bridge with AP
Up to 4 SSIDs and VLAN support
Up to 30 meters (100 feet) of flexible deployment with included Power over Ethernet Injector
Easily setup a WPA encrypted secure connection at a push of the WPS button
Supports Remote and Web management
Backward compatible with 802.11b/g products
1.4
1.4.1
The front panel of the TL-WA801ND consists of several LED indicators, which is designed to indicate connections. View from left to right, Table 1-1 describes the LEDs on the front panel of the device.

Main Features

modes

Appearance

The Front Panel

Figure 1-1
LED Explanation
Name Status Indication
Off No Power
On Power on
Off
On
Flashing
Off
Flashing
Slow Flash
On
Quick Flash
There is no device linked to the corresponding port
There is a device linked to the corresponding port but no activity
There is an active device linked to the corresponding port
The Wireless function is disabled
The Wireless function is enabled
A wireless device is connecting to the network by WPS function. This process will last in the first 2 minutes.
A wireless device has been successfully added to the network by WPS function.
A wireless device failed to be added to the network by WPS function.
Table 1-1
3
TL-WA801ND 300Mbps Wireless N Access Point User Guide
1.4.2

The Rear Panel

Figure 1-2
Viewed from left to right, the following parts are located on the rear panel of TL-WA801ND.
ON/OFF: The switch for the power.
POWER: The power port connects to the power adapter provided with the TL-WA801ND
300Mbps Wireless N Access Point.
Ethernet: One LAN 10/100Mbps RJ45 port connects to a network device, such as a switch or a
router.
WPS: If you have client devices, such as wireless adapters, that support Wi-Fi Protected Setup, then you can press this button to quickly establish a connection between the device and client devices and automatically configure wireless security for your wireless network.
RESET: The Reset button is used to restore the AP’s factory default settings. There are two ways to reset the Access Point’s factory defaults:
Method one: With the AP powered on, use a pin to press and hold the Reset button (about 5
seconds) until the System LED becomes quick-flash from slow-flash. And then release the button and wait the AP to reboot to its factory default settings.
Method two: Restore the default settings from “System Tools > Factory Defaults” of the
AP's Web-based management page.
Wireless antenna: The external antenna is used to transmit and receive wireless data.
Note:
Ensure the AP is powered on before
it restarts completely.
4
TL-WA801ND 300Mbps Wireless N Access Point User Guide

Chapter 2 Hardware Installation

2.1
Please read this User Guide carefully before installing and using the equipment. The operating distance range of your wireless connection can vary significantly depending on the physical position of the wireless devices. Factors that can weaken signals by getting in the way of your network’s radio waves are metal appliances or obstructions, and walls. Typical ranges vary base on the types of materials and background RF (radio frequency) noise in your home or office.
For best performance of your wireless network, you are suggested to:
1). Avoid redundant obstacles and interference between the wireless devices.
2). Keep your AP away from appliances with a strong electric field or magnetic field, such as a
Place the AP near the center of the area in which your computers operates.
2.2
Use only the power adapter provided with your AP
The electrical outlet shall be installed near the device and shall be easily accessible
Place your AP in a well ventilated place far from direct sunlight, any heater or heating vent
Leave at least 2 inches (5cm) space around the device for heat dissipation
Turn off your AP and unplug the power adapter in a lighting storm to avoid damage

Before You Begin

microwave oven or refrigerator.

Basic Requirements

Web browser, such as Microsoft Internet Explorer 5.0 or above, Netscape Navigator 6.0 or
above
Operating temperature: 0~40℃ (32~104℉)
Operating Humidity: 10%~90%RH, Non-condensing
2.3
Figure 2-1 is an example of the typical application of TL-WA801ND in the infrastructure network. An Infrastructure network contains an access point or a wireless router.

Connecting the Device

5
TL-WA801ND 300Mbps Wireless N Access Point User Guide
Figure 2-1 The Example of Infrastructure Network Incorporating the TL-WA801ND
To establish a typical connection of the AP, please take the following steps:
1.
Connect the Cable or DSL modem to a Router.
2.
Locate an optimum location for the AP. The best place is usually near the center of the area in which your PC(s) will wirelessly connect.
3.
Adjust the direction of the antenna. Normally, upright is a good direction.
4.
Connect the Ethernet Broadband Router to the TL-WA801ND Access Point. Power on the AP.
5.
Then you can connect a desktop PC or laptop to your network. (Make sure your computer or laptop is equipped with a Wireless Adapter.)
Note:
If you are not so clear about how to connect your devices to the network, please refer to Appendix
A Application Example.
6
TL-WA801ND 300Mbps Wireless N Access Point User Guide
Figure 2-2
Note:
The diameter of the screw, 3.5mm<D<7.8mm, and the distance of two screws is 107.5mm. The screw that project from the wall need around 4mm based, and the length of the screw need to be at least 20mm to withstand the weight of the product.
7
TL-WA801ND 300Mbps Wireless N Access Point User Guide

Chapter 3 Quick Installation Guide

This chapter will guide you to configure your PC to communicate with the AP and to configure and manage the TL-WA801ND 300Mbps Wireless N Access Point easily with a Web-based utility.

3.1 Quick Setup

With a Web-based utility, it is easy to configure and manage the TL-WA801ND 300Mbps Wireless N Access Point. The Web-based utility can be used on any Windows, Macintosh or UNIX OS with a Web browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari.
Note:
If you cannot access the web-based configuration page, you can choose the two methods listed below based on your need:
To reconfigure the TL-WA801ND, please refer to T1 in Troubleshooting to reset the product.
To change only some certain settings of the TL-WA801ND, please refer to T3 in

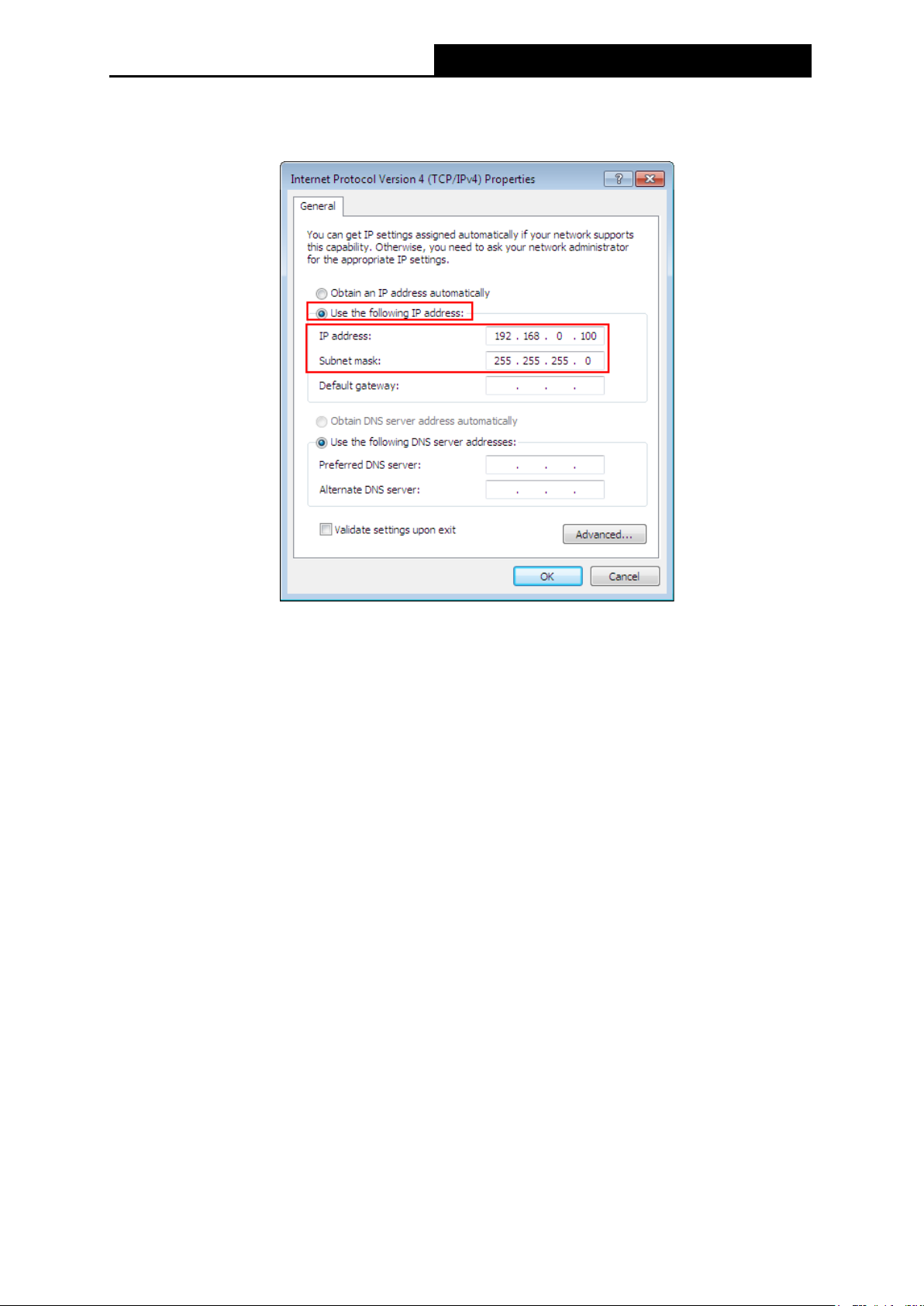

Troubleshooting to assign a static IP address 192.168.0.100 for your computer.
1.
To access the configuration utility, open a web-browser and type in the default address http://192.168.0.254 in the address field of the browser.
Figure 3-1 Login to the AP
After a moment, a login window will appear, similar to the Figure 3-2. Enter admin User Name and Password (both in lower case letters). Then click OK or press Enter.
Figure 3-2 Login Windows
for the
Note:
If the above screen does not prompt, it means that your web-browser has been set to a proxy. Go to Tools menu>Internet Options>Connections>LAN Settings, in the screen that appears, cancel the Using Proxy checkbox, and click OK to finish it.
2.
After successfully logging in, the Quick Setup page will display. Click Next to continue.
8
TL-WA801ND 300Mbps Wireless N Access Point User Guide
Note:
Figure 3-3 Quick Setup
If you click Exit and choose to manually configure the AP on your own need, please note that the DHCP is enabled during the configuration, it is essential to disable DHCP when all the settings are finished.
3.
The Operation Mode page will appear then, shown in Figure 3-4. The TL-WA801ND supports up to five operation modes.
Figure 3-4 Operation Mode
In Access Point mode, the product will act as a wireless central hub for your wireless
LAN clients, giving a wireless extension for your current wired network.
In Repeater(Range Extender) mode, the product can extend the coverage of another
wireless Access Point or Router. The universal repeater mode is for the wireless Access Point or Router which does not support WDS function.
In Bridge with AP mode, the product can wirelessly connect two or more remote LANs
together.
In Client mode, the product will act as a wireless adapter to connect your wired devices
(e.g. PC, Xbox, PS3, etc. ) to a wireless network.
In Multi-SSID mode, the product can be assigned up to four SSIDs to work with your
VLAN.
4.
Select the operation mode based on your need.
A. When you choose
Access Point mode, the Wireless Setting page will be shown in Figure
3-5.
9
TL-WA801ND 300Mbps Wireless N Access Point User Guide
Figure 3-5 Wireless Setting - Access Point mode
1) Create an easy-to-remember name for your wireless network, write it into Wireless Network Name(SSID).
2) Select Channel for your device.
3) Select Most Secure (WPA/WPA2-PSK) encryption mode and enter a password below to prevent unauthorized access to your AP.
4) Click Next, you will then come to Network Setting page for furthers configuration.
B. When you choose Repeater(Range Extender) mode, the Wireless Setting page will be
shown in Figure 3-6.
Figure 3-6 Wireless Setting – Repeater(Range Extender) mode
10
TL-WA801ND 300Mbps Wireless N Access Point User Guide
1) Select the Repeater Mode, for example Universal Repeater.
2) Click Survey, then the window displaying a list of available SSIDs will appear in Figure 3-7.
Figure 3-7 AP List
3) Find the SSID of the Access Point / Router or WISP, and click Connect in the corresponding row. You will then return to the previous page.
4) Select the security mode and enter the password that is the same as on your router or access point in Figure 3-6.
5) Click Next, you will then come to Network Setting page for furthers configuration.
C. When you choose Bridge with AP mode, the Wireless Setting page will be shown in
Figure 3-8.
Figure 3-8 Wireless Setting – Bridge with AP mode
1) Click Survey, then the window displaying a list of available SSIDs will appear in Figure 3-7.
2) Find the SSID of the Access Point / Router or WISP, and click Connect in the corresponding row. You will then return to the page shown in Figure 3-8.
11
TL-WA801ND 300Mbps Wireless N Access Point User Guide
3) Select the security mode and enter the password that is the same as on your router or access point in Wireless Bridge Setting.
4) You can name the bridge AP in Local Wireless Name, and configure the Local Wireless Setting for the bridge AP.
5) Click Next in Figure 3-8, and you will come to Network Setting page for furthers configuration.
D. When you choose Client mode, the Wireless Setting page will be shown in Figure 3-9.
Figure 3-9 Wireless Setting – Client mode
1) Click Survey, then the window displaying a list of available SSIDs will appear in Figure 3-7.
2) Find the SSID of the Access Point / Router or WISP, and click Connect in the corresponding row. You will then return to the page shown in Figure 3-9.
3) Select the security mode and enter the password that is the same as on the root AP.
4) Click Next, you will then come to Network Setting page for furthers configuration.
E. When you choose Multi-SSID mode, the Wireless Setting page will be shown in Figure
3-10.
12
TL-WA801ND 300Mbps Wireless N Access Point User Guide
Figure 3-10 Wireless Setting – Multi-SSID mode
You are suggested to implement Multi-SSID function with a switch that supports Tag VLAN feature. For advanced configuration of this step, please refer to explanations of this mode in 4.6.1
Wireless Settings.
5.
When you have configured Wireless Settings in step 4, The Network Setting page will appear then, shown in Figure 3-11. It is recommended that you keep the default settings on this page.
13
TL-WA801ND 300Mbps Wireless N Access Point User Guide
Note:
1.
These settings are only for basic wireless parameters, for advanced settings, please refer to 4.5 Network and 4.7 DHCP.
2.
By selecting YES for Change the login account, you can modify your login user name and password. In this case, it is suggested that you record them in some place easy to find.
6.
Click the Next button. You will then see the Finish page. Here takes the settings for Access Point mode for example.
Check your settings and click Save to save your settings for future reference.
Figure 3-11 Network Setting
14
TL-WA801ND 300Mbps Wireless N Access Point User Guide
Figure 3-12 Quick Setup – Finish
7.
Click the Finish button. If something has changed during the configuration, the device will reboot to make the configuration take effect, as shown in Figure 3-13. Wait until the rebooting finish.
Figure 3-13 Quick Setup – Finish
15
TL-WA801ND 300Mbps Wireless N Access Point User Guide

Chapter 4 Configure the Device

This Chapter describes how to configure your Access Point via the web-based management page. The TL-WA801ND 300Mbps Wireless N Access Point is easy to configure and manage with the
®
Web-based (Internet Explorer, Netscape management page, which can be launched on any windows, Macintosh or UNIX OS with a web browser.
Navigator, Firefox, Safari, Opera or Chrome)
4.1
Open your web browser. Type in IP address http://192.168.0.254 in the address field of web browser and press Enter.
Enter admin for the User Name and Password (both in lower case letters) in Figure 4-2 below. Then click OK or press Enter.

Login

Figure 4-1 Login to the AP
Note:
If the above screen does not prompt, it means that your web-browser has been set to a proxy. Go to Tools menu>Internet Options>Connections>LAN Settings, in the screen that appears, cancel the Using Proxy checkbox, and click OK to finish it.
After a successful login, you can configure and manage the device. There are six main menus on the leftmost column of the web-based management page: Status, WPS, Network, Wireless, DHCP and System Tools. Submenus will be available after clicking one of the main menus. On the right of the web-based management page lies the detailed explanations and instructions for the corresponding page.
Figure 4-2 Login Windows
16
TL-WA801ND 300Mbps Wireless N Access Point User Guide
4.2

Status

Selecting Status will enable you to view the AP’s current status and configuration, all of which is read-only.
Figure 4-3 Device Status
Firmware Version - This field displays the current firmware version of the AP.
Hardware Version - This field displays the current hardware version of the AP
Wired - This field displays the current settings or information for the Network, including the

MAC address, IP address and Subnet Mask.

Wireless - This field displays basic information or status for wireless function, including Operating Mode, Wireless Network Name, Channel, Mode, Channel Width, Max Tx Rate and MAC Address.
Traffic Statistics - This field displays the AP's traffic statistics.
17
