TL-WA701ND
150Mbps Wireless N Access Point
Rev: 3.0.0
1910010669
COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice. is a registered trademark of
TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or
registered trademarks of their respective holders.
No part of the specifications may be reproduced in any form or by any means or used to make any
derivative such as translation, transformation, or adaptation without permission from TP-LINK
TECHNOLOGIES CO., LTD. Copyright © 2012 TP-LINK TECHNOLOGIES CO., LTD.
All rights reserved.
http://www.tp-link.com
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may
cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Note: The manufacturer is not responsible for any radio or tv interference caused by unauthorized
modifications to this equipment. Such modifications could void the user’s authority to operate the
equipment.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This device and its antenna must not be co-located or operating in conjunction with
any other antenna or transmitter.
“To comply with FCC RF exposure compliance requirements, this grant is applicable to only
Mobile Configurations. The antennas used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter.”
CE Mark Warning
This is a class B product. In a domestic environment, this product may cause radio interference, in
which case the user may be required to take adequate measures.
National restrictions
This device is intended for home and office use in all EU countries (and other countries following
the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:
Country Restriction Reason/remark
Bulgaria None
Outdoor use limited to 10
France
Italy None
Luxembourg None
Norway Implemented
Russian Federation None Only for indoor applications
Note: Please don’t use the product outdoors in France.
mW e.i.r.p. within the band
2454-2483.5 MHz
General authorization required for outdoor use and
public service
Military Radiolocation use. Refarming of the 2.4 GHz
band has been ongoing in recent years to allow current
relaxed regulation. Full implementation planned 2012
If used outside of own premises, general authorization is
required
General authorization required for network and service
supply(not for spectrum)
This subsection does not apply for the geographical area
within a radius of 20 km from the centre of Ny-Ålesund
Industry Canada Statement:
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the
following two conditions:
(1)This device may not cause harmful interference, and
(2)This device must accept any interference received, including interference that may cause
undesired operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with Canada radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
Ce dispositif est conforme à la norme CNR-210 d’Industrie Canada applicable aux appareils radio
exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes:
(1) Le dispositif ne doit pas produire de brouillage préjudiciable, et
(2) Ce dispositif doit accepter tout brouillage reçu,y compris un brouillage susceptible de
provoquer un fonctionnement indésirable.
NOTE IMPORTANTE:
Déclaration d’exposition aux radiations:
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20
cm de distance entre la source de rayonnement et votre corps.
Korea Warning Statements:
당해 무선설비는 운용중 전파혼신 가능성이 있음.
NCC Notice:
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功
率或變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並
改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電
機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам
нормативних документів та вимогам, що передбачені чинними законодавчими актами
України.
TP-LINK TECHNOLOGIES CO., LTD
DECLARATION OF CONFORMITY
For the following equipment:
Product Description: 150Mbps Wireless N Access Point
Model No.: TL-WA701ND
Trademark: TP-LINK
We declare under our own responsibility that the above products satisfy all the technical
regulations applicable to the product within the scope of Council Directives:
Directives 1999/5/EC, Directives 2004/108/EC, Directives 2006/95/EC, Directives 1999/519/EC,
Directives 2011/65/EU
The above product is in conformity with the following standards or other normative documents
ETSI EN 300 328 V1.7.1: 2006
ETSI EN 301 489-1 V1.8.1:2008& ETSI EN 301 489-17 V2.1.1:2009
EN 55022:2010
EN 55024:2010
EN 61000-3-2:2006+A1:2009+A2:2009
EN 61000-3-3:2008
EN60950-1:2006+A11：2009+A1:2010+A12:2011
EN62311:2008
The product carries the CE Mark:
Person is responsible for marking this declaration:
Yang Hongliang
Product Manager of International Business
Date of issue:2012
TP-LINK TECHNOLOGIES CO., LTD.
Building 24 (floors 1, 3, 4, 5), and 28 (floors 1-4) Central Science and Technology Park, Shennan
Rd, Nanshan, Shenzhen, China
CONTENTS
Package Contents .................................................................................................... 1
Chapter 1 Introduction........................................................................................... 2
1.1 Product Overview.............................................................................................. 2
1.2 Conventions ...................................................................................................... 2
1.3 Main Features ................................................................................................... 3
1.4 Appearance....................................................................................................... 3
1.4.1 The Front Panel.................................................................................................3
1.4.2 The Rear Panel..................................................................................................4
Chapter 2 Hardware Installation ........................................................................... 5
2.1 Before You Begin.............................................................................................. 5
2.2 Basic Requirements.......................................................................................... 5
2.3 Connecting the Device...................................................................................... 5
Chapter 3 Quick Installation Guide....................................................................... 7
3.1 Quick Setup ...................................................................................................... 7
Chapter 4 Configure the Device.......................................................................... 18
4.1 Login ............................................................................................................... 18
4.2 Status.............................................................................................................. 19
4.3 Quick Setup .................................................................................................... 20
4.4 Operation Mode .............................................................................................. 20
4.5 WPS................................................................................................................ 21
4.6 Network........................................................................................................... 27
4.7 Wireless .......................................................................................................... 28
4.7.1 Wireless Settings.............................................................................................28
4.7.2 Wireless Security.............................................................................................37
4.7.3 Wireless MAC Filtering.................................................................................... 46
4.7.4 Wireless Advanced..........................................................................................49
4.7.5 Antenna Alignment ..........................................................................................50
4.7.6 Throughput Monitor .........................................................................................50
4.7.7 Wireless Statistics............................................................................................51
4.8 DHCP.............................................................................................................. 51
4.8.1 DHCP Settings.................................................................................................52
4.8.2 DHCP Clients List............................................................................................53
4.8.3 Address Reservation .......................................................................................53
4.9 System Tools .................................................................................................. 54
4.9.1 Time Settings...................................................................................................55
4.9.2 Diagnostic........................................................................................................56
4.9.3 Ping Watch Dog...............................................................................................58
4.9.4 Firmware Upgrade........................................................................................... 58
4.9.5 Factory Defaults...............................................................................................59
4.9.6 Backup & Restore............................................................................................59
4.9.7 Reboot .............................................................................................................60
4.9.8 Password.........................................................................................................61
4.9.9 System Log......................................................................................................61
4.9.10 Statistics ..........................................................................................................62
Appendix A: Application Example........................................................................ 65
Appendix B: Factory Defaults ............................................................................... 68
Appendix C: Troubleshooting............................................................................... 69
Appendix D: Specifications................................................................................... 73
Appendix E: Glossary ............................................................................................ 74
TL-WA701ND 150Mbps Wireless N Access Point User Guide
Package Contents
¾ The following items should be found in your package:
¾ One TL-WA701ND 150Mbps Wireless N Access Point
¾ One Power Injector
¾ Ethernet Cable
¾ One Power Adapter for TL-WA701ND 150Mbps Wireless N Access Point
¾ Quick Installation Guide
¾ One Resource CD for TL-WA701ND 150Mbps Wireless N Access Point, including:
z This User Guide
z Other helpful information
Note:
)
Make sure that the package contains the above items. If any of the listed items are damaged or
missing, please contact with your distributor.
1
TL-WA701ND 150Mbps Wireless N Access Point User Guide
Chapter 1 Introduction
1.1 Product Overview
The TL-WA701ND 150Mbps Wireless N Access Point is dedicated to Small Office/Home Office
(SOHO) wireless network solutions. It allows for greater range and mobility within your wireless
network while also allowing you to connect the wireless devices to a wired environment. Increased
mobility and the absence of cabling will be beneficial for your network.
With using IEEE 802.11n wireless technology, your device can transmit wireless data at the rate of
up to 150Mbps. With multiple protection measures, including SSID broadcast control and wireless
LAN 64/128/152-bit WEP encryption, WiFi protected Access (WPA2- PSK, WPA- PSK), the
TL-WA701ND 150Mbps Wireless N Access Point delivers complete data privacy. This device
leverages some 802.11n features to provide improved performance and coverage compared to
802.11a/g devices, and fully interoperates with 802.11n products if they are Wi-Fi CERTIFIED, but
it does not conform to all of the requirements in the IEEE specification and is not classified as "n"
in the Wi-Fi CERTIFIED program.
It supports an easy, web-based setup for installation and management. Even though you may not
be familiar with the Access Point, you can easily configure it with the help of this Guide. Before
installing the AP, please look through this Guide to get the full information of the TL-WA701ND
150Mbps Wireless N Access Point.
1.2 Conventions
The AP or TL-WA701ND, or device mentioned in this User guide stands for TL-WA701ND
150Mbps Wireless N Access Point without any explanations.
Parameters provided in the pictures are just references for setting up the product, which may differ
from the actual situation. You can set the parameters according to your demand.
2
TL-WA701ND 150Mbps Wireless N Access Point User Guide
1.3 Main Features
¾ Wireless speed up to 150Mbps
¾ Supports Access Point, Multi-SSID, Client, Repeater（Universal Repeater）and Bridge with AP
modes
¾ Up to 4 SSIDs and VLAN support
¾ Up to 30 meters (100 feet) of flexible deployment with included Power over Ethernet Injector
¾ Easily setup a WPA encrypted secure connection at a push of the WPS button
¾ Supports Remote and Web management
¾ Backward compatible with 802.11b/g products
1.4 Appearance
1.4.1 The Front Panel
Figure 1-1
The front panel of the TL-WA701ND consists of several LED indicators, which is designed to
indicate connections. View from left to right, Table 1-1 describes the LEDs on the front panel of the
device.
LED Explanation
Name Status Indication
Off No Power
On Power on
Off The device has a system error
On
Flashing
Off
On
Flashing
Off
Flashing
The device is initialising
The device is working properly
There is no device linked to the corresponding port
There is a device linked to the corresponding port but no activity
There is an active device linked to the corresponding port
The Wireless function is disabled
The Wireless function is enabled
Slow Flash
Quick Flash
On
A wireless device is connecting to the network by WPS function.
This process will last in the first 2 minutes.
A wireless device has been successfully added to the network by
WPS function.
A wireless device failed to be added to the network by WPS
function.
Table 1-1
3
1.4.2 The Rear Panel
TL-WA701ND 150Mbps Wireless N Access Point User Guide
Figure 1-2
Viewed from left to right, the following parts are located on the rear panel of TL-WA701ND.
ON/OFF: The switch for the power.
POWER: The power port connects to the power adapter provided with the TL-WA701ND
150Mbps Wireless N Access Point.
Ethernet: One LAN 10/100Mbps RJ45 port connects to a network device, such as a switch or a
router.
WPS: If you have client devices, such as wireless adapters, that support Wi-Fi Protected Setup,
then you can press this button to quickly establish a connection between the device and client
devices and automatically configure wireless security for your wireless network.
RESET: The Reset button is used to restore the AP’s factory default settings. There are two ways
to reset the Access Point’s factory defaults:
z Method one: With the AP powered on, use a pin to press and hold the Reset button (about 5
seconds) until the System LED becomes quick-flash from slow-flash. And then release the
button and wait the AP to reboot to its factory default settings.
z Method two: Restore the default settings from “System Tools > Factory Defaults” of the
AP's Web-based management page.
Wireless antenna: The external antenna is used to transmit and receive wireless data.
Note:
)
Ensure the AP is powered on before it restarts completely.
4
TL-WA701ND 150Mbps Wireless N Access Point User Guide
Chapter 2 Hardware Installation
2.1 Before You Begin
Please read this User Guide carefully before installing and using the equipment. The operating
distance range of your wireless connection can vary significantly depending on the physical
position of the wireless devices. Factors that can weaken signals by getting in the way of your
network’s radio waves are metal appliances or obstructions, and walls. Typical ranges vary base
on the types of materials and background RF (radio frequency) noise in your home or office.
For best performance of your wireless network, you are suggested to:
1). Avoid redundant obstacles and interference between the wireless devices.
2). Keep your AP away from appliances with a strong electric field or magnetic field, such as a
microwave oven or refrigerator.
Place the AP near the center of the area in which your computers operates.
2.2 Basic Requirements
z Use only the power adapter provided with your AP
z The electrical outlet shall be installed near the device and shall be easily accessible
z Place your AP in a well ventilated place far from direct sunlight, any heater or heating vent
z Leave at least 2 inches (5cm) space around the device for heat dissipation
z Turn off your AP and unplug the power adapter in a lighting storm to avoid damage
z Web browser, such as Microsoft Internet Explorer 5.0 or above, Netscape Navigator 6.0 or
above
z Operating temperature: 0℃~40℃ (32℉~104℉)
z Operating Humidity: 10%~90%RH, Non-condensing
2.3 Connecting the Device
Figure 2-1 is an example of the typical application of TL-WA701ND in the infrastructure network.
An Infrastructure network contains an access point or a wireless router.
5
TL-WA701ND 150Mbps Wireless N Access Point User Guide
Figure 2-1 The Example of Infrastructure Network Incorporating the TL-WA701ND
To establish a typical connection of the AP, please take the following steps:
1. Connect the Cable or DSL modem to a Router.
2. Locate an optimum location for the AP. The best place is usually near the center of the area in
which your PC(s) will wirelessly connect.
3. Adjust the direction of the antenna. Normally, upright is a good direction.
4. Connect the Ethernet Broadband Router to the TL-WA701ND Access Point. Power on the AP.
5. Then you can connect a desktop PC or laptop to your network. (Make sure your computer or
laptop is equipped with a Wireless Adapter.)
Note:
)
If you are not so clear about how to connect your devices to the network, please refer to Appendix
A Application Example.
6
TL-WA701ND 150Mbps Wireless N Access Point User Guide
Chapter 3 Quick Installation Guide
This chapter will guide you to configure your PC to communicate with the AP and to configure and
manage the TL-WA701ND 150Mbps Wireless N Access Point easily with a Web-based utility.
3.1 Quick Setup
With a Web-based utility, it is easy to configure and manage the TL-WA701ND 150Mbps Wireless
N Access Point. The Web-based utility can be used on any Windows, Macintosh or UNIX OS with
a Web browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari.
Note:
)

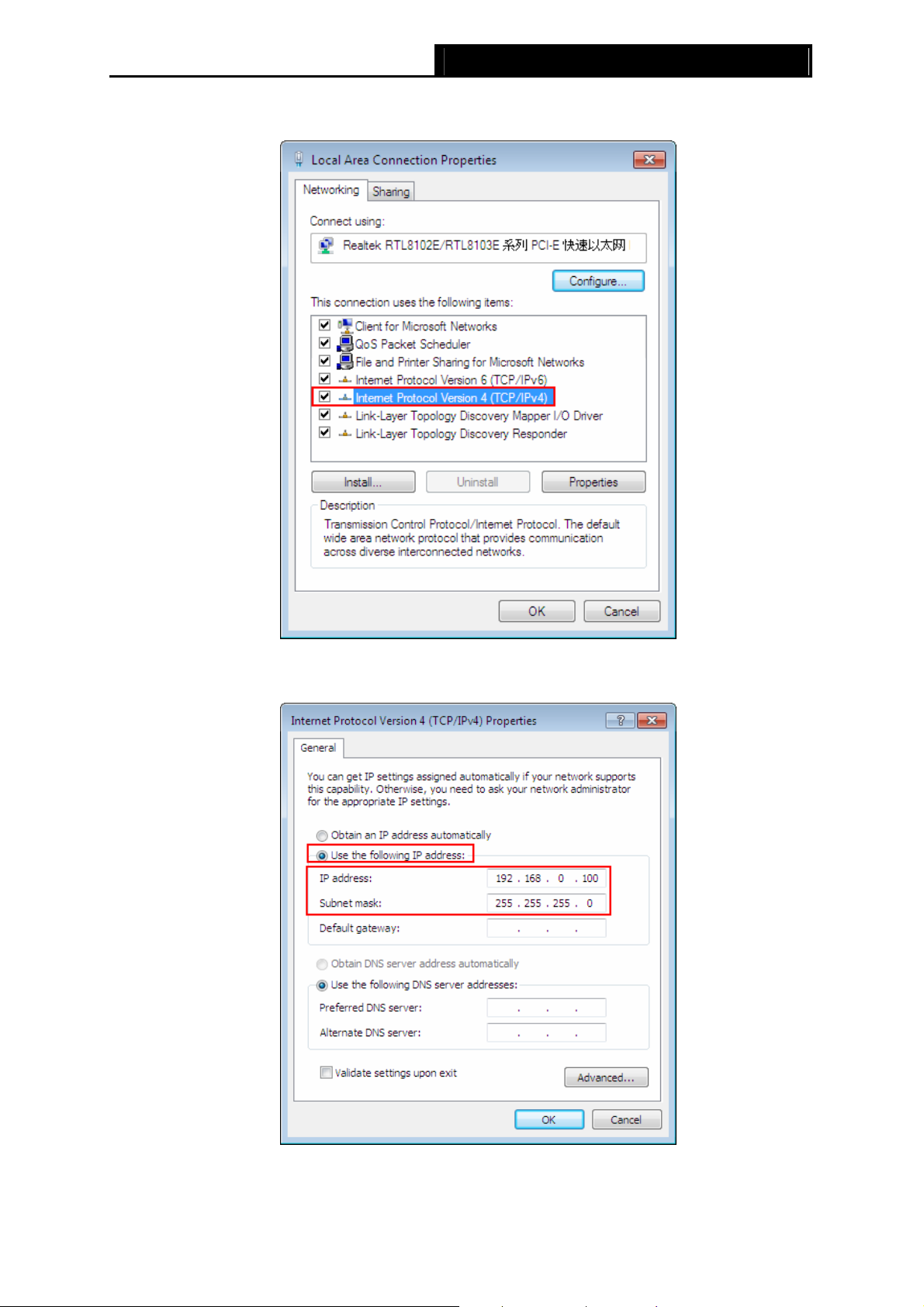

1. When first configure the TL-WA701ND, we suggest that the Local Area Connection of your
computer is set as below.
2. If you cannot access the web-based configuration page, you can choose the two methods
listed below based on your need:
¾ To reconfigure the TL-WA701ND, please refer to T1 in Troubleshooting to reset the
product.
¾ To change only some certain settings of the TL-WA701ND, please refer to T3 in
Troubleshooting to assign a static IP address 192.168.0.100 for your computer.
1. To access the configuration utility, open a web-browser and type in the default address
http://192.168.0.254 in the address field of the browser.
Figure 3-1 Login to the AP
After a moment, a login window will appear, similar to the Figure 4-2. Enter admin for the
User Name and Password (both in lower case letters). Then click OK or press Enter.
7
Note:
)
If the above screen does not prompt, it means that your web-browser has been set to a proxy.
Go to Tools menu>Internet Options>Connections>LAN Settings, in the screen that
appears, cancel the Using Proxy checkbox, and click OK to finish it.
TL-WA701ND 150Mbps Wireless N Access Point User Guide
Figure 3-2 Login Windows
2. After successfully logging in, the Quick Setup page will display. Click Next to continue.
Figure 3-3 Quick Setup
Note:
)
If you click Exit and choose to manually configure the AP on your own need, please note that
the DHCP is enabled during the configuration, it is essential to disable DHCP when all the
settings are finished.
3. The Operation Mode page will appear then, shown in Figure 3-4. The TL-WA701ND
supports up to five operation modes.
8
TL-WA701ND 150Mbps Wireless N Access Point User Guide
Figure 3-4 Operation Mode
¾ In Access Point mode, the product will act as a wireless central hub for your wireless
LAN clients, giving a wireless extension for your current wired network.
¾ In Multi-SSID mode, the product can be assigned up to four SSIDs to work with your
VLAN.
¾ In Repeater(Range Extender) mode, the product can extend the coverage of another
wireless Access Point or Router. The universal repeater mode is for the wireless Access
Point or Router which does not support WDS function.
¾ In Bridge with AP mode, the product can wirelessly connect two or more remote LANs
together.
¾ In Client mode, the product will act as a wireless adapter to connect your wired devices
(e.g. PC, Xbox, PS3, etc. ) to a wireless network.
4. Select the operation mode based on your need.
A. When you choose Access Point mode, the Wireless Setting page will be shown in Figure
3-5.
Figure 3-5 Wireless Settings - Access Point mode
1) Create an easy-to-remember name for your wireless network, write it into Wireless
Network Name(SSID).
2) Select Most Secure (WPA/WPA2-PSK) encryption mode and enter a password below to
prevent unauthorized access to your AP.
9
TL-WA701ND 150Mbps Wireless N Access Point User Guide
3) Click Next, you will then come to Network Setting page for furthers configuration.
B. When you choose Multi-SSID mode, the Wireless Setting page will be shown in Figure 3-6.
Figure 3-6 Wireless Settings – Multi-SSID mode
You are suggested to implement Multi-SSID function with a switch that supports Tag VLAN
feature.
For advanced configuration of this step, please refer to explanations of this mode in 4.7.1
Wireless Settings.
C. When you choose Repeater(Range Extender) mode, the Wireless Setting page will be
shown in Figure 3-7.
Figure 3-7 Wireless Settings – Repeater(Range Extender) mode
10
TL-WA701ND 150Mbps Wireless N Access Point User Guide
1) Select the Repeater Mode, for example Universal Repeater.
2) Click Survey, then the window displaying a list of available SSIDs will appear in Figure
3-8.
11
TL-WA701ND 150Mbps Wireless N Access Point User Guide
Figure 3-8 AP List
12
TL-WA701ND 150Mbps Wireless N Access Point User Guide
3) Find the SSID of the Access Point / Router or WISP, and click Connect in the corresponding
row. You will then return to the previous page.
4) Select the security mode and enter the password that is the same as on your router or
access point in Figure 3-7.
5) Click Next, you will then come to Network Setting page for furthers configuration.
D. When you choose Bridge with AP mode, the Wireless Setting page will be shown in
Figure 3-9.
Figure 3-9 Wireless Settings – Bridge with AP mode
1) Click Survey, then the window displaying a list of available SSIDs will appear in Figure
3-8.
2) Find the SSID of the Access Point / Router or WISP, and click Connect in the corresponding
row. You will then return to the page shown in Figure 3-9.
3) Select the security mode and enter the password that is the same as on your router or
access point.
4) Click Next in Figure 3-9, then the page below will appear.
You can name the bridge AP in Local Wireless Name. With Use the same security
settings for the local wireless network as the root AP selected, the security settings
of the wireless network will be the same with the root AP.
Figure 3-10
13
Note:
)
If you do not select Use the same security settings for the local wireless network as the
root AP, the page will be shown as below, you can then separately configure the security
settings for the local wireless network.
When the Wireless Security Mode in this page and in Figure 3-9 are both chosen
Secure(WEP), the security settings of the local wireless network will/shall keep the same with
the root AP.
TL-WA701ND 150Mbps Wireless N Access Point User Guide
5) Click Next in Figure 3-10, and you will come to Network Setting page for furthers
configuration.
E. When you choose Client mode, the Wireless Setting page will be shown in Figure 3-11.
Figure 3-11 Wireless Settings –Client mode
14
1) Click Survey, then the window displaying a list of available SSIDs will appear in Figure
3-8.
2) Find the SSID of the Access Point / Router or WISP, and click Connect in the corresponding
row. You will then return to the page shown in Figure 3-11.
3) Select the security mode and enter the password that is the same as on the root AP.
4) Click Next, you will then come to Network Setting page for furthers configuration.
5. When you have configured Wireless Settings in step 4, The Network Setting page will
appear then, shown in Figure 3-12. It is recommended that you keep the default settings on
this page.
TL-WA701ND 150Mbps Wireless N Access Point User Guide
Figure 3-12 Network Settings
Note:
)
1. These settings are only for basic wireless parameters, for advanced settings, please refer
to Section 4.7 Wireless.
2. To change to another mode, please refer to T3 in Troubleshooting to assign a static IP
address 192.168.0.100 for your computer first before logging in the management page.
6. Click the Next button. You will then see the Finish page. Here takes the settings for Access
Point mode for example.
¾ Because there is something changed of the configuration, you will see the Finish page as
shown in Figure 3-13. Check your settings and click Save to save your settings for future
reference.
15
TL-WA701ND 150Mbps Wireless N Access Point User Guide
Figure 3-13 Quick Setup – Finish
Click the Reboot button to make your wireless configuration to take effect and finish the
Quick Setup. Wait until the device restarts successfully.
Figure 3-14 Quick Setup – Finish
¾ If you don’t make any changes of the configuration, you will see the Finish page as shown in
Figure 3-15. Check your settings and click Save to save your settings for future reference.
Click the Finish button to finish the Quick Setup.
16
TL-WA701ND 150Mbps Wireless N Access Point User Guide
Figure 3-15 Quick Setup – Finish
17
Loading...
