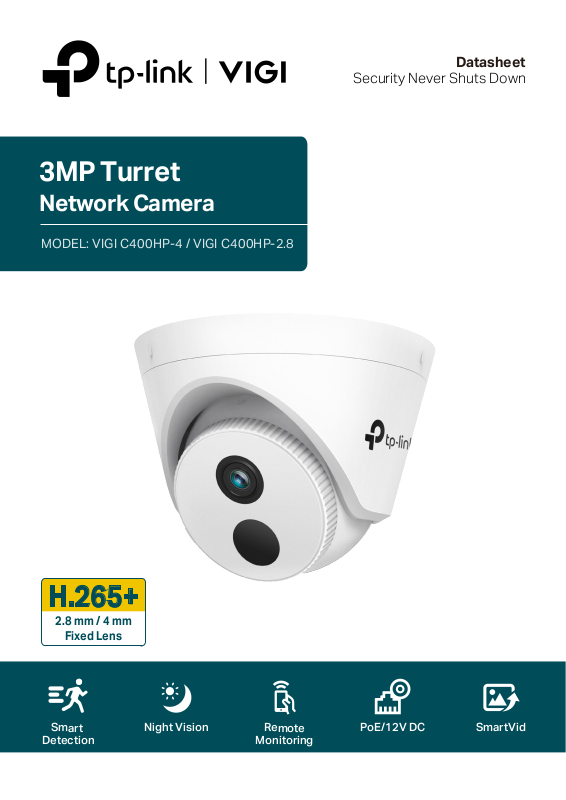

3MP Turret
H.265+
2.8 mm / 4 mm
Fixed Lens
Network Camera
MODEL: VIGI C400HP-4 / VIGI C400HP-2.8
Datasheet
Security Never Shuts Down
Smart
Detection
Remote
Monitoring
PoE/12V DCNight Vision SmartVid
Smart Detection
Receive notications and check feeds when someone crosses a boundary,
enters an area you've set, or obstructs the camera.
Motion Detection
Get instant notications when your camera
detects motion.
Line-Crossing
Set a boundary and receive an alert anytime a
person crosses it from either or both directions.
Area Intrusion
Set customized activity zones around key
areas for more focused monitoring.
SmartVid
Camera Tampering
Receive alerts when someone obstructs the
camera.
Smart IR
Keeps objects from being under-rendered when far
away or overexposed when close to camera at night.
Wide Dynamic Range
Adjusts for lighting contrast to minimize shadowing
eects and renders images true to life.
3D DNR
Removes abnormal pixelation to provide clearer
video and eliminate distortion.
VIGI Surveillance Solution
The VIGI professional surveillance system by TP-Link is dedicated to protecting
the business that you've worked hard to build—whenever, wherever.
Outstanding functions, reliable quality guarantees, and simplied installation
work together to ensure your business stays safe and sound.
VIGI NVRMonitor TP-Link Switch
VIGI
Camera
Flexible Installation
Easily route your camera’s cable into a dropped ceiling or avoid drilling by
slotting it through the camera’s side outlet.
Specications
Camera
Image Sensor 1/2.7” Progressive Scan CMOS
Min. Illumination Color: 0.1 Lux@F2.0; 0 Lux with IR
Day & Night IR Cut Filter
Digital Noise Reduction
WDR DWDR
3-Axis Adjustment Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360°
Lens
Focal length 4 mm / 2.8 mm
Aperture
Focus Fixed
FOV
Lens Mount M12
3D DNR
4 mm: F2.4
2.8 mm: F2.0
4 mm, horizontal FOV: 92°, vertical FOV: 48°,
diagonal FOV: 114°
2.8 mm, horizontal FOV: 105°, vertical FOV: 56°,
diagonal FOV: 125°
IR
IR Range 30m
Wavelength 850nm
Compression Standard
Main stream: H.265/H.264
Video Compression
Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate 64 Kbps to 6 Mbps
Smart Feature-set
Smart Event Area Intrusion Detection, Line-Crossing Detection
Basic Event
Linkage Method Trigger Notification: ONVIF, HTTPS
Region of Interest 1 Region
Max. Resolution 3MP (2304 × 1296)
Main Stream
Sub-Stream
Motion Detection, Video Tampering Detection,
Exception ( illegal login)
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps,
30fps
Resolution: 2304x1296, 2048x1280, 1920x1080,
1280x720
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps,
30fps
Resolution: 704x576, 640x480, 352x288,
320x240
Image Enhancement
Image Settings
Day/Night Switch Day/Night/Auto/Schedule
Network
Protocols
General Function
API ONVIF
Security
BLC/3D DNR/Prevent Overexposure to Infrared
Light
Mirror, Brightness, Contrast, Saturation, Sharpness,
Exposure, WDR, White Balance Adjustable by
Client Software
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
RTSP, NTP, UPnP UDP, SSL/TLS
Two Streams, Mirror, Privacy Masks, Password
Reset via E-mail, HTTP Listening
Password Protection, HTTPS Encryption, IP
Address Filter, Digest Authentication
4 Main Streams & 3 Sub-Streams,
Simultaneous Live View
or 3 Main Streams & 5 Sub-Streams
User/Host Up to 21 Users
Client VIGI Security Manager, VIGI app
Interface
Communication Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port
Video Output No
Reset Button No
General
Operating Temperature -30–60 °C
12V DC ± 5%, 5.5mm Coaxial Power Plug
Power Supply
PoE (802.3af/at, class 0)
12V DC: Max 2.4W
Power Consumption
PoE: Max 3W
Material Plastic
Product Dimensions 123 × 123 × 83 mm
Product Weight 195g
Certifications CE, FCC, RCM, BSMI, VCCI, RoHS
Specifications are subject to change without notice and can be found at www.tp-link.com.
