TP Link C80 Users Manual

User Guide

AC1900 MU-MIMO Wi-Fi Router

REV1.0.0 1910012661

Contents

About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Chapter 1. Get to Know About Your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1. 1. Product Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1. 2. Appearance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1. 2. 1. Top Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1. 2. 2. The Back Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Chapter 2. Connect the Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

2. 1. Position Your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2. 2. Connect Your Router. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Chapter 3. Log In to Your Router. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Chapter 4. Set Up Internet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4. 1. Use Quick Setup Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

4. 2. Quick Setup Via TP-Link Tether App. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

4. 3. Manually Set Up Your Internet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

4. 4. Set Up the Router as an Access Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

4. 5. Set Up an IPv6 Internet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Chapter 5. TP-Link Cloud Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

5. 1. Register a TP-Link ID. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5. 2. Change Your TP-Link ID Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5. 3. Manage the User TP-Link IDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

5. 3. 1. Add TP-Link ID to Manage the Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

5. 3. 2. Remove TP-Link ID(s) from Managing the Router. . . . . . . . . . . . . . . . . . . . . . 25

5. 4. Manage the Router via the TP-Link Tether App . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Chapter 6. Guest Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

6. 1. Create a Network for Guests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

6. 2. Customize Guest Network Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Chapter 7. Parental Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

7. 1. Setting Up Access Restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Chapter 8. Network Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

8. 1. Protect the Network from Cyber Attacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

8. 2. Access Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

8. 3. IP & MAC Binding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Chapter 9. NAT Forwarding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

9. 1. Share Local Resources on the Internet by Port Forwarding . . . . . . . . . . . . . . . . . . 41

9. 2. Open Ports Dynamically by Port Triggering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

9. 3. Make Xbox Online Games Run Smoothly by UPnP . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

9. 4. Make Applications Free from Port Restriction by DMZ . . . . . . . . . . . . . . . . . . . . . . . 45

Chapter 10. Customize Your Network Settings. . . . . . . . . . . . . . . . . . . . . . . 47

10. 1. Change the LAN Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

10. 2. Configure to Support IPTV Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

10. 3. Specify DHCP Server Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

10. 4. Set Up a Dynamic DNS Service Account . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

10. 5. Create Static Routes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

10. 6. Specify Wireless Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

10. 7. Schedule Your Wireless Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

10. 8. Use WPS for Wireless Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

10. 8. 1. Connect via the Client’s PIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

10. 8. 2. Connect via the Router’s PIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

10. 8. 3. Push the WPS Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

10. 9. Advanced Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

Chapter 11. Manage the Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

11. 1. Upgrade the Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

11. 1. 1. Online Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

11. 1. 2. Local Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

11. 2. Backup and Restore Configuration Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

11. 3. Change the Login Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

11. 4. Local Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

11. 5. Remote Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

11. 6. System Log. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

11. 7. Test the Network Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

11. 8. Set Up System Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

11. 9. Set the Router to Reboot Regularly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

11. 10. Control the LED. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

FAQ. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

About This Guide

This guide is a complement of Quick Installation Guide. The Quick Installation Guide instructs you on quick internet setup, and this guide provides details of each function and shows you the way to configure these functions appropriate to your needs.

When using this guide, please note that features available of the router may vary by model and software version. Router‘s availability may also vary by region or ISP. All images, steps, and descriptions in this guide are only examples and may not reflect your actual experience.

Conventions

In this guide the following conventions are used:

Convention Description

Underlined

Teal

Note:

Tips:

Symbols on the web

page

*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11

specifications. Actual wireless data throughput and wireless coverage are not guaranteed and

will vary as a result of network conditions, client limitations, and environmental factors, including

building materials, obstacles, volume and density of traffic, and client location.

Underlined words or phrases are hyperlinks. You can click to redirect to a website or a specific section.

Contents to be emphasized and texts on the web page are in teal, including the menus, items, buttons, etc.

The menu structures to show the path to load the corresponding page. For example, function page is under the Wireless menu that is located in the Advanced tab.

• Ignoring this type of note might result in a malfunction or damage to the

device.

Indicates important information that helps you make better use of your device.

Click to edit the corresponding entry.

•

Click to delete the corresponding entry.

•

Click to enable or disable the corresponding entry.

•

Click to view more information about items on the page.

Advanced > Wireless > MAC Filtering means the MAC Filtering

More Info

The latest software, management app and utility can be found at Download Center at

https://www.tp-link.com/support.

The Quick Installation Guide can be found where you find this guide or inside the package of the router.

Specifications can be found on the product page at https://www.tp-link.com.

A TP-Link Community is provided for you to discuss our products at

https://community.tp-link.com.

Our Technical Support contact information can be found at the

Support

page at https://www.tp-link.com/support.

Contact Technical

Chapter 1

Get to Know About Your Router

This chapter introduces what the router can do and shows its appearance.

It chapter contains the following sections:

Product Overview

•

• Appearance

Chapter 1

Get to Know About Your Router

1. 1. Product Overview

The TP-Link router is designed to fully meet the need of Small Office/Home Office (SOHO) networks and users demanding higher networking performance. The powerful antennas ensure continuous Wi-Fi signal to all your devices while boosting widespread coverage throughout your home, and the built-in Ethernet ports supply high-speed connection to your wired devices.

Moreover, it is simple and convenient to set up and use the TP-Link router due to its intuitive web interface and the powerful Tether app.

1. 2. Appearance

1. 2. 1. Top Panel

The router’s LEDs (view from left to right) are located on the front. You can check the router’s working status by following the LED Explanation table.

Chapter 1

LED Explanation

• Router Mode

LED Status Indication

Get to Know About Your Router

On The system has started up successfully.

(Power)

(2.4GHz Wireless)

(5GHz Wireless)

(LAN)

(Internet)

Orange On

• Access Point Mode

LED Status Indication

Flashing

Off Power is off.

On The 2.4GHz wireless band is enabled.

Off The 2.4GHz wireless band is disabled.

On The 5GHz wireless band is enabled.

Off The 5GHz wireless band is disabled.

Off No powered-on device is connected to the router’s LAN port.

Green On Internet service is available.

Off The router’s Internet port is unplugged.

The system is starting up or the firmware is being upgraded. Do not disconnect or power off your router.

At least one powered-on device is connected to the router’s LAN port.

The router’s Internet port is connected, but the internet service is not available.

(Power)

(2.4GHz Wireless)

(5GHz Wireless)

(LAN)

(Internet)

On The system has started up successfully.

Flashing

Off Power is off.

On The 2.4GHz wireless band is enabled.

Off The 2.4GHz wireless band is disabled.

On The 5GHz wireless band is enabled.

Off The 5GHz wireless band is disabled.

Off No powered-on device is connected to the router’s LAN port.

Green On Internet service is available.

Off The router’s Internet port is unplugged.

The system is starting up or the firmware is being upgraded. Do not disconnect or power off your router.

At least one powered-on device is connected to the router’s LAN port.

Chapter 1

Get to Know About Your Router

1. 2. 2. The Back Panel

The following parts (view from left to right) are located on the back panel.

Button and Port Explanation

Item Description

Power On/Off Button Press this button to power on or off the router.

Power Port For connecting the router to a power socket via the provided power adapter.

WAN Port For connecting to a DSL/Cable modem, or an Ethernet jack.

LAN Ports (1/2/3/4) For connecting your PC or other wired devices to the router.

Press the button for 1 second, and immediately press the WPS button on

WPS/Wi-Fi Button

Reset Button

Antennas

your client to start the WPS process.

Press and hold the button for 5 seconds to turn on or off the wireless function of your router.

Press and hold the button until all LEDs turn on to reset the router to its factory default settings.

Used for wireless operation and data transmit. Upright them for the best Wi-Fi performance.

Chapter 2

Connect the Hardware

This chapter contains the following sections:

•

Position Your Router

• Connect Your Router

Chapter 2

Connect the Hardware

2. 1. Position Your Router

• The product should not be located in a place where it will be exposed to moisture or excessive heat.

• Place the router in a location where it can be connected to multiple devices as well as to a power source.

• Make sure the cables and power cord are safely placed out of the way so they do not create a tripping hazard.

• The router can be placed on a shelf or desktop.

• Keep the router away from devices with strong electromagnetic interference, such as Bluetooth devices, cordless phones and microwaves.

2. 2. Connect Your Router

Before you start, turn off your modem, if any, and remove the backup battery if it has one. And place the router horizontally and orient the antennas vertically.

note: If you already have a router and want to configure this new router as an access point to extend your network, refer to the Access Point Mode section on the back page.

Follow the steps below to connect your router.

If your internet connection is through an Ethernet cable directly from the wall instead of through a DSL / Cable / Satellite modem, connect the Ethernet cable to the router’s WAN port, and then follow steps 3 and 4 to complete the hardware connection.

Chapter 2

WAN

POWER

2Q2Ƭ



2Ƭ2Ƭ

Power adapter

Router

Internet

Connect the Hardware

ModemPower adapter

1. Turn off the modem, and remove the backup battery if it has one.

2. Connect the modem to the router’s WAN port with an Ethernet cable.

3. Turn on the modem, and then wait about 2 minutes for it to restart.

4. Connect the power adapter to the router and turn on the router.

5. Verify that the following LEDs are on and solid to confirm the hardware is connected.

Power

2.4GHz On

Note:

Note: If the 2.4GHz LED and 5GHz LED are off, press and hold the WPS/Wi-Fi button on the back for more than 5 seconds,

then release the button. Both the LEDs should turn solid on.

5GHz

Internet

6. Connect your computer to the router.

• Method 1: Wired

Turn off the Wi-Fi on your computer and connect your computer to the router’s LAN port as shown below.

WPS/ Wi-Fi

Ethernet cable

Chapter 2

WPS/

Wi-Fi

Connect the Hardware

• Method 2: Wirelessly

1 ) Find the SSID (Network Name) and Wireless Password printed on the label at

the bottom of the router.

2 ) Click the network icon of your computer or go to Wi-Fi Settings of your smart

device, and then select the SSID to join the network.

Smart DeviceComputer

< Settings

Wi-Fi

onnections are availabl

Wireless Network Connection

TP-Link_XXXX

TP-Link_XXXX_5G

Connect automatically Connect

Wi-Fi

CHOOSE A NETWORK...

TP-Link_XXXX

TP-Link_XXXX_5G

Other...

• Method 3: Use the WPS button

Wireless devices that support WPS, including Android phones, tablets, and most USB network cards, can be connected to your router through this method.

Note:

• WPS is not supported by iOS devices.

• The WPS function cannot be configured if the wireless function of the router is disabled. Also, the WPS function will be

disabled if your wireless encryption is WEP. Please make sure the wireless function is enabled and is configured with

the appropriate encryption before configuring the WPS.

1 ) Tab the WPS icon on the device’s screen. Here we take an Android phone for

instance.

2 ) Within two minutes, press the WPS button on your router.

WLAN

TP-Link

MyHome

David

HomeNetwork

TP-Link_Home

TP-Link_Router

Test

i-Fi

Chapter 3

With a web-based utility, it is easy to configure and manage the router. The web-based utility can be used on any Windows, Mac OS or UNIX OS with a Web browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari.

Follow the steps below to log in to your router.

1. Set up the TCP/IP Protocol in computer.

2. Visit

http://tplinkwifi.net, and create a login password for secure management

purposes. Then click

Let’s Get Started to log in.

Obtain an IP address automatically mode on your

Note:

• If the login window does not appear, please refer to the FAQ Section.

• If you have registered a TP-Link ID and bound your cloud router to it, the login password you created here will be

invalid. Please log in to the cloud router using your TP-Link ID.

Chapter 4

Set Up Internet Connection

This chapter introduces how to connect your router to the internet. The router is equipped with a web-based Quick Setup wizard. It has necessary ISP information built in, automates many of the steps and verifies that those steps have been successfully completed. Furthermore, you can also set up an IPv6 connection if your ISP provides IPv6 service.

It contains the following sections:

Use Quick Setup Wizard

•

• Quick Setup Via TP-Link Tether App

• Manually Set Up Your Internet Connection

• Set Up the Router as an Access Point

• Set Up an IPv6 Internet Connection

Chapter 4

Set Up Internet Connection

4. 1. Use Quick Setup Wizard

The Quick Setup Wizard will guide you to set up your router.

Tips:

If you need the IPv6 internet connection, please refer to the section of Set Up an IPv6 Internet Connection.

Follow the steps below to set up your router.

1. Visit

http://tplinkwifi.net, and log in with the password you set for the router.

2. Follow the step-by-step instructions to complete Quick Setup configuration or go

Advanced > Quick Setup for configuration to connect your router to the internet.

to Then follow the step-by-step instructions to connect your router to the internet.

3. To enjoy a more complete service from TP-Link (remote management, TP-Link DDNS, and more.), log in with your TP-Link ID or click

instructions to bind the cloud router to your TP-Link ID.

Note:

• To learn more about the TP-Link Cloud service, please refer to the TP-Link Cloud Service section.

• If you do not want to register a TP-Link ID now, you may click Skip to proceed.

• If you have changed the preset wireless network name (SSID) and wireless password during the Quick Setup process,

all your wireless devices must use the new SSID and password to connect to the router.

Chapter 4

Set Up Internet Connection

4. 2. Quick Setup Via TP-Link Tether App

The Tether app runs on iOS and Android devices, such as smartphones and tablets.

1. Launch the Apple App Store or Google Play store and search “ simply scan the QR code to download and install the app.

TP-Link Tether” or

2. Connect your device to the router’s wireless network.

3. Launch the Tether app, tap the the steps to complete the setup and connect to the internet.

4. Connect your devices to the newly configured wireless networks of the router and enjoy the internet!

+ button and select Router > Wireless Router. Follow

4. 3. Manually Set Up Your Internet Connection

In this part, you can check your current internet connection settings. You can also modify the settings according to the service information provided by your ISP.

Follow the steps below to check or modify your internet connection settings.

1. Visit

2. Go to

3. Select your internet connection type from the drop-down list.

4. Follow the instructions on the page to continue the configuration. Parameters on the

http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for

the router.

Internet.

figures are just used for demonstration.

1 ) If you choose

Dynamic IP users are usually equipped with a cable TV or fiber cable.

Dynamic IP, you need to select whether to clone the MAC address.

Chapter 4

Set Up Internet Connection

2 ) If you choose Static IP, enter the information provided by your ISP in the

corresponding fields.

3 ) If you choose PPPoE, enter the username and password provided by your ISP.

PPPoE users usually have DSL cable modems.

Chapter 4

Set Up Internet Connection

4 ) If you choose L2TP, enter the username and password and choose the

Secondary Connection provided by your ISP. Different parameters are needed

according to the Secondary Connection you have chosen.

5 ) If you choose PPTP, enter the username and password, and choose the

Secondary Connection provided by your ISP. Different parameters are needed

according to the Secondary Connection you have chosen.

5. Click Save.

Tips:

• If you use Dynamic IP and PPPoE and you are provided with any other parameters that are not required on the page,

please go to Advanced > Network > Internet to complete the configuration.

• If you still cannot access the internet, refer to the FAQ section for further instructions.

Chapter 4

Set Up Internet Connection

4. 4. Set Up the Router as an Access Point

The router can work as an access point, transforming your existing wired network to a wireless one.

1. Visit

http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for

the router.

2. Go to

Advanced > Operation Mode, select Access Point and click Save. The router

will reboot and switch to Access Point mode.

3. After rebooting, connect the router to your existing wired router via an Ethernet cable.

4. Log in again to the web management page >

Quick Setup.

5. Configure your wireless settings and click

6. Confirm the information and click

Tips:

• Functions, such as Parental Controls, QoS and NAT Forwarding, are not supported in the Access Point mode.

• Functions, such as Guest Network, are the same as those in the Router mode.

Save. Now, you can enjoy Wi-Fi.

http://tplinkwifi.net, and go to Advanced

Next.

4. 5. Set Up an IPv6 Internet Connection

Your ISP provides information about one of the following IPv6 internet connection types: PPPoE, Dynamic IP(SLAAC/DHCPv6), Static IP, 6to4 tunnel, Pass-Through (Bridge).

1. Visit

http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for

the router.

Chapter 4

Set Up Internet Connection

2. Go to Advanced > IPv6.

3. Enable IPv6 and select the internet connection type provided by your ISP.

Tips:

If you do not know what your internet connection type is, contact your ISP or judge according to the already known

information provided by your ISP.

4. Fill in information as required by different connection types.

Static IP: Fill in blanks and click Save.

1 )

2 ) Dynamic IP(SLAAC/DHCPv6): Click Advanced to input further information if

your ISP requires. Click

Save and then click Renew.

3 ) PPPoE: By default, the router uses the IPv4 account to connect to the IPv6

server. Click

Advanced to input further information if your ISP requires. Click

Save and then click Connect.

Chapter 4

Note:

If your ISP provides two separate accounts for the IPv4 and IPv6 connections, manually enter the username and

password for the IPv6 connection.

Set Up Internet Connection

4 ) 6to4 Tunnel: An IPv4 internet connection type is a prerequisite for this

connection type ( input further information if your ISP requires. Click

Manually Set Up Your Internet Connection). Click Advanced to

Save and then click Connect.

5 ) Pass-Through (Bridge): Click Save and skip to Step 6.

Chapter 4

Set Up Internet Connection

5. Configure LAN ports. Windows users are recommended to choose from the first two types. Fill in

Address Prefix provided by your ISP, and click Save.

6. Click Status to check whether you have successfully set up an IPv6 connection.

Tips:

Visit the FAQ section if there is no internet connection.

Chapter 5

TP-Link Cloud Service

TP-Link Cloud service provides a better way to manage your cloud devices. Log in to your router with a TP-Link ID, and you can easily monitor and manage your home network when you are out and about via the Tether app. To ensure that your router stays new and gets better over time, the TP-Link Cloud will notify you when an important firmware upgrade is available. Surely you can also manage multiple TP-Link Cloud devices with a single TP-Link ID.

This chapter introduces how to register a new TP-Link ID, bind or unbind TP-Link IDs to manage your router, and the Tether app with which you can manage your home network no matter where you may find yourself.

It contains the following sections:

•

• Change Your TP-Link ID Information

• Manage the User TP-Link IDs

• Manage the Router via the TP-Link Tether App

Chapter 5

TP-Link Cloud Service

5. 1. Register a TP-Link ID

If you have skipped the registration during the Quick Setup process, you can:

1. Visit

2. Go to

3. Click

http://tplinkwifi.net, and log in with the password you set for the router.

Advanced > TP-Link ID or click TP-Link ID on the very top of the page.

4. After activating your TP-Link ID, come back to the TP-Link ID page to log in. The TP-Link ID used to log in to the router for the first time will be automatically bound as an

Admin.

Note:

• To learn more about the Admin and User TP-Link ID, refer to Manage the User TP-Link IDs.

• Once the router is bound to your TP-Link ID, you need to log in to the router with the TP-Link ID.

• Once you have registered a TP-Link ID on the web management page, you can only register another TP-Link ID via the

Tether APP. Please refer to Manage the Router via the TP-Link Tether App to install the app.

• If you want to unbind the admin TP-Link ID from your router, please go to Advanced > TP-Link ID, an click Unbind in the

Device Information section.

5. 2. Change Your TP-Link ID Information

Follow the steps below to change your email address and password of your TP-Link ID as needed.

1. Visit

2. Go to

• To change your email address:

1. Click

2. Enter the password of your TP-Link ID, then a new email address. And click

http://tplinkwifi.net, and log in with your TP-Link ID.

Advanced > TP-Link ID, and focus on the Account Information section.

behind the Email.

Save.

Chapter 5

• To change your password:

TP-Link Cloud Service

1. Click

2. Enter the current password, then a new password twice. And click

behind the Password.

Save.

5. 3. Manage the User TP-Link IDs

The TP-Link ID used to log in to the router for the first time will be automatically bound as the

Admin account. An admin account can add or remove other TP-Link IDs to or

Chapter 5

TP-Link Cloud Service

from the same router as Users. All accounts can monitor and manage the router locally or remotely, but user accounts cannot:

• Reset the router to its factory default settings either on the web management page

or in the Tether app.

• Add/remove other TP-Link IDs to/from the router.

5. 3. 1. Add TP-Link ID to Manage the Router

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID.

2. Go to

3. Click

Note: If you need another TP-Link ID, please register a new one via the Tether app. Refer to Manage the Router via the

TP-Link Tether App to install the app and register a new TP-Link ID.

Advanced > TP-Link ID, and focus on the Bound Accounts section.

, enter another TP-Link ID as needed and click Save.

4. The new TP-Link ID will be displayed in the Bound Accounts table as a User.

5. 3. 2. Remove TP-Link ID(s) from Managing the Router

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID.

2. Go to

3. Tick the checkbox(es) of the TP-Link ID(s) you want to remove and click

Advanced > TP-Link ID, and focus on the Bound Accounts section.

Unbind.

Chapter 5

TP-Link Cloud Service

5. 4. Manage the Router via the TP-Link Tether App

The Tether app runs on iOS and Android devices, such as smartphones and tablets.

1. Launch the Apple App Store or Google Play store and search “

TP-Link Tether” or

simply scan the QR code to download and install the app.

2. Connect your device to the router’s wireless network.

3. Launch the Tether app, select the model of your router and log in with your TP-Link ID or the password you set for the router.

4. Manage your router as needed.

Note: If you need to remotely access your router from your smart devices, you need to:

• Log in with your TP-Link ID. If you don’t have one, refer to Register a TP-Link ID.

• Make sure your smartphone or tablet can access the internet with cellular data or a Wi-Fi network.

Chapter 6

Guest Network

This function allows you to provide Wi-Fi access for guests without disclosing your main network. When you have guests in your house, apartment, or workplace, you can create a guest network for them. In addition, you can customize guest network options to ensure network security and privacy.

It contains the following sections:

Create a Network for Guests

•

• Customize Guest Network Options

Chapter 6

Guest Network

6. 1. Create a Network for Guests

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.

2. Go to

Advanced > Wireless > Guest Network or click Wireless on the top page. Locate

the

Guest Network section.

3. Create a guest network as needed.

1 ) Tick the Enable checkbox for the 2.4GHz or 5GHz wireless network.

2 ) Customize the SSID. Don‘t select

Hide SSID unless you want your guests to

manually input the SSID for guest network access.

3 ) Select the

• If

No security is selected, no password is needed to access your guest network.

• If

WAP/WPA2-Personal is selected, customize your own password.

Security type.

4. Click Save. Now your guests can access your guest network using the SSID and password you set!

5. You can also click

Tips:

To view guest network information, go to Network Map and locate the Guest Network section. You can turn on or off the

guest network function conveniently.

Sharing Network to share the SSID and password to your guests.

Chapter 6

Guest Network

6. 2. Customize Guest Network Options

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.

2. Go to

3. Customize guest network options according to your needs.

4. Click

Advanced > Wireless >Guest Network. Locate the Guest Permissions section.

• Allow guests to see each other

Tick this checkbox if you want to allow the wireless clients on your guest network to communicate with each other via methods such as network neighbors and Ping.

•

Allow guests to access your local network

Tick this checkbox if you want to allow the wireless clients on your guest network to communicate with the devices connected to your router’s LAN ports or main network via methods such as network neighbors and Ping.

Save. Now you can ensure network security and privacy!

Chapter 7

Parental Controls

This function allows you to block inappropriate, explicit and malicious websites, and control access to specified websites at specified time.

Chapter 7

Parental Controls

7. 1. Setting Up Access Restrictions

I want to:

Block access to inappropriate online content for my child’s devices, restrict internet access to 2 hours every day and block internet access during bed time (10 PM to 7 AM) on weekdays.

How can I do that?

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for

the router.

2. Go to

Advanced > Parental Controls.

3. Click to create a profile for a family member.

4. Add basic profile information.

1 ) Enter a Name for the profile to make it easier to identify.

2 ) Under

Devices, click .

3 ) Select the devices that belong to this family member. Access restrictions will be

applied to these devices. Click

Note: Only devices that have previously been connected to your router’s network are listed here. If you are unable

to find the device you want to add, connect it to your network and then try again.

Add when finished.

4 ) Click Next.

5. Customize the Blocked Content according to your needs for this profile.

Chapter 7

1 ) Enter a keyword (for example, “Facebook”) or a URL (for example, “www.

facebook.com”). All websites containing the keywords will be blocked.

Parental Controls

2 ) Click

Next.

6. Set time restrictions on internet access.

1 ) Enable Time Limits on Monday to Friday and Saturday & Sunday then set the

allowed online time to 2 hours each day.

Chapter 7

Parental Controls

2 ) Enable Bed Time and use the up/down arrows or enter times in the fields. Devices

under this profile will be unable to access the internet during this time period.

3 ) Click

Save.

Done!

The amount of time your child spends online is controlled and inappropriate content is blocked on their devices.

Chapter 8

Network Security

This chapter guides you on how to protect your home network from cyber attacks and unauthorized users by implementing these three network security functions. You can protect your home network from cyber attacks, block or allow specific client devices to access your network using Access Control, or you can prevent ARP spoofing and ARP attacks using IP & MAC Binding.

It contains the following sections:

Protect the Network from Cyber Attacks

•

• Access Control

• IP & MAC Binding

Chapter 8

Network Security

8. 1. Protect the Network from Cyber Attacks

The SPI (Stateful Packet Inspection) Firewall protects the router from cyber attacks and validate the traffic that is passing through the router based on the protocol. This function is enabled by default.

1. Visit

2. Go to

http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for

the router.

Advanced > Security > Firewall. It’s recommended to keep the default settings.

8. 2. Access Control

Access Control is used to block or allow specific client devices to access your network (via wired or wireless) based on a list of blocked devices (Blacklist) or a list of allowed devices (Whitelist).

I want to:

Block or allow specific client devices to access my network (via wired or wireless).

How can I do that?

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for

the router.

2. Go to

3. Toggle on to enable

4. Select the access mode to either block (recommended) or allow the device(s) in the

list.

To block specific device(s):

1 ) Select

Advanced > Security > Access Control.

Access Control.

Blacklist.

Chapter 8

2 ) Click and select devices you want to be blocked and Click ADD.

Network Security

3 ) The

Operation Succeeded message will appear on the screen, which means the

selected devices have been successfully added to the blacklist.

To allow specific device(s):

1 ) Select

Whitelist and click SAVE.

2 ) Your own device is in the whitelist by default and cannot be deleted. Click

to add other deviecs to the whitelist.

• Add connected devices

1 ) Click

2 ) Select the devices you want to be allowed and click

Select From Device List.

ADD.

Chapter 8

3 ) The Operation Succeeded message will appear on the screen, which means the

selected devices have been successfully added to the whitelist.

• Add unconnected devices

Network Security

1 ) Click

2 ) Enter the

3 ) The Operation Succeeded message will appear on the screen, which means the

Add Manually.

Device Name and MAC Address of the device you want to be allowed

and click

device has been successfully added to the whitelist.

ADD.

Done!

Now you can block or allow specific client devices to access your network (via wired or wireless) using the

Blacklist or Whitelist.

8. 3. IP & MAC Binding

IP & MAC Binding, namely, ARP (Address Resolution Protocol) Binding, is used to bind network device’s IP address to its MAC address. This will prevent ARP Spoofing and other ARP attacks by denying network access to an device with matching IP address in the Binding list, but unrecognized MAC address.

Chapter 8

Network Security

I want to:

Prevent ARP spoofing and ARP attacks.

How can I do that?

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for

the router.

2. Go to

3. Enable

Advanced > Security > IP & MAC Binding.

IP & MAC Binding.

4. Bind your device(s) according to your need.

To bind the connected device(s):

1 ) Click

in the Binding List section.

2 ) Click VIEW CONNECTED DEVICES and select the device you want to bind. The

MAC Address

and IP Address fields will be automatically filled in.

3 ) Click SAVE.

Chapter 8

To bind the unconnected device:

Network Security

1 ) Click

in the Binding List section.

2 ) Enter the MAC Address and IP Address that you want to bind.

Done!

Now you don’t need to worry about ARP spoofing and ARP attacks!

Chapter 9

NAT Forwarding

The router’s NAT (Network Address Translation) feature makes devices on the LAN use the same public IP address to communicate with devices on the internet, which protects the local network by hiding IP addresses of the devices. However, it also brings about the problem that an external host cannot initiatively communicate with a specified device on the local network.

With the forwarding feature the router can penetrate the isolation of NAT and allows devices on the internet to initiatively communicate with devices on the local network, thus realizing some special functions.

The TP-Link router supports four forwarding rules. If two or more rules are set, the priority of implementation from high to low is Port Forwarding, Port Triggering, UPNP and DMZ.

It contains the following sections:

•

Share Local Resources on the Internet by Port Forwarding

• Open Ports Dynamically by Port Triggering

• Make Xbox Online Games Run Smoothly by UPnP

• Make Applications Free from Port Restriction by DMZ

Chapter 9

NAT Forwarding

9. 1. Share Local Resources on the Internet by Port

Forwarding

When you build up a server on the local network and want to share it on the internet, Port Forwarding can realize the service and provide it to internet users. At the same time Port Forwarding can keep the local network safe as other services are still invisible from the internet.

Port Forwarding can be used for setting up public services on your local network, such as HTTP, FTP, DNS, POP3/SMTP and Telnet. Different services use different service ports. Port 80 is used in HTTP service, port 21 in FTP service, port 25 in SMTP service and port 110 in POP3 service. Please verify the service port number before the configuration.

I want to:

Share my personal website I’ve built in local network with my friends through the internet.

For example, the personal website has been built on my home PC (192.168.0.100). I hope

that my friends on the internet can visit my website in some way. The PC is connected to the router with the WAN IP address 218.18.232.154.

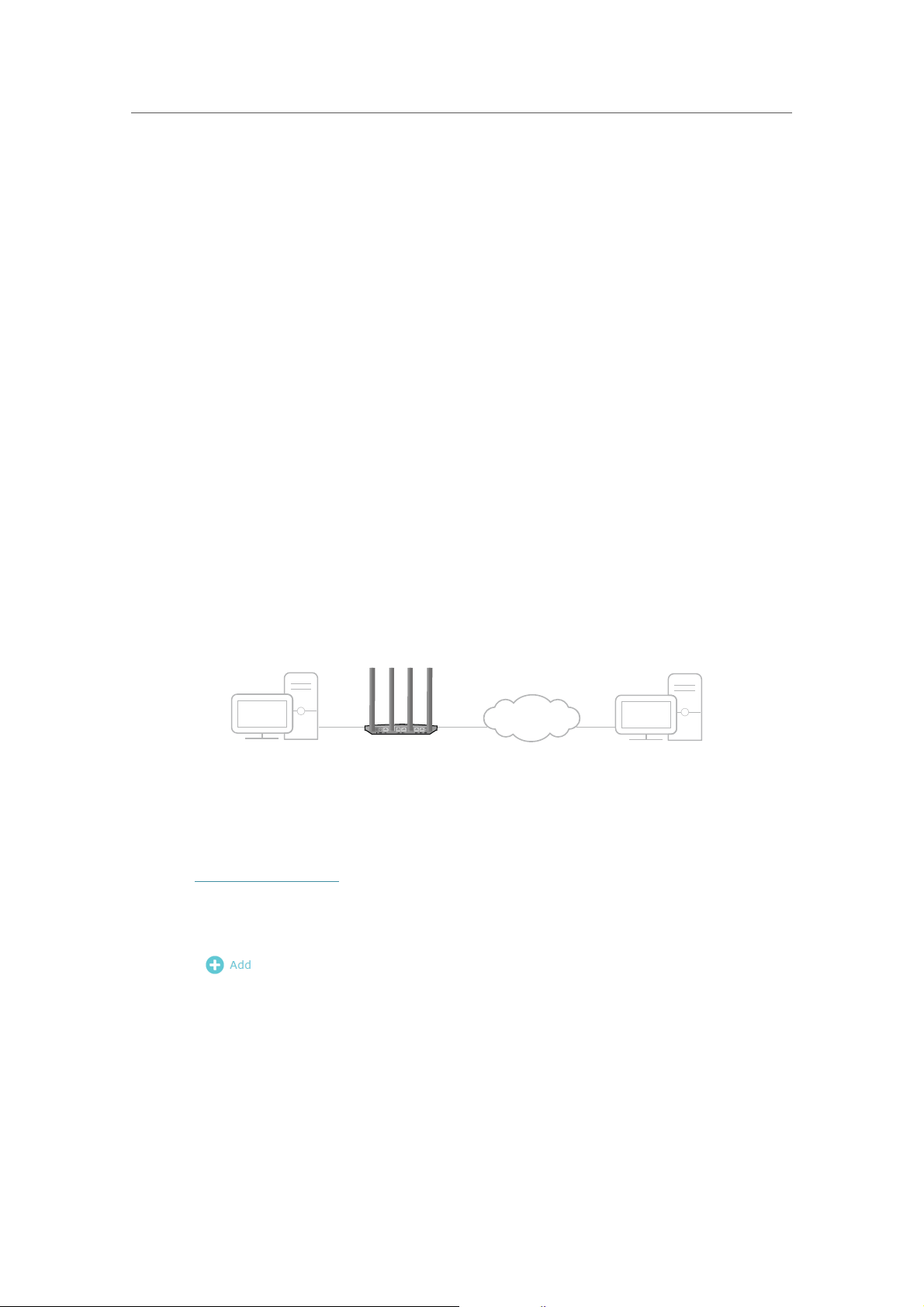

Personal Website Router

INTERNET

WAN: 218.18.232.154LANHome

How can I do that?

1. Assign a static IP address to your PC, for example 192.168.0.100.

2. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for

the router.

3. Go to

4. Click .

Advanced > NAT Forwarding > Port Forwarding.

Chapter 9

NAT Forwarding

5. Click VIEW COMMON SERVICES and select HTTP. The External Port, Internal Port

and

Protocol will be automatically filled in.

6. Click VIEW CONNECTED DEVICES and select your home PC. The Device IP

Address

will be automatically filled in. Or enter the PC’s IP address manually in the

Device IP Address field.

7. Click

Tips:

• It is recommended to keep the default settings of Internal Port and Protocol if you are not clear about which port and protocol to use.

• If the service you want to use is not in the common services list, you can enter the corresponding parameters manually. You should verify the port number that the service needs.

• You can add multiple port forwarding rules if you want to provide several services in a router. Please note that the

External Por t should not be overlapped.

SAVE.

Done!

Users on the internet can enter http:// WAN IP (in this example: http:// 218.18.232.154) to visit your personal website.

Chapter 9

Tips:

• The WAN IP should be a public IP address. For the WAN IP is assigned dynamically by the ISP, it is recommended to apply and register a domain name for the WAN referring to Make Applications Free from Port Restriction by DMZ. Then users on the internet can use http:// domain name to visit the website.

• If you have changed the default External Port, you should use http:// WAN IP: External Port or http:// domain name:

External Port to visit the website.

NAT Forwarding

9. 2. Open Ports Dynamically by Port Triggering

Port Triggering can specify a triggering port and its corresponding external ports. When a host on the local network initiates a connection to the triggering port, all the external ports will be opened for subsequent connections. The router can record the IP address of the host. When the data from the internet return to the external ports, the router can forward them to the corresponding host. Port Triggering is mainly applied to online games, VoIPs, video players and common applications including MSN Gaming Zone, Dialpad and Quick Time 4 players, etc.

Follow the steps below to configure the Port Triggering rules:

1. Visit

http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for

the router.

2. Go to

Advanced > NAT Forwarding > Port Triggering and click .

3. Click VIEW COMMON SERVICES, and select the desired application. The Triggering

Port

, Triggering Protocol and External Port will be automatically filled in. The following

picture takes application

MSN Gaming Zone as an example.

Chapter 9

NAT Forwarding

4. Click SAVE.

Tips:

• You can add multiple port triggering rules according to your network need.

• The triggering ports can not be overlapped.

• If the application you need is not listed in the Existing Applications list, please enter the parameters manually. You

should verify the external ports the application uses first and enter them into External Port field according to the

format the page displays.

9. 3. Make Xbox Online Games Run Smoothly by

UPnP

The UPnP (Universal Plug and Play) protocol allows applications or host devices to automatically find the front-end NAT device and send request to it to open the corresponding ports. With UPnP enabled, the applications or host devices on the local network and the internet can freely communicate with each other thus realizing the seamless connection of the network. You may need to enable the UPnP if you want to use applications for multiplayer gaming, peer-to-peer connections, real-time communication (such as VoIP or telephone conference) or remote assistance, etc.

Tips:

• UPnP is enabled by default in this router.

• Only the application supporting UPnP protocol can use this feature.

• UPnP feature needs the support of operating system (e.g. Windows Vista/ Windows 7/ Windows 8, etc. Some of

operating system need to install the UPnP components).

For example, when you connect your Xbox to the router which has connected to

the internet to play online games, UPnP will send request to the router to open the corresponding ports allowing the following data penetrating the NAT to transmit. Therefore, you can play Xbox online games without a hitch.

Chapter 9

Internet

If necessary, you can follow the steps to change the status of UPnP.

NAT Forwarding

1. Visit

2. Go to

http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for

the router.

Advanced > NAT Forwarding > UPnP and toggle on or off according to your

needs.

9. 4. Make Applications Free from Port Restriction

by DMZ

When a PC is set to be a DMZ (Demilitarized Zone) host on the local network, it is totally exposed to the internet, which can realize the unlimited bidirectional communication between internal hosts and external hosts. The DMZ host becomes a virtual server with all ports opened. When you are not clear about which ports to open in some special applications, such as IP camera and database software, you can set the PC to be a DMZ host.

Note:

When DMZ is enabled, the DMZ host is totally exposed to the internet, which may bring some potential safety hazards. If

DMZ is not in use, please disable it in time.

I want to:

Make the home PC join the internet online game without port restriction.

For example, due to some port restriction, when playing the online games, you can log

in normally but cannot join a team with other players. To solve this problem, set your PC as a DMZ host with all ports open.

How can I do that?

1. Assign a static IP address to your PC, for example 192.168.0.100.

2. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for

the router.

Chapter 9

NAT Forwarding

3. Go to Advanced > NAT Forwarding > DMZ and tick to enable DMZ.

4. Click VIEW CONNECTED DEVICES and select your PC. The Device IP

Address

manually in the

will be automatically filled in. Or enter the PC’s IP address 192.168.0.100

DMZ Host IP Address field.

5. Click SAVE.

Done!

The configuration is completed. You’ve set your PC to a DMZ host and now you can make a team to game with other players.

Chapter 10

Customize Your Network Settings

This chapter guides you on how to configure advanced network features.

It contains the following sections:

Change the LAN Settings

•

• Configure to Support IPTV Service

• Specify DHCP Server Settings

• Set Up a Dynamic DNS Service Account

• Create Static Routes

• Specify Wireless Settings

• Schedule Your Wireless Function

• Use WPS for Wireless Connection

• Advanced Wireless Settings

Chapter 10

Customize Your Network Settings

10. 1. Change the LAN Settings

The router is preset with a default LAN IP 192.168.0.1, which you can use to log in to its web management page. The LAN IP address together with the Subnet Mask also defines the subnet that the connected devices are on. If the IP address conflicts with another device on your local network or your network requires a specific IP subnet, you can change it.

1. Visit

2. Go to

3. Type in a new IP Address appropriate to your needs. And leave the

4. Click SAVE.

same subnet with the old one, then you should reconfigure these features.

http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for

the router.

Advanced > Network > LAN.

Subnet Mask as

the default settings.

Note: If you have set the Port Forwrding, DMZ or DHCP address reservation, and the new LAN IP address is not in the

10. 2. Configure to Support IPTV Service

I want to:

Configure IPTV setup to enable Internet/IPTV/Phone service provided by my internet service provider (ISP).

How can I do that?

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for

the router.

2. Go to

3. If your ISP provides the networking service based on IGMP technology, e.g., British

Telecom(BT) and Talk Talk in UK:

1 ) Tick the

Advanced > Network > IPTV/VLAN.

IGMP Proxy and IGMP Snooping checkbox.

Chapter 10

Customize Your Network Settings

2 ) Click SAVE.

3 ) After configuring IGMP proxy, IPTV can work behind your router now. You can

connect your set-top box to any of the router’s Ethernet port.

If IGMP is not the technology your ISP applies to provide IPTV service:

1 ) Tick

2 ) Select the appropriate

Enable IPTV/VLAN.

• Select

Bridge if your ISP is not listed and no other parameters are required.

Custom if your ISP is not listed but provides necessary parameters.

Mode according to your ISP.

3 ) After you have selected a mode, the necessary parameters, including the LAN

port for IPTV connection, are predetermined. If not, select the LAN type to determine which port is used to support IPTV service.

4 ) Click

SAVE.

5 ) Connect the set-top box to the corresponding LAN port which is predetermined

or you have specified in Step 3.

Done!

Your IPTV setup is done now! You may need to configure your set-top box before enjoying your TV.

Chapter 10

Customize Your Network Settings

10. 3. Specify DHCP Server Settings

By default, the DHCP (Dynamic Host Configuration Protocol) Server is enabled and the router acts as a DHCP server; it dynamically assigns TCP/IP parameters to client devices from the IP Address Pool. You can change the settings of the DHCP Server if necessary, and you can reserve LAN IP addresses for specified client devices.

1. Visit

2. Go to

• To specify the IP address that the router assigns:

1. Tick the Enable checkbox.

2. Enter the starting and ending IP addresses in the

http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for

the router.

Advanced > Network > DHCP Server.

IP Address Pool.

3. Enter other parameters if the ISP offers. The and is the same as the LAN IP address of the router.

4. Click

• To reserve an IP address for a specified client device:

1. Click

SAVE.

Add in the Address Reservation section.

Default Gateway is automatically filled in

Chapter 10

Customize Your Network Settings

2. Click VIEW CONNECTED DEVICES and select the you device you want to reserve an IP for. Then the

MAC Address will be automatically filled in. Or enter the MAC address

of the client device manually.

3. Enter the

4. Click

IP address to reserve for the client device.

SAVE.

10. 4. Set Up a Dynamic DNS Service Account

Most ISPs assign a dynamic IP address to the router and you can use this IP address to access your router remotely. However, the IP address can change from time to time and you don’t know when it changes. In this case, you might apply the DDNS (Dynamic Domain Name Server) feature on the router to allow you and your friends to access your router and local servers (FTP, HTTP, etc.) using a domain name without checking and remembering the IP address.

Note: DDNS does not work if the ISP assigns a private WAN IP address (such as 192.168.1.x) to the router.

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.

2. Go to

3. Select the DDNS

Advanced > Network > Dynamic DNS.

Service Provider: TP-Link, NO-IP or DynDNS. It is recommended

to select TP-Link so that you can enjoy TP-Link’s superior DDNS service. Otherwise, please select NO-IP or DynDNS. If you don’t have a DDNS account, you have to register first by clicking

Note: To enjoy TP-Link’s DDNS service, you have to log in with a TP-Link ID. If you have not logged in with one, click

4. Click Register in the Domain Name List if you have selected TP-Link, and enter the

Domain Name as needed.

Chapter 10

Customize Your Network Settings

If you have selected NO-IP or DynDNS, enter the username, password and domain name of your account.

5. Click LOGIN AND SAVE.

Tips: If you want to use a new DDNS account, please click Logout first, and then log in with a new account.

10. 5. Create Static Routes

Static routing is a form of routing that is configured manually by a network administrator or a user by adding entries into a routing table. The manually-configured routing information guides the router in forwarding data packets to the specific destination.

Chapter 10

Customize Your Network Settings

I want to:

Visit multiple networks and servers at the same time.

For example, in a small office, my PC can surf the internet through Router A, but I also

want to visit my company’s network. Now I have a switch and Router B. I connect the devices as shown in the following figure so that the physical connection between my PC and my company’s server is established. To surf the internet and visit my company’s network at the same time, I need to configure the static routing.

Company’s server

172.30.30.1

LAN: 192.168.0.1

Router BRouter A

Switch

192.168.0.100

WAN: 172.30.30.100

LAN: 192.168.0.2

How can I do that?

1. Change the routers’ LAN IP addresses to two different IP addresses on the same

subnet. Disable Router B’s DHCP function.

2. Visit

3. Go to

http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for

Router A.

Advanced > Network > Routing.

4. Click Add and finish the settings according to the following explanations:

Chapter 10

Network Destination: The destination IP address that you want to assign to a static

route. This IP address cannot be on the same subnet with the WAN IP or LAN IP of Router A. In the example, the IP address of the company network is the destination IP address, so here enter 172.30.30.1.

Subnet Mask: Determines the destination network with the destination IP address.

If the destination is a single IP address, enter 255.255.255.255; otherwise, enter the subnet mask of the corresponding network IP. In the example, the destination network is a single IP, so here enter 255.255.255.255.

Default Gateway: The IP address of the gateway device to which the data packets

will be sent. This IP address must be on the same subnet with the router’s IP which sends out data. In the example, the data packets will be sent to the LAN port of Router B and then to the Server, so the default gateway should be 192.168.0.2.

Interface: Determined by the port (WAN/LAN) that sends out data packets. In the

example, the data are sent to the gateway through the LAN port of Router A, so

WLAN

should be selected.

Customize Your Network Settings

LAN/

Description: Enter a description for this static routing entry.

5. Click SAVE.

6. Check the Routing Table below. If you can find the entry you’ve set, the static routing

is set successfully.

Done!

Open a web browser on your PC. Enter the company server’s IP address to visit the company network.

10. 6. Specify Wireless Settings

The router’s wireless network name (SSID) and password, and security option are preset in the factory. The preset SSID and password can be found on the label of the router. You can customize the wireless settings according to your needs.

Visit

http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the

router.

Chapter 10

• To enable or disable the wireless function:

Customize Your Network Settings

1. Go to

Wireless or Advanced > Wireless > Wireless Settings.

2. The wireless function is enabled by default. If you want to disable the wireless function of the router, just untick the

Enable checkbox of each wireless network. In this case,

all the wireless settings will be invalid.

• To change the wireless network name (SSID) and wireless password:

1. Go to

2. Create a new SSID in

Note: If you change the wireless settings with a wireless device, you will be disconnected when the settings are

effective. Please write down the new SSID and password for future use.

Wireless or Advanced > Wireless > Wireless Settings.

Network Name (SSID) and customize the password for the

network in

Password. The value is case-sensitive.

• To hide SSID:

1. Go to

2. Select

Wireless or Advanced > Wireless > Wireless Settings.

Hide SSID, and your SSID won’t display when you scan for local wireless

networks on your wireless device and you need to manually join the network.

• To use the Smart Connect function:

The Smart Connect function lets you to enjoy a more high-speed network by assigning your devices to best wireless bands based on actual conditions to balance network demands.

1. Go to

2. Enable

Advanced > Wireless > Wireless Settings.

Smart Connect.

3. Keep the default values or set a new SSID and password, and click SAVE. This SSID and password will be applied for the 2.4GHz and 5GHz wireless networks.

• To change the security option:

1. Go to

2. Select an option from the

Advanced > Wireless > Wireless Settings.

Security drop-down list. We recommend you don’t change

the default settings unless necessary.

In addition

Transmit Power - Select either High, Middle or Low to specify the data transmit power.

•

The default and recommended setting is

•

Channel Width - Select a channel width (bandwidth) for the wireless network.

High.

Chapter 10

Customize Your Network Settings

• Channel - Select an operating channel for the wireless network. It is recommended

to leave the channel to

Auto, if you are not experiencing the intermittent wireless

connection issue.

•

Mode - Select a transmission mode according to your wireless client devices. It is

recommended to just leave it as default.

• To enable the MU-MIMO feature:

A router with the MU-MIMO feature serves multiple devices simultaneously while a traditional router serves only one user at a time. That means MU-MIMO can provide a faster, more efficient Wi-Fi network for multiusers.

Note:

Devices supporting 5GHz wireless band can enjoy the MU-MIMO service.

1. Go to Advanced > Wireless > Wireless Settings.

2. Locate the

3. Tick the

4. Click

5GHz network.

Enable box for MU-MIMO.

SAVE.

10. 7. Schedule Your Wireless Function

The wireless network can be automatically off at a specific time when you do not need the wireless connection.

1. Visit

2. Go to

3. Enable the

4. Click Add to specify a wireless off period during which you need the wireless off

http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for

the router.

Advanced > Wireless > Wireless Schedule.

Wireless Schedule feature.

automatically, and click

SAVE.

Chapter 10

Note:

• The Effective Time Schedule is based on the time of the router. You can go to Advanced > System > Time & Language

to modify the time.

• The wireless network will be automatically turned on after the time period you set.

Customize Your Network Settings

10. 8. Use WPS for Wireless Connection

Wi-Fi Protected Setup (WPS) provides an easier approach to set up a security-protected Wi-Fi connection.

1. Visit

http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for

the router.

2. Make sure the Wi-Fi of your router is on and go to

Advanced > Wireless > WPS.

10. 8. 1. Connect via the Client’s PIN

Enter the PIN of your device and click Connect. Then your device will get connected to the router.

10. 8. 2. Connect via the Router’s PIN

Select Router’s PIN in Method 1 to enable Router’s PIN. You can use the default PIN or generate a new one.

Chapter 10

Note:

PIN (Personal Identification Number) is an eight-character identification number preset to each router. WPS supported

devices can connect to your router with the PIN. The default PIN is printed on the label of the router.

Customize Your Network Settings

10. 8. 3. Push the WPS Button

Click Start on the screen or directly press the router’s WPS button. Within two minutes, enable WPS on your personal device. LED of the router should change from flashing to solid on, indicating successful WPS connection.

Success will appear on the screen and the WPS

10. 9. Advanced Wireless Settings

Check advanced wireless settings for your device.

1. Visit

2. Go to

3. Configure advanced wireless settings.

http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for

the router.

Advanced > Wireless > Additional Settings.

Chapter 10

Customize Your Network Settings

• WMM - WMM function can guarantee the packets with high-priority messages being

transmitted preferentially.

•

Short GI - It is recommended to enable this function, for it will increase the data

capacity by reducing the guard interval time.

•

AP Isolation - This function isolates all connected wireless stations so that wireless

stations cannot access each other through WLAN.

•

ATF (Airtime Fairness) - This function can improve the overall network performance

by sacrificing a little bit of network time on your slow devices.

•

Beacon Interval - Enter a value between 40 and 1000 in milliseconds to determine the

duration between beacon packets that are broadcasted by the router to synchronize the wireless network. The default value is 100 milliseconds.

RTS Threshold- Enter a value between 1 and 2346 to determine the packet size of

•

data transmission through the router. By default, the RTS (Request to Send) Threshold size is 2346. If the packet size is greater than the preset threshold, the router will send RTS frames to a particular receiving station and negotiate the sending of a data frame.

•

DTIM Interval - The value determines the interval of DTIM (Deliveray Traffic Indication

Message). Enter a value between 1 and 15 intervals. The default value is 1, which indicates the DTIM Interval is the same as Beacon Interval.

•

Group Key Update Period - Enter a number of seconds (minimum 30) to control the

time interval for the encryption key automatic renewal. The default value is 0, meaning no key renewal.

Chapter 11

Manage the Router

This chapter will show you the configuration for managing and maintaining your router.

It contains the following sections:

Upgrade the Firmware

•

• Backup and Restore Configuration Settings

• Change the Login Password

• Backup and Restore Configuration Settings

• Local Management

• Remote Management

• System Log

• Test the Network Connectivity

• Set Up System Time

• Set the Router to Reboot Regularly

• Control the LED

Chapter 11

Manage the Router

11. 1. Upgrade the Firmware

TP-Link aims at providing better network experience for users.

We will inform you through the web management page if there’s any update firmware available for your router. Also, the latest firmware will be released at the TP-Link official website

Note:

• Backup your router configuration before firmware upgrade.

• Do NOT turn off the router during the firmware upgrade.

11. 1. 1. Online Upgrade

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for

www.tp-link.com, and you can download it from the Support page for free.

the router.

2. When the latest firmware is available for your router, the upgrade icon display in the top-right corner of the page. Click the icon to go to the

Upgrade

Alternatively, you can go to

page.

Advanced > System > Firmware Upgrade, and click

will

Firmware

CHECK FOR UPGRADES to see whether the latest firmware is released. If there is

new firmware click

UPGRADE.

3. Wait a few minutes for the upgrade and reboot to complete.

Tips: If there’s a new and important firmware update for your router, you will see the prompt notification on your

computer as long as a web browser is opened. Click UPGRADE, and log in to the web management page with the

username and password you set for the router. You will see the Firmware Upgrade page.

11. 1. 2. Local Upgrade

1. Download the latest firmware file for the router from www.tp-link.com.

2. Visit

3. Go to

http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for

the router.

Advanced > System > Firmware Upgrade.

Chapter 11

Manage the Router

4. Focus on the Local Upgrade section. Click BROWSE to locate the downloaded new firmware file, and click

UPGRADE.

5. Wait a few minutes for the upgrade and reboot to complete.

Note: If you fail to upgrade the firmware for the router, please contact our Technical Support.

11. 2. Backup and Restore Configuration Settings

The configuration settings are stored as a configuration file in the router. You can backup the configuration file to your computer for future use and restore the router to a previous settings from the backup file when needed. Moreover, if necessary you can erase the current settings and reset the router to the default factory settings.

1. Visit

http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for

the router.

2. Go to

Advanced > System Tools > Backup & Restore.

• To backup configuration settings:

BACK UP to save a copy of the current settings to your local computer. A ‘.bin’ file

Click of the current settings will be stored to your computer.

• To restore configuration settings:

1. Click click

BROWSE to locate the backup configuration file stored on your computer, and

RESTORE.

Chapter 11

2. Wait a few minutes for the restoring and rebooting.

Note: During the restoring process, do not turn off or reset the router.

• To reset the router except your login password and TP-Link ID:

Manage the Router

1. In the

Factory Default Restore section, click RESTORE.

2. Wait a few minutes for the resetting and rebooting.

Note:

• During the resetting process, do not turn off the router.

• After reset, you can still use the current login password or the TP-Link ID to log in to the web management page.

• To reset the router to factory default settings:

1. Click

FACTORY RESTORE to reset the router.

2. Wait a few minutes for the resetting and rebooting.

Note:

• During the resetting process, do not turn off or reset the router.

• We strongly recommend you backup the current configuration settings before resetting the router.

11. 3. Change the Login Password

The account management feature allows you to change your login password of the web management page.

Note: If you are using a TP-Link ID to log in to the web management page, the account management feature will be

disabled. To manage the TP-Link ID, go to Advanced > TP-Link ID.

Chapter 11

1. Visit http://tplinkwifi.net, and log in with the password you set for the router.

Manage the Router

2. Go to section.

3. Enter the old password, then a new password twice (both case-sensitive). Click SAVE.

4. Use the new password for future logins.

Advanced > System > Administration and focus on the Change Password

11. 4. Local Management

This feature allows you to limit the number of client devices on your LAN from accessing the router by using the MAC address-based authentication.

1. Visit

http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for

the router.

2. Go to

Management

• Allow all LAN connected devices to manage the router:

Select

• Allow specific devices to manage the router:

1. Select All Devices for Local Managers and click SAVE.

Advanced > System > Administration and complete the settings In Local

section as needed.

All Devices for Local Managers.

Chapter 11

2. Click Add Device.

Manage the Router

3. Click VIEW CONNECTED DEVICES and select the device to manage the router from the Connected Devices list, or enter the MAC address of the device manually.

4. Specify a

5. Click

Description for this entry.

SAVE.

11. 5. Remote Management

This feature allows you to control remote devices’ authority to manage the router.

1. Visit

2. Go to

• Forbid all devices to manage the router remotely:

Do not tick the

http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for

the router.

Advanced > System > Administration and complete the settings in Remote

Management

section as needed.

Enable checkbox of Remote Management.

Chapter 11

• Allow all devices to manage the router remotely:

Manage the Router

1. Tick the Enable checkbox of Remote Management.

2. Keep the HTTPS and HTTP port as default settings (recommended) or enter a value between 1024 and 65535.

3. Select

4. Click

Devices on the internet can log in to as

http://113.116.60.229:1024) to manage the router.

Tips:

• You can find the WAN IP address of the router on Network Map > Internet.

• The router’s WAN IP is usually a dynamic IP. Please refer to Set Up a Dynamic DNS Service Account if you want to log

in to the router through a domain name.

All Devices for Remote Managers.

SAVE.

http://Router’s WAN IP address:port number (such

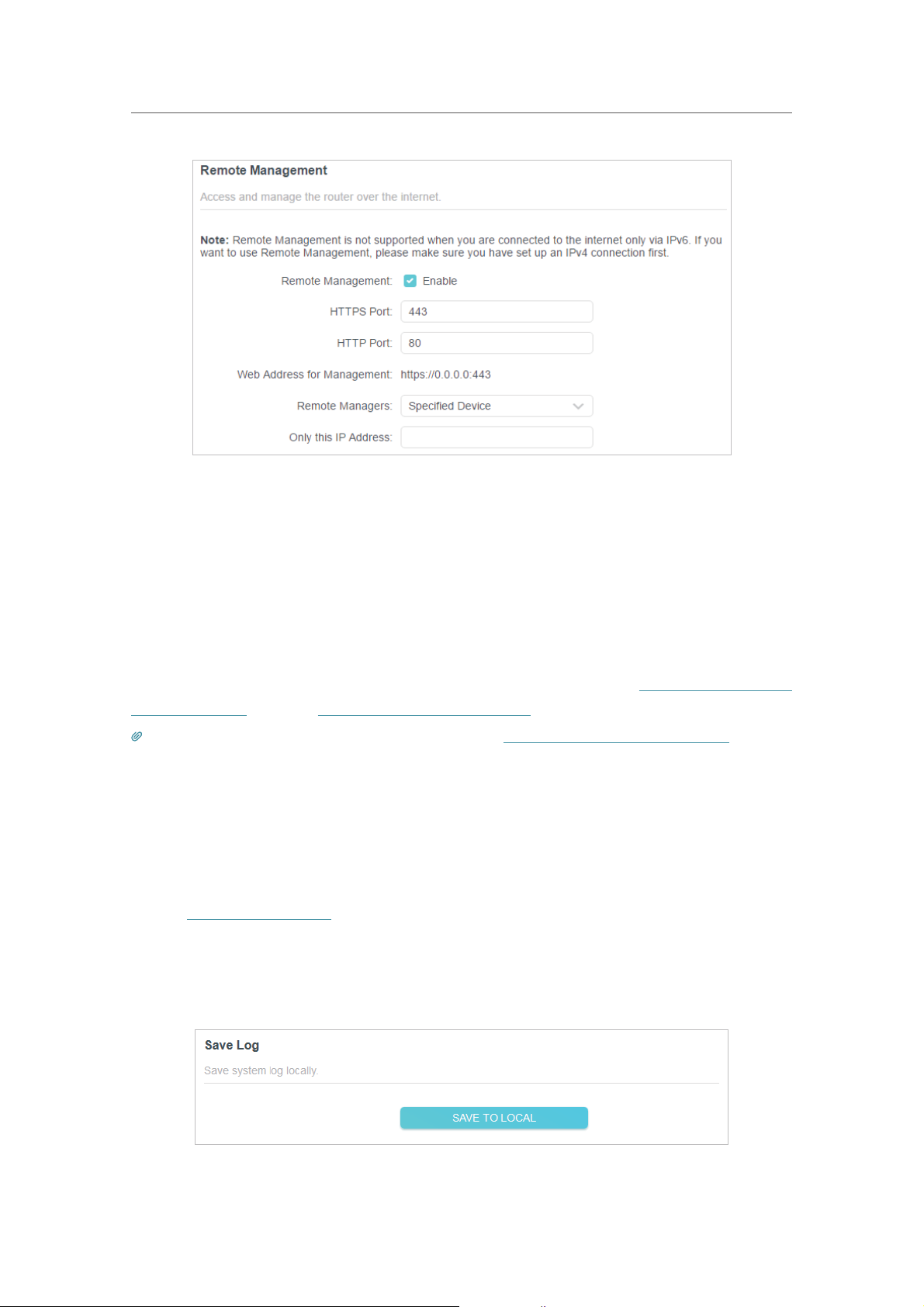

• Allow a specific device to manage the router remotely:

Chapter 11

Manage the Router

1. Tick the Enable checkbox of Remote Management.

2. Keep the HTTPS and HTTP port as default settings (recommended) or enter a value between 1024 and 65535.

3. Select

4. In the

Specified Device for Remote Managers.

Only this IP Address field, enter the IP address of the remote device to manage

the router.

5. Click

Devices using this WAN IP can manage the router by logging in to

IP:port number

to log in to the router through a domain name.

SAVE.

http://Router’s WAN

(such as http://113.116.60.229:1024).

Tips: The router’s WAN IP is usually a dynamic IP. Please refer to Set Up a Dynamic DNS Service Account if you want

11. 6. System Log

When the router does not work normally, you can save the system log and send it to the technical support for troubleshooting.

1. Visit

2. Go to

3. In the

http://tplinkwifi.net, and log in your TP-Link ID or the password you set for the

router.

Advanced > System > System Log.

Save Log section, click SAVE TO LOCAL to save the system logs to a local disk.

Chapter 11

Manage the Router

11. 7. Test the Network Connectivity

Diagnostics is used to test the connectivity between the router and the host or other network devices.

1. Visit

2. Go to

3. Enter the information:

http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for

the router.

Advanced > System > Diagnostics.

1 ) Choose

Ping is used to test the connectivity between the router and the tested host,

• and measure the round-trip time.

Ping or Tracert as the diagnostic tool to test the connectivity;

•

Traceroute is used to display the route (path) your router has passed to reach

the tested host, and measure transit delays of packets across an Internet Protocol network.

2 ) Enter the

3 ) Modify the

keep the default value.

4 ) If you have chosen

recommended to keep the default value.

4. Click

The figure below indicates the proper connection between the router and the Yahoo server (www.Yahoo.com) tested through

START to begin the diagnostics.

IP Address or Domain Name of the tested host.

Ping Packet Number and the Ping Packet Size. It’s recommended to

Tracert, you can modify the Traceroute Max TTL. It’s

Ping.

Chapter 11

The figure below indicates the proper connection between the router and the Yahoo server (www.Yahoo.com) tested through

Traceroute.

Manage the Router

11. 8. Set Up System Time

System time is the time displayed while the router is running. The system time you configure here will be used for other time-based functions like Parental Controls. You can choose the way to obtain the system time as needed.

1. Visit

2. Go to

• To get time from the internet:

1. Enable

2. In the

http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for

the router.

Advanced > System > Time & Language.

24-Hour Time if you want the time to display in a 24-hour way.

Set Time field, select Get from Internet.

Chapter 11

3. Select your local Time Zone from the drop-down list.

Manage the Router

4. In the

NTP Server I fileld, enter the IP address or domain name of your desired NTP

Server.

5. (Optional) In the

NTP Server II fileld, enter the IP address or domain name of the

second NTP Server.

6. Click

SAVE.

• To get time from your computer:

1. In the

Set Time field, select Get from Managing Device.

2. The time of your computer will then be displayed and click SAVE.

• To manually set the date and time:

1. In the

Set Time field, select Manually.

Chapter 11

2. Set the current Date (In MM/DD/YYYY format).

Manage the Router

3. Set the current

4. Click

• To set up Daylight Saving Time:

1. Tick the

2. Select the correct Start date and time when daylight saving time starts at your local

SAVE.

Enable box of Daylight Saving Time.

time zone.

Time (In HH/MM/SS format).

3. Select the correct time zone.

4. Click

SAVE.

End date and time when daylight saving time ends at your local

11. 9. Set the Router to Reboot Regularly

The Scheduled Reboot feature cleans the cache to enhance the running performance of the router.

1. Visit

http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for

the router.

Chapter 11

2. Go to Advanced > System > Reboot.

Manage the Router

3. Tick the

4. Specify the Reboot Time when the router reboots and Repeat to decide how often it reboots.

5. Click

Enable box of Reboot Schedule.

SAVE.

11. 10. Control the LED

The LED of the router indicates its activities and status. You can enable the Night Mode feature to specify a time period during which the LED is off.

1. Visit

2. Go to

3. Enable

4. Specify the LED off time, and the LED will be off during this period every day.

http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for

the router.

Advanced > System > LED Control.

Night Mode.

5. Click

SAVE.

Chapter 11

Manage the Router

FAQ

Q1. What should I do if I forget my wireless password?

The default wireless password is printed on the label of the router. If the password has been altered:

1. Connect your computer to the router using an Ethernet cable.

2. Visit

3. Go to

http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for

the router.

Wireless to retrieve or reset your wireless password.

Q2. What should I do if I forget my web management password?

• If you are using a TP-Link ID to log in, click Forgot password on the login page and

then follow the instructions to reset it.

• Alternatively, press and hold the

it, and then visit

Note:

• You’ll need to reconfigure the router to surf the internet once the router is reset, and please mark down your new

password for future use.

http://tplinkwifi.net to create a new login password.

Reset button of the router until LEDs turn on to reset

Q3. What should I do if I can’t log in to the router’s web management

page?

This can happen for a variety of reasons. Please try the methods below to log in again.

• Make sure your computer is connected to the router correctly and the corresponding

LED indicator(s) light up.

• Make sure the IP address of your computer is configured as

automatically

• Make sure

• Check your computer’s settings:

1 ) Go to

status and tasks

2 ) Click

3 ) Click

and Obtain DNS server address automatically.

http://tplinkwifi.net or http://192.168.0.1 is correctly entered.

Start > Control Panel > Network and Internet, and click View network

Internet Options on the bottom left.

Connections and select Never dial a connection.

Obtain an IP address

4 ) Click LAN settings and deselect the following three options and click OK.

5 ) Go to Advanced > Restore advanced settings, click OK to save the settings.

• Use another web browser or computer to log in again.

• Reset the router to factory default settings and try again. If login still fails, please

contact the technical support.

Note: You’ll need to reconfigure the router to surf the internet once the router is reset.

Q4. What should I do if I can’t access the internet even though the

configuration is finished?

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for

the router.

2. Go to

Advanced> Network > Status to check internet status:

If IP Address is a valid one, please try the methods below and try again:

• Your computer might not recognize any DNS server addresses. Please manually

configure the DNS server.

1 ) Go to

2 ) Enter 8.8.8.8 as Primary DNS, click

Tips: 8.8.8.8 is a safe and public DNS server operated by Google.

Advanced > Network > DHCP Server.

SAVE.

• Restart the modem and the router.

1 ) Power off your modem and router, and leave them off for 1 minute.

2 ) Power on your modem first, and wait about 2 minutes until it gets a solid cable

or Internet light.

3 ) Power on the router.

4 ) Wait another 1 or 2 minutes and check the internet access.

• Reset the router to factory default settings and reconfigure the router.

• Upgrade the firmware of the router.

• Check the TCP/IP settings on the particular device if all other devices can get internet

from the router.

As the picture below shows, if the IP Address is 0.0.0.0, please try the methods below and try again:

• Make sure the physical connection between the router and the modem is proper.

• Clone the MAC address of your computer.

1 ) Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set

for the router.

2 ) Go to

Internet or Advanced > Network > Internet and focus on the MAC Clone

section.

3 ) Choose an option as needed (enter the MAC address if

Address

Tips:

• Some ISP will register the MAC address of your computer when you access the internet for the first time

through their Cable modem, if you add a router into your network to share your internet connection, the ISP will

not accept it as the MAC address is changed, so we need to clone your computer’s MAC address to the router.

• The MAC addresses of a computer in wired connection and wireless connection are different.

is selected), and click SAVE.

Use Custom MAC

• Modify the LAN IP address of the router.

Note:

Most TP-Link routers use 192.168.0.1/192.168.1.1 as their default LAN IP address, which may conflict with the IP

range of your existing ADSL modem/router. If so, the router is not able to communicate with your modem and you

can’t access the internet. To resolve this problem, we need to change the LAN IP address of the router to avoid

such conflict, for example, 192.168.2.1.

1 ) Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set

for the router.

2 ) Go to

Advanced > Network > LAN.

3 ) Modify the LAN IP address as the follow picture shows. Here we take 192.168.2.1

as an example.

4 ) Click

Save.

• Restart the modem and the router.

1 ) Power off your modem and router, and leave them off for 1 minute.

2 ) Power on your modem first, and wait about 2 minutes until it get a solid cable

or Internet light.

3 ) Power on the router.

4 ) Wait another 1 or 2 minutes and check the internet access.

• Double check the internet connection type.

1 ) Confirm your internet connection type, which can be learned from the ISP.

2 ) Visit

3 ) Go to

4 ) Select your

5 ) Click

http://tplinkwifi.net, and log in with your TP-Link ID or the password you set

for the router.

Advanced > Network > Internet.

Save.

Internet Connection Type and fill in other parameters.

6 ) Restart the modem and the router again.

• Please upgrade the firmware of the router.

If you’ve tried every method above but still cannot access the internet, please contact the technical support.

Q5. What should I do if I can’t find my wireless network or I cannot

connect the wireless network?

If you fail to find any wireless network, please follow the steps below:

• Make sure the wireless function of your device is enabled if you’re using a laptop with

built-in wireless adapter. You can refer to the relevant document or contact the laptop manufacturer.

• Make sure the wireless adapter driver is installed successfully and the wireless

adapter is enabled.

• On Windows 7

1 ) If you see the message

No connections are available, it is usually because the

wireless function is disabled or blocked somehow.

2 ) Click

Troubleshoot and windows might be able to fix the problem by itself.

• On Windows XP

1 ) If you see the message

Windows cannot configure this wireless connection,

this is usually because windows configuration utility is disabled or you are running another wireless configuration tool to connect the wireless.

2 ) Exit the wireless configuration tool (the TP-Link Utility, for example).

3 ) Select and right click on

My Computer on desktop, select Manage to open

Computer Management window.

4 ) Expand

Configuration

5 ) Right click

6 ) Change

Service status is

Services and Applications > Services, find and locate Wireless Zero

in the Services list on the right side.

Wireless Zero Configuration, and then select Properties.

Startup type to Automatic, click on Start button and make sure the

Started. And then click OK.

If you can find other wireless network except your own, please follow the steps below:

• Check the WLAN LED indicator on your wireless router/modem.

• Make sure your computer/device is still in the range of your router/modem. Move it closer if it is currently too far away.

• Go to

Wireless or Advanced > Wireless > Wireless Settings, and check the wireless

settings. Double check your wireless Network Name and SSID is not hided.

If you can find your wireless network but fail to connect, please follow the steps below:

• Authenticating problem/password mismatch:

1 ) Sometimes you will be asked to type in a PIN number when you connect to

the wireless network for the first time. This PIN number is different from the Wireless Password/Network Security Key, usually you can only find it on the label of your router.

2 ) If you cannot find the PIN or PIN failed, you may choose Connecting using a

security key instead Key

, and then type in the Wireless Password/Network Security

3 ) If it continues to show note of

Network Security Key Mismatch, it is suggested

to confirm the wireless password of your wireless router.

Note: Wireless Password/Network Security Key is case sensitive.

• Windows unable to connect to XXXX / Can not join this network / Taking longer than

usual to connect to this network:

• Check the wireless signal strength of your network. If it is weak (1~3 bars), please move the router closer and try again.

• Change the wireless Channel of the router to 1, 6 or 11 to reduce interference from other networks.

• Re-install or update the driver for your wireless adapter of the computer.

Specifications are subject to change without notice. is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-Link Technologies Co., Ltd. Copyright © 2019 TPLink Technologies Co., Ltd. All rights reserved.

FCC compliance information statement

Product Name: AC1900 MU-MIMO Wi-Fi Router Model Number: Archer C80

Component Name Model

I.T.E. Power T120150-2B1REV3.0.0

Responsible party:

TP-Link USA Corporation, d/b/a TP-Link North America, Inc. Address: 145 South State College Blvd. Suite 400, Brea, CA 92821 Website: http://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6803 E-mail: sales.usa@tp-link.com

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/ TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference

that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

FCC RF Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.

“To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.”

We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.

Issue Date: 2019.09.17

FCC compliance information statement

Product Name: I.T.E. Power Supply Model Number: T120150-2B1REV3.0.0 Responsible party: TP-Link USA Corporation, d/b/a TP-Link North America, Inc. Address: 145 South State College Blvd. Suite 400, Brea, CA 92821 Website: http://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6803 E-mail: sales.usa@tp-link.com

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/ TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference

that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Issue Date: 2019.09.17

CE Mark Warning

This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

OPERATING FREQUENCY (the maximum transmitted power)

2400 MHz -2483.5 MHz(20dBm)

5150 MHz -5250 MHz(23dBm)

EU declaration of conformity

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/ EC, 2011/65/EU and (EU)2015/863.

The original EU declaration of conformity may be found at

https://www.tp-link.com/en/ce

RF Exposure Information

This device meets the EU requirements (2014/53/EU Article 3.1a) on the limitation of exposure of the general public to electromagnetic fields by way of health protection.

The device complies with RF specifications when the device used at 20 cm from your body.

National restrictions

Attention: This device may only be used indoors in all EU member states and EFTA countries.

AT BE BG CH CY CZ DE DK

EE EL ES FI FR HR HU IE

IS IT LI LT LU LV MT NL

NO PL PT RO SE SI SK UK

Canadian Compliance Statement

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:

1. This device may not cause interference.

2. This device must accept any interference, including interference that may

cause undesired operation of the device.

L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :

1. l’appareil ne doit pas produire de brouillage;

2. l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,

meme si le brouillage est susceptible d’en compromettre le fonctionnement

Caution:

The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems;

Avertissement:

Le dispositif fonctionnant dans la bande 5150-5250 MHz est réservé uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;

Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Déclaration d’exposition aux radiations:

Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.

Industry Canada Statement

CAN ICES-3 (B)/NMB-3(B)

Korea Warning Statements:

⹎㔹⿨ㄈㄊれ⸩㉟㉜㌌㋋㓇㕤ㅺⲐ⸰ㄑ㊛㊥㊌

NCC Notice & BSMI Notice:

岤䠑

⣜亘⡛⸆桧ꨵ岚鱖㼘䚍ꨵ堤盗椚鳵岁痦⼧✳哬 竤㘗䒭钡阮ざ呔⛓⡛⸆桧㼘걽ꨵ堤ꬋ竤鏪〳Ⱆ぀ծ㉁贪䧴⢪欽罏㖲

♶䖤乲荈隶刿걽桧ծ⸈㣐⸆桧䧴隶刿⾲鏤鎙⛓暵䚍䧴⸆腊կ

痦⼧㔋哬 ⡛⸆桧㼘걽ꨵ堤⛓⢪欽♶䖤䕧갠굳菔㸝Ⰼ⿺䎁仟ざ岁鸑⥌竤涮植剣䎁仟植韌儗䥰用⽰⨢欽⚛佖㊤荛搁䎁仟儗倰䖤糒糵⢪欽կ⵸갪ざ岁鸑⥌䭷⣜ ꨵ⥌鋊㹁⡲噟⛓搁箁ꨵ⥌կ⡛⸆桧㼘걽ꨵ堤꨽䗽「ざ岁鸑⥌䧴䊨噟ծ猰㷸⟄⿺ꄳ 派欽ꨵ岚鱖㼘䚍ꨵ堤鏤⪓⛓䎁仟կ

䥰鼙⯝䕧갠꣡鵛ꨭ麧禹窠⛓乼⡲կ 넞㟞渤䭷ぢ䚍㣔箁〫䖤䥰欽倴㔿㹁䒭럊㼩럊禹窠կ

㸝Ⰼ镩鑉⿺岤䠑✲갪

˖ 锝⢪欽⾲酤ꨵ彂⣘䥰㐼䧴〫腊䭽撑劥欴ㅷ岤僈涸ꨵ彂㘗⢪欽劥欴ㅷկ ˖ 幡悥劥欴ㅷ⛓⵸锝⯓䬬䱈ꨵ彂箁կ锝⺡⢪欽巊넒ծ㑑ꪒ幡悥ⷭ䧴憈䋒鹍遤

幡悥կ ˖ 岤䠑꣈惐锝⺡㼞宐䧴Ⱖ➭巊넒悝扴ⵌ劥欴ㅷ♳կ ˖ 䳃坵莄Ꟛ〡⣘鸑괏⢪欽⟄焷⥂劥欴ㅷ涸乼⡲〳ꬑ⚛꣈姺麔攧锝⺡㜧㝱

䧴銻覇Ꟛ〡կ ˖ 锝⺡㼞劥欴ㅷ縨佞倴ꬑ鵛攧彂涸㖑倰կꤑꬋ剣姻䌢涸鸑괏や⵱♶〳佞㖈

㺙ꟗ⡙縨⚥կ ˖ 锝♶銳猙荈䩧Ꟛ堤媽♶銳㎱鑑荈遤笞⥝劥欴ㅷ锝歋䱇奙涸㼠噟➃㡦鹍

遤姼갪䊨⡲կ

ꣳ欽暟颶ゎ剣䞔屣垥爙耪僈剅

ꣳ欽暟颶⿺Ⱖ⻊㷸痗贪

欴ㅷ⯋⟝ぜ珖

1$# ӧ ӧ ӧ ӧ ӧ ӧ 㢪媽 ӧ ӧ ӧ ӧ ӧ ӧ

ꨵ彂⣘䥰㐼 ⪓罌馄ⴀXU⿺馄ⴀXU禹䭷ꣳ欽暟颶⛓涰ⴔ嫱ゎꆀ馄 ⴀ涰ⴔ嫱ゎꆀ㛇彋⧩կ

⪓罌ӧ禹䭷鑪갪ꣳ欽暟颶⛓涰ⴔ嫱ゎꆀ劢馄ⴀ涰ⴔ嫱ゎꆀ㛇彋⧩կ ⪓罌-禹䭷鑪갪ꣳ欽暟颶捀䱗ꤑ갪湡կ

цѧѥћѪѡѩ ѨќѧѩџѫѽѡѥљїѤѥ ўњѽћѤѥ Ѩ ѦѧїљџѢїѣџ ѨџѨѩќѣџ ъѡѧшмцчх Ѥї љѽћѦѥљѽћѤѽѨѩѳљџѣѥњїѣѤѥѧѣїѩџљѤџѬћѥѡѪѣќѤѩѽљѩїљџѣѥњїѣѰѥѦќѧќћјїѮќѤѽ ѮџѤѤџѣџўїѡѥѤѥћїљѮџѣџїѡѩїѣџъѡѧїѾѤџ

ꊋ

ꓸ

ӧӧ ӧ ӧ ӧ

寏

Ⱉ⭆ꋈ

$S7*

㢴徃耡薅

1##

㢴徃✳薅ꄍ

1#%&

Safety Information

• Keep the device away from water, fire, humidity or hot environments.

• Do not attempt to disassemble, repair, or modify the device.

• Do not use damaged charger or USB cable to charge the device.

• Do not use any other chargers than those recommended

• Do not use the device where wireless devices are not allowed.

• Adapter shall be installed near the equipment and shall be easily accessible.

•

Use only power supplies which are provided by manufacturer and in the original packing of this product. If you have any questions, please don’t hesitate to contact us.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

Explanations of the symbols on the product label

Symbol Explanation

DC voltage

Indoor use only

RECYCLING This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment. User has the choice to give his product to a competent recycling organization or to the retailer when he buys a new electrical or electronic equipment.

TP Link C80 Users Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
