TP Link C7V2 User Manual

REV1.0.0 1910010809

Archer C7

AC1750 Wireless Dual Band Gigabit Router

Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective hol ders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2013 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved.

http://www.tp-link.com

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communica

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment a

• Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/ TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions:

1） This device may not cause harmful interference.

2） This device must accept any interference received, including interference that may

undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

tions. However, there is no guarantee that

nd receiver.

cause

Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

Operations in the 5.15-5.25GHz band are restricted to indoor usage only.

FCC RF Radiation Exposure Statement:

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.

“To comply with FCC RF exposure compliance requirements, this grant is applicable to only

Mobile Configurations. The antennas used for this transmitter must be installed to provide a

separation distance of at least 20 cm

conjunction with any other antenna or transmitter.”

FOR COUNTRY CODE SELECTION USAGE (WLAN DEVICES) Note: The country code selection is for non-US model only and is not available to all US model. Per FCC regulation, all WiFi product marketed in US must fixed to US operation channels only.

from all persons and must not be co-located or operating in

10 mW e.i.r.p. within

CE Mark Warning

This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measure s.

National Restrictions

This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:

Country Restriction Reason/remark

Bulgaria None

Outdoor use limited to

France

the band 2454-2483.5 MHz

Italy None

Luxembourg None

Norway Implemented

Russian Federation None Only for indoor applications

General authorization required for outdoor use and

public service

Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years t o allow current relaxed regulation. Full implementation planned 2012

If used outside of own premises, gener al authorization is required

General authorization require d for network and service supply(not for spectrum)

This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund

Note: Please don’t use the product outdoors in France.

This device has been designed to operate with the antennas li sted below, and having a maximum gain of 5 dBi. A ntennas not included in this list or having a gain greater than 3 dBi are strictly prohibited for use with this device. The required antenna impe dance is 50 ohms.

To reduce potential radio interference to other users, the anten na type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication.

Canadian Compliance St atem ent

This device complies with Industry Canada licens e-exempt RSS standard(s). Operation is subject to the following two conditions:

(1)This device may not cause interference, and (2)This device must accept any interference, including interference that may cause undesired

operation of the device. Cet appareil est conforme aux norms CNR exemptes de licence d’Industrie Canada. Le

fonctionnement est soumis aux deux conditions s uivantes: (1)cet appareil ne doit pas provoquer d’interférences et (2)cet appareil doit accepter toute interférence, y compris celles susceptibles de provoquer un

fonctionnement non souhaité de l’appareil.

Industry Canada St atement

Complies with the Canadian ICES-003 Class B specifications. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. This device complies with RSS 210 of Industry Canada. This Class B device meets all the

requirements of the Canadian interference-causing equi pm ent regulations. Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement sur le

matériel brouilleur du Canada.

Korea Warning Statements

당해 무선설비는 운용중 전파혼신 가능성이 있음.

NCC Notice & BSMI Notice

注意！

依據低功率電波輻射性電機管理辦法

第十二條經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、

加大功率或變更原設計之特性或功能。

第十四條低功率射頻電機之使用不得影響飛航安全及干擾合法通行；經發現有干擾現象時，應立即

停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信規定作業之無線電信。低功率射

頻電機需忍受合法通信或工業、科學以及醫療用電波輻射性電機設備之干擾。

安全諮詢及注意事項

●請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。

●清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。

●注意防潮，請勿將水或其他液體潑灑到本產品上。 

●插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。

●請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。

●請不要私自打開機殼，不要嘗試自行維修本產品，請由授權的專業人士進行此項工作。

Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам

нормативних документів та вимогам, що передбачені чинними законодавчими актами

України.

Safety Information

 When product has power butt on, the power button is one of th e way to shut off the product;

when there is no power button, the only way t o com plet ely s hut off power is to di sc onnect the product or the power adapter from the power source.

 Don’t disassemble the product, or make repairs yourself. You run the risk of electric shock and

voiding the limited warranty. If you need service, please contact us.

 Avoid water and wet locations. This product can be used in the following countries:

AT BG BY CA CZ DE DK EE

ES FI FR GB GR HU IE IT

LT LV MT NL NO PL PT RO

RU SE SK TR UA

TP-LINK TECHNOLOGIES CO., LTD

DECLARATION OF CONFORMITY

For the following equipment: Product Description: AC1750 Wireless Dual Band Gigabit Router Model No.: C7 Trademark: TP-LINK

We declare under our own responsibility that the above products satisfy all the technical regulations applicable to the product wit hin the scope of Council Directives:

Directives 1999/5/EC, Directives 2004/108/EC, Directives 2006/95/EC, Directives 1999 /519/EC, Directives 2011/65/EU

The above product is in conformity with the following standards or other normative documents

ETSI EN 300 328 V1.7.1: 2006 ETSI EN 301 489-1 V1.9.2:2011& ETSI EN301 489-17 V2.2.1:2012 EN 55022:2010 EN 55024:2010 EN 61000-3-2:2006+A1:2009+A2:2009 EN 61000-3-3:2008 EN 60950-1:2006+A11：2009+A1:2010+A12:2011 EN 62311:2008 EN 301 893 EN 302 502

The product carries the CE Mark:

Person is responsible for marking this declaration:

Yang Hongliang Product Manager of International Business

Date of Issue: 2013

TP-LINK TECHNOLOGIES CO., LTD.

Building 24 (floors 1, 3, 4, 5), and 28 (floors 1-4) Central Science and Technology Park, Shennan Rd,

Nanshan, Shenzhen, China

CONTENTS

Package Contents ..................................................................................................... 1

Chapter 1. Introduction ......................................................................................... 2

1.1 Overview of the router ................................................................................................ 2

1.2 Conventions ............................................................................................................... 3

1.3 Main Features ............................................................................................................ 3

1.4 Panel Layout .............................................................................................................. 4

1.4.1 The Front Panel .............................................................................................. 4

1.4.2 The Rear Panel .............................................................................................. 5

Chapter 2. Connecting the router ........................................................................ 7

2.1 System Requirements ................................................................................................ 7

2.2 Installation Environment Requirements ...................................................................... 7

2.3 Connecting the router ................................................................................................. 7

Chapter 3. Quick Installation Guide ..................................................................... 9

3.1 TCP/IP Configuration ................................................................................................. 9

3.2 Quick Installation Guide ........................................................................................... 11

Chapter 4. Configuring the router ...................................................................... 20

4.1 Login ........................................................................................................................ 20

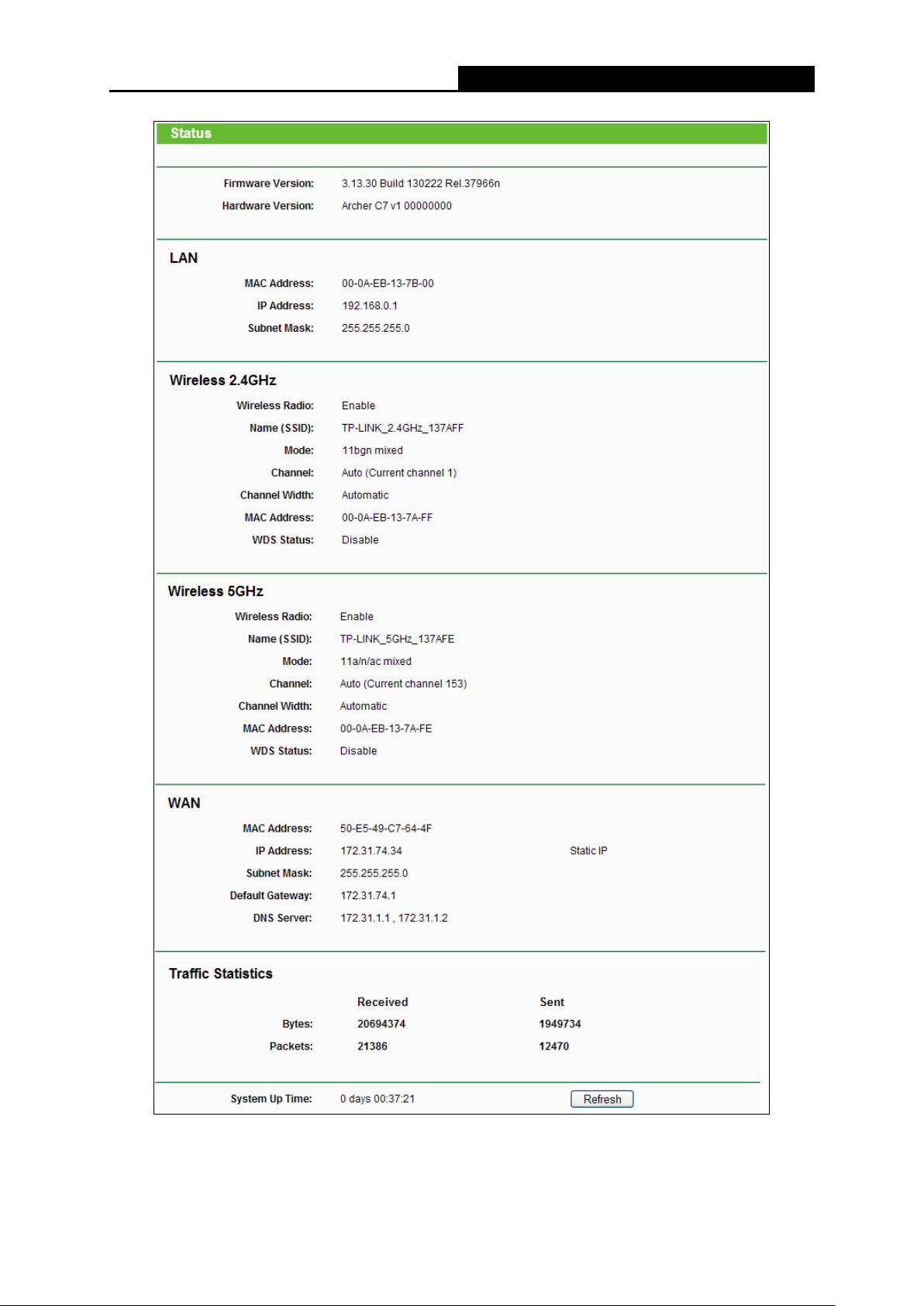

4.2 Status ....................................................................................................................... 20

4.3 Quick Setup .............................................................................................................. 22

4.4 Network .................................................................................................................... 22

4.4.1 WAN ............................................................................................................. 22

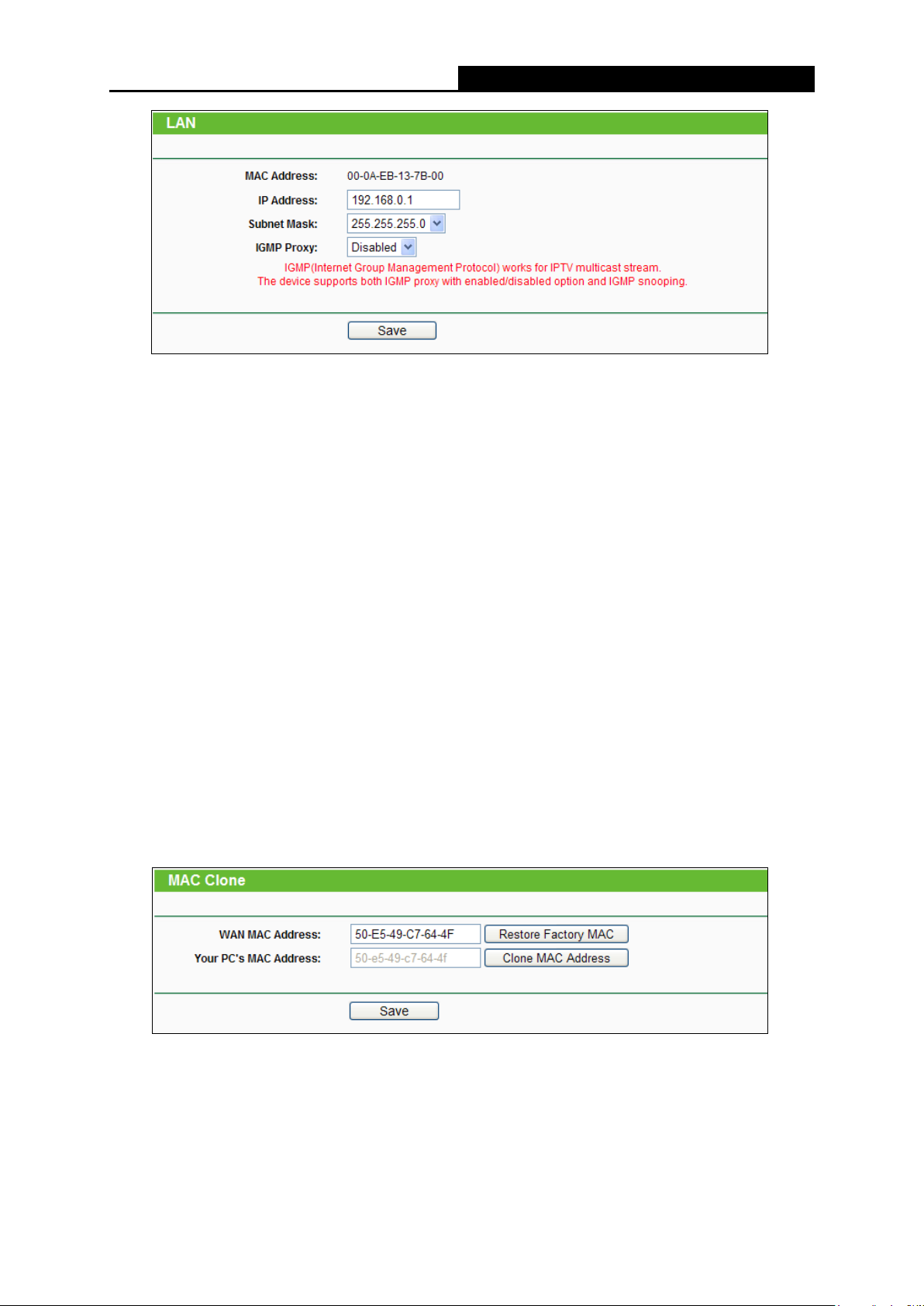

4.4.2 LAN .............................................................................................................. 31

4.4.3 MAC Clone ................................................................................................... 32

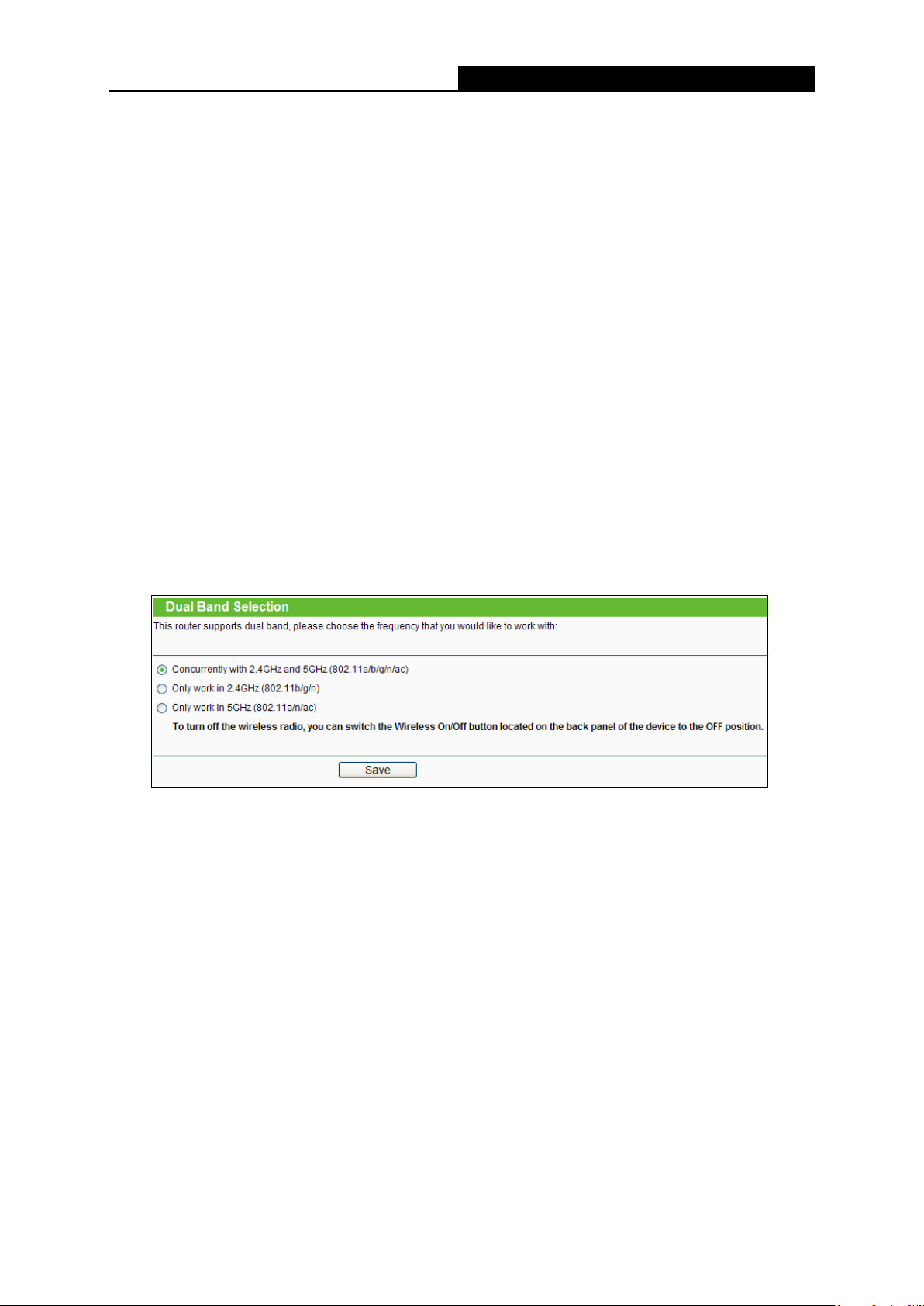

4.5 Dual Band Selection ................................................................................................. 33

4.6 Wireless 2.4GHz ...................................................................................................... 34

4.6.1 Wireless Settings .......................................................................................... 34

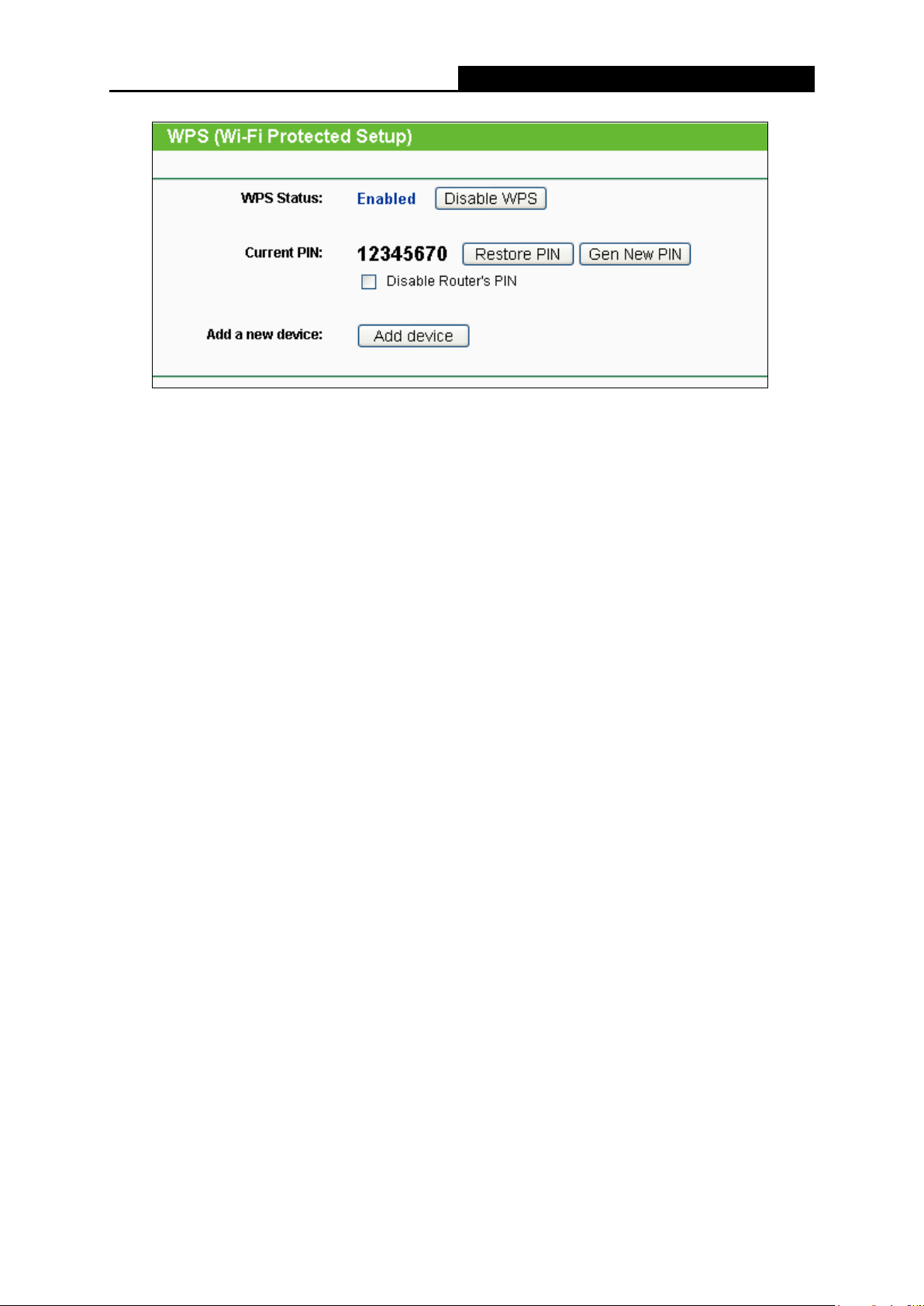

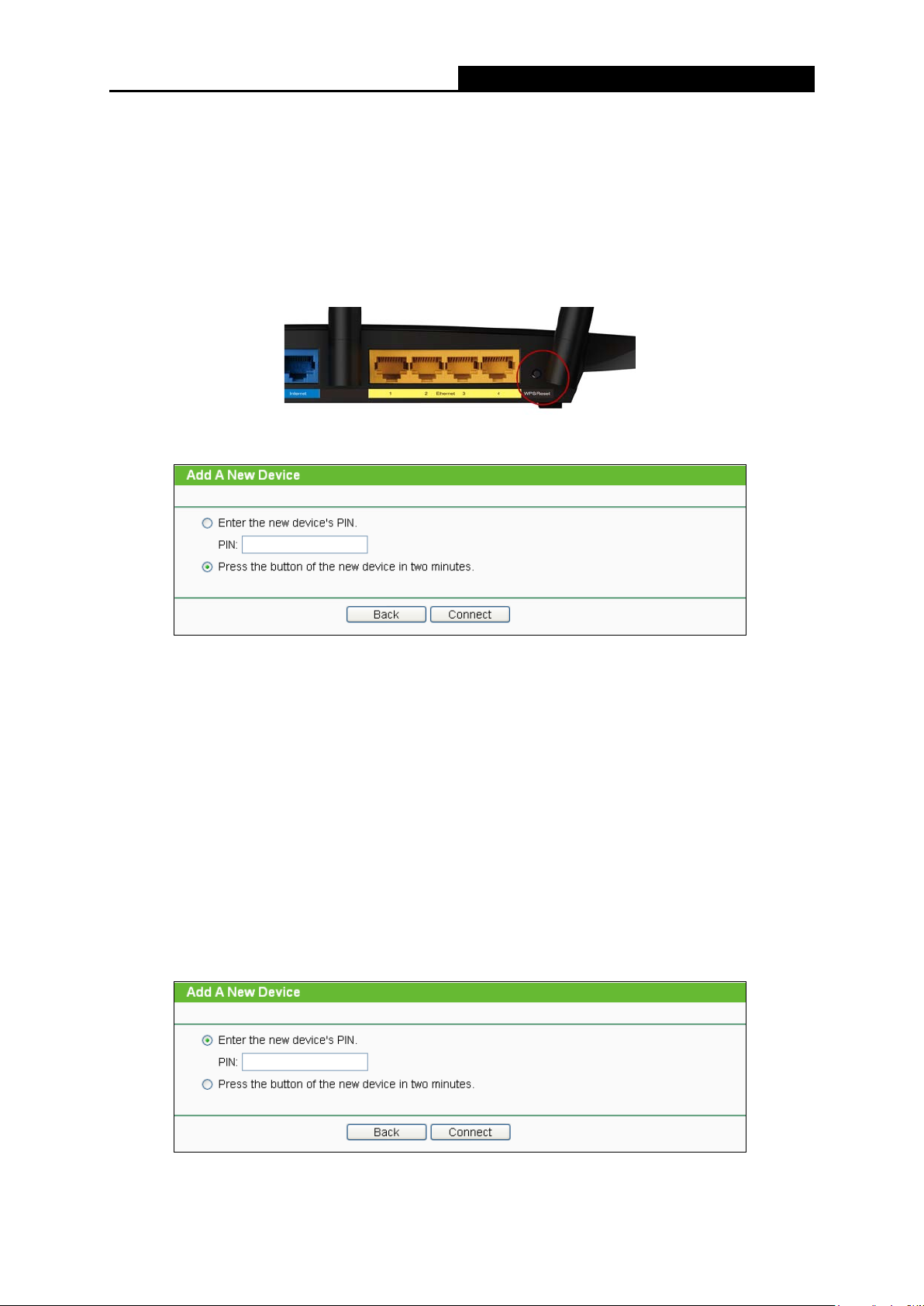

4.6.2 WPS ............................................................................................................. 36

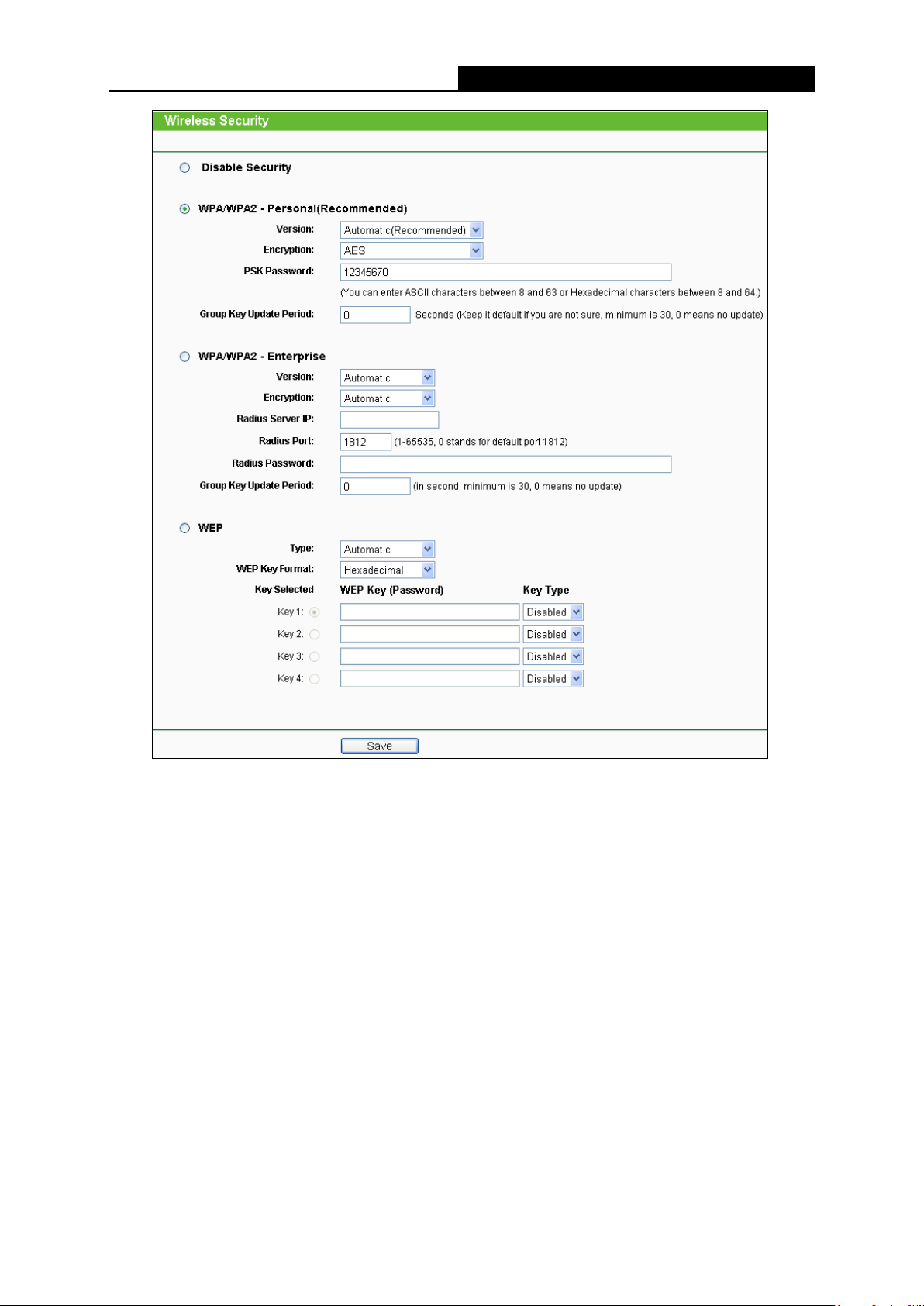

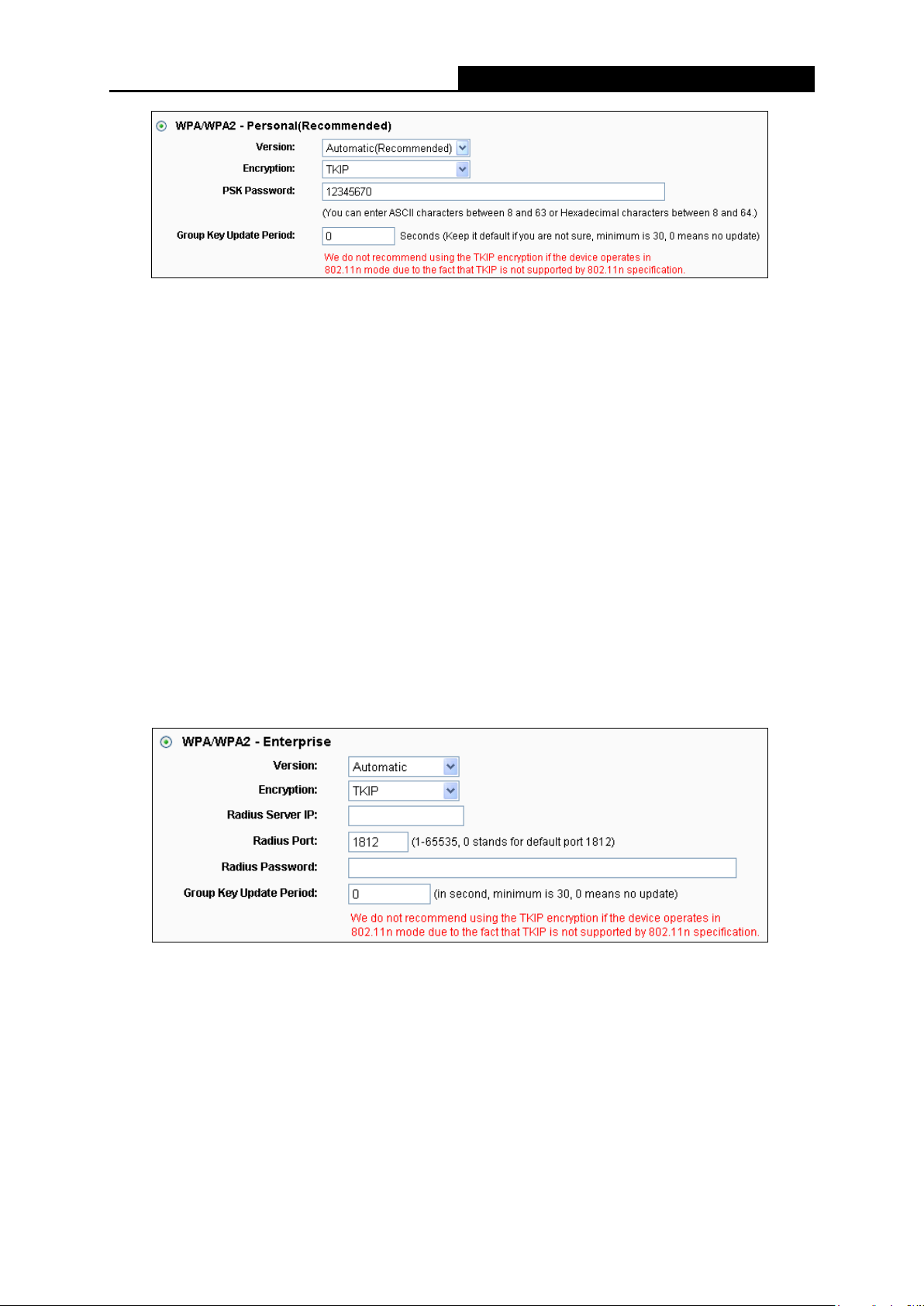

6.3 Wireless Security .......................................................................................... 39

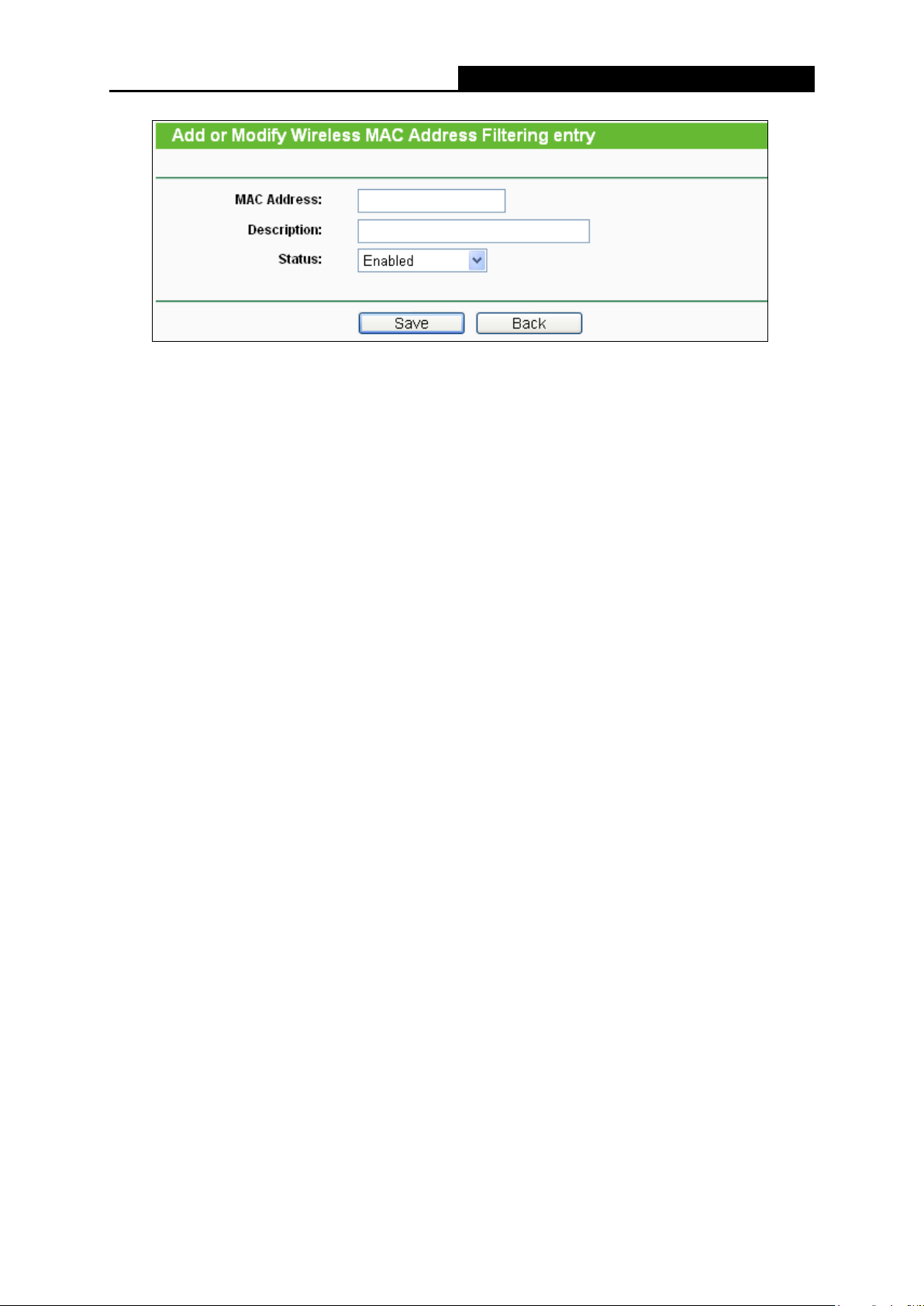

4.6.4 Wireless MAC Filtering ................................................................................. 42

4.6.5 Wireless Advanced ....................................................................................... 44

4.6.6 Wireless Statistics ......................................................................................... 45

4.7 Wireless 5GHz ......................................................................................................... 46

- I -

4.7.1 Wireless Settings .......................................................................................... 47

4.7.2 WPS ............................................................................................................. 49

4.7.3 Wireless Security .......................................................................................... 51

4.7.4 Wireless MAC Filtering ................................................................................. 55

4.7.5 Wireless Advanced ....................................................................................... 57

4.7.6 Wireless Statistics ......................................................................................... 58

4.8 Guest Network ......................................................................................................... 59

4.8.1 Wireless Settings .......................................................................................... 59

4.8.2 Storage Sharing ............................................................................................ 60

4.9 DHCP ....................................................................................................................... 62

4.9.1 DHCP Settings ............................................................................................. 62

4.9.2 DHCP Clients List ......................................................................................... 63

4.9.3 Address Reservatio n .................................................................................... 64

4.10 USB Settings ............................................................................................................ 65

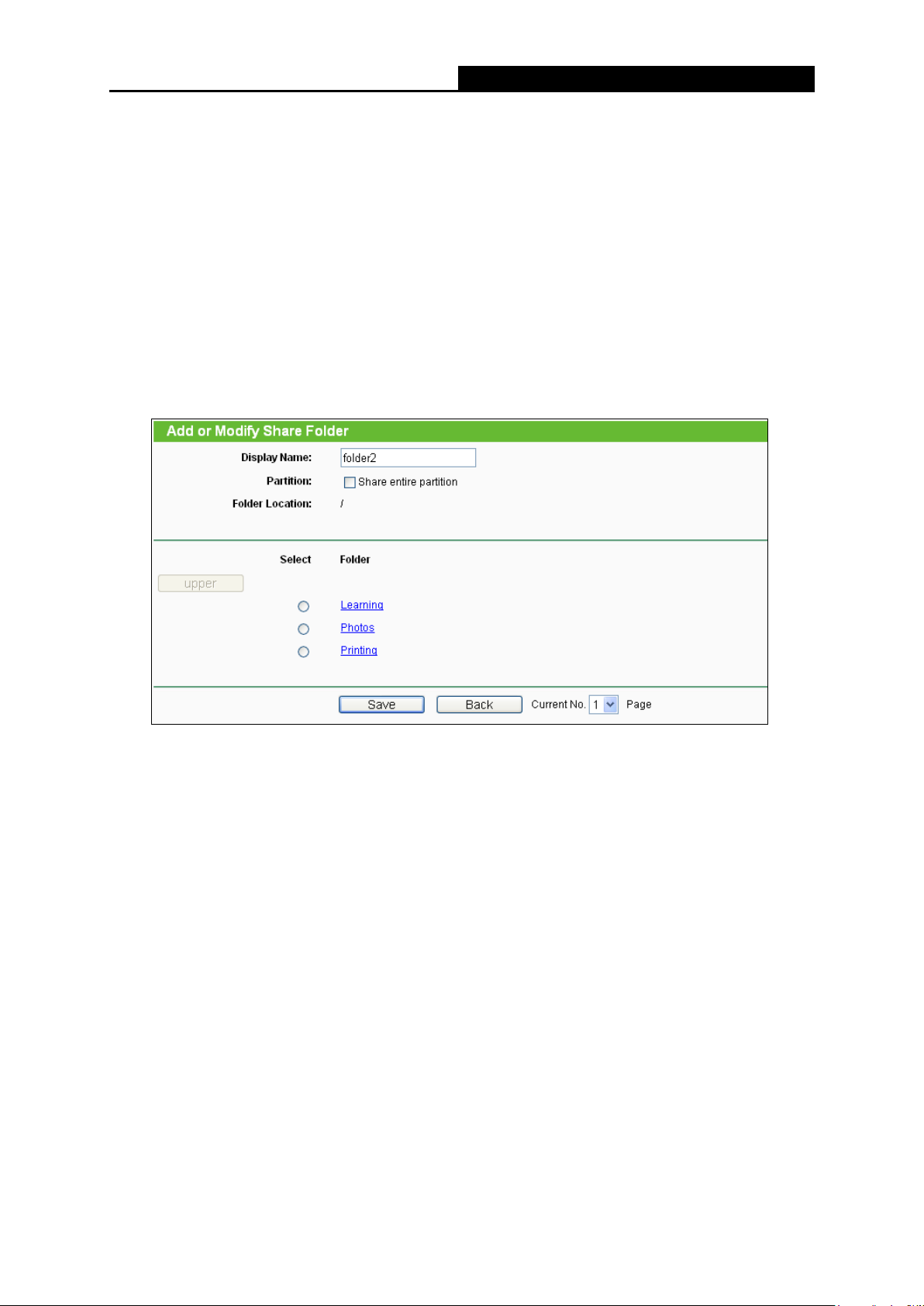

4.10.1 Storage Sharing ............................................................................................ 65

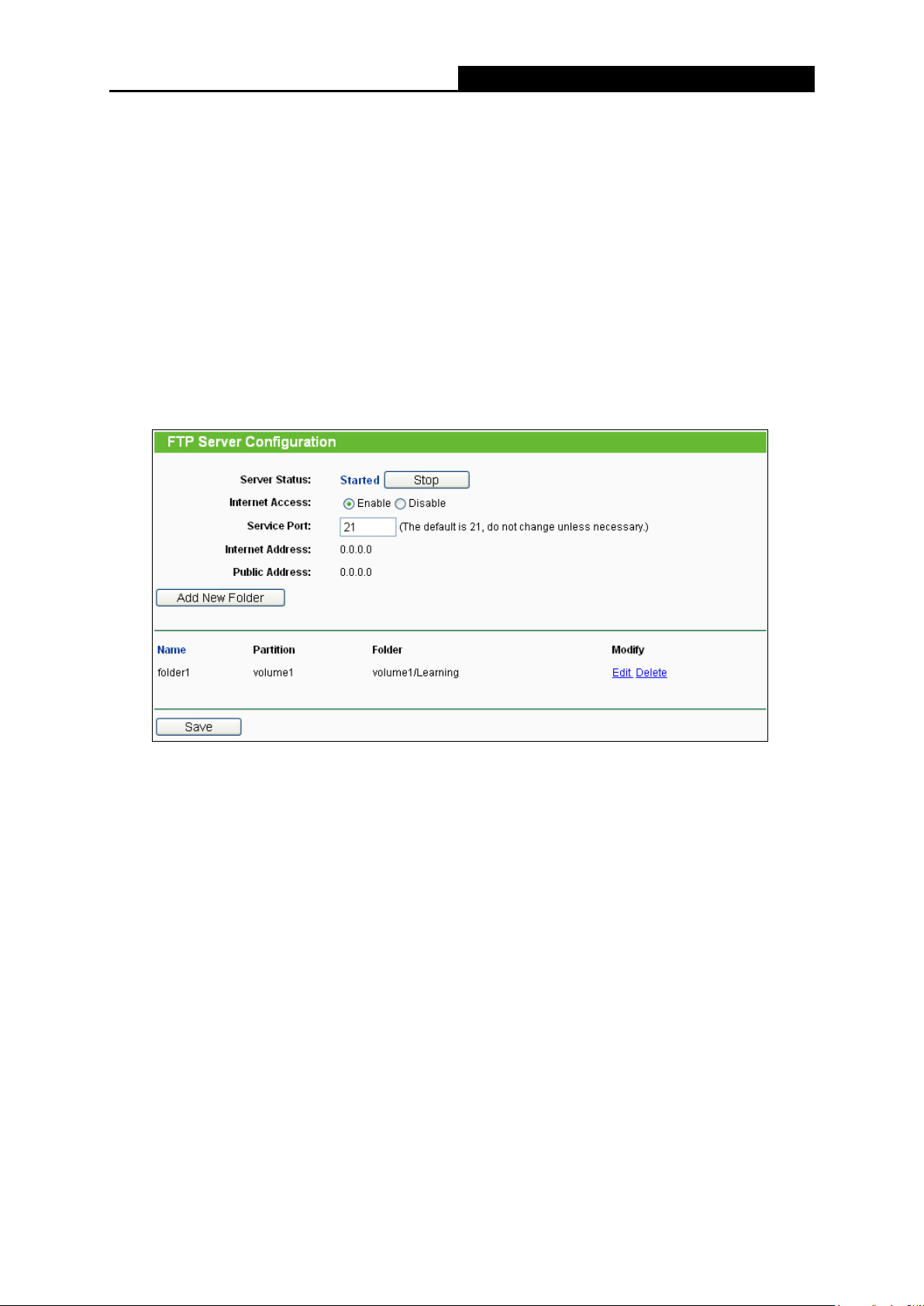

4.10.2 FTP Server ................................................................................................... 67

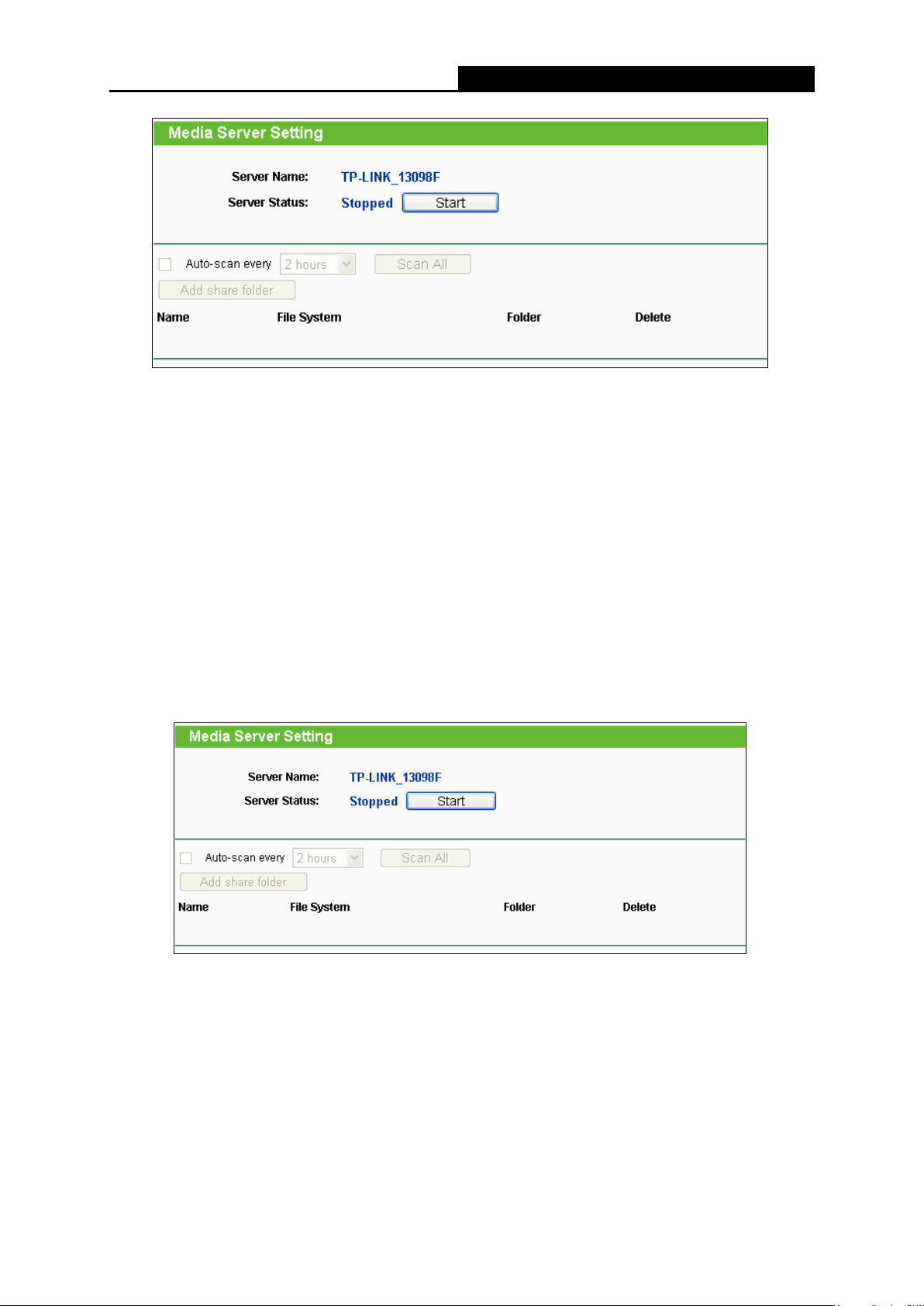

4.10.3 Media Serve r ................................................................................................ 68

4.10.4 Print S erver ................................................................................................... 71

4.10.5 User Accounts .............................................................................................. 71

4.11 NAT .......................................................................................................................... 73

4.12 Forwarding ............................................................................................................... 74

4.12.1 Virtual Servers .............................................................................................. 74

4.12.2 Port Triggering .............................................................................................. 76

4.12.3 DMZ .............................................................................................................. 78

4.12.4 UPnP ............................................................................................................ 79

4.13 Security .................................................................................................................... 80

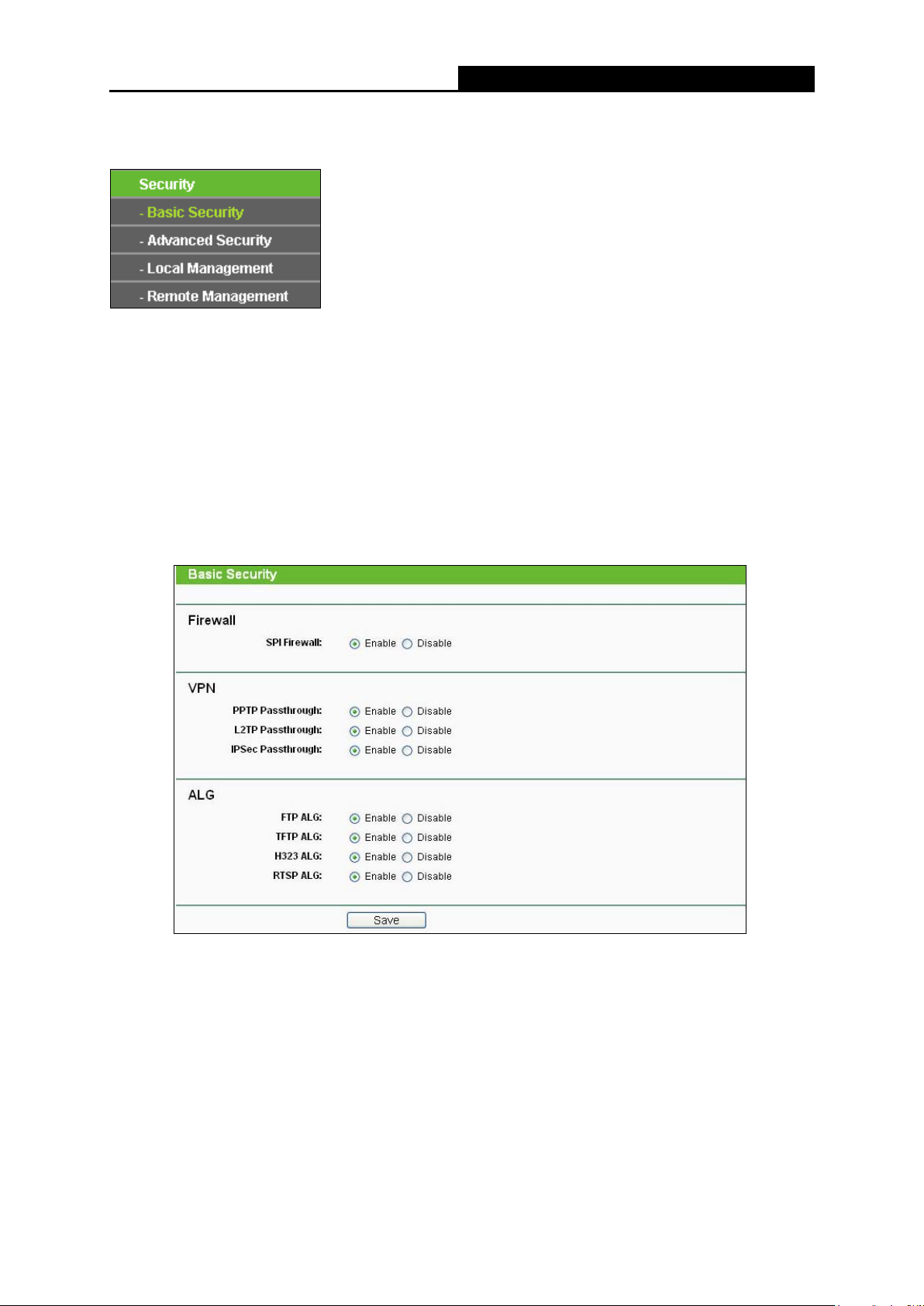

4.13.1 Basic Security ............................................................................................... 80

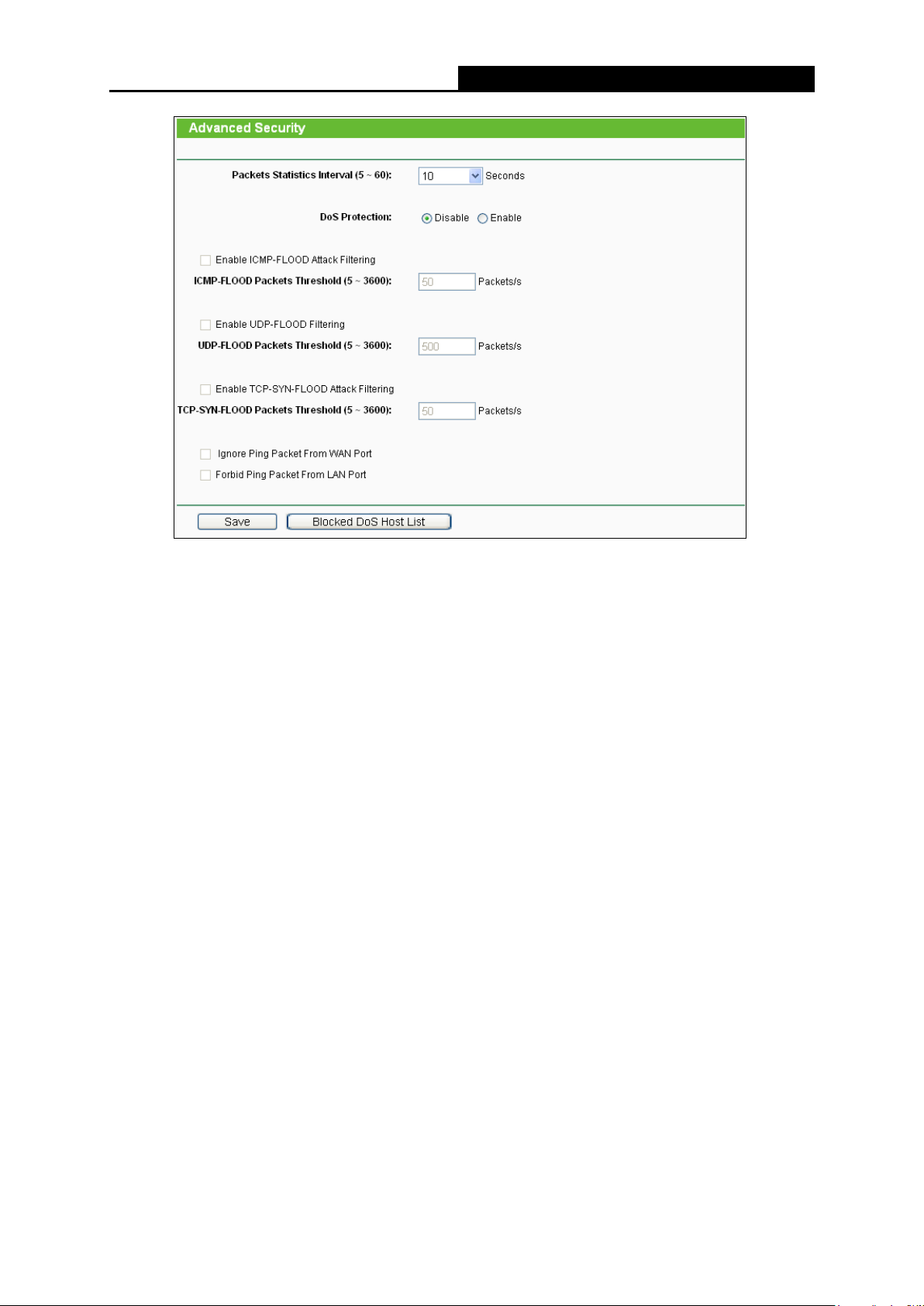

4.13.2 Advanced Security ........................................................................................ 81

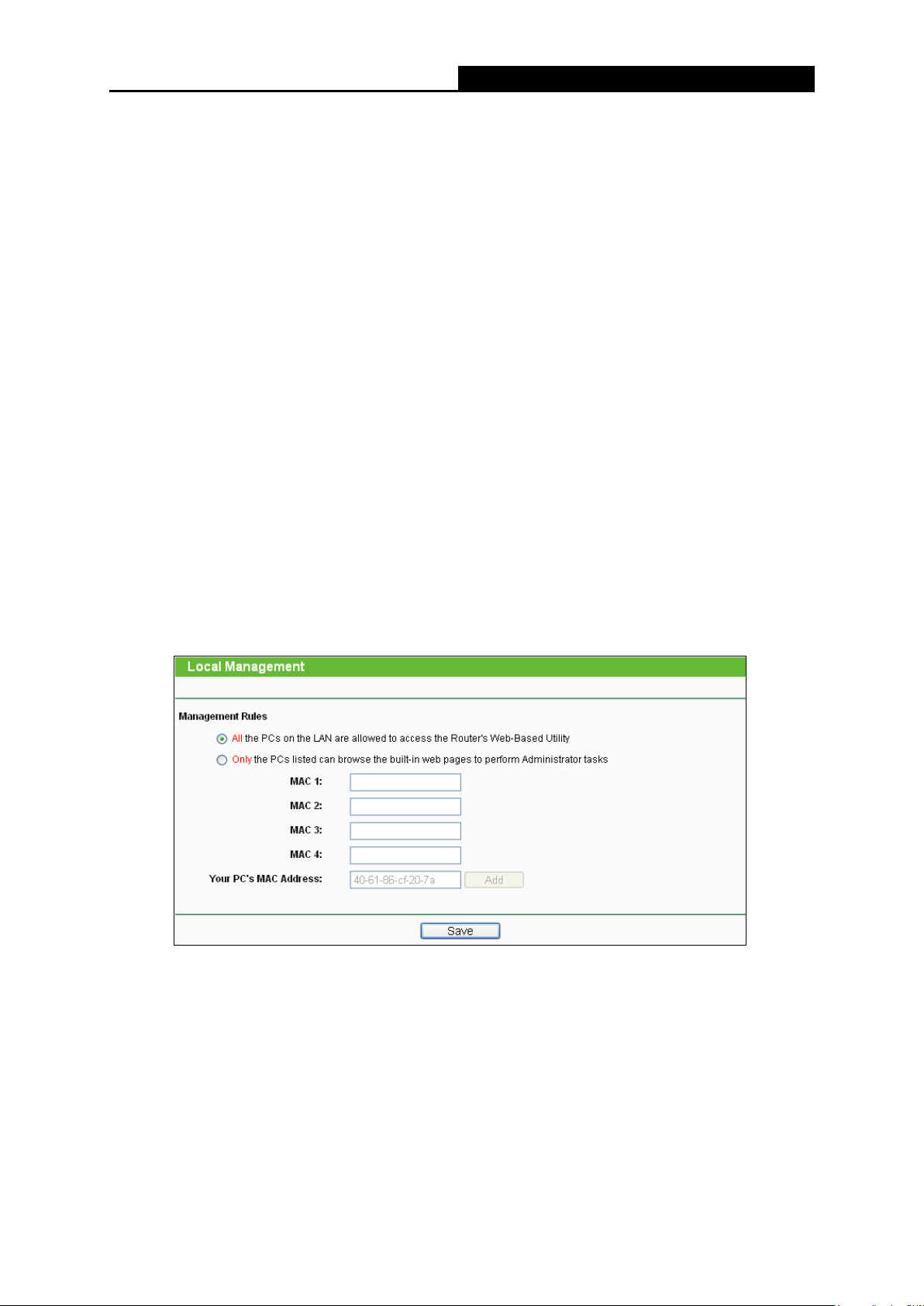

4.13.3 Local Management ....................................................................................... 83

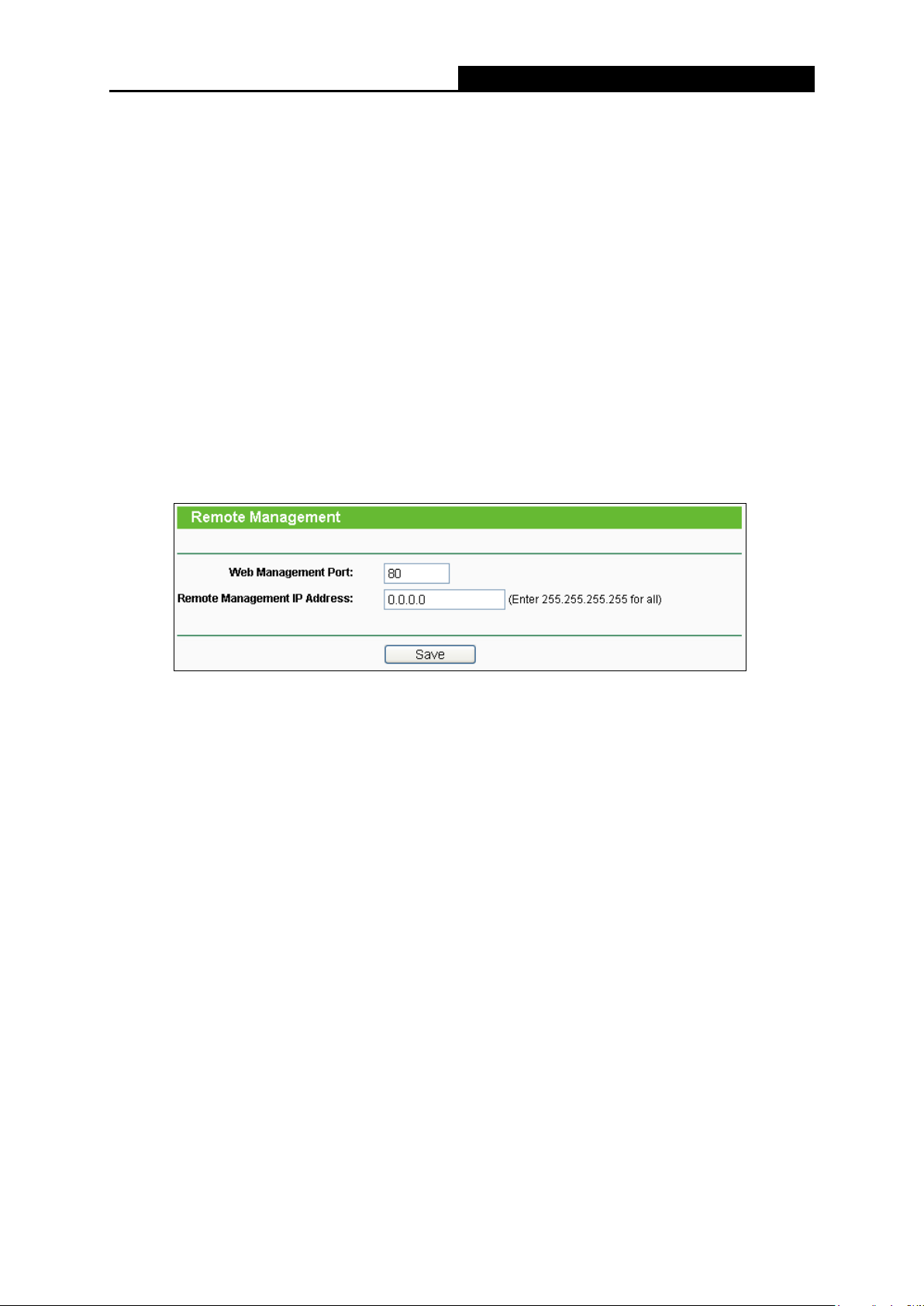

4.13.4 Remote Man agement ................................................................................... 84

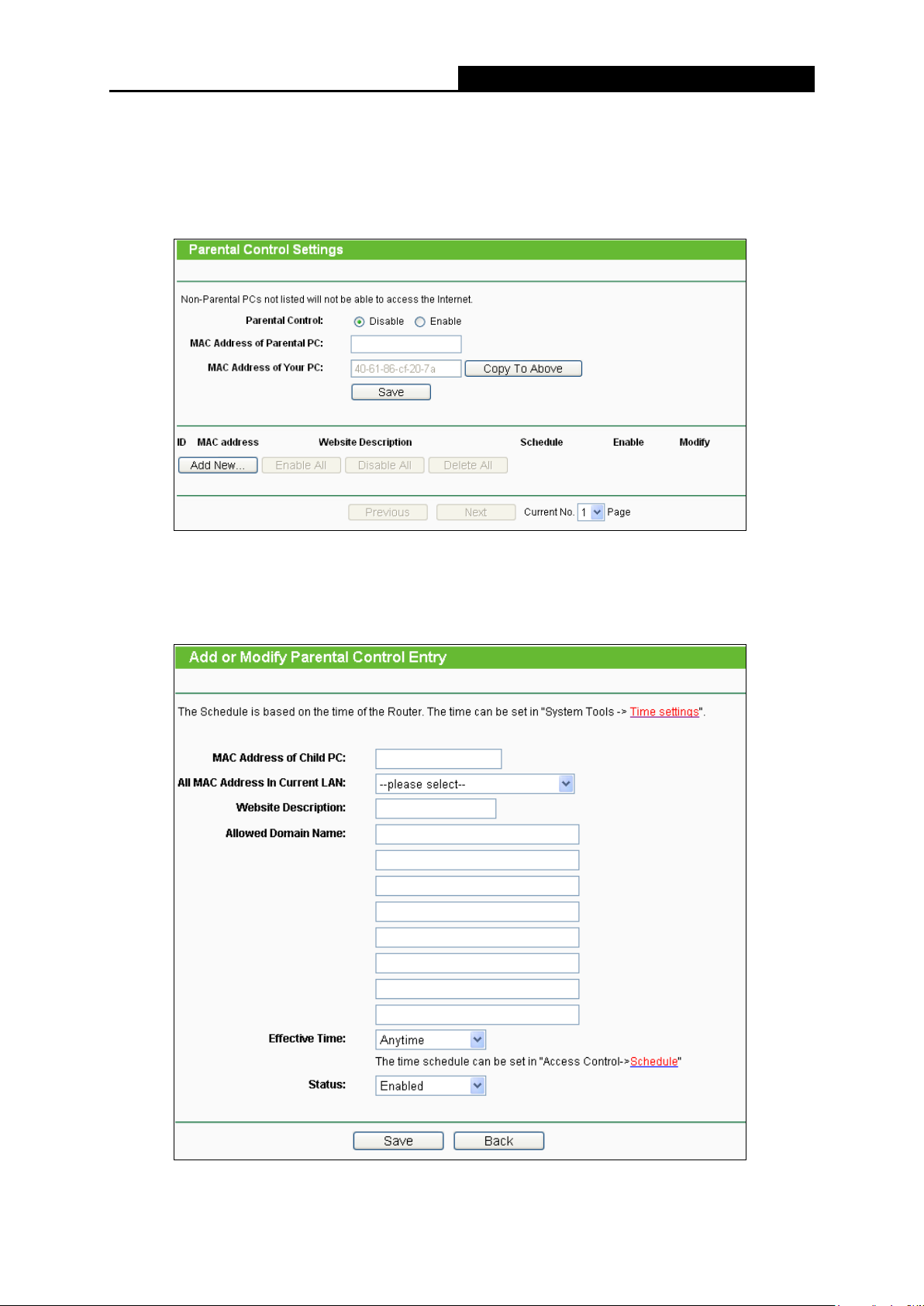

4.14 Parental Control ....................................................................................................... 85

4.15 Access Control ......................................................................................................... 87

4.15.1 Rule .............................................................................................................. 88

4.15.2 Host .............................................................................................................. 93

4.15.3 Target............................................................................................................ 95

4.15.4 Schedule ....................................................................................................... 97

- II -

4.16 Advanced Routing .................................................................................................... 99

4.16.1 Static Routing List ......................................................................................... 99

4.16.2 System Routing Table ................................................................................. 100

4.17 Bandwidth Control .................................................................................................. 101

4.17.1 Control Set tings .......................................................................................... 101

4.17.2 Rules Lis t .................................................................................................... 102

4.18 IP & MAC Binding ................................................................................................... 103

4.18.1 Binding Settings .......................................................................................... 103

4.18.2 ARP List ...................................................................................................... 105

4.19 Dynamic DNS ......................................................................................................... 106

4.19.1 Comexe.cn DDNS ...................................................................................... 106

4.19.2 Dyndns.org DDNS ...................................................................................... 107

4.19.3 No-ip.com DDNS ........................................................................................ 108

4.20 IPv6 Support .......................................................................................................... 108

4.20.1 IPv6 Status ................................................................................................. 109

4.20.2 IPv6 Setup .................................................................................................. 110

4.21 System T ools .......................................................................................................... 115

4.21.1 Time Settings .............................................................................................. 116

4.21.2 Diagnostic ................................................................................................... 117

4.21.3 Firmware Upgrade ...................................................................................... 119

4.21.4 Factory Defaults ......................................................................................... 120

4.21.5 Backup & Restore ....................................................................................... 121

4.21.6 Reboot ........................................................................................................ 121

4.21.7 Password .................................................................................................... 122

4.21.8 System Log ................................................................................................. 122

4.21.9 Statistics ..................................................................................................... 124

Appendix A: FAQ .................................................................................................. 127

Appendix B: Configuring the PCs ....................................................................... 132

Appendix C: Specifications ................................................................................. 134

Appendix D: Glossary .......................................................................................... 135

- III -

Archer C7

AC1750 Wireless Dual Band Gigabit Router



Package Contents

The following items should be found in your package:

 Archer C7 AC1750 Wireles s Dual Band Gigabit Router  DC Power Adapter for Archer C7 AC1750 Wireles s Dual Band Gigabit Router  Quick Installation Guide  Resource CD for Archer C7 AC1750 Wireless Dual Band Gigabit Router, including:

• This Guide

• Other Helpful Information

Note:

Make sure that the package contains the abo ve items. If any of the listed items are damaged or missing, please contact your distributo r.

- 1 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

Simple Installation

Flexible Access Control

Multiple Security Protections

Incredible Speed

Chapter 1. Introduction

1.1 Overview of the router

The Archer C7 AC1750 Wireless Dual Band Gigabit Router integrates 4-port Switch, Firewall, NAT-router and Wireless AP. Powered by 3x3 MIMO technology, the AC1750 Wireless Dual Band Gigabit Router delivers exceptional range and speed, which can fully meet the need of Small Office/Home Office (SOHO) networks and the users demanding higher networking performance. Your wireless connections are radio band selectable to avoid interference in your area, and the four built-in Gigabit ports supply high-speed connection to your wired devices.

The Archer C7 AC1750 Wireless Dual Band Gigabit Router provides up to 1750Mbps wireless connection with other wireless clients. The incredible speed makes it ideal for handling multiple data streams at the same time, which ensures your network stable and smooth. The performance of this

802.11ac wireless router wi ll give you the unexpected networking experience at speed much faster than 802.11n. It is also compatible with all IEEE 802.11n, IEEE 802.11a, IEEE 802.11b and IEEE

802.11g products.

With multiple protection measures, including SSID broadcast control and wireless LAN 64/128/152-bit WEP encryption, Wi-Fi Protected Access (WPA2- PSK, WPA- PSK), as well as advanced Firewall protections, the Archer C7 AC1750 Wireless Dual Band Gigabit Router provides complete data privacy.

The Archer C7 AC1750 Wireless Dual Band Gigabit Rout er provides flexible access control, so that parents or network administrators can establish restricted access policies for children or staff. It also supports Virtual Server and DMZ host for Port Triggering, and then the network administrators can manage and monitor the network in real time with the remote management function.

Since the router is compatible with virtually all the major operating systems, it is very easy to manage. Quick Setup Wizard is supported and detailed instructions are provided step by step in this user guide. Before installing the router, please look through this guide to know all the router’s functions.

- 2 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

1.2 Conventions

The router or Archer C7 mentioned in this guide stands for Archer C7 AC1750 Wireless Dual Band Gigabit Router without any explanation.

1.3 Main Features

 Complies with IEEE 802.11ac.  One 10/100/1000M Auto-Negotiation RJ45 Internet port, four 10/100/1000M Auto-Negotiation

RJ45 Ethernet ports, supporting Auto MDI/MDIX.

 Provides USB ports supporting storage/FTP/Media/Print Server.  Provides WPA/WPA2, WPA-PSK/WPA2-PSK authentication, TKIP/AES encrypti on security.  Shares data and Internet access for users , supporting Dynam ic IP/ Static IP/ PPPoE/ PPTP/

L2TP/ BigPond Internet access.

 Supports simultaneous 2.4GHz and 5GHz connections for 1750Mbps of total available

bandwidth.

 Supports Virtual Server, Special Application and DMZ host.  Supports UPnP, Dynamic DNS, Static Routing.  Provides Automatic-connection and Scheduled Connection on certain time to the Internet.  Built-in NAT and DHCP server supporting static IP address distributing.  Supports Parental Control and Access Control.  Connects Internet on demand and disconnects from the Internet when idle for PPPoE.  Provides 64/128/152-bit WEP encryption security and wireless LAN ACL (Access Control

List).

 Supports Flow Statistics.  Supports IPv6.  Supports firmware upgrade and Web management.

- 3 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

Off

The router has a system error.

1.4 Panel Layout

1.4.1 The Front Panel

Figure 1-1 LEDs on the front panel

The router’s LEDs are located on the front panel (View from left to right).

Name Status Indication

Off Power is off.

(Power)

On Power is on. On The router is initializing or maybe has a system error.

(System)

(Wireless

2.4GHz)

(Wireless

5GHz)

Flashing The router is working properly.

Off The wireless function is disabled.

Flashing

Off The wireless function is disabled.

Flashing

Off There is no device linked to the corresponding port.

The wireless function is enabled. The router is working on

2.4GHz radio band.

The wireless function is enabled. The router is working on 5GHz radio band.

(Ethernet)

(Internet)

Flashing There is an active device linked to the corresponding port.

There is a device linked to the corresponding port but there is no activity.

- 4 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

successfully added to the



Slow

Flash

(WPS)

(USB on

the rear panel)

Note:

1. After a device is successfully added to the network by WPS function, the WPS LED will keep on for about 5 minutes and then turn off.

2. The router is set to working concurrently in 2.4GHz and 5GHz by default. If you desire to choose the working frequency, please go to 4.5 Dual Band Selection

Quick

Flash

Off No storage device or printer is plugged into the USB port. On A s torage device or printer has connected to the USB port.

A wireless device is connecting to the network by WPS function. This process will last in the first 2 minutes.

A wireless device has been network by WPS function.

A wireless device failed to be added to the network by WPS function.

Table 1-1 The LEDs Description

1.4.2 The Rear Panel

The following parts are located on the rear panel (View from left to right).  Power: The Power socket is where you will connect the power adapter. Please use the

power adapter provided with this Archer C7 AC1750 Wireless Dual Band Gigabit Route r.

 On/Off: The switch for the power.  Wireless On/Off: The switc h for the wireless function.  USB: The USB port connects to a USB storage devic e or a US B printer.

Figure 1-2 Rear Panel sketch

- 5 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

 Internet: This port is where you will connect the DSL/cable Modem, or Ethernet.  Ethernet (1, 2, 3, 4): These ports (1, 2, 3, 4) connect the router to the local PC(s).  WPS/Reset:

Pressing this button for less than 5 seconds enables the WPS function. If your client devices, such as wireless adapters, that support Wi-Fi Protected Setup, then you can press this button to quickly establish a connection between the router and client devices and automatically configure wireless security for your wireless network.

Pressing this button for more than 5 seconds enables the Reset function. With the router powered on, press and hold the WPS/Reset button (approximately 8 seconds) until the SYS LED becomes quick-flash from slow-flash. And then release the button and wait the router to reboot to its factory default settings.

 Wireless antenna: To receive and transmit the wireless data.

- 6 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

Chapter 2. Connecting the router

2.1 System Requirements

 Broadband Internet Access Service (DSL/Cable/Ethernet)  One DSL/Cable Modem that has an RJ45 connector (which i s not necessary if the router is

connected directly to the Ethernet)

 PCs with a working Ethernet Adapter and an Ethernet cable with RJ45 connectors  TCP/IP protocol on each PC  Web browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari

2.2 Installation Environment Requirements

 Place the router in a well-ventilated place far from any heat er or heating vent  Avoid direct irradiation of any strong light (such as sunlight)  Keep at least 2 inches (5 cm) of clear space around the router  Operating Temperature: 0℃~40℃ (32℉~104℉)  Operating Humidity: 10%~90%RH, Non-condensing

2.3 Connecting the router

Before installing the router, make sure your PC is connected to the Internet through the broadband service successfully . If there is any problem, please contact your ISP. After that, please install the router ac cording t o the following st eps. Don't forget to pull out the power plug and keep your hands dry.

1. Power off your modem (if the modem has a backup battery, please remove it too.), and disconnect your existing router if you have one.

2. Connect the Internet port on your Router to the Modem’s LAN port with an Ethernet cable.

3. Connect your computer to one of the Ethernet ports labeled 1~4 on the Router with an Ethernet cable.

4. Power on the modem and wait for 2 minutes.

5. Make sure the Wireless On/Off switch is ON. Then pl ug the provide d powe r adapter i nto t he Power jac k and the other end to a standard electrical wall socket. Press the On/Off button to

- 7 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router



power on the Router. (Before you power on the Router, please make sure your computer is NOT connected to any other wireless network.)

Figure 2-1 Hardware Installation

Figure 2-2 USB Installation

Note:

If you want to use the router to share files or printer, plug the USB storage device to the USB port or connect the printer to the router with a mat ching cable.

- 8 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

Chapter 3. Quick Installation Guide

This chapter will show you how to configure the basic functions of your AC1750 Wireless Dual Band Gigabit Router using Quick Setup Wizard within mi nutes.

3.1 TCP/IP Configuration

The default IP address of the router is 192.168.0.1 and the default Subnet Mask is 255.255.255.0. These values can be changed as you desire. In this guide, we use all the default values for description.

Connect the local PC to the Ethernet ports of the router and then you can configure the IP address for your PC by the following method: Set up the TCP/IP Protocol in "Obtain an IP address automatically" mode on your PC. If you need instructions as to how to do this, pleas e refer to

Appendix B: Configuring the PC

Now, you can run the Ping command in the command prompt to verify the network connection between your PC and the router. The following example is in Windows XP OS.

Open a command prompt, and type ping 192.168.0.1, and then press Enter.  If the result dis played is similar to the Figure 3-1, it means the connection between your PC

and the router has been established well.

. Then the built-in DHCP server will assign IP address for the PC.

Figure 3-1 Success result of Ping command

- 9 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router



 If the result dis played is s imilar to Figure 3-2, it means the connection between your PC and

the router failed.

Figure 3-2 Failure result of Ping command

Please check the connection following these steps:

1. Is the connection between your PC and the router correct?

Note:

The 1/2/3/4 LEDs of Ethernet ports which you link to on the router and LEDs on your PC's adapter should be lit.

2. Is the TCP/IP configuration for your PC correct?

If the router's IP address is 192.168.0.1, your PC's IP address must be within the range of

192.168.0.2 ~ 192.168.0.254.

3. Is the default LAN IP of the router correct?

Note:

If the LAN IP of the modem connected with your rout er is 192.168.0.x, the default LAN IP of the router will automat ically switch from 192.168. 0.1 to 192.168.1.1 to avoid IP confli ct. Therefore, in order to verify the network connection between your PC and the router, you can open a command prompt, and type ping 192.168.1.1, and then press Enter.

Note:

- 10 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router



3.2 Quick Installation Guide

With a Web-based utility, it is easy to configure and manage the AC1750 Wireless Dual Band Gigabit Router. The Web-based utility can be used on any Windows, Macintosh or UNIX OS with a Web browser, such as Microsoft Internet Explorer, M ozilla Firefox or Apple Safari.

1. To access the configurat ion utility, open a web-br owser and type in the default IP address

http://tplinklogin.net

in the address field.

Figure 3-3 Log in the router

After a moment, a login window will appear, similar to Figure 3-4. Enter admin for the User Name and Password, both in lower case letters. Then click the OK button or press the Enter key.

Note:

If the above screen does not pop up, it means that your Web-browser has been set to a proxy. Go to Tools menu>Internet Opti ons>Connections>LAN Settings , in the screen that appears, cancel the Using Proxy checkbox, and click OK to finish it.

2. After successful login, the Quick Setup page will appear for you to quickly configure your router.

Figure 3-4 Login Windows

- 11 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

Figure 3-5 Quick Setup

3. Click Next, and then WAN Connection Type page will appear, shown in Figure 3-6.

Figure 3-6 WAN Connection Type

The router provides Auto-Detect function and supports three popular ways PPPoE, Dynamic IP, and Static IP and to connect to the Internet. It’s recommended that you make use of the Auto-Detect function. If you are sure of what kind of connection type your ISP provides, you can select the very ty pe and click Next to go on configuring.

4. If you select Auto-Detect, the router will automatically detect the connectio n type your ISP provides. Make sure the cable is securely plugged into the Internet port before detection. The appropriate configuration page will be displayed when an active Internet service is successfully detected by the router.

1) If the connection type detected is Dynamic IP, no configuration is needed for this step.

2) If the connection type detected is Static IP, the next screen will appear as shown in

Figure 3-7. Configure the following parameters and then click Next to continue.

- 12 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

Figure 3-7 Quick Setup - Static IP

 IP Address - This is the WAN IP address as seen by external users on the Internet

(including your ISP). Your ISP will provide you with the IP address you need to enter here. Enter the IP address into the field.

 Subnet Mask - The Subnet Mask is used for the WAN IP address . Your IPS wil l provid e

you with the subnet mask which is usually 255.255.255.0.

 Default Gateway - Your ISP will provide you with the Gateway address which is the ISP

server’s address. Enter the gateway IP address into the box if required.

 Primary DNS - Enter the DNS Server IP address into the box if required.  Secondary DNS - （Optional） If your ISP provides another DNS server, enter it into this

field.

3) If the connection type detected is PPPoE/Russian PPPoE, the next screen will appear as

shown in Figure 3-8. Configure the following parameters and then click Next to continue.

Figure 3-8 Quick Setup – PPPoE/Russia PPPoE

 User Name/Password - Enter the User Name and Password provided by your ISP.

These fields are case-sensitive. I f you have difficulty with this process, please contact your ISP.

- 13 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

 Confirm Password - Enter the password again to make sure that the password is

correct.

Check the radio button of Dynamic/Static IP to activate the secondary connection if your ISP provides an extra Connection type such as Dynamic/Static IP to connect to a local area network.

4) If the connection type detected is L2TP/ Russian L2TP, the next screen will appear as

shown in Figure 3-9.Configure the following parameters and then click Next to continue.

Figure 3-9 Quick Setup – PPTP/Russia PPTP

 User Name/Password - Enter the User Name and Password provided by your ISP.

These fields are case-sensitive. I f you have difficulty with this process, please contact your ISP.

Select Static IP if IP Address/ Subnet Mask/ Gateway and DNS server add ress have been provided by your ISP. Then please enter server IP address or domain name provided by your ISP, and also enter the corresponding parameters.

Select Dynamic IP if none of the above parameters are provided. Then you just need to enter server IP address or domain name provided by your ISP.

- 14 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

5) If the connection type detected is PPTP/Russian PPTP, the next screen will appear as

shown in Figure 3-10. Configure the following parameters and then click Next to continue.

Figure 3-10 Quick Setup – L2TP/Russia L2TP

 User Name/Password - Enter the User Name and Password provided by your ISP.

These fields are c ase-sensitive. If you have difficulty with this process , please contact your ISP.

Select Dynamic IP if none of the above parameters are provided. Then you just need to enter server IP address or domain name provided by your ISP.

5. After finishing WAN Connection Type selection, the Dual Band Selection page will appear as shown in Figure 3-11. Here we take “Concurrently with 2.4GHz and 5GHz (802.11a/b/g/n)” for example. Click Next to continue.

- 15 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

Figure 3-11 Quick Setup – Dual Band Selec tion

 2.4GHz - You can use the 2.4GHz band to connect to many classic wi reles s devic es l ik e

gaming consoles, laptops, DVRs, ect.

 5GHz - This band is les s crowded and is used for time-sensit ive music, video s treaming

or gaming. Using this band can avoid interference with 2.4GHz networks or noisy devices like cordless phones and microwave ovens.

6. Configure the basic parameters for 2.4GHz wireless network in the following screen as shown in Figure 3-12, and then click Next.

 Wireless Radio - Displays whether the wireless function is enabled or not.  Wireless Network Name - Also called the SSID (Service Set Identi fication). Enter a

value of up to 32 characters. The same name mus t be assigned to all wireles s devices in your network. The default SSID is set to be TP-LINK_2.4GHz_XXXXXX. This value is case-sensitive. For example, TEST is NOT the same as test.

Figure 3-12 Quick Setup – Wireless

- 16 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router



 Region - Select your region from the drop-down list. This field specifies the region

where the wireless function of the router can be used. It may be illegal to use the wireless function of the router in a region other than one of those specified in this field. If your country or region is not listed, please contac t your local government agency for assistance.

Note:

Limited by local law regulations, version for North America does not have region selection option.

 Wireless Security

 Disable Security - The wireless security function can be enabled or dis abled. If

 Enable Security (WPA-PSK/WPA2-PSK) – It’s selected by default, with the

 No Change - If you chose this option, wireless security configuration will not

disabled, the wireless stations will be able to c onnect the router without encryption.

default PSK password the same as the default PIN code.

change!

The above settings are only for basic wireles s parameters. For advanced settings, please check “More Advanced Wireless Settings”, and then you can set the f ollowing parameters.

 Band - This field displayed the operating frequency being configured.  Mode - This field determines the wireless mode which the router works on.

 11b only - Select if all of your wireless clients are 802.11b.  11g only - Select if all of your wireless clients are 802.11g.  11n only- Select only if all of your wireless clients are 802.11n.  11bg mixed - Select if you are using both 802.11b and 802.11g wireless clients.

 11bgn mixed - Select if you are using a mix of 802.11b, 11g, and 11n wireless

clients.

 Channel Width - Select any channel width from the drop-down list. The default setting

is “Auto”, which can adjust the channel width for your clients automatically.

- 17 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router



 Channel - This field determines which operating frequency will be used. It is not

necessary to change the wireless channel unless you not ice interference problems with another nearby access point. If you select “Auto”, then the AP will select the best channel automatically.

7. Configure the basic parameters for 5GHz wireless network in the following screen as shown in Figure 3-13, and then click Next.

Figure 3-13 Quick Setup – Wireless

 Wireless Radio - Choose from the drop-down list to enable or disable the wireless radio.  Wireless Network Name - Also called the SSID (Service Set Identification). Enter a

value of up to 32 characters. The same name must be assigned to all wireless devices in your network. The default SSID is set to be TP-LINK_5GHz_XXXXXX. This value is case-sensitive. For example, TEST is NOT the same as test.

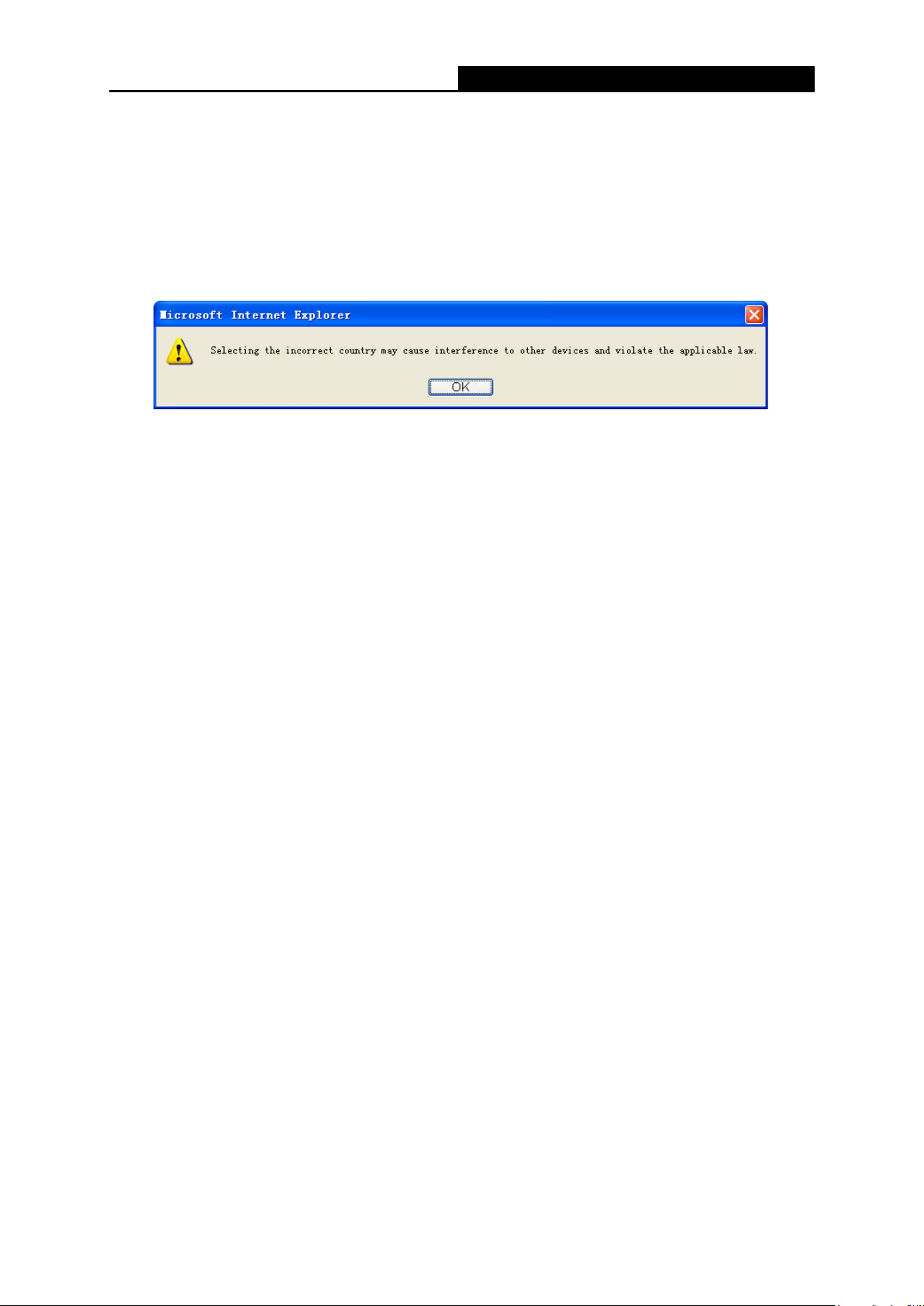

 Region - Select your region from the drop-down list. This field specifies the region where

the wireless function of the router can be used. It may be illegal to use the wireless function of the router in a region other than one of thos e specified in this field. If your country or region is not listed, please contact your local government agency for assistance.

Note:

Limited by local law regulations, version for North America does not have region selection option.

 Wireless Security

- 18 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

 Disable Security - The wireless security function can be enabled or dis abled. If

disabled, the wireless stations will be able to c onnect the router without encryption.

 Enable Security (WPA-PSK/WPA2-PSK) – It’s selected by default, with the

default PSK password the same as the default PIN code.

 No Change - If you chose this option, wireless security configuration will not

change!

The above settings are only for basic wireles s parameters. For advanced settings, please check “More Advanced Wireless Settings”, and then you can set the f ollowing parameters.

 Band - This field displayed the operating frequency being configured.  Mode - This field determines the wireless mode which the router works on.

 11an mixed - Select if you are usi ng both 802.11a and 802.11n wireless clients.  11a/n/ac mixed – S elect if you are using 802.11a, 802.11n and 802. 11ac wirel ess

clients.

 Channel - This field determines which operating frequency will be used. It is not

necessary to change the wireless channel unless you not ice interference problems with another nearby access point. If you select “Auto”, then the AP will select the best channel automatically.

8. Click the Finish button to complete the Quick Setup.

Figure 3-14 Quick Setup - Finish

- 19 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

Chapter 4. Configuring the router

This chapter will show each Web page's key functions and the configuration way.

4.1 Login

After your successful login, you will see the main menus on the left of the Web-based utility. On the right, there are the corresponding explanations and i nstructions.

The detailed explanations for each Web page’s key function are listed below.

4.2 Status

The Status page provides the current status information about the router. All information is read-only.

- 20 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

Figure 4-1 Status

- 21 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

4.3 Quick Setup

Please refer to 3.2 Quick Installation Guide.

4.4 Network

Figure 4-2 the Network menu There are three submenus under the Network menu (s hown in Figure 4-2): WAN, LAN and MAC

Clone. Click any of them, and you will be able to configure the corresponding function.

4.4.1 WAN

Choose menu “Network → WAN”, you can configure the IP parameters of the WAN on the screen below.

1. If your ISP provides the DHCP service, please choose Dynamic IP type, and the router will automatically get IP parameters from you r ISP. You can see the page as fol lows (Figure 4-3):

Figure 4-3 WAN – Dynamic IP

- 22 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router



This page displays the WAN IP parameters assigned dynamically by your ISP, including IP address, Subnet Mask, Default Gateway, etc. Click the Renew button to renew the IP parameters from your ISP. Click the Release but ton to release the IP parameters.

 MTU Size - The normal MTU (Maximum Transmission Unit) value for most Ethernet networks

is 1500 Bytes. It is not recommended t hat you change the def ault MTU Size unless required by your ISP.

 Use These DNS Servers - If your ISP gives you one or two DNS addresses, select Use

These DNS Servers and enter the primary and s econdary address es into the correct fields.

Otherwise, the DNS servers will be assigned dynamically from your ISP.

Note:

If you find error when you go to a website after entering the DNS addresses, it is likely that your DNS servers are set up improperly. You should contact your ISP to get DNS server addresses.

 Host Name - This option specifies the Host Name of the router.  Get IP with Unicast DHCP - A few ISPs' DHCP servers do not support the broadcast

applications. If you cannot get the IP Address normally, you can choose this option. (It is rarely required.)

Click the Save button to save your sett i ngs.

2. If your ISP provides a static or fixed IP Address, Subnet Mas k, Gateway and DNS setting, select Static IP. The Static IP settings page will appear, shown in Figure 4-4.

 IP Address - Enter the IP address in dotted-decimal notation provided by your ISP.

Figure 4-4 WAN - Static IP

- 23 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

 Subnet Mask - Enter the subnet Mask in dotted-decimal notation provided by your ISP,

usually is 255.255.255.0.

 Default Gateway - (Optional) Enter the gateway IP address in dotted-decimal notation

provided by your ISP.

 MTU Size - The normal MTU (Maximum Transmission Unit) value for most Ethernet networks

is 1500 Bytes. It is not recommended that you c hange the defa ult MTU Size unless required by your ISP.

 Primary/Secondary DNS - (Optional) Enter one or two DNS addresses in dotted-decimal

notation provided by your ISP.

Click the Save button to save your sett i ngs.

3. If your ISP provides a PPPoE connection, select PPPoE/Russia PPPoE option. And you should enter the following parameters (Figure 4-5):

 User Name/Password - Enter the User Name and P assword provided by your ISP. These

fields are case-sensitive.

 Secondary Connection - It’s available only for PPPoE Connec tion. If your ISP provides an

extra Connection type such as Dynamic/Static IP to connect to a local area network, then you can check the radio button of Dynamic/Static IP to activate this secondary connection.

Figure 4-5 WAN - PPPoE

- 24 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router



 Disabled - The Secondary Connection is disabled by default, so there is PPPoE

connection only. This is recommended.

 Dynamic IP - You can check this radio button to use Dynamic IP as the secondary

connection to connect to the local area network provided by ISP.

 Static IP - You can check this radio button to use Static IP as the secondary connection

to connect to the local area network provided by IS P.

 Connect on Demand - In this mode, the Internet connection can be terminated automatically

after a specified inactivity period (Max Idle Time) and be re-established when you attempt to access the Internet again. If you want your Internet connection keeps active all the time, please enter “0” in the Max Idle Time field.

Otherwise, enter the number of minutes you want

to have elapsed before your Internet access disconnects.

 Connect Automatically - The connec tion can be re-established automatically when it was

down.

 Time-based Connecting - The connection will only be established in the period from the

start time to the end time (both are in HH:MM format).

Note:

Only when you have configured the system time on “S ystem Tools → Time Settings” page, will the Time-based Connecting function can take eff ect.

 Connect Manually - You can click the Connect/Disconnect button to connect/disconnect

immediately. This mode als o supports the Max Idle Time function as Connect on Demand mode. The Internet connection can be disconnect ed automatically after a specified inactivity period and re-established when you attempt to access the I nternet again.

Click the Connect button to connect immediatel y. Click the Disconnect button to disconnect immediately.

Caution: Sometimes the connection cannot be terminated although you specify a time to Max Idle Time because some applications are visiting the Internet continually in the background.

If you want to do some advanced configurations, please click the Advanced button, and the page shown in Figure 4-6 will then appear:

- 25 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

Figure 4-6 PPPoE Advanced Settings

 MTU Size - The default MTU size is “1480” bytes, which is usually fine. It is not

recommended that you change the default MTU Size unless required by your ISP.

 Service Name/AC Name - The servic e name and AC (Access Concentrator) name should

not be configured unless you are sure it is necessary for your ISP.

In most cases, leaving

these fields blank will work.

 ISP Specified IP Address - If your ISP does not automatically assign IP addresses to the

router during login, please click “Use IP address specified by ISP” c heck box and enter the IP address provided by your ISP in dotted-decimal notation.

 Detect Online Interval - The router will detect Access Concentrator online at every int erval.

The default value is “0”. You can input the value between “0” and “120”. The value “0” means no detect.

 Primary DNS/Secondary DNS - If your ISP does not automatically assign DNS addresses to

the router d uring login, please click “Use the follow ing DNS servers” check box and enter the IP address in dotted-decimal notation of your ISP’s primary DNS server. If a secondary DNS server address is available, enter it as wel l .

Click the Save button to save your sett i ngs.

4. If your ISP provides BigPond Cable (or Heart Beat Signal) connection, please select BigPond Cable. And you should enter the following parameters (Figure 4-7):

- 26 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

Figure 4-7 WAN - BigPond Cable

 User Name/Password - Enter the User Name and P assword provided by your ISP. These

fields are case-sensitive.

 Auth Server - Enter the authenticating server IP address or host name.  Auth Domain - Type in the domain suffix server name based on your location.

e.g. NSW / ACT - nsw.bigpond.net.au

VIC / TAS / WA / SA / NT - vic.bigpond.net.au QLD - qld.bigpond.net.au

 MTU Size - The normal MTU (Maximum Transmission Unit) value for most Ethernet networks

is 1500 Bytes. It is not recommended that you c hange the defa ult MTU Size unless required by your ISP.

 Connect on Demand - In this mode, the Internet connection can be terminated automatically

 Connect Automatically - The connec tion can be re-established automatically when it was

down.

Otherwise, enter the number of minutes you want

- 27 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

 Connect Manually - You can click the Connect/Disconnect button to connect/disconnect

Click the Connect button to connect immediat ely. Click the Disconnect button to disconnect immediately.

Caution: Sometimes the connection cannot be terminated although you specify a time to Max Idle Time because some applications are visiting the Internet continually in the background.

Click the Save button to save your settings.

5. If your ISP provides L2TP connection, please select L2TP/Russia L2TP option. And you should enter the following parameters (Figure 4-8):

Figure 4-8 WAN - L2TP/Russia L2TP

 User Name/Password - Ent er the User Name and Password provided by your ISP. These

fields are case-sensitive.

- 28 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

 Dynamic IP/ Static IP - Choose either as you are given by your ISP. Click the Connect

button to connect immediately. Click the Disconnect button to disconnect immediately.

 Connect on Demand - You can configure the router to disconnect from your Internet

connection after a specified period of inactivity (Max Idle Time). If your Internet c onnection has been terminated due to inactivity, Connect on Demand enables the router to automatically re-establish your connection as soon as you attempt to access the Internet again. If you wish to activate Connect on Demand, check the radio button. If you want your Internet connection to remain active at all times, enter 0 in the Max Idle Time field. Otherwise, enter the number of minutes you want to have elapsed before your Internet connection terminates.

 Connect Automatically - Connect automaticall y after the router is disconnected. To use this

option, check the radio button.

 Connect Manually - You can configure the router to make it connect or disconnect manually.

After a specified period of inactivity (Max Idle Time), the router will disconnect from your Internet connection, and you will not be able to re-establish your connection automatically as soon as you attempt to access the Internet again. To use this option, check the radio button. If you want your Internet connection to remain active at all times, enter "0" in the Max Idle Time field. Otherwise, enter the number of minutes that you wish to have the Int ernet connecting last unless a new link is requested.

Caution: Sometimes the connection cannot be dis connected although you s pecify a time to Max Idle Time, because some applications are visiting the Internet continually in the bac kground.

Click the Save button to save your sett i ngs.

6. If your ISP provides PPTP connection, please select PPTP/Russia PPTP option. And you

should enter the following parameters (Figure 4-9):

- 29 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

Figure 4-9 PPTP Settings

 User Name/Password - Ent er the User Name and Password provided by your ISP. These

fields are case-sensitive.

 Dynamic IP/ Static IP - Choose either as you are given by your ISP and enter the IS P’s IP

address or the domain name. If you choose static IP and enter the domain name, you should also enter the DNS assigned

by your ISP. And click the Save button. Click the Connect button to connect immediately. Click the Disconnect button to disconnect

immediately.

 Connect on Demand - You can configure the router to disconnect from your Internet

- 30 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router



Internet connection to remain active at all times, enter “0” in the Max Idle Time field. Otherwise, enter the number of minutes you want to have elapsed before your Internet connection terminates.

 Connect Automatically - Connect automaticall y after the router is disconnected. To use this

option, check the radio button.

 Connect Manually - You can configure the router to make it connect or disconnect manually.

After a specified period of inactivity (Max Idle Time), the router will disconnect from your Internet connection, and you will not be able to re-establish your connection automatically as soon as you attempt to access the Internet again. To use this option, click the radio button. If you want your Internet connection to remain active at all times, enter "0" in the Max Idle Time field. Otherwise, enter the number in m inutes that you wish to have the Internet conne cting last unless a new link is requested.

Caution: Sometimes the connection cannot be dis connected although you s pecify a time to Max Idle Time because some applications are visiting the Internet continually in t he background.

Click the Save button to save your sett i ngs.

Note:

If you don't know how to choose the appropriate connect ion type, c lick the Detect button to allow the router to automatically search your Internet connection for servers and protocols. The connection type will be reported when an active Internet servi ce is successfully detected by the router. This report is for your reference only. To make sure the connect ion type your ISP provides, please refer to the ISP. The various types of Internet connections that the router can detect are as follows:

 PPPoE - Connections which use PPPoE that requires a user name and password.  Dynamic IP - Connections which use dynamic IP address assignment.  Static IP - Connections which use s tatic IP address assignment.

The router cannot detect PPTP/L2TP/Big Pond connections with your ISP. If your ISP uses one of these protocols, then you must configure your connection manually.

4.4.2 LAN

Choose menu “Network → LAN”, you can configure the IP parameters of the LAN on the screen as below.

- 31 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router



Figure 4-10 LAN

 MAC Address - The physical address of the router, as seen from the LAN. The value can't

be changed.

 IP Address - Enter the IP address of your router or reset it in dotted-decimal notation

(factory default: 192.168.0.1).

 Subnet Mask - An address code that determines the size of the network. Normally use

255.255.255.0 as the subnet mask.

Note:

1) If you change the IP Address of LAN, you must use the new IP Address to log in the router.

2) If the new LAN IP Address you set is not in the same subnet, the IP Address pool of the DHCP server will change accordingly at the same tim e，while the Virtual Server and DMZ Host will not take effect until they are re-configured.

4.4.3 MAC Clone

Choose menu “Network → MAC Clone”, you can configure the MAC address of the WAN on the screen below,

Figure 4-11:

Some ISPs require that you register the MAC Address of your adapter. Changes are rarely needed here.

Figure 4-11 MAC Address Clone

- 32 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router



 WAN MAC Address - This fi eld displays the current MAC address of the Internet port. If

your ISP requires you to register the MAC address, pleas e enter the correct MAC address into this field in XX-XX-XX-XX-XX-XX format (X is any hexadecimal digit).

 Your PC's MAC Address - This field displays the MAC address of the PC that is managing

the router. If the MAC address is required, you can cli ck the Clone MAC Address button and this MAC address will fill in the WAN MAC Address field.

Click Restore Factory MAC to restore the MAC address of Internet port to the fac tory default value. Click the Save button to save your sett i ngs.

Note:

Only the PC on your LAN can use the MAC Address Clone function.

4.5 Dual Band Selection

Choose menu “Dual Band Selection”, and you can choose the working frequency for your router. It is recommended that your computers and devices running video and voice applications us e the 5GHz band, while your guest access and computers that are only browsing the web use the

2.4GHz band.

Figure 4-12 Dual Band Selection

 Concurrently with 2.4GHz and 5GHz (802.11a/b/g/n) - Choose this option, and then the

router will work concurrently in 2.4GHz and 5GHz frequency.

 Only work in 2.4GHz (802.11b/g/n) - Choose this option, and then the router will only work

in 2.4GHz frequency. You can use the 2.4GHz band to connect to many classic wirel ess devices like gaming consoles, laptops, DVRs, ect.

 Only work in 5GHz (802.11a/n) - Choose this option, and then the router will only work in

5GHz frequency. This band is less crowded and is used for time-sensitive music, video streaming or gaming. Using this band can avoid interference wi th 2.4GHz networks or noisy devices like cordless phones and microwave ovens.

- 33 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

4.6 Wireless 2.4GHz

Figure 4-13 Wireless menu

There are six s ubmenus under the Wireless menu (shown in Figure 4-13): Wireless Settings,

WPS, Wireless Security, Wireless MAC Filtering, Wireless Advanced and Wireless Statistics. Click any of them, and you will be able to configure the corresponding f unctions.

4.6.1 Wireless Settings

Choose menu “Wireless 2.4GHz → Wireless Settings”, you can configure the basic settings for the wireless network of 2.4GHz on this page.

Figure 4-14 Wireless Settings – 2.4GHz

 Wireless Network Name - Also called the SSID (Service Set Identification). Enter a value of

up to 32 characters. The same name must be assigned to all wireless devices in your network. Considering your wireless network security, the default SSID is set to be TP-LINK_2.4GHz_XXXXXX. This value is case-sensitive. For example, TEST is NOT the same as test.

- 34 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router



 Region - Select your region from the drop-down list. This field specifies the region where the

wireless function of the router can be used. It may be illegal to use the wireless function of the router in a region other t han one of thos e specified i n this field. I f your country or regi on is not listed, please contact your local government agency for assistance.

When you select your local region from the drop-down list, click the Save button, then the Note Dialog appears. Click OK.

Note Dialog

Note:

Limited by local law regulations, ver sion for North America does not have region selection option.

 Mode - Select the desired mode.

 11b only - Select if all of your wireless clients are 802.11b.  11g only - Select if all of your wireless clients are 802.11g. When 802.11g mode is

selected, only 802.11g wireless st ati ons can connect to the router.

 11n only- Select only if all of your wireless cli ents are 802.11n. When 802.11n mode is

selected, only 802.11n wireless stati ons can connect to the router.

 11bg mixed - Select if you are using bot h 802.11b and 802.11g wireless clients.  11bgn mixed - Select if you are using a mix of 802.11b, 11g, and 11n wireless clients. It

is strongly recommended that you set the Mode to 802.11bgn mixed, and all of

802.11b, 802.11g, and 802.11n wireless stations can connect to the router.

 Channel Width - Select the channel width from the drop-down list. The default setting is

automatic, which can adjust the channel width for your clients automatically.

Note:

If 11b only, 11g only, or 11bg mixed is selected in the Mode field, the Channel Width selecting field will turn grey and the value will becom e 20M, which is unable to be changed.

 Channel - This field determines which operating frequency will be used. The default channel

is set to Auto, so the AP will choose the best channel aut omatically. It is not necessary to change the wireless channel unless you notice int erference problems with another nearby access point.

- 35 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

 Enable SSID Broadcast - When wireless clients survey the local area for wireless networks

to associate with, they will detect the SSID broadcast by the router. If you select t he Enable SSID Broadcast checkbox, the Wireless router will broadcast its name (SSID) on the air.

 Enable WDS Bridging - Check this box to enable WDS. With this function, the router can

bridge two or more WLANs. If this checkbox is selected, you wil l have to set the following parameters as shown in Figure 4-15. Make sure the following settings are correct.

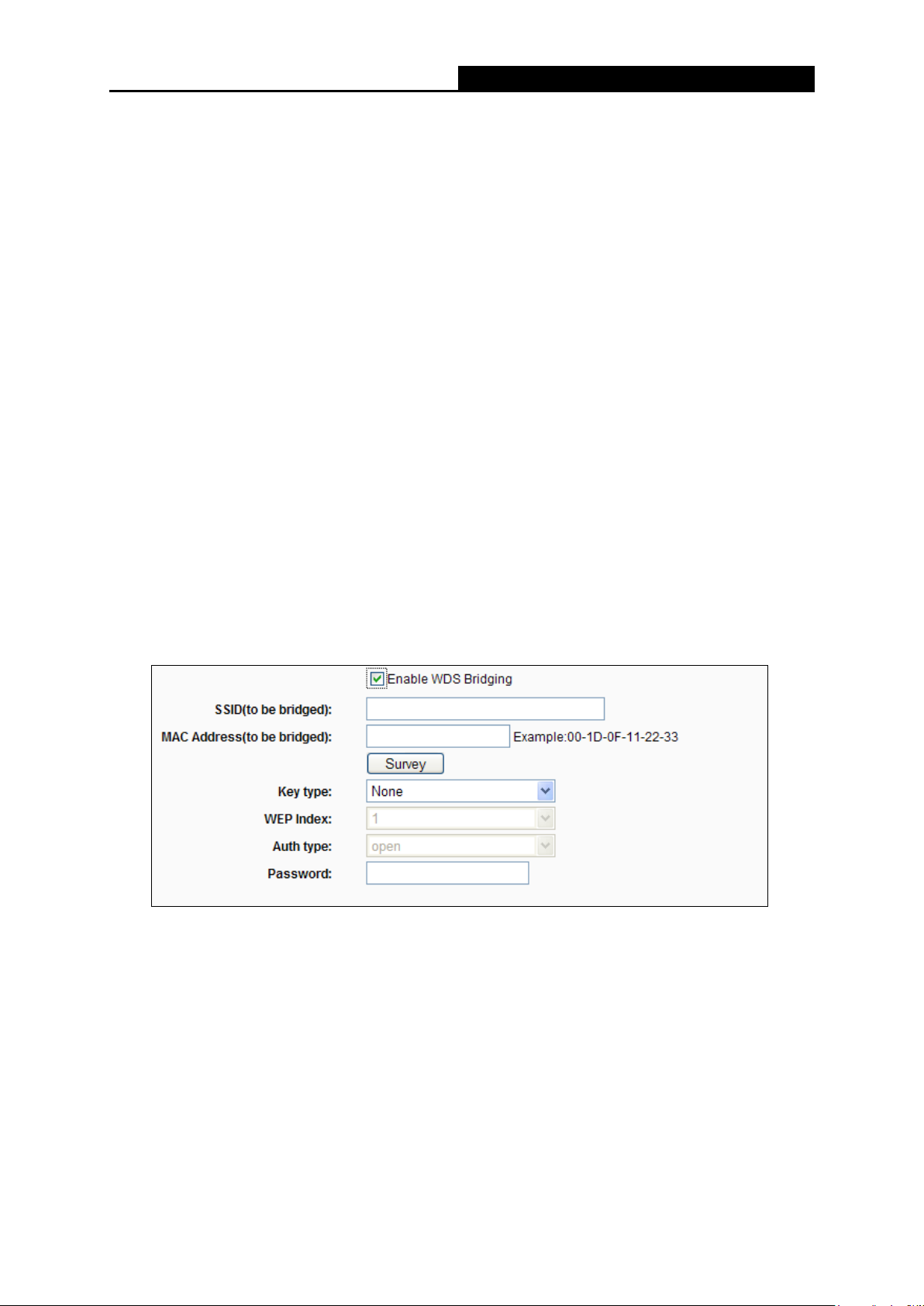

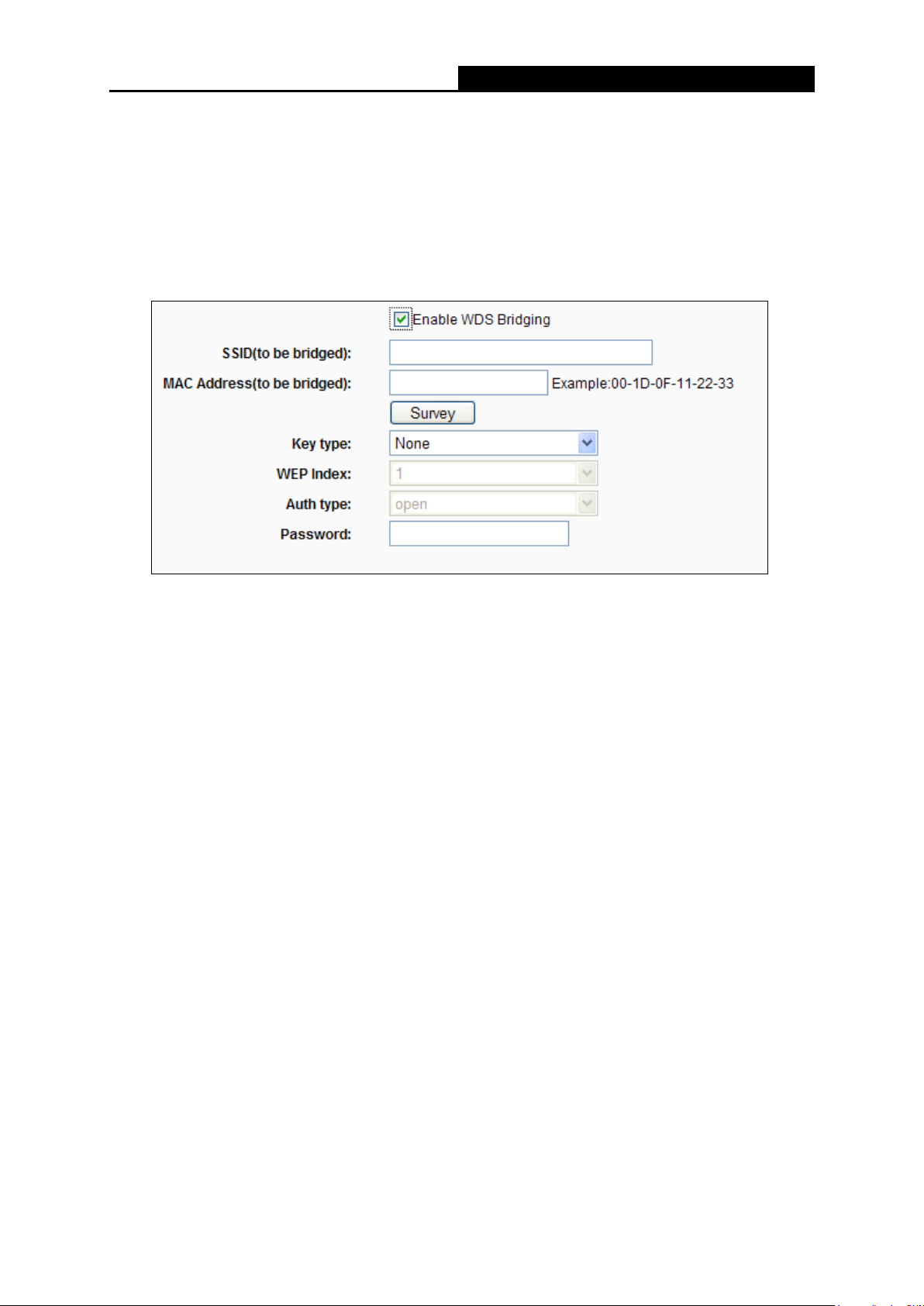

Figure 4-15 WDS Setting

 SSID (to be bridged) - The SSID of the AP your router is going to connect to as a client.

You can also use the search function to select the SSID to join.

 MAC Address (to be bridged) - The BSSID of the AP your router is going to connect to

as a client. You can also use the search functi on to s elect the BSSID to join.

 Survey - Click this button, you can search the AP which runs in the current channel.  Key type - This option should be chos en accordi ng to the AP 's securit y configuration. It

is recommended that the security type is the sam e as your AP's security type

 WEP Index - This option should be chosen if the key type is WEP(ASCII) or WEP(HEX).

It indicates the index of the WEP key.

 Auth Type - This option should be chosen if the key type is WEP(A SCI I) or WEP(HE X).

It indicates the authorization type of the Root A P.

 Password - If the AP your router i s going to connect needs password, you need to fill

the password in this blank.

4.6.2 WPS

Choose menu “Wireless 2.4GHz →WPS”, you can the screen as shown in Figure 4-16. This section will guide you to add a new wir eless device to an exis ting network qu ickly by WPS (Wi-Fi Protected Setup) function.

- 36 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router



Figure 4-16 WPS

 WPS Status - Enable or disable the WPS function here.  Current PIN - The current value of the router's PIN is displayed here. The default PIN of the

router can be found in the label or User Guide.

 Restore PIN - Restore the PIN of the router to its default.  Gen New PIN - Click this button, and then you can get a new random v alue for the router's

PIN. You can ensure the n etwork security by generating a new PIN.

 Disable router’s PIN - If t his box is checked, and then wireless clients will not be able to

connect to the wireless network with PIN code.

 Add device - You can add a new device to the exist ing network manually by clicking this

button.

If the wireless adapter supports Wi-Fi Protected Setup (WPS), you can establish a wireless connection between wireless adapter and router using eit her Push Button Configuration (PBC) method or PIN method.

Note:

To build a successful connection by WPS, you should also do the corresponding configuration of the new device for WPS function meanwhile.

I. Use th e W i-Fi Protected Setup Button

Use this method if your client device has a WPS button. Step 1: Press the WPS/Reset button on the back panel of the router, as shown in Figure 4-17.

You can al so keep the defaul t WPS status as Enabled and click the Add devi ce button in Figure 4-16. Then choose “Press the button of the new device in two minutes” and click Connect, shown in Figure 4-18.

- 37 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

Figure 4-17

Figure 4-18 Add A New Device

Step 2: Press and hold the WPS button of the client device. Step 3: The Wi-Fi Protected Setup LED flashes for two minutes during the Wi-Fi Protected Setup

process.

Step 4: When the WPS LED is on, the client device has successfully connected to t he router.

II. Enter the client devi ce’s PIN on the router

Use this method if your client device does not have the WPS button, but has a Wi-Fi P rotected Setup PIN number.

Step 1: Keep the default WPS status as Enabled and click the Add device button in Figure

4-16, then Figure 4-19 will appear.

Step 2: Enter the PIN number from the client device in the field on the WPS screen above. Then

click Connect button.

Step 3: “Connect successfully” will appear on the screen of Figure 4-19, which means the

client device has successfully connected to the router.

Figure 4-19 Add A New Device

- 38 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router



III. Enter the router’s PIN on your client device

Use this method if your client device asks for t he router’s PIN number. Step 1: On the client device, enter the PIN number listed on the router’s Wi-Fi Protected Setup

screen, shown in Figure 4-16 (It is also labeled on the bottom of the router).

Step 2: The Wi-Fi Protected Setup LED flashes for two minutes during the Wi-Fi Protected

Setup process.

Step 3: When the WPS LED is on, the client device has successfully connected to the router.

Note:

1) The WPS LED on the router will light green for five minutes if the device has been

successfully added to the network.

2) The WPS function cannot be configured if the Wireless Function of the router is disabled.

Please make sure the Wireless Function is enabl ed before configuring the WPS.

4.6.3 Wireless Security

Choose menu “Wireless 2.4GHz → Wireless Security”, you can configure the security settings of your wireless network. There are five wireless security modes supported by the router: WPA-Personal, WPA2-Personal, WPA-Enterprise, WPA2-Enterprise, and WEP.

Figure 4-20 Wireless Security

- 39 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router



 Disable Security - If you do not want to use wireless security, check this radio button. But it’s

strongly recommended to choose one of the following modes to enable security.

 WPA/WPA2-Personal - It’s the WPA/WPA2 authentication type based on pre-shared

passphrase. The router is configured by this security type by default.

• Version - you can choose the version of the WPA-PSK securi ty on the drop-down list. The

default setting is Automatic, which can select WPA2-PSK (Pre-shared key of WPA) automatically based on the wireless station's capability and request.

• Encryption - When WPA-PSK or WPA is set as the Authent ication Type, you can select

either Automatic, or TKIP or AES as Encryption.

Note:

If you check the WPA/WPA2-Personal radio button and choose TKIP encryption, you will find a notice in red as shown in Figure 4-21.

Figure 4-21 WPA/WPA2 – Personal

WPA-PSK (Pre-shared key of WPA) or

• PSK Password - You can enter ASCII characters between 8 and 63 characters or 8 to 64

Hexadecimal characters. The default password is the same with the default PIN code, which is labeled on the bottom of the router or can be found in Figure 4-16.

• Group Key Update Period - Specify the group key update interval in seconds. The value

should be 30 or above. Enter 0 to disable the updat e.

 WPA/WPA2- Enterprise - It’s based on Radius Server.

• Version - you can choose the version of the WPA security on the drop-down list. The

default setting is Automatic, which can select (WPA version 2) automatically based on the wireless st ation's capability and request.

• Encryption - You can select either Automatic, or TKIP or AES.

Note:

If you check the WPA/WPA2-Enterprise radio button and choose TKIP encryption, you will find a notice in red as shown in Figure 4-22.

WPA (Wi-Fi Protected Access) or WPA2

- 40 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

Figure 4-22 WPA/WPA2 - Enterprise

• Radius Server IP - Enter the IP address of the Radius server.

• Radius Port - E nter the port number of the Radius server.

• Radius Password - Enter the password for the Radius server.

• Group Key Update Period - Specify the group key updat e interval in seconds. The value

should be 30 or above. Enter 0 to disable the updat e.

 WEP - It is based on the IEEE 802.11 standard. If you check this radio button, you will find a

notice in red as show in Figure 4-23.

Figure 4-23 WEP

• Type - y ou can choose the type for the WEP security on the drop-down list. The default

setting is Automatic, which can select automatically based on the wireless station's capability and request.

• WEP Key Format

- Hexadecimal and ASCII formats are provided here. Hexadecimal

Shared Key or Open System authentication type

format stands for any combination of hexadecimal digits (0-9, a-f, A-F) in the specified length. ASCII format stands for any combinat ion of keyboard characters in the specified length.

• WEP Key - Select which of the four keys will be used and enter the matching WEP key that

you create. Make sure these values are identical on all wireless stations in your network.

- 41 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router



• Key Type - You can select the WEP key length (64-bit, or 128-bit, or 152-bit.) for

encryption. "Disabled" means this WEP key ent ry i s invalid.

64-bit -

not promoted) or 5 ASCII characters. 128-bit - You can enter 26 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is

not promoted) or 13 ASCII characters. 152-bit - You can enter 32 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is

not promoted) or 16 ASCII characters.

If you do not set the key, the wireless security function is still disabled even if you have selected Shared Key as Authentication Type.

Be sure to click the Save button to save your setti ngs on this page.

You can enter 10 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is

Note:

4.6.4 Wireless MAC Filtering

Choose menu “Wireless 2.4GHz → Wireless MAC Filtering”, you can control the wireless access by configuring the Wireless MAC Filteri n g function, shown in

Figure 4-24.

Figure 4-24 Wireless MAC Filtering

To filter wireless users by MAC Address, click Enable. The default setting is Disabled.

 MAC Address - The wireless station's MAC address that you want to filter.  Status - The status of this entry, either Enabled or Disabled.  Description - A simple description of the wireless station.

To Add a Wireless MAC Address filtering entry, click the Add New… button. The "Add or Modify Wireless MAC Address Filtering entry" page will appear, shown in Figure 4-25:

- 42 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

Figure 4-25 Add or Modify Wireless MAC Address Filtering entry

To add or modify a MAC Address Filtering entry, follow these instructions:

1. Enter the appropriate MAC Address into the MAC Address field. The format of the MAC Address is XX-XX-XX-XX-XX-XX (X is any hexadecimal digit). For example: 00-0A-EB-B0-00-0B.

2. Give a simple description for the wireless station in the Description field. For example: Wireless station A.

3. Select Enabled or Disabled for this entry on the Status drop-down list.

4. Click the Save button to save this entry.

To modify or delete an existing entry:

1. Click the Modify in the entry you wa nt to modify. If you want to delete the entry, click the Delete.

2. Modify the information.

3. Click the Save button.

Click the Enable All button to make all entries enabled Click the Disable All button to make all entries dis abled. Click the Delete All button to delete all entries. Click the Next button to go to the next page. Click the Previous button to return to the previous page. For example: If you desire that the wir eless station A with M AC address 00-0A-EB-B0-00-0B and

the wireless station B wi th MAC address 00-0A-EB-00-07-5F are able to acces s the router, but all the other wireless stations cannot access the router, you can configure the Wireless MAC Address Filtering list by following these steps:

1. Click the Enable button to enable this function.

- 43 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

2. Selec t the radio button “Allow the entri es specified by a ny enabled entri es in the list to access” for Filtering Rules.

3. Delete al l or disable all entries if there are any entries already.

4. Click the

1) Enter the MAC address 00-0A-EB-B0-00-0B/00-0A-EB-00-07-5F in the M AC Address

2) Enter wireless station A/B in the Description field.

3) Select Enabled in the Status drop-down list.

4) Click the Save button.

5) Click the Back button.

The filtering rules that configured should be sim ilar to the following list:

Add New... button.

field.

4.6.5 Wireless Advanced

Choose menu “Wireless 2.4GHz → Wireless Advanced”, you can configure the advanced settings of your wireless network.

Figure 4-26 Wireless Advanced

 Transmit Power - Here you can specify the transm it power of router. You can selec t High,

Middle or Low which you would like. High is the default setting and is recommended.

- 44 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router



 Beacon Interval - Enter a value between 20-1000 milliseconds for Beacon Interval here.

The beacons are the packets sent by the router to synchronize a wireless network. Beacon Interval value determines the time interval of t he beacons. The default value is 100.

 RTS Threshold - Here you can specify the RTS (Request to Send) Threshold. If the pack et

is larger than the specified RTS Threshold size, the router will send RTS frames to a particular receiving station and negotiate the sendi ng of a data frame. The default value is

2346.

 Fragmentation Threshold - Thi s value is the maximum size determining whether packets

will be fragmented. Setting t he Fragmentation T hreshold too l ow may result i n poor network performance because of excessive packets. 2346 is the default setting and is recommended.

 DTIM Interval - This value determines the interval of the Delivery Traffic Indication Message

(DTIM). A DTIM field is a countdown field informing clients of the next window for listening to broadcast and multicast messages. When the router has buffered broadcast or multicast messages for associated clients, it sends the next DTIM with a DTIM Interval value. You can specify the value between 1-15 Beacon Intervals. The default value is 1, which indicates the DTIM Interval is the same as Beacon Interval.

 Enable WMM - WMM function can guarantee the packets with high-priority messages being

transmitted preferentially. It is strongly recomm ended.

 Enable Short GI - This function is recom mended for it will increase the data capacity by

reducing the guard interval time

 Enabled AP Isolation - This function can isolate wireless stations on your network from

each other. Wireless devices will be able to communic ate with the router but not with each other. To use this function, check this box. AP Is olat i on is disabled by default.

Note:

If you are not familiar with the setting it ems in this page, it's strongly recom mended to keep the provided default values; otherwise it may resul t in lower wireless network performance.

4.6.6 Wireless Statistics

Choose menu “Wireless 2.4GHz → Wireless Statistics”, you can see the MAC Address, Current Status, Received Packets and Sent Packets for each connected wireless station.

- 45 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router



Figure 4-27 Wireless Statistics

 MAC Address - The connected wireless station's MAC address  Current Status - The connected wireless station's running status, one of STA-AUTH/

STA-ASSOC/ STA-JOINED/ WPA/ WPA-PSK/ WPA2/ WPA2-PSK/ AP-UP/ AP-DOWN/ Disconnected

 Received Packets - Packets received by the station  Sent Packets - Packets sent by the stat ion

You cannot change any of the values on this page. To update this page and to show the current connected wireless stations, click on the Refresh button.

If the numbers of connected wireless stations go beyond one page, click the Next button to go to the next page and click the Previous button to return the previous page.

Note:

This page will be refreshed automatically every 5 seconds.

4.7 Wireless 5GHz

Figure 4-28 Wireless menu There are six submenus under the Wireless menu (shown in Figure 4-13): Wireless Settings,

WPS, Wireless Security, Wireless MAC Filtering, Wireless Advanced and Wireless Statistics. Click any of them, and you will be able to configure the corresponding f unctions.

- 46 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router



4.7.1 Wireless Settings

Choose menu “Wireless 5GHz → Wireless Settings”, you can configure the basic settings for the wireless network of 5GHz on this page.

Figure 4-29 Wireless Settings – 5GHz

 Wireless Network Name - Also called the SSID (Service Set Identification). Enter a value of

up to 32 characters. The same name must be assigned to all wireless devices in your network. Considering your wireless network security, the default SSID is set to be TP-LINK_5GHz_XXXXXX. This value is case-sensitive. For example, TEST is NOT the same as test.

 Region - Select your region from the drop-down list. This field specifies the region where the

When you select your local region from the drop-down list, click the Save button, then the Note Dialog appears. Click OK.

Note:

Limited by local law regulations, version for Nort h America does not have region selection option.

Note Dialog

- 47 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

 Mode - Select the desired mode.

 11a only - Select if all of your wireless clients are 802.11a. When 802.11a mode is

selected, only 802.11a wireless stations can connect to the router.

 11n only- Select only if all of your wireless cli ents are 802.11n. When 802.11n mode is

selected, only 802.11n wireless st ati ons can connect to the router.

 11an mixed - Select if you are using both 802.11a and 802.11n wireless clients. It is

strongly recommended that you set the Mode 11an mixed, and all of 802.11a and

802.11n wireless stations can connect to the router.

 Channel - This field determines which operating frequency will be used. The default channel

is set to Auto, so the router will choose the best channel automatically. It is not necessary to change the wireless channel unless you notice int erference problems with another nearby access point.

 Enable SSID Broadcast - When wireles s clients survey th e local area for wireless network s

to associate with, they will detect the SSID broadcast by the router. If you select the Enable SSID Broadcast checkbox, the Wireless router will broadcast its name (SSID) on the air.

 Enable WDS Bridging - C heck this box to enable WDS. With this function, the router can

bridge two or more WLANs. If this checkbox is selected, you will have to set the following parameters as shown in Figure 4-30. Make sure the following settings are correct.

Figure 4-30

 SSID (to be bridged) - The SSID of the AP your router is going to connect to as a client.

You can also use the search function to select the SSID to join.

 MAC Address (to be bridged) - The BSSID of the AP your router is going to connect to

as a client. You can also use the search functi on to s elect the BSSID to join.

 Survey - Click this button, you can search the AP which runs in the current channel.  Key type - This option should be chos en accordi ng to the AP 's securit y configuration. It

is recommended that the security type is the sam e as your AP's security type

- 48 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router



 WEP Index - This option should be chosen if the key type is WEP(ASCII) or

WEP(HEX).It indicates the index of the WEP k ey.

 Auth Type - This option should be chosen if the key type is WEP(ASCII) or

WEP(HEX).It indicates the authorization t ype of the Root AP.

 Password - If the AP your router i s going to connect needs password, you need to fill

the password in this blank.

4.7.2 WPS

Choose menu “Wireless 5GHz →WPS”, you can the screen as shown in Figure 4-31. This section will guide you to add a new wir eless device to an exis ting network qu ickly by WPS (Wi-Fi Protected Setup) function.

Figure 4-31 WPS

 WPS Status - Enable or disable the WPS function here.  Current PIN - The current value of the router's PIN is displayed here. The default PIN of the

router can be found in the label or User Guide.

 Restore PIN - Restore the PIN of the router to its default.  Gen New PIN - Click this button, and then you can get a new random v alue for the router's

PIN. You can ensure the n etwork security by generating a new PIN.

 Add device - You can add a new device to the exist ing network manually by clicking this

button.

Note:

To build a successful connection by WPS, you should also do the corresponding configuration of the new device for WPS function meanwhile.

- 49 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

I. Use th e W i-Fi Protected Setup Button

Use this method if your client device has a Wi-Fi Protected Setup button. Step 1: Press the WPS/Reset button on the bac k panel of the router, as shown in Figure 4-32.

Y ou can also keep the default WPS status as Enabled and click the Add device button in Figure 4-31. Then choose “Press the button of the new device in two minutes” and click Connect, shown in Figure 4-33.

Figure 4-32

Figure 4-33 Add A New Device

Step 2: Press and hold the WPS button of the client devi ce directly. Step 3: The Wi-Fi Protected Setup LED flashes for two minutes during the Wi-Fi Protected Setup

process.

Step 4: When the WPS LED is on, the client device has successfully connected to the router.

II. Enter the client devi ce’s PIN on the router

Use this method if your client device does not have the WPS button, but has a Wi-Fi Protected Setup PIN number.

Step 1: Keep the default WPS status as Enabled and click the Add device button in Figure 4-31,

then Figure 4-34 will appear.

Figure 4-34 Add A New Device

- 50 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router



Step 2: Enter the PIN number from the client device in the field on the above WPS screen. Then

click Connect button.

Step 3: “Connect successfully” will appear on the screen of Figure 4-34, which means the client

device has successfully connected to the router.

III. Enter the router’s PIN on your client device

Use this method if your client device asks for t he router’s PIN number. Step 1: On the client devi ce, enter the PIN number listed on the router’s Wi-Fi Protected Setup

screen, shown in Figure 4-31 (It is also labeled on the bottom of the router).

Step 2: The Wi-Fi Protected Setup LED flashes for two minutes during the Wi-Fi Protected Setup

process.

Step 3: When the WPS LED is on, the c lient device has successfully connected to the router.

Note:

1) The WPS LED on the router will light green for five minutes if the device has been successfully added to the network.

2) The WPS function cannot be configured if the Wireless Function of the router is disabled. Please make sure the Wireless Function is enabl ed before configuring the WPS.

4.7.3 Wireless Security

Choose menu “Wireless 5GHz → Wireless Security”, you can configure the security settings of your wireless network.

There are five wireless securi ty modes supported by the router: WPA-Personal, WPA2-Personal, WPA-Enterprise, WPA2-Enterprise, and WEP.

- 51 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router



Figure 4-35 Wireless Security

 Disable Security - If you do not want to use wireless security, check this radio button. But it’s

strongly recommended to choose one of the following modes to enable security.

 WPA/WPA2-Personal - It’s the WPA/WPA2 authentication type based on pre-shared

passphrase. The router is configured by this security type by default.

• Version - you can choose the version of the WPA-PS K security on the drop-down list.

The default setting is Automatic, which can select or WPA2-PSK (Pre-shared k ey of WPA) automatically based on the wireless stat ion's capability and request.

• Encryption - When WPA-PSK or WPA is set as the Authentication Type, you can select

either Automatic, or TKIP or AES as Encrypt ion.

Note:

If you check the WPA/WPA2-Personal radio button and c hoose TKIP encryption, you will find a notice in red as shown in Figure 4-36.

WPA-PSK (Pre-shared key of WPA)

- 52 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router



Figure 4-36 WPA/WPA2 – Personal

• PSK Password - You can enter ASCII charac ters between 8 and 63 characters or 8 to

64 Hexadecimal characters. The default password is the same with the default PIN code, which is labeled on the bottom of the router or can be found in Figure 4-31.

• Group Key Update Period - Specify the group key update interval in seconds. The

value should be 30 or above. Enter 0 to disable the update.

 W PA /WPA2- Enterprise - It’s based on Radius Server.

• Version - you can choose t he version of the WPA security on the drop-down list . The

default setting is Automatic, which can select (WPA version 2) automatically based on the wireless st ation's capability and request.

• Encryption - You can select either Automatic, or TKIP or AES.

Note:

If you check the WPA/WPA2-Enterprise radio button and choos e TKIP encryption, you will

find a notice in red as shown in Figure 4-37.

• Radius Server IP - Enter the IP address of the Radius server.

Figure 4-37 WPA/WPA2 - Enterprise

WPA (Wi-Fi Protected Access) or WPA2

• Radius Port - Enter the port number of the Radius server.

• Radius Password - Enter the password for the Radius server.

• Group Key Update Period - Specify the group key update interval in seconds. The

value should be 30 or above. Enter 0 to disable the update.

- 53 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router



 WEP - It is based on the IEEE 802.11 standard. If you check this radio button, you will find a

notice in red as show in Figure 4-38.

Figure 4-38 WEP

• Type - you can choose the type for the WEP security on the drop-down list . The default

setting is Automatic, which can select type automatically based on the wireless st ation's capability and request.

• WEP Key Format

format stands for any combination of hexadecimal digi ts (0-9, a-f, A-F) in the specified length. ASCII format stands for any combination of keyboard characters in the specified length.

• WEP Key - Selec t which of the four keys will be u sed and enter the matching WEP key

that you create. Make sure these values are identical on all wireless stations in your network.

• Key Type - You can select the WEP key length (64-bit, or 128-bit, or 152-bit.) for

encryption. "Disabled" means this WEP key ent ry i s invalid.

64-bit -

is not promoted) or 5 ASCII characters. 128-bit - You can enter 26 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key

is not promoted) or 13 ASCII characters.

You can enter 10 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key

- Hexadecimal and ASCII formats are provided here. Hexadecimal

Shared Key or Open System authentication

152-bit - You can enter 32 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not promoted) or 16 ASCII characters.

Note:

If you do not set the key, the wireless security function is still disabled even if you have selected Shared Key as Authentication Type.

Be sure to click the Save button to save your setti ngs on this page.

- 54 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

4.7.4 Wireless MAC Filtering

Choose menu “Wireless → MAC Filtering”, you can control the wireless access by configuring the Wireless MAC Filtering function, shown in

Figure 4-39 Wireless MAC Filtering

To filter wireless users by MAC Address, click Enable. The default setting is Disabled.

Figure 4-24.

To Add a Wireless MAC Address filtering entry, click the Add New… button. The "Add or Modify Wireless MAC Address Filtering entry" page will appear, shown in Figure 4-25:

Figure 4-40 Add or Modify Wireless MAC Address Filtering entry

To add or modify a MAC Address Filtering entry, follow these instructions:

- 55 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

1. Enter the appropriate MAC Address into the MAC Address field. The format of the MAC Address is XX-XX-XX-XX-XX-XX (X is any hexadecimal digit). For example: 00-0A-EB-B0-00-0B.

2. Give a simple description for the wireless station in the Description field. For example: Wireless station A.

3. Select Enabled or Disabled for this entry on the Status drop-down list.

4. Click the Save button to save this entry.

To modify or delete an existing entry:

1. Click the Modify in the entry you wa nt to modify. If you want to delete the entry, click the Delete.

2. Modify the information.

3. Click the Save button.

Click the Enable All button to make all entries enabled Click the Disable All button to make all entries di sabled. Click the Delete All button to delete all entries. Click the Next button to go to the next page. Click the Previous button to return to the previous page. For example: If you desire that the wireles s station A with M AC address 00-0A-EB-B0-00-0B and

1. Click the Enable button to enable this function.

2. Select the radio button “Allow the entries specified by any en abled entries in the list to

access” for Filtering Rules.

3. Delete all or disable all entries if there are any entries already.

4. Click the Add New... button.

5. Enter the MAC address 00-0A-EB-B0-00-0B/00-0A-EB-00-07-5F

in the MAC Address field.

6. Enter wireless station A/B in the Description field.

7. Select Enabled in the Status drop-down list.

8. Click the Save button.

9. Click the Back button.

The filtering rules that configured should be sim ilar to the following list:

- 56 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

4.7.5 Wireless Advanced

Choose menu “Wireless → Wireless Advanced”, you can configure the advanced settings of your wireless network.

Figure 4-41 Wireless Advanced

 Transmit Power - Here you can specify the transm it power of router. You can selec t High,

Middle or Low which you would like. High is the default setting and is recommended.

 Beacon Interval - Enter a value between 20-1000 milliseconds for Beacon Interval here.

The beacons are the packets sent by the router to s ynchronize a wireles s network. Beac on Interval value determines the time interval of t he beacons. The default value is 100.

 RTS Threshold - Here you can specify the RTS (Request to Send) Threshol d. If the pac ket

is larger than the specified RTS Threshold size, the router will send RTS frames to a particular receiving station and negotiate the sending of a data fram e. The default value is

2346.

 Fragmentation Threshold - This value i s the maximum size determining whether packets

will be fragmented. Setting the Fragm entation Thr eshold too low m ay result in poor network performance because of excessive packets. 2346 is the default setting and is recommended.

 DTIM Interval - This value determines the interval of the Delivery Traffic Indication Message

- 57 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router



 Enable WMM - WMM function can guarantee the packets with high-priority messages being

transmitted preferentially. It is strongly recomm ended.

 Enable Short GI - This function is recom mended for it will increase the data capacity by

reducing the guard interval time

 Enabled AP Isolation - This function can isolate wireless stations on your network from

each other. Wireless devices will be able to communic ate with the router but not with each other. To use this function, check this box. AP Is olat i on is disabled by default.

Note:

If you are not familiar with the setting items in this page, it's strongly r ecommended to keep the provided default values; otherwise it may result in lower wireless network performance.

4.7.6 Wireless Statistics

Choose menu “Wireless → Wireless Statistics”, you can see the MAC Address, Current Status, Received Packets and Sent Packets for each connected wireless station.

Figure 4-42 Wireless Statistics

 MAC Address - The connected wireless station's MAC address  Current Status - The connected wireless station's running status, one of STA-AUTH/

STA-ASSOC/ STA-JOINED/ WPA/ WPA-PSK/ WPA2/ WPA2-PSK/ AP-UP/ AP-DOWN/ Disconnected

 Received Packets - Packets received by the station  Sent Packets - Packets sent by the station

You cannot change any of the values on this page. To update this page and to show the current connected wireless stations, click on the Refresh button.

If the numbers of connected wireless stations go beyond one page, click the Next button to go to the next page and click the Previous button to return the previous page.

- 58 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router



Note:

This page will be refreshed automatically every 5 seconds.

4.8 Guest Network

Figure 4-43 The Guest Network menu There are two submenus under the Guest Network menu (shown in Figure 4-43): Wireless

Settings and Storage Sharing. Click either of them, and you will be able to configure the corresponding functions.

4.8.1 Wireless Settings

Choose menu “Guest Network → Wireless Settings”, you can configure the Guest Network Wireless Settings on the page as shown in

Figure 4-44.

Figure 4-44 Guest Network Wireless Settings

- 59 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router



 Allow Guest To Access My Local Network - If enabled, guests can communicate with

hosts.

 Enable Guest Network Bandwidth Control - If enabled, the Guest Network Bandwidth

Control rules will take effect.

 Egress Bandwidth For Guest Network - The upload speed through the WAN port for Guest

Network.

 Ingress Bandw idth For Guest Network - The download speed through the WAN port for

Guest Network.

 Guest Network (2.4G/5G) - Enabled or disable the Guest Network function here.  Network Name - Enter a value of up to 32 characters. The same Name (SSID) must be

assigned to all wireless devices in your Gues t Network.

 Wireless Securit y - You can configure the security of Guest Network here.  Access Time - During this t ime the wireless stations could accessing the AP.

Note:

The range of bandwidth for Guest Network is calculated according to the setting of Bandwidth Control on the page “Bandwidth Control->Control Settings”.

4.8.2 Storage Sharing

Choose menu “Guest Network → Storage Sharing”, you can configure the Guest Network Storage Sharing on the page as shown in view its display name, volume partition, folder path and you can delete the share folder by clicking the Delete button.

Figure 4-45. When a share folder is added, you can

Figure 4-45 Guest Network Storage Sharing

 User Name - The user name is guest for Guest Network, which can't be changed.  Password - Enter the password in the Password field. The password must be composed of

alphanumeric symbols not exceeding 15 characters in length.

- 60 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router



 Confirm Passwor d - Re-enter the password here.  Storage Authority - Authority of user: Read Only or Read and Write.  Name - This folder's display name.  Partition - The volume that the folder resides. Volume 1-8 is mapping to USB port 1, Volume

9-16 is mapping to USB port 2.

 Folder - The real full path of the specified folder. You can edi t the share folder by clicking Edit. You can del ete the share folder by clicking Delete.

Follow the instructions below to set up your Guest Networ k Storage Sharing:

1. Plug an external USB hard disk drive or USB flash drive into this Router.

2. Make sure the Service Status on the page “USB Settings -> Storage Sharing” is Started.

3. Make sure the Access shared storage with password o n the page “USB Settings -> Storage Sharing” is Enabled.

4. Click the Start button to start the Guest Network Storage Sharing.

5. Click the Add New Folder to Share button to specify a folder to share for the guests.

There is one default user account that can access the Guest Network Storage Sharing. Clicking Modify on Figure 4-45, there will pop up Figure 4-46, where you can change the password and storage authority of the account.

Figure 4-46 Modify User Account of Guest Network

Note:

1. If you want guests visit folders of Guest Network Storage Sharing with guest account, you must enable Access shared storage with password on the page “USB Settings -> Storage Sharing”, or the guests can't access to the Guest Network Storage Sharing.

2. The max share folders number is 6. If you want to share a new folder when the number has reached 6, you can delete a share folder and then add a new one.

- 61 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

4.9 DHCP

Figure 4-47 The DHCP menu There are three submenus under the DHCP menu (shown in Figure 4-47): DHCP Settings,

DHCP Clients List and Address Reservation. Click any of them, and you will be able to configure the corresponding functions.

4.9.1 DHCP Settings

Choose menu “DHCP → DHCP Settings”, you can configure the DHCP Server on the page as shown in

Figure 4-48.The router is set up by def ault as a DHCP (Dynamic Host Configuration Protocol) server, which provides the TCP/IP configuration for all the PC(s) that are connected to the router on the LAN.

Figure 4-48 DHCP Settings

 DHCP Server - Enable or Disable the DHCP server. If you disable the Server, you m ust

have another DHCP server within your network or else you must configure the computer manually.

 Start IP Address - Specify an IP address for the DHCP Server to start with when assigning

IP addresses. 192.168.0.100 is the default start address.

 End IP Address - Specify an IP address for the DHCP Server to end with when assigning IP

addresses. 192.168.0.199 is the default end address.

- 62 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router



 Address Lease Time - The Address Lease Time is the amount of time a network user wi ll

be allowed connection to the router with their current dynamic IP Address. Enter the amount of time in minutes and the user will be "leased" this dynamic IP Address. After the time is up, the user will be automatically assigned a new dynamic IP address. The range of the time is 1 ~ 2880 minutes. The default value is 120 minutes .

 Default Gateway - (Optional.) It is suggested to input the IP address of the Ethernet port of

the router. The default value is 192.168.0.1.

 Default Domain - (Optional) Input the domain name of your network.  Primary DNS - (Optional) Input the DNS IP address provided by your ISP or consult your ISP.  Secondary DNS - (Optional.) Input the IP address of another DNS server if your ISP

provides two DNS servers.

Note:

To use the DHCP server function of the router, you m ust configure all computers on th e LAN as "Obtain an IP Address automatically".

4.9.2 DHCP Clients List

Choose menu “DHCP → DHCP Clients List”, you can view the information about the cl ients attached to the router in the screen as shown in

Figure 4-49 DHCP Clients List

 Client Name - The name of the DHCP client  MAC Address - The MAC address of the DHCP client  Assigned IP - The IP address that the router has allocated to the DHCP client  Lease Time - The time of the DHCP client leased. After the dynamic IP address has expired,

a new dynamic IP address will be automatically ass i gned to the user.

Figure 4-49.

You cannot change any of the values on this page. To update this page and to show the current attached devices, click the Refresh button.

- 63 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

4.9.3 Address Reservation

Choose menu “DHCP → Address Reservation”, you can view and add a reserve d address for clients via the next screen (shown in

Figure 4-50). When you specify a reserved IP address for a PC on the LAN, that PC will always receive the s ame IP address each t ime when it ac cesses the DHCP server. Reserved IP addresses should be assigned to the servers that require pe rmanent IP settings.

Figure 4-50 Address Reservation

 MAC Address - The MAC address of the PC for which you want to reserve an IP address.  Reserved IP Address - The IP address reserved for the PC by the router.  Status - The status of this entry, either Enabled or Disabled.

To Reserve an IP address:

1. Click the Add New… button. Then Figure 4-51 will pop up.

2. Enter the MAC address (in XX-XX-XX-XX-XX-XX format.) and IP address (in dotted-decimal

notation) of the computer for which you want to reserve an IP address.

3. Click the Save button.

Figure 4-51 Add or Modify an Address Reservation Entry

To modify or delete an existing entry:

- 64 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

1. Click the Modify in the entry you wa nt to modify. If you want to delete the entry, click the

Delete.

2. Modify the information.

3. Click the Save button. Click the Enable/Disable All button to make all entries enabled/disabled Click the Delete All button to delete all entries. Click the Next button to go to the next page and Click the Previous button to return the previous

page.

4.10 USB Settings

Figure 4-52 The USB Settings menu There are five submenus under the USB Settings menu (shown in Figure 4-52):Storage Sharing,

FTP Server, Media Server, Print Server and User Accounts. Click any of them, and you will be able to configure the corresponding functi ons.

4.10.1 Storage Sharing

Choose menu “USB Settings→Storage Sharing”, you can configure a USB disk drive attached to the router and view volume and share such properties as share name, capacity, used space, and free space on this page as shown below.

Figure 4-53 Storage Sharing

- 65 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router



 Service Status - Indicates the Network Sharing service's current st atus. You can click the

Start button to start the Storage Sharing service and click the Stop button to stop it.

 Volume - The volume name of the USB drive the users have access to. Volume 1-8 is

mapping to USB port1, and Volume 9-16 is mapping to USB port2.

 Capacity - The storage capacity of the USB driver.  Used - The used space of the USB driver.  Free - The available space of the USB driver.  Use% - The percentage of the used space.  Shared - Indicates the shared or non-shared status of the volume. When the volume is

shared, you can click the Disable to stop sharing the volume; when volume is non-shared,

you can click the Enable button to share the volume. Click the Start button to start the Network Sharing service. Click the Stop button to stop the Network Sharing service. Click the Eject Disk button to safely remove the USB storage device that is connected to USB

port. This takes the drive offline. A message (as shown in Figure 4-54) will appear on your web browser when it is safe to detach the USB disk.

Figure 4-54 Safe Unplug Message

Click the Rescan button to start a new scan.

Follow the instructions below to set up your router as a fi le server:

1. Plug an external USB hard disk drive or USB flash drive into this router.

2. Click the Rescan button to find the USB drive that has been attached to the router.

3. Click the Start button to start the Storage Sharing service.

4. Click the Enable button under Shared to enable the disk to share.

5. Click the Open the disk to visit the sharing disk.

Note:

1. The router can automatically loc ate new US B dri ve. But to display the information about your

USB device, you need to click the Rescan button manually.

- 66 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

2. The new settings will not take effect until you restart the service.

3. To unplug the USB drive, click Eject Disk button f irst. Simply pulling USB drive out of the

USB port can cause damage to the device and loss of data.

4. Mounted volumes of eac h USB port are subject to the 8-volume limit. So you cannot access

more than 8 volumes on the USB storage device.

5. If you change the storage settings during the storage connection is established, then the

changes will not take effect until the router or the client is rebooted.

4.10.2 FTP Server

Choose menu “USB Settings→FTP Server”, you can create an FTP server that can be accessed from the Internet or your local network.

Figure 4-55 FTP Server Configuration

 Service Status - Indicates the FTP Server's current status.  Internet Access - Select enable to allow access of the FTP server from the Internet.

Otherwise, select disable to only allow local network access.

 Service Port - Enter the FTP Port number to use. The default is 21.  Name - This folder's display name.  Partition - The volume that the folde r resides. Volume 1-8 is mapping to USB port1, and

Volume 9-16 is mapping to USB port2.

 Folder - The real full path of the specified folder.

To set up your FTP Server, please follow the instructions below:

1. Plug an external USB hard disk drive or USB flash drive into this router.

2. Click the Enable/Disable radio box to enabl e/disable Internet access to FTP from Internet

port.

- 67 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router



3. Specify a port for the FTP server to use (The default port number is 21).

4. The Internet Address displays t he WAN IP address of this router, so that other users can

access FTP via this address.

5. If WAN type is PPPoE/PPTP/L2TP, two connections will be avai lable. Therefore, users can

access FTP server via two connections. Users in a private LAN can access ftp server via

Public Address while Internet users can ac cess ftp server via Internet Address.

6. Click the Start button to start the ftp server.

To add a new folder, follow the instructions below.

1. Click Add New Folder in Figure 4-55.

Figure 4-56 Add or Modify Share Folder

2. Select the Share entire partition or a speci fic folder option.

3. Enter display name of the share folder in Display Name filed.

4. Click the Save button to save the settings. You can click the upper button to go to the upper folder. You can click the Back button to return to the ftp server configuration page.

Note:

1. The max share folders number is 10. If you want to share a new folder whe n t he numbe r has

reached 10, you can delete an existing share folder and then add a new one.

2. If you want to change the FTP settings, you need to restart FT P Server to m ake t he changes

take effect.

4.10.3 Media Server

Choose menu “USB Settings→Media Server”, you can create media server that allows you to share stored content with other computers and devices on your home network and on the Internet.

- 68 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

Figure 4-57 Media Server Setting

 Server Name - The name of this Media Server.  Server Status - Indicates the Media Server’s curr ent status, started or stopped. You can

click the Start button to start the Media Server and click the Stop button to stop it.

 Name - The display name of this folder.  File System - The file system type on the partition can be FAT32 or NTFS.  Folder - The real full path of the specified folder.  Delete - You can delete the share folder by click Delete.

To set up your media server, please follow the instructions below:

1. Plug an external USB har d disk drive or USB f lash drive into this router, and then the screen

will appear as shown in Figure 4-58.

Figure 4-58 Media Server Setting

2. Click the Start button to start the media server, and then the screen will appear as shown in

Figure 4-59.

- 69 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

Figure 4-59 Media Server Setting

3. Click the Add share folder but ton t o spec if y a folder as t he s earch pat h of m edia s erver. The

screen will then appear as shown in Figure 4-60.

Figure 4-60 Add New Folder

 Display Name - You can enter a display name for the share folder.  Share entire partition - Choose this option and then the folders contained in this partition

will all be shared.

 Folder Location- Displays the location of this folder.  Select - Check the radio button to select the folder to share.  Folder - Displays folders that are in current path.  Upper - Click this button to get into the upper folder.  Save - Click this button to save your settings and the page will be redirec ted to the media

server configuration page.

- 70 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router



 Back - Click this button to discard the s etti ngs and just go to t he media s erver conf iguratio n

page.

4. Click the Scan All button to scan all the share folders i mmediately. You can also select the

Auto-scan, at same time, select an auto scan interval time by drop-down list. In this case, the media server will auto scan the share folders.

Note:

The max share folders number is 6. If you want share a new fol der when the number has been reached to be 6, you can delete a share folder and then ad d a new one.

4.10.4 Print Server

Choose menu “USB Settings→Print Server”, you can configure print server on this page as shown below.

Figure 4-61 Pint Server Setting

There are two states of the print server, they are as follows:

 Online - Indicates the print service has been turned on, and no user is using the print service

at present. You can click the "Stop" button to stop the print service.

 Offline - Indicates the print service feature is disabled. You can click "Start" button to start the

print service.

4.10.5 User Accounts

You can s pecify the user name and password for Storage Sharing and FTP Server users on this page. Storage Sharing users can use Internet Explorer to acces s files on the USB drive. FTP Server users can log into the FTP Server via FTP Client.

There are two default user accounts that can access the Storage Sharing and FTP Server. They are Administrator and Guest (as shown in Figure 4-62). Administrator has read/write access to Storage Sharing and can access FTP Server while Guest has read-only access to Storage Sharing and cannot access FTP Server.

- 71 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

Figure 4-62 User Account Management

Only Administrator can use a Web browser to transfer t he files from a PC to the Writable shared volume on the USB drive.

To add a new user account, please follow the steps below:

1. Click Add New User button, and the screen will ap pear as shown in Figure 4-63.

2. Self-define a User Name.

3. Enter the password in the Password field.

4. Re-enter the password in the Confirm Password field.

5. Choose the Storage Authority from the drop-down list, Read and Write or Read Only.

6. Choose FTP Access from the drop-down list, Yes or No.

Figure 4-63 Add or Modify User Account

- 72 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router



 User Name - Type the user name that you want to give access to the USB drive. The user

name must be composed of alphanumeric symbols not exceeding 15 characters in length.

 Password - Enter the password in the P assword field. The pas sword must be compose d of

alphanumeric symbols not exceeding 15 characters in length. For security purposes, the

password for each user account is not displayed.

 Confirm Password - Re-enter the password here.  Storage Authority – Choose Read and Write or Read Only from the drop-down list to

assign access authority of Storage Sharing to the user.

 FTP Access – Choose Yes or No from the drop-down list to decide whet her the user can

access FTP Server or not.

 Save - You can click the SAVE button to save your settings.  Back - You can cl ick the Back button to di scard the setti ngs and just go to the medi a server

configuration page.

Note:

1. Please restart the service for the new settings to take effect.

2. If you cannot use the new user name and password to access the shares, press Windows

logo + R to open the Run dialog box and type net use \\192.168.1.1 /delete / yes an d press

Enter. (192.168.1.1 is your router's LAN IP address. If the LAN IP of the modem connected

with your router is 192.168.1.x, the defaul t LAN IP of the router will automatically switch from

192.168.1.1 to 192.168.0.1 to avoid IP conflict; in this c ase, please try net use \\192.168.0.1

/delete / yes.)

4.11 NAT

Choose “NAT”, and you can enable or disable the NAT and Hardware NAT Control f eature. The NAT Rules and Hardware NAT will work properly o nly when the NAT Control feature is enabled.

 Enable NAT Control - If enabled, the NAT function and the Forwarding configuration will

take effect.

Figure 4-64 The Forwarding menu

- 73 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

 Disable NAT Control - If disabled, neither NAT function nor Forwarding confi guration will

take effect.

 Enable Hardware NAT Control - If enabled, the Hardware NAT feature will take effect.  Disable Hardware NAT Control - If disabled, neit her Hardware NAT feature will take effect.

4.12 Forwarding

Figure 4-65 The Forwarding menu

There are four submenus under the Forwarding menu (shown in Figure 4-65): Virtual Servers, Port Triggering, DMZ and UPnP. Click any of them, and you will be able to configure the corresponding function.

4.12.1 Virtual Servers

Choose menu “Forwarding→Virtual Servers”, and then you can view and add virtual servers in the next screen (shown in on your LAN. A virtual server is defined as a service port, and all reques ts from Internet to this service port will be redirected to the computer spe cified by the server IP. Any PC that was used for a virtual server must have a static or reserved IP address because its IP address may change when using the DHCP function. If you want the Virtual Servers configuration take effect, please make sure the NAT is enabled.

Figure 4-66). Virtual servers can be used for setting up public s ervices

 Service Port - The numbers of External Service Ports. You can enter a service port or a

range of service ports (the format is XXX – YYY; XXX is the Start port and YYY is the End

port).

Figure 4-66 Virtual Servers

- 74 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router



 Internal Port - The Internal Service Port number of the PC running the service applica tion.

You can leave it blank if the Internal Port is the same as the Service Port, or enter a

specific port number when Service Port is a si ngl e one.

 IP Address - The IP address of the PC running the service application.  Protocol - The protocol used for this application, either TCP, UDP, or All (all protocols

supported by the router).

 Status - The status of this entry, "Enabled" means the virtual server entry is enabled.  Common Service Port - Some common services already exist in the drop-down list.  Modify - To modify or delete an existing entry.

To setup a virtual server entry:

1. Click the Add New... button. (pop-up

2. Select the service you want to use from the Com mon Service Port list. If the Common

Service Port menu does not list the service that you want to use, enter t he number of the

service port or service port range in the Service Port field.

3. Enter the IP address of the computer running the service application in the IP Address field.

4. Select the protocol used for this application in the Protocol drop-down list, either TCP, UDP,

or All.

5. Select the Enabled option in the Status drop-down list.

6. Click the Save button.

Figure 4-67)

Figure 4-67 Add or Modify a Virtual Server Entry

Note:

It is possible that you have a computer or server th at has more t han one typ e of avail abl e s ervice. If so, select another service, and type the sam e IP address for that computer or server.

- 75 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router



→

To modify or delete an existing entry:

1. Find the desired entry in the table.

2. Click Modify or Delete as desired on the Modify column. Click the Enable/ Disable All button to make all entries enabled/ disabled. Click the Delete All button to delete all entries. Click the Next button to go to the next page and click the Previous button to return to the

previous page.

Note:

If you set the service port of the vi rtual server as 80, you must s et the Web management port on

Security

Otherwise there will be a conflict to disable the virtual server.

Remote Management page to be any other value except 80 such as 8080.

4.12.2 Port Triggering

Choose menu “Forwarding→Port Triggering”, you can view and add port triggering in the next screen (shown in games, video conferencing, Internet telepho ning and so on. Port Triggering is used for some of these applications that cannot work with a pure NAT router.

To add a new rule, follow the steps below.

1. Click the Add New… button, the next screen will pop-up as shown in Figure 4-69.

2. Select a common application from the Common Applications drop-down list, then the

Figure 4-68). Some applications require multiple connections, like Internet

Figure 4-68 Port Triggering

Trigger Port field and the Incoming Ports fi eld will be automatically filled. If the Common

Applications do not have the application you need, enter the Trigger Port and the

Incoming Ports manually.

3. Select the protocol used for Trigger Port from the Trigger Protocol drop-down list, either

TCP, UDP, or All.

- 76 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

4. Select the protocol used for Incoming Ports from the Incoming Protocol drop-down list,

either TCP or UDP, or All.

5. Select Enabled in Status field.

6. Click the Save button to save the new rule.

Figure 4-69 Add or Modify a Triggering Entry

 T rigger Port - The port for outgoing traffic. An outgoing connection using this port will trigger

this rule.

 Trigger Protocol - The protocol used for Trigger Ports, either TCP, UDP, or All (all

protocols supported by the router).

 Incoming Port - The port or port range used by th e remote sys tem when it r esponds t o the

outgoing request. A response using one of these ports will be forwarded to the PC which

triggered this rule. You can input at most 5 groups of ports (or port sections). Every group of

ports must be separated with ",", for example, 2000-2038, 2046, 2050-2051, 2085,

3010-3030.

 Incoming Protocol - The protocol used for Incoming Port, either TCP, UDP, or ALL (all

protocols supported by the router).

 Status - The status of this entry, Enabled means the Port Triggering entry is enabled.  Modify - To modify or delete an existing entry.  Common Applications - Some popular applicat ions already listed in the drop-down li st of

Incoming Protocol. To modify or delete an existing entry:

1. Find the desired entry in the table.

2. Click Modify or Delete as desired on the Modify column.

- 77 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router



Click the Enable All button to make all entries enabled. Click the Disable All button to make all entries disabled. Click the Delete All button to delete all entries

Once the router is configured, the operation is as follows:

1. A local host makes an outgoing connection to an external host using a destination port

number defined in the Trigger Port field.

2. The router records this connection, opens the incoming port or ports associated with this

entry in the Port Triggering table, and associates them with the local host.

3. When necessary, the external host will be able to connect to the local host using one of the

ports defined in the Incoming Ports field.

Note:

1. When the trigger connection is released, t he corresponding opened ports will be closed.

2. Each rule can only be used by one host on the LAN at a time. The trigger connection of other

hosts on the LAN will be refused.

3. Incoming Ports ranges cannot overlap each other.

4.12.3 DMZ

Choose menu “Forwarding→DMZ”, and then you can view and configure DMZ host in the screen (shown in for a special-purpose service such as Internet gam ing or videoconfere ncing. The router forwards packets of all services to the DMZ host. Any PC whose port is being forwarded must have its DHCP client function disabled and should have a new static IP Address assigned to it because its IP Address may be changed when using the DHCP function.

Figure 4-70).The DMZ hos t feature allows one l ocal host to be expos ed to the Internet

To assign a computer or server to be a DMZ server:

1. Click the Enable button.

2. Enter the IP address of a local PC that is set to be DMZ host in the DMZ Host IP Address

field.

Figure 4-70 DMZ

- 78 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

3. Click the Save button.

4.12.4 UPnP

Choose menu “Forwarding→UPnP”, and then you can view the information about UPnP in the screen (shown in

Figure 4-71). The Universal Plug and Play (UPnP) feature allows the devices, such as Internet computers, to access the local host resources or devices as needed. UPnP devices can be automatically discovered by the UPnP service application on the LAN.

Figure 4-71 UPnP Setting

 Current UPnP Status - UPnP can be enabled or disabled by clicking the Enable or Disable

button. This feature is enabled by default.

 Curren t UPnP Settings List - This table displays the current UPnP information.

 App Description - The description about the application which initiates the UPnP

request.

 External Port - The port which t he router opened for the application.  Protocol - The type of protocol which is opened.  Internal Port - The port which the router opened for local host.  IP Address - The IP address of the l ocal host which initiates the UPnP request.  Status - Either Enabled or Disabled. "Enabled" means that the port is still active;

otherwise, the port is inactive. Click the Enable button to enable UPnP. Click the Disable button to disable UP nP. Click the Refresh button to update the Current UPnP Settings List.

- 79 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

4.13 Security

Figure 4-72 The Security menu There are four submenus under the Security menu as shown in Figure 4-72: Basic Security,

Advanced Security, Local Management and Remote Management. Click any of them, and you will be able to configure the corresponding funct i ons.

4.13.1 Basic Security

Choose menu “Security → Basic Security”, and then you can configure the basic security in the screen as shown in

Figure 4-73.

Figure 4-73 Basic Security

 Firewall - A firewall protects your net work from the outside world. Here you can enable or

disable the router’s firewall.

 SPI Firewall - S PI (Stateful Packet Inspec tion, also known as dynami c packet filtering)

helps to prevent cyber attacks by track ing more state per session. It validat es that the

traffic passing through the session conforms to the protocol. SPI Firewall is enabled by

factory default. If you want all the computers on t he LAN exposed to the out side world,

you can disable it.

- 80 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

 VPN - VPN Passthrough must be enabled if you want to allow VPN tunnels using VPN

protocols to pass through the router.

 PPTP Passthrough - Point-to-Point Tunneling Protocol (PPTP) allows the

Point-to-Point Protocol (PPP) to be tunneled through an IP network. To allow PPTP

tunnels to pass through the router, click Enable.

 L2TP Passthrough - Layer Two Tunneling Protocol (L2TP) is the method used to

enable Point-to-Point sessions via the Internet on the Lay er Two level. To allow L2TP

tunnels to pass through the router, click Enable.

 IPSec Passthrough - Internet Protocol security (IPSec) is a suite of protocols for

ensuring private, secure communications over Internet Protocol (IP) networks, through

the use of cryptographic security services. To allow I PSec tunnels to pass through the

router, click Enable.

 ALG - It i s recommended to enable Application Layer Gateway (ALG) becaus e ALG allows

customized Network Address Translation (NAT) traversal filters to be plugged into the gateway to support address and port translation for certain application layer "control/data" protocols such as FTP, TFTP, H323 etc.

 FTP ALG - To allow FTP clients and servers to trans fer data across NAT, click Enable.  TFTP ALG - To allow TFTP clients and servers to transfer data across NAT, click

Enable.

 H323 ALG - To allow Microsoft NetMeeting clients to communic ate across NAT, click

Enable.

 RTSP ALG - To allow some media player clients to communi cate with some stream ing

media servers across NAT, click Enable. Click the Save button to save your setti ngs.

4.13.2 Advanced Security

Choose menu “Security → Advanced Security”, and then you can protect the router from being attacked by TCP-SYN Flood, UDP Flood and ICMP-Flood in the screen as shown in

Figure 4-74.

- 81 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router



Figure 4-74 Advanced Security

 Packets Statisti cs Interval (5~60) - The default value is 10. Select a value between 5 and

60 seconds from the drop-down list. The Pack ets Statistics Interval value indicates the t ime section of the packets statistics. The result of the statistics is used for analysis by SYN Flood, UDP Flood and ICMP-Flood.

 DoS Protection - Denial of Service protection. Check the Enable or Disable button to

enable or disable the DoS protection function. Only when it is enabled, will the flood filters be enabled.

Note:

Dos Protection will take effect only when the Traffic Statistics in “System Tool → Statistics” is enabled.

 Enable ICMP-FLOOD Attack Filtering - Enable or Disable the ICMP-FLOOD Attack

Filtering.

 ICMP-FLOOD Packets Threshold (5~3600) - The default value is 50. Enter a value

between 5 ~ 3600. When the current ICMP-FLOOD Packets number is beyond the set value, the router will startup the blocking function immediat ely.

 Enable UDP-FLOOD Filtering - Enable or Disable the UDP-FLOOD Filtering.  UDP-FLOOD Packets Threshold (5~3600) - The default value is 500. Enter a value

between 5 ~ 3600. When the c urrent UPD-FLOOD Packets number i s beyond the s et value, the router will startup the blocking function immediately.

- 82 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

 Enable TCP-SYN-FLOOD Attack Filtering - Enable or Disable the TCP-SYN-FLOOD

Attack Filtering.

 TCP-SYN-FLOOD Packets Threshold (5~3600) - The default value is 50. Enter a value

between 5 ~ 3600. When t he current TCP-SYN-FLOOD Packets numbers is beyon d the set value, the router will startup the blocking f unction immediately.

 Ignore Ping Packet From WAN Port - Enable or Disable Ign ore Ping Packet From WAN

Port. The default setting is disabled. If enabled, the ping packet from the Internet cannot access the router.

 Forbid Ping Packet From LAN Port - Enable or Disable Forbid Ping Packet From LAN Port.

The default setting is disabled. If enabled, the ping packet from LAN cannot access the router.

This function can be used to defend against some viruses. Click the Save button to save the settings . Click the Blocked DoS Host List button to display the DoS host table by blocking.

4.13.3 Local Management

Choose menu “Security → Local Management”, and then you can configure the management rule in the screen as shown in

Figure 4-75. The management feature allows you to deny

computers in LAN from accessing the router.

Figure 4-75 Local Management

By default, the radio button “All the PCs on the LAN are allowed to access the router's Web-Based Utility” is checked. If you want to allow PCs with specific MAC Address es to acces s the Setup page of the router's Web-Bas ed Utility locally from ins ide the network, check the radio button “Only the PCs listed can browse the built-in web pages to perform Administrator tasks”, and then enter each MAC Address in a separate fi eld. T he form at f or the MA C Addres s is XX-XX-XX-XX-XX-XX (X is any hexadecimal digit). Only the PCs with MAC addres s listed can

- 83 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router



use the password to browse the built-in web pages to perform Admi nistrator tasks while all the others will be blocked.

After click the Add button, your PC's MAC Address will be placed in the list above. Click the Save button to save your sett i ngs.

Note:

If your PC is blocked but you want to access the router again, use a pin to press and hold the WPS/Reset button (hole) on the back panel for about 5 seconds to reset the router’s factory defaults on the router’s Web-Based Utility.

4.13.4 Remote Management

Choose menu “Security → Remote Management”, and then you can configure the Remote Management function in the screen as shown in your router from a remote location via the Internet.

Figure 4-76 Remote Management

 Web Management Port - Web browser access normally uses the standard HT TP service

port 80. This router's default remote management web port number is 80. For greater security,

you can change the remote management web port to a custom port by entering that number

in the box provided. Choose a number between 1 and 65534 but do not use the number of

any common service port.

 Remote Management IP Address - This is the current address you will use when accessing

Figure 4-76. This feature allows you to manage

your router from the Internet. This function is disabled when the IP address is set to the

default value of 0.0.0.0. To enable this functi on change 0.0.0.0 t o a valid IP addres s. If s et to

255.255.255.255, then all the hosts can acc ess the router from internet.

Note:

1. To access the router, you should type your router's WAN IP address into your browser's

address (in IE) or Location (in Navigator) box, followed by a colon and the custom port number. For example, if your router's WAN address is 202.96.12.8, and the port number used is 8080, please enter http://202.96.12.8:8080 in your browser. Later, you may be asked for the router's password. After successfull y entering the username and password, you will be able to access the router's web-based utili ty.

2. Be sure to change the router's default password to a very s ecure password.

- 84 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

4.14 Parental Control

Choose menu “Parental Control”, and then you can configure the parental control in the screen as shown in Figure 4-77. The Parental Control function can be used to control the internet activities of the child, limit the child to acc ess certain websites and restrict the time of surfing.

Figure 4-77 Parental Control Settings

To add a new entry, please follow the steps below.

1. Click the Add New… button and the next sc reen wi ll pop-up as shown in Figure 4-78.

Figure 4-78 Add or Modify Parental Control Entry

- 85 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

→

 Parental Control - Check Enable if you want this function to take effect; otherwise,

check Disable.

 MAC Address of Parental PC - In this field, enter the MAC address of the controlling

PC, or you can make use of the Copy To Above button below.

 MAC Address of Your PC - This field displays the MAC address of the PC that is

managing this router. If the MAC Address of your adapter is registered, you can click the Copy To Above button to fill this address to the MAC Address of Parental PC field above.

 Website Description - Description of the allowed website for the PC controlled.

 Schedule - The time period allowed for t he PC controlled to access the Internet. For

detailed information, please go to “Access Control

 Enable - Check this option to enable a specific entry.

 Modify - Here you can edit or delete an existing entry.

Schedule”.

2. Enter the MAC address of the PC (e.g. 00-11-22-33-44-AA) you’d li ke to control in the MAC

Address of Child PC field, or you can choose the MAC address from the All Address i n

Current LAN drop-down list.

3. Give a description (e.g. Allow Google) for the website allowed to be accessed in the Website

Description field.

4. Enter the allowed domain name of the website, ei ther the full name or the keywords (e.g.

google) in the Allowed Domain Name field. Any domain name with keywords in it

(www.google.com, www.google.com.hk) will be allowed.

5. Select from the Effective Time drop-down list the schedule (e.g. Schedule_1) you want. If

there are not suitable schedules for you, click the Schedule in red below to go to the

Advance Schedule Settings page and create t he schedule you need.

6. In the Status field, you can select Enabled or Disabled to enable or disable your entry.

7. Click the Save button. Click the Enable All button to enable all the rules in the list. Click the Disable All button to disable al l the rules in the list. Click the Delete All button to delete all the entries in the table. Click the Next button to go to the next page, or click the Previous button to return to the previous

page. For example: If you desire that the child PC with MA C address 00-11-22-33-44-AA can access

www.google.com

on Saturday only while t he parent PC with MA C address 00-11-22-33-44-BB is

without any restriction, you should follow the s ettings below.

- 86 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

1. Click “Parental Control” menu on the left to enter the Parental Control Settings page. Check

Enable and enter the MAC address 00-11-22-33-44-BB in the MAC A ddress of Parental PC

field.

2. Click “Access Control → Schedule” on the left t o enter the Schedule Settings page. Clic k

Add New... button to create a new schedule with Schedule Description is Schedule_1, Day is

Sat and Time is all day-24 hours.

3. Click “Parental Control” menu on the left to go back to the Add or Modify Parental Control

Entry page:

1) Click Add New... button.

2) Enter 00-11-22-33-44-AA in the MAC Address of Child PC field.

3) Enter “Allow Google” in the Website Description field.

4) Enter “www.google.com” in the Allowed Domain Name field.

5) Select “Schedule_1” you create just now from the Effective Time drop-down list.

6) In Status field, select Enable.

4. Click Save to complete the settings.

Then you will go back to the Parental Con trol Settings page and see the following list, as shown in Figure 4-79.

Figure 4-79 Parental Control Settings

4.15 Access Control

Figure 4-80 Access Control There are four submenus under the Access Control menu as shown in Figure 4-80: Rule, Host,

Target and Schedule. Click any of them, and you will be able to configure the corresponding function.

- 87 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

4.15.1 Rule

Choose menu “Access Control → Rule”, and then you can view and set Access Control rules in the screen as shown in

Figure 4-81.

Figure 4-81 Access Control Rule Management

 Enable Internet Access Control - Select the check box to enable the Internet Access

Control function, so the Default Filter Policy can take effect.

 Rule Name - Here displays the name of the rule and this name is unique.  Host - Here displays the host selected in the corresponding rule.  Target - Here displays the target selected in the corresponding rule.  Schedule - Here displays the schedule selected in the corresponding rule.  Enable - Here displays the status of the rule, enabled or not. Check thi s option to enable a

specific entry.

 Modify - Here you can edit or delete an exis ting rule.  Setup Wizard - Click the Setup Wizard button to create a new rule entry.  Add New... - Click the Add New... button to add a new rule entry.  Enable All - Click the Enable All button to enabl e all the rules in the list.

 Disable All - Click the Disable All button to disable all the rules in t he list.

 Delete All - Click the Delete All button to delete all the entries in the table.

- 88 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

 Move - You can change the entry’s order as desir ed. Enter in the first box the ID number of

the entry you want to move and in the second box another I D number, and then click the

Move button to change the entries’ order. Click the Next button to go to the next page. Click the Previous button to return t o the previous page.

There are two methods to add a new rule. Method One:

1. Click Setup Wizard button and the next screen will appea r as shown in Figure 4-82.

Figure 4-82 Quick Setup – Create a Host Entry

 Host Descriptio n - In this field, create a unique description for the host (e.g. Host_1).  Mode - Here are two opt ions, IP Address and MA C Address. You can select either of

them from the drop-down list. If the IP Address is selected, you can see the following it em :

 LAN IP Address - Enter the IP address or address range of th e host in dotted-decimal

format (e.g. 192.168.0.23). If the MAC Address is selected, you can see the followi ng i tem:

 MAC Address - Enter the MAC address of the host in XX-XX-XX-XX-XX-XX format (e.g.

00-11-22-33-44-AA).

2. Click Next when finishing creating the host entry, and the next screen will appear as shown in

Figure 4-83.

- 89 -

Archer C7

AC1750 Wireless Dual Band Gigabit Router

Figure 4-83 Quick Setup – Create an Access Target Entry

 Target Description - In this field, create a description for the target. Note that this

description should be unique (e.g. Target_1).

 Mode - Here are two options, IP Address and Dom ain Name. You can choose either of

them from the drop-down list.

If the IP Address is selected, you will see the following i tems:

 IP Address - Enter the IP address (or address range) of the target (targets) in

dotted-decimal format (e.g. 192.168.0.23).

 Target Port - Specify the port or port range for the target. For s ome common service

ports, you can make use of the Common Service Port it em below.

 Protocol - Here are four options, All, TCP, UDP, and ICMP. Select one of them from the

drop-down list for the target.

 Common Service Port - Here lists some c ommon service ports. Select one from the

drop-down list and the correspondin g port number will be filled in the Target Port field automatically. For example, if you select "FTP", "21" will be filled in the Target Port automatically.

If the Domain Name is selected, you will see the following items:

 Domain Name - Here you can enter 4 domain names, either the full name or the

keywords (for example, google). Any domain name with keywords in it (www.google.com, www.google.cn) will be blocked or allowed.

3. Click Next when finishing creating the access target entry, and the next screen will appear as

shown in Figure 4-84.

- 90 -
