TP Link C2V3 User Manual
Archer C2
User Guide
AC900 Wireless Dual Band Gigabit Router
REV3.0.0 1910011857
Contents
About This Guide................................................................................................ |
1 |
Chapter 1. Get to Know About You Router . . . . . . . . . . . . . . . . . . . . . . 2
1. 1. Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1. 2. Panel Layout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1. 2. 1.Top View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1. 2. 2.The Back Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Chapter 2. Connect the Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2. 1. Position Your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2. 2. Connect Your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Chapter 3. Log into Your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Chapter 4. Set Up Internet Connection. . . . . . . . . . . . . . . . . . . . . . . . . 12
4. 1. Quick Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 4. 2. Manually Configure Your Internet Connection Settings. . . . . . . . . . . . . . . . . . 15 4. 3. Setting Up an IPv6 Internet Connection . . . . . . . . . . . . . . . . . 19
Chapter 5. Guest Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5. 1. |
Create a Network for Guests . . . . . . . . . . . . . . . . . |
. . . . . . . . . . |
25 |
5. 2. |
Customize Guest Network Options . . . . . . . . . . . |
. . . . . . . . . . |
26 |
Chapter 6. Parental Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Chapter 7. QoS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
7. 1. Prioritize Internet Traffic with QoS . . . . . . . . . . . . . . . . . . . . . . 32 7. 2. Update the Database . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Chapter 8. Network Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
8. 1. Protect the Network from Cyber Attacks . . . . . . . . . . . . . . . . . . 36 8. 2. Access Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 8. 3. IP & MAC Binding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Chapter 9. NAT Forwarding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
9. 1. Share Local Resources on the Internet by Virtual Servers . . . . . . . . . . . . . . . . . 41 9. 2. Open Ports Dynamically by Port Triggering . . . . . . . . . . . . . . . . . 42 9. 3. Make Applications Free from Port Restriction by DMZ . . . . . . . . . . . . . . . . . . 43 9. 4. Make Xbox Online Games Run Smoothly by UPnP . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Chapter 10.Customize Your Network Settings. . . . . . . . . . . . . . . . . . . 46

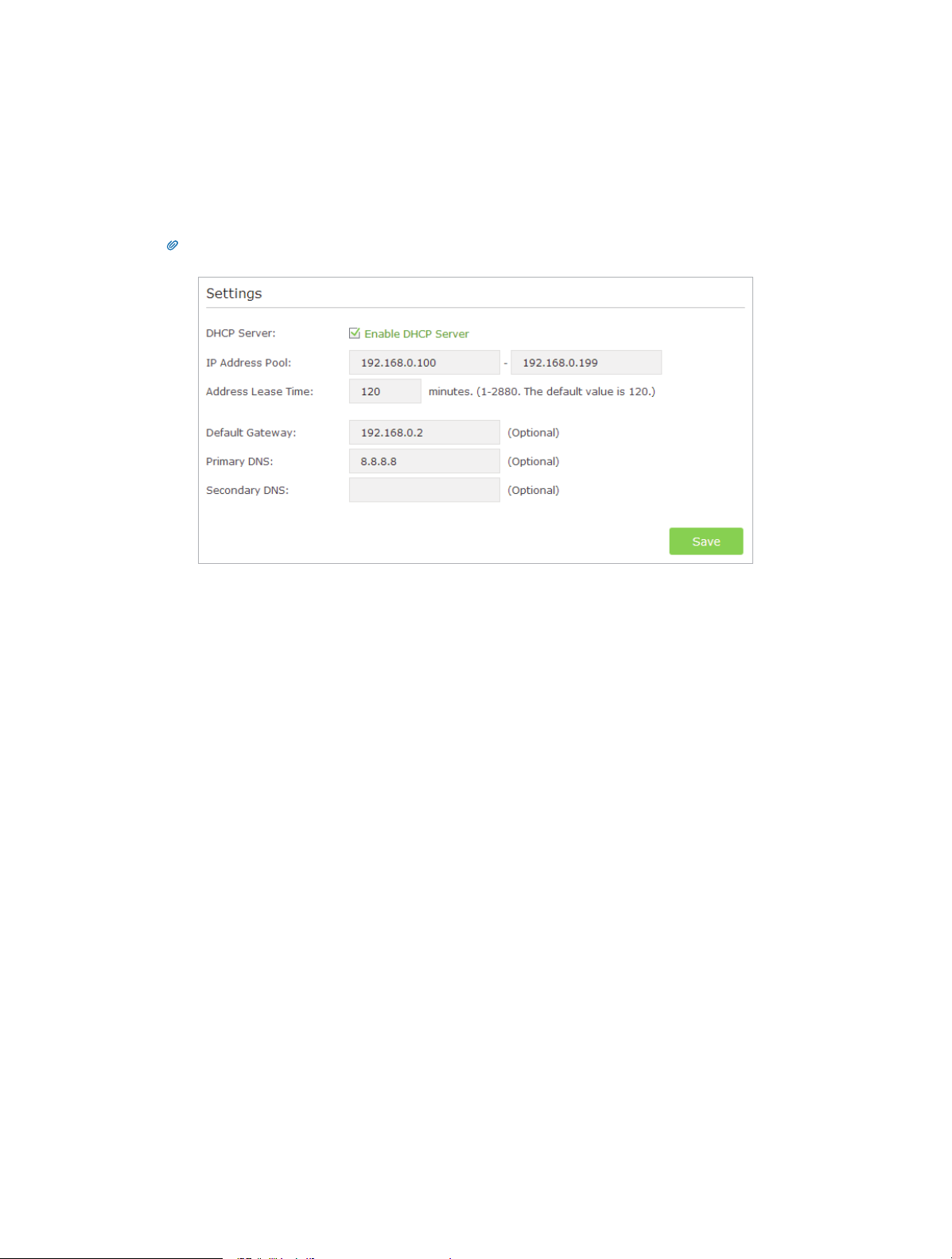

10. 1. Change the LAN Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 10. 2. Configure to Support IPTV Service. . . . . . . . . . . . . . . . . . . . . . 47 10. 3. Specify DHCP Server Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 49 10. 4. Set Up a Dynamic DNS Service Account . . . . . . . . . . . . . . . . . 50 10. 5. Create Static Routes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 10. 6. Specify Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 10. 7. Use WPS for Wireless Connection . . . . . . . . . . . . . . . . . . . . . . . 55
10. 7. 1.Set the Router’s PIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 10. 7. 2.Use the WPS Wizard for Wi-Fi Connections. . . . . . . . . . . . . . . . . . 55
Chapter 11.Manage the Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
11. 1. |

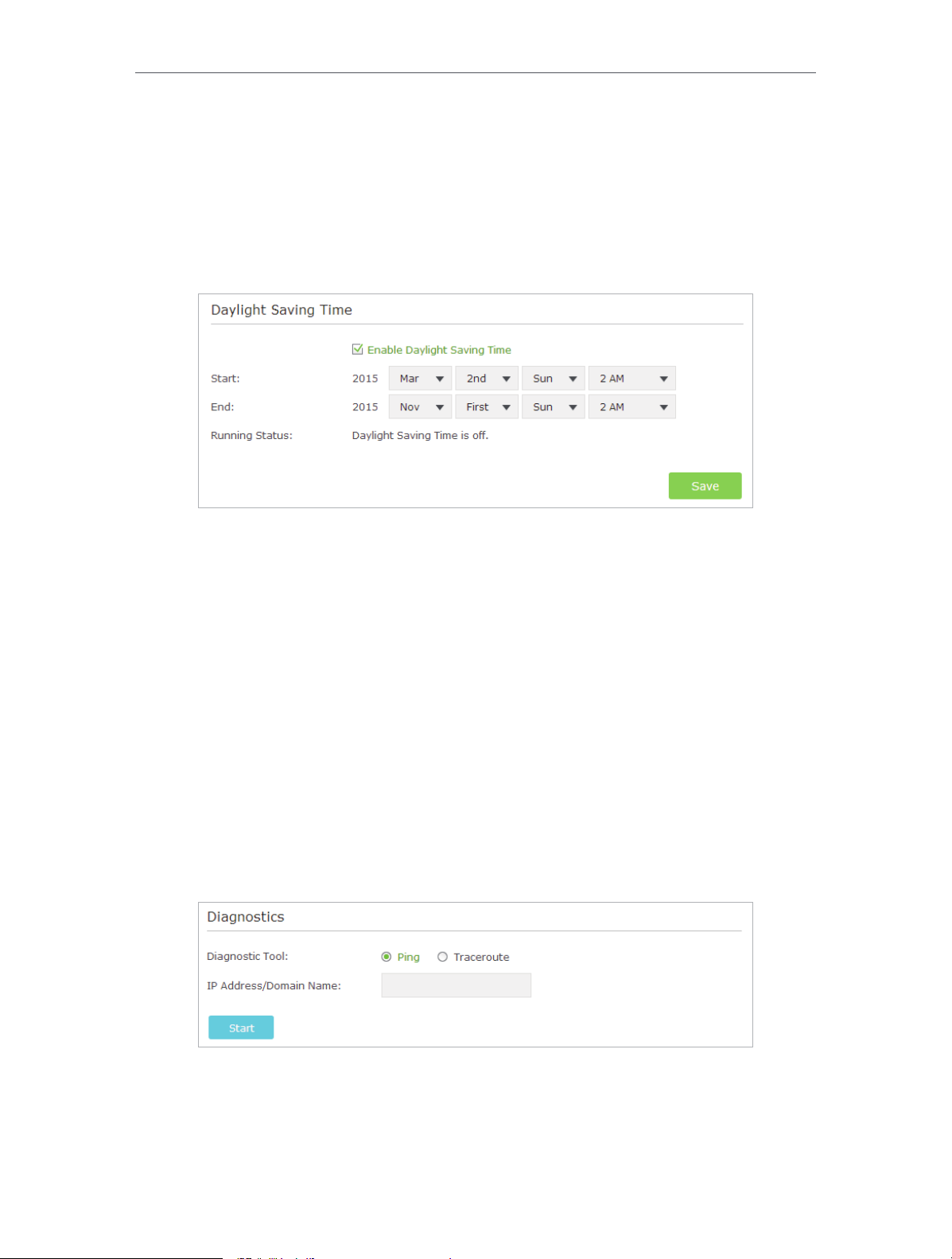

Set Up System Time . . . . . . . . . . . . . . . . . . |
. . . . . . . . . . . . . . . . |
. . 57 |
||
11. 2. |
Test the Network Connectivity . . . . . . . |
. . . . . . . . . . . . . . . . |
. . 58 |
||
11. 3. |
Upgrade the Firmware . . . . . . . . . . . . . . . |
. . . . . . . . . . . . . . . . |
. . 59 |
||
|
11. |
3. |
1.Online Upgrade . . . . . . . . . . . . . . |
. . . . . . . . . . . . . . . . |
. . 60 |
|
11. |
3. |
2.Local Upgrade. . . . . . . . . . . . . . . . |
. . . . . . . . . . . . . . . . |
. . 60 |
|
11. |
3. |
3.Restore Interrupted Upgrade after Power Failure . . . . . . . . . . . . . . . . . |
61 |
|
11. |
4. |
Backup and Restore Configuration Settings . . . . . . . . . . . . . . . . . . |
61 |
|||
11. |
5. |
Change the Administrator Account . . |
. . . . . . . . . . . . . . . . . . |
. 63 |
||
11. |
6. |
Password Recovery . . . . . . . . . . |
. . . . . . . |
. . . . |
. . . . . . . . . . . . . . |
63 |
11. |
7. |
Local Management . . . . . . . . . . |
. . . . . . . |
. . . . |
. . . . . . . . . . . . . . |
64 |
11. |
8. |
Remote Management. . . . . . . . |
. . . . . . . |
. . . . |
. . . . . . . . . . . . . . |
. 65 |
11. |
9. |
System Log . . . . . . . . . . . . . . . . . . |
. . . . . . . . . . . |
. . . . . . . 66 |
||
11. |
10. |
Monitor the Internet Traffic Statistics |
. . . . . . . . . . . . . . . . . . |
. 68 |
||
11. |
11. |

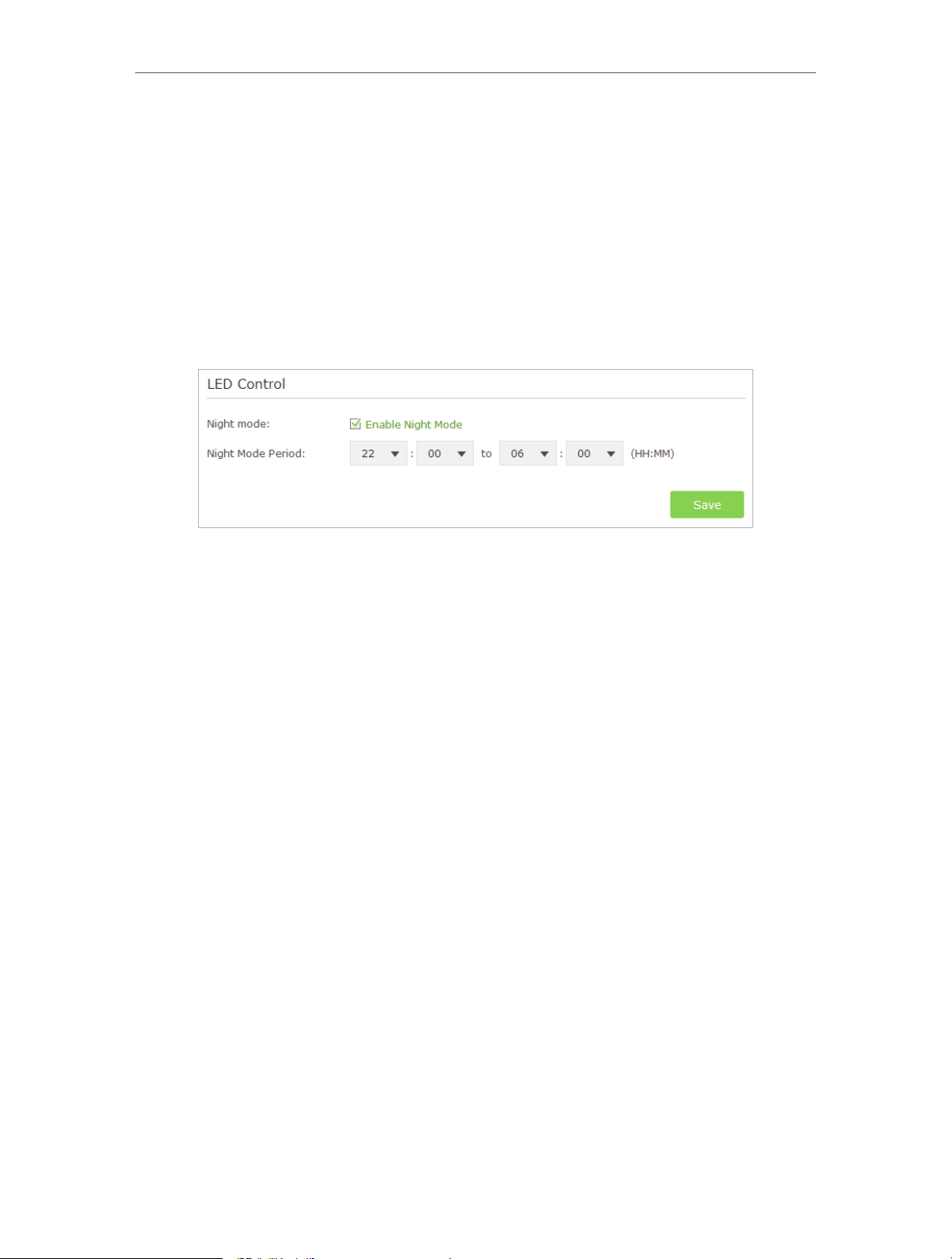

Control LEDs. . . . . . . . . . . . . . . . . |
. . . . . . . . . . . |
. . . . . . . . 69 |
||
FAQ |
......................................................................................................................71 |
About This Guide
This guide is a complementation of Quick Installation Guide. The Quick Installation Guide instructs you on quick Internet setup, and this guide provides details of each function and shows you the way to configure these functions appropriate to your needs.
When using this guide, please notice that features of the router may vary slightly depending on the model and software version you have, and on your location, language, and Internet service provider. All screenshots, images, parameters and descriptions documented in this guide are used for demonstration only.
Conventions
In this guide the following conventions are used:
Convention |
Description |
|
Blue Italic |
Hyperlinks are in blue italic. You can click to redirect to a website or a specific section. |
|
|
|
|
Blue |
Contents to be emphasized and texts on the web page are in blue, including the |
|
menus, items, buttons, etc. |
||
|
The menu structures to show the path to load the corresponding page. For example,
>Advanced > Wireless > MAC Filtering means the MAC Filtering function page is under the Wireless menu that is located in the Advanced tab.
Note: |
Ignoring this type of note might result in a malfunction or damage to the device. |
|
|
Tips: |
Indicates important information that helps you make better use of your device. |
|
• |
click to edit the corresponding entry. |
symbols on the web |
• |
click to delete the corresponding entry. |
page |
• click to enable or disable the corresponding entry. |
|
|
||
|
• |
click to view more information about items on the page. |
More Info
The latest software, management app and utility can be found at Download Center at www.tp-link.com/support.
The Quick Installation Guide can be found where you find this guide or inside the package of the router.
Specifications can be found on the product page at http://www.tp-link.com.
A Technical Support Forum is provided for you to discuss our products at http://forum.tp-link.com.
Our Technical Support contact information can be found at the Contact Technical Support page at www.tp-link.com/support.
1
Chapter 1
Get to Know About You Router
This chapter introduces what the router can do and shows its main features and appearance.
This chapter contains the following sections:
•Product Overview
•Panel Layout
Chapter 1 |
Get to Know About You Router |
1. 1. Product Overview
The TP-LINK router is designed to fully meet the need of Small Office/Home Office (SOHO) networks and the users demanding higher networking performance. The powerful antennas ensure continuous Wi-Fi signal to all your devices while boosting widespread coverage throughout your home, and the built-in Ethernet ports supply high-speed connection to your wired devices.
Moreover, it is simple and convenient to set up and use the TP-LINK router due to its intuitive web interface and the powerful Tether app.
1. 2. Panel Layout
1. 2. 1. Top View
The router’s LEDs (view from left to right) are located on the front. You can check the router’s working status by following the LED Explanation table.
3
Chapter 1 Get to Know About You Router
LED Explanation
|
|
Name |
Status |
Indication |
|
|
|
|
|
|
|
On |
System initialization completes. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(Power) |
Flashing |
System initialization or firmware upgrade is |
in |
process. Do |
not |
|
|
|
disconnect or power off the router. |
|
|
|
|||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
Off |
Power is off. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
On |
The 2.4GHz wireless band is working properly. |
|
|
|
|
(2.4GHz Wireless) |
|
|
|
|
|
|||
Off |
The 2.4GHz wireless band is disabled. |
|
|
|
||||
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
On |
The 5GHz wireless band is working properly. |
|
|
|
|
( 5GHz Wireless) |
|
|
|
|
|
|||
Off |
The 5GHz wireless band is disabled. |
|
|
|
||||
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
On |
The Ethernet port is connected. |
|
|
|
|
|
|
(Ethernet) |
|
|
|
|
|
|
Off |
No connection. |
|
|
|
||||
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
Blue On |
Internet is available. |
|
|
|
|
|
|
|
|
|
|
|||
|
|
(Internet) |
Orange On |
The router’s Internet port is connected, but the Internet |
|
|||
|
|
is not available. |
|
|
|
|||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
Off |
The router’s Internet port is not connected. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
On/Off |
Turns On when a WPS synchronization |
is |
established |
and |
|
|
|
|
automatically turns Off about 5 minutes later. |
|
|
|
||
|
|
|
|
|
|
|
||
|
|
(WPS) |
|
|
|
|
|
|
Flashing |
A wireless device is trying to connect to the network via WPS. This |
|||||||
|
|
|
||||||
|
|
|
process may take up to 2 minutes. |
|
|
|
||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
4
Chapter 1 |
Get to Know About You Router |
1. 2. 2. The Back Panel
The following parts (view from left to right) are located on the rear panel.
Item |
Description |
|
|
|
|
Ethernet Ports (1/2/3/4) |
For connecting your PCs or other wired network devices to the router. |
|
|
|
|
Internet Port |
For connecting to a DSL/Cable modem, or an Ethernet port. |
|
|
|
|
|
To turn on/off the Wi-Fi function by pressing until the 2.4Ghz LED and 5Ghz LED |
|
|
on/off. |
|
|
|
|
Wi-Fi/WPS |
To enable the WPS function, press this button about 2 seconds. If you have a WPS- |
|
|
supported device, you can press this button to quickly establish a connection |
|
|
between the router and the client device and automatically configure wireless |
|
|
security for your wireless network. |
|
|
|
|
Reset Hole |
Use a pin to press and hold this button until the Power LED starts blinking to reset |
|
the router to its factory default settings. |
||
|
||
|
|
|
Power On/Off Button |
Press this button to power on or off the router. |
|
|
|
|
Power Port |
For connecting the router to power socket via the provided power adapter. |
|
|
|
|
Antennas |
Used for wireless operation and data transmit. Upright them for the best Wi-Fi |
|
performance. |
||
|
||
|
|
5
Chapter 2
Connect the Hardware
This chapter contains the following sections:
•Position Your Router
•Connect Your Router
Chapter 2 |
Connect the Hardware |
2. 1. Position Your Router
•The Product should not be located where it will be exposed to moisture or excessive heat.
•Place the router in a location where it can be connected to the various devices as well as to a power source.
•Make sure cables and power cords are safely placed out of the way so they do not create a tripping hazard.
•The router can be placed on a shelf or desktop.
•Keep away from the strong electromagnetic radiation and the device of electromagnetic sensitive.
2. 2. Connect Your Router
1. Follow the steps below to connect your router.
If your Internet connection is through an Ethernet cable from the wall instead of through a DSL / Cable / Satellite modem, connect the Ethernet cable directly to the router’s Internet port, then follow Step 4 and 5 to complete the hardware connection.
1 ) |
Turn off the modem, and remove the backup battery if it has one. |
2 ) |
Connect the modem to the Internet port on your router with an Ethernet cable. |
3 ) |
Turn on the modem, and then wait about 2 minutes for it to restart. |
7
Chapter 2 |
Connect the Hardware |
4 ) Turn on the router.
5 ) Verify that the following LEDs are on and stable before continuing with the configuration.
Power |
2.4G |
5G |
Internet |
On |
On |
On |
On |
Tips:
If the 2.4GHz and 5GHz LEDs are off, press the Wi-Fi/WPS button until they are on.
2. Connect your computer to the router.
• Method 1: Wired
Turn off the Wi-Fi on your computer and connect the devices as shown below.
Ethernet cable
•Method 2: Wireless
1) Find the SSID (Network Name) and Wireless Password printed on the label at the bottom of the router.
2 ) Click the network icon of your computer or go to Wi-Fi Setting of your smart device, and the select the SSID to join the network.
8
Chapter 2 |
|
|
Connect the Hardware |
Computer |
|
|
Smart Device |
|
|
< Settings |
Wi-Fi |
Connections are available |
|
|
|
Wireless Network Connection |
|
Wi-Fi |
|
TP-LINK_XXXX |
|
CHOOSE A NETWORK... |
|
|
|
|
|
TP-LINK_XXXX_5G |
|
TP-LINK_XXXX |
|
|
|
||
√ Connect automatically |
Connect |
TP-LINK_XXXX_5G |
|
|
|
||
|
|
Other... |
|
• Method 3: Use the WPS button
Wireless devices that support WPS, including Android phones, tablets, most USB network cards, can be connected to your router through this method. (WPS is not supported by iOS devices.)
Note:
The WPS function cannot be configured if the wireless function of the router is disabled. Also, the WPS function will be disabled if your wireless encryption is WEP. Please make sure the wireless function is enabled and is configured with the appropriate encryption before configuring the WPS.
1.Tab the WPS icon on the device’s screen.
2.Immediately press the WPS button on your router.
Close to
9
Chapter 3
Log into Your Router
Chapter 3 |
Log into Your Router |
With a Web-based utility, it is easy to configure and manage the router. The Web-based utility can be used on any Windows, Macintosh or UNIX OS with a Web browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari.
Follow the steps below to log into your router.
1.Set up the TCP/IP Protocol in Obtain an IP address automatically mode on your computer.
2.Visit http://tplinkwifi.net, and log in with the username and password you set for the router. The default one is admin for both username and password.
Note:
If the login window does not appear, please refer to FAQ.
11
Chapter 4
Set Up Internet Connection
This chapter introduces how to connect your router to the Internet. The router is equipped with a web-based Quick Setup wizard. It has many ISP information built in, automates many of the steps and verifies that those steps have been successfully completed. Furthermore, you can also set up an IPv6 connection if your ISP provides IPv6 service.
This chapter contains the following sections:
•Quick Setup
•Manually Configure Your Internet Connection Settings
•Setting Up an IPv6 Internet Connection
Chapter 4 |
Set Up Internet Connection |
4. 1. Quick Setup
The Quick Setup Wizard will guide you through the process to set up your router to access the Internet.
Tips:
If you need the IPv6 Internet connection, please refer to the section of Setting Up an IPv6 Internet Connection.
Follow the steps below to set up your router to access the Internet.
1.Visit http://tplinkwifi.net, and log in with the username and password you set for the router.
2.Click Quick Setup on the top of the page.
3.Select your Time Zone from the drop-down list and click Next.
4. Click Auto Detect and the router will detect your connection type automatically.
Note:
You can also choose the connection type manually. Contact your ISP if you are not sure about the Internet connection information.
•If you use DSL line and you are only provided with an account name and a password by your ISP, choose PPPoE.
•If you use cable TV or fiber cable, choose Dynamic IP.
•If you are provided with more information such as IP address, Subnet Mask and Default Gateway, choose Static IP.
5.In this case, the router automatically detects PPPoE as the connection type. Click Next.
13
Chapter 4 |
Set Up Internet Connection |
6. Fill the Username and Password provided by your ISP in the field. Click Next.
7. Configure your wireless settings and click Next.
Note:
1.You may customize your 2.4GHz/5GHz SSID and password. Once done, the wireless connection will disconnect automatically, and you must then use the new SSID and password to regain access to the Internet.
2.Tick Hide SSID if you want to hide this wireless network name.
8. Confirm the information and click Save.
14
Chapter 4 |
Set Up Internet Connection |
||
|
|
|
|
|
|
|
|
9.Click Test Internet Connection. If you successfully connect to the Internet, the screen will display as follows.
10. Now your computer and Wi-Fi devices can connect to the Internet!
Tips:
You can connect your computer to the router’s Ethernet port using an Ethernet cable to join the local area network. You can also find and select the wireless network name on your Wi-Fi device to join the Wi-Fi network.
4.2. Manually Configure Your Internet Connection Settings
In this part, you can check your current Internet connection settings. You can also modify the settings according to the service information provided by your ISP.
Follow the steps below to check or modify your Internet connection settings.
15
Chapter 4 |
Set Up Internet Connection |
1.Visit http://tplinkwifi.net, and log in with the username and password you set for the router.
2.Go to Basic > Internet.
3.Select your Internet connection type from the drop-down list.
Note:
If you are unsure of what your connection type is, click Auto Detect. Since different connection types need different cables and connection information, you can also refer to the demonstrations in Step 4 to judge your connection type.
4.Follow the instructions on the page to continue the configuration. Parameters on the figures are just used for demonstration.
1 ) If you choose Dynamic IP, you need to select whether to clone the MAC address. Dynamic IP users are usually equipped with cable TV or fiber cable.
2 ) If you choose Static IP, enter the information provided by your ISP in the corresponding fields.
16
Chapter 4 |
Set Up Internet Connection |
|
|
|
|
|
|
|
3 ) If you choose PPPoE, enter the username and password provided by your ISP. PPPoE users usually have DSL cables.
4 ) If you choose L2TP, enter the username and password and choose the Secondary Connection provided by your ISP. Different parameters are needed according to the Secondary Connection.
17
Chapter 4 |
Set Up Internet Connection |
|
|
|
|
|
|
|
5 ) If you choose PPTP, enter the username and password, and choose the Secondary Connection provided by your ISP. Different parameters are needed according to the Secondary Connection.
5. Click Save to make the settings take effect. To check your Internet connection, click Network Map on the left of the page.
Note:
It may take 1-2 minutes to make the settings valid.
6.After the connection succeeds, the screen will display as follows. Here we take PPPoE as an example.
18
Chapter 4 |
Set Up Internet Connection |
Tips:
1.If your Internet connection type is BigPond Cable, please go to Advanced > Network > Internet.
2.If you use Dynamic IP and PPPoE and you are provided with any other parameters that are not required on the page, please go to Advanced > Network > Internet to complete the configuration.
3.If you still cannot connect to the Internet, refer to FAQ for further instructions.
4.3. Setting Up an IPv6 Internet Connection
Your ISP provides information about one of the following Internet connection types: PPPoE, Dynamic IP(SLAAC/DHCPv6), Static IP, 6to4 tunnel, Pass-Through (Bridge).
1.Visit http://tplinkwifi.net, then log in with the username and password you set for the router.
2.Go to Advanced > IPv6.
19
Chapter 4 |
Set Up Internet Connection |
||
|
|
|
|
|
|
|
|
3. Select the Internet connection type provided by your ISP.
Tips:
If you do not know what your Internet connection type is, contact your ISP or judge according to the already known information provided by your ISP.
4.Fill in information as required by different connection types. (Red blanks must be filled in.)
1 ) Static IP: Fill in blanks and click Save.
20
Chapter 4 |
Set Up Internet Connection |
||
|
|
|
|
|
|
|
|
2 ) Dynamic IP(SLAAC/DHCPv6): Click Advanced to have more configuration if your ISP requires. Click Save to save the settings and then click Renew to finish the configuration.
3 ) PPPoE: Fill in the Username and Password. Click Advanced to have more configuration if your ISP requires. Click Save to save the settings and then click Connect to finish the configuration.
21
Chapter 4 |
Set Up Internet Connection |
||
|
|
|
|
|
|
|
|
4 ) 6to4 Tunnel: An IPv4 Internet connection type is a prerequisite for this connection type (Manually Configure Your Internet Connection Settings). Click Advanced to have more configuration if your ISP requires. Click Save to save the settings and then click Connect to finish the configuration.
5 ) Pass-Through (Bridge): Click Save and skip to step 6.
22
Chapter 4 |
Set Up Internet Connection |
||
|
|
|
|
|
|
|
|
5. Configure LAN ports. Windows users are recommended to choose from the first two types. Fill in Address Prefix provided by your ISP, and click Save to save the settings.
Tips:
Find Help on the management interface to know more about items.
6.Click Status to check whether you succeed or not. The following figure is an example of a successful PPPoE configuration.
Tips:
Visit FAQ if there is no Internet connection.
23
Chapter 5
Guest Network
This function allows you to provide Wi-Fi access for guests without disclosing your main network. When you have guests in your house, apartment, or workplace, you can create a guest network for them. In addition, you can customize guest network options to ensure network security and privacy.
This chapter contains the following sections:
•Create a Network for Guests
•Customize Guest Network Options
Loading...
