About This Guide
This guide is a complement of Quick Installation Guide. The Quick Installation Guide instructs you on quick internet setup, and this guide provides details of each function and shows you the way to configure these functions appropriate to your needs.
When using this guide, please notice that features of the router may vary slightly depending on the model and software version you have, and on your location, language, and internet service provider. All screenshots, images, parameters and descriptions documented in this guide are used for demonstration only.
Conventions
In this guide the following conventions are used:
Convention |
Description |
|
Underlined |
Underlined words or phrases are hyperlinks. You can click to redirect to a |
|
website or a specific section. |
||
|
||
Teal |
Contents to be emphasized and texts on the web page are in teal, including the |
|
menus, items, buttons, etc. |
||
|
The menu structures to show the path to load the corresponding page.
>For example, Advanced > Wireless > MAC Filtering means the MAC Filtering function page is under the Wireless menu that is located in the Advanced tab.
|
|
|
Note: |
Ignoring this type of note might result in a malfunction or damage to the device. |
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
Tips: |
Indicates important information that helps you make better use of your device. |
|
|
|
|
||
|
|
|
|
||
|
|
|
|
|
• click to edit the corresponding entry. |
symbols on the web |
• click to delete the corresponding entry. |
||||
page |
• click to enable or disable the corresponding entry. |
||||
|
|
|
|
|
|
|
|
|
|
|
• click to view more information about items on the page. |
More Info
The latest software, management app and utility can be found at Download Center at https://www.tp-link.com/support.
The Quick Installation Guide can be found where you find this guide or inside the package of the router.
Specifications can be found on the product page at https://www.tp-link.com.
A Technical Support Forum is provided for you to discuss our products at https://forum.tp-link.com.
Our Technical Support contact information can be found at the Contact Technical Support page at https://www.tp-link.com/support.
1
Speed/Coverage Disclaimer
Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
MU-MIMO Disclaimer
Use of MU-MIMO requires clients to also support MU-MIMO.
HomeCare Disclaimer
A basic TP-Link HomeCareTM, powered by Trend MicroTM, package is included for 3 years from date of activation at no additional cost. It includes Parental controls, Quality of Service, and Antivirus. Deactivation of HomeCareTM will disable certain controls and protections. For a complete list of HomeCareTM functions, go to www.tp-link.com.
2
Chapter 1
Get to Know About Your Router
This chapter introduces what the router can do and shows its appearance. It contains the following sections:
•Product Overview
•Panel Layout
Chapter 1 |
Get to Know About Your Router |
1. 1. Product Overview
The TP-Link router is designed to fully meet the need of Small Office/Home Office (SOHO) networks and users demanding higher networking performance. The powerful antennas ensure continuous Wi-Fi signal to all your devices while boosting widespread coverage throughout your home, and the built-in Ethernet ports supply high-speed connection to your wired devices.
Moreover, it is simple and convenient to set up and use the TP-Link router due to its intuitive web interface and the powerful Tether app.
1. 2. Panel Layout
1. 2. 1. Top Panel
LEDs
LED On/Off button
The router’s top panel provides LEDs (view from bottom to top). You can check the router’s working status by following the LED Explanation table.
It also provides the LED On/Off button. You can press this button to turn on/off the LEDs without affecting the router’s function.
LED Explanation
|
Name |
Status |
Indication |
|
|
On |
The system has started up successfully. |
|
|
Flashing |
The system is starting up or firmware is being upgraded. |
|
(Power) |
Do not disconnect or power off the router. |
|
|
|
||
|
|
Off |
Power is off. Please ensure that the power adapter is |
|
|
connected correctly. |
|
|
|
|
4
Chapter 1 |
|
Get to Know About Your Router |
|
|
|
|
|
Name |
Status |
Indication |
|
(Wireless |
On |
The 2.4GHz wireless band is working properly. |
|
2.4GHz) |
Off |
The 2.4GHz wireless band is disabled. |
|
(Wireless |
On |
The 5GHz band wireless is working properly. |
|
5GHz) |
Off |
The 5GHz wireless band is disabled. |
|
|
White |
Internet service is available. |
|
(Internet) |
Orange |
The Internet port is connected, but internet service is not |
|
available. |
|||
|
Off |
The Internet port is not connected. |
|
(LAN) |
On |
At least one LAN port is connected to a powered-on device. |
|
Off |
No LAN port is connected to a powered-on device. |
||
|
|||
|
On |
A WPS connection is established. |
|
|
Flashing |
WPS connection is in progress. This may take up to 2 |
|
(WPS) |
minutes. |
||
|
|||
|
Off |
A WPS connection has been established for more than 5 |
|
|
minutes or WPS connection failed. |
||
|
|
||
|
On |
The USB device connected to the USB 3.0 port is ready to |
|
|
use. |
||
|
|
||
|
Flashing |
The USB device connected to the USB 3.0 port is being |
|
(USB 3.0) |
identified. |
||
|
|||
|
Off |
No USB device is plugged into the USB 3.0 port or the |
|
|
USB device is not identified or USB device has been safely |
||
|
|
ejected. |
|
|
On |
The USB device connected to the USB 2.0 port is ready to |
|
|
use. |
||
|
|
||
|
Flashing |
The USB device connected to the USB 2.0 port is being |
|
(USB 2.0) |
identified. |
||
|
|||
|
Off |
No USB device is plugged into the USB 2.0 port or the |
|
|
USB device is not identified or USB device has been safely |
||
|
|
ejected. |
5
Chapter 1 |
Get to Know About Your Router |
1. 2. 2. Back Panel
The router’s back panel shows the connection ports, buttons and antennas (view from left to right). Refer to the following for detailed instructions.
Item |
Description |
|
Internet Port |
For connecting to a DSL/Cable modem, or an Ethernet jack. |
|
LAN Ports (1, 2, |
For connecting your PC or other Ethernet network devices to the router. |
|
3, 4) |
||
|
||
Power Port |
For connecting the router to a power socket via the provided power |
|
adapter. |
||
|
||
Power On/Off |
Press this button to power on or off the router. |
|
Button |
||
|
||
Antennas |
Used for wireless operation and data transmit. |
1. 2. 3. Side Panel
6
Chapter 1 |
Get to Know About Your Router |
The router’s side panel shows the USB ports and buttons (view from left to right). Refer to the following for detailed instructions.
Item |
Description |
|
WiFi On/Off Button |
Press and hold this button for about 2 seconds to turn on or off the |
|
wireless function of your router. |
||
|
||
Reset Button |
Press and hold this button for about 2 seconds to reset the router to |
|
its factory default settings. |
||
|
||
WPS Button |
Press and hold this button for about 2 seconds to enable the WPS |
|
function. |
||
|
||
USB 2.0 Port |
For connecting to a USB 2.0 device. |
|
USB 3.0 Port |
For connecting to a USB 3.0 device. It is also compatible with USB |
|
2.0 devices. |
||
|
7
Chapter 2
Connect the Hardware
This chapter contains the following sections:
•Position Your Router
•Connect Your Router
Chapter 2 |
Connect the Hardware |
2. 1. Position Your Router
•The product should not be located in a place where it will be exposed to moisture or excessive heat.
•Place the router in a location where it can be connected to multiple devices as well as to a power source.
•Make sure the cables and power cord are safely placed out of the way so they do not create a tripping hazard.
•The router can be placed on a shelf or desktop.
•Keep the router away from devices with strong electromagnetic interference, such as Bluetooth devices, cordless phones and microwaves.
2. 2. Connect Your Router
Follow the steps below to connect your router.

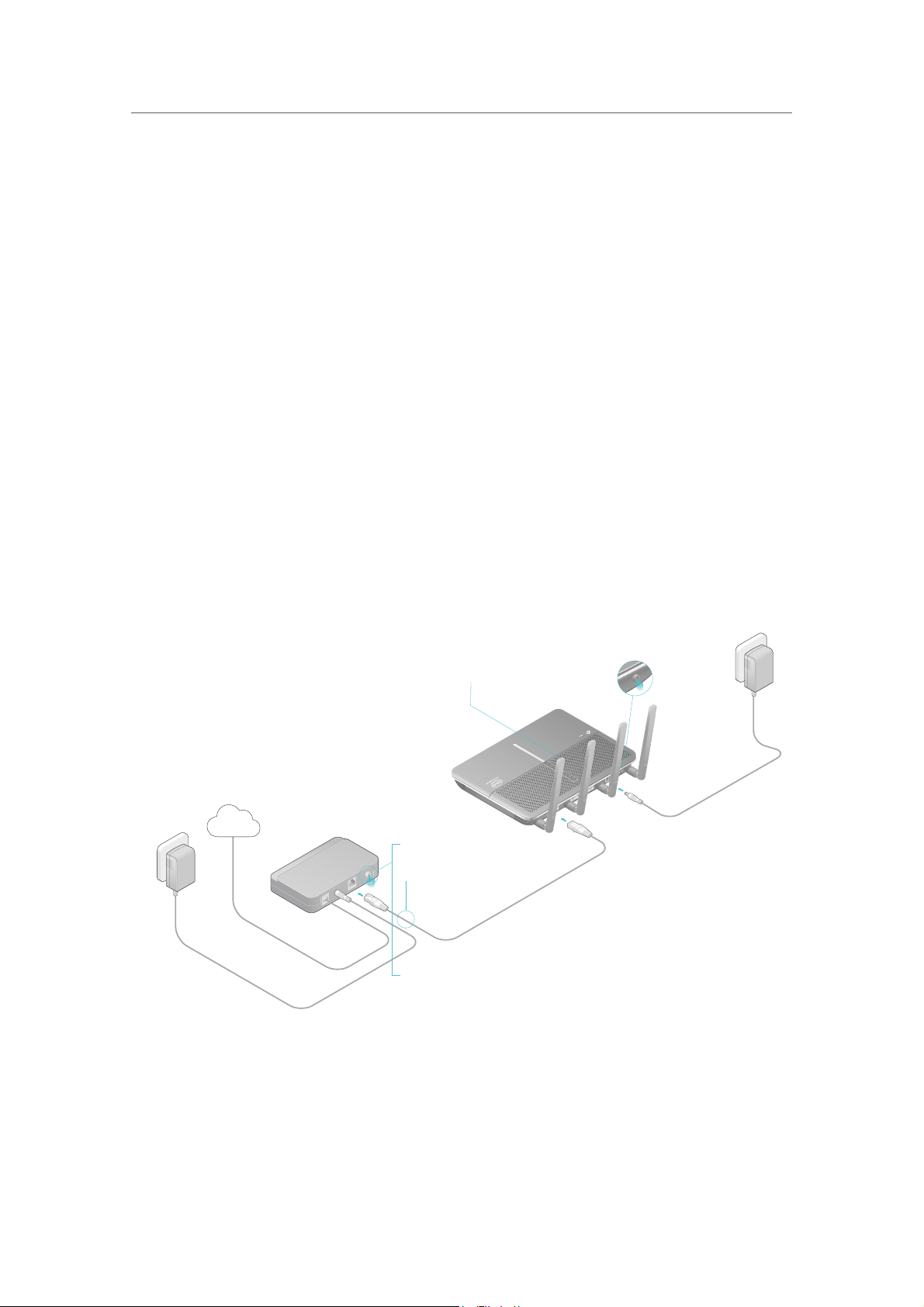

If your internet connection is through an Ethernet cable from the wall instead of through a DSL / Cable / Satellite modem, connect the Ethernet cable directly to the router’s Internet port, and then follow Step 1, 5 and 6 to complete the hardware connection.
1 |
5 |
Power adapter
Router
Internet
2
3
Power adapter |
Modem |
|
4
1.Install the antennas.
2.Turn off the modem, and remove the backup battery if it has one.
3.Connect the modem to your router’s Internet port with an Ethernet cable.
4.Turn on the modem, and then wait about 2 minutes for it to restart.
5.Connect the power adapter to the router and turn on the router.
9
Chapter 2 |
Connect the Hardware |
6.Confirm that the following LEDs are on and solid to verify the hardware is connected correctly.
Power |
2.4GHz |
5GHz |
Internet |
On |
On |
On |
On |
Note:
•If all the LEDs are off, press the LED On/Off button at the top panel for about 1 second, and then check the LEDs again.
•If the 2.4GHz and 5GHz LEDs are off, press the Wi-Fi On/Off button at the side panel for about 2 seconds, then both LEDs should turn stable in a few seconds.
Tip:
For optimum performance, orient the four antennas as shown in the drawing below.
30° |
|
30° |
|
||
|
|
|
7. Connect your computer to the router.
• Method 1: Wired
Turn off the Wi-Fi on your computer and connect the devices as shown below.
Ethernet Cable
•Method 2: Wirelessly
1) Find the SSID (Network Name) and Wireless Password printed on the label at the bottom of the router.
2) Click the network icon of your computer or go to Wi-Fi Settings of your smart device, and then select the SSID to join the network.
Computer |
Smart Device |
Connections are available |
< Settings |
Wi-Fi |
|
|
|
Wireless Network Connection |
Wi-Fi |
|
TP-Link_XXXX |
CHOOSE A NETWORK... |
|
OR |
|
|
TP-Link_XXXX_5G |
TP-Link_XXXX |
|
Connect automatically |
Connect |
TP-Link_XXXX_5G |
|
|
||||||
|
||||||||||
|
|
|
|
|
|
|
|
Other... |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
10
Chapter 2 |
Connect the Hardware |
• Method 3: Use the WPS button
Wireless devices that support WPS, including Android phones, tablets, and most USB network cards, can be connected to your router through this method.
Note:
•WPS is not supported by iOS devices.
•The WPS function cannot be configured if the wireless function of the router is disabled. Also, the WPS function will be disabled if your wireless encryption is WEP. Please make sure the wireless function is enabled and is configured with the appropriate encryption before configuring the WPS.
1 ) Tap the WPS icon on the device’s screen. Here we take an Android phone for instance.
2 ) Within two minutes, press the WPS button on your router.
WLAN
On
TP-Link
MyHome
David
HomeNetwork
TP-Link_Home
TP-Link_Router
Test
close to
11
Chapter 3
Log In to Your Router
Chapter 3 |
Log In to Your Router |
With a web-based utility, it is easy to configure and manage the router. The web-based utility can be used on any Windows, Mac OS or UNIX OS with a Web browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari.
Follow the steps below to log in to your router.
1.Set up the TCP/IP Protocol in Obtain an IP address automatically mode on your computer.
2.Visit http://tplinkwifi.net, and create a login password for secure management purposes. Then click Let’s Get Started to log in.
Note: If the login window does not appear, please refer to the FAQ Section.
13
Chapter 4
Set Up Internet Connection
This chapter introduces how to connect your router to the internet. The router is equipped with a web-based Quick Setup wizard. It has necessary ISP information built in, automates many of the steps and verifies that those steps have been successfully completed. Furthermore, you can also set up an IPv6 connection if your ISP provides IPv6 service.
It contains the following sections:
•Use Quick Setup Wizard
•Manually Set Up Your Internet Connection
•Set Up the Router as an Access Point
•Set Up an IPv6 Internet Connection
Chapter 4 |
Set Up Internet Connection |
4. 1. Use Quick Setup Wizard
The Quick Setup Wizard will guide you to set up your router.
Tips:
If you need the IPv6 internet connection, please refer to the section of Set Up an IPv6 Internet Connection.
Follow the steps below to set up your router.
1.Visit http://tplinkwifi.net, and log in with the password you set for the router.
2.Click Quick Setup on the top of the page. Then follow the step-by-step instructions to connect your router to the internet.
3.To enjoy a more complete service from TP-Link (remote management, TP-Link DDNS, and more), log in with your TP-Link ID or click Resigter Now to get one. Then follow the instructions to bind the cloud router to your TP-Link ID.
Note:
•To learn more about the TP-Link Cloud service, please refer to the TP-Link Cloud Service section.
•If you do not want to register a TP-Link ID now, you may click Log In Later to proceed.
•If you have changed the preset wireless network name (SSID) and wireless password during the Quick Setup process, all your wireless devices must use the new SSID and password to connect to the router.
4. 2. Manually Set Up Your Internet Connection
In this part, you can check your current internet connection settings. You can also modify the settings according to the service information provided by your ISP.
Follow the steps below to check or modify your internet connection settings.
1.Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2.Go to Basic > Internet.
3.Select your internet connection type from the drop-down list.
15
Chapter 4 |
Set Up Internet Connection |
||
|
|
|
|
|
|
|
|
Note:
If you are unsure of what your connection type is, click Auto Detect. Since different connection types require different cables and connection information, you can also refer to the demonstrations in Step 4 to determine your connection type.
4.Follow the instructions on the page to continue the configuration. Parameters on the figures are just used for demonstration.
1 ) If you choose Dynamic IP, you need to select whether to clone the MAC address. Dynamic IP users are usually equipped with a cable TV or fiber cable.
2 ) If you choose Static IP, enter the information provided by your ISP in the corresponding fields.
16
Chapter 4 |
Set Up Internet Connection |
||
|
|
|
|
|
|
|
|
3 ) If you choose PPPoE, enter the username and password provided by your ISP. PPPoE users usually have DSL cable modems.
4 ) If you choose L2TP, enter the username and password and choose the Secondary Connection provided by your ISP. Different parameters are needed according to the Secondary Connection you have chosen.
17
Chapter 4 |
Set Up Internet Connection |
||
|
|
|
|
|
|
|
|
5 ) If you choose PPTP, enter the username and password, and choose the Secondary Connection provided by your ISP. Different parameters are needed according to the Secondary Connection you have chosen.
5.Click Save.
6.To check your internet connection, click Network Map on the left of the page. After the connection succeeds, the screen will display as follows. Here we take PPPoE as an example.
18
Chapter 4 |
Set Up Internet Connection |
Note:
It may take 1-2 minutes to make the settings valid.
Tips:
•If your internet connection type is BigPond Cable, please go to Advanced > Network > Internet to set your router.
•If you use Dynamic IP and PPPoE and you are provided with any other parameters that are not required on the page, please go to Advanced > Network > Internet to complete the configuration.
•If you still cannot access the internet, refer to the FAQ section for further instructions.
4. 3. Set Up the Router as an Access Point
If you have another router, you can switch this new router to Access Point mode to extend your existing network.
1.Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2.Go to Advanced > Operation Mode, select Access Point and click Save. The router will reboot and switch to Access Point mode.
19
Chapter 4 |
Set Up Internet Connection |
||
|
|
|
|
|
|
|
|
3.After rebooting, connect the router’s Internet port to your existing router’s Ethernet port via an Ethernet cable.
Internet |
Ethernet1 |
Ethernet4 |
Ethernet
Existing Router
Internet |
New Router |
Clients |
4.Log in again to the web management page http://tplinkwifi.net, and click Quick Setup.
5.Configure your wireless settings and click Next.
6. Confirm the information and click Save. Now, you can enjoy your Wi-Fi.
20
Chapter 4 |
Set Up Internet Connection |
||
|
|
|
|
|
|
|
|
Tips:
•Functions, such as Parental Controls, QoS and NAT Forwarding, are not supported in the Access Point mode.
•Functions, such as Guest Network and USB Settings, are similar with those in the Router mode.
4. 4. Set Up an IPv6 Internet Connection
You can set up an IPv6 internet connection if your ISP provides information about one of the following IPv6 internet connection types: PPPoE, Dynamic IP(SLAAC/DHCPv6), Static IP, 6to4 tunnel, Pass-Through (Bridge).
1.Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2.Go to Advanced > IPv6.
3.Enable IPv6 and select the internet connection type provided by your ISP.
Tips:
If you do not know what your internet connection type is, contact your ISP or judge according to the already known information provided by your ISP.
4.Fill in information as required by different connection types. Red blanks must be filled in.
1 ) Static IP: Fill in blanks and click Save.
21
Chapter 4 |
Set Up Internet Connection |
||
|
|
|
|
|
|
|
|
2 ) Dynamic IP (SLAAC/DHCPv6): Click Advanced to input further information if your ISP requires. Click Save and then click Renew.
3 ) PPPoE: By default, the router uses the IPv4 account to connect to the IPv6 server. Click Advanced to input further information if your ISP requires. Click Save and then click Connect.
Note:
If your ISP provides two separate accounts for the IPv4 and IPv6 connections, please untick the Use the same session with IPv4 connection checkbox and manually enter the username and password for the IPv6 connection.
22
Chapter 4 |
Set Up Internet Connection |
||
|
|
|
|
|
|
|
|
4 ) 6to4 Tunnel: An IPv4 internet connection type is a prerequisite for this connection type (Manually Set Up Your Internet Connection). Click Advanced to input further information if your ISP requires. Click Save and then click Connect.
5 ) Pass-Through (Bridge): Click Save and skip to Step 6.
23
Chapter 4 |
Set Up Internet Connection |
5.Configure LAN ports. Windows users are recommended to choose from the first two types. Fill in Address Prefix provided by your ISP, and click Save.
Tips:
Find Help on the web management page to know more about items.
6.Click Status to check whether you have successfully set up an IPv6 connection. The following figure is an example of a successful PPPoE configuration.
Tips:
Visit the FAQ section if there is no internet connection.
24
Chapter 5
TP-Link Cloud Service
TP-Link Cloud service provides a better way to manage your cloud devices. Log in to your router with a TP-Link ID, and you can easily monitor and manage your home network when you are out and about via the Tether app on your smartphone or tablet. To ensure that your router stays new and gets better over time, the TP-Link Cloud will notify you when an important firmware upgrade is avaliable. Surely you can also manage multiple TP-Link Cloud devices with a single TP-Link ID.
This chapter introduces how to register a new TP-Link ID, bind or unbind TP-Link IDs to manage your router, and the Tether app with which you can manage your home network no matter where you may find yourself.
It contains the following sections:
•Register a TP-Link ID
•Change Your TP-Link ID Information
•Manage the User TP-Link IDs
•Manage the Router via the TP-Link Tether App
Chapter 5 |
TP-Link Cloud Service |
5. 1. Register a TP-Link ID
If you have skipped the registration during the Quick Setup process, you can
1.Visit http://tplinkwifi.net, and log in with the password you set for the router.
2.Go to Basic > TP-Link Cloud.
3.Click Register Now and follow the instructions to register a TP-Link ID.
4.After activating your TP-Link ID, come back to the TP-Link Cloud page to log in. The TP-Link ID used to log in to the router for the first time will be automatically bound as an Admin.
Note:
•To learn more about the Admin and User TP-Link ID, refer to Manage the User TP-Link IDs.
•Once you have registered a TP-Link ID on the web management page, you can only register another TP-Link ID via the Tether APP. Please refer to Manage the Router via the TP-Link Tether App to install the app and register a new one.
•If you want to unbind the admin TP-Link ID from your router, please go to Basic > TP-Link Cloud, an click Unbind in the Device Information section.
5. 2. Change Your TP-Link ID Information
Follow the steps below to change your email address and password of your TP-Link ID as needed.
1.Visit http://tplinkwifi.net, and log in with your TP-Link ID.
2.Go to Basic > TP-Link Cloud, and focus on the Account Information section.
¾To change your email address:
1.Click
behind the Email.
2.Enter the password of your TP-Link ID, then a new email address. And click Save.
26
Loading...
