User Guide

Home Security Wi-Fi Camera

Tapo C110

Contents

About This Guide ······················································································ 1

Introduction ·································································································2

Appearance ································································································· 3

Set Up Your Camera ················································································ 4

Setup using Amazon Frustration-Free Setup ··························· 6

Main Camera Controls ········································································ 10

Motion Detection ···················································································12

24-hour Recordings ············································································· 16

Privacy Mode ···························································································18

Authentication ························································································· 19

About This Guide

This guide provides a brief introduction to the Home Security Wi-Fi Camera and the Tapo app, as well as regulatory information.

Please note that features available of the Tapo smart camera may vary by model and software version. The availability may also vary by region or ISP. All

images, steps, and descriptions in this guide are only examples and may not reect your actual experience.

Conventions

In this guide, the following convention is used:

Convention Description

Blue

Underline

Note:

Ignoring this type of note might result in a malfunction or damage to the device.

Key information appears in teal, including management page text such as menus, items, buttons and so on.

Hyperlinks are in teal and underlined. You can click to redirect to a website.

More Info

• Specications can be found on the product page at https://www.tapo.com.

• Our Technical Support and troubleshooting information can be found at https://www.tapo.com/support/.

• The setup video can be found at https://www.tp-link.com/support/setup-video/#cloud-cameras.

Introduction

When you are away home, there are always something you care about. This is where the smart camera functions. No matter your child is climbing the kitchen cabinet, or the pet is stealing snacks, Tapo C110 helps you stay with them anytime, anywhere.

• 3MP High-Denition – Provide greater sharpness and clarity.

• Night Vision – Even at night, the camera can provide a visual distance of up to 30 ft.

• Live View – Always stay with what matters most to you anytime, anywhere.

• Two-Way Audio – Communicate with loved ones with the built-in microphone and speaker.

• Sound and Light Alarm – Trigger light and sound eects to frighten away unwanted visitors.

• Privacy Mode - Shut down the surveillance to protect your privacy.

• Sharing - Share the memorable moments with your family and friends.

• Easy Setup - Set up the camera with free app within minutes.

• Safe Storage – Store up to 256 GB on a microSD card

†

microSD card needs to be purchased separately. △The data comes from TP-Link laboratory.

†

, equal to 512 hours (21 days) of footage△.

Appearance

The Home Security Wi-Fi Camera has a system LED that changes color according to its status, an alert light, lens, microphone, DC power port, RESET button, and a microSD card slot. Refer below for details.

Lens

Microphone

Built-in internal microphone.

Note: Do NOT insert objects into the hole.

Alert Light

Blinks to alert you when the

activity detected.

DC Power Port

Connect the power cord provided.

RESET Button

Press and hold for at least 5 seconds until the LED blinks red to reset your camera.

microSD Card Slot

Insert a microSD card and initialize it on the app for local recording.

System LED

• Solid red:

Starting up

• Blinking red and green:

Ready for setup

• Blinking red slowly:

Connecting to Wi-Fi

• Solid amber:

Connected to Wi-Fi

• Solid green:

Connected to TP-Link Cloud server

• Blinking red quickly:

Camera resetting

• Blinking green quickly:

Camera updating

Set Up Your Camera

Follow the steps below to get started with your new camera.

Step 1. Download App

Get the Tapo app from the Apple App Store or Google Play, or by scanning the QR code below.

Step 2. Log In

Open the app, and log in with your TP-Link ID.

If you don't have an account, create one rst.

Step 3. Add Your Camera

Tap the button in the app and select your model.

Step 4. Congure Camera

Step 5. Place Camera

Follow app instructions to configure your camera and add it to your home network.

Place your camera on a at surface, or install it on a wall or ceiling with the provided

mounting screws.

1. Mark Position

Place the mounting template where you want the camera.

For wall mounting, drill two holes through two circles.

2. Mount Base

Ax two mounting screws with the help of

mounting template. For wall mounting, insert two anchors into holes

and screw the screws into the anchors.

3. Secure Camera

Hang your camera on the screws.

Unit: mm

Setup using Amazon Frustration-Free Setup

What is Amazon Frustration-Free Setup?

Amazon Frustration-Free Setup can help connect and set up Tapo smart devices in fewer steps, without having to remember and re-enter your Wi-Fi password on each device.

To use this feature, conrm the following:

● The new Tapo device supports Amazon FFS.

● You have an Amazon FFS enabled Alexa device or router.

● You have saved your Wi-Fi information to Amazon by using Alexa echo.

● Your Tapo device and router are on the same network as your Alexa echo.

LED Indications during Amazon Frustration-Free Setup

LED Status

Blinking orange and green Ready for setup

Blinking orange FFS setup in progress

Solid green Working properly

If the LED does not turn solid green after a long time, you can try to add the Tapo device manually. (Press the Reset button on your Tapo device once. Then open the Tapo app, tap the + button on the page, select your device model, and follow the app instructions. )

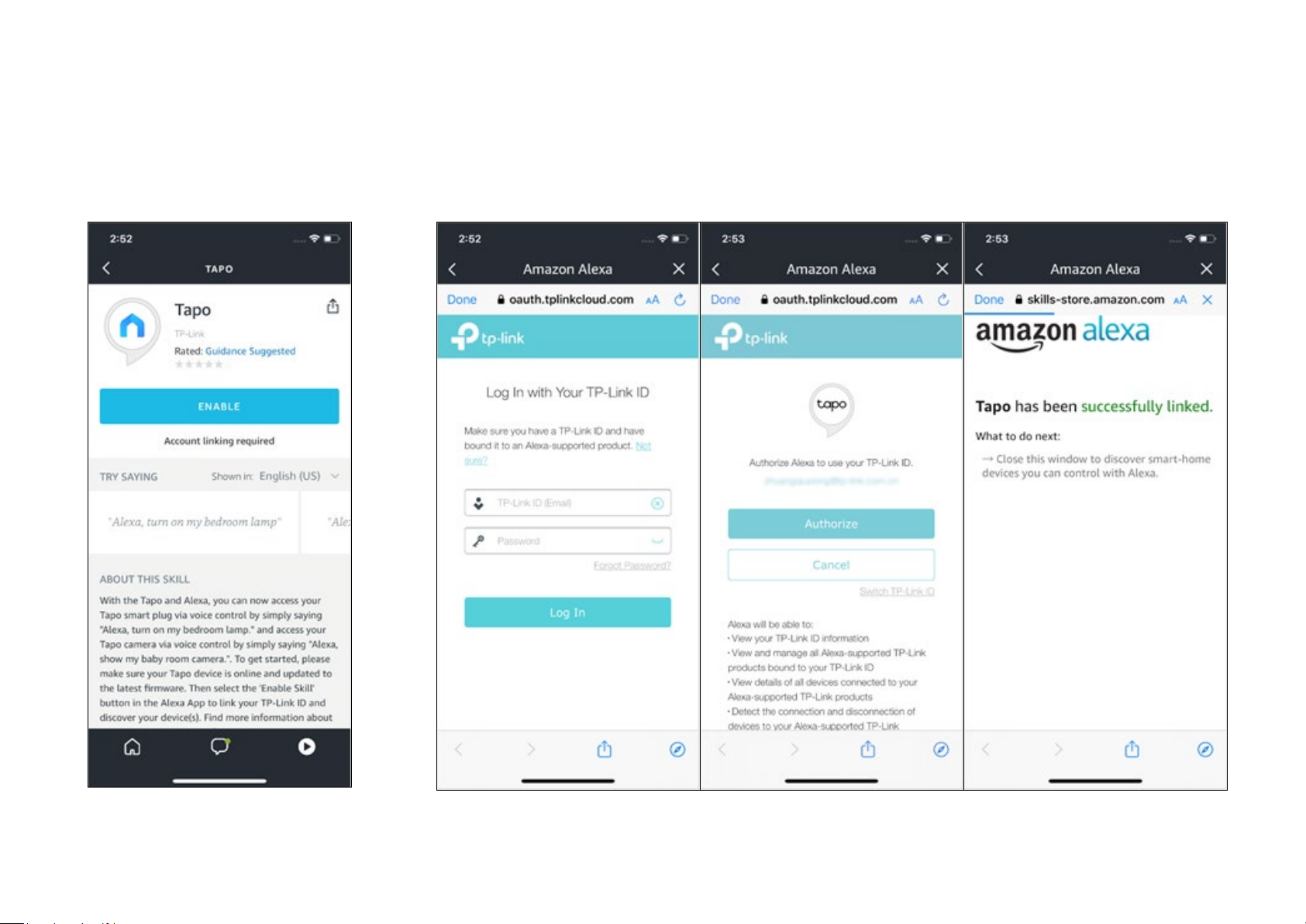

How to use Amazon Frustration-Free Setup with Tapo devices

1. Open the Amazon Alexa app. Then tap on the hamburger icon in the upper left corner and select Skills & Games.

2. Enter Tapo in the search bar and choose Tapo.

3. Tap the ENABLE button.

4. Log in with your TP-Link ID that has bound to your Tapo device, and tap Authorize. After authorized successfully, the message Tapo has been successfully linked will come up.

5. Plug in your Tapo device and the setup will complete automatically in two minutes.

For setting up more Tapo devices, just plug in and enjoy!

Done!

If this device displays on the Home page in the Tapo app, it indicates this device has been successfully associated with your Amazon account and joined your Wi-Fi network automatically.

If this device does not display on the Home page in the Tapo app, try setting it up manually. (Tap the + button on the page, select your device model, and then follow the app instructions.)

Main Camera Controls

After you successfully set up the camera, you will see your camera listed on the home page. You can view and manage your camera from anywhere at any time with the Tapo app.

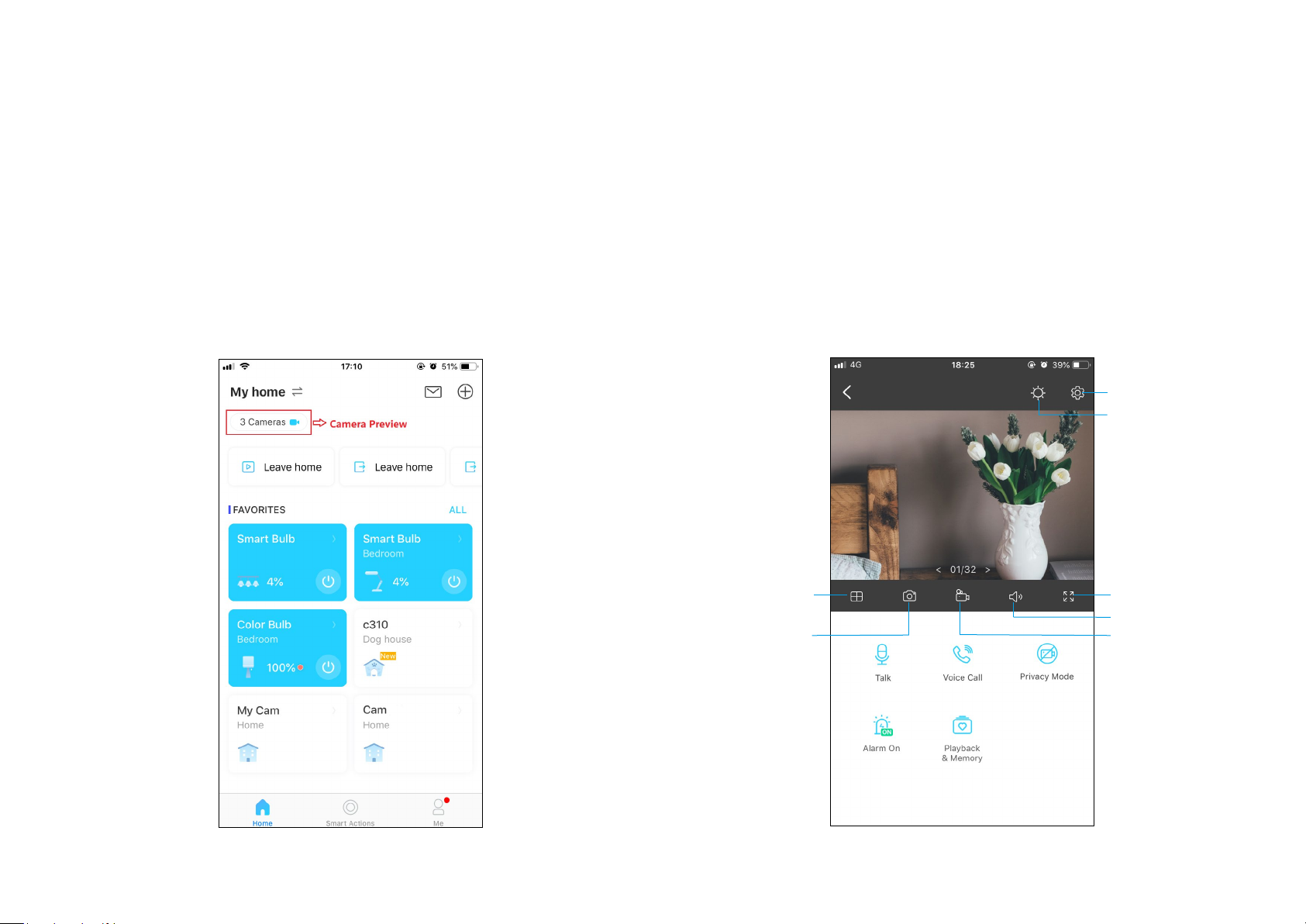

Home Page

This page lists all your cameras you've added and you can view them directly and manage them easily. Tap the camera or go to Camera

Preview > Manage to enter the Live View page.

Live View

Tap Talk or Voice Call to communicate with loved ones, turn on Alarm to get noticed when motion detected, enable the Privacy Mode to temporarily shut down the surveillance for privacy, or go to Playback &

Memory to check all recordings and saved moments.

Camera Settings

Day/Night Mode

Multi-Screen

View live videos from

multiple cameras at

the same time

Screenshot

Full Screen

Volume Record

Camera Settings

On Live View page, tap to enter the Camera Settings page. You can change the settings of your camera to meet various needs, such as

change your camera name, customize detection settings and recording

schedules, turn on or o notications, set activity zones, etc.

On this page, you can edit your account, quickly check the memorable

moments you saved, or nd the FAQs of using smart camera and basic

info related to the Tapo app.

Account Info

Change your avata,

edit your name, or

modify the password

Camera Memory

Photos and videos

you took will appear

here

Camera Preferences

You can choose to display

the Live or Speed tag on

the screen for all your

Tapo cameras

Voice Control

Set up connections with third-party services to control your Tapo devices by voice

Device Sharing

Share your Tapo devices to your family members to manage devices together

Motion Detection

With motion detection, the Tapo app alerts you of activity that matters and sends notications straight to you when motion detected. Insert a microSD card to record the clips when motion detected. Otherwise, you can only receive the notications.

Note: Initialize the SD card on the app before using it.

1. Go to Camera Settings page and tap Detection & Alerts to customize its current detection settings.

2. On the Detection & Alerts page, enable the Motion Detection function. It's recommended to enable the Notications function to receive motion detection messages.

3. Customize Camera Alarm settings. Choose Alarm Type (Sound/Light) and Alarm Sound (Siren/Tone), and set Alarm Schedule as needed.

4. Customize Activity Zones and the camera will only detect motion in custom zones. Entire view is covered by default.

5. Adjust Motion Sensitivity (Low/Normal/High) as needed. Increased

sensitivity results in more recordings and notications.

6. After editing the detection settings for the camera, you can set the

Recording Schedule for the motion detection.

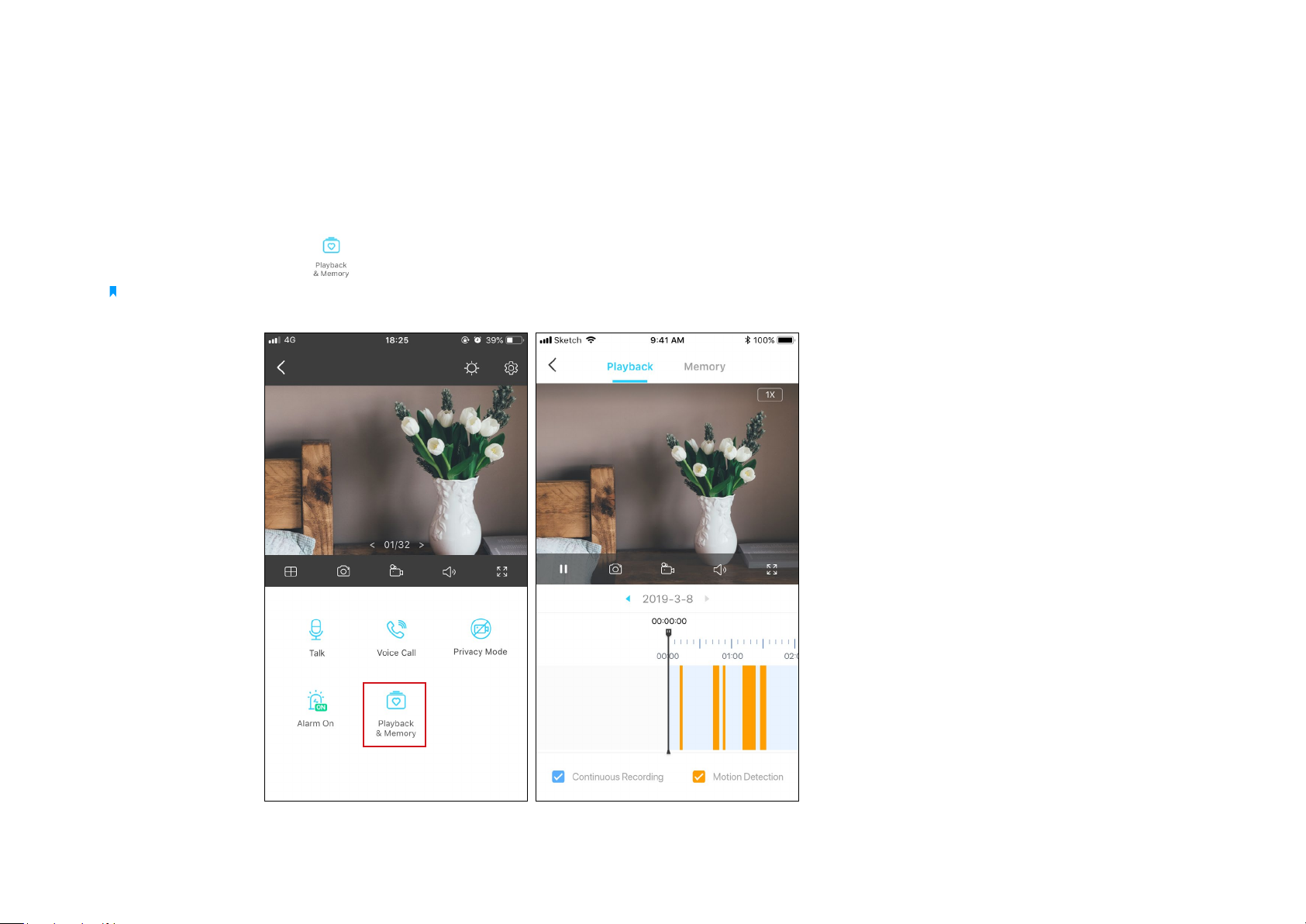

7. On the Live View page, tap

Note: The microSD card is needed for recordings. Initialize the SD card on the app before using it.

to nd all recordings. The orange sections are recordings for motion detection.

24-hour Recordings

The microSD card is needed for 24-hour recording and it’s suggested to initialize the SD card on the app before using it.

1. On the Live View page, tap

to enter the Camera Settings page.

2. Toggle on to enable the microSD Recording function and set the

Recording Schedule for Continuous Recording (24-hour Recording)

as needed.

3. On the Live View page, tap

Note: The microSD card is needed for recordings. Initialize the SD card on the app before using it.

to nd all recordings. The blue sections mean continuous recording.

Privacy Mode

On the Live View page, tap to enable the Privacy Mode. When enabled, streaming and recording functions will be temporarily disabled to protect

your privacy.

Authentication

CE Mark Warning

This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

OPERATING FREQUENCY (the maximum transmitted power)

2412MHz—2472MHz (20dBm)

EU Declaration of Conformity

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863.

The original EU declaration of conformity may be found at https://www.tp-link.com/en/ce

RF Exposure Information

This device meets the EU requirements (2014/53/EU Article 3.1a) on the limitation of exposure of the general public to electromagnetic fields by way of health protection.

The device complies with RF specifications when the device used at 20 cm from your body.

Restricted to indoor use.

Canadian Compliance Statement

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licenceexempt RSS(s). Operation is subject to the following two conditions:

1. This device may not cause interference.

2. This device must accept any interference, including interference that may cause undesired operation of the device.

L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :

1. l’appareil ne doit pas produire de brouillage;

2. l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, meme si le brouillage est susceptible d’en compromettre le fonctionnement

Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Déclaration d’exposition aux radiations:

Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.

NCC Notice & BSMI Notice:

注意！

依據低功率電波輻射性電機管理辦法

LP0002低功率射頻器材技術規範_章節3.8.2

取得審驗證明之低功率射頻器材，非經核准，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。

低功率射頻器材之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。

前述合法通信，指依電信管理法規定作業之無線電通信。

低功率射頻器材須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。

安全諮詢及注意事項

• 請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。

• 清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。

• 注意防潮，請勿將水或其他液體潑灑到本產品上。

• 插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。

• 請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。

• 請不要私自拆開機殼或自行維修，如產品有故障請與原廠或代理商聯繫。

限用物質含有情況標示聲明書

設備名稱：Home Security Wi-Fi Camera 型號（型式）：Tapo C110

Equipment name Type designation (Type)

限用物質及其化學符號

單元

Unit

鉛

Lead

(Pb)

汞

Mercury

(Hg)

鎘

Cadmium

(Cd)

Restricted substances and its chemical symbols

六價鉻

Hexavalent chromium

)

(Cr

Polybrominated biphenyls

多溴聯苯

(PBB)

多溴二苯醚

Polybrominated diphenyl ethers

(PBDE)

PCB ○ ○ ○ ○ ○ ○ 外殼 ○ ○ ○ ○ ○ ○

電源供應器 − ○ ○ ○ ○ ○

其他及其

− ○ ○ ○ ○ ○

配件

備考 1.〝超出 0.1 wt %〞及〝超出 0.01 wt %〞係指限用物質之百分比含量超出百分比含量基準值 Note 1：“Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance

exceeds the reference percentage value of presence condition. 備考 2.〝○〞係指該項限用物質之百分比含量未超出百分比含量基準值。 Note 2：“○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value

of presence. 備考 3.〝−〞係指該項限用物質為排除項目。 Note 3：The “−” indicates that the restricted substance corresponds to the exemption.

Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних документів та вимогам, що передбачені чинними законодавчими актами України.

Safety Information

• Keep the device away from water, fire, humidity or hot environments. If you need service, please contact us.

• Do not attempt to disassemble, repair, or modify the device.

• Do not use damaged charger or USB cable to charge the device.

• Do not use any other chargers than those recommended

• Do not use the device where wireless devices are not allowed.

• Adapter shall be installed near the equipment and shall be easily accessible.

• Use only power supplies which are provided by manufacturer and in the original packing of this product. If you have any questions, please don’t hesitate to contact us.

Operating Temperature: 0 ºC~ 40 ºC (32°F ~ 104°F )

Storage Temperature: -40ºC~70ºC (-40°F ~ 158°F )

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

Explanation of the symbols on the product label

Symbol Explanation

DC voltage

Indoor use only

RECYCLING

This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to

European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.

User has the choice to give his product to a competent recycling organization or to the retailer when he buys a new electrical or electronic equipment.
