TP-Link AX20 User Manual

AX1800 Dual-Band
Wi-Fi 6
Wi-Fi 6 Router
Explore the New Era of Wi-Fi
Archer AX20
Faster AX Wi-Fi Speed up to 1.8 Gbps
OFDMA Supported
Powerful Processing
USB Sharing
Highlights
Wi-Fi 6 Connects More Devices
The Archer AX20, based on the next generation 802.11ax Wi-Fi technology,
takes your Wi-Fi to the next level while being backwards compatible with
802.11a/b/g/n/ac Wi-Fi standards.
4-Streams AX Wi-Fi
Enjoy a faster and more stable network for streaming and gaming with lower latency and speeds up to 1.8 Gbps using newer mobile devices.
Boosted Coverage
Four high-gain antennas and Beamforming transmit Wi-Fi signals to every corner
of your home and concentrate signals strength towards connected devices. Wi-Fi
6 adjusts the bandwidth of sub-channels, making signals clearer and ensuring
larger coverage.
4× Increased Capacity
Add devices without dragging performance. OFDMA greatly improves network performance by 4 times to connect more devices simultaneously.
§
Smooth Streaming
OFDMA allows clients to transmit both on uplink and downlink sharing one band at one time, which cuts the latency and jittering.
Save Clients' Power
Target Wake Time helps mobile devices, especially IoT devices, consume less power during data transmission cycles to prolong battery life.
TP-Link
AX1800 Dual-Band Wi-Fi 6 Router
AX20
Highlights
Powerful Quad-Core CPU
A 1.5 GHz Quad-Core CPU provides the processing ability to handle enormous
data throughput and minimizes the lag within your home network, giving you a
smooth experience.
Gigabit Internet Access
Take full advantage of your broadband with speed up to 1 Gbps with a Gigabit WAN
port. Plug your PCs, smart TVs and game consoles into one of the four Gigabit LAN
ports for fast and reliable wired connections.
1.5 GHz Quad-Core CPU
1.5 GHz
Gigabit Ports
TP-Link
AX1800 Dual-Band Wi-Fi 6 Router
AX20
Features
Speed Wi-Fi Range Reliability
· Wi-Fi 6 Technology – The new era of Wi-Fi with speeds up to
1.8 Gbps
· OFDMA – Provides 4× greater capacity for more simultaneous
connections.
· Next-Gen Wireless Speed – 574 Mbps on 2.4 GHz (802.11ax) +
1201 Mbps on 5 GHz (802.11ax)
· 1.5 GHz Quad-Core CPU – Helps accelerate wired and wireless
transmission simultaneously to keep your connections fast and uninterrupted.
§
· Ultimate Range Wi-Fi – Four high-gain external antennas deliver
a Wi-Fi signal to every corner of your home, making all of your
connections more ecient and stable.
· Beamforming Technology – Concentrates Wi-Fi signals towards
individual devices to ensure stronger connections
· Secure VPN Access – Connects to a private network with a safe
and secure OpenVPN and PPTP VPN connection
· Airtime Fairness – Balances bandwidth of connected devices to
improve overall throughput and eciency
· Smart Connect – Intelligently switches each device’s connection
to the optimum available Wi-Fi band
TP-Link
AX1800 Dual-Band Wi-Fi 6 Router
AX20
Features
Ease of Use Security
· Intuitive Web UI – Ensures quick and simple installation without
hassle
· Fast Encryption – One-touch WPA wireless security encryption
with the WPS button
· Easy On/O – Turn on/o wireless radio using the Wi-Fi button.
· Power On/O – Conveniently power on or o your router as
required
· Hassle-free Management with Tether App – Network
management is made easy with the TP-Link Tether app, available on any Android and iOS device
· Parental Controls – Manage when and how connected devices
can access the internet
· Guest Network – Provides separate access for guests to secure
the home network
· Access Control – Establishes a whitelist or blacklist to allow or
restrict certain devices to access the internet
· Encryptions for Secure Network – WPA/WPA2-Personal,
WPA2/WPA3-Personal, WPA/WPA2-Enterprise encryptions provide active protection against security threats
Easy Sharing
· USB Port – Connects external storage devices to rapidly share
les, photos, and videos
· Built-in Media Server – Allows you to play music, watch videos
and view photos from any device on your network
TP-Link
AX1800 Dual-Band Wi-Fi 6 Router
AX20
Specications
Hardware
· Ethernet Ports: One Gigabit WAN Port, four Gigabit LAN Ports
· USB Port: One USB 2.0 Port
· Buttons: WPS/Wi-Fi Button, Power On/O Button, Reset Button
· Antennas: Four External Antennas
· External Power Supply: 12V/1.5A
· Dimensions (W x D x H): 10.2 × 5.3 × 1.5 in (260.2 × 135.0 × 38.6 mm)
Wireless
· Wireless: 1201 Mbps (5 GHz, 11ax) + 574 Mbps (2.4 GHz, 11ax), compatible with
11a/b/g/n/ac Wi-Fi standards
· Frequency: 2.4 GHz and 5 GHz
· Transmit Power:
FCC:<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)
· Reception Sensitivity:
5 GHz:
11a 6Mbps:-97dBm, 11a 54Mbps:-79dBm
11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-66dBm
11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-63dBm
11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS11:-60dBm

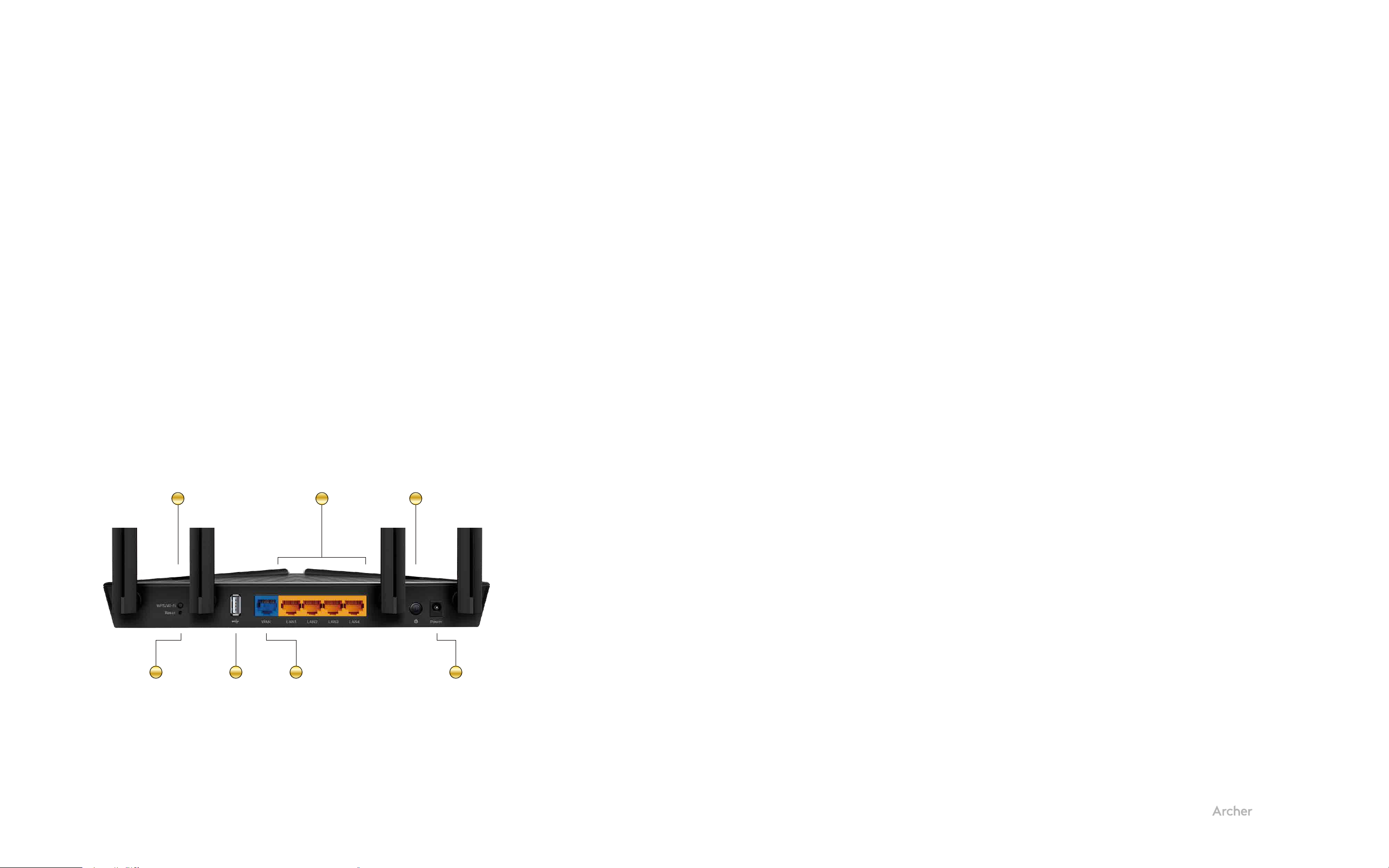

WPS/ Wi-Fi
Reset
USB 2.0
Port
Gigabit LAN Ports
Gigabit WAN Port
Power
On/O
Power
11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-63dBm
11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-60dBm
11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-58dBm
2.4 GHz:
11g 6Mbps:-97dBm
11n HT20_MCS0:-97dBm, 11n HT20_MCS7:-78dBm
11n HT40_MCS0:-95dBm, 11n HT40_MCS7:-75dBm
11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-67dBm
11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-64dBm
11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-64dBm
11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-61dBm
· Wireless Function: Enable/Disable Wireless Radio, WMM, Wireless Statistics
· Wireless Security: WPA/WPA2-Personal, WPA2/WPA3-Personal, WPA/WPA2-Enterprise
TP-Link
AX1800 Dual-Band Wi-Fi 6 Router
AX20
Specications
OthersSoftware
· Quality of Service: Device Prioritisation
· WAN Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
· Management: Access Control, Local Management, Remote Management
· DHCP: Server, DHCP Client List, Address Reservation
· NAT Forwarding: Port Forwarding, Port Triggering, UPnP, DMZ
· Dynamic DNS: DynDns, NO-IP, TP-Link
· Access Control: Parental Controls, Local Management Control, Host List, White
List, Black List
· Firewall Security: SPI Firewall, IP and MAC Address Binding
· Protocols: IPv4, IPv6
· USB Sharing: Supports Samba(Storage)/FTP Server/Media Server
· Guest Network: 2.4 GHz Guest Network, 5 GHz Guest Network
· VPN Server: OpenVPN, PPTP VPN
· Certication:
FCC, CE, RoHS
· System Requirements:
Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Cable or DSL Modem
Subscription with an internet service provider (for internet access)
· Environment:
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
· Package Contents
Wireless Router Archer AX20
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
For more information, please visit
http://www.tp-link.com/products/details/Archer-AX20.html
or scan the QR code left
Attention: This device may only be used indoors in all EU member states and EFTA countries. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Specications are subject to change without notice.
Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specications. Actual wireless data throughput, wireless coverage and number of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume
and density of trac, and client location.
Use of 802.11ax (Wi-Fi 6), and features including OFDMA, 1024-QAM and BSS Color requires clients to also support those features.
§
4x average throughput refers to 4x increase in median throughput under dense environment (i.e. 8+ Wi-Fi 6 devices connected with combined speeds not higher than ISP oers) compared to a 2×2 11ac wave 2 router.
1,000 Mbps internet speeds require compatible service plans and equipment.
©2020 TP-Link
